Model Maytag MED8630HC1 LAUNDRY, RESIDENTIAL, ELECTRIC DRYER – Common Parts & Diagrams
01 - COVER SHEET

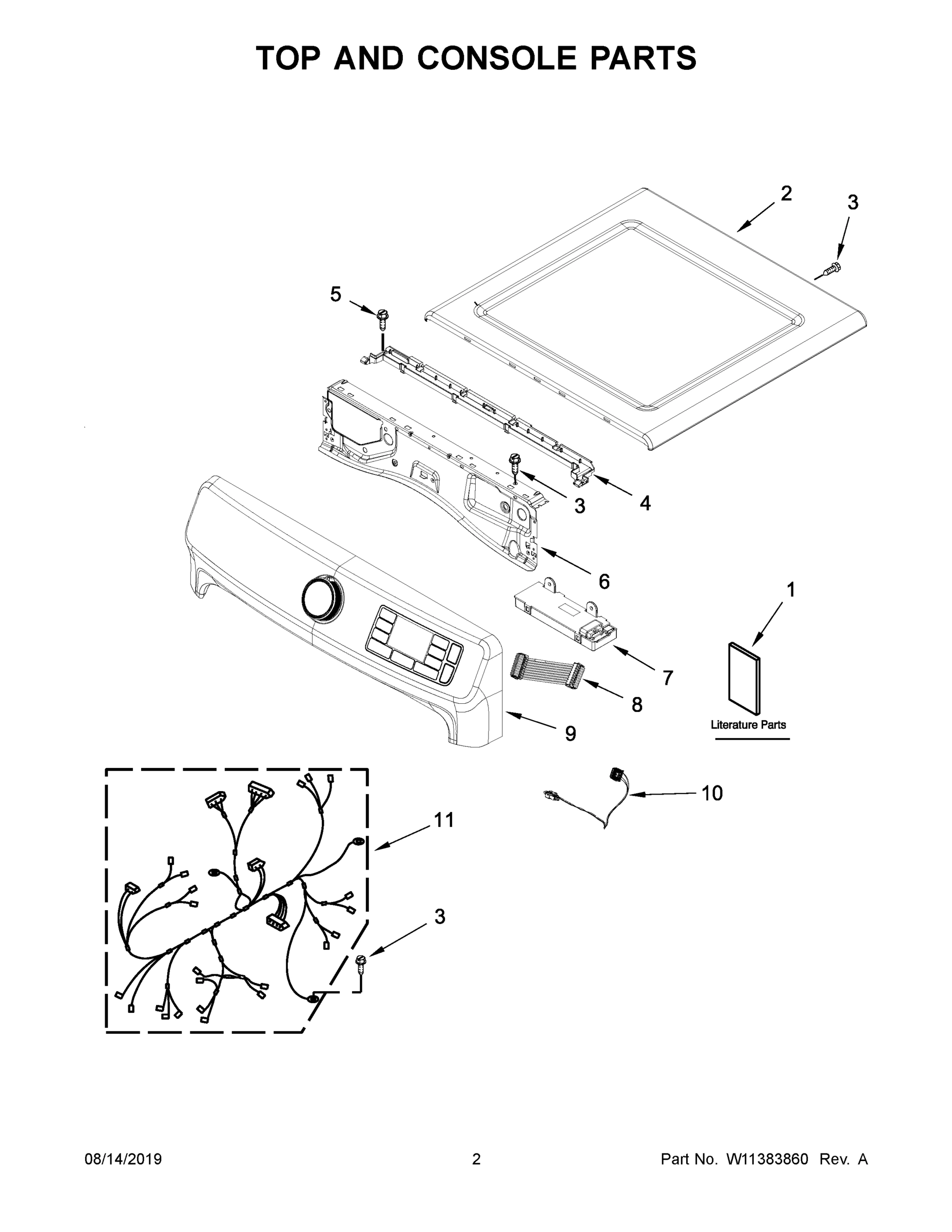

02 - TOP AND CONSOLE PARTS

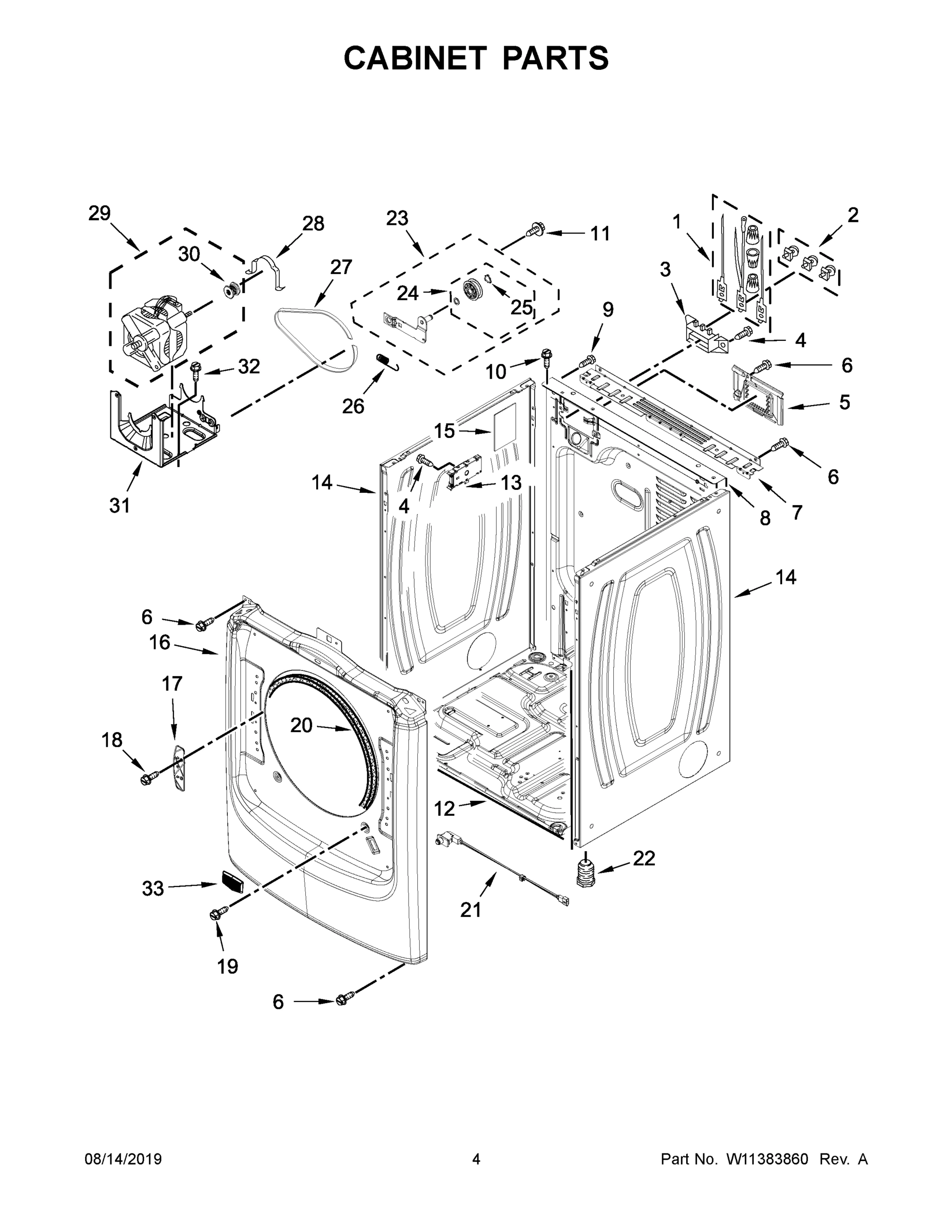

03 - CABINET PARTS

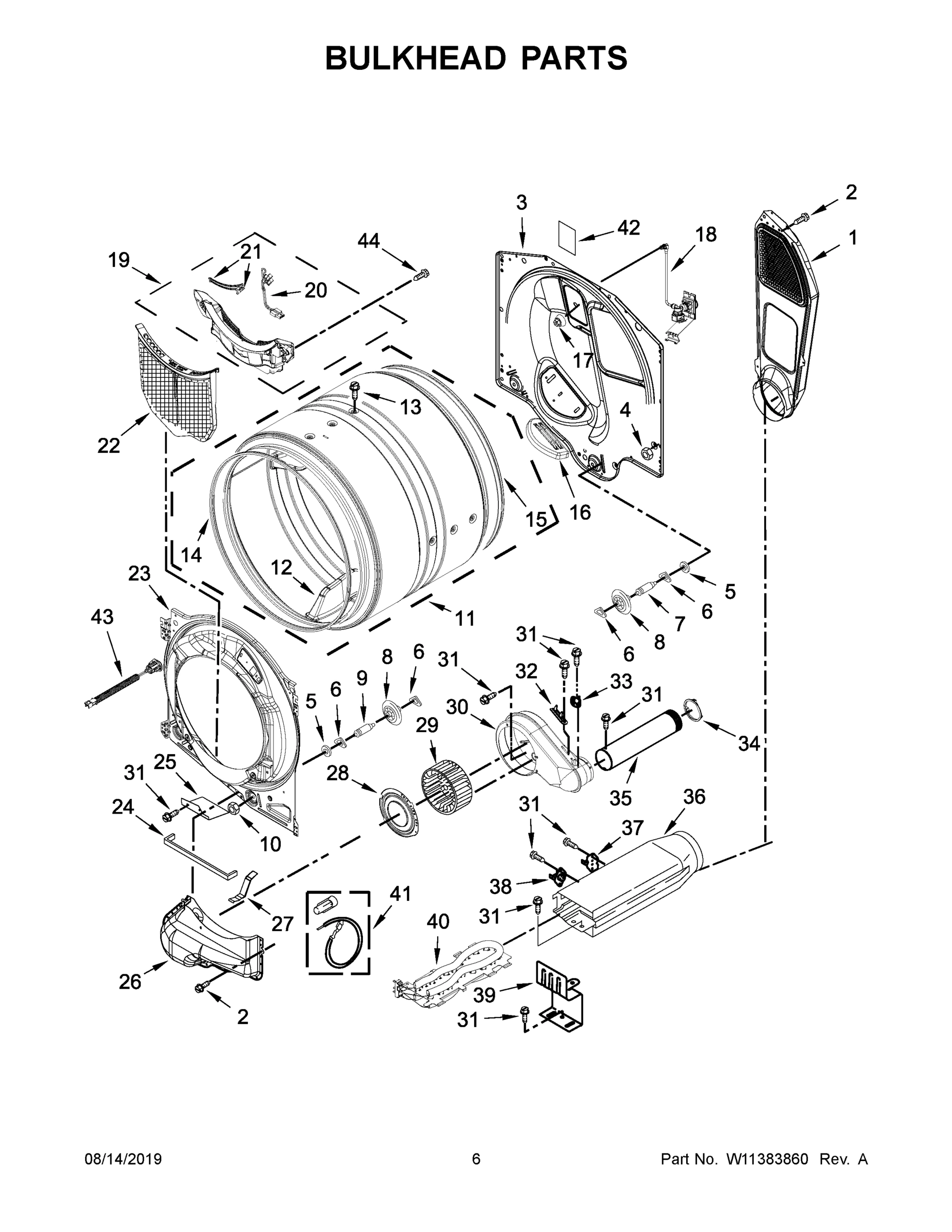

04 - BULKHEAD PARTS

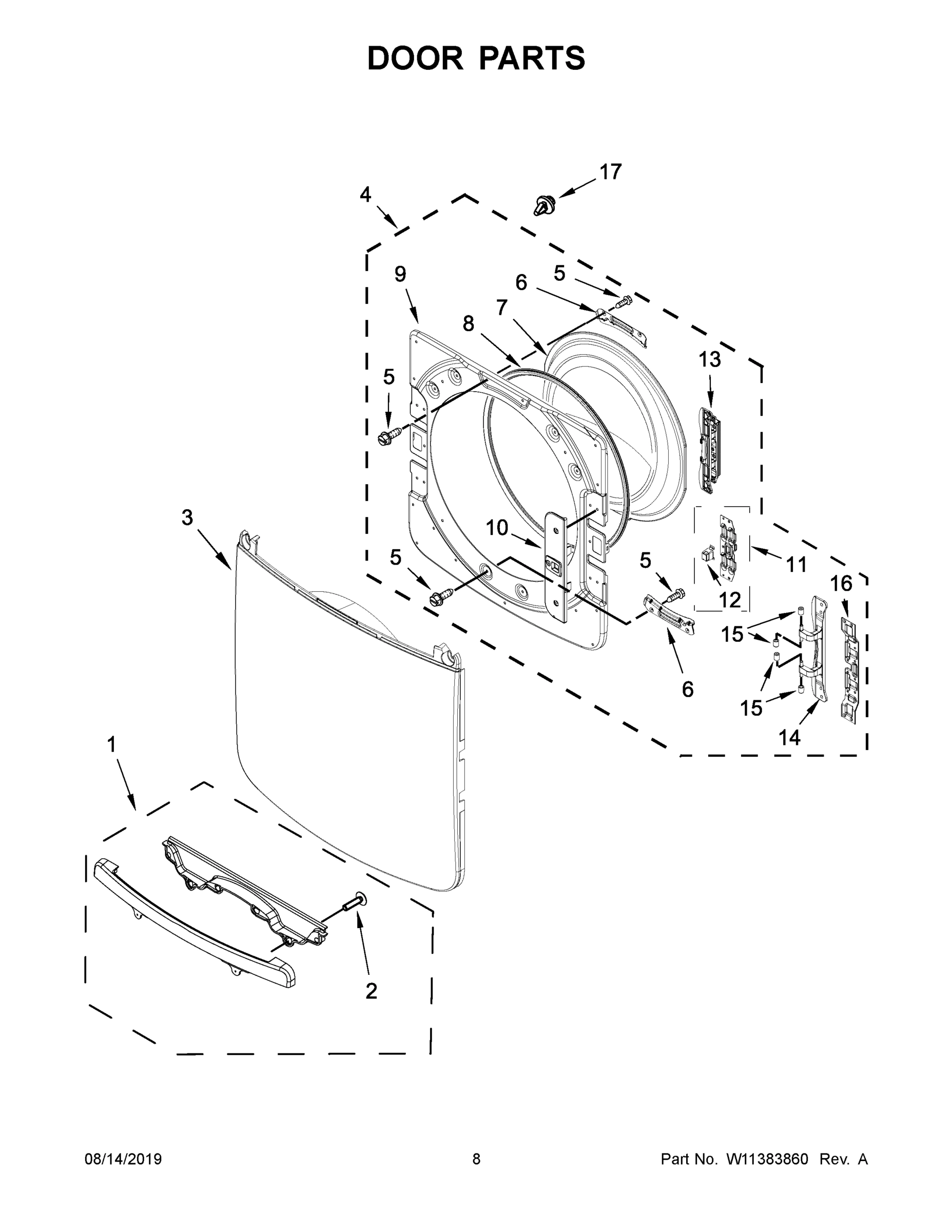

05 - DOOR PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MED8630HC1 LAUNDRY, RESIDENTIAL, ELECTRIC DRYER
1
MAY W11204389 MAY W11204389 Contact Us For Availability
1
TERMINAL, BRASS AND TINNED (INCLUDES TERMINAL MAY 279318 Contact Us For Availability
1
ASSEMBLY, AIR DUCT MAY W11104018 Contact Us For Availability
1
HANDLE, DOOR (CHROME) MAY W10626038 Contact Us For Availability
1A
MAY W11184899 MAY W11184899 Contact Us For Availability
1B
MAY W11183136 MAY W11183136 Contact Us For Availability
1C
MAY W11241396 MAY W11241396 Contact Us For Availability
1D
MAY W11184894 MAY W11184894 Contact Us For Availability
2
TOP (WHITE) MAY W10208383 Contact Us For Availability
2
SCREW MAY 3390647 Contact Us For Availability
2
SCREW KIT, TERMINAL BLOCK MAY 279393 Contact Us For Availability
2
SCREW MAY 9742177 Contact Us For Availability
2A
TOP (CHROME SHADOW) MAY W10460919 Contact Us For Availability
3
BLOCK, TERMINAL MAY 3397659 Contact Us For Availability
3
MAY W11209934 MAY W11209934 Contact Us For Availability
3
MAY W11196020 MAY W11196020 Contact Us For Availability
4
MAY W11255768 MAY W11255768 Contact Us For Availability
4
SCREW MAY 489463 Contact Us For Availability
4
NUT, HEX (LEFT HAND THREAD) MAY W10001120 Contact Us For Availability
4
MAY W11283318 MAY W11283318 Contact Us For Availability
5
SCREW MAY 12990702 Contact Us For Availability
5
COVER, TERMINAL BLOCK MAY W10316167 Contact Us For Availability
5
SCREW MAY W10288126 Contact Us For Availability
5
WASHER MAY 3387459 Contact Us For Availability
6
BRACKET, CONSOLE MAY W10208198 Contact Us For Availability
6
WASHER, TRI RING MAY W10512946 Contact Us For Availability
6
BRACKET, GLASS MAY W10208252 Contact Us For Availability
7
MAY W11123730 MAY W11123730 Contact Us For Availability
7
BRACKET, REAR MAY W10208382 Contact Us For Availability
7
SHAFT, DRUM ROLLER - LEFT HAND THREAD MAY W10359272 Contact Us For Availability
7
GLASS, DOOR MAY W10208417 Contact Us For Availability
8
MAY W10920818 MAY W10920818 Contact Us For Availability
8
PANEL, REAR MAY W10487430 Contact Us For Availability
8
ROLLER, SUPPORT MAY W10314171 Contact Us For Availability
8
MAY W11183899 MAY W11183899 Contact Us For Availability
9
MAY W11314475 MAY W11314475 Contact Us For Availability
9
SCREW MAY W10773242 Contact Us For Availability
9
SHAFT, DRUM ROLLER - RIGHT HAND THREAD MAY W10359271 Contact Us For Availability
9
DOOR, INNER MAY W10272388 Contact Us For Availability
9A
MAY W11314480 MAY W11314480 Contact Us For Availability
10
MAY W11036819 MAY W11036819 Contact Us For Availability
10
SCREW MAY 3393008 Contact Us For Availability
10
NUT, HEX MAY 3934666 Contact Us For Availability
10
MAY W11178949 MAY W11178949 Contact Us For Availability
11
MAY W11157867 MAY W11157867 Contact Us For Availability
11
SCREW MAY 3389420 Contact Us For Availability
11
ASSEMBLY, DRUM (COMPLETE) MAY W10541657 Contact Us For Availability
11
ASSEMBLY, DOOR CATCH MAY W10208254 Contact Us For Availability
12
BASE, CABINET MAY 8565046 Contact Us For Availability
12
BAFFLE, DRUM MAY W10280771 Contact Us For Availability
12
ASSEMBLY, SPRING CATCH MAY W10208401 Contact Us For Availability
13
MAY W11382260 MAY W11382260 Contact Us For Availability
13
SCREW MAY W10219342 Contact Us For Availability
13
ASSEMBLY, DOOR HINGE MAY W10208414 Contact Us For Availability
14
MAY W11177568 MAY W11177568 Contact Us For Availability
14
SEAL, DRUM FRONT MAY W10521122 Contact Us For Availability
14
HINGE, BASE MAY W10208415 Contact Us For Availability
14A
MAY W11177570 MAY W11177570 Contact Us For Availability
15
PAD, FOAM MAY W10504381 Contact Us For Availability
15
SEAL, DRUM MAY W10521118 Contact Us For Availability
15
CAP, HINGE MAY W10208398 Contact Us For Availability
16
PANEL, FRONT (WHITE) MAY W10651060 Contact Us For Availability
16
SENSOR ASSEMBLY, QUAD BULKHEAD MAY W10677270 Contact Us For Availability
16
PLATE, HINGE RETAINER MAY W10208419 Contact Us For Availability
16A
PANEL, FRONT (CHROME SHADOW) MAY W10637127 Contact Us For Availability
17
STRIKE, DOOR MAY W10208250 Contact Us For Availability
17
NOZZLE, CAP MAY W11100488 Contact Us For Availability
17
BUMPER, DOOR MAY W11178950 Contact Us For Availability
18
VALVE AND HOSE ASSEMBLY MAY W11157054 Contact Us For Availability
19
SCREW MAY 3357011 Contact Us For Availability
19
ASSEMBLY, OUTLET GRILL AND HOUSING MAY W10672683 Contact Us For Availability
20
SEAL, FRONT PANEL MAY 3387242 Contact Us For Availability
20
HARNESS, SENSOR MAY W10298258 Contact Us For Availability
21
DOOR SWITCH, SNAP IN MAY W10569114 Contact Us For Availability
21
SENSOR, ELECTRODE MAY 3387223 Contact Us For Availability
22
FOOT, DRYER MAY 3392100 Contact Us For Availability
22
LINT SCREEN (WHITE) MAY W10516085 Contact Us For Availability
23
ASSEMBLY, IDLER MAY W10547287 Contact Us For Availability
23
BULKHEAD, FRONT MAY W10673491 Contact Us For Availability
24
ASSEMBLY, PULLEY MAY W10468057 Contact Us For Availability
24
SEAL, HOUSING OUTLET MAY W10211950 Contact Us For Availability
25
MAY W11257251 MAY W11257251 Contact Us For Availability
26
SPRING, IDLER MAY W10446781 Contact Us For Availability
26
ASSEMBLY, LINT DUCT MAY W10211896 Contact Us For Availability
27
BELT, DRIVE MAY 3387610 Contact Us For Availability
27
CLIP, LINT DUCT MAY W10414388 Contact Us For Availability
28
CLAMP, MOTOR MOUNT MAY W10121316 Contact Us For Availability
28
MAY W11254843 MAY W11254843 Contact Us For Availability
29
ASSEMBLY, MOTOR MAY W10806758 Contact Us For Availability
29
WHEEL, BLOWER MAY 697772 Contact Us For Availability
30
PULLEY, MOTOR MAY 8066184 Contact Us For Availability
30
HOUSING, BLOWER MAY W10211911 Contact Us For Availability
31
BRACKET, MOTOR MOUNTING MAY W10242878 Contact Us For Availability
31
SCREW MAY 693995 Contact Us For Availability
32
SCREW MAY 343641 Contact Us For Availability
32
FUSE, THERMAL (91C) MAY W10693363 Contact Us For Availability
33
BADGE, MAYTAG MAY W10639171 Contact Us For Availability
33
THERMISTOR MAY 8577274 Contact Us For Availability
34
COLLAR, DUCT MAY W10344699 Contact Us For Availability
35
EXHAUST PIPE MAY W10342188 Contact Us For Availability
36
ASSEMBLY, WELD HEATER BOX MAY W10891205 Contact Us For Availability
37
KIT, THERMAL CUT-OFF (INCLUDES THERMOSTAT) MAY 280148 Contact Us For Availability
38
THERMOSTAT, HIGH LIMIT MAY 8557403 Contact Us For Availability
39
BRACKET, HEATER BOX MAY 8066099 Contact Us For Availability
40
MAY W11045584 MAY W11045584 Contact Us For Availability
41
TERMINAL WIRE KIT (FOR HEATER ELEMENT WIRING MAY 279457 Contact Us For Availability
42
PAD, FOAM MAY W10653662 Contact Us For Availability
43
MAY W11203983 MAY W11203983 Contact Us For Availability
44
SCREW MAY W10794806 Contact Us For Availability
NI
FOOT, OPTIONAL (EXTENDED LENGTH PACKAGE OF 2) MAY 279810 Contact Us For Availability
NI
DRYER EXHAUST KIT NOT INCLUDED, KIT, 4-WAY VE MAY W10323246 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, HOLD DOWN MAY 346764 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. GRAY PRIMER) MAY 350938 Contact Us For Availability
NI
ACCESSORY PARTS, WASHER, INLET HOSE MAY 3976300 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, DRYER REPAIR MAY 80047 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, DRYER VENT TESTING MAY 8522199 Contact Us For Availability
NI
POWER CORD, 4', 30 AMP, 3 WIRE, DRYER CORD MAY PT220L Contact Us For Availability
NI
POWER CORD, 4', 30 AMP, 4 WIRE, DRYER CORD MAY PT400L Contact Us For Availability
NI
POWER CORD, 6', 30 AMP, 4 WIRE, DRYER CORD MAY PT600L Contact Us For Availability
NI
ACCESSORY PARTS, HOSE KIT FOR STEAM DRYER MAY W10044609 Contact Us For Availability
NI
ACCESSORY PARTS, WASHER, HOSE MAY W10242307 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, DOOR REVERSING MAY W10315283 Contact Us For Availability
NI
ACCESSORY PARTS, RACK, DRYER MAY W10322470 Contact Us For Availability
NI
ACCESSORY PARTS, CONNECTOR, HOSE -"Y" MAY W10336486 Contact Us For Availability
NI
ACCESSORY PARTS, HOSE, INLET (2') MAY W10439655 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. CHROME SHADOW) MAY W10446202 Contact Us For Availability
NI
MAY W10623830 MAY W10623830 Contact Us For Availability
NI
ACCESSORY PARTS, BAG ASSEMBLY, INCLUDES THE F MAY W10676169 Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSE, 5 FT (COLD WATER MAY W10782875 Contact Us For Availability
NI
MAY W10869845 MAY W10869845 Contact Us For Availability
× ![]()
