Model Whirlpool MDU500CBB DISHWASHER – Common Parts & Diagrams
01 - CONTROL PANEL

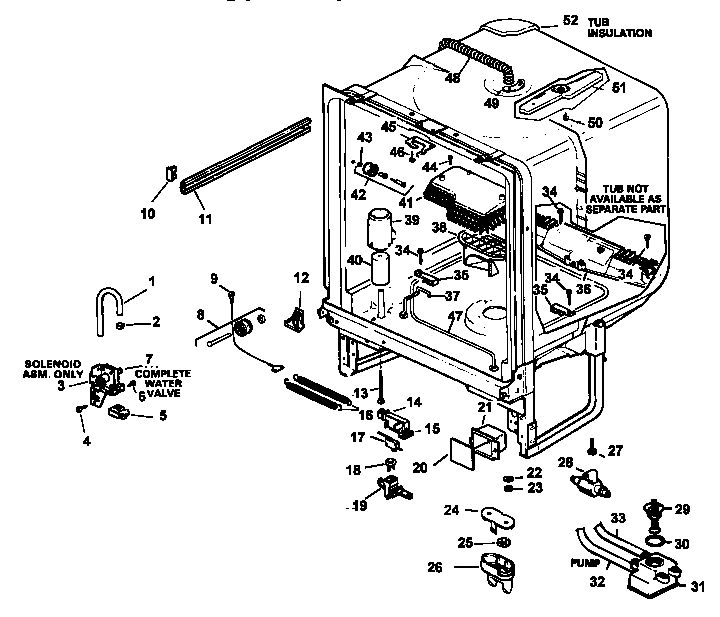

03 - TUB ASSY

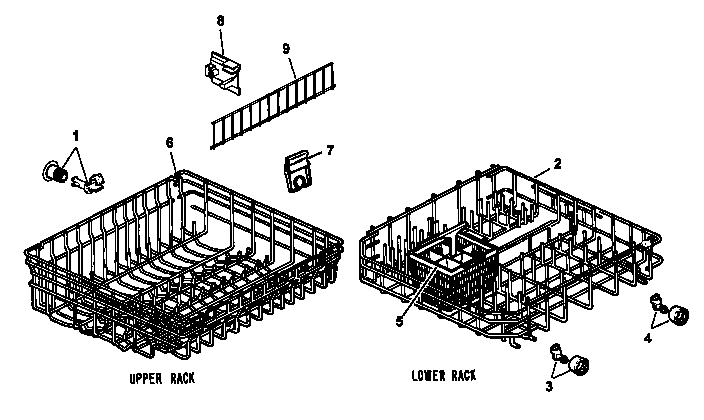

04 - UPPER/LOWER RACKS

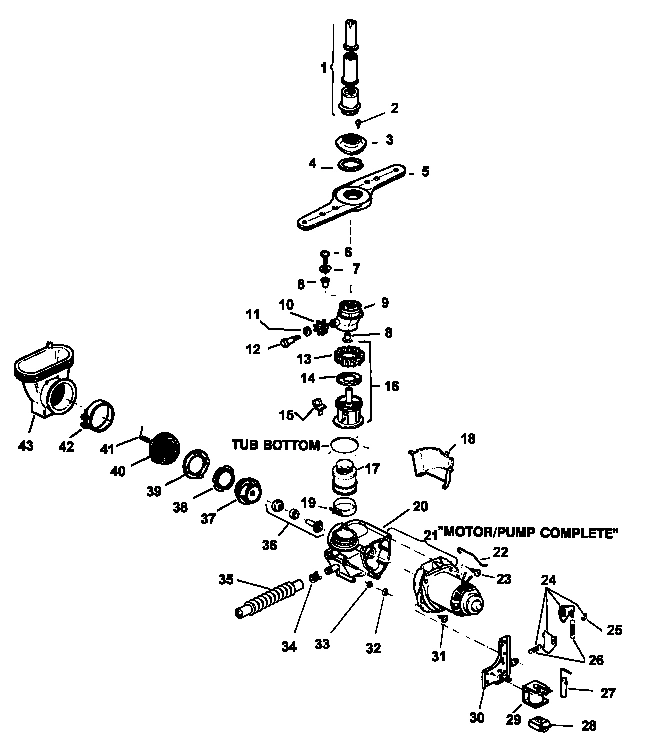

05 - WATER DISTRIBUTION COMPONENTS

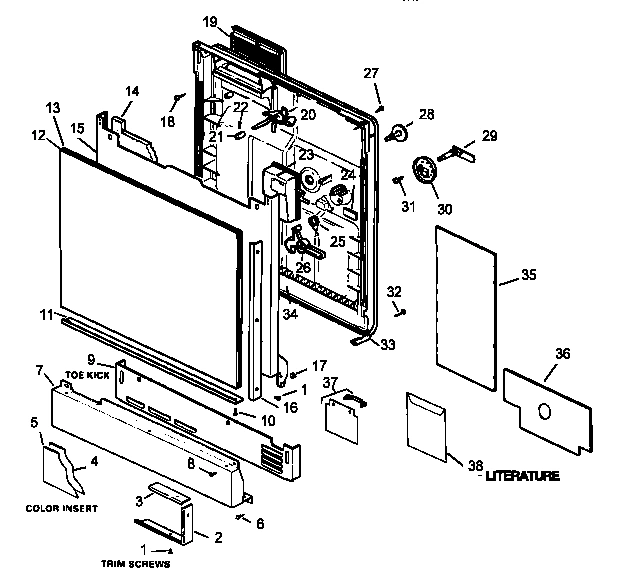

02 - DOOR AND DOOR TRIM
Common parts from model Whirlpool MDU500CBB DISHWASHER
1
PUSH BUTTON WPL R0903571 Contact Us For Availability
1
HOSE, WATER INLET WPL R0903514 Contact Us For Availability
1
ROLLER STUD ASSY. (1= 4 PACK) WPL R0910005 Contact Us For Availability
1
CENTER SPRAY ASSY WPL R0910017 Contact Us For Availability
1
SCREW WPL R0900042 Contact Us For Availability
2
ASSY, TIMER KNOB WPL R0903597 Contact Us For Availability
2
LOWER RACK & ROLLER TM WPL R0910152 Contact Us For Availability
2
TRIM ACCESS WIDE {BLA WPL R0905762 Contact Us For Availability
3
INSERT ESCUTCHEON WPL R0905744 Contact Us For Availability
3
SOLENOID ASSEMBLY, WATER VALVE WPL R0909002 Contact Us For Availability
3
LOWER ROLLER ASSY WPL R0910149 Contact Us For Availability
3
ADAPTER PWR TWR WPL R0905558 Contact Us For Availability
3
TRIM,ACCESS TOP WIDE {BL WPL R0905771 Contact Us For Availability
4
ESCUTCHEON WPL R0905743 Contact Us For Availability
4
SCR 10-24X3/8 TT HEX WPL R0900012 Contact Us For Availability
4
ROLLER ASSY WPL R0910150 Contact Us For Availability
4
SEAL, SPLIT RING WPL R0905557 Contact Us For Availability
4
INSULATOR, INSERT PANEL WPL R0910036 Contact Us For Availability
5
RETAINER, P.B. SWITCH WPL R0902528 Contact Us For Availability
5
BASKET,SILVERWARE WPL R0910113 Contact Us For Availability
5
SPRAY ARM WPL R0910051 Contact Us For Availability
5
INSERT, DOOR PANEL WPL R0903019 Contact Us For Availability
6
SWITCH PUSH BUTTON WPL R0902526 Contact Us For Availability
6
SCREW WPL R0900011 Contact Us For Availability
6
UPPER RACK & ROLLER TM WPL R0910151 Contact Us For Availability
6
SCREW, HUB WPL R0900045 Contact Us For Availability
7
COVER, P.B SWITCH WPL R0902535 Contact Us For Availability
7
VALVE, WATER INLET (W/SOLENOID WPL R0910033 Contact Us For Availability
7
WASHER WPL R0900502 Contact Us For Availability
7
PANEL,ACCESS AND SCREW BK WPL R0903035 Contact Us For Availability
8
SWITCH, INTERLOCK WPL R0902506 Contact Us For Availability
8
ROLLER & STUD KIT WPL R0910013 Contact Us For Availability
8
SUPPORT, SHELF {WHI WPL R0910153 Contact Us For Availability
8
BEARING WPL R0905556 Contact Us For Availability
8
SCREW WPL R0900017 Contact Us For Availability
9
SHIELD, SWITCH WPL R0905534 Contact Us For Availability
9
CABLE AND EYELET WPL R0910012 Contact Us For Availability
9
SHELF TM WPL R0910154 Contact Us For Availability
9
HUB/PINION ASSY WPL R0905555 Contact Us For Availability
9
TOE KICK ASSY WPL R0903022 Contact Us For Availability
10
SWITCH LEAF WPL R0905533 Contact Us For Availability
10
END CAP WPL R0903517 Contact Us For Availability
10
PINION GEAR WPL R0910016 Contact Us For Availability
11
SWITCH, CYCLE WPL R0902507 Contact Us For Availability
11
RACK SLIDE WPL R0905567 Contact Us For Availability
11
WASHER WPL R0900504 Contact Us For Availability
11
TRIM DOOR BTM WIDE E WPL R0905768 Contact Us For Availability
12
HOUSING TERMINAL WPL R0910049 Contact Us For Availability
12
TERM SPEC.(1=12) WPL R0910050 Contact Us For Availability
12
HOUSING, TERMINAL WPL R0910123 Contact Us For Availability
12
BAFFLE, TUBE CORNER RH WPL R0905596 Contact Us For Availability
12
BAFFLE TUB CORNER LH WPL R0905597 Contact Us For Availability
12
SCREW WPL R0900015 Contact Us For Availability
12
INSERT, DOOR PANEL WPL R0903018 Contact Us For Availability
13
SPRING, TIMER LEVER WPL R0905541 Contact Us For Availability
13
FLOAT STEM WPL R0905512 Contact Us For Availability
13
NUT WPL R0901004 Contact Us For Availability
13
TRIP SPRING WPL R0905542 Contact Us For Availability
13
INSULATOR WPL R0906002 Contact Us For Availability
14
SCREW WPL R0900009 Contact Us For Availability
14
BRKT, FLOOD SWITCH WPL R0905513 Contact Us For Availability
14
SEAL LOWER WPL R0910029 Contact Us For Availability
14
INSULATION WPL R0904524 Contact Us For Availability
15
LENS WPL R0910061 Contact Us For Availability
15
COVER SWITCH BRKT WPL R0905514 Contact Us For Availability
15
CHECK VALVE WPL R0910037 Contact Us For Availability
15
DOOR & HINGE ASSY, OUTER WPL R0905637 Contact Us For Availability
16
ASS`Y PILOT LIGHT WPL R0910159 Contact Us For Availability
16
DOOR SPRING BLUE WPL R0905503 Contact Us For Availability
16
SPRING, DOOR (WHITE 32.5``) WPL R0905741 Contact Us For Availability
16
SUPT & NUT ARM WPL R0901009 Contact Us For Availability
16
TRIM DOOR SIDE WIDE {BLA WPL R0905765 Contact Us For Availability
17
LEVER, TIMER WPL R0905545 Contact Us For Availability
17
SWITCH FLOOD WPL R0902501 Contact Us For Availability
17
CONNECTOR, PUMP WPL R0903520 Contact Us For Availability
17
HINGE ARM BEARING WPL R0905537 Contact Us For Availability
18
CAM, TIMER WPL R0904015 Contact Us For Availability
18
THERMINAL PIN & SOCKET WPL R0906007 Contact Us For Availability
18
THERMOSTAT, WATER WPL R0911002 Contact Us For Availability
19
TIMER WPL R0904017 Contact Us For Availability
19
RECEPTACLE WPL R0910021 Contact Us For Availability
19
DOOR VENT WPL R0905536 Contact Us For Availability
20
SHIELD, TIMER WPL R0904016 Contact Us For Availability
20
COVER, JUNC BOX WPL R0903032 Contact Us For Availability
20
MOTOR/PUMP ASSY DISHWA WPL R0910001 Contact Us For Availability
20
LATCH ASM WPL R0910121 Contact Us For Availability
21
BOX, JUNCTION WPL R0903587 Contact Us For Availability
21
MOTOR/PUMP ASSY DISHWA WPL R0907005 Contact Us For Availability
21
KNOB, LATCH HANDLE WPL R0903596 Contact Us For Availability
22
WASHER WPL R0900501 Contact Us For Availability
22
HANGER MECHANISM WPL R0905712 Contact Us For Availability
23
GROMMET WPL R0906502 Contact Us For Availability
23
RINSE AID INJECTOR ASSY WPL R0905618 Contact Us For Availability
24
BASE BARRIER WPL R0903580 Contact Us For Availability
24
GATE VALVE ARM KIT WPL R0905619 Contact Us For Availability
24
DEFLECTER WPL R0905523 Contact Us For Availability
25
NUT WPL R0901001 Contact Us For Availability
25
GUARD WPL R0905522 Contact Us For Availability
25
RETAINER WPL R0901503 Contact Us For Availability
26
BARRIER, HTG ELEMENT WPL R0903581 Contact Us For Availability
26
SPRING, GATE ARM WPL R0905529 Contact Us For Availability
26
LATCH DETERGENT CUP WPL R0905539 Contact Us For Availability
27
ELEMENT HEATING ASSEMBLY WPL R0911007 Contact Us For Availability
27
ARMATURE & LINK ASSY WPL R0905517 Contact Us For Availability
28
INSUL, HSG TERMINAL WPL R0903582 Contact Us For Availability
28
CHECK VALVE WPL R0910053 Contact Us For Availability
28
ASSY RINSE AID DISP. WPL R0910155 Contact Us For Availability
29
PISTON & NUT ASSY WPL R0903586 Contact Us For Availability
29
SOLENOID KIT WPL R0909003 Contact Us For Availability
29
SHAFT HAND D CUP WPL R0905615 Contact Us For Availability
30
GASKET WPL R0904503 Contact Us For Availability
30
BRACKET-SOLENOID WPL R0905639 Contact Us For Availability
30
DETERGENT CUP COVER WPL R0910010 Contact Us For Availability
31
COLL. CHAMBER WPL R0910054 Contact Us For Availability
31
SCREW WPL R0900007 Contact Us For Availability
32
HOSE, CHAMBER WPL R0906506 Contact Us For Availability
32
NUT WPL R0906510 Contact Us For Availability
32
SCREW WPL R0900006 Contact Us For Availability
33
HOSE, CHAMBER TO CHECK VALVE WPL R0906511 Contact Us For Availability
33
SEAL, SHAFT WPL R0906504 Contact Us For Availability
33
DOOR GASKET WPL R0904507 Contact Us For Availability
34
CLAMP WPL R0901510 Contact Us For Availability
34
DOOR, INNER WPL R0903021 Contact Us For Availability
35
SUPPORT HEATER REAR WPL R0905633 Contact Us For Availability
35
DRAIN TUBE ASM WPL R0903584 Contact Us For Availability
35
DAMPER, SOUND WPL R0904531 Contact Us For Availability
36
ASSY, FILTER FRAME WPL R0910122 Contact Us For Availability
36
SEAL,PUMP WPL R0910148 Contact Us For Availability
36
DAMPER, SOUND WPL R0904532 Contact Us For Availability
37
SUPPORT, HEATER WPL R0911008 Contact Us For Availability
37
SWITCH FLOOD WPL R0902515 Contact Us For Availability
37
PUMP IMPELLER WPL R0905519 Contact Us For Availability
37
DRIP SHIELD WPL R0910011 Contact Us For Availability
38
CAP, SUMP WPL R0905718 Contact Us For Availability
38
WEAR RING WPL R0905520 Contact Us For Availability
38
INSTR INSTALL {DW} WPL R0913059 Contact Us For Availability
38
OWNERS MANUAL (AM DISHWASHER) WPL R0913060 Contact Us For Availability
38
INSTR, OPERATING WPL R0913063 Contact Us For Availability
38
MNL, MINI SHEET WPL R0913065 Contact Us For Availability
39
FLOAT WPL R0905511 Contact Us For Availability
39
WEAR RING BASE WPL R0905518 Contact Us For Availability
40
FLOOD FLOAT WPL R0903501 Contact Us For Availability
40
NUT WPL R0905563 Contact Us For Availability
41
COVER INLET WPL R0905717 Contact Us For Availability
41
SPRING, CUTTER WPL R0905521 Contact Us For Availability
42
TUB ROLLER & STUD KIT WPL R0910004 Contact Us For Availability
43
No.8 TYPE A SET SST WASHER WPL R0900503 Contact Us For Availability
43
SUMP, INLET WPL R0905719 Contact Us For Availability
44
SCREW WPL R0900008 Contact Us For Availability
45
LATCH KEEPER WPL R0905505 Contact Us For Availability
46
SCREW WPL R0900025 Contact Us For Availability
47
HEATER WPL R0911009 Contact Us For Availability
48
HOSE, SHOWER ASSY WPL R0903527 Contact Us For Availability
49
NUT WPL R0901003 Contact Us For Availability
50
SCREW WPL R0900013 Contact Us For Availability
51
ASSY, PWR SHOWER WPL R0905554 Contact Us For Availability
52
INSULATION, TUB WPL R0904534 Contact Us For Availability
NI
WASHER WPL R0900507 Contact Us For Availability
× ![]()
