Model Maytag MDG28PDCXW0 COMMERCIAL GAS DRYER – Common Parts & Diagrams
01 - COVER SHEET

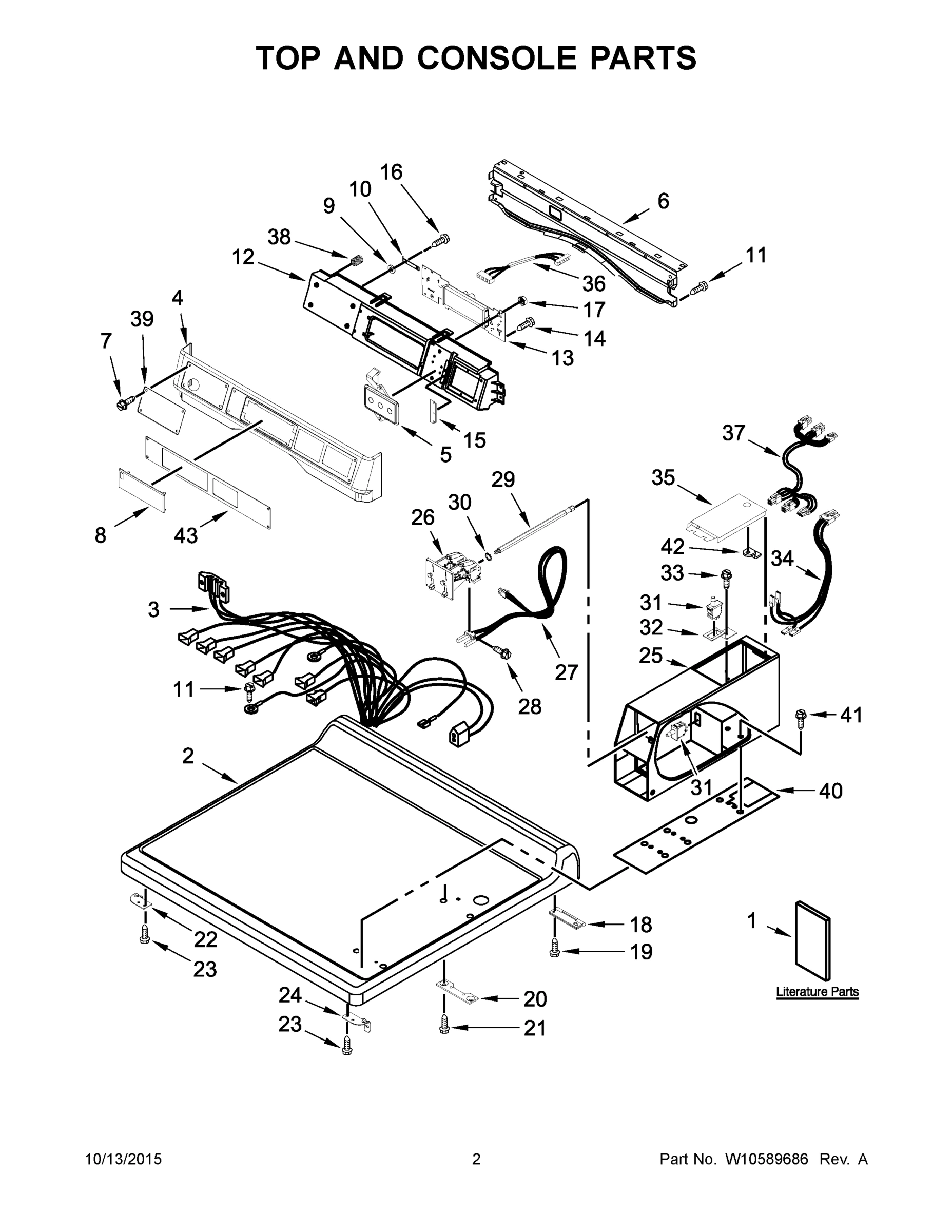

02 - TOP AND CONSOLE PARTS

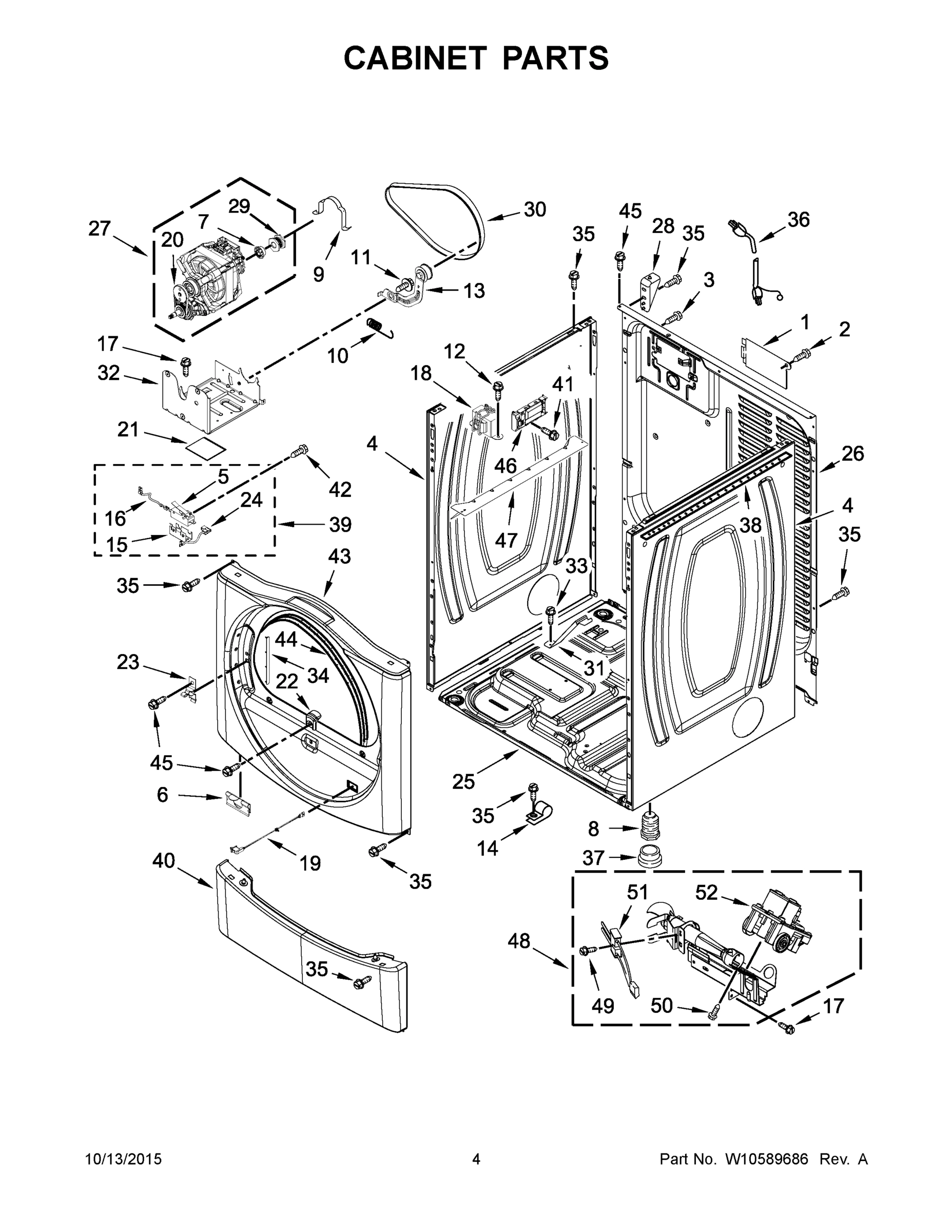

03 - CABINET PARTS

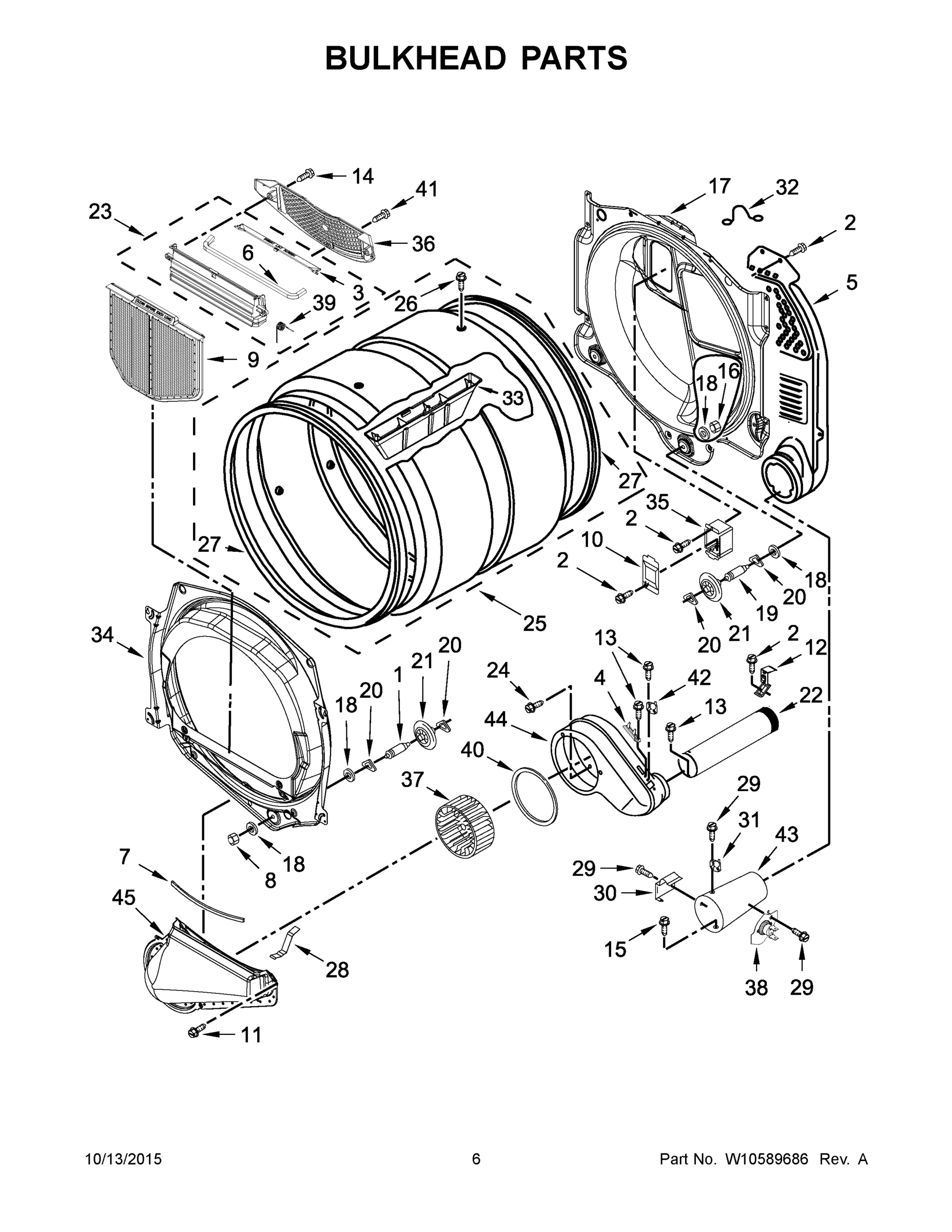

04 - BULKHEAD PARTS

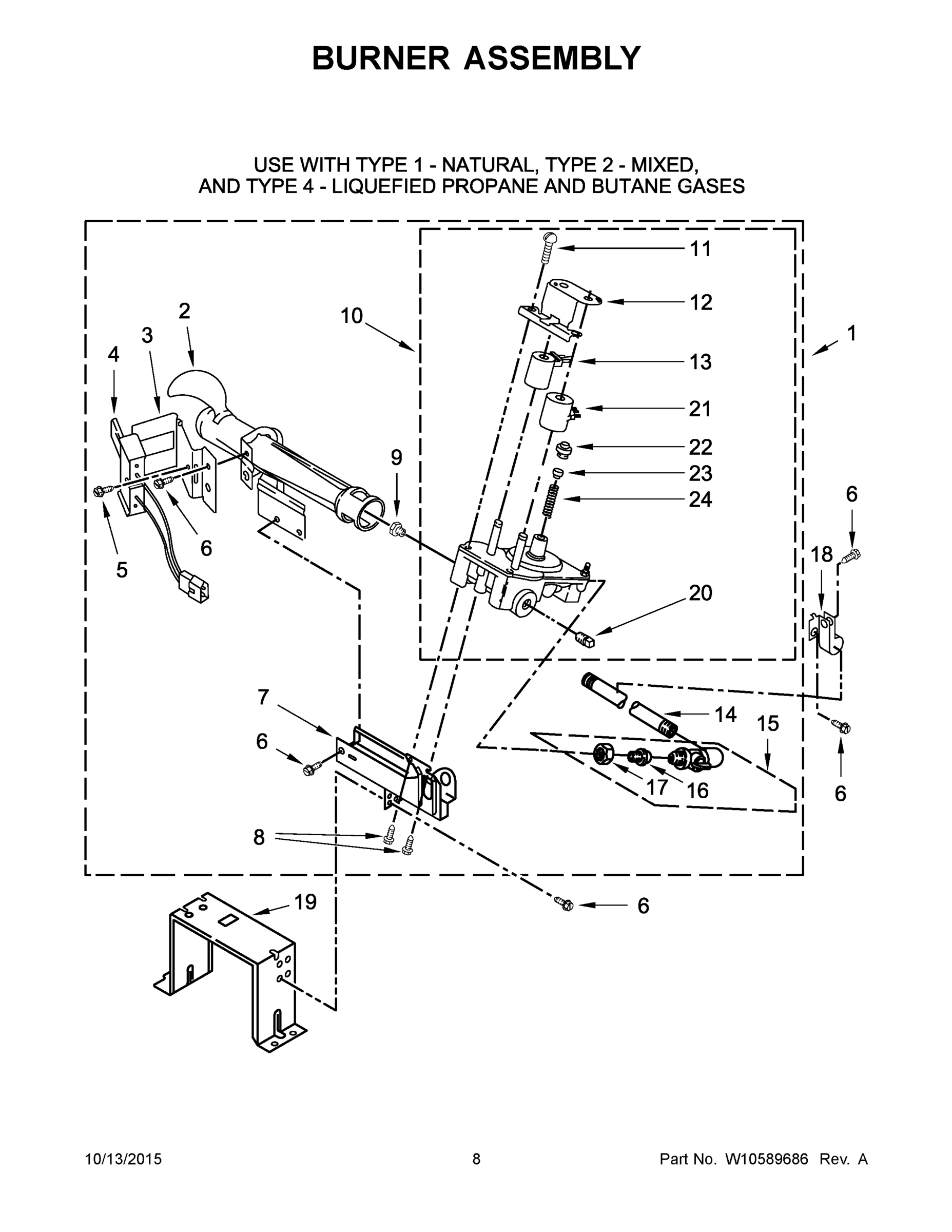

05 - BURNER ASSEMBLY

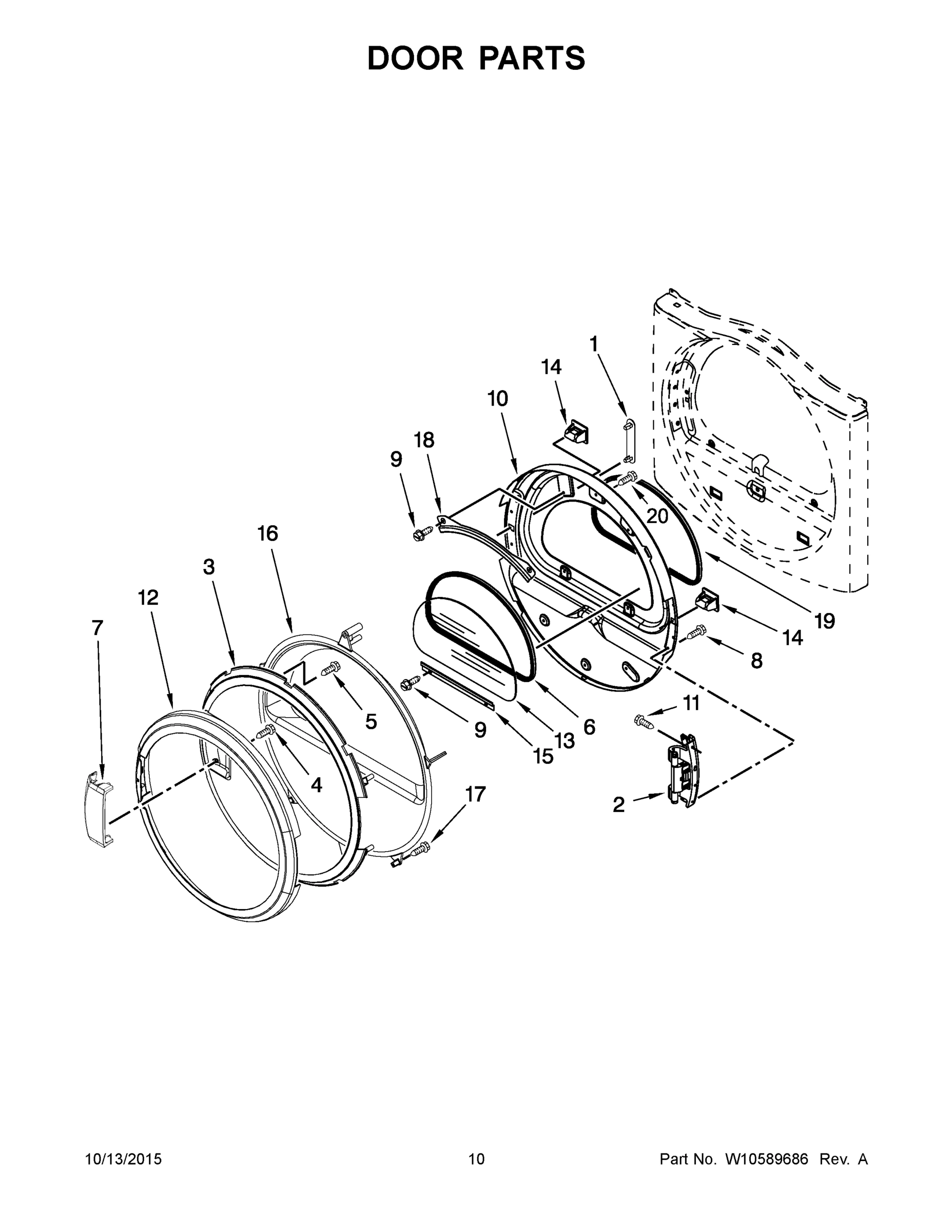

06 - DOOR PARTS
07 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MDG28PDCXW0 COMMERCIAL GAS DRYER
1
MAY W10590740 MAY W10590740 Contact Us For Availability
1
MAY 8317340 MAY 8317340 Contact Us For Availability
1
BURNER ASSEMBLY (60 HZ) MAY W10135231 Contact Us For Availability
1
SHAFT, DRUM ROLLER - RIGHT HAND THREAD MAY W10359271 Contact Us For Availability
1
HOLE COVER, HINGE MAY 8565119 Contact Us For Availability
1A
MAY W10589717 MAY W10589717 Contact Us For Availability
2
MAY W10137411 MAY W10137411 Contact Us For Availability
2
SCREW MAY 3390647 Contact Us For Availability
2
SCREW MAY 3390814 Contact Us For Availability
2
MAY 688617 MAY 688617 Contact Us For Availability
2
ASSEMBLY, DOOR HINGE MAY W10304672 Contact Us For Availability
3
MAY W10555112 MAY W10555112 Contact Us For Availability
3
MAY W10773242 MAY W10773242 Contact Us For Availability
3
MAY W10153413 MAY W10153413 Contact Us For Availability
3
MAY 694298 MAY 694298 Contact Us For Availability
3
MAY W10137467 MAY W10137467 Contact Us For Availability
4
MAY W10779120 MAY W10779120 Contact Us For Availability
4
MAY W10542714 MAY W10542714 Contact Us For Availability
4
MAY 686590 MAY 686590 Contact Us For Availability
4
FUSE, THERMAL (91C) MAY 3392519 Contact Us For Availability
4
SCREW MAY 9742177 Contact Us For Availability
5
MAY W10779142 MAY W10779142 Contact Us For Availability
5
ASSEMBLY, SWITCH AND ACTUATOR MAY 8564010 Contact Us For Availability
5
SCREW MAY 3393909 Contact Us For Availability
5
ASSEMBLY, AIR DUCT MAY 3394346 Contact Us For Availability
5
SCREW MAY 3400618 Contact Us For Availability
6
MAY 8565237 MAY 8565237 Contact Us For Availability
6
MAY 8519459 MAY 8519459 Contact Us For Availability
6
SCREW MAY 343641 Contact Us For Availability
6
MAY 697813 MAY 697813 Contact Us For Availability
6
MAY 8579663 MAY 8579663 Contact Us For Availability
7
SCREW MAY W10137457 Contact Us For Availability
7
MAY 3393657 MAY 3393657 Contact Us For Availability
7
MAY 697814 MAY 697814 Contact Us For Availability
7
MAY 3389871 MAY 3389871 Contact Us For Availability
7
MAY W10112976 MAY W10112976 Contact Us For Availability
8
COVER, DISPLAY MAY W10267645 Contact Us For Availability
8
MAY 3392100 MAY 3392100 Contact Us For Availability
8
SCREW MAY 3387057 Contact Us For Availability
8
NUT, HEX MAY 3934666 Contact Us For Availability
8
SCREW MAY W10159996 Contact Us For Availability
9
MAY W10189075 MAY W10189075 Contact Us For Availability
9
MAY 660658 MAY 660658 Contact Us For Availability
9
LINT SCREEN (WHITE) MAY W10596627 Contact Us For Availability
9
ORIFICE, BURNER (TYPE 1 (NATURAL)) MAY 234870 Contact Us For Availability
9
SCREW MAY 3393258 Contact Us For Availability
9A
MAY 234868 MAY 234868 Contact Us For Availability
10
MAY W10532923 MAY W10532923 Contact Us For Availability
10
MAY W10446781 MAY W10446781 Contact Us For Availability
10
VALVE, GAS (60 HZ - COMPLETE) MAY W10141728 Contact Us For Availability
10
MAY 3402841 MAY 3402841 Contact Us For Availability
10
MAY W10363674 MAY W10363674 Contact Us For Availability
11
SCREW MAY 337686 Contact Us For Availability
11
SCREW MAY 3389420 Contact Us For Availability
11
MAY 359625 MAY 359625 Contact Us For Availability
11
SCREW, COIL MAY 694421 Contact Us For Availability
11
SCREW MAY 355515 Contact Us For Availability
12
MAY W10137427 MAY W10137427 Contact Us For Availability
12
CLIP, EXHAUST MAY 8572105 Contact Us For Availability
12
MAY 694538 MAY 694538 Contact Us For Availability
12
MAY W10112916 MAY W10112916 Contact Us For Availability
13
MAY W10166385 MAY W10166385 Contact Us For Availability
13
ASSEMBLY, IDLER MAY W10344192 Contact Us For Availability
13
SCREW MAY 8533971 Contact Us For Availability
13
MAY 694540 MAY 694540 Contact Us For Availability
13
MAY W10286878 MAY W10286878 Contact Us For Availability
14
SCREW MAY 489136 Contact Us For Availability
14
BRACKET, GAS PIPE MAY 3978776 Contact Us For Availability
14
SCREW MAY 3387230 Contact Us For Availability
14
MAY 694539 MAY 694539 Contact Us For Availability
14
ASSEMBLY, DOOR CATCH MAY 690081 Contact Us For Availability
15
MAY W10187276 MAY W10187276 Contact Us For Availability
15
MAY 8564011 MAY 8564011 Contact Us For Availability
15
SCREW MAY 693995 Contact Us For Availability
15
MAY 694424 MAY 694424 Contact Us For Availability
15
RETAINER, WINDOW MAY 8519354 Contact Us For Availability
16
SCREW MAY 488234 Contact Us For Availability
16
MAY W10167613 MAY W10167613 Contact Us For Availability
16
NUT, HEX (LEFT HAND THREAD) MAY W10001120 Contact Us For Availability
16
MAY 694423 MAY 694423 Contact Us For Availability
16
DOOR, INTERMEDIATE (STATIONARY) MAY 8580059 Contact Us For Availability
17
NUT MAY W10139046 Contact Us For Availability
17
MAY W10080170 MAY W10080170 Contact Us For Availability
17
MAY 694422 MAY 694422 Contact Us For Availability
17
MAY 8534022 MAY 8534022 Contact Us For Availability
18
HINGE & PIN ASSEMBLY (WHITE) MAY 8565018 Contact Us For Availability
18
MAY W10131839 MAY W10131839 Contact Us For Availability
18
WASHER MAY 3387459 Contact Us For Availability
18
MAY 3387561 MAY 3387561 Contact Us For Availability
18
RETAINER, WINDOW (UPPER) MAY 8519356 Contact Us For Availability
19
MAY 342055 MAY 342055 Contact Us For Availability
19
MAY W10350910 MAY W10350910 Contact Us For Availability
19
SHAFT, DRUM ROLLER - LEFT HAND THREAD MAY W10359272 Contact Us For Availability
19
MAY 3389889 MAY 3389889 Contact Us For Availability
19
SEAL, DOOR MAY W10163915 Contact Us For Availability
20
MAY 3347825 MAY 3347825 Contact Us For Availability
20
BELT, DRIVE (BLOWER WHEEL) MAY 3405160 Contact Us For Availability
20
MAY W10512946 MAY W10512946 Contact Us For Availability
20
MAY 239822 MAY 239822 Contact Us For Availability
20
SCREW MAY 8534044 Contact Us For Availability
21
SCREW MAY 98445 Contact Us For Availability
21
MOTOR, SOUND PAD MAY W10212660 Contact Us For Availability
21
MAY W10314171 MAY W10314171 Contact Us For Availability
21
MAY W10110395 MAY W10110395 Contact Us For Availability
22
MAY W10137445 MAY W10137445 Contact Us For Availability
22
MAY 8580015 MAY 8580015 Contact Us For Availability
22
PIPE, EXHAUST MAY 8563728 Contact Us For Availability
22
VALVE, GAS MAY 697441 Contact Us For Availability
23
STRIKE, DOOR MAY 8565122 Contact Us For Availability
23
ASSEMBLY, OUTLET HOUSING MAY W10153423 Contact Us For Availability
23
MAY 3393767 MAY 3393767 Contact Us For Availability
24
MAY W10137444 MAY W10137444 Contact Us For Availability
24
MAY 8539892 MAY 8539892 Contact Us For Availability
24
SCREW MAY 489463 Contact Us For Availability
24
MAY 233076 MAY 233076 Contact Us For Availability
25
MAY W10171128 MAY W10171128 Contact Us For Availability
25
MAY 8565046 MAY 8565046 Contact Us For Availability
25
MAY W10549246 MAY W10549246 Contact Us For Availability
26
ASSEMBLY, DUAL COIN DROP MAY W10198395 Contact Us For Availability
26
MAY 8565059 MAY 8565059 Contact Us For Availability
26
MAY W10219342 MAY W10219342 Contact Us For Availability
27
COIN OPTIC SENSOR ASSEMBLY (WHITE) MAY W10247389 Contact Us For Availability
27
MAY W10396034 MAY W10396034 Contact Us For Availability
27
MAY W10521118 MAY W10521118 Contact Us For Availability
27A
COIN OPTIC SENSOR ASSEMBLY (BLACK) MAY W10247388 Contact Us For Availability
28
SCREW MAY W10142655 Contact Us For Availability
28
MAY W10137398 MAY W10137398 Contact Us For Availability
28
MAY W10345456 MAY W10345456 Contact Us For Availability
29
BOLT, HEX BAR MAY W10137319 Contact Us For Availability
29
PULLEY, MOTOR MAY 3394341 Contact Us For Availability
29
SCREW MAY 90767 Contact Us For Availability
30
MAY W10068270 MAY W10068270 Contact Us For Availability
30
MAY W10131172 MAY W10131172 Contact Us For Availability
30
MAY 338906 MAY 338906 Contact Us For Availability
31
MAY W10131838 MAY W10131838 Contact Us For Availability
31
MAY 8529757 MAY 8529757 Contact Us For Availability
31
THERMOSTAT, HI LIMIT MAY 3391912 Contact Us For Availability
32
MAY W10133508 MAY W10133508 Contact Us For Availability
32
MAY W10135695 MAY W10135695 Contact Us For Availability
32
JUMPER, WIRE MAY 3401707 Contact Us For Availability
33
MAY W10139210 MAY W10139210 Contact Us For Availability
33
MAY W10153409 MAY W10153409 Contact Us For Availability
34
MAY W10211244 MAY W10211244 Contact Us For Availability
34
PLUG, FRONT PANEL MAY 8565043 Contact Us For Availability
34
MAY 8565061 MAY 8565061 Contact Us For Availability
35
ASSEMBLY, SERVICE DOOR MAY 3351136 Contact Us For Availability
35
MAY 8578825 MAY 8578825 Contact Us For Availability
36
MAY W10166307 MAY W10166307 Contact Us For Availability
36
MAY 3401401 MAY 3401401 Contact Us For Availability
36
MAY W10153412 MAY W10153412 Contact Us For Availability
37
MAY W10166308 MAY W10166308 Contact Us For Availability
37
MAY 3391943 MAY 3391943 Contact Us For Availability
37
MAY W10349492 MAY W10349492 Contact Us For Availability
38
INSERT MAY W10189313 Contact Us For Availability
38
SEAL, FOAM MAY 8318396 Contact Us For Availability
38
CUT-OFF, THERMAL MAY 8573713 Contact Us For Availability
39
MAY W10804029 MAY W10804029 Contact Us For Availability
39
MAY W10155571 MAY W10155571 Contact Us For Availability
39
SPRING, LINT SCREEN DOOR MAY 3394986 Contact Us For Availability
40
MAY W10137448 MAY W10137448 Contact Us For Availability
40
PANEL, TOE (WHITE) MAY 8540621 Contact Us For Availability
40
SEAL, PLATE COVER MAY 697770 Contact Us For Availability
41
BOLT METER CASE MOUNTING MAY 3349065 Contact Us For Availability
41
SCREW MAY 695240 Contact Us For Availability
42
MAY W10156125 MAY W10156125 Contact Us For Availability
42
SCREW MAY 98129 Contact Us For Availability
42
THERMISTOR MAY 8577274 Contact Us For Availability
43
MAY W10801807 MAY W10801807 Contact Us For Availability
43
PANEL, FRONT (WHITE) MAY W10549665 Contact Us For Availability
43
MAY 8573824 MAY 8573824 Contact Us For Availability
44
MAY 3387242 MAY 3387242 Contact Us For Availability
44
MAY 8544362 MAY 8544362 Contact Us For Availability
45
SCREW MAY 3357011 Contact Us For Availability
45
MAY 8066168 MAY 8066168 Contact Us For Availability
46
MAY W10166305 MAY W10166305 Contact Us For Availability
47
BRACKET, CONTROL MAY 8563727 Contact Us For Availability
NI
FOOT, OPTIONAL (EXTENDED LENGTH PACKAGE OF 2) MAY 279810 Contact Us For Availability
NI
KIT, 4-WAY VENTING MAY W10470674 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
CONVERSION KIT (TYPE 1 AND 2) TO TYPE L.P.G. MAY W10135245 Contact Us For Availability
NI
SEALER, GASKET (.20 FL. OZ.) (6ML) MAY 285195 Contact Us For Availability
NI
MAY 350930 MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. GRAY PRIMER) MAY 350938 Contact Us For Availability
NI
MAY 72017 MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, DRYER REPAIR MAY 80047 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, HOLD DOWN MAY 8529894 Contact Us For Availability
× ![]()
Login and Registration Form
