Model Maytag MDG20PRAWW0 LAUNDRY, COMMERCIAL, GAS DRYER – Common Parts & Diagrams

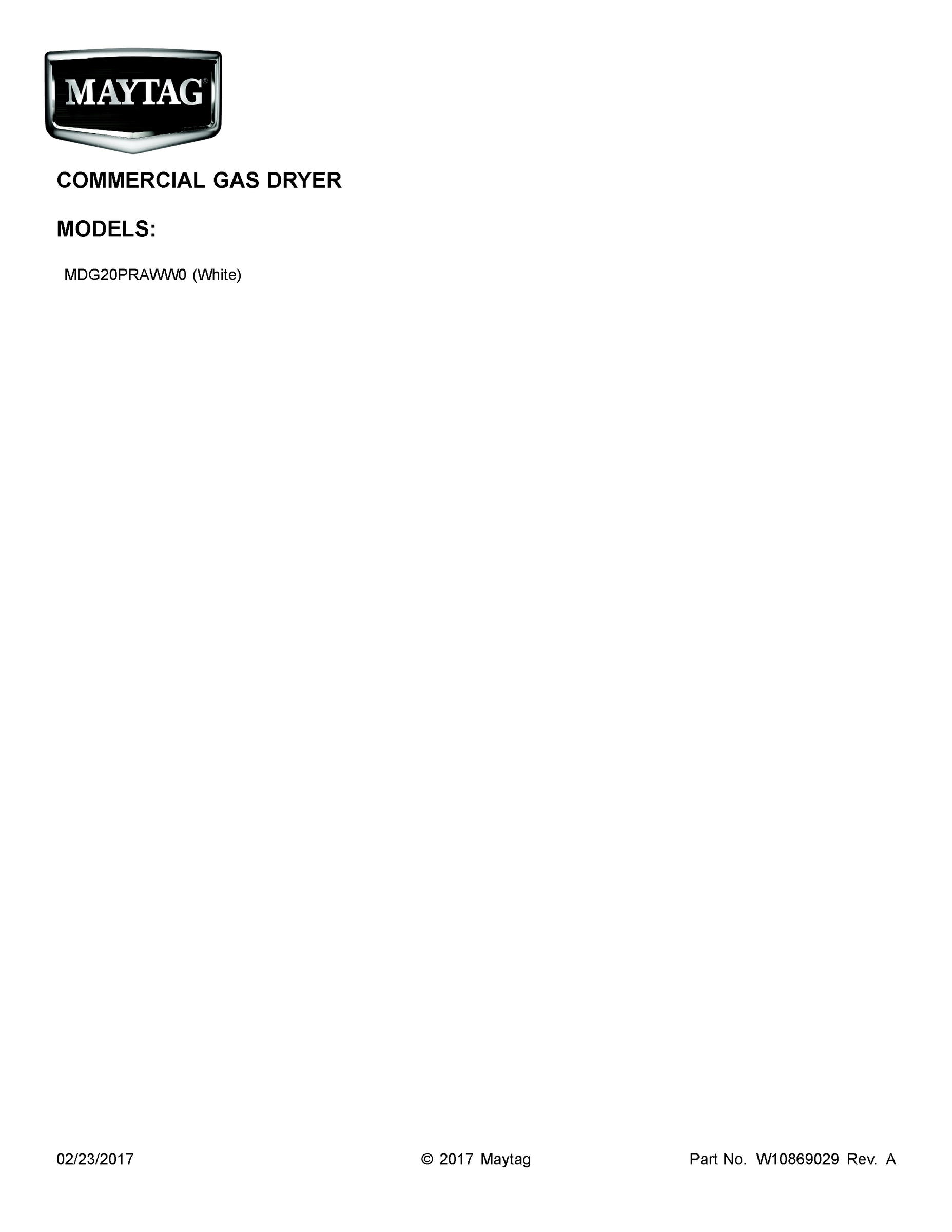

01 - COVER SHEET

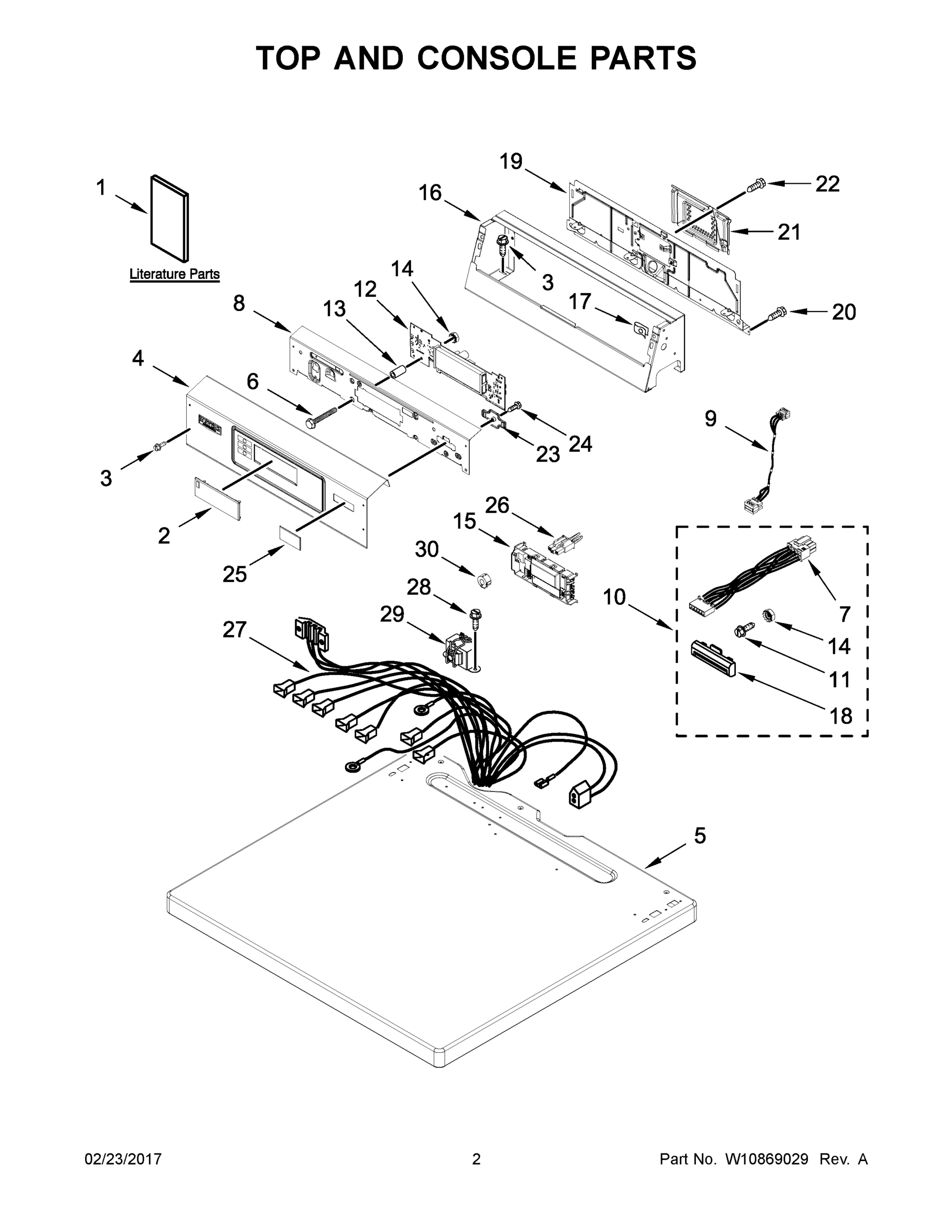

02 - TOP AND CONSOLE PARTS

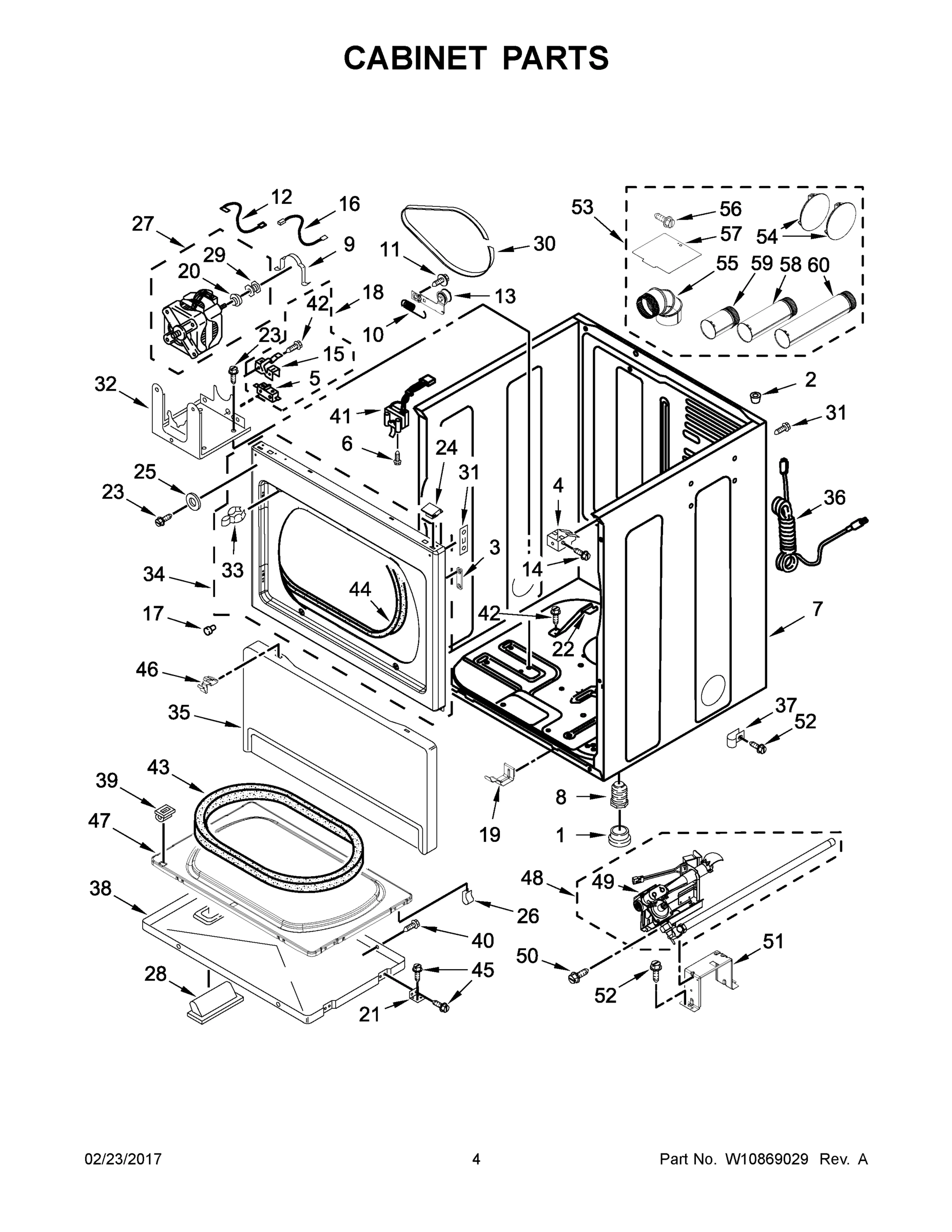

03 - CABINET PARTS

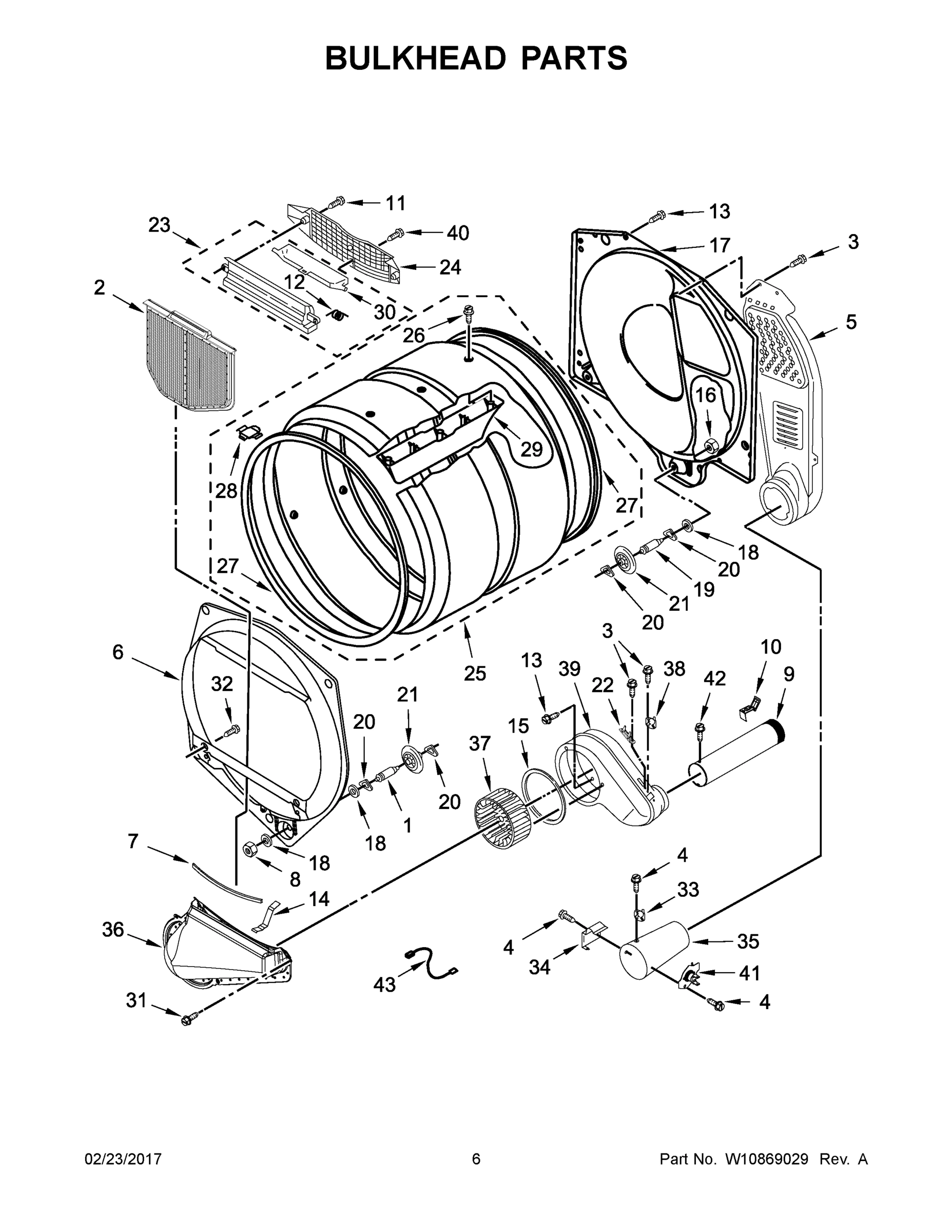

04 - BULKHEAD PARTS

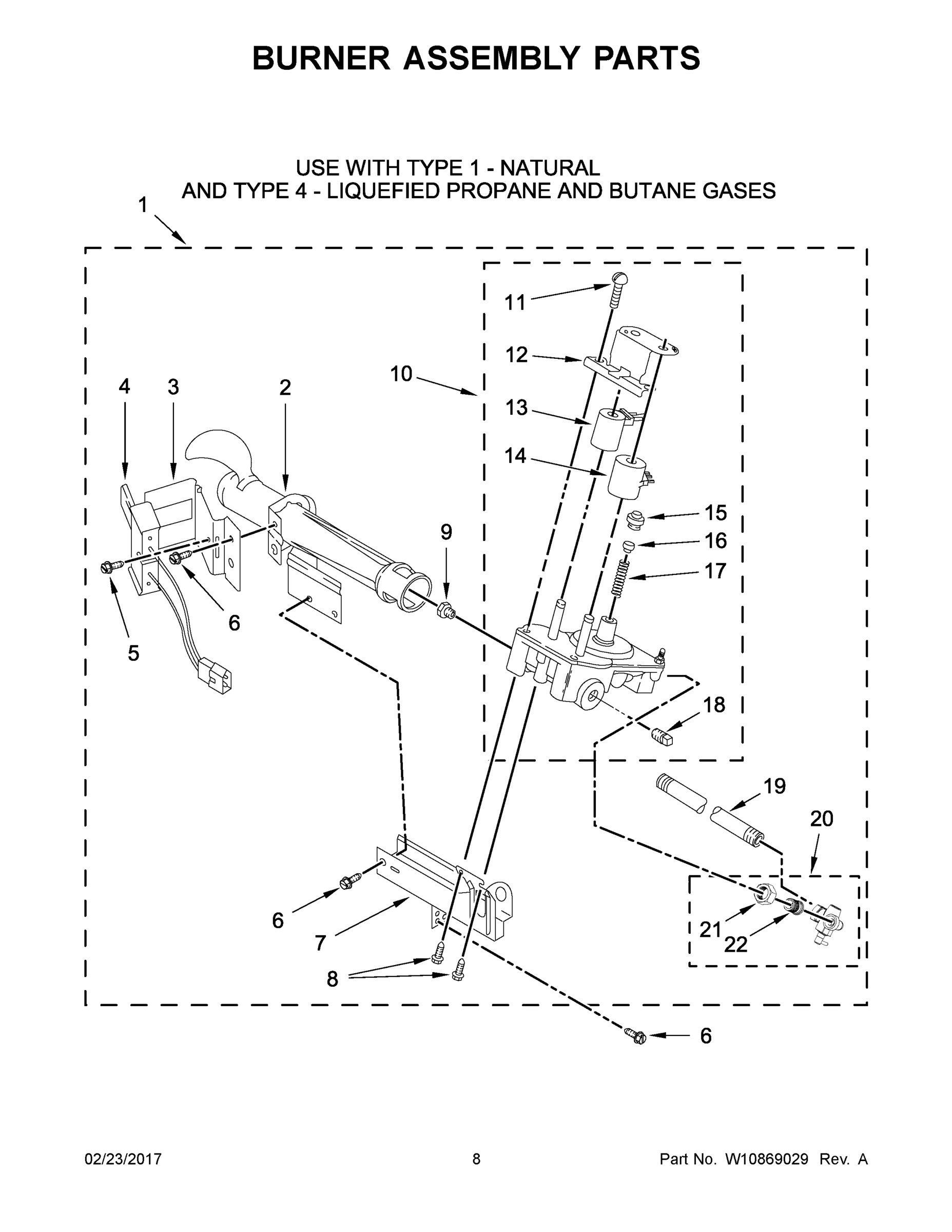

05 - BURNER ASSEMBLY PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MDG20PRAWW0 LAUNDRY, COMMERCIAL, GAS DRYER
1
INSTALLATION INSTRUCTIONS MAY W10868655 Contact Us For Availability
1
BOOT, FOOT MAY 3391943 Contact Us For Availability
1
BURNER ASSEMBLY (60 HZ) MAY 3401797 Contact Us For Availability
1
SHAFT, DRUM ROLLER - RIGHT HAND THREAD MAY W10359271 Contact Us For Availability
1A
INSTRUCTIONS, INSTALLATION (CARD READER) MAY W10135291 Contact Us For Availability
1B
MAY W10868965 MAY W10868965 Contact Us For Availability
1C
WIRING DIAGRAM MAY W10868768 Contact Us For Availability
2
COVER, DISPLAY MAY W10267645 Contact Us For Availability
2
CONE, WEDGE MAY 356674 Contact Us For Availability
2
LINT SCREEN (WHITE) MAY W10596627 Contact Us For Availability
2
TUBE, BURNER MAY 688617 Contact Us For Availability
3
SCREW MAY W10386302 Contact Us For Availability
3
SCREW MAY 8533971 Contact Us For Availability
3
PLUG, HINGE (WHITE) MAY W10191265 Contact Us For Availability
3
BRACKET, IGNITOR MAY 694298 Contact Us For Availability
4
MAY W10845284 MAY W10845284 Contact Us For Availability
4
CLIP, FRONT PANEL MAY 3391846 Contact Us For Availability
4
SCREW MAY 90767 Contact Us For Availability
4
IGNITOR MAY 686590 Contact Us For Availability
5
TOP (WHITE) MAY W10136704 Contact Us For Availability
5
SWITCH - BELT MAY 3394881 Contact Us For Availability
5
ASSEMBLY, AIR DUCT MAY 3394346 Contact Us For Availability
5
SCREW MAY 3393909 Contact Us For Availability
6
SCREW MAY W10137322 Contact Us For Availability
6
SCREW MAY 697773 Contact Us For Availability
6
SCREW MAY 343641 Contact Us For Availability
6
BULKHEAD, FRONT MAY 697557 Contact Us For Availability
7
CARD READER, HARNESS MAY W10133304 Contact Us For Availability
7
CABINET (WHITE) MAY W10547697 Contact Us For Availability
7
SEAL, DRUM FRONT MAY 697814 Contact Us For Availability
7
BASE, BURNER MAY 3389871 Contact Us For Availability
8
MAY W10845298 MAY W10845298 Contact Us For Availability
8
FOOT, DRYER MAY 3392100 Contact Us For Availability
8
NUT, HEX MAY 3934666 Contact Us For Availability
8
SCREW MAY 3387057 Contact Us For Availability
9
MAY W10881678 MAY W10881678 Contact Us For Availability
9
CLAMP, MOTOR MAY 660658 Contact Us For Availability
9
PIPE, EXHAUST MAY 8066224 Contact Us For Availability
9
ORIFICE, BURNER (TYPE 1 (NATURAL GAS)) MAY 3397656 Contact Us For Availability
10
CARD READER, CONVERSION KIT MAY W10135415 Contact Us For Availability
10
SPRING, IDLER MAY W10446781 Contact Us For Availability
10
VALVE, GAS (COMPLETE) 60 HZ MAY 8281911 Contact Us For Availability
10
CLIP, EXHAUST MAY 8572105 Contact Us For Availability
11
SCREW MAY W10143462 Contact Us For Availability
11
SCREW MAY 3389420 Contact Us For Availability
11
SCREW MAY 3387230 Contact Us For Availability
11
SCREW, COIL MAY 694421 Contact Us For Availability
12
MAY W10852653 MAY W10852653 Contact Us For Availability
12
WIRE, JUMPER (BROKEN BELT SWITCH) MAY 3398948 Contact Us For Availability
12
SPRING, LINT SCREEN DOOR MAY 3394986 Contact Us For Availability
12
BRACKET, COIL MAY 694538 Contact Us For Availability
13
STANDOFF, CIRCUIT BOARD MAY W10133514 Contact Us For Availability
13
SCREW MAY 3390647 Contact Us For Availability
13
PULLEY-IDLER ASSEMBLY MAY W10344193 Contact Us For Availability
13
COIL, 60 HZ. (2 TERMINAL) (MAIN) MAY 694540 Contact Us For Availability
14
NUT MAY W10139046 Contact Us For Availability
14
SCREW MAY 3391915 Contact Us For Availability
14
CLIP, SPRING MAY W10345456 Contact Us For Availability
14
COIL, 60 HZ (SPLIT) (3 TERMINAL) (PILOT POSIT MAY 694539 Contact Us For Availability
15
CONTROL BOARD MAY W10166305 Contact Us For Availability
15
LEVER SWITCH MAY 8066120 Contact Us For Availability
15
SEAL, PLATE COVER MAY 697770 Contact Us For Availability
15
LEAK, LIMITER MAY 694424 Contact Us For Availability
16
CONSOLE MAY W10461095 Contact Us For Availability
16
WIRE, BELT SWITCH MAY W10167612 Contact Us For Availability
16
NUT, HEX (LEFT HAND THREAD) MAY W10001120 Contact Us For Availability
16
SCREW, REGULATOR ADJUSTMENT MAY 694423 Contact Us For Availability
17
BUMPER MAY 693152 Contact Us For Availability
17
BULKHEAD, REAR MAY 3387809 Contact Us For Availability
17
SPRING, REGULATOR MAY 694422 Contact Us For Availability
18
BEZEL MAY W10131115 Contact Us For Availability
18
SWITCH ASSEMBLY MAY 8066134 Contact Us For Availability
18
WASHER MAY 3387459 Contact Us For Availability
18
PLUG, PIPE MAY 239822 Contact Us For Availability
19
MAY W10863353 MAY W10863353 Contact Us For Availability
19
CLIP MAY W10291934 Contact Us For Availability
19
SHAFT, DRUM ROLLER - LEFT HAND THREAD MAY W10359272 Contact Us For Availability
19
PIPE, GAS SUPPLY MAY W10110395 Contact Us For Availability
20
RESTRAINER, BELT MAY 3393657 Contact Us For Availability
20
WASHER, TRI RING MAY W10512946 Contact Us For Availability
20
VALVE, GAS MAY 697441 Contact Us For Availability
21
COVER, TERMINAL BLOCK MAY 8317339 Contact Us For Availability
21
ASSEMBLY, HINGE AND PIN (SILVER) MAY W10279703 Contact Us For Availability
21
ROLLER, SUPPORT MAY W10314171 Contact Us For Availability
21
NUT, COMPRESSION MAY 233076 Contact Us For Availability
22
SCREW MAY 98139 Contact Us For Availability
22
BRACKET, BURNER MAY 8529757 Contact Us For Availability
22
FUSE, THERMAL (91C) MAY 3392519 Contact Us For Availability
22
PIPE, TAIL MAY 3393767 Contact Us For Availability
23
RETAINER, CARD READER COVER MAY W10137770 Contact Us For Availability
23
SCREW MAY 3400077 Contact Us For Availability
23
ASSEMBLY, OUTLET HOUSING MAY W10685669 Contact Us For Availability
24
SCREW MAY 3400618 Contact Us For Availability
24
LOCK TOP MAY 345670 Contact Us For Availability
24
GRILL, OUTLET MAY W10692558 Contact Us For Availability
25
COVER, CARD READER MAY W10137769 Contact Us For Availability
25
WASHER MAY 3392186 Contact Us For Availability
25
ASSEMBLY, DRUM MAY W10545923 Contact Us For Availability
26
NUT, "U" MAY W10131123 Contact Us For Availability
26
JUMPER, SWITCH SERVICE/VAULT MAY W10133282 Contact Us For Availability
26
SCREW MAY W10219342 Contact Us For Availability
27
MAY W10864805 MAY W10864805 Contact Us For Availability
27
MOTOR MAY W10396031 Contact Us For Availability
27
SEAL, DRUM MAY W10521118 Contact Us For Availability
28
HANDLE, DOOR MAY W10116360 Contact Us For Availability
28
PLUG, DRUM HOLE MAY 8066086 Contact Us For Availability
29
TRANSFORMER MAY W10131839 Contact Us For Availability
29
PULLEY, MOTOR MAY 3394341 Contact Us For Availability
29
BAFFLE, DRUM MAY 697693 Contact Us For Availability
30
CHOKE, HARNESS MAY 3407172 Contact Us For Availability
30
BELT, DRIVE MAY W10131172 Contact Us For Availability
30
DOOR, LINT SCREEN MAY W10685668 Contact Us For Availability
31
SCREW MAY W10773242 Contact Us For Availability
31
SCREW MAY 489463 Contact Us For Availability
32
BRACKET, MOTOR MAY 3387118 Contact Us For Availability
32
SCREW MAY 3357011 Contact Us For Availability
33
STRIKE, DOOR MAY 696144 Contact Us For Availability
33
THERMOSTAT, HI LIMIT MAY 3391912 Contact Us For Availability
34
PANEL, FRONT (WHITE) MAY W10192882 Contact Us For Availability
34
SENSOR, RADIANT MAY 338906 Contact Us For Availability
35
PANEL, TOE (WHITE) MAY 697215 Contact Us For Availability
35
FUNNEL, BURNER MAY 8573824 Contact Us For Availability
36
CORD, POWER MAY 3401401 Contact Us For Availability
36
ASSEMBLY, LINT DUCT MAY 8066168 Contact Us For Availability
37
CLAMP, PIPE MAY 3387561 Contact Us For Availability
37
WHEEL, BLOWER MAY W10349492 Contact Us For Availability
38
DOOR, FRONT MAY W10322546 Contact Us For Availability
38
THERMISTOR MAY 8577274 Contact Us For Availability
39
ASSEMBLY, DOOR CATCH MAY 3392538 Contact Us For Availability
39
HOUSING, BLOWER MAY 8544362 Contact Us For Availability
40
SCREW MAY 359625 Contact Us For Availability
40
SCREW MAY 695240 Contact Us For Availability
41
SWITCH, DOOR MAY 3406109 Contact Us For Availability
41
CUT-OFF, THERMAL MAY 8573713 Contact Us For Availability
42
SCREW MAY 98129 Contact Us For Availability
42
SCREW MAY 693995 Contact Us For Availability
43
SEAL, DOOR MAY 3390735 Contact Us For Availability
43
JUMPER, WIRE MAY 3401707 Contact Us For Availability
44
SEAL, FRONT PANEL MAY 3387242 Contact Us For Availability
45
SCREW MAY 342055 Contact Us For Availability
46
RETAINER MAY 3388229 Contact Us For Availability
47
DOOR, REAR MAY W10323061 Contact Us For Availability
51
BRACKET, SUPPORT MAY 3389889 Contact Us For Availability
53
DRYER EXHAUST KIT (FOR SIDE & BOTTOM VENTING) MAY 279818 Contact Us For Availability
54
MULTIVENT PLUG (WHITE) MAY 697750 Contact Us For Availability
55
ELBOW MAY 49026 Contact Us For Availability
56
SCREW MAY 488729 Contact Us For Availability
57
PLATE, COVER MAY 3394331 Contact Us For Availability
58
PIPE, EXHAUST (MEDIUM) MAY 8563747 Contact Us For Availability
59
PIPE, EXHAUST (SHORT) MAY 8563750 Contact Us For Availability
60
PIPE, EXHAUST (LONG) MAY 8563749 Contact Us For Availability
NI
FOOT, OPTIONAL (EXTENDED LENGTH PACKAGE OF 2) MAY 279810 Contact Us For Availability
NI
CONVERSION KIT (TYPE 1 AND 2) TO TYPE (4) L.P MAY 694572 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. GRAY PRIMER) MAY 350938 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, DRYER REPAIR MAY 4392067 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
× ![]()
