Model Maytag MDE28PNCGW0 COMMERCIAL ELECTRIC DRYER – Common Parts & Diagrams

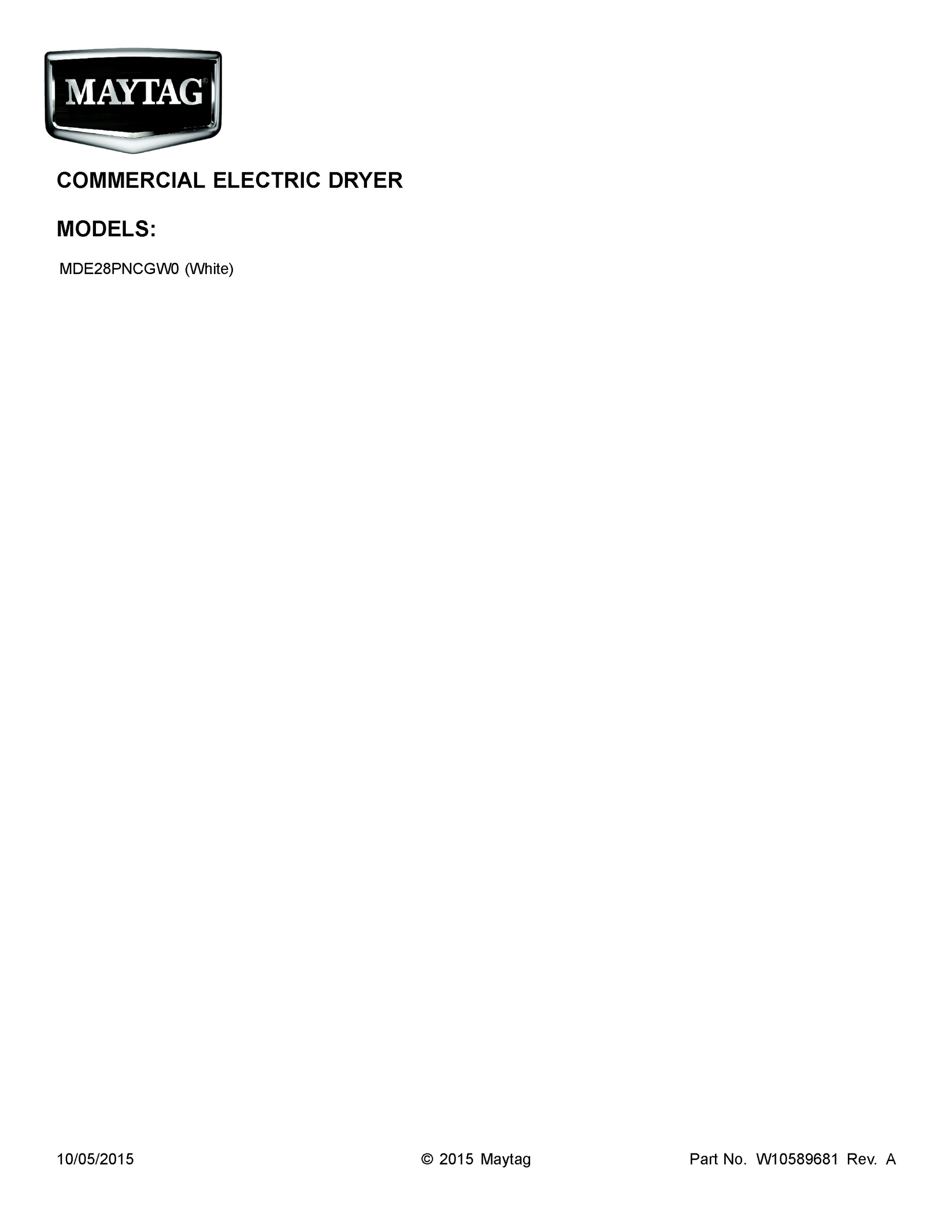

01 - COVER SHEET

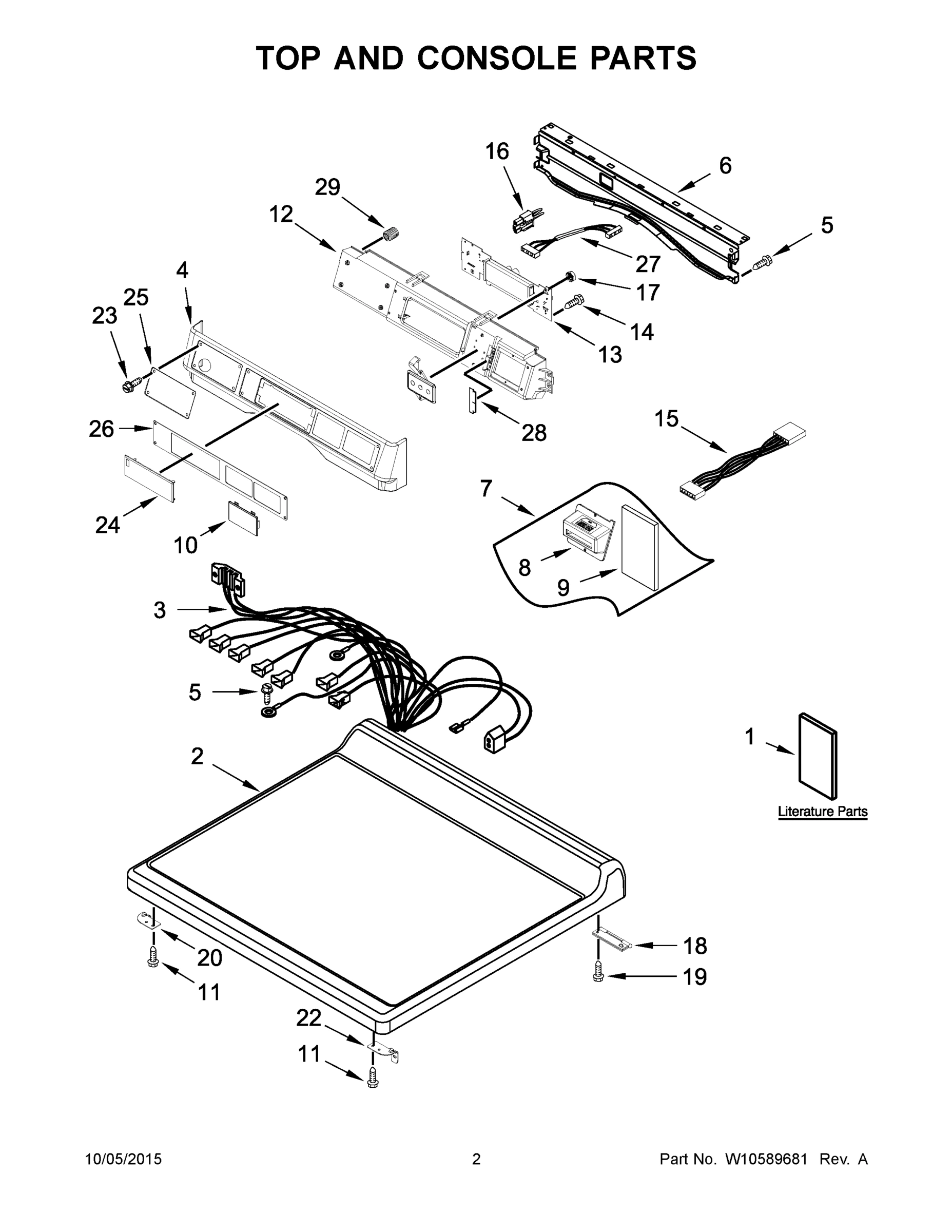

02 - TOP AND CONSOLE PARTS

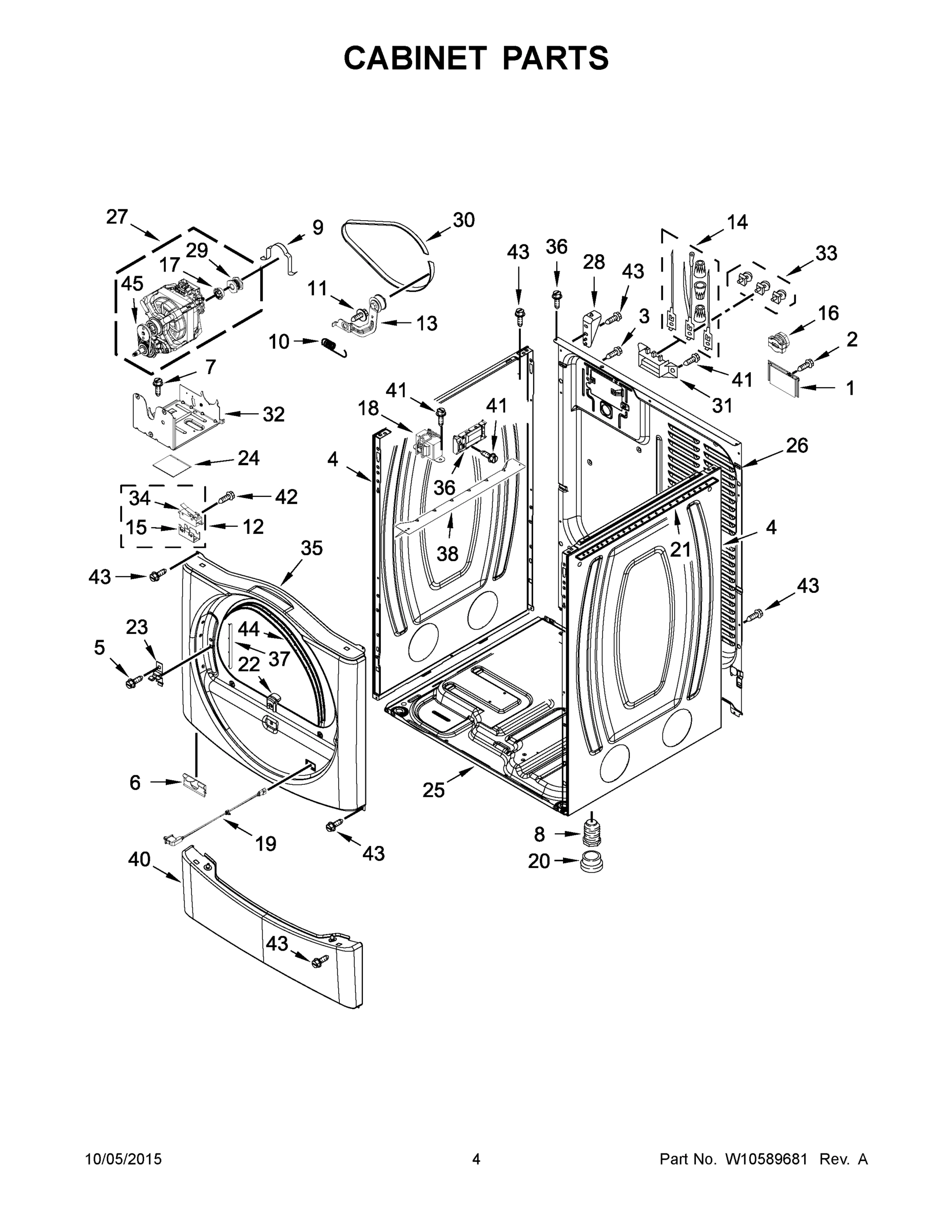

03 - CABINET PARTS

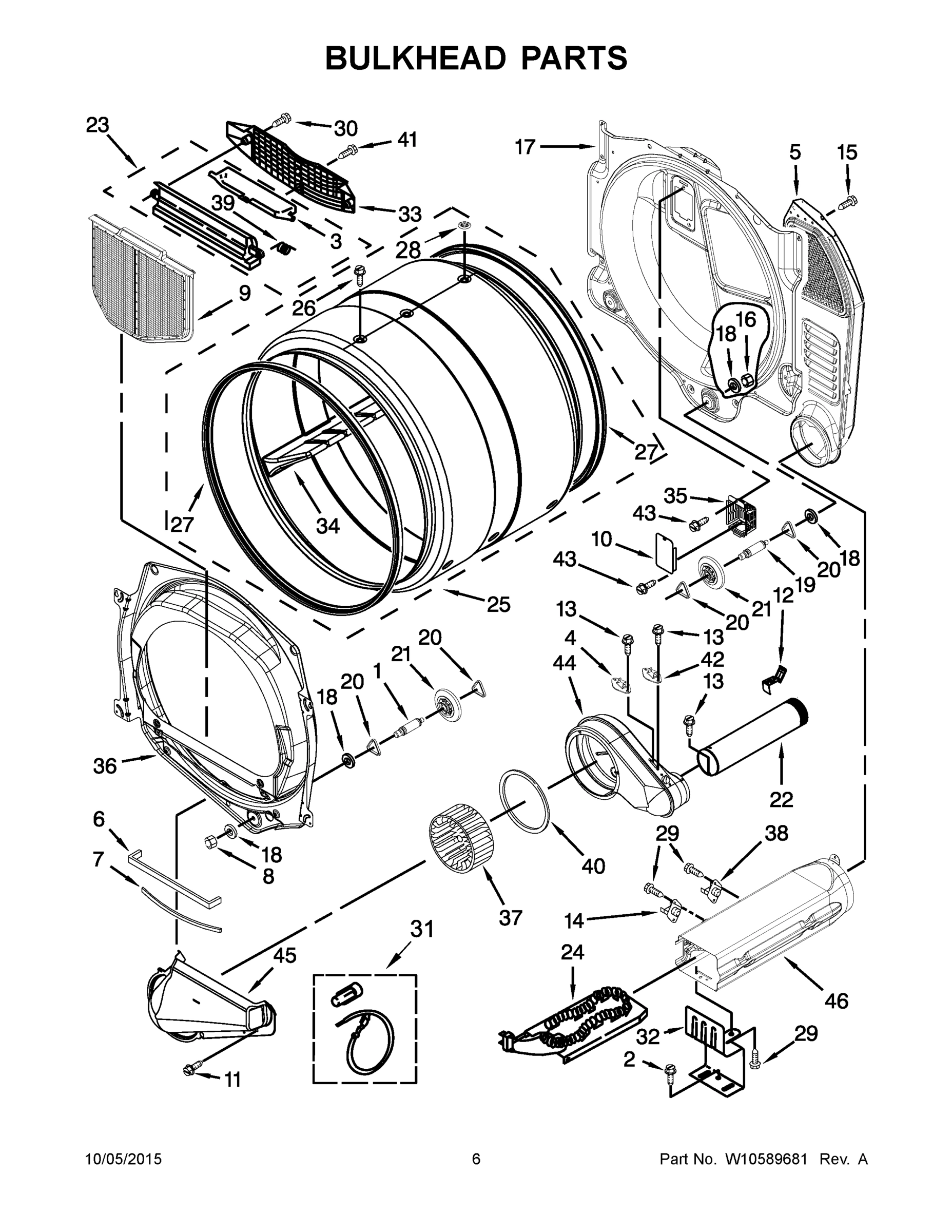

04 - BULKHEAD PARTS

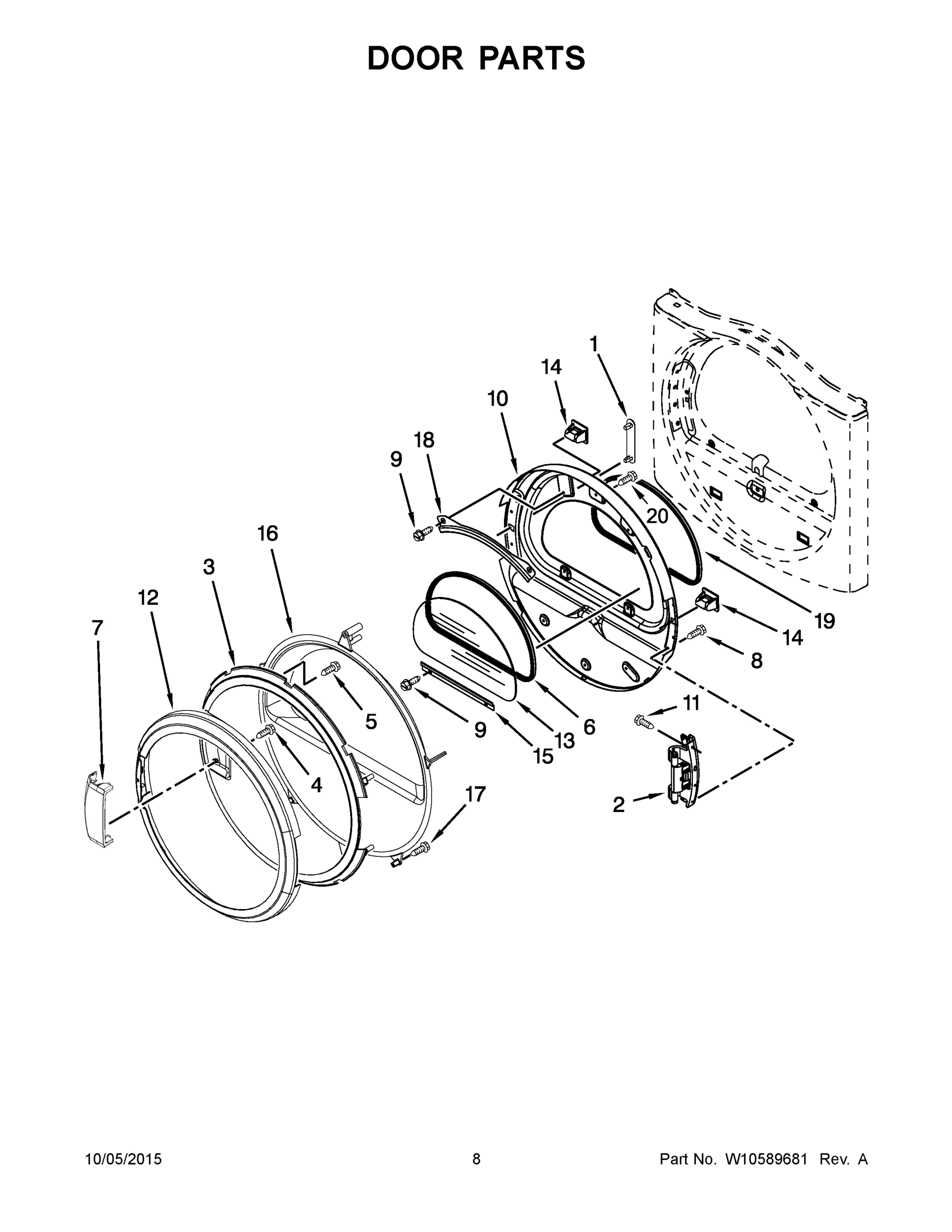

05 - DOOR PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MDE28PNCGW0 COMMERCIAL ELECTRIC DRYER
1
MAY W10198149 MAY W10198149 Contact Us For Availability
1
MAY W10601020 MAY W10601020 Contact Us For Availability
1
SHAFT, DRUM ROLLER - RIGHT HAND THREAD MAY W10359271 Contact Us For Availability
1
HOLE COVER, HINGE MAY 8565119 Contact Us For Availability
1A
MAY W10590743 MAY W10590743 Contact Us For Availability
1B
MAY W10589718 MAY W10589718 Contact Us For Availability
2
TOP (WHITE) MAY W10137410 Contact Us For Availability
2
SCREW MAY 3390814 Contact Us For Availability
2
SCREW MAY W10142290 Contact Us For Availability
2
ASSEMBLY, DOOR HINGE MAY W10304672 Contact Us For Availability
3
MAY W10745628 MAY W10745628 Contact Us For Availability
3
MAY 8533974 MAY 8533974 Contact Us For Availability
3
MAY W10685668 MAY W10685668 Contact Us For Availability
3
MAY W10137467 MAY W10137467 Contact Us For Availability
4
MAY W10779120 MAY W10779120 Contact Us For Availability
4
CABINET (WHITE) MAY W10542714 Contact Us For Availability
4
LIMITER, THERMAL (192F) MAY W10167627 Contact Us For Availability
4
SCREW MAY 9742177 Contact Us For Availability
5
SCREW MAY 337686 Contact Us For Availability
5
SCREW MAY 3357011 Contact Us For Availability
5
ASSEMBLY, AIR DUCT MAY 697354 Contact Us For Availability
5
SCREW MAY 3400618 Contact Us For Availability
6
MAY 8565237 MAY 8565237 Contact Us For Availability
6
MAY 8519459 MAY 8519459 Contact Us For Availability
6
MAY 697813 MAY 697813 Contact Us For Availability
6
MAY 8579663 MAY 8579663 Contact Us For Availability
7
MAY W10344080 MAY W10344080 Contact Us For Availability
7
SCREW MAY 343641 Contact Us For Availability
7
MAY 697814 MAY 697814 Contact Us For Availability
7
MAY W10112976 MAY W10112976 Contact Us For Availability
8
MAY W10137454 MAY W10137454 Contact Us For Availability
8
MAY 3392100 MAY 3392100 Contact Us For Availability
8
NUT, HEX MAY 3934666 Contact Us For Availability
8
SCREW MAY W10159996 Contact Us For Availability
9
MAY W10313706 MAY W10313706 Contact Us For Availability
9
MAY 660658 MAY 660658 Contact Us For Availability
9
LINT SCREEN (WHITE) MAY W10596627 Contact Us For Availability
9
SCREW MAY 3393258 Contact Us For Availability
10
MAY W10213906 MAY W10213906 Contact Us For Availability
10
MAY W10446781 MAY W10446781 Contact Us For Availability
10
MAY 3402841 MAY 3402841 Contact Us For Availability
10
MAY W10363674 MAY W10363674 Contact Us For Availability
11
SCREW MAY 3389420 Contact Us For Availability
11
SCREW MAY 489463 Contact Us For Availability
11
SCREW MAY 355515 Contact Us For Availability
12
MAY W10137427 MAY W10137427 Contact Us For Availability
12
ASSEMBLY, SWITCH MAY W10259136 Contact Us For Availability
12
CLIP, EXHAUST MAY 8572105 Contact Us For Availability
12
MAY W10112916 MAY W10112916 Contact Us For Availability
13
MAY W10824282 MAY W10824282 Contact Us For Availability
13
ASSEMBLY, IDLER MAY W10344192 Contact Us For Availability
13
SCREW MAY 8533971 Contact Us For Availability
13
MAY W10286878 MAY W10286878 Contact Us For Availability
14
SCREW MAY 489136 Contact Us For Availability
14
MAY 279318 MAY 279318 Contact Us For Availability
14
THERMOSTAT MAY W10168175 Contact Us For Availability
14
ASSEMBLY, DOOR CATCH MAY 690081 Contact Us For Availability
15
HARNESS, WIRING CARD READER MAY W10331020 Contact Us For Availability
15
MAY 8564011 MAY 8564011 Contact Us For Availability
15
SCREW MAY 693995 Contact Us For Availability
15
RETAINER, WINDOW MAY 8519354 Contact Us For Availability
16
JUMPER, SWITCH SERVICE/VAULT MAY W10133282 Contact Us For Availability
16
MAY 8316644 MAY 8316644 Contact Us For Availability
16
NUT, HEX (LEFT HAND THREAD) MAY W10001120 Contact Us For Availability
16
DOOR, INTERMEDIATE (STATIONARY) MAY 8580059 Contact Us For Availability
17
NUT MAY W10139046 Contact Us For Availability
17
MAY 3393657 MAY 3393657 Contact Us For Availability
17
MAY W10080170 MAY W10080170 Contact Us For Availability
17
MAY 8534022 MAY 8534022 Contact Us For Availability
18
HINGE & PIN ASSEMBLY (WHITE) MAY 8565018 Contact Us For Availability
18
MAY W10633921 MAY W10633921 Contact Us For Availability
18
WASHER MAY 3387459 Contact Us For Availability
18
RETAINER, WINDOW (UPPER) MAY 8519356 Contact Us For Availability
19
MAY 342055 MAY 342055 Contact Us For Availability
19
MAY W10459028 MAY W10459028 Contact Us For Availability
19
SHAFT, DRUM ROLLER - LEFT HAND THREAD MAY W10359272 Contact Us For Availability
19
SEAL, DOOR MAY W10163915 Contact Us For Availability
20
MAY W10137445 MAY W10137445 Contact Us For Availability
20
MAY 3391943 MAY 3391943 Contact Us For Availability
20
MAY W10512946 MAY W10512946 Contact Us For Availability
20
SCREW MAY 8534044 Contact Us For Availability
21
MAY W10787446 MAY W10787446 Contact Us For Availability
21
SEAL, FOAM MAY 8318396 Contact Us For Availability
21
MAY W10314171 MAY W10314171 Contact Us For Availability
22
MAY W10137444 MAY W10137444 Contact Us For Availability
22
MAY 8580015 MAY 8580015 Contact Us For Availability
22
MAY W10225176 MAY W10225176 Contact Us For Availability
23
SCREW MAY W10137457 Contact Us For Availability
23
STRIKE, DOOR MAY 8565122 Contact Us For Availability
23
MAY W10685669 MAY W10685669 Contact Us For Availability
24
COVER, DISPLAY MAY W10267645 Contact Us For Availability
24
MOTOR, SOUND PAD MAY W10212660 Contact Us For Availability
24
ELEMENT, HEATER MAY 3387749 Contact Us For Availability
25
MAY W10804029 MAY W10804029 Contact Us For Availability
25
MAY W10225178 MAY W10225178 Contact Us For Availability
25
MAY W10549541 MAY W10549541 Contact Us For Availability
26
MAY W10801806 MAY W10801806 Contact Us For Availability
26
MAY W10225180 MAY W10225180 Contact Us For Availability
26
MAY W10219342 MAY W10219342 Contact Us For Availability
27
MAY W10166307 MAY W10166307 Contact Us For Availability
27
MAY W10747112 MAY W10747112 Contact Us For Availability
27
MAY W10521118 MAY W10521118 Contact Us For Availability
28
MAY W10187276 MAY W10187276 Contact Us For Availability
28
MAY W10137398 MAY W10137398 Contact Us For Availability
28
CAP, PLUG MAY W10128544 Contact Us For Availability
29
INSERT MAY W10189313 Contact Us For Availability
29
MAY W10167237 MAY W10167237 Contact Us For Availability
29
SCREW MAY 90767 Contact Us For Availability
30
MAY W10131172 MAY W10131172 Contact Us For Availability
30
SCREW MAY 3387230 Contact Us For Availability
31
MAY 3397659 MAY 3397659 Contact Us For Availability
31
MAY 279457 MAY 279457 Contact Us For Availability
32
MAY W10135695 MAY W10135695 Contact Us For Availability
32
MAY W10119253 MAY W10119253 Contact Us For Availability
33
MAY 279393 MAY 279393 Contact Us For Availability
33
MAY W10692558 MAY W10692558 Contact Us For Availability
34
MAY W10410873 MAY W10410873 Contact Us For Availability
34
MAY W10153409 MAY W10153409 Contact Us For Availability
35
PANEL, FRONT (WHITE) MAY W10551281 Contact Us For Availability
35
MAY 8578825 MAY 8578825 Contact Us For Availability
36
MAY 3393008 MAY 3393008 Contact Us For Availability
36
MAY 8565061 MAY 8565061 Contact Us For Availability
37
PLUG, FRONT PANEL MAY 8565043 Contact Us For Availability
37
MAY W10349492 MAY W10349492 Contact Us For Availability
38
BRACKET, CONTROL MAY 8563727 Contact Us For Availability
38
CUT-OFF, THERMAL MAY W10141623 Contact Us For Availability
39
MAY W10166377 MAY W10166377 Contact Us For Availability
39
SPRING, LINT SCREEN DOOR MAY 3394986 Contact Us For Availability
40
PANEL, TOE (WHITE) MAY 8540621 Contact Us For Availability
40
SEAL, PLATE COVER MAY 697770 Contact Us For Availability
41
SCREW MAY 695240 Contact Us For Availability
42
ASSEMBLY, SCREW AND INSULATOR MAY 3400934 Contact Us For Availability
42
THERMISTOR MAY 8577274 Contact Us For Availability
43
SCREW MAY 3390647 Contact Us For Availability
44
MAY 3387242 MAY 3387242 Contact Us For Availability
44
MAY W10151271 MAY W10151271 Contact Us For Availability
45
BELT, DRIVE (BLOWER WHEEL) MAY 3405160 Contact Us For Availability
45
MAY 8066168 MAY 8066168 Contact Us For Availability
46
MAY W10608837 MAY W10608837 Contact Us For Availability
NI
FOOT, OPTIONAL (EXTENDED LENGTH PACKAGE OF 2) MAY 279810 Contact Us For Availability
NI
KIT, 4-WAY VENTING MAY W10470674 Contact Us For Availability
NI
SEALER, GASKET (.20 FL. OZ.) (6ML) MAY 285195 Contact Us For Availability
NI
MAY 350930 MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. GRAY PRIMER) MAY 350938 Contact Us For Availability
NI
MAY 72017 MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, DRYER REPAIR MAY 80047 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, HOLD DOWN MAY 8529894 Contact Us For Availability
× ![]()
