Model Whirlpool MDE2440AGW ELECTRIC DRYER – Common Parts & Diagrams

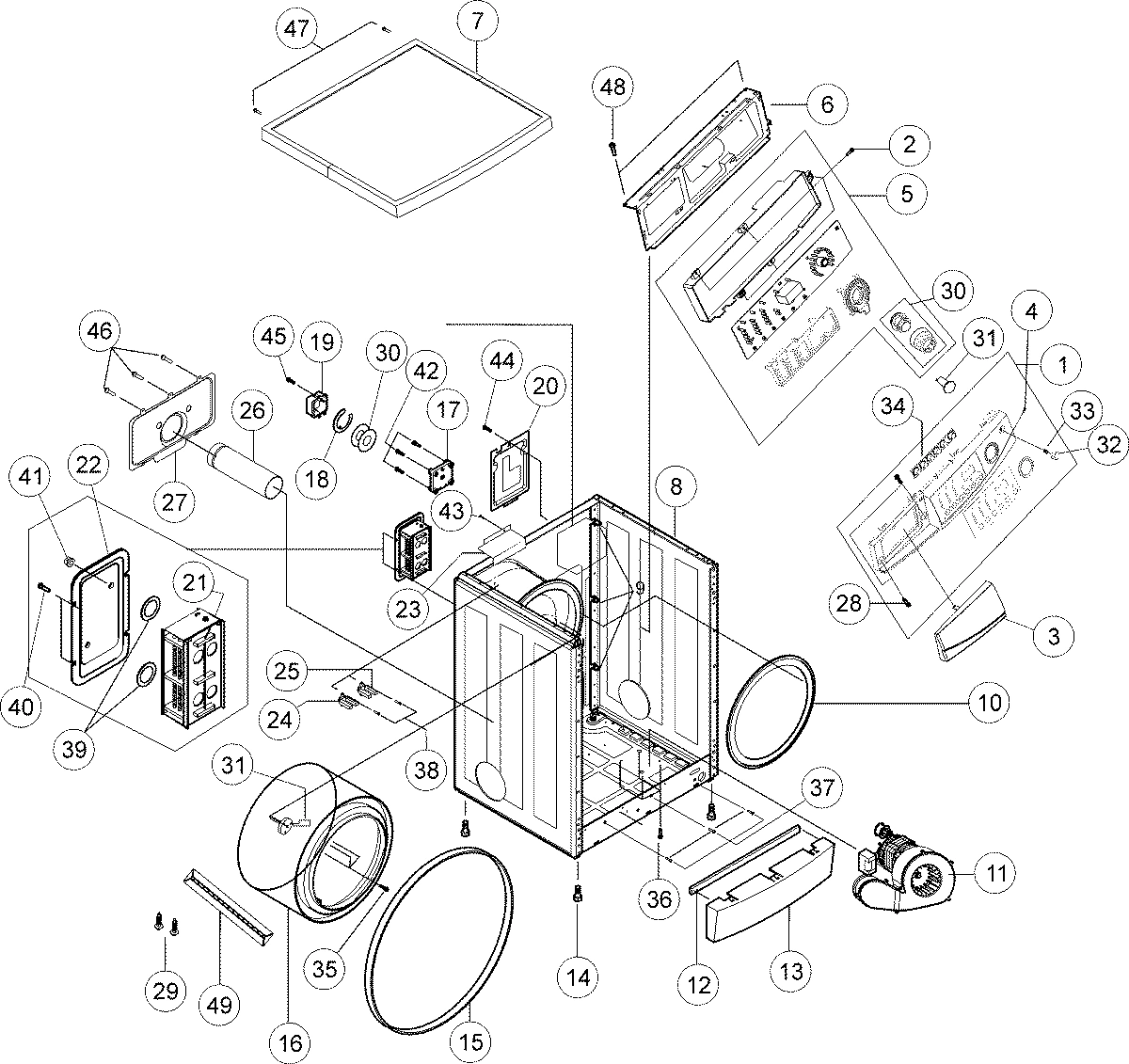

01 - CABINET - CONTROL PANEL

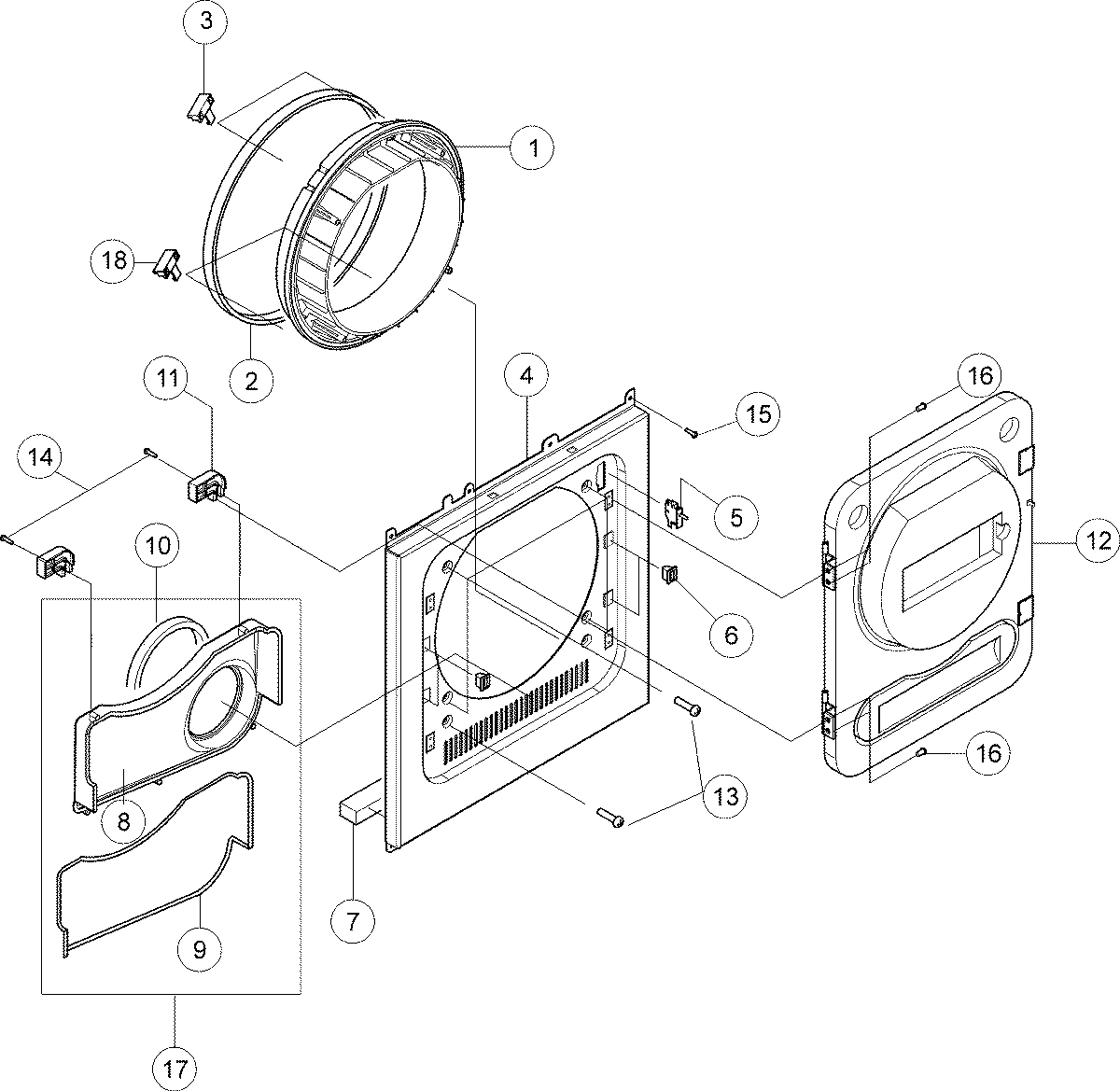

02 - CABINET FRONT - DUCT

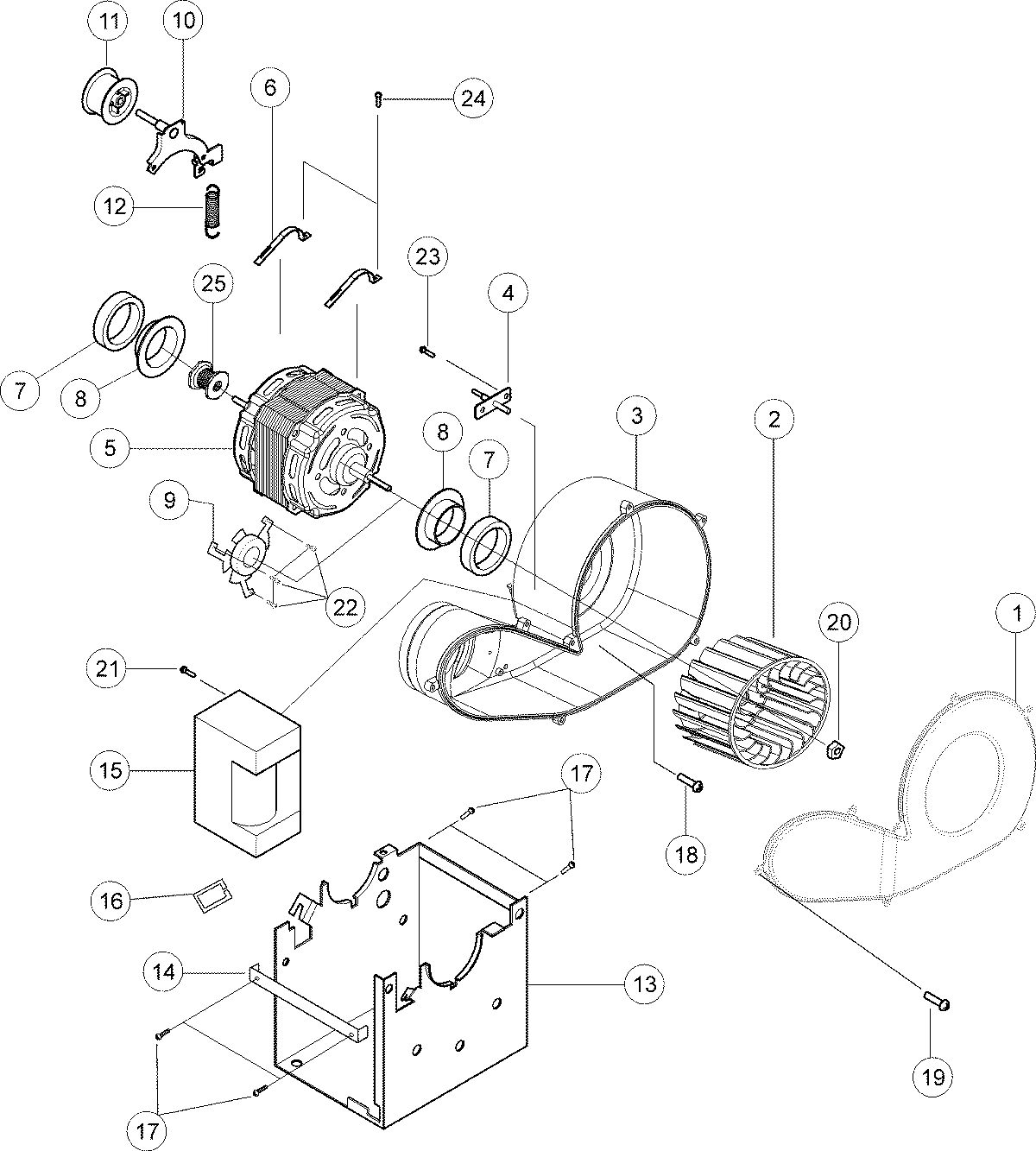

04 - MOTOR - FAN - DUCT

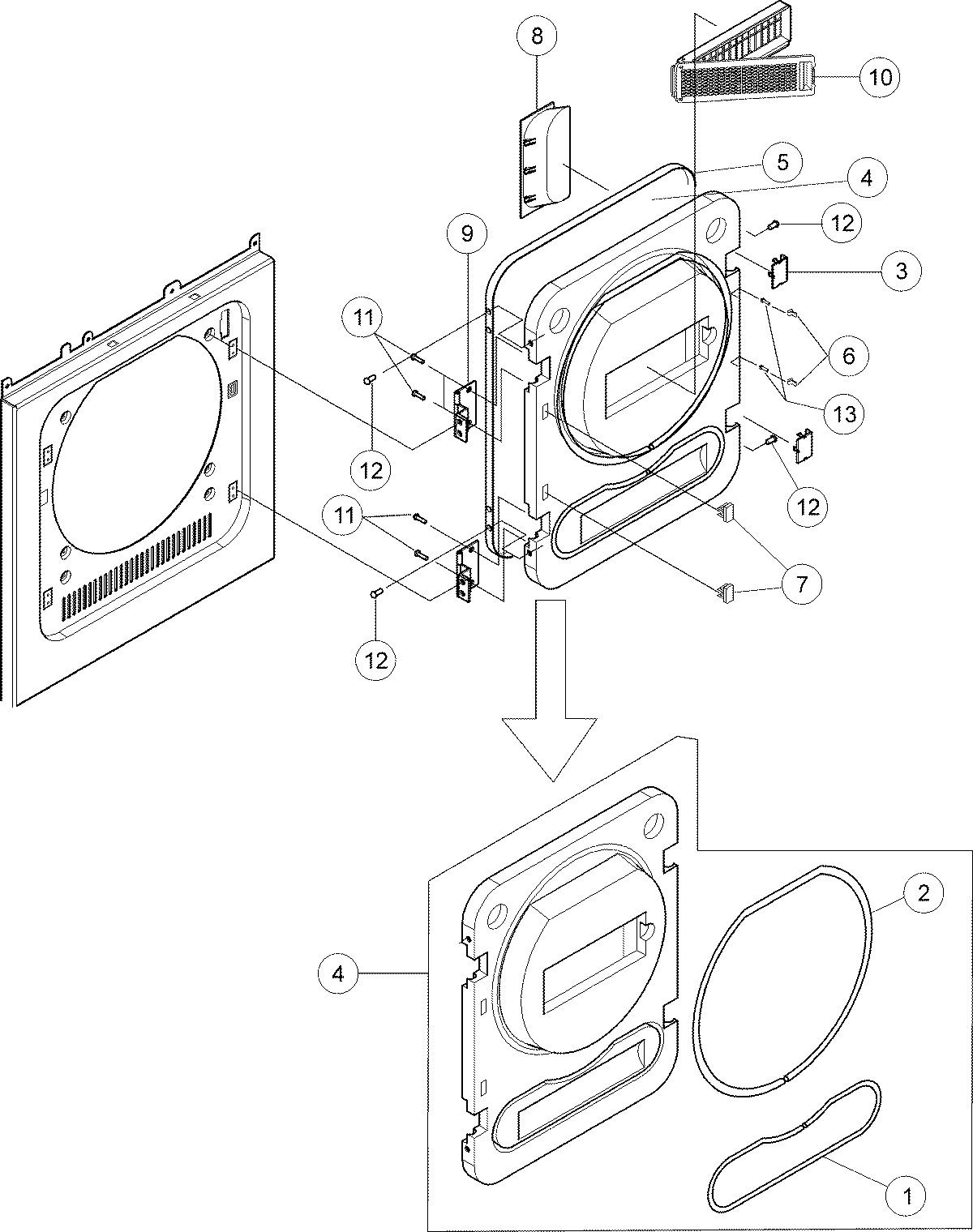

03 - DOOR
05 - SUPPLEMENTAL INFORMATION
Common parts from model Whirlpool MDE2440AGW ELECTRIC DRYER
1
SUPPORT-DRUM WPL 35001027 Contact Us For Availability
1
COVER-DUCT FAN (BLOWER WHEEL) WPL 35001052 Contact Us For Availability
1
SEAL-DOOR WPL 35001041 Contact Us For Availability
1
ASSY POWER CORD WPL 35001172 Contact Us For Availability
2
PAD-GASKET WPL 35001030 Contact Us For Availability
2
FAN-BLOWER WHEEL ASY-DRYER WPL 35001054 Contact Us For Availability
2
SEAL-DOOR WPL 35001042 Contact Us For Availability
2
ASSY-M.WIRE HARNESS WPL 35001176 Contact Us For Availability
3
PANEL-DRAWER WPL 35001013 Contact Us For Availability
3
BUSHING-SUPPORT DRUM WPL 35001073 Contact Us For Availability
3
DUCT-FAN (BLOWER WHEEL HOUSING WPL 35001055 Contact Us For Availability
3
COVER-HINGE WPL 35001043 Contact Us For Availability
3
MANUAL, USE & CARE WPL DC6802126A Contact Us For Availability
3
MANUAL, USE & CARE WPL W10126690 Contact Us For Availability
4
SCREW-PAINTED, SIDE PANEL WPL 34001213 Contact Us For Availability
4
FRAME-FRONT WPL 35001178 Contact Us For Availability
4
ASSY-COVER DOOR WPL 35001179 Contact Us For Availability
4
SIDE VENT KIT WPL 12002537 Contact Us For Availability
5
DOOR-SWITCH WPL 35001033 Contact Us For Availability
5
CONTROL BOARD ASSY (24``INT) WPL 12002619 Contact Us For Availability
5
ASSY-THERMISTOR WPL 35001056 Contact Us For Availability
5
DOOR-FRONT WPL 35001045 Contact Us For Availability
5
24`` STACKING KIT (MAL2424AXX) WPL 34001220 Contact Us For Availability
6
FRAME-PLATE (U) WPL 35001173 Contact Us For Availability
6
ASSY-GUIDE LEVER WPL 35001034 Contact Us For Availability
6
FIXER-MOTOR (CLIP) WPL 35001058 Contact Us For Availability
6
LEVER-DOOR WPL 35001051 Contact Us For Availability
7
ASSY-COVER TOP LU WPL 35001017 Contact Us For Availability
7
SPONGE-PLATE WPL 35001036 Contact Us For Availability
7
CUSHION-MOTOR (GASKET,SPACER) WPL 35001059 Contact Us For Availability
7
COVER-SCREW WPL 35001047 Contact Us For Availability
8
ASSY-FRAME WPL 35001174 Contact Us For Availability
8
DUCT-FRONT WPL 35001037 Contact Us For Availability
8
BUSHING-MOTOR (GASKET,CUFF) WPL 35001060 Contact Us For Availability
9
SPONGE-DUCT (GASKET) WPL 35001038 Contact Us For Availability
9
SUPPORT-MOTOR WPL 35001061 Contact Us For Availability
9
ASSY-HINGE WPL 35001049 Contact Us For Availability
10
ASSY-GASKET PAD WPL 35001005 Contact Us For Availability
10
SPONGE-DUCT (GASKET) WPL 35001039 Contact Us For Availability
10
BRACKET-IDLER WPL 35001062 Contact Us For Availability
11
ASSY-MOTOR DUCT WPL 35001175 Contact Us For Availability
11
FIXER-HINGE WPL 35001040 Contact Us For Availability
11
ASSY-ROLLER BELT WPL 35001063 Contact Us For Availability
12
SPONGE-PLATE WPL 35001006 Contact Us For Availability
12
ASSY-DOOR WPL 35001070 Contact Us For Availability
12
SPRING-TENSION WPL 35001046 Contact Us For Availability
12
SCREW-TAPPING WPL 34001187 Contact Us For Availability
13
COVER-FRONT (L) WPL 35001007 Contact Us For Availability
13
BRACKET-MOTOR WPL 35001064 Contact Us For Availability
13
SCREW-TAPPING WPL 6002000525 Contact Us For Availability
14
LEG WPL 34001062 Contact Us For Availability
14
SUPPORT-BRACKET MOTOR WPL 35001065 Contact Us For Availability
15
CONDENSER WPL 35001066 Contact Us For Availability
16
HOLDER-WIRE (RETAINER/CLIP) WPL 35001004 Contact Us For Availability
16
ASSY-DRUM WPL 35001009 Contact Us For Availability
16
SCREW-TAPPING WPL 34001186 Contact Us For Availability
17
ASSY-DUCT FRONT WPL 35001071 Contact Us For Availability
18
RING-E WPL 35001014 Contact Us For Availability
18
BRUSH-SUPPORT DRUM WPL 35001031 Contact Us For Availability
19
COVER-BUSHING WPL 35001015 Contact Us For Availability
20
COVER-POWER CORD WPL 34001069 Contact Us For Availability
20
NUT-HEX WPL 34001188 Contact Us For Availability
21
HEATER WPL 34001073 Contact Us For Availability
22
COVER-HEATER WPL 35001019 Contact Us For Availability
22
SCREW-MACHINE WPL 34001041 Contact Us For Availability
23
BRACKET-HEATER, SHIELD WPL 35001020 Contact Us For Availability
24
THERMOSTAT WPL 35001021 Contact Us For Availability
24
SCREW-TAPPING WPL 6002000239 Contact Us For Availability
25
THERMOSTAT WPL 35001022 Contact Us For Availability
25
HOLDER-BELT WPL 35001181 Contact Us For Availability
26
PIPE DUCT OUTLET WPL 35001023 Contact Us For Availability
27
COVER-BACK WPL 35001024 Contact Us For Availability
29
SCREW-TAPPING (BAFFLE) WPL 34001217 Contact Us For Availability
30
WASHER-PULSATOR WPL 35001177 Contact Us For Availability
31
BRACKET DRUM WPL 35001075 Contact Us For Availability
32
BUTTON-PUSH (P) WPL 35001053 Contact Us For Availability
33
SPRING ETC-BUTTON WPL 35001068 Contact Us For Availability
35
SCREW-MACHINE WPL 34001183 Contact Us For Availability
36
BOLT-FLANGE WPL DE6020014A Contact Us For Availability
38
SCREW-TAPPING WPL 34001080 Contact Us For Availability
39
WASHER-PLAIN WPL 34001074 Contact Us For Availability
41
NUT-FLANGE WPL 34001076 Contact Us For Availability
48
SCREW-SPECIAL WPL 34001053 Contact Us For Availability
49
DRUM LIFTER - BAFFLE WPL 34001216 Contact Us For Availability
× ![]()
