Model Maytag MDE20PRAYW0 LAUNDRY, COMMERCIAL, ELECTRIC DRYER – Common Parts & Diagrams

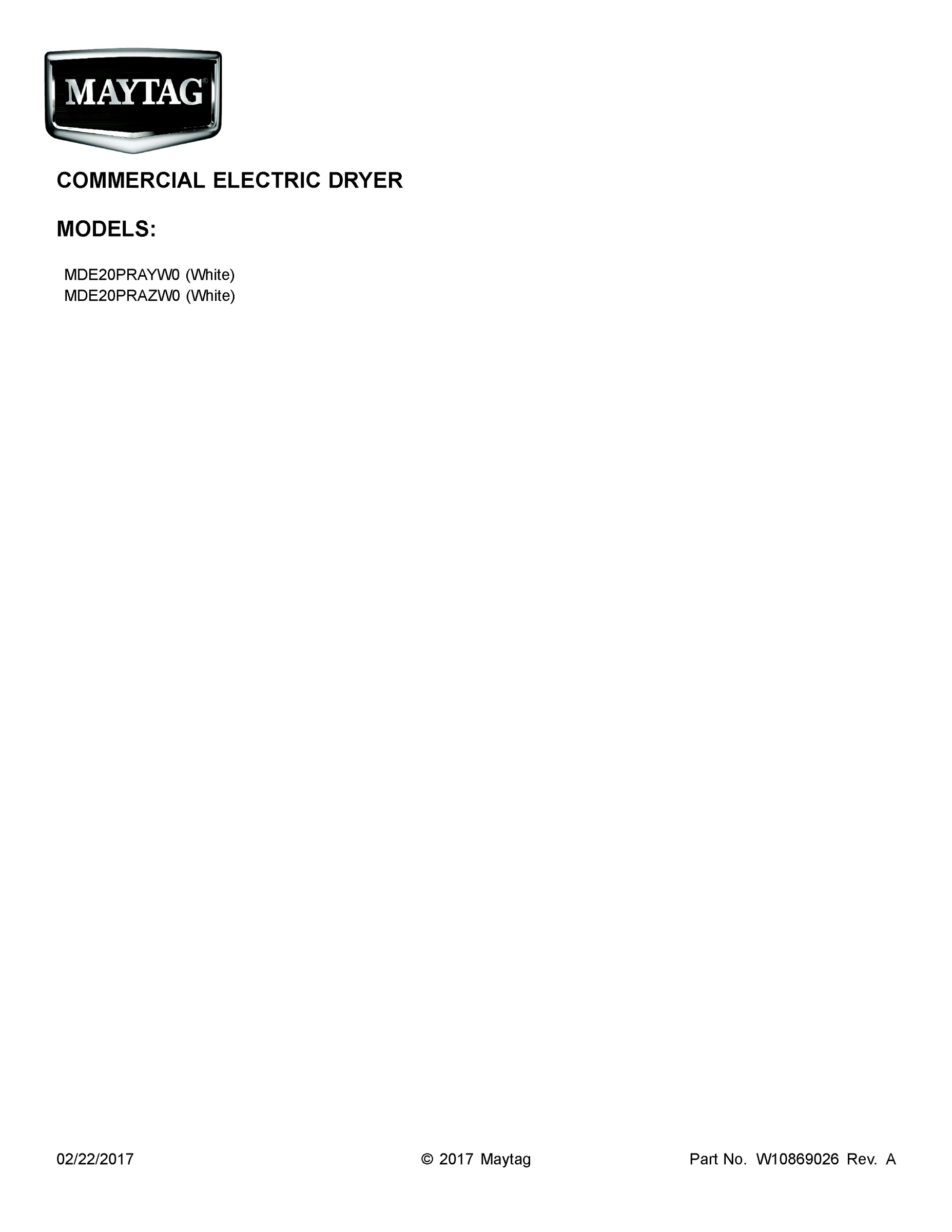

01 - COVER SHEET

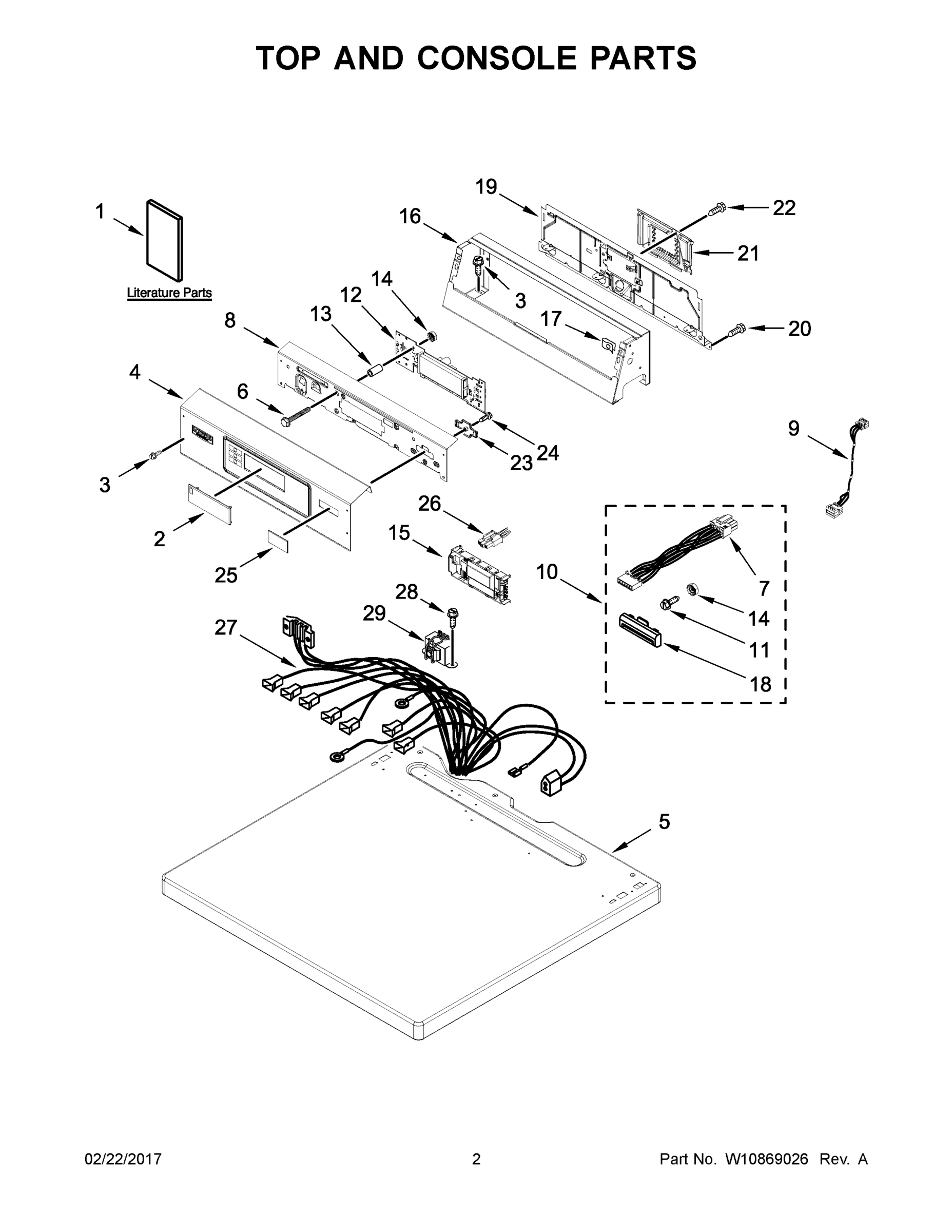

02 - TOP AND CONSOLE PARTS

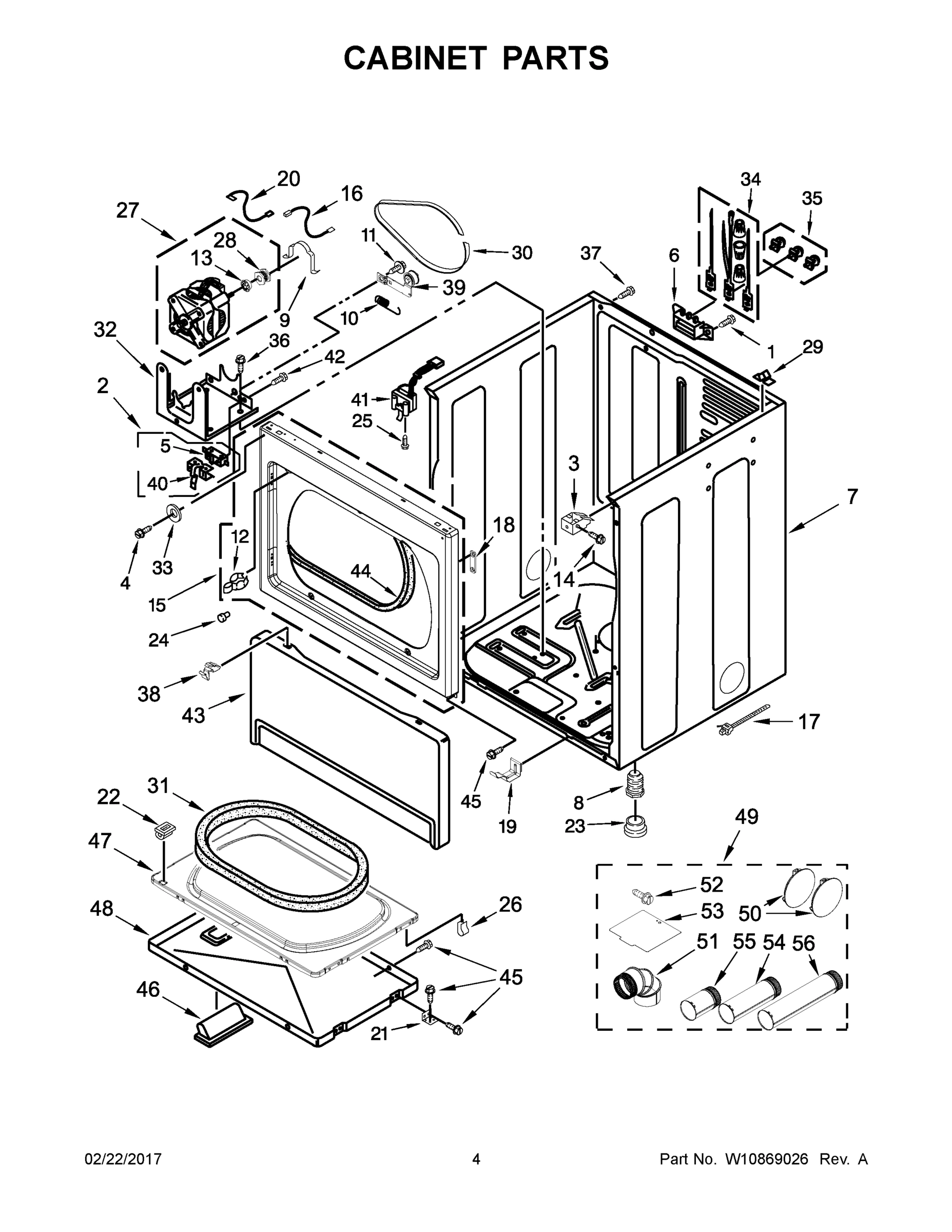

03 - CABINET PARTS

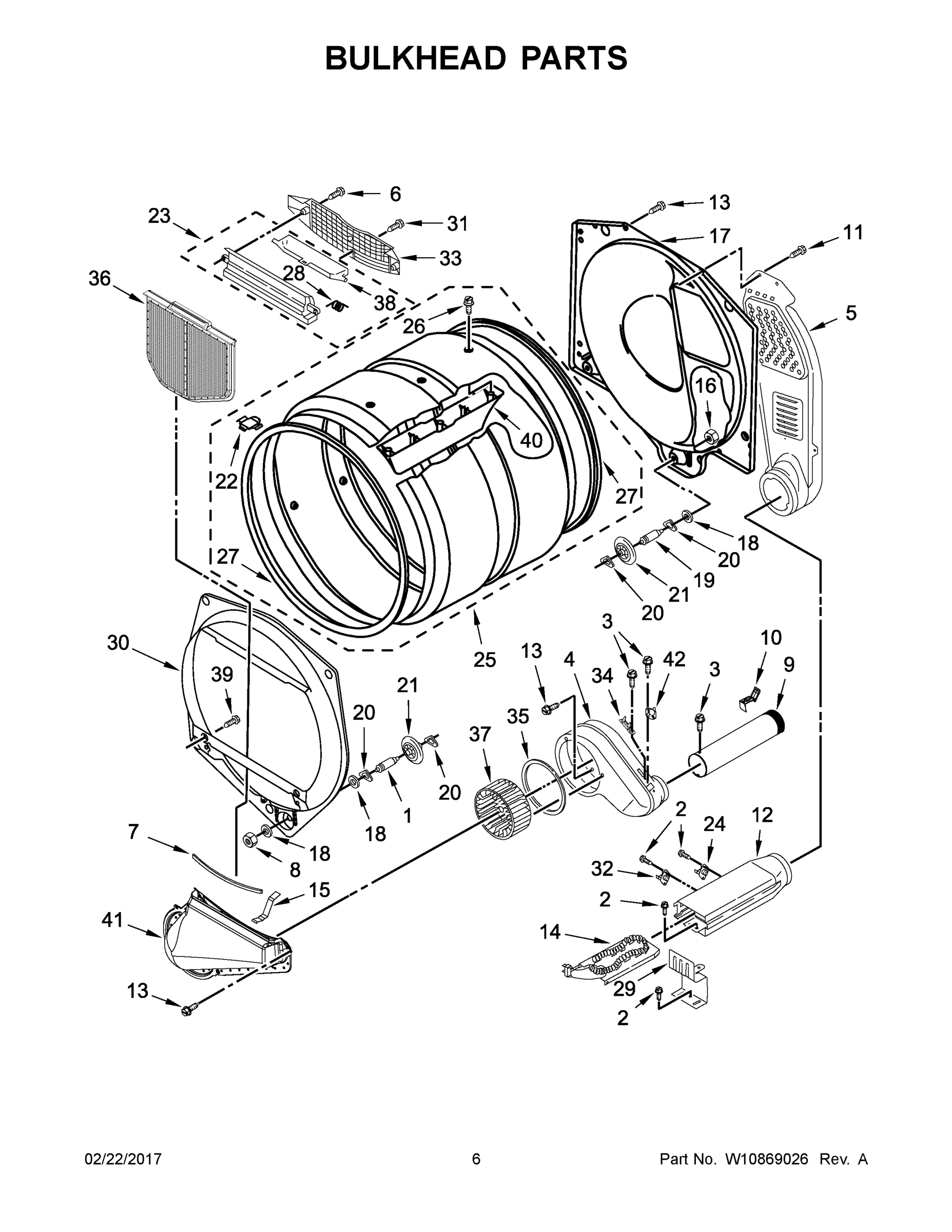

04 - BULKHEAD PARTS
05 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MDE20PRAYW0 LAUNDRY, COMMERCIAL, ELECTRIC DRYER
1
INSTALLATION INSTRUCTIONS MAY W10868655 Contact Us For Availability
1
SCREW MAY 3393008 Contact Us For Availability
1
SHAFT, DRUM ROLLER - RIGHT HAND THREAD MAY W10359271 Contact Us For Availability
1A
MAY W10860796 MAY W10860796 Contact Us For Availability
1B
MAY W10868965 MAY W10868965 Contact Us For Availability
1C
MAY W10868768 MAY W10868768 Contact Us For Availability
1D
MAY W10868769 MAY W10868769 Contact Us For Availability
2
COVER, DISPLAY MAY W10267645 Contact Us For Availability
2
SWITCH ASSEMBLY MAY 8066134 Contact Us For Availability
2
SCREW MAY 90767 Contact Us For Availability
3
SCREW MAY W10386302 Contact Us For Availability
3
SCREW MAY 8533971 Contact Us For Availability
3
CLIP, FRONT PANEL MAY 3391846 Contact Us For Availability
4
MAY W10845284 MAY W10845284 Contact Us For Availability
4
HOUSING, BLOWER MAY 8544362 Contact Us For Availability
5
TOP (WHITE) MAY W10136704 Contact Us For Availability
5
SWITCH - BELT MAY 3394881 Contact Us For Availability
5
ASSEMBLY, AIR DUCT MAY 697354 Contact Us For Availability
6
SCREW MAY W10137322 Contact Us For Availability
6
BLOCK, TERMINAL MAY 3397659 Contact Us For Availability
6
SCREW MAY 3387230 Contact Us For Availability
7
CARD READER, HARNESS MAY W10133304 Contact Us For Availability
7
CABINET (WHITE) MAY W10547697 Contact Us For Availability
7
SEAL, DRUM FRONT MAY 697814 Contact Us For Availability
8
MAY W10845298 MAY W10845298 Contact Us For Availability
8
FOOT, DRYER MAY 3392100 Contact Us For Availability
8
NUT, HEX MAY 3934666 Contact Us For Availability
9
MAY W10881678 MAY W10881678 Contact Us For Availability
9
CLAMP, MOTOR MAY 660658 Contact Us For Availability
9
PIPE, EXHAUST MAY 8066224 Contact Us For Availability
10
MAY W10860788 MAY W10860788 Contact Us For Availability
10
SPRING, IDLER MAY W10446781 Contact Us For Availability
10
CLIP, EXHAUST MAY 8572105 Contact Us For Availability
11
SCREW MAY W10143462 Contact Us For Availability
11
SCREW MAY 3389420 Contact Us For Availability
11
SCREW MAY 693995 Contact Us For Availability
12
MAY W10852653 MAY W10852653 Contact Us For Availability
12
STRIKE, DOOR MAY 696144 Contact Us For Availability
12
ASSEMBLY, WELD HEATER BOX MAY W10608837 Contact Us For Availability
13
STANDOFF, CIRCUIT BOARD MAY W10133514 Contact Us For Availability
13
SCREW MAY 3390647 Contact Us For Availability
13
RESTRAINER, BELT MAY 3393657 Contact Us For Availability
14
NUT MAY W10139046 Contact Us For Availability
14
SCREW MAY 3391915 Contact Us For Availability
14
ELEMENT, HEATER MAY W10832958 Contact Us For Availability
15
CONTROL BOARD MAY W10166305 Contact Us For Availability
15
PANEL, FRONT (WHITE) MAY W10192882 Contact Us For Availability
15
CLIP, SPRING MAY W10345456 Contact Us For Availability
16
CONSOLE MAY W10461095 Contact Us For Availability
16
WIRE, BELT SWITCH MAY W10167612 Contact Us For Availability
16
NUT, HEX (LEFT HAND THREAD) MAY W10001120 Contact Us For Availability
17
CABLE TIE MAY W10155270 Contact Us For Availability
17
BULKHEAD, REAR MAY 3387809 Contact Us For Availability
18
BEZEL MAY W10131115 Contact Us For Availability
18
PLUG, HINGE (WHITE) MAY W10191265 Contact Us For Availability
18
WASHER MAY 3387459 Contact Us For Availability
19
MAY W10863353 MAY W10863353 Contact Us For Availability
19
CLIP MAY W10291934 Contact Us For Availability
19
SHAFT, DRUM ROLLER - LEFT HAND THREAD MAY W10359272 Contact Us For Availability
20
WIRE, JUMPER (BROKEN BELT SWITCH) MAY 3398948 Contact Us For Availability
20
WASHER, TRI RING MAY W10512946 Contact Us For Availability
21
COVER, TERMINAL BLOCK MAY W10286180 Contact Us For Availability
21
ASSEMBLY, HINGE & PIN (SILVER) MAY W10279703 Contact Us For Availability
21
ROLLER, SUPPORT MAY W10314171 Contact Us For Availability
22
SCREW MAY 98139 Contact Us For Availability
22
ASSEMBLY, DOOR CATCH MAY 3392538 Contact Us For Availability
22
PLUG, DRUM HOLE MAY 8066086 Contact Us For Availability
23
RETAINER, CARD READER COVER MAY W10137770 Contact Us For Availability
23
BOOT, FOOT MAY 3391943 Contact Us For Availability
23
ASSEMBLY, OUTLET HOUSING MAY W10685669 Contact Us For Availability
24
SCREW MAY 3400618 Contact Us For Availability
24
BUMPER MAY 693152 Contact Us For Availability
24
KIT, THERMAL CUT-OFF (INCLUDES THERMOSTAT) MAY 279973 Contact Us For Availability
25
COVER, CARD READER MAY W10137769 Contact Us For Availability
25
SCREW MAY 697773 Contact Us For Availability
25
ASSEMBLY, DRUM MAY W10545923 Contact Us For Availability
26
NUT, "U" MAY W10131123 Contact Us For Availability
26
JUMPER, SWITCH SERVICE/VAULT MAY W10133282 Contact Us For Availability
26
SCREW MAY W10219342 Contact Us For Availability
27
HARNESS, MAIN MDE20PRAYW0 MAY W10864806 Contact Us For Availability
27
MOTOR MAY W10396031 Contact Us For Availability
27
SEAL, DRUM MAY W10521118 Contact Us For Availability
27A
HARNESS, MAIN MDE20PRAZW0 MAY W10871258 Contact Us For Availability
28
PULLEY, MOTOR MAY 3394341 Contact Us For Availability
28
SPRING, LINT SCREEN DOOR MAY 3394986 Contact Us For Availability
29
TRANSFORMER MAY W10131839 Contact Us For Availability
29
LOCK TOP MAY 345670 Contact Us For Availability
29
BRACKET, HEATER BOX MAY 8066099 Contact Us For Availability
30
BELT, DRIVE MAY W10131172 Contact Us For Availability
30
BULKHEAD, FRONT MAY 697557 Contact Us For Availability
31
SEAL, DOOR MAY 3390735 Contact Us For Availability
31
SCREW MAY 695240 Contact Us For Availability
32
BRACKET, MOTOR MAY 3387118 Contact Us For Availability
32
THERMOSTAT HL-295/215 MAY 3391914 Contact Us For Availability
33
WASHER MAY 3392186 Contact Us For Availability
33
GRILL, OUTLET MAY W10692558 Contact Us For Availability
34
TERMINAL, BRASS AND TINNED (INCLUDES TERMINAL MAY 279318 Contact Us For Availability
34
FUSE, THERMAL (91C) MAY 3392519 Contact Us For Availability
35
SCREW KIT, TERMINAL BLOCK MAY 279393 Contact Us For Availability
35
SEAL, PLATE COVER MAY 697770 Contact Us For Availability
36
SCREW MAY 343641 Contact Us For Availability
36
LINT SCREEN (WHITE) MAY W10596627 Contact Us For Availability
37
SCREW MAY W10773242 Contact Us For Availability
37
WHEEL, BLOWER MAY W10349492 Contact Us For Availability
38
RETAINER MAY 3388229 Contact Us For Availability
38
DOOR, LINT SCREEN MAY W10685668 Contact Us For Availability
39
PULLEY-IDLER ASSEMBLY MAY W10344193 Contact Us For Availability
39
SCREW MAY 3357011 Contact Us For Availability
40
LEVER SWITCH MAY 8066120 Contact Us For Availability
40
BAFFLE, DRUM MAY 697693 Contact Us For Availability
41
SWITCH, DOOR MAY 3406109 Contact Us For Availability
41
ASSEMBLY, LINT DUCT MAY 8066168 Contact Us For Availability
42
SCREW MAY 98129 Contact Us For Availability
42
THERMISTOR MAY 8577274 Contact Us For Availability
43
PANEL, TOE (WHITE) MAY 697215 Contact Us For Availability
44
SEAL, FRONT PANEL MAY 3387242 Contact Us For Availability
45
SCREW MAY 342055 Contact Us For Availability
46
HANDLE, DOOR MAY W10116360 Contact Us For Availability
47
DOOR, REAR MAY W10323061 Contact Us For Availability
48
DOOR, FRONT MAY W10322546 Contact Us For Availability
49
DRYER EXHAUST KIT (FOR SIDE & BOTTOM VENTING) MAY 279818 Contact Us For Availability
50
MULTIVENT PLUG (WHITE) MAY 697750 Contact Us For Availability
51
ELBOW MAY 49026 Contact Us For Availability
52
SCREW MAY 488729 Contact Us For Availability
53
PLATE, COVER MAY 3394331 Contact Us For Availability
54
PIPE, EXHAUST (MEDIUM) MAY 8563747 Contact Us For Availability
55
PIPE, EXHAUST (SHORT) MAY 8563750 Contact Us For Availability
56
PIPE, EXHAUST (LONG) MAY 8563749 Contact Us For Availability
NI
FOOT, OPTIONAL (EXTENDED LENGTH PACKAGE OF 2) MAY 279810 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. GRAY PRIMER) MAY 350938 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, DRYER REPAIR MAY 4392067 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, DRYER VENT TESTING MAY 8522199 Contact Us For Availability
× ![]()
