Model Maytag MDE20PNAGW0 LAUNDRY, COMMERCIAL, ELECTRIC DRYER – Common Parts & Diagrams
01 - COVER SHEET

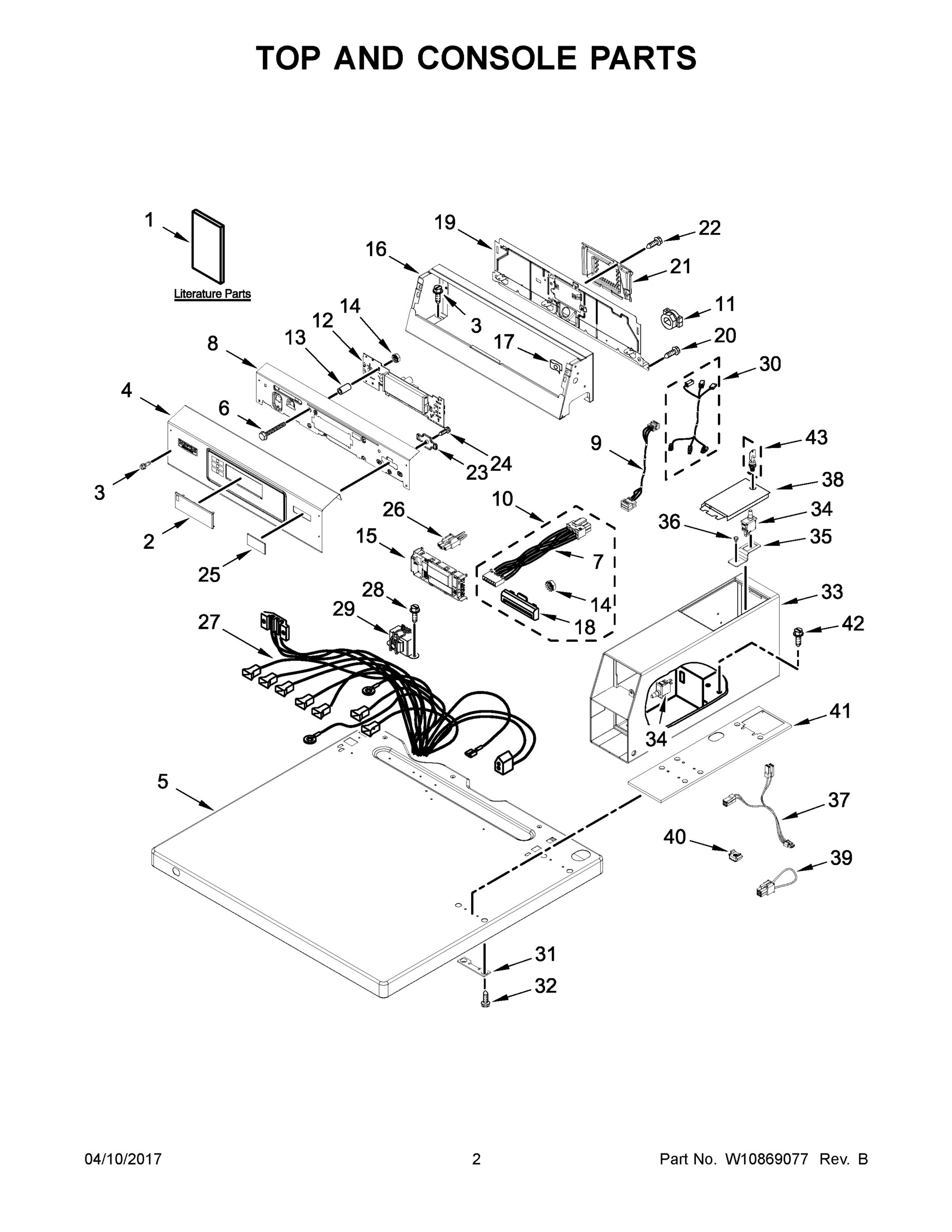

02 - TOP AND CONSOLE PARTS

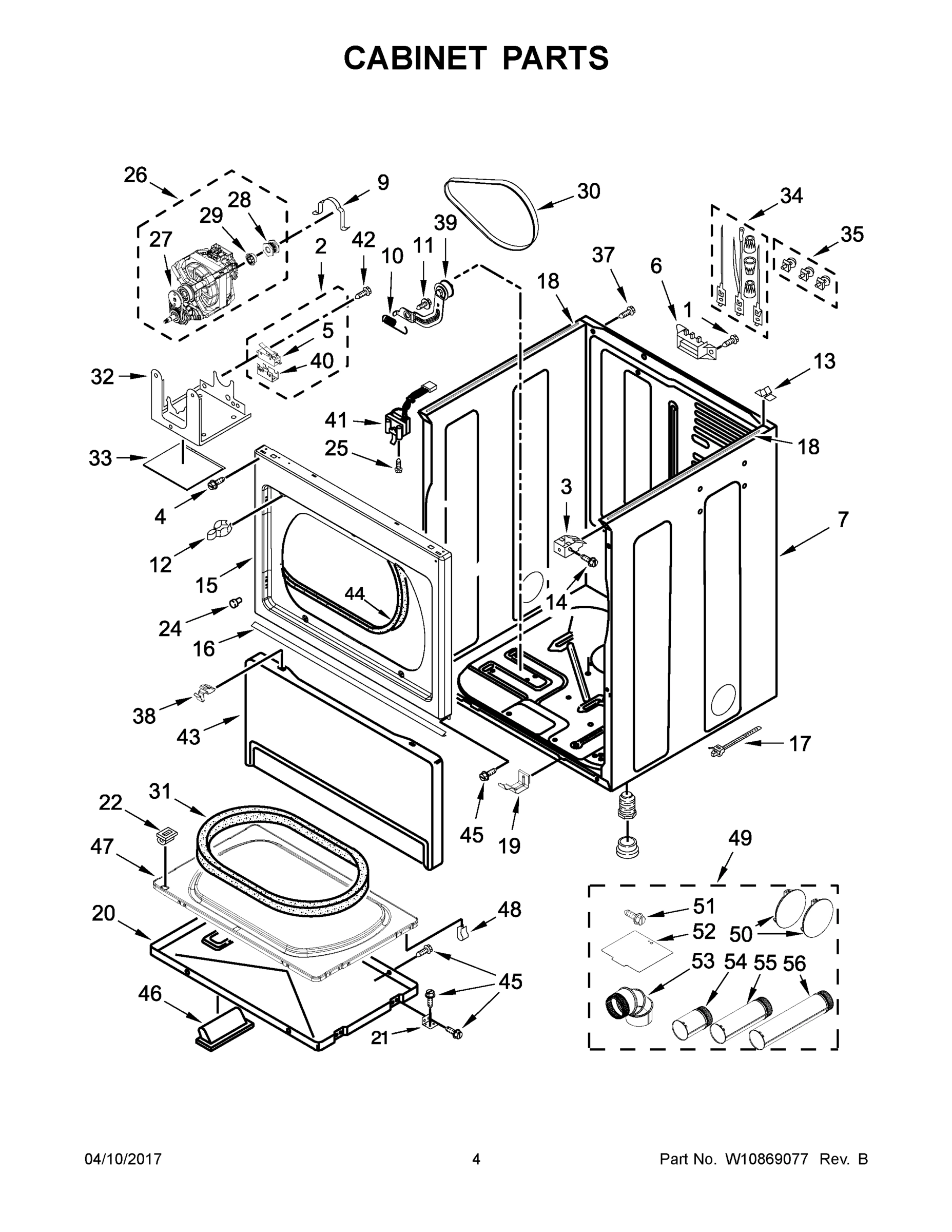

03 - CABINET PARTS

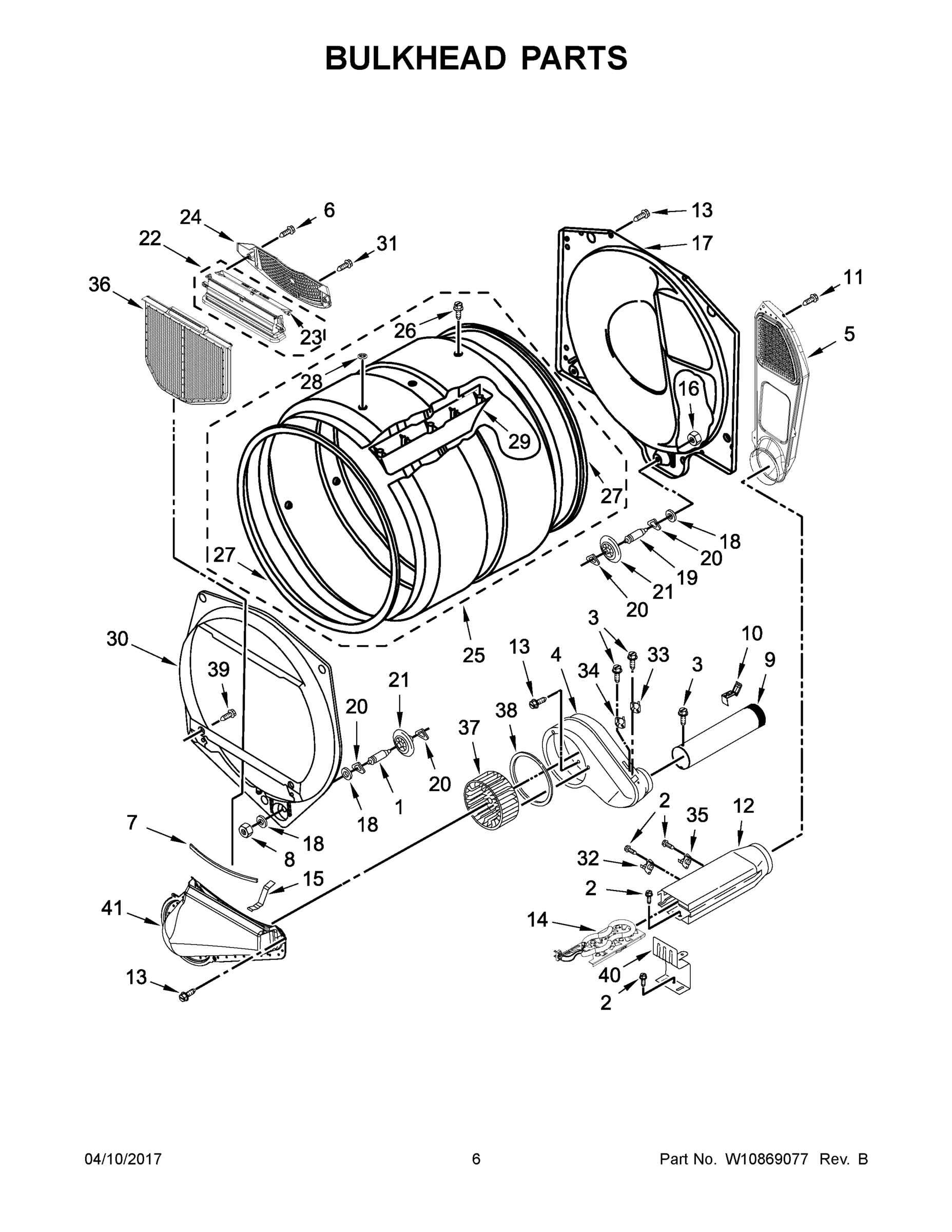

04 - BULKHEAD PARTS
05 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MDE20PNAGW0 LAUNDRY, COMMERCIAL, ELECTRIC DRYER
1
MAY W10868681 MAY W10868681 Contact Us For Availability
1
SCREW MAY 3393008 Contact Us For Availability
1
SHAFT, DRUM ROLLER - RIGHT HAND THREAD MAY W10359271 Contact Us For Availability
1A
MAY W10868710 MAY W10868710 Contact Us For Availability
1B
MAY W10913404 MAY W10913404 Contact Us For Availability
1C
MAY W10868969 MAY W10868969 Contact Us For Availability
1D
MAY W10894511 MAY W10894511 Contact Us For Availability
1E
WIRING DIAGRAM MDE20PNAGW0 MAY W10894513 Contact Us For Availability
2
COVER, DISPLAY MAY W10267645 Contact Us For Availability
2
ASSEMBLY, SWITCH MAY W10259136 Contact Us For Availability
2
SCREW MAY 90767 Contact Us For Availability
3
SCREW MAY W10386302 Contact Us For Availability
3
SCREW MAY 8533971 Contact Us For Availability
3
CLIP, FRONT PANEL MAY 3391846 Contact Us For Availability
4
MAY W10845283 MAY W10845283 Contact Us For Availability
4
HOUSING, BLOWER MAY 8544363 Contact Us For Availability
4A
FACIA MDE20PNAGW0 MAY W10902645 Contact Us For Availability
5
TOP (WHITE MDE20PDAGW0) MAY W10136707 Contact Us For Availability
5
ASSEMBLY, SWITCH ACTUATOR MAY W10410873 Contact Us For Availability
5
ASSEMBLY, AIR DUCT MAY 697354 Contact Us For Availability
5A
TOP (WHITE MDE20PNAGW0) MAY W10136704 Contact Us For Availability
6
SCREW MAY W10137322 Contact Us For Availability
6
BLOCK, TERMINAL MAY 3397659 Contact Us For Availability
6
SCREW MAY 3387230 Contact Us For Availability
7
CARD READER, HARNESS MAY W10133304 Contact Us For Availability
7
CABINET (WHITE) MAY W10547697 Contact Us For Availability
7
SEAL, DRUM FRONT MAY 697814 Contact Us For Availability
8
BRACKET, CONTROL MDE20PDAGW0 MAY W10845300 Contact Us For Availability
8
FOOT, DRYER MAY 3392100 Contact Us For Availability
8
NUT, HEX MAY 3934666 Contact Us For Availability
8A
BRACKET, CONTROL MDE20PNAGW0 MAY W10845298 Contact Us For Availability
9
MAY W10881678 MAY W10881678 Contact Us For Availability
9
CLAMP, MOTOR MAY 660658 Contact Us For Availability
9
PIPE, EXHAUST MAY W10121167 Contact Us For Availability
10
MAY W10913402 MAY W10913402 Contact Us For Availability
10
SPRING, IDLER MAY W10446781 Contact Us For Availability
10
CLIP, EXHAUST MAY 8572105 Contact Us For Availability
11
RELIEF, STRAIN (POWER CORD) MAY 8316644 Contact Us For Availability
11
SCREW MAY 3389420 Contact Us For Availability
11
SCREW MAY 693995 Contact Us For Availability
12
MAY W11042008 MAY W11042008 Contact Us For Availability
12
STRIKE, DOOR MAY 696144 Contact Us For Availability
12
ASSEMBLY, WELD HEATER BOX MAY W10608837 Contact Us For Availability
12A
CONTROL, USER INTERFACE MDE20PNAGW0 MAY W11042009 Contact Us For Availability
13
STANDOFF, CIRCUIT BOARD MAY W10133514 Contact Us For Availability
13
SCREW MAY 3390647 Contact Us For Availability
13
LOCK TOP MAY 345670 Contact Us For Availability
14
NUT MAY W10139046 Contact Us For Availability
14
SCREW MAY 3391915 Contact Us For Availability
14
ELEMENT, HEATER MAY 3387749 Contact Us For Availability
15
BOARD, CONTROL MAY W10166377 Contact Us For Availability
15
PANEL, FRONT MAY W10234293 Contact Us For Availability
15
CLIP, SPRING MAY W10345456 Contact Us For Availability
16
CONSOLE MDE20PDAGW0 MAY W10461094 Contact Us For Availability
16
SEAL, DEFLECTOR MAY W10576519 Contact Us For Availability
16
NUT, HEX (LEFT HAND THREAD) MAY W10001120 Contact Us For Availability
16A
CONSOLE MDE20PNAGW0 MAY W10461095 Contact Us For Availability
17
CABLE TIE MAY W10155270 Contact Us For Availability
17
BULKHEAD, REAR MAY 3387809 Contact Us For Availability
18
BEZEL MAY W10131115 Contact Us For Availability
18
SEAL, FOAM MAY 8318396 Contact Us For Availability
18
WASHER MAY 3387459 Contact Us For Availability
19
PANEL, REAR (CONSOLE) MDE20PDAGW0 MAY W10863355 Contact Us For Availability
19
CLIP MAY W10291934 Contact Us For Availability
19
SHAFT, DRUM ROLLER - LEFT HAND THREAD MAY W10359272 Contact Us For Availability
19A
PANEL, REAR (CONSOLE) MDE20PNAGW0 MAY W10863353 Contact Us For Availability
20
DOOR, FRONT MAY W10322546 Contact Us For Availability
20
WASHER, TRI RING MAY W10512946 Contact Us For Availability
21
COVER, TERMINAL BLOCK MAY W10601020 Contact Us For Availability
21
ASSEMBLY, HINGE & PIN (SILVER) MAY W10279703 Contact Us For Availability
21
ROLLER, SUPPORT MAY W10314171 Contact Us For Availability
22
SCREW MAY 98139 Contact Us For Availability
22
ASSEMBLY, DOOR CATCH MAY 3392538 Contact Us For Availability
22
ASSEMBLY, OUTLET HOUSING MAY W10685669 Contact Us For Availability
23
RETAINER, CARD READER COVER MAY W10137770 Contact Us For Availability
23
BOOT, FOOT MAY 3391943 Contact Us For Availability
23
DOOR, LINT SCREEN MAY W10685668 Contact Us For Availability
24
SCREW MAY 3400618 Contact Us For Availability
24
BUMPER MAY 693152 Contact Us For Availability
24
GRILL, OUTLET MAY W10692558 Contact Us For Availability
25
COVER, CARD READER MAY W10137769 Contact Us For Availability
25
SCREW MAY 697773 Contact Us For Availability
25
ASSEMBLY, DRUM MAY W10545922 Contact Us For Availability
26
JUMPER, SWITCH SERVICE/VAULT MAY W10133282 Contact Us For Availability
26
ASSEMBLY, MOTOR 50 HZ. MAY W10747112 Contact Us For Availability
26
SCREW MAY W10219342 Contact Us For Availability
27
MAY W10864808 MAY W10864808 Contact Us For Availability
27
BELT, DRIVE (BLOWER WHEEL) MAY 3405160 Contact Us For Availability
27
SEAL, DRUM MAY W10521118 Contact Us For Availability
28
PULLEY MAY W10167237 Contact Us For Availability
28
CAP, PLUG MAY W10128544 Contact Us For Availability
29
TRANSFORMER, 240-22.5 VAC MAY W10633921 Contact Us For Availability
29
RESTRAINER, BELT MAY 3393657 Contact Us For Availability
29
BAFFLE, DRUM MAY 697693 Contact Us For Availability
30
HARNESS, COIN EXTENDER MAY W10655203 Contact Us For Availability
30
BELT, DRIVE MAY W10131172 Contact Us For Availability
30
BULKHEAD, FRONT MAY 697557 Contact Us For Availability
31
PLATE, MOUNTING MAY 3347825 Contact Us For Availability
31
SEAL, DOOR MAY 3390735 Contact Us For Availability
31
SCREW MAY 695240 Contact Us For Availability
32
SCREW MAY 98445 Contact Us For Availability
32
BRACKET, MOTOR MAY W10135695 Contact Us For Availability
32
THERMOSTAT MAY W10168175 Contact Us For Availability
33
METER CASE MAY W10529176 Contact Us For Availability
33
MOTOR, SOUND PAD MAY W10836094 Contact Us For Availability
33
THERMISTOR MAY 8577274 Contact Us For Availability
34
SWITCH, VAULT SERVICE DOOR MAY W10133289 Contact Us For Availability
34
TERMINAL, BRASS AND TINNED (INCLUDES TERMINAL MAY 279318 Contact Us For Availability
34
LIMITER, THERMAL (192F) MAY W10167627 Contact Us For Availability
35
BRACKET, SERVICE SWITCH MAY W10133508 Contact Us For Availability
35
SCREW KIT, TERMINAL BLOCK MAY 279393 Contact Us For Availability
35
MAY W10154212 MAY W10154212 Contact Us For Availability
36
SCREW MAY W10139210 Contact Us For Availability
36
SCREW MAY 343641 Contact Us For Availability
36
LINT SCREEN (WHITE) MAY W10596627 Contact Us For Availability
37
HARNESS, WIRE (SERVICE SWITCH) MAY W10211244 Contact Us For Availability
37
SCREW MAY W10773242 Contact Us For Availability
37
WHEEL, BLOWER MAY W10349492 Contact Us For Availability
38
ASSEMBLY, SERVICE DOOR MAY 3351136 Contact Us For Availability
38
RETAINER MAY 3388229 Contact Us For Availability
38
SEAL, PLATE COVER MAY 697770 Contact Us For Availability
39
MAY W10785124 MAY W10785124 Contact Us For Availability
39
ASSEMBLY, IDLER MAY W10344192 Contact Us For Availability
39
SCREW MAY 3357011 Contact Us For Availability
40
NUT, CAGE MAY 90406 Contact Us For Availability
40
BRACKET, SWITCH MAY 8564011 Contact Us For Availability
40
BRACKET, HEATER BOX MAY 8066099 Contact Us For Availability
41
CUSHION, METER CASE MAY 3954812 Contact Us For Availability
41
SWITCH, DOOR MAY W10237959 Contact Us For Availability
41
ASSEMBLY, LINT DUCT MAY 8066168 Contact Us For Availability
42
BOLT MAY 3349065 Contact Us For Availability
42
ASSEMBLY, SCREW AND INSULATOR MAY 3400934 Contact Us For Availability
43
777 LOCK AND KEY, COMPLETE MAY 8316526 Contact Us For Availability
43
PANEL, TOE (WHITE) MAY 697215 Contact Us For Availability
44
SEAL, FRONT PANEL MAY 3387242 Contact Us For Availability
45
SCREW MAY 342055 Contact Us For Availability
46
HANDLE, DOOR MAY W10116360 Contact Us For Availability
47
DOOR, REAR MAY W10323061 Contact Us For Availability
48
NUT, "U" MAY W10131123 Contact Us For Availability
49
DRYER EXHAUST KIT (FOR SIDE & BOTTOM VENTING) MAY 279818 Contact Us For Availability
50
MULTIVENT PLUG (WHITE) MAY 697750 Contact Us For Availability
51
SCREW MAY 488729 Contact Us For Availability
52
PLATE, COVER MAY 3394331 Contact Us For Availability
53
ELBOW MAY 49026 Contact Us For Availability
54
PIPE, EXHAUST (SHORT) MAY 8563750 Contact Us For Availability
55
PIPE, EXHAUST (MEDIUM) MAY 8563747 Contact Us For Availability
56
PIPE, EXHAUST (LONG) MAY 8563749 Contact Us For Availability
NI
FOOT, OPTIONAL (EXTENDED LENGTH PACKAGE OF 2) MAY 279810 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. GRAY PRIMER) MAY 350938 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, DRYER REPAIR MAY 4392067 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, DRYER VENT TESTING MAY 8522199 Contact Us For Availability
× ![]()
