Model Whirlpool MDCP1085 ELECTRIC DRYER – Common Parts & Diagrams

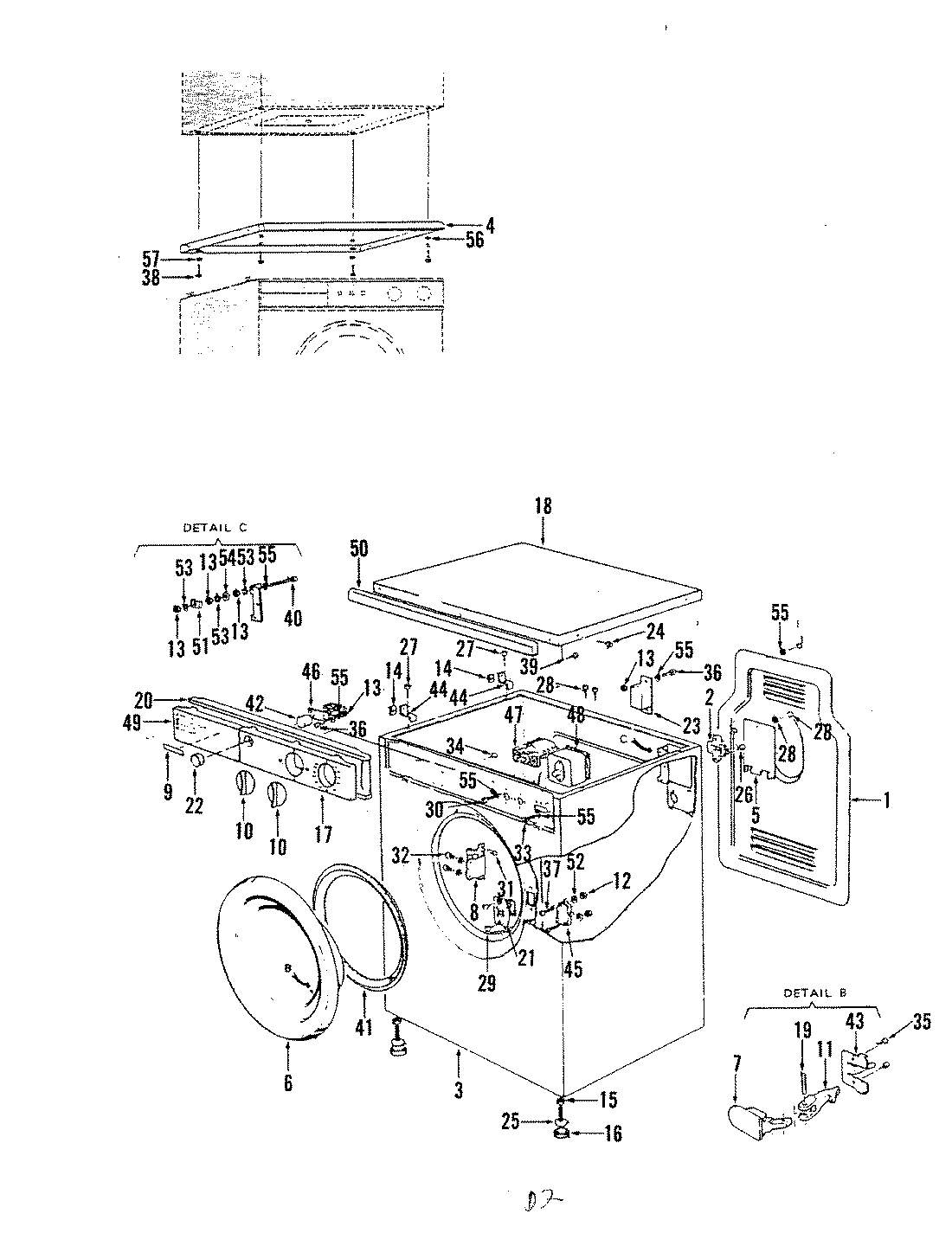

02 - CABINET & CONTROL PANEL

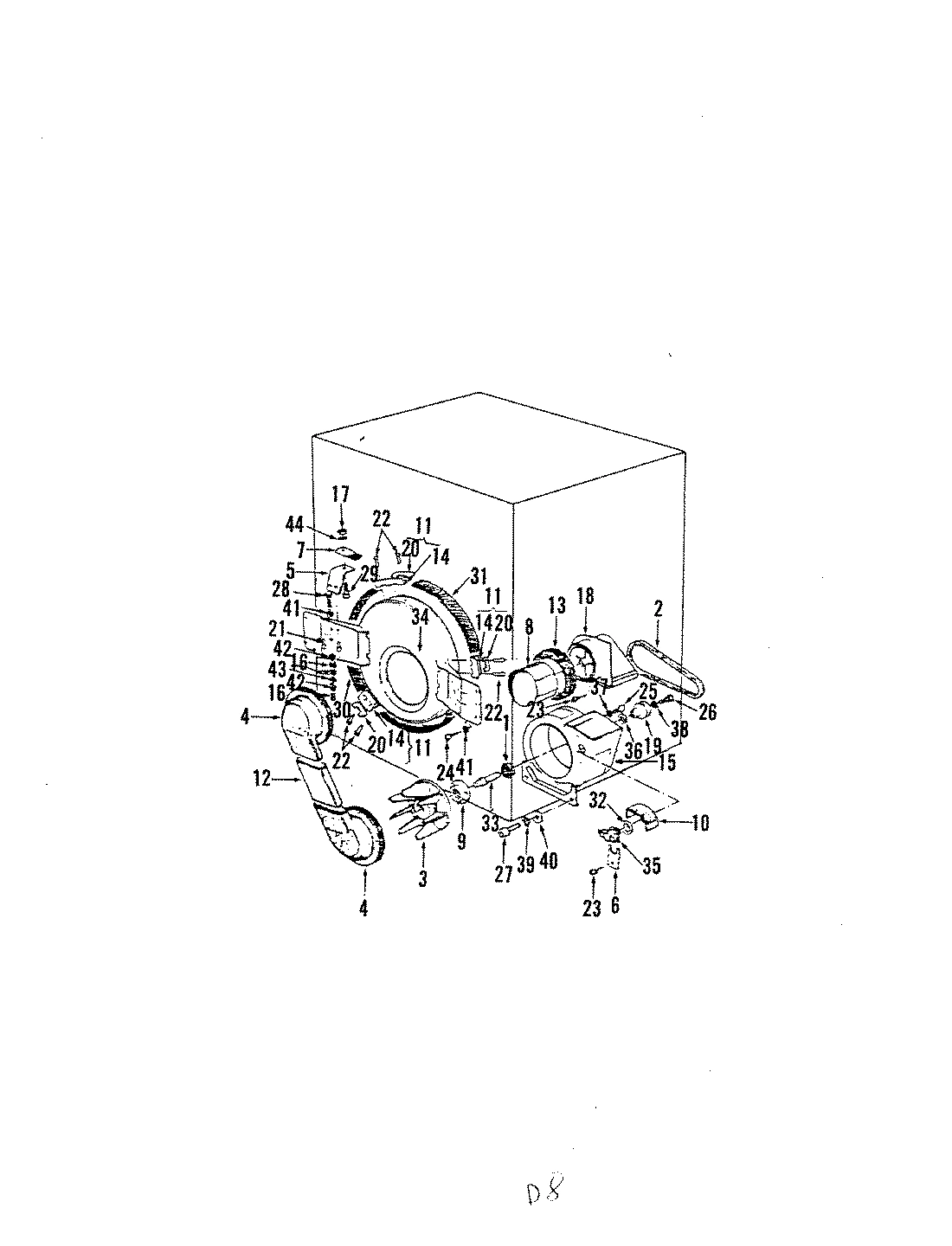

01 - BLOWER

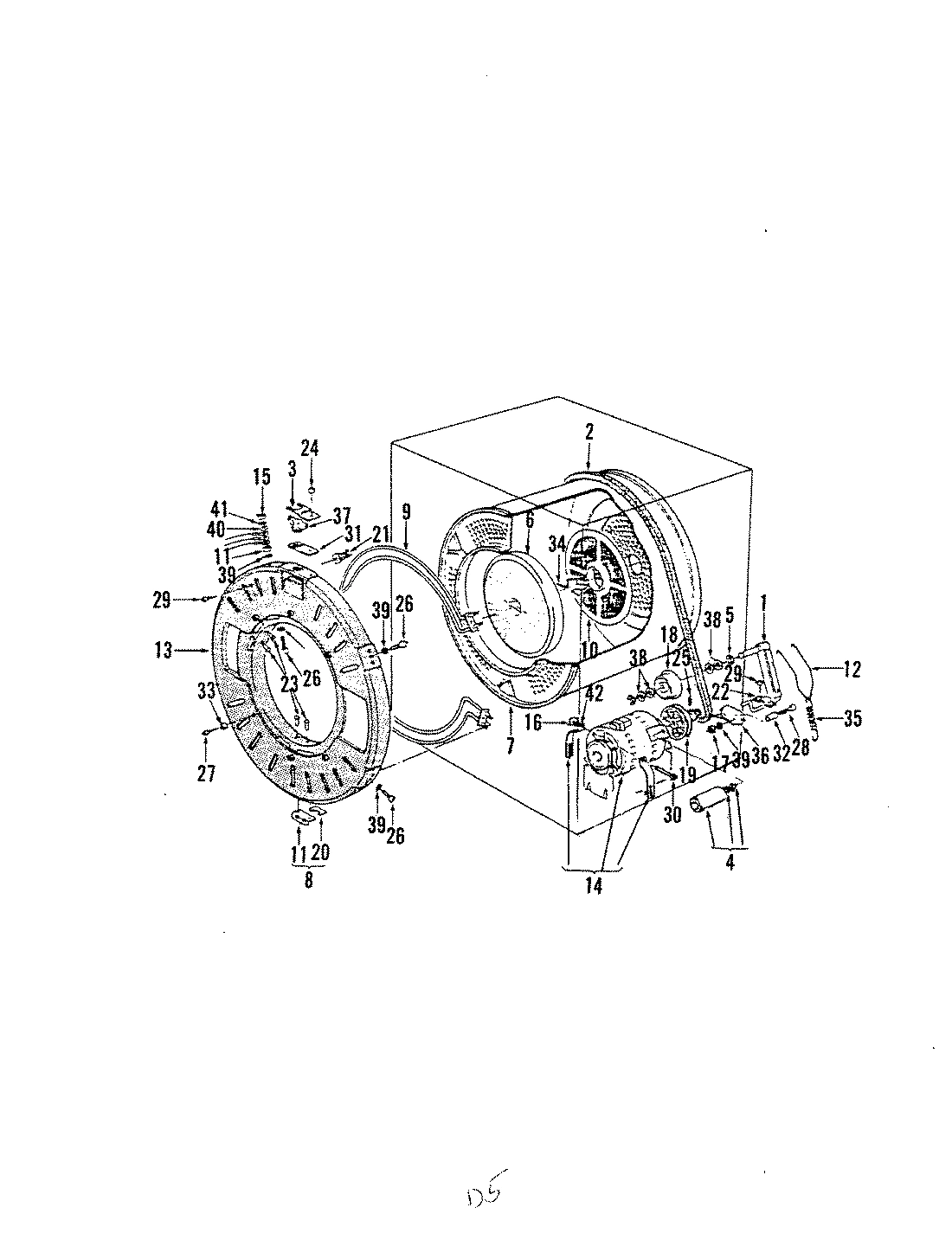

03 - CYLINDER & HEATER
Common parts from model Whirlpool MDCP1085 ELECTRIC DRYER
1
BACK PANEL WPL 181750012 Contact Us For Availability
1
BALL BEARING WPL 183240012 Contact Us For Availability
1
EXTENSION ARM WPL 183990011 Contact Us For Availability
2
TERMINAL BLOCK WPL 116990419 Contact Us For Availability
2
DRIVE BELT WPL 184180023 Contact Us For Availability
2
DRIVE BELT WPL 184180026 Contact Us For Availability
3
WH CABINET ASM WPL 189500038 Contact Us For Availability
3
IMPELLER ASM WPL 189880005 Contact Us For Availability
3
TSTAT MTG BRKT WPL 181770085 Contact Us For Availability
4
COVER WPL 111100740 Contact Us For Availability
4
AIR DUCT BOOT WPL 184410106 Contact Us For Availability
4
CAPACITOR WPL 116200722 Contact Us For Availability
5
COVER WPL 111100679 Contact Us For Availability
5
BRACKET WPL 181770083 Contact Us For Availability
5
C CLIP WPL 930008329 Contact Us For Availability
6
DOOR ASSEMBLY WPL 112990010 Contact Us For Availability
6
LINT FLTR COVER WPL 182370029 Contact Us For Availability
7
HANDLE ASM WPL 119802497 Contact Us For Availability
7
CONTACT BRUSH WPL 186990018 Contact Us For Availability
7
CYLINDER ASM WPL 189180003 Contact Us For Availability
8
HINGE ASM WPL 113190122 Contact Us For Availability
8
HOSE FITTING WPL 112902091 Contact Us For Availability
8
CYLINDER GLIDE WPL 189100002 Contact Us For Availability
9
NAMEPLATE WPL 339845 Contact Us For Availability
9
BEARING COVER WPL 183040022 Contact Us For Availability
9
HEATER ELEMENT WPL 186710161 Contact Us For Availability
10
KNOB WPL 189990081 Contact Us For Availability
10
TSTAT COVER WPL 182990045 Contact Us For Availability
10
FILTER WPL 182370028 Contact Us For Availability
11
DOOR LATCH WPL 182990079 Contact Us For Availability
11
GEAR PLATE WPL 182660015 Contact Us For Availability
12
AIR DUCT WPL 181990022 Contact Us For Availability
12
SPRING HOOK WPL 183540051 Contact Us For Availability
13
GASKET WPL 184410105 Contact Us For Availability
13
HEATER HOUSING WPL 181270018 Contact Us For Availability
14
NUT WPL 940073430 Contact Us For Availability
14
MOTOR WPL 186560041 Contact Us For Availability
15
NUT WPL 920113418 Contact Us For Availability
15
NUT WPL 920115235 Contact Us For Availability
15
VENTILATOR ASM WPL 189190006 Contact Us For Availability
16
PAD WPL 114400056 Contact Us For Availability
16
NUT WPL 990145131 Contact Us For Availability
17
NUT WPL 920134133 Contact Us For Availability
17
CONTROL PANEL WPL 182990144 Contact Us For Availability
18
TOP PANEL WPL 111100734 Contact Us For Availability
18
BLOWER OUTLET WPL 182130021 Contact Us For Availability
18
IDLER PULLEY WPL 182680011 Contact Us For Availability
19
LATCH PIN WPL 113900056 Contact Us For Availability
19
FAN PULLEY WPL 183680023 Contact Us For Availability
19
MOTOR PULLEY WPL 183680025 Contact Us For Availability
20
CNTRL MTG PLATE WPL 112400396 Contact Us For Availability
20
GLIDE RETAINER WPL 182660030 Contact Us For Availability
21
LATCH PLATE WPL 182990097 Contact Us For Availability
21
RIVET WPL 956248610 Contact Us For Availability
21
HEATER RETAINER WPL 183540052 Contact Us For Availability
22
PUSHBUTTON WPL 112902035 Contact Us For Availability
22
RIVET WPL 956333611 Contact Us For Availability
22
HINGE WPL 182170012 Contact Us For Availability
23
RELAY WPL 186990026 Contact Us For Availability
23
RIVET WPL 950313701 Contact Us For Availability
24
SCREW WPL 912344102 Contact Us For Availability
24
SCREW WPL 991350543 Contact Us For Availability
25
LEVELER WPL 991170135 Contact Us For Availability
25
SCREW WPL 912153130 Contact Us For Availability
25
SCREW WPL 991110336 Contact Us For Availability
26
SCREW WPL 912500100 Contact Us For Availability
26
SCREW WPL 912133410 Contact Us For Availability
26
SCREW WPL 917121131 Contact Us For Availability
27
SCREW WPL 912353335 Contact Us For Availability
27
SCREW WPL 911500005 Contact Us For Availability
27
SCREW WPL 991341241 Contact Us For Availability
28
SCREW WPL 995500001 Contact Us For Availability
28
SCREW WPL 912131140 Contact Us For Availability
29
SCREW WPL 912354127 Contact Us For Availability
29
SCREW WPL 912124100 Contact Us For Availability
30
CYLINDER SEAL WPL 184410103 Contact Us For Availability
30
SCREW WPL 912146131 Contact Us For Availability
31
SCREW WPL 912200001 Contact Us For Availability
31
TAPE WPL 184410102 Contact Us For Availability
31
TSTAT SEAL WPL 184990011 Contact Us For Availability
32
TSTAT SEAL WPL 184410094 Contact Us For Availability
32
SPACER WPL 181290014 Contact Us For Availability
33
SCREW WPL 912131138 Contact Us For Availability
33
BLOWER SHAFT WPL 183020024 Contact Us For Availability
33
SPACER WPL 184290012 Contact Us For Availability
34
SCREW WPL 911354239 Contact Us For Availability
34
CYL SUPPORT WPL 189040009 Contact Us For Availability
34
SPRING WPL 183540059 Contact Us For Availability
35
SCREW WPL 912121136 Contact Us For Availability
35
THERMOSTAT WPL 186820021 Contact Us For Availability
35
1DLER SPRING WPL 183540056 Contact Us For Availability
36
DOOR SWITCH WPL 186240098 Contact Us For Availability
36
WASHER WPL 181720012 Contact Us For Availability
37
SCREW WPL 912125109 Contact Us For Availability
37
WASHER WPL 930046332 Contact Us For Availability
37
THERMOSTAT WPL 186820031 Contact Us For Availability
38
SCREW WPL 917143112 Contact Us For Availability
38
WASHER WPL 930040326 Contact Us For Availability
38
SPACER WPL 993210158 Contact Us For Availability
39
SCREW WPL 912362330 Contact Us For Availability
39
WASHER WPL 930036328 Contact Us For Availability
39
WASHER WPL 930053323 Contact Us For Availability
40
SCREW WPL 911149414 Contact Us For Availability
40
WASHER, GROUNDING PLATE WPL 930021415 Contact Us For Availability
40
WASHER WPL 993041135 Contact Us For Availability
41
DOOR SEAL WPL 184410107 Contact Us For Availability
41
WASHER WPL 930024322 Contact Us For Availability
42
SPACER WPL 182990081 Contact Us For Availability
42
WASHER WPL 930046333 Contact Us For Availability
43
SPRING WPL 113800428 Contact Us For Availability
44
SUPPORT WPL 181770084 Contact Us For Availability
44
WASHER WPL 930026334 Contact Us For Availability
46
SWITCH WPL 186990020 Contact Us For Availability
47
TEMP SEL SWITCH WPL 186240097 Contact Us For Availability
48
TIMER WPL 186810022 Contact Us For Availability
49
PANEL TRIM WPL 182990142 Contact Us For Availability
50
TOP PANEL TRIM WPL 112902354 Contact Us For Availability
51
WASHER WPL 111901103 Contact Us For Availability
52
WASHER WPL 933003511 Contact Us For Availability
56
WASHER WPL 993210561 Contact Us For Availability
57
WASHER WPL 993041134 Contact Us For Availability
× ![]()
