Model Maytag MDB9959SKZ0 DISHWASHER, UNDERCOUNTER – Common Parts & Diagrams

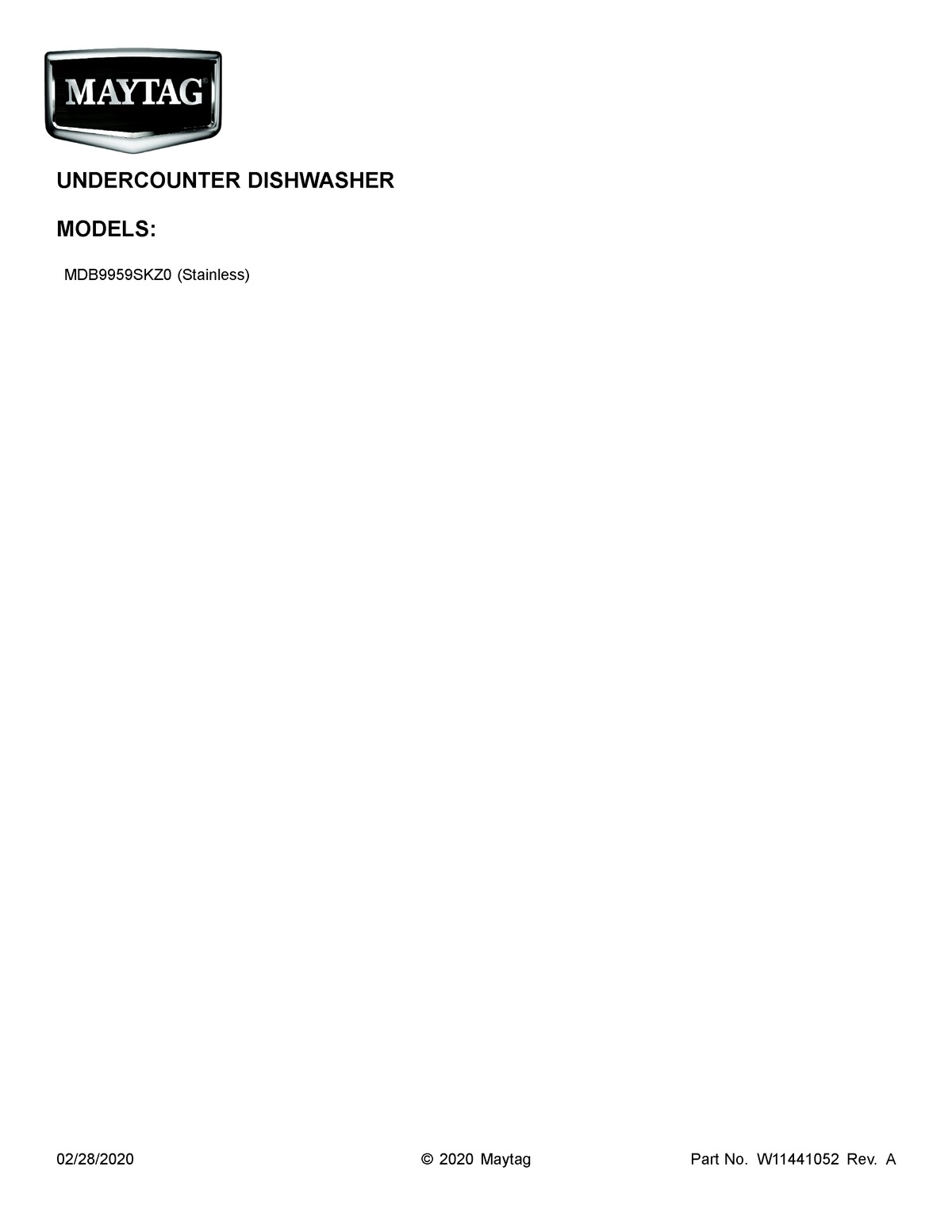

01 - COVER SHEET

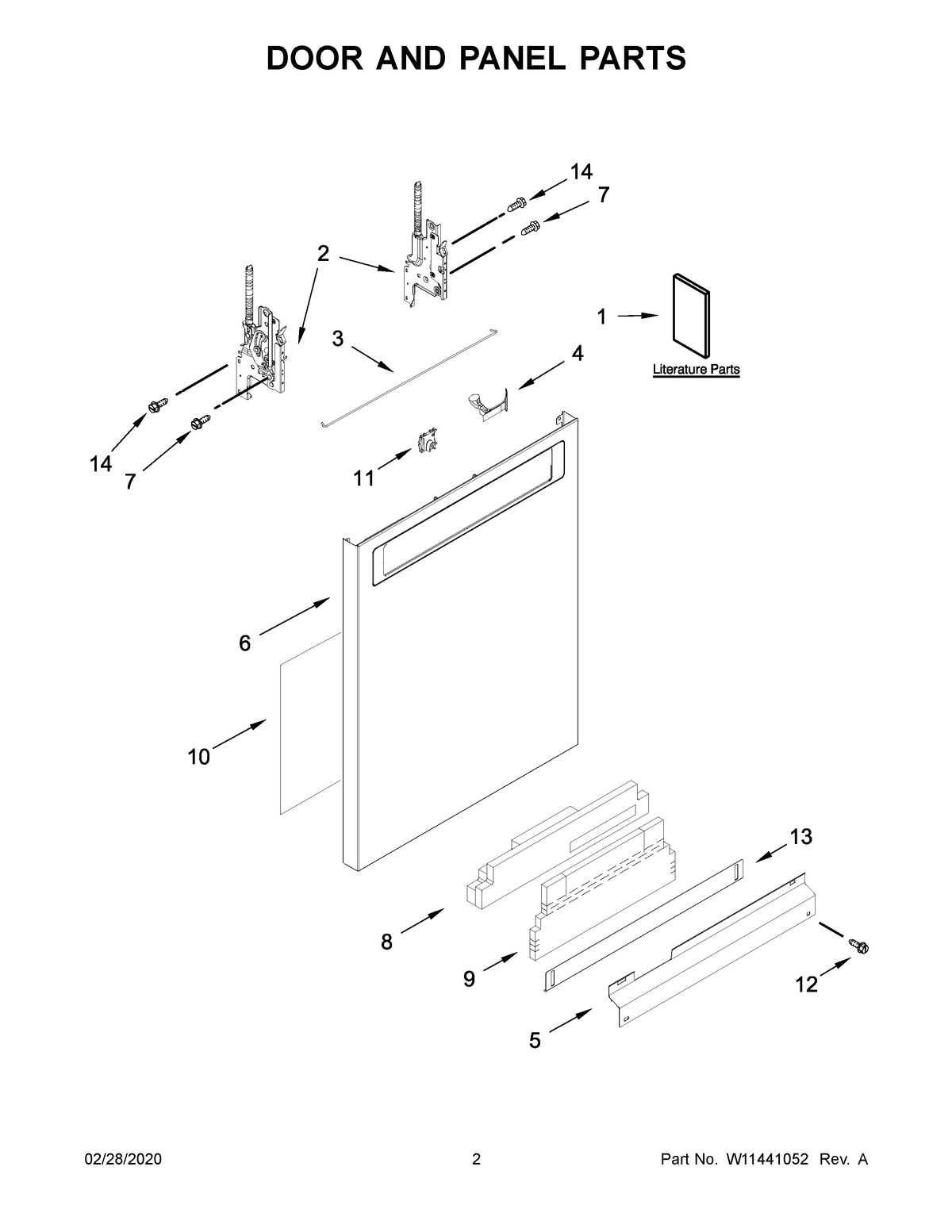

02 - DOOR AND PANEL PARTS

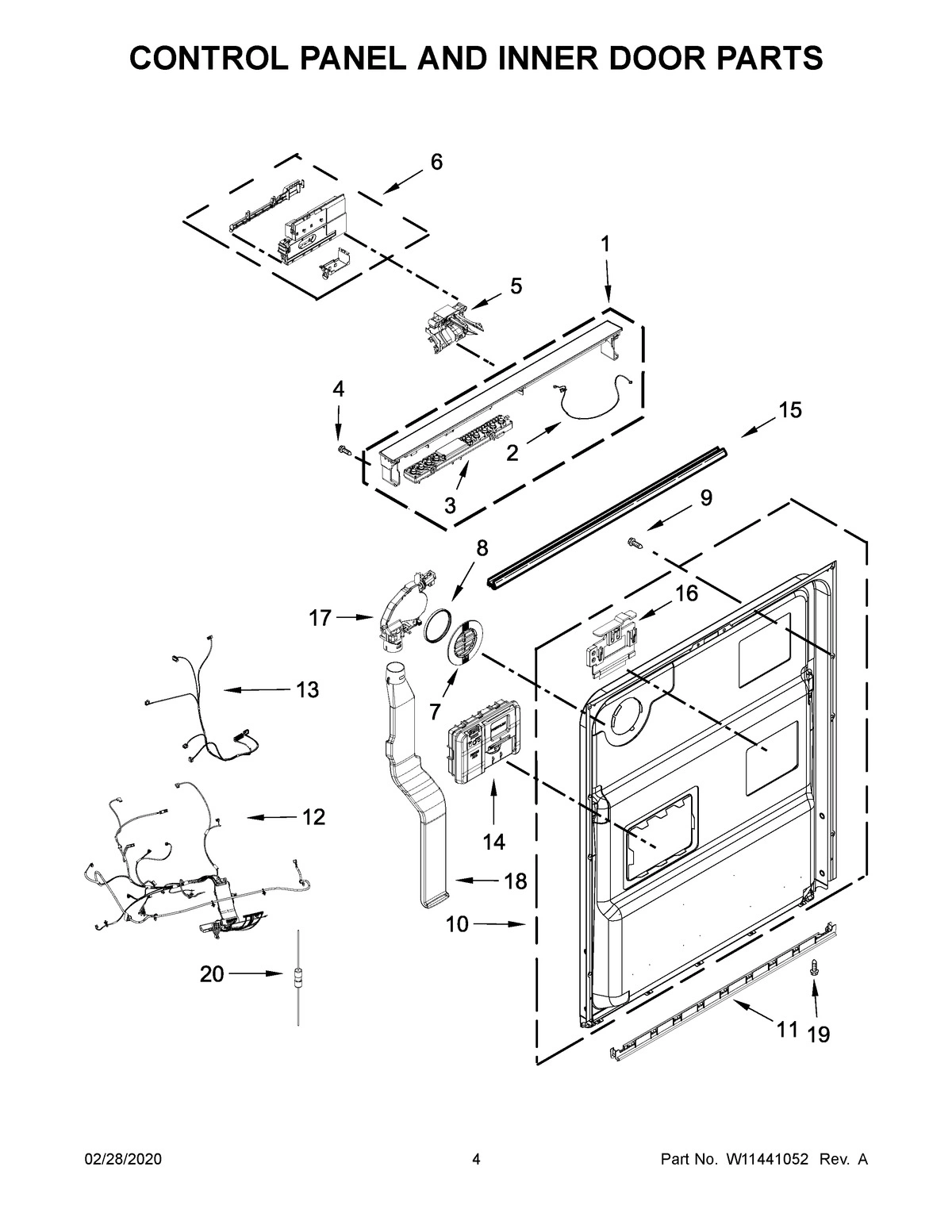

03 - CONTROL PANEL AND INNER DOOR PARTS

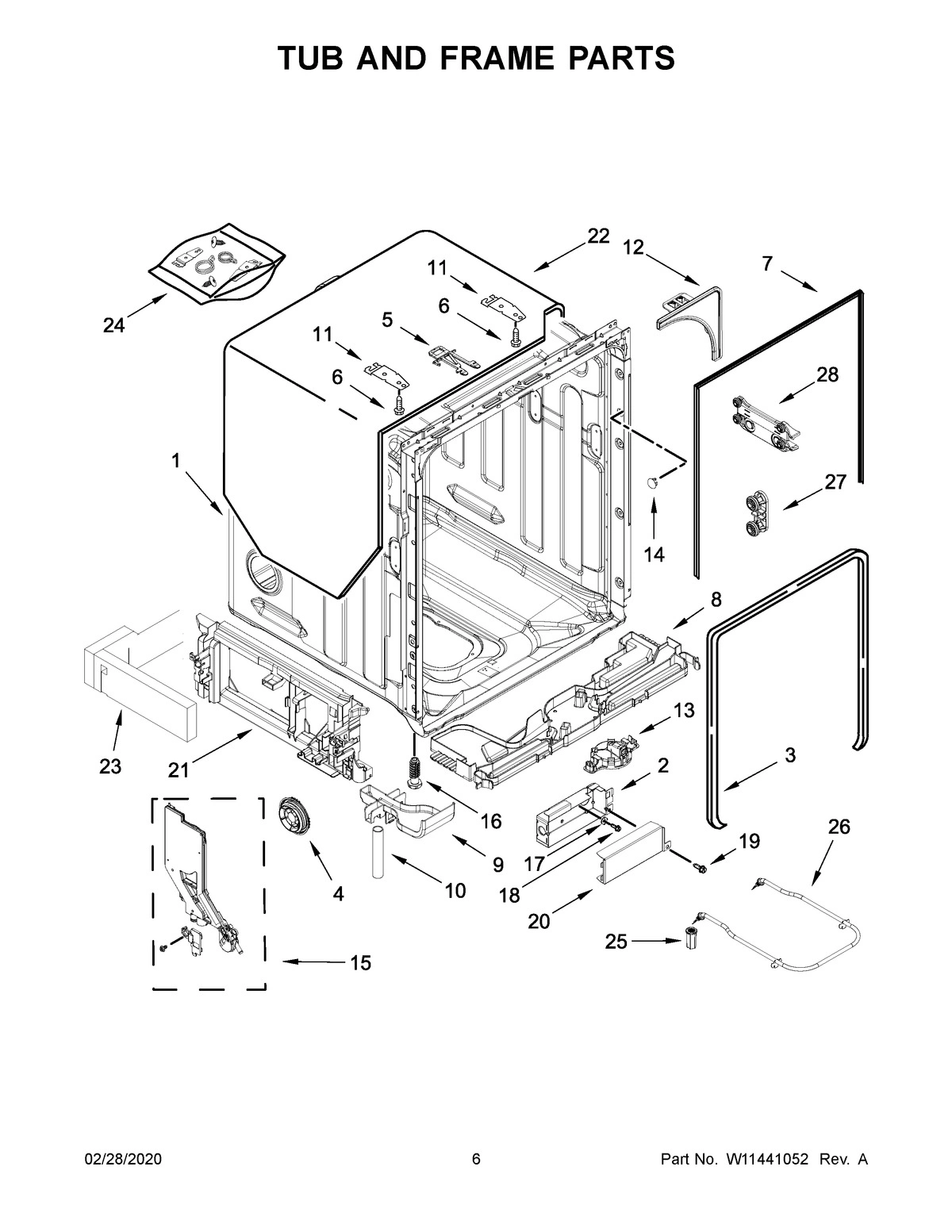

04 - TUB AND FRAME PARTS

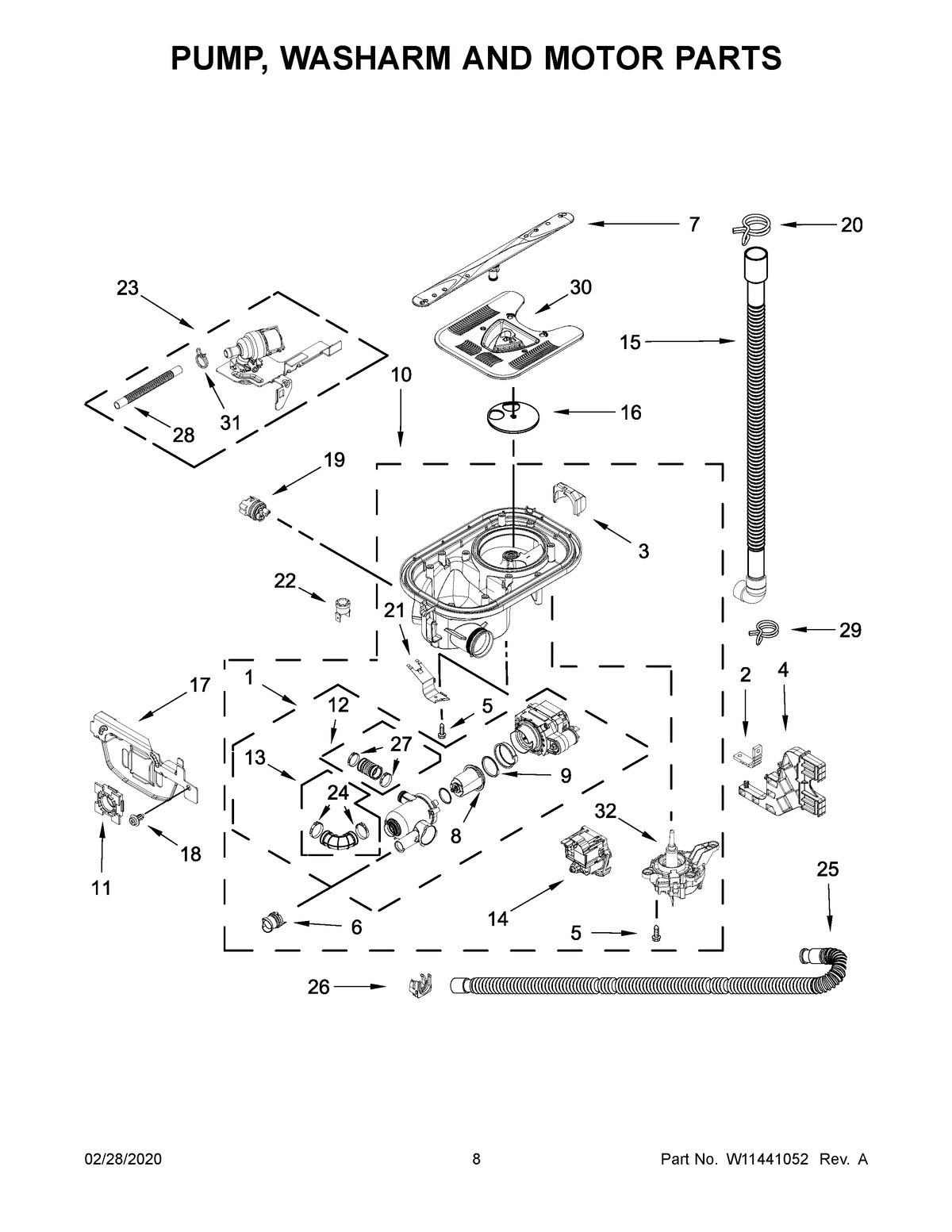

05 - PUMP, WASHARM AND MOTOR PARTS

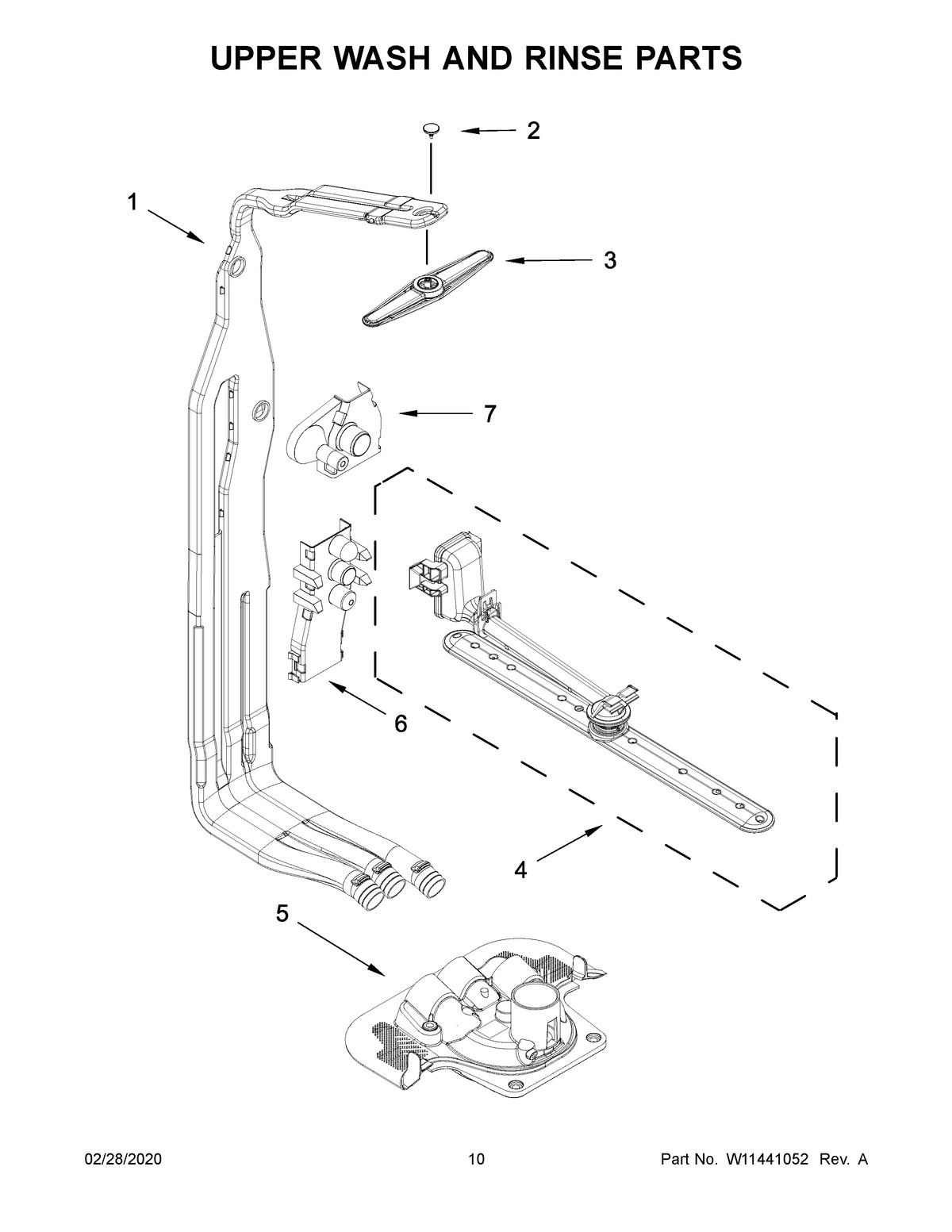

06 - UPPER WASH AND RINSE PARTS

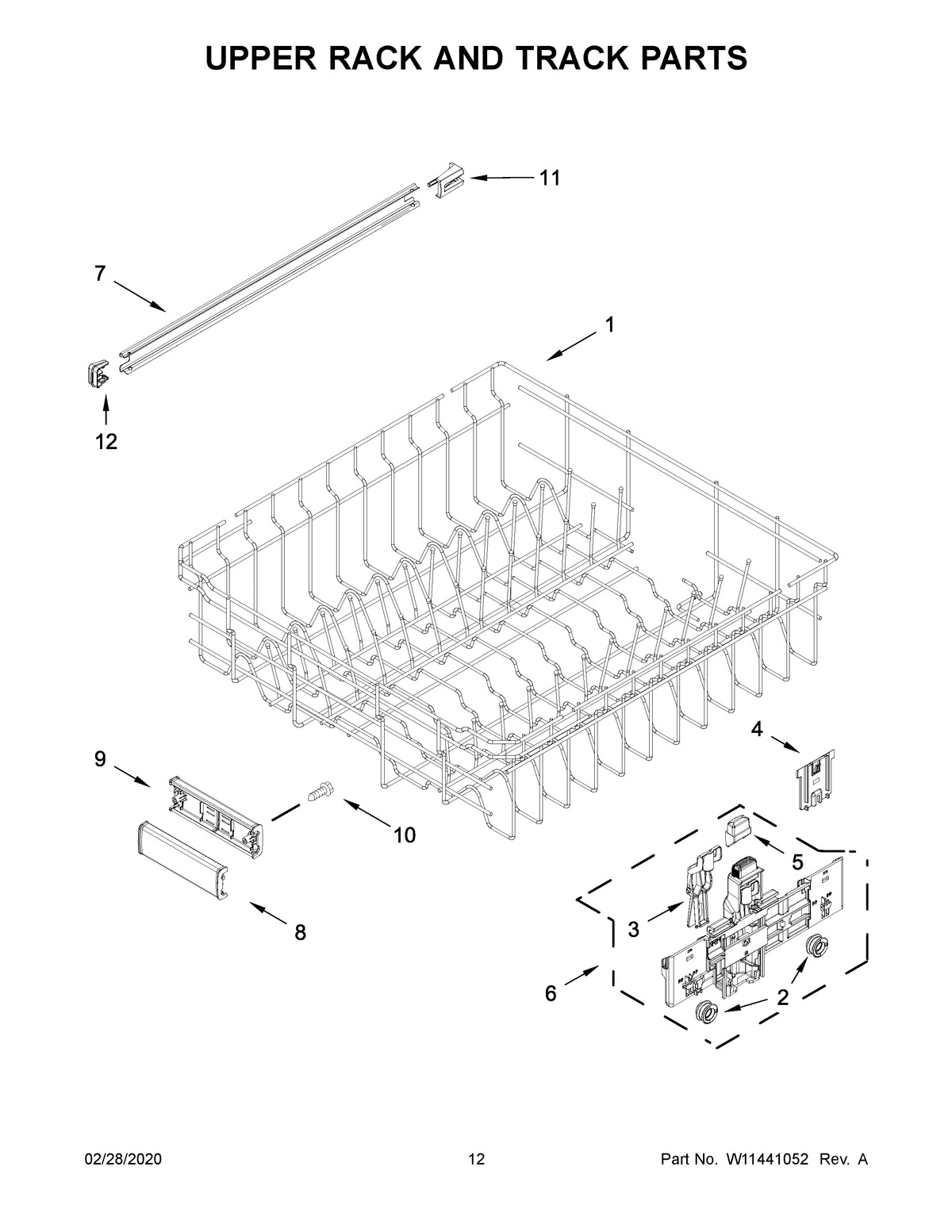

07 - UPPER RACK AND TRACK PARTS

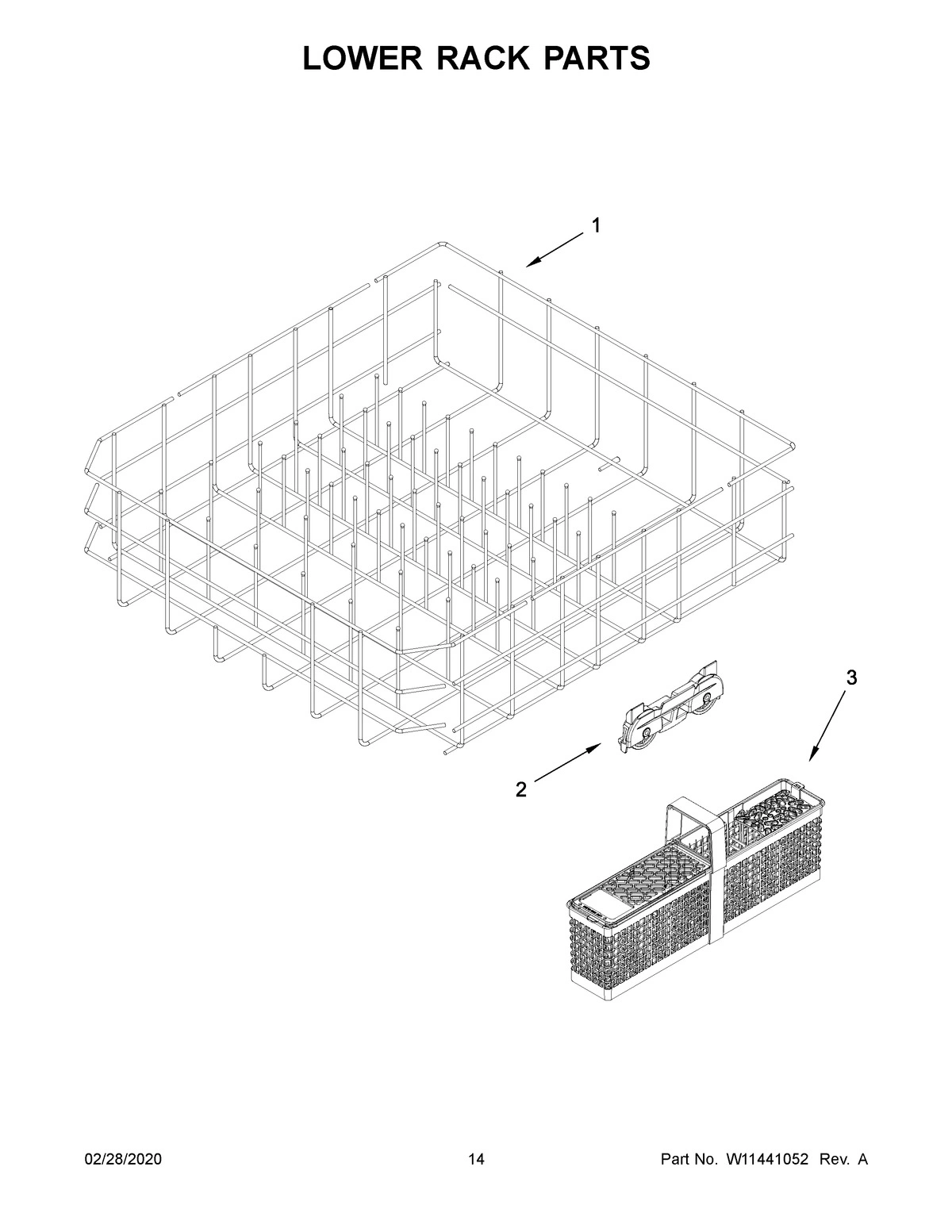

08 - LOWER RACK PARTS

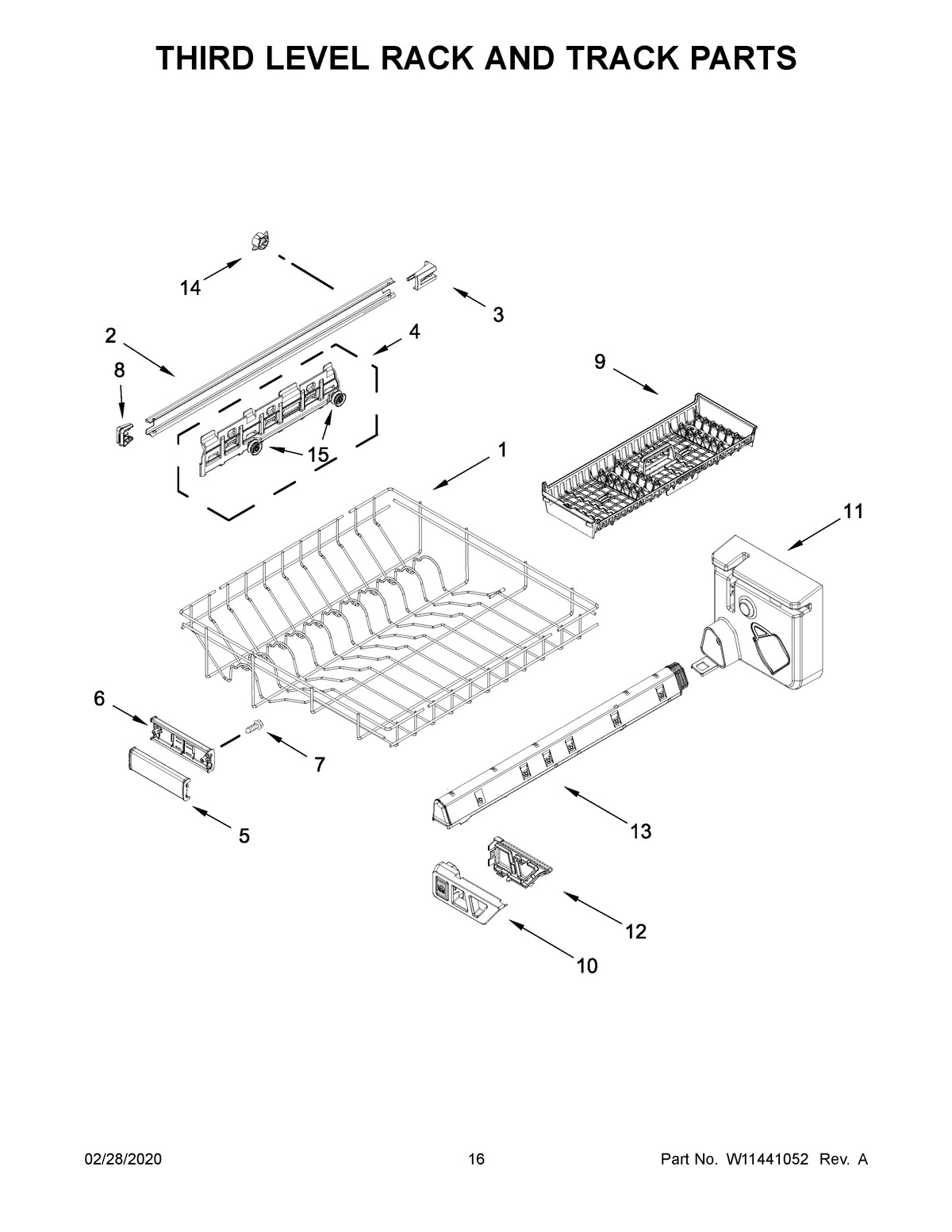

09 - THIRD LEVEL RACK AND TRACK PARTS
10 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MDB9959SKZ0 DISHWASHER, UNDERCOUNTER
1
OWNERS MANUEL MAY W11323304 Contact Us For Availability
1
MAY W11109170 MAY W11109170 Contact Us For Availability
1
TUB ASSEMBLY (INCLUDES GASKET) MAY W11120458 Contact Us For Availability
1
PUMP ASSEMBLY MAY W11122133 Contact Us For Availability
1
FEED TUBE ASSEMBLY MAY W10872558 Contact Us For Availability
1
MAY W10847875 MAY W10847875 Contact Us For Availability
1
DISHRACK, LOWER MAY W10525641 Contact Us For Availability
1
MAY W11127770 MAY W11127770 Contact Us For Availability
1A
MAY W11404475 MAY W11404475 Contact Us For Availability
1B
TECH SHEET MAY W11366142 Contact Us For Availability
2
ARM, HINGE (LEFT HAND) MAY W10920232 Contact Us For Availability
2
MAY W11084865 MAY W11084865 Contact Us For Availability
2
BASE, TERMINAL BOX MAY W11226744 Contact Us For Availability
2
ISOLATOR, FRONT MOTOR MAY W11294352 Contact Us For Availability
2
RETAINER MAY W11039888 Contact Us For Availability
2
TRACK, DISHRACK MAY W11048231 Contact Us For Availability
2
WHEEL & TRANSPORT ASSEMBLY MAY W11133747 Contact Us For Availability
2A
ARM, HINGE (RIGHT HAND) MAY W10920230 Contact Us For Availability
3
CROSS BRACE, DOOR MAY W11377160 Contact Us For Availability
3
MAY W11131366 MAY W11131366 Contact Us For Availability
3
GASKET, TUB MAY W11035860 Contact Us For Availability
3
DIFFUSER, INLET MAY W10891545 Contact Us For Availability
3
SPRAYARM, THIRD LEVEL MAY W11039869 Contact Us For Availability
3
LEVELER, ADJUSTER ARM MAY W11180178 Contact Us For Availability
3
TRACK STOP, REAR MAY W11084872 Contact Us For Availability
3
MAY W11281128 MAY W11281128 Contact Us For Availability
4
LIGHT PIPE MAY W11102920 Contact Us For Availability
4
SCREW (LONG) MAY W10711884 Contact Us For Availability
4
NUT, WATER INLET MAY W11036127 Contact Us For Availability
4
HANGER, FRONT MOTOR MAY W11294350 Contact Us For Availability
4
UPPER SPRAYARM ASSEMBLY MAY W11174340 Contact Us For Availability
4
CLIP, ADJUSTER ARM MAY W11180605 Contact Us For Availability
4
TRACK MOUNT (LEFT HAND) MAY W11231345 Contact Us For Availability
4A
TRACK MOUNT (RIGHT HAND) MAY W11231348 Contact Us For Availability
5
ACCESS PANEL (BLACK) MAY W11108979 Contact Us For Availability
5
LATCH ASSEMBLY (INCLUDES SWITCH) MAY W11091934 Contact Us For Availability
5
STRIKE, LATCH MAY W11090487 Contact Us For Availability
5
COVER, DIVERTER MAY W10903465 Contact Us For Availability
5
MAY W11267701 MAY W11267701 Contact Us For Availability
5
MAY W11268683 MAY W11268683 Contact Us For Availability
6
MAY W11367093 MAY W11367093 Contact Us For Availability
6
MAY W11348055 MAY W11348055 Contact Us For Availability
6
SCREW MAY W11296374 Contact Us For Availability
6
CHECK VALVE, DRAIN MAY W10891547 Contact Us For Availability
6
RETAINER, DOCKING (2ND LEVEL) MAY W10892836 Contact Us For Availability
6
MAY W11268092 MAY W11268092 Contact Us For Availability
6
MAY W11291785 MAY W11291785 Contact Us For Availability
6A
MAY W11268088 MAY W11268088 Contact Us For Availability
7
SCREW MAY 3400000 Contact Us For Availability
7
BEZEL, VENT (ALSO ORDER GASKET) MAY W11025634 Contact Us For Availability
7
SEAL, CABINET MAY W11165091 Contact Us For Availability
7
SCREW MAY 9741232 Contact Us For Availability
7
WASH ARM ASSEMBLY MAY W11048456 Contact Us For Availability
7
RETAINER, DOCKING (3RD LEVEL) MAY W10892835 Contact Us For Availability
8
INSULATION, MULTI-LAYER MAY W10919858 Contact Us For Availability
8
GASKET, VENT MAY W11184028 Contact Us For Availability
8
DRIP TRAY MAY W11025993 Contact Us For Availability
8
FILTER ASSEMBLY MAY W11108699 Contact Us For Availability
8
TRACK STOP, FRONT MAY W11084874 Contact Us For Availability
9
INSULATION, SINGLE LAYER MAY W11038694 Contact Us For Availability
9
SCREW MAY W10348409 Contact Us For Availability
9
FUNNEL, OVERFILL PROTECTION MAY W11025986 Contact Us For Availability
9
RING, VOLUTE MAY W10380239 Contact Us For Availability
9
SILVERWARE TRAY MAY W11087823 Contact Us For Availability
10
INSULATION, FRONT PANEL MAY W10919859 Contact Us For Availability
10
INNER DOOR ASSEMBLY MAY W11098822 Contact Us For Availability
10
FUNNEL EXTENSION MAY W11025988 Contact Us For Availability
10
MAY W11197948 MAY W11197948 Contact Us For Availability
10
MAY W11267725 MAY W11267725 Contact Us For Availability
11
BARREL NUT, FRONT PANEL MAY W10692757 Contact Us For Availability
11
SEAL, DOOR BOTTOM MAY W11163967 Contact Us For Availability
11
BRACKET, UNDERCOUNTER MAY 8269145 Contact Us For Availability
11
ISOLATOR, REAR MOTOR MAY W11036663 Contact Us For Availability
11
MAY W11287291 MAY W11287291 Contact Us For Availability
12
SCREW, BLACK MAY W11170267 Contact Us For Availability
12
WIRING HARNESS, MAIN (INCLUDES THERMOSTAT & F MAY W11344507 Contact Us For Availability
12
COVER, TUB CORNER MAY W11165093 Contact Us For Availability
12
HOSE, PRESSURE MAY W11250985 Contact Us For Availability
12
MAY W11267726 MAY W11267726 Contact Us For Availability
13
TOE PANEL (BLACK) MAY W11108991 Contact Us For Availability
13
WIRING HARNESS, INNER DOOR MAY W11084867 Contact Us For Availability
13
FLOAT SWITCH MAY W11036170 Contact Us For Availability
13
HOSE, SUCTION MAY W10900387 Contact Us For Availability
13
MAY W11175552 MAY W11175552 Contact Us For Availability
14
SCREW MAY W10309090 Contact Us For Availability
14
DISPENSER ASSEMBLY MAY W11092649 Contact Us For Availability
14
PLUG, TUB MAY W11184083 Contact Us For Availability
14
MAY W11235873 MAY W11235873 Contact Us For Availability
14
NUT, TUB MAY W10920244 Contact Us For Availability
15
SEAL, CONSOLE/DOOR MAY W11265187 Contact Us For Availability
15
WATER INLET ASSEMBLY MAY W11289893 Contact Us For Availability
15
HOSE, DRAIN MAY W11131184 Contact Us For Availability
15
WHEEL MAY W11048221 Contact Us For Availability
16
HANGER, CONTROL MAY W11088985 Contact Us For Availability
16
LEG, LEVELING MAY W10920150 Contact Us For Availability
16
DISC, DIVERTER MAY W10903468 Contact Us For Availability
17
VENT ASSEMBLY (ALSO ORDER GASKET) MAY W11038720 Contact Us For Availability
17
WASHER, PRONGED CUP MAY 3378128 Contact Us For Availability
17
BRACKET, REAR MOTOR MAY W11025963 Contact Us For Availability
18
DUCT, VENT MAY W11038734 Contact Us For Availability
18
SCREW, GROUNDING MAY 3400014 Contact Us For Availability
18
FASTENER MAY W11104048 Contact Us For Availability
19
SCREW MAY W11258418 Contact Us For Availability
19
SCREW MAY W10277003 Contact Us For Availability
19
INDICATOR, OPTICAL WASH MAY W11126174 Contact Us For Availability
20
FUSE, IN-LINE MAY W11397505 Contact Us For Availability
20
COVER, TERMINAL BOX MAY W11226746 Contact Us For Availability
20
CLAMP, HOSE MAY 370445 Contact Us For Availability
21
SIDE SUPPORT, TUB (LEFT HAND) MAY W10920122 Contact Us For Availability
21
BRACKET, THERMOSTAT MAY W11163419 Contact Us For Availability
21A
SIDE SUPPORT, TUB (RIGHT HAND) MAY W10920120 Contact Us For Availability
22
SHIELD, TUB SOUND MAY W11221921 Contact Us For Availability
22
THERMOSTAT (INCLUDED WITH MAIN WIRING HARNESS MAY W11193089 Contact Us For Availability
23
INSULATION, U-WRAP MAY W10919865 Contact Us For Availability
23
FILL VALVE ASSEMBLY MAY W11025970 Contact Us For Availability
24
MISCELLANEOUS PARTS BAG (CONTAINS 2 SCREWS, 2 MAY W11362501 Contact Us For Availability
24
CLAMP, HOSE MAY W11122851 Contact Us For Availability
25
NUT, HEATER TERMINAL MAY W11104729 Contact Us For Availability
25
HOSE MAY W11036161 Contact Us For Availability
26
HEATER ELEMENT ASSEMBLY MAY W11047695 Contact Us For Availability
26
CLIP, HOSE MAY W11036143 Contact Us For Availability
27
TUB MOUNT, UPPER RACK MAY W11086088 Contact Us For Availability
27
CLAMP, HOSE MAY W10466656 Contact Us For Availability
28
TUB MOUNT, THIRD LEVEL RACK (LEFT HAND) MAY W11101573 Contact Us For Availability
28
HOSE, INLET MAY W11036287 Contact Us For Availability
28A
TUB MOUNT, THIRD LEVEL RACK (RIGHT HAND) MAY W11256439 Contact Us For Availability
29
CLAMP, HOSE MAY W11236576 Contact Us For Availability
30
GRATE MAY W11039864 Contact Us For Availability
31
CLAMP, HOSE MAY 371505 Contact Us For Availability
32
DIVERTER VALVE MOTOR (NOT SERVICED) MAY N/P Contact Us For Availability
NI
BARRIER KIT MAY 4396277 Contact Us For Availability
NI
STRAIN RELIEF, POWER CORD (METALLIC) MAY 4396672 Contact Us For Availability
NI
FILL HOSE KIT MAY W10278635RP Contact Us For Availability
NI
COMPRESSION HOSE FITTING, WATER LINE MAY W10685193 Contact Us For Availability
NI
POWER CORD KIT (STRAIGHT) MAY W11365011 Contact Us For Availability
NI
POWER CORD KIT (RIGHT ANGLE) MAY W11365014 Contact Us For Availability
NI
EXTERNAL DRAIN HOSE, 12 FT MAY W11381654 Contact Us For Availability
× ![]()
