Model Maytag MDB8949SBW0 DISHWASHER – Common Parts & Diagrams
01 - DOOR AND PANEL PARTS

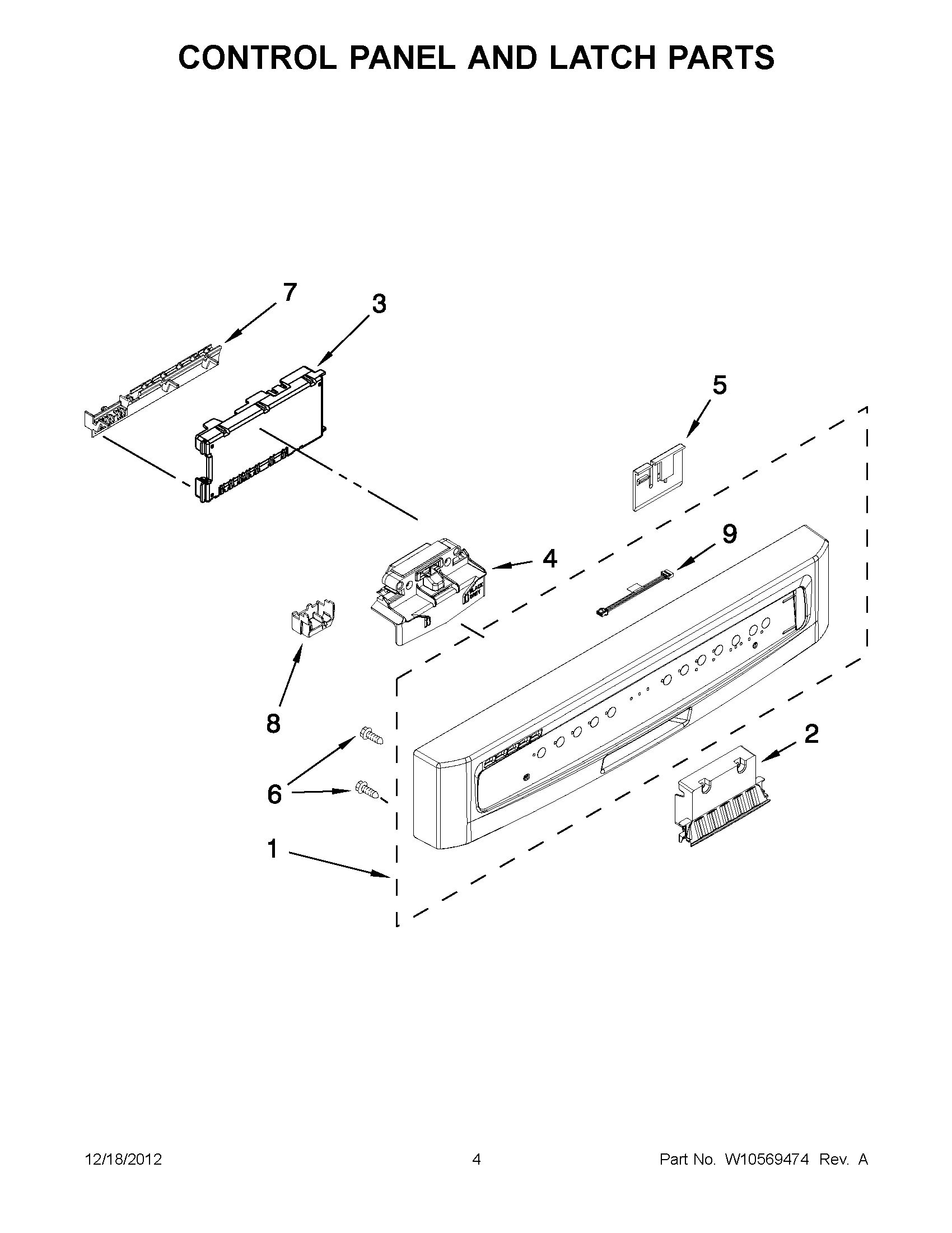

02 - CONTROL PANEL AND LATCH PARTS

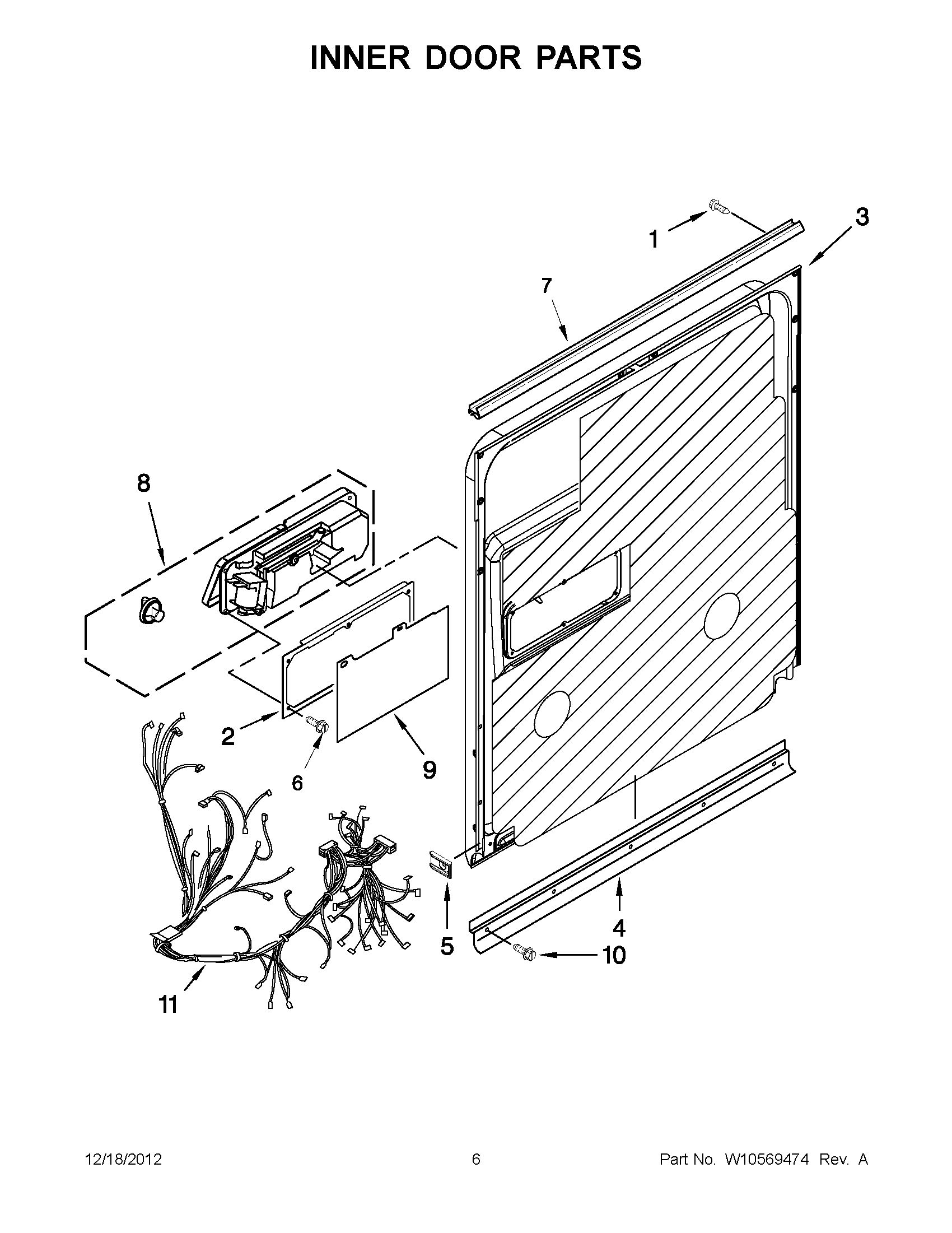

03 - INNER DOOR PARTS

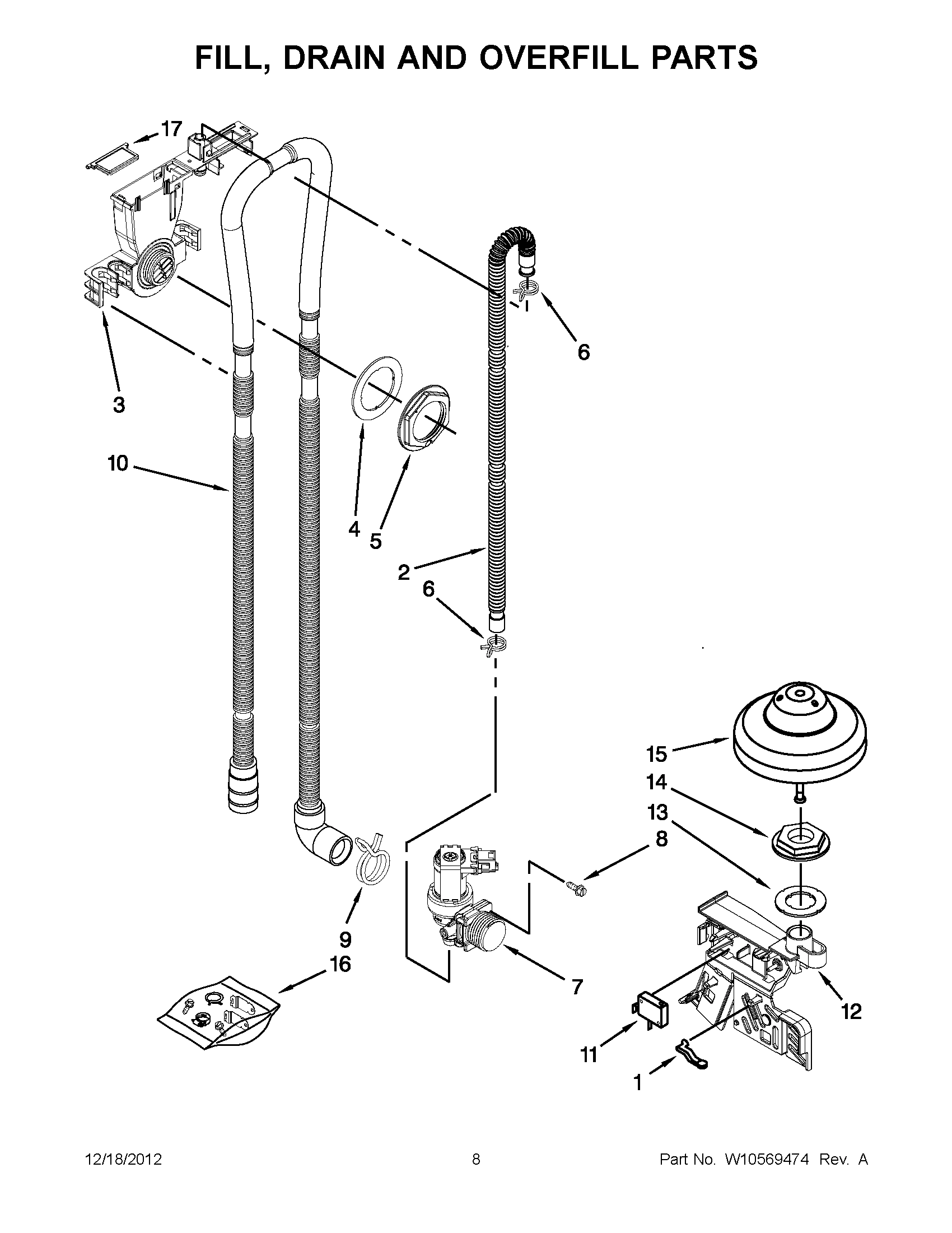

04 - FILL, DRAIN AND OVERFILL PARTS

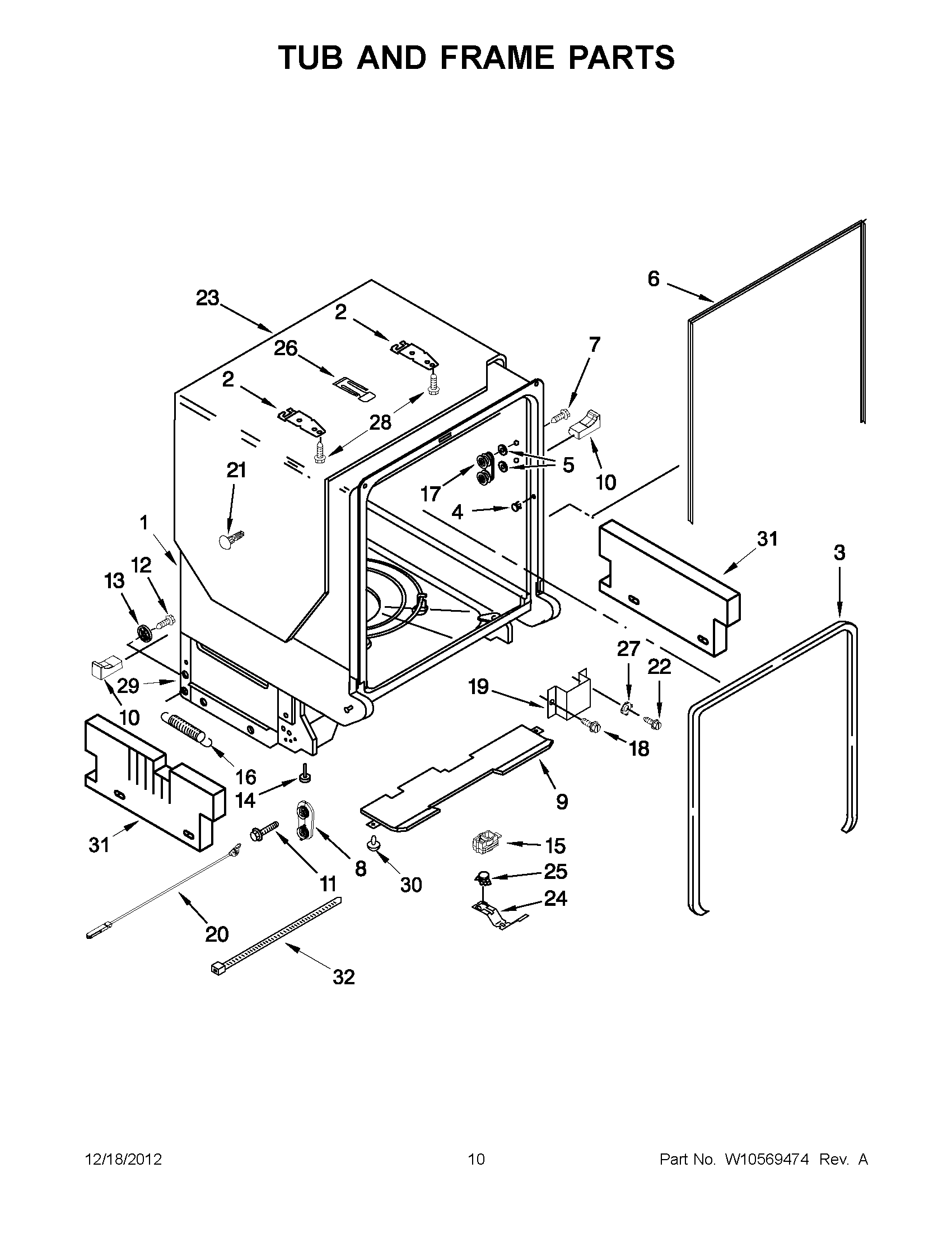

05 - TUB AND FRAME PARTS

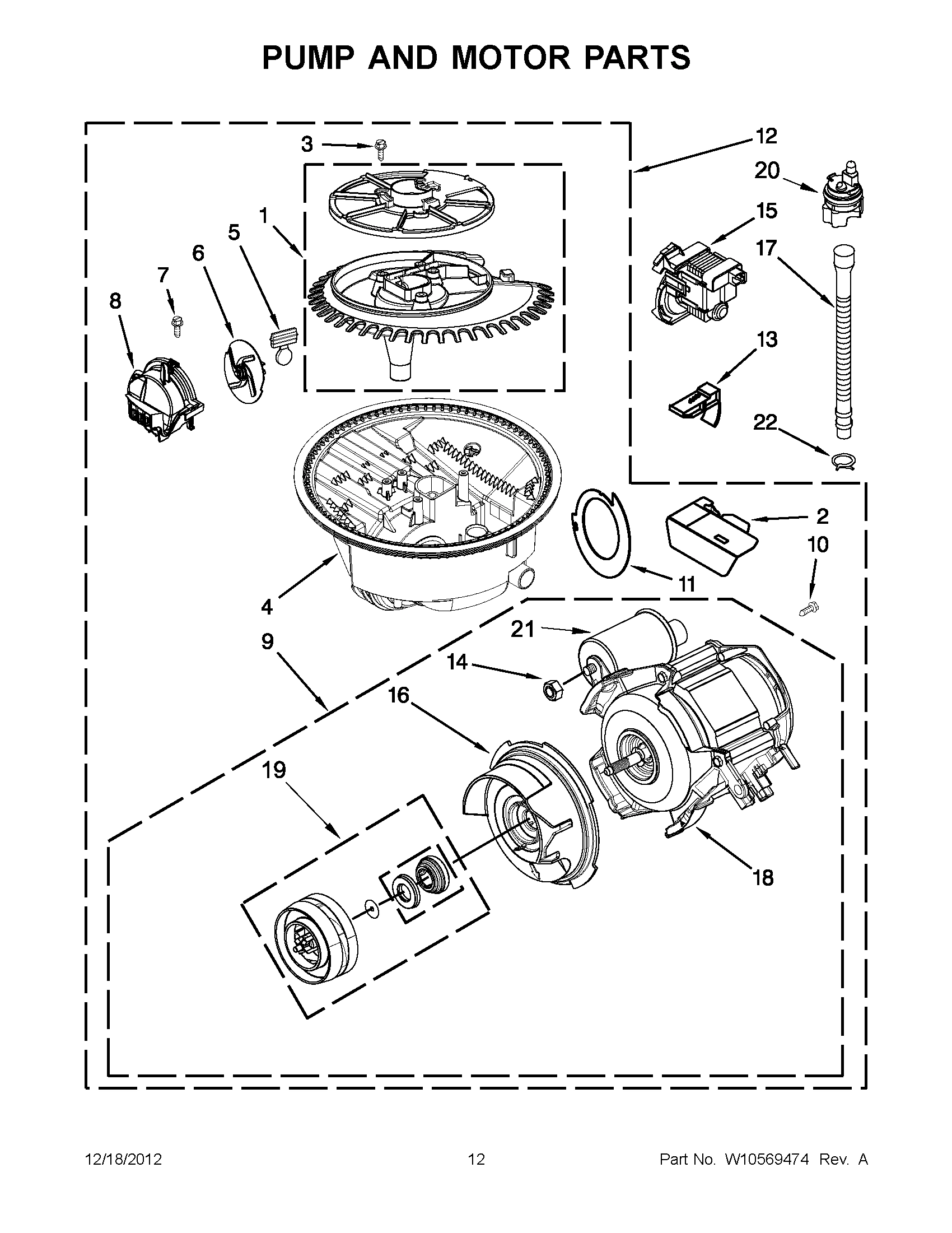

06 - PUMP AND MOTOR PARTS

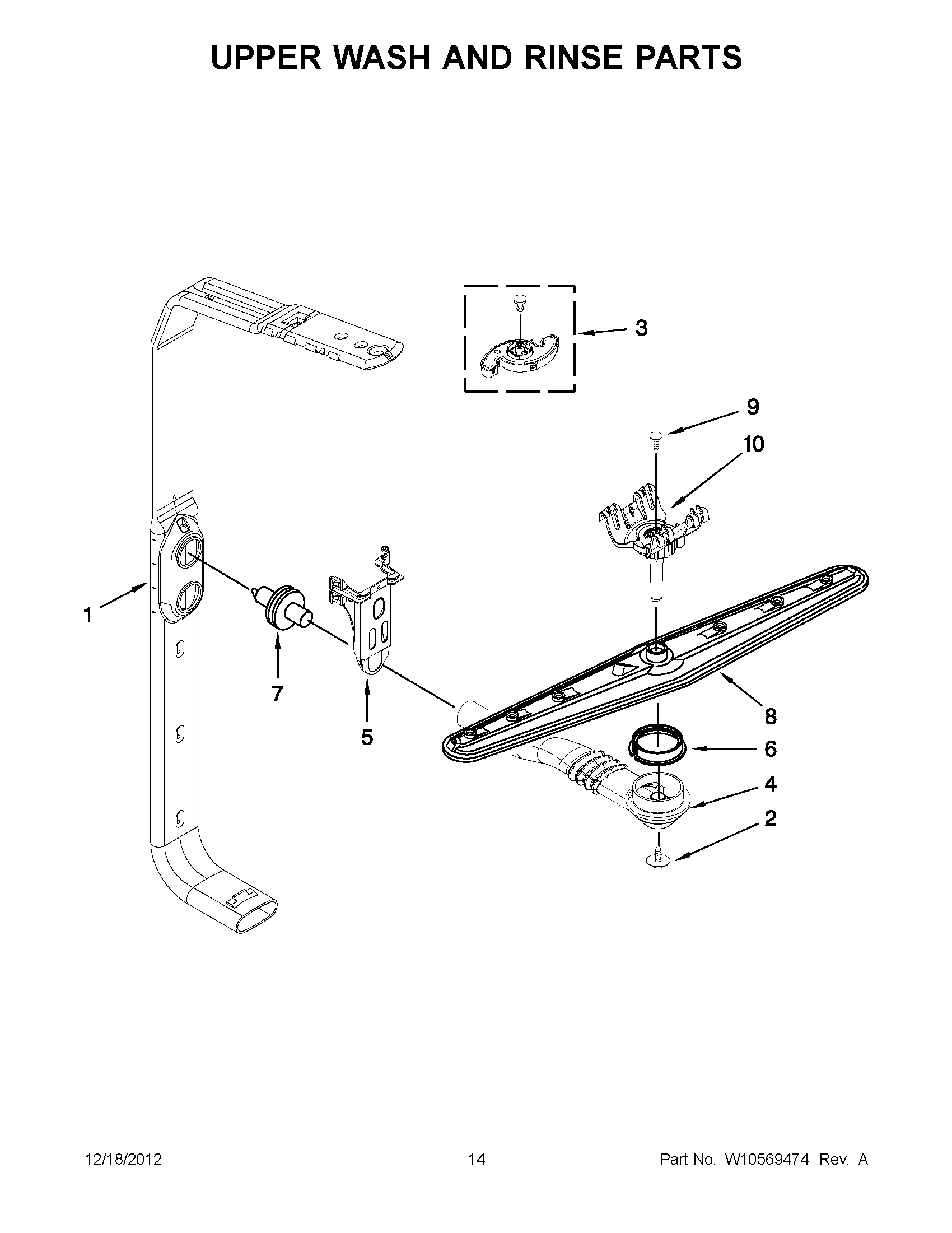

07 - UPPER WASH AND RINSE PARTS

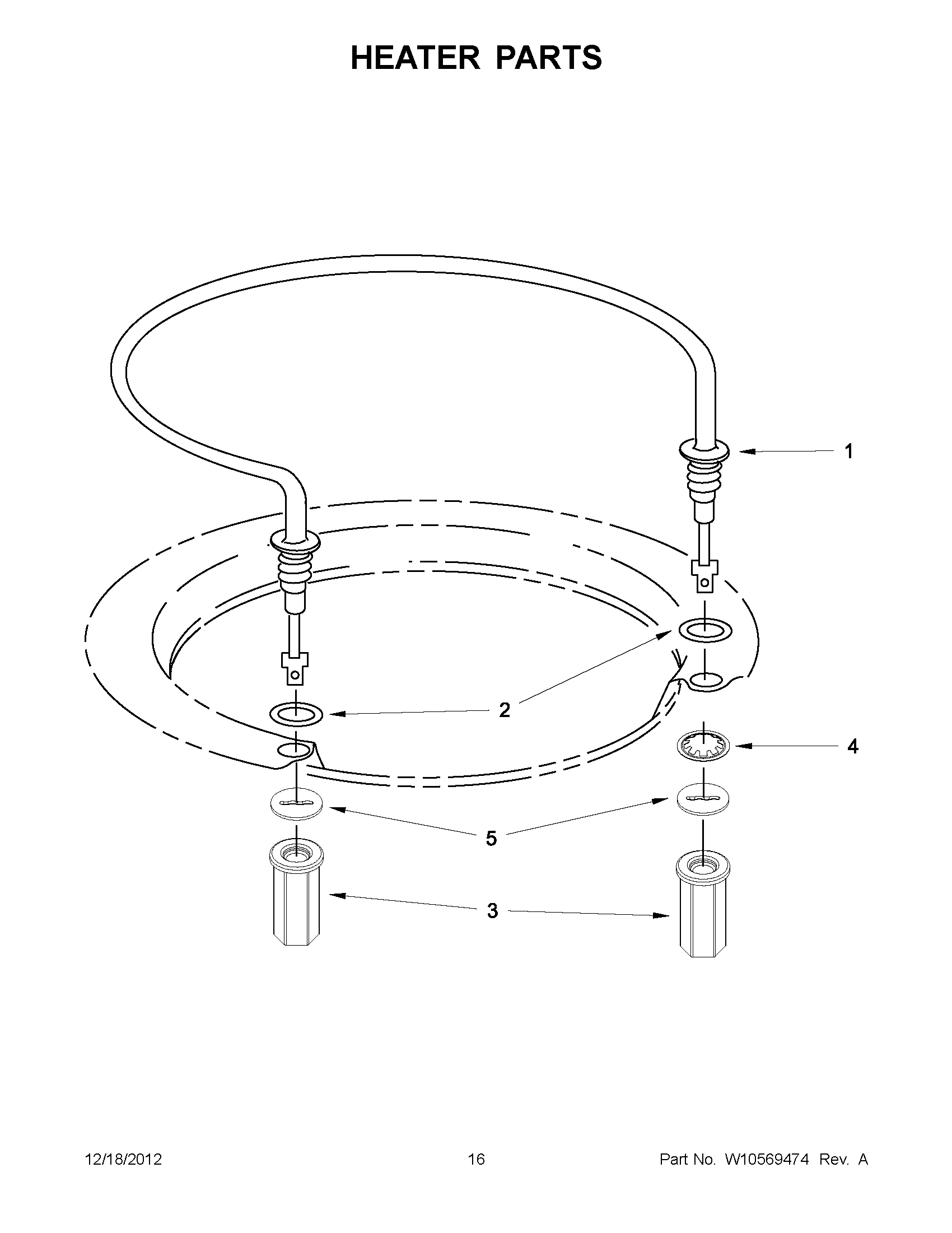

08 - HEATER PARTS

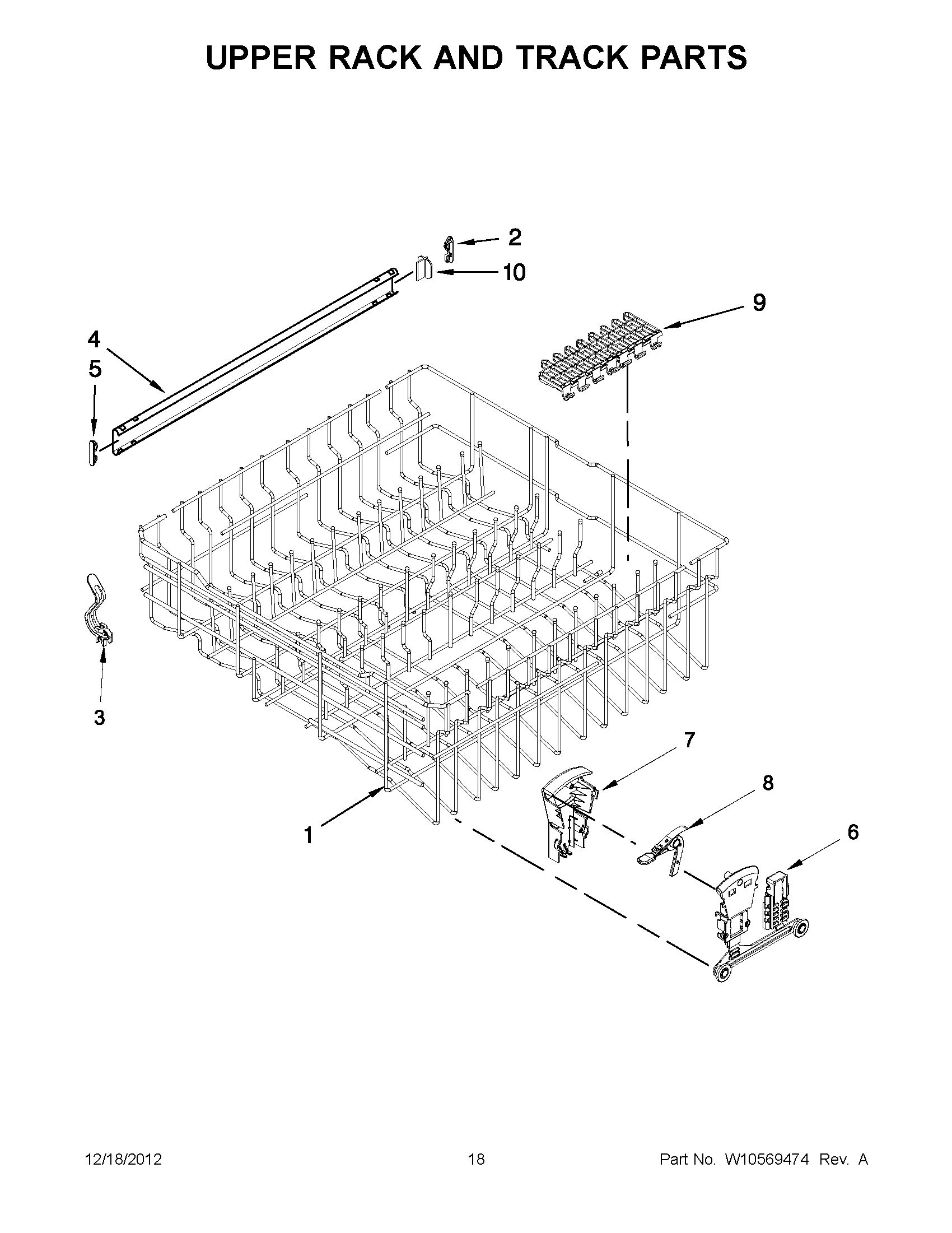

09 - UPPER RACK AND TRACK PARTS

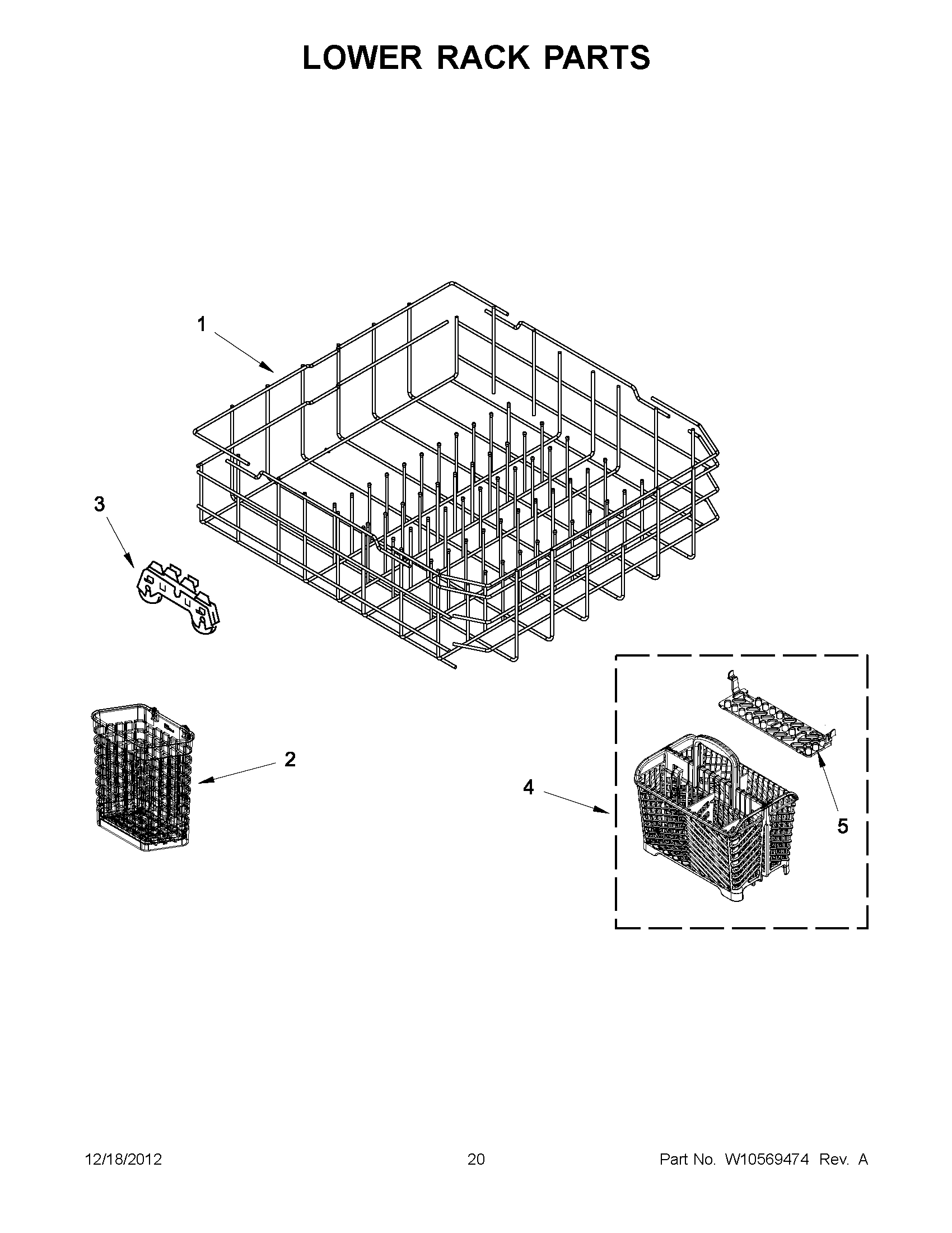

10 - LOWER RACK PARTS

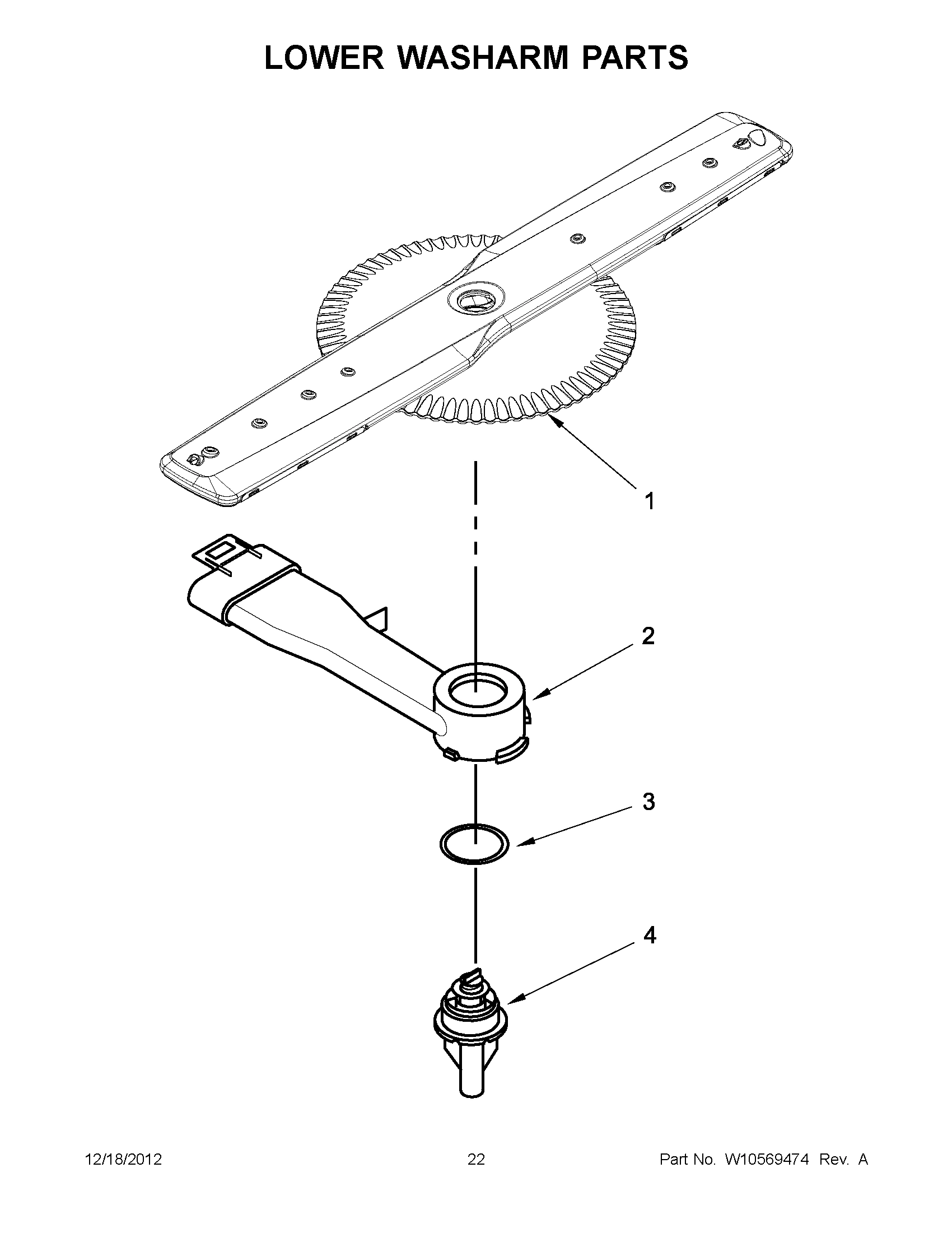

11 - LOWER WASHARM PARTS
12 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MDB8949SBW0 DISHWASHER
1
TECH SHEET (ENGLISH) MAY W10321878 Contact Us For Availability
1
TECH SHEET (FRENCH) MAY W10321879 Contact Us For Availability
1
MAY W10401491 MAY W10401491 Contact Us For Availability
1
MAY W10401504 MAY W10401504 Contact Us For Availability
1
MAY W10555178 MAY W10555178 Contact Us For Availability
1
MAY W10398669 MAY W10398669 Contact Us For Availability
1
MAY W10398670 MAY W10398670 Contact Us For Availability
1
MAY W10398672 MAY W10398672 Contact Us For Availability
1
SCREW MAY W10348409 Contact Us For Availability
1
LEVER, OVERFILL SWITCH MAY W10195037 Contact Us For Availability
1
MAY W10511187 MAY W10511187 Contact Us For Availability
1
ACCUMULATOR ASSEMBLY MAY 8534952 Contact Us For Availability
1
FEDD TUBE ASSEMBLY (INCLUDES ITEM 3) MAY 8559850 Contact Us For Availability
1
HEATER ELEMENT ASSEMBLY (INCLUDES ITEM 2) MAY W10329322 Contact Us For Availability
1
MAY W10512361 MAY W10512361 Contact Us For Availability
1
MAY W10525641 MAY W10525641 Contact Us For Availability
1
MAY W10330588 MAY W10330588 Contact Us For Availability
2
ARM, HINGE (RIGHT HAND) MAY 8534853 Contact Us For Availability
2
ARM, HINGE (LEFT HAND) MAY 8534854 Contact Us For Availability
2
MAY W10329510 MAY W10329510 Contact Us For Availability
2
MAY W10401479 MAY W10401479 Contact Us For Availability
2
HANDLE POCKET (GREY) MAY W10401481 Contact Us For Availability
2
MAY W10462232 MAY W10462232 Contact Us For Availability
2
HOSE MAY 8531412 Contact Us For Availability
2
MAY 8269145 MAY 8269145 Contact Us For Availability
2
MAY 8283527 MAY 8283527 Contact Us For Availability
2
MAY W10349488 MAY W10349488 Contact Us For Availability
2
WASHER, RUBBER MAY 717273 Contact Us For Availability
2
STOP, TRACK (NON-REMOVABLE) MAY 8565925 Contact Us For Availability
2
MAY W10482109 MAY W10482109 Contact Us For Availability
2
CAP, INTERNAL REAR FEED MAY 8268343 Contact Us For Availability
3
BARRIER, VAPOR ASSEMBLY MAY W10321449 Contact Us For Availability
3
MAY W10380488 MAY W10380488 Contact Us For Availability
3
INNER DOOR MAY W10480715 Contact Us For Availability
3
INLET, WATER (ALSO ORDER ITEMS 4 & 17) MAY W10316375 Contact Us For Availability
3
GASKET, TUB MAY W10300924 Contact Us For Availability
3
MAY W10348405 MAY W10348405 Contact Us For Availability
3
SPRAYARM, THIRD LEVEL MAY 8557720 Contact Us For Availability
3
NUT, HEATER ELEMENT MAY 8268548 Contact Us For Availability
3
MAY W10372814 MAY W10372814 Contact Us For Availability
3
MAY W10195416 MAY W10195416 Contact Us For Availability
3
BEARING, LOWER SPRAYARM MAY 8268340 Contact Us For Availability
4
PANEL FRONT (ALSO INCLUDES ITEMS 8 & 13) (STA MAY W10419107 Contact Us For Availability
4
PANEL FRONT (ALSO INCLUDES ITEMS 8 & 13) (WHI MAY W10419108 Contact Us For Availability
4
PANEL FRONT (ALSO INCLUDES ITEMS 8 & 13) (BLA MAY W10419110 Contact Us For Availability
4
LATCH ASSEMBLY (INCLUDES SWITCH) MAY W10380262 Contact Us For Availability
4
MAY W10497235 MAY W10497235 Contact Us For Availability
4
MAY 8531323 MAY 8531323 Contact Us For Availability
4
MAY W10082838 MAY W10082838 Contact Us For Availability
4
MAY 8572618 MAY 8572618 Contact Us For Availability
4
MAY W10240137 MAY W10240137 Contact Us For Availability
4
NUT, SPEED MAY 3400931 Contact Us For Availability
4
TRACK, DISHRACK MAY 3385089 Contact Us For Availability
4
SILVERWARE, BASKET ASSEMBLY MAY W10199701 Contact Us For Availability
4
HUB, LOWER SPRAYARM MAY W10077898 Contact Us For Availability
5
MAY W10368715 MAY W10368715 Contact Us For Availability
5
MAY W10368716 MAY W10368716 Contact Us For Availability
5
CLIP, CONTROL MAY W10195237 Contact Us For Availability
5
MAY W10195837 MAY W10195837 Contact Us For Availability
5
NUT, WATER INLET (ALSO ORDER ITEM 4) MAY W10213825 Contact Us For Availability
5
MAY 9743002 MAY 9743002 Contact Us For Availability
5
CHECK VALVE, SUMP ASSEMBLY MAY 8268375 Contact Us For Availability
5
MAY W10199807 MAY W10199807 Contact Us For Availability
5
SHIELD, HEATER PROBE MAY W10343251 Contact Us For Availability
5
MAY W10508950 MAY W10508950 Contact Us For Availability
5
MAY W10199681 MAY W10199681 Contact Us For Availability
6
INSULATION, TOE PANEL MAY W10385107 Contact Us For Availability
6
MAY W10177098 MAY W10177098 Contact Us For Availability
6
MAY 371505 MAY 371505 Contact Us For Availability
6
SEAL, CABINET MAY W10179427 Contact Us For Availability
6
MAY W10083957 MAY W10083957 Contact Us For Availability
6
MAY 8268433 MAY 8268433 Contact Us For Availability
6
ADJUSTER RACK (LEFT HAND) MAY W10251050 Contact Us For Availability
6
ADJUSTER RACK (RIGHT HAND) MAY W10251051 Contact Us For Availability
7
INSULATION, FRONT PANEL MAY W10315897 Contact Us For Availability
7
MAY W10194937 MAY W10194937 Contact Us For Availability
7
MAY W10195007 MAY W10195007 Contact Us For Availability
7
MAY W10195047 MAY W10195047 Contact Us For Availability
7
MAY W10309090 MAY W10309090 Contact Us For Availability
7
MAY 9741232 MAY 9741232 Contact Us For Availability
7
PROBE, MANIFOLD MAY W10082831 Contact Us For Availability
7
MAY W10251047 MAY W10251047 Contact Us For Availability
8
NAMEPLATE (BLACK) MAY W10288004 Contact Us For Availability
8
Screw MAY 304392 Contact Us For Availability
8
MAY W10401190 MAY W10401190 Contact Us For Availability
8
MAY W10304407 MAY W10304407 Contact Us For Availability
8
DOOR BALANCE ASSEMBLY MAY W10084086 Contact Us For Availability
8
MAY 8531857 MAY 8531857 Contact Us For Availability
8
SPRAY ARM, UPPER MAY W10082841 Contact Us For Availability
8
MAY W10240189 MAY W10240189 Contact Us For Availability
9
MAY W10350437 MAY W10350437 Contact Us For Availability
9
MAY W10401502 MAY W10401502 Contact Us For Availability
9
MAY W10482094 MAY W10482094 Contact Us For Availability
9
SOUND INSULATION, BOTTOM MAY W10195368 Contact Us For Availability
9
MAY W10239404 MAY W10239404 Contact Us For Availability
9
FASTENER, PUSH-IN MAY W10118464 Contact Us For Availability
9
CUP SHELF MAY W10289765 Contact Us For Availability
10
MAY W10503548 MAY W10503548 Contact Us For Availability
10
MAY W10503549 MAY W10503549 Contact Us For Availability
10
MAY 8281217 MAY 8281217 Contact Us For Availability
10
MAY W10418849 MAY W10418849 Contact Us For Availability
10
TUB SPACER (LEFT HAND) MAY W10195630 Contact Us For Availability
10
TUB SPACER (RIGHT HAND) MAY W10195631 Contact Us For Availability
10
MAY 3400217 MAY 3400217 Contact Us For Availability
10
MAY W10199808 MAY W10199808 Contact Us For Availability
10
MAY W10306230 MAY W10306230 Contact Us For Availability
11
MAY W10496098 MAY W10496098 Contact Us For Availability
11
MAY W10195039 MAY W10195039 Contact Us For Availability
11
SCREW MAY 3400074 Contact Us For Availability
11
MAY W10084567 MAY W10084567 Contact Us For Availability
12
SCREW MAY 3400071 Contact Us For Availability
12
HOUSING, OVERFILL (ASLO ORDER ITEM 13) MAY W10195035 Contact Us For Availability
12
MAY W10348411 MAY W10348411 Contact Us For Availability
12
MAY W10237169 MAY W10237169 Contact Us For Availability
13
MAY W10343320 MAY W10343320 Contact Us For Availability
13
MAY W10343322 MAY W10343322 Contact Us For Availability
13
MAY W10424843 MAY W10424843 Contact Us For Availability
13
GASKET, FLAT ASSEMBLY MAY 8531743 Contact Us For Availability
13
WHEEL, LEG MAY 8268977 Contact Us For Availability
13
MAY W10300599 MAY W10300599 Contact Us For Availability
14
MAY W10350242 MAY W10350242 Contact Us For Availability
14
MAY W10195038 MAY W10195038 Contact Us For Availability
14
MAY W10304228 MAY W10304228 Contact Us For Availability
14
MAY 8533949 MAY 8533949 Contact Us For Availability
15
MAY W10463662 MAY W10463662 Contact Us For Availability
15
MAY W10195036 MAY W10195036 Contact Us For Availability
15
SHIELD, THERMOSTAT MAY W10292870 Contact Us For Availability
15
MAY 8558995 MAY 8558995 Contact Us For Availability
16
MISCELLANEOUS PARTS BAG (CONTAINS 2 SCREWS, 2 MAY W10292152 Contact Us For Availability
16
MAY 8270020 MAY 8270020 Contact Us For Availability
16
VOLUTE, BACK (ALSO ORDER ITEM 19) MAY W10142656 Contact Us For Availability
17
MAY W10316376 MAY W10316376 Contact Us For Availability
17
WHEEL AND MOUNT ASSEMBLY MAY 8270019 Contact Us For Availability
17
MAY 8269144 MAY 8269144 Contact Us For Availability
18
MAY 3400892 MAY 3400892 Contact Us For Availability
18
MAY W10239401 MAY W10239401 Contact Us For Availability
19
MAY 8268991 MAY 8268991 Contact Us For Availability
19
IMPELLER KIT MAY 8531017 Contact Us For Availability
20
CABLE, DOOR MAY W10158291 Contact Us For Availability
20
INDICATOR, OPTICAL WASH MAY W10134017 Contact Us For Availability
21
RETAINER MAY 304666 Contact Us For Availability
21
MAY W10334457 MAY W10334457 Contact Us For Availability
22
MAY 370445 MAY 370445 Contact Us For Availability
22
SCREW, GROUNDING MAY 3400014 Contact Us For Availability
23
SHIELD, TUB SOUND MAY 8573239 Contact Us For Availability
24
MAY W10300703 MAY W10300703 Contact Us For Availability
25
MAY W10339563 MAY W10339563 Contact Us For Availability
26
MAY W10300779 MAY W10300779 Contact Us For Availability
27
WASHER, PRONGED CUP MAY 3378128 Contact Us For Availability
28
MAY 3367670 MAY 3367670 Contact Us For Availability
29
MAY W10398392 MAY W10398392 Contact Us For Availability
30
RETAINER, PUSH IN MAY 3400924 Contact Us For Availability
31
MAY W10275523 MAY W10275523 Contact Us For Availability
32
MAY 8539404 MAY 8539404 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BLACK) MAY 285006 Contact Us For Availability
NI
ACCESSORIES, DRAIN HOSE 12 FT. MAY 3385556 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
POWER CORD KIT (INCLUDED CORD & MISC. HARWARE MAY 4317824 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, BULK (1 QT. BISCUIT/BISQUE) MAY 4392900 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BISCUIT/BISQU MAY 4392901 Contact Us For Availability
NI
ACCESSORIES, MOISTURE BARRIER KIT MAY 4396277 Contact Us For Availability
NI
DISHRACK REPAIR, TINE TIP REPAIR KIT (ENOUGH MAY 4396838 Contact Us For Availability
NI
DISHRACK REPAIR, TINE TIP REPAIR KIT (ENOUGH MAY 4396840 Contact Us For Availability
NI
DISHRACK REPAIR, VINYL TOUCH-UP (4OZ SILVER A MAY 4396853 Contact Us For Availability
NI
DISHRACK REPAIR, TINE TIP REPAIR KIT (ENOUGH MAY 4396854 Contact Us For Availability
NI
DISHRACK REPAIR, VINYL TOUCH-UP (4OZ WHITE) MAY 676453 Contact Us For Availability
NI
DISHRACK REPAIR, VINYL TOUCH-UP (4OZ GREY) MAY 676455 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (White) MAY 799344 Contact Us For Availability
NI
ANTI-TIP KIT, FLOOR MOUNT KIT MAY 8171477 Contact Us For Availability
NI
ACCESSORIES, SIDE PANEL KITS (WHITE) MAY 8171656 Contact Us For Availability
NI
ACCESSORIES, SIDE PANEL KITS (BLACK) MAY 8171657 Contact Us For Availability
NI
ACCESSORIES, SIDE PANEL KITS (BISCUIT/BISQUE) MAY 8171658 Contact Us For Availability
NI
ACCESSORIES, SIDE PANEL KITS (STAINLESS STEEL MAY 8171659 Contact Us For Availability
NI
ANTI-TIP KIT, SIDE MOUNT KIT MAY 8212560 Contact Us For Availability
× ![]()
Login and Registration Form
