Model Maytag MDB6709AWQ2 DISHWASHER – Common Parts & Diagrams

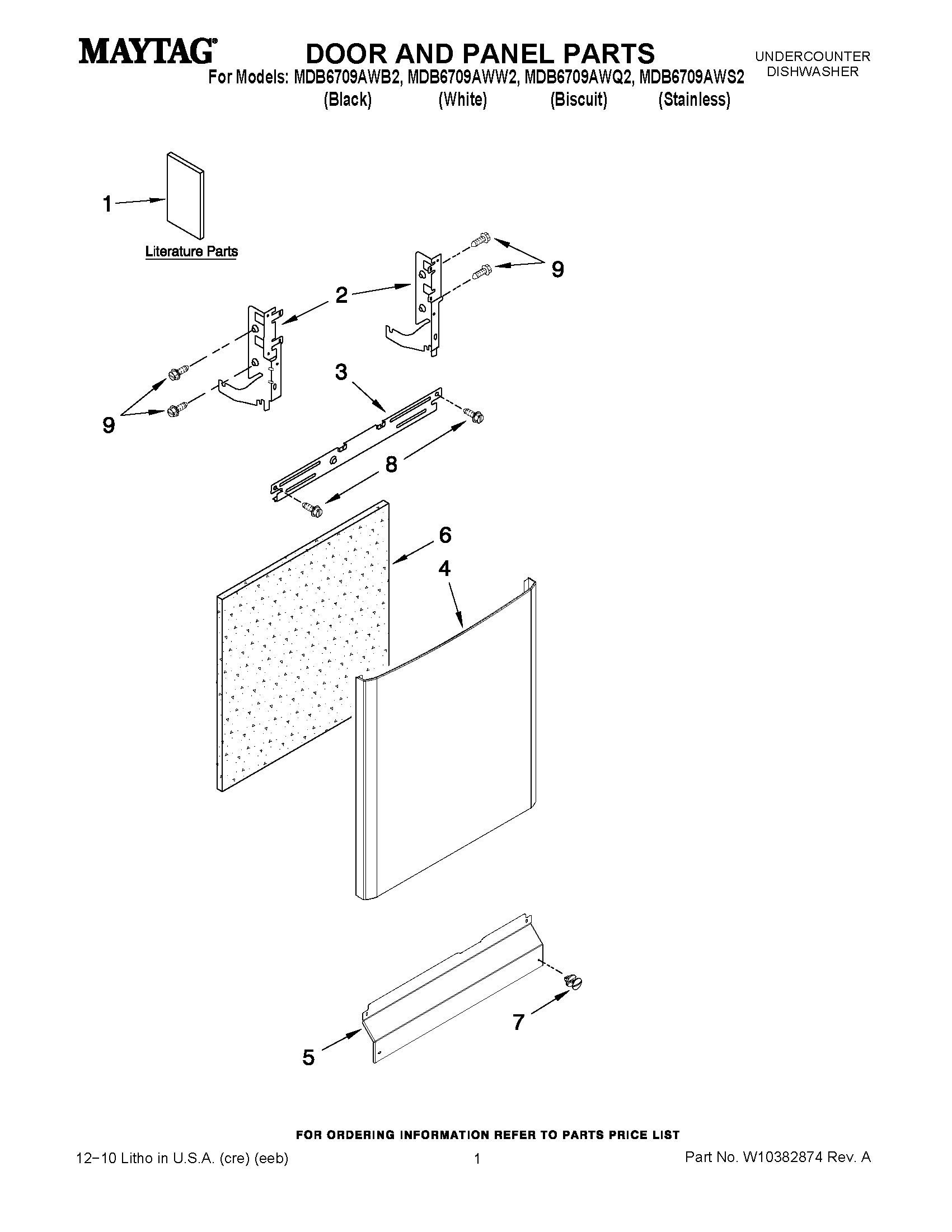

01 - DOOR AND PANEL PARTS

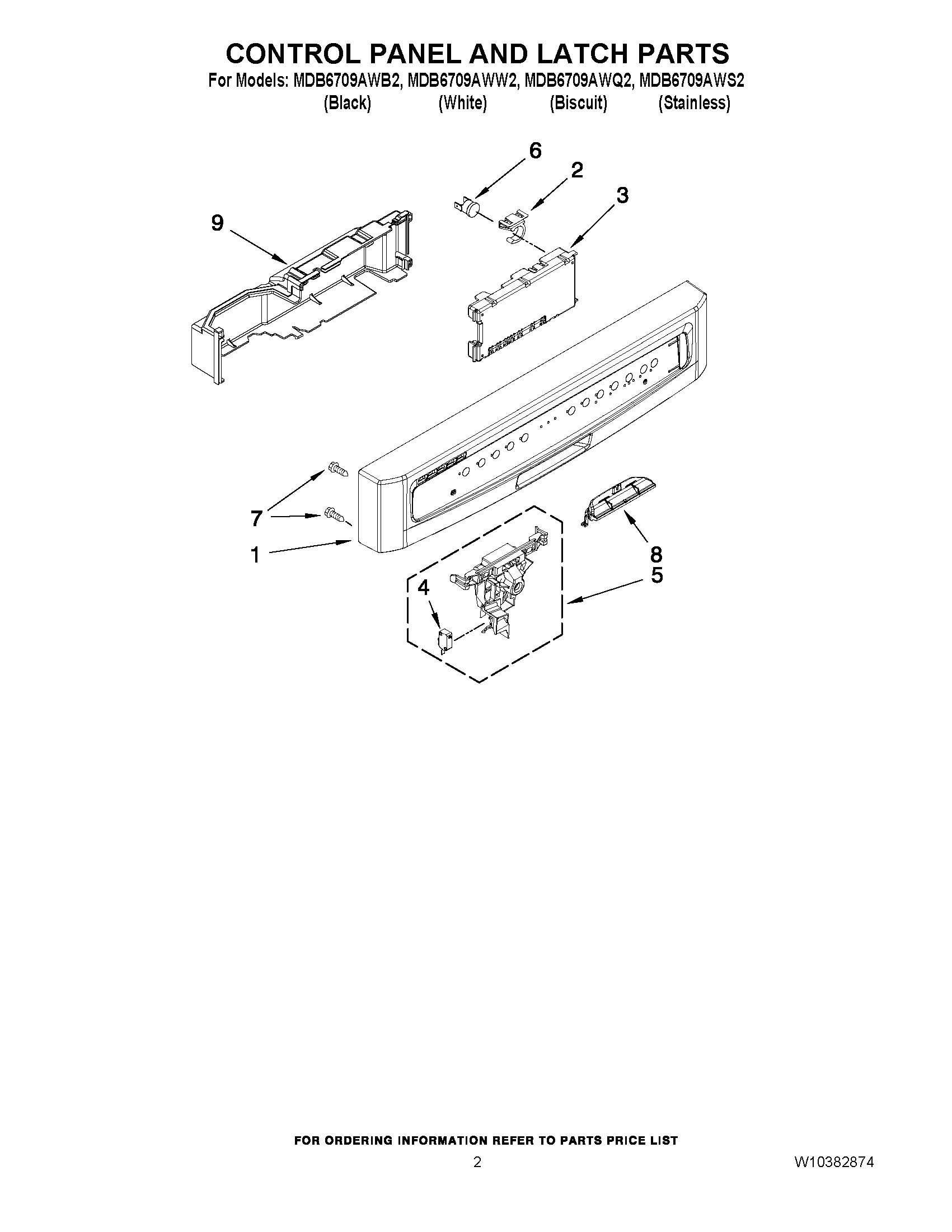

02 - CONTROL PANEL AND LATCH PARTS

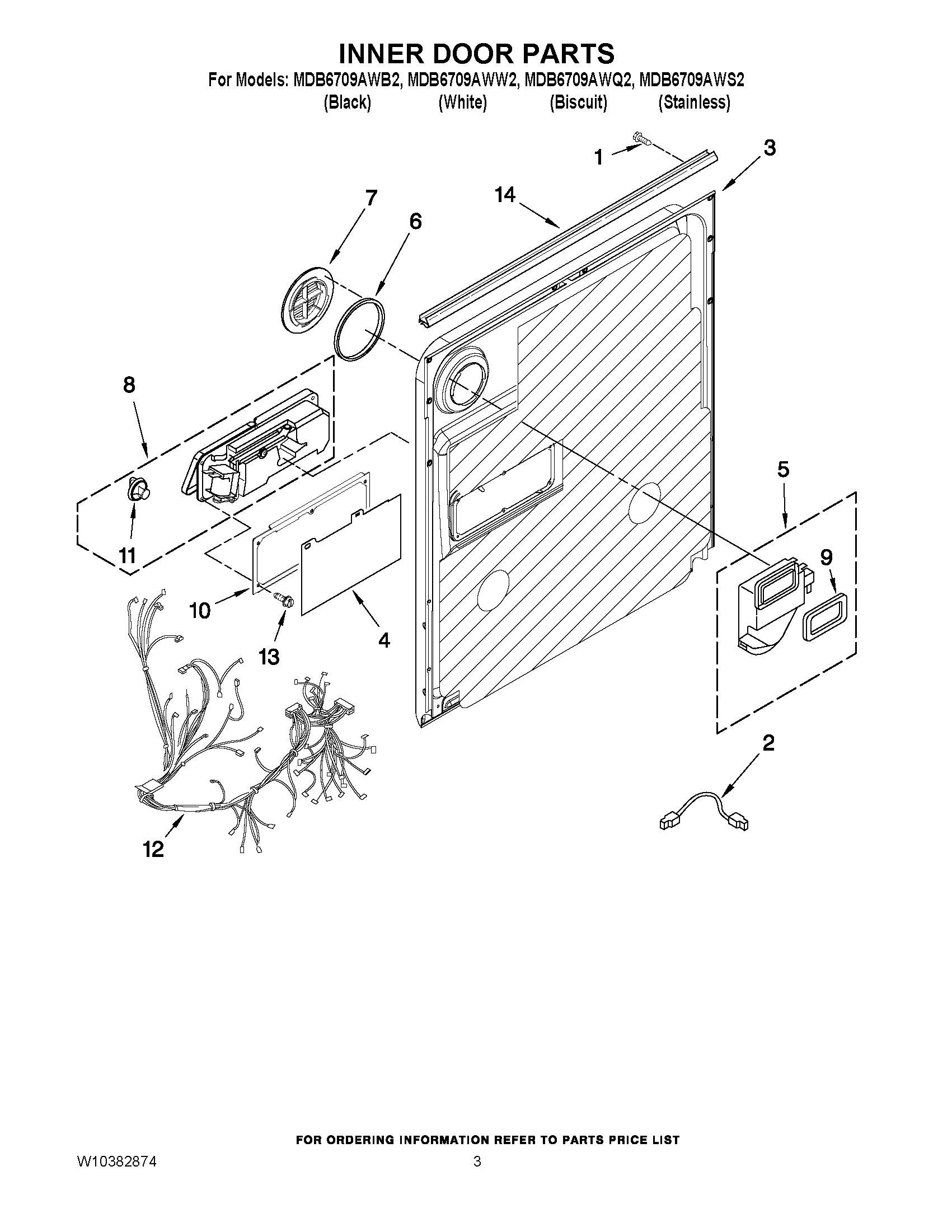

03 - INNER DOOR PARTS

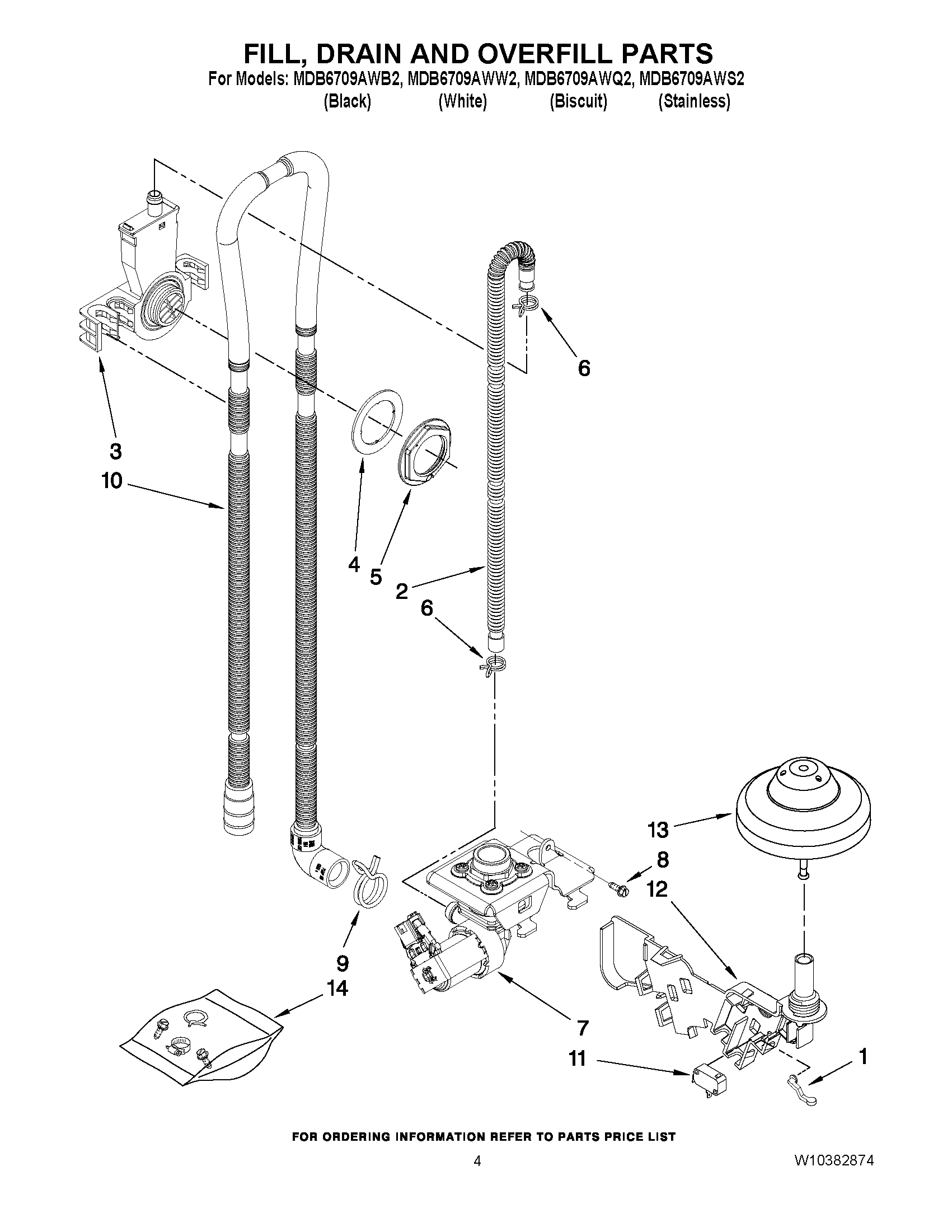

04 - FILL, DRAIN AND OVERFILL PARTS

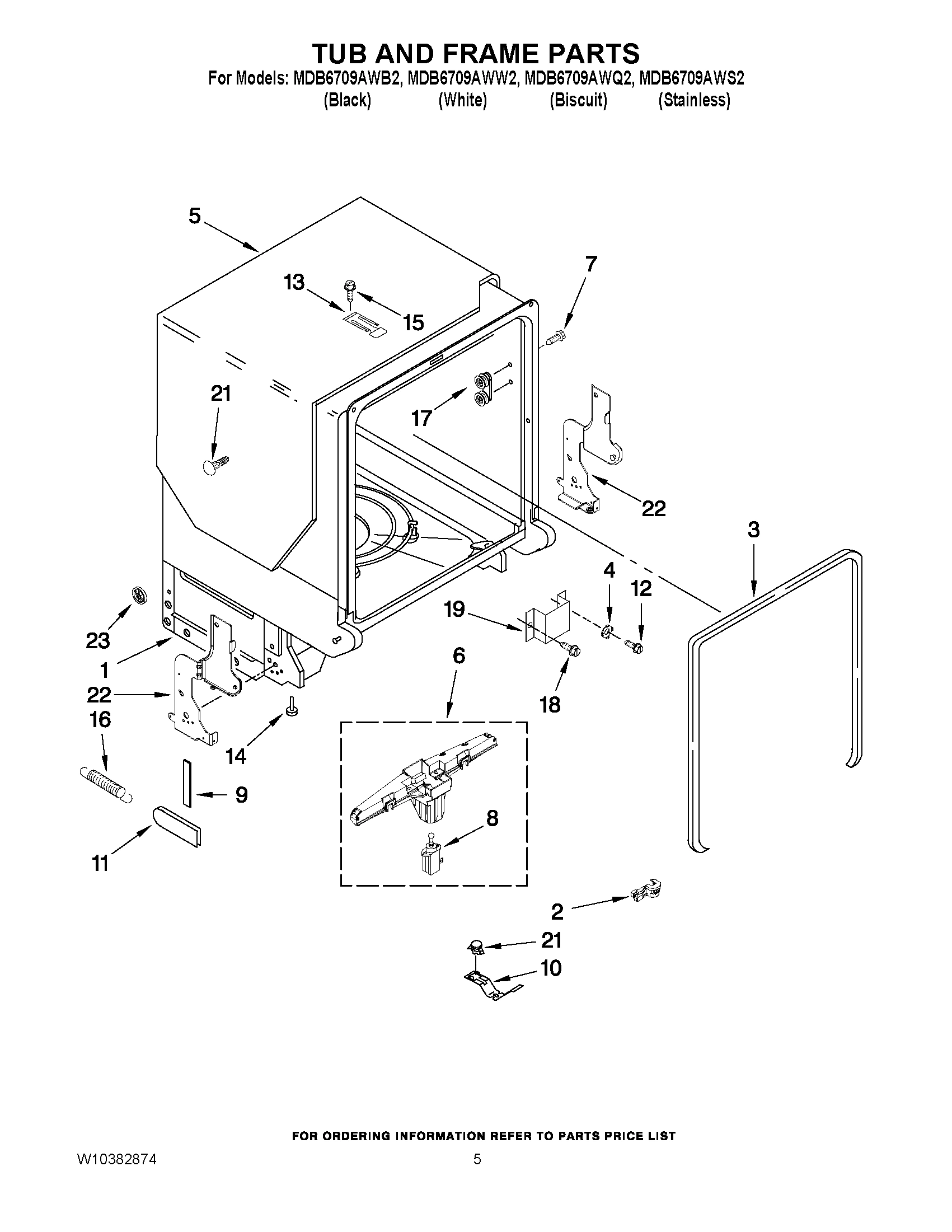

05 - TUB AND FRAME PARTS

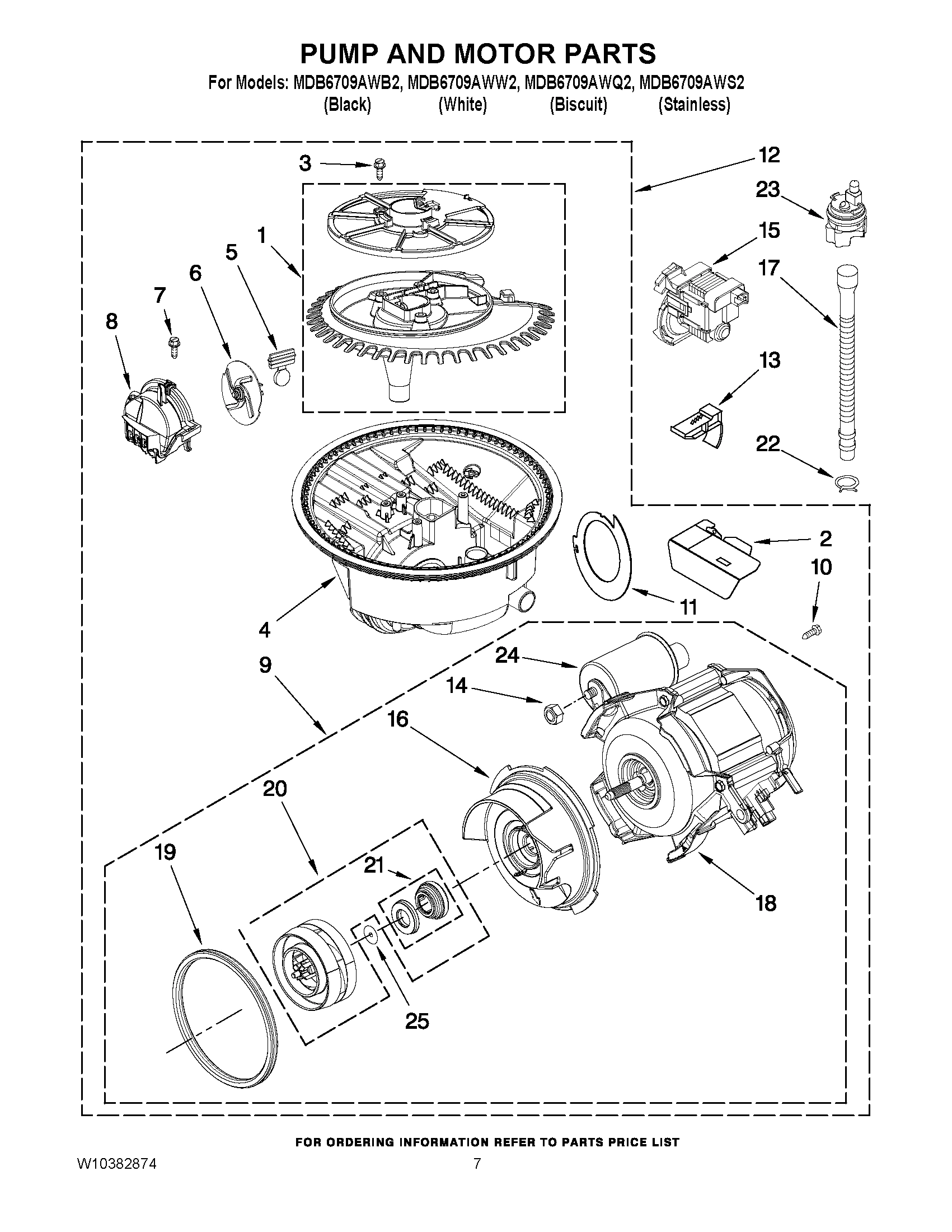

06 - PUMP AND MOTOR PARTS

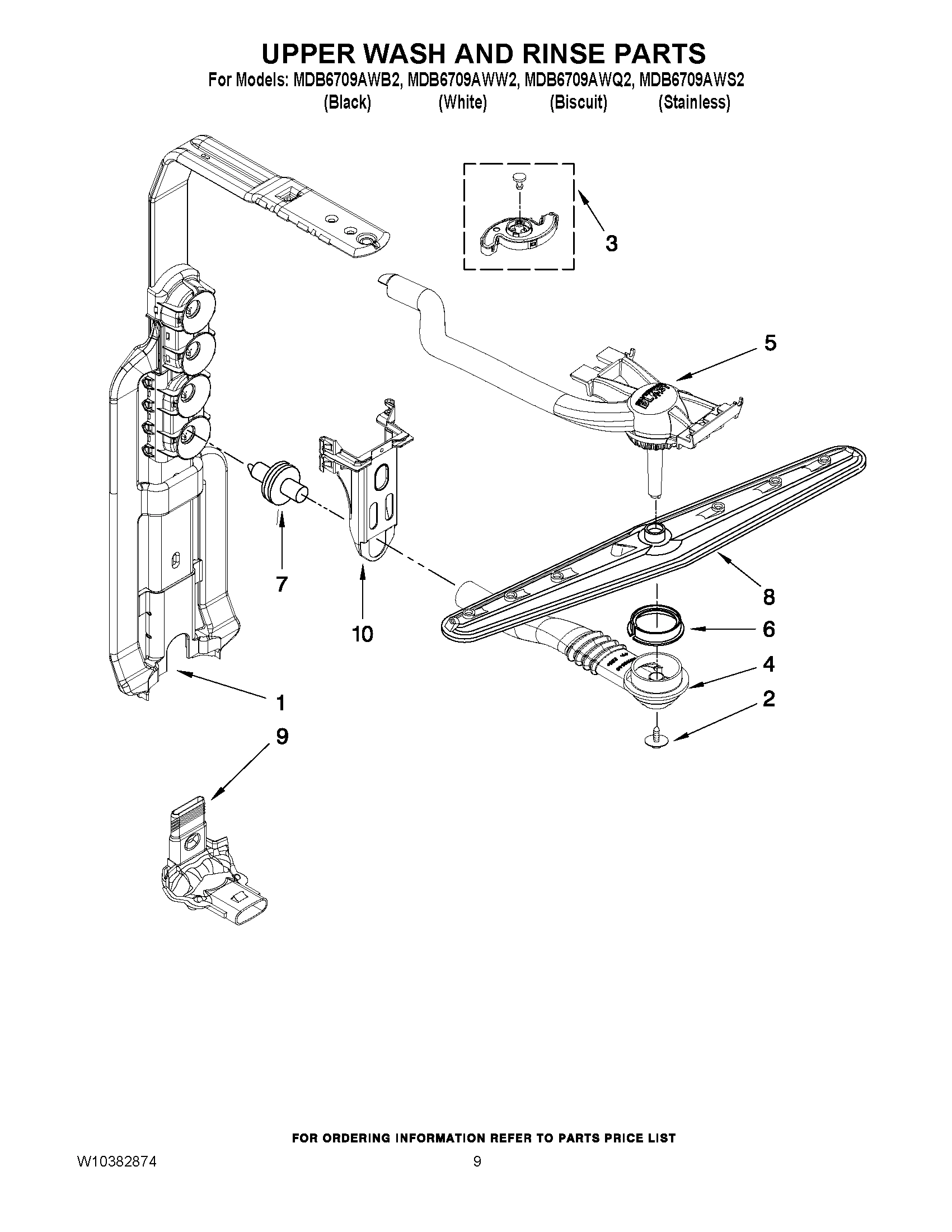

07 - UPPER WASH AND RINSE PARTS

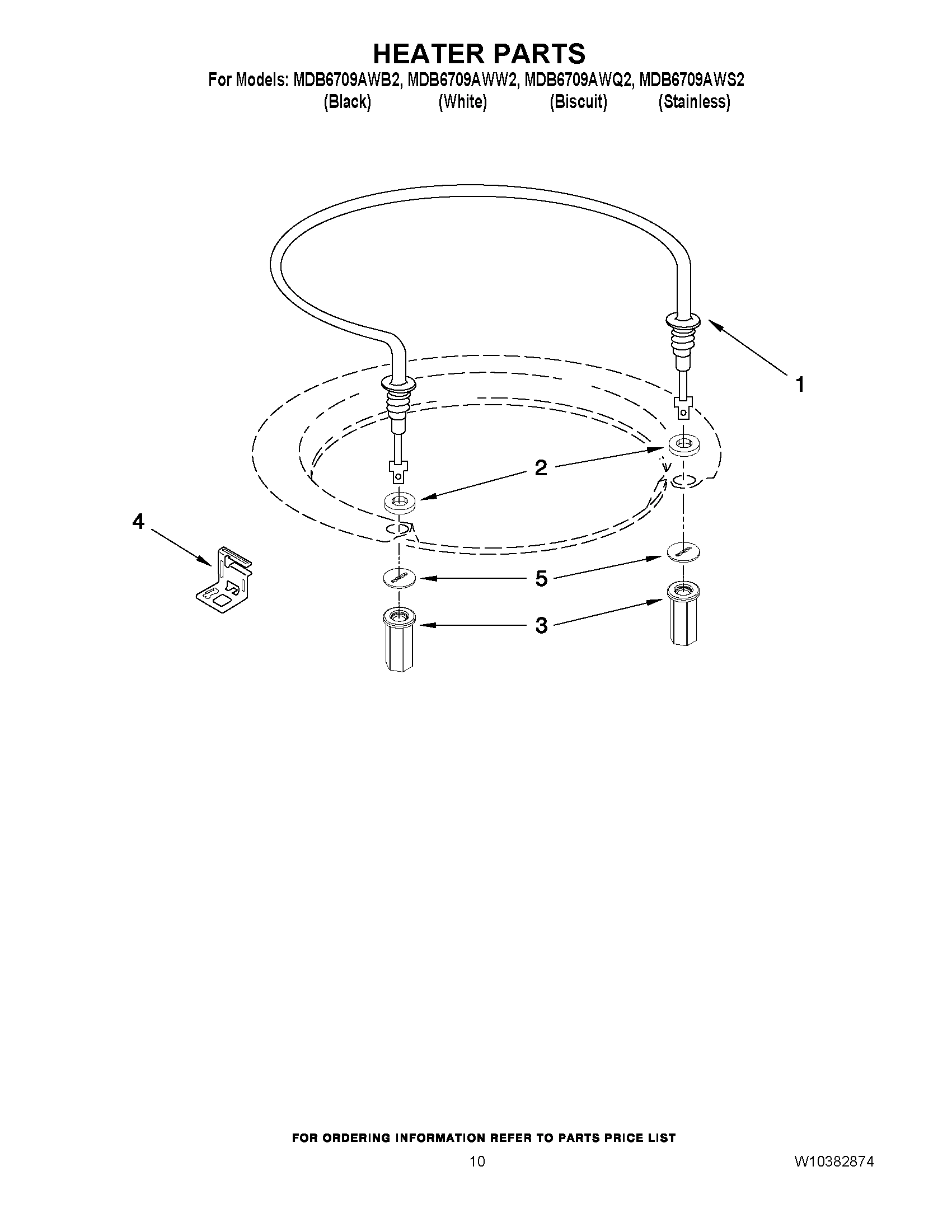

08 - HEATER PARTS

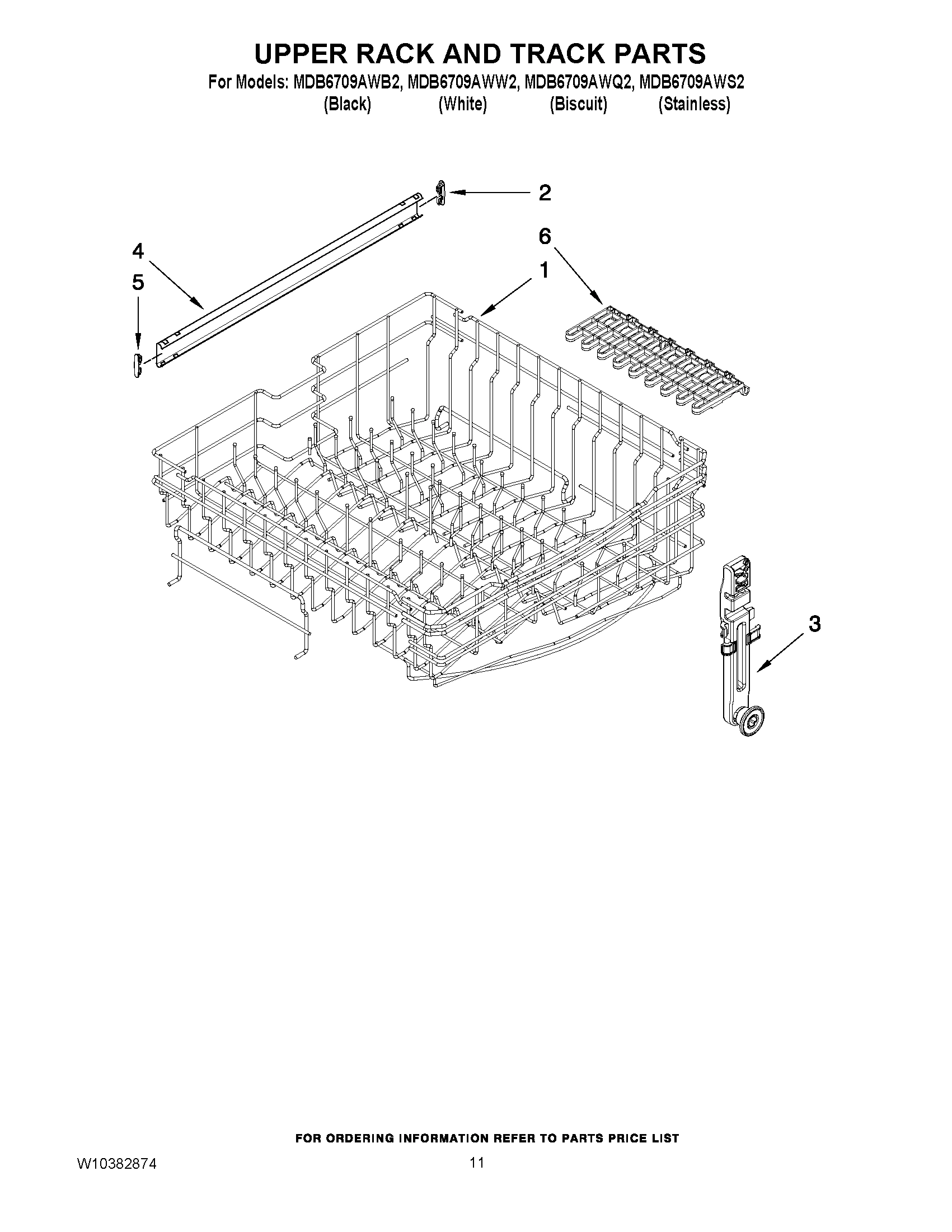

09 - UPPER RACK AND TRACK PARTS

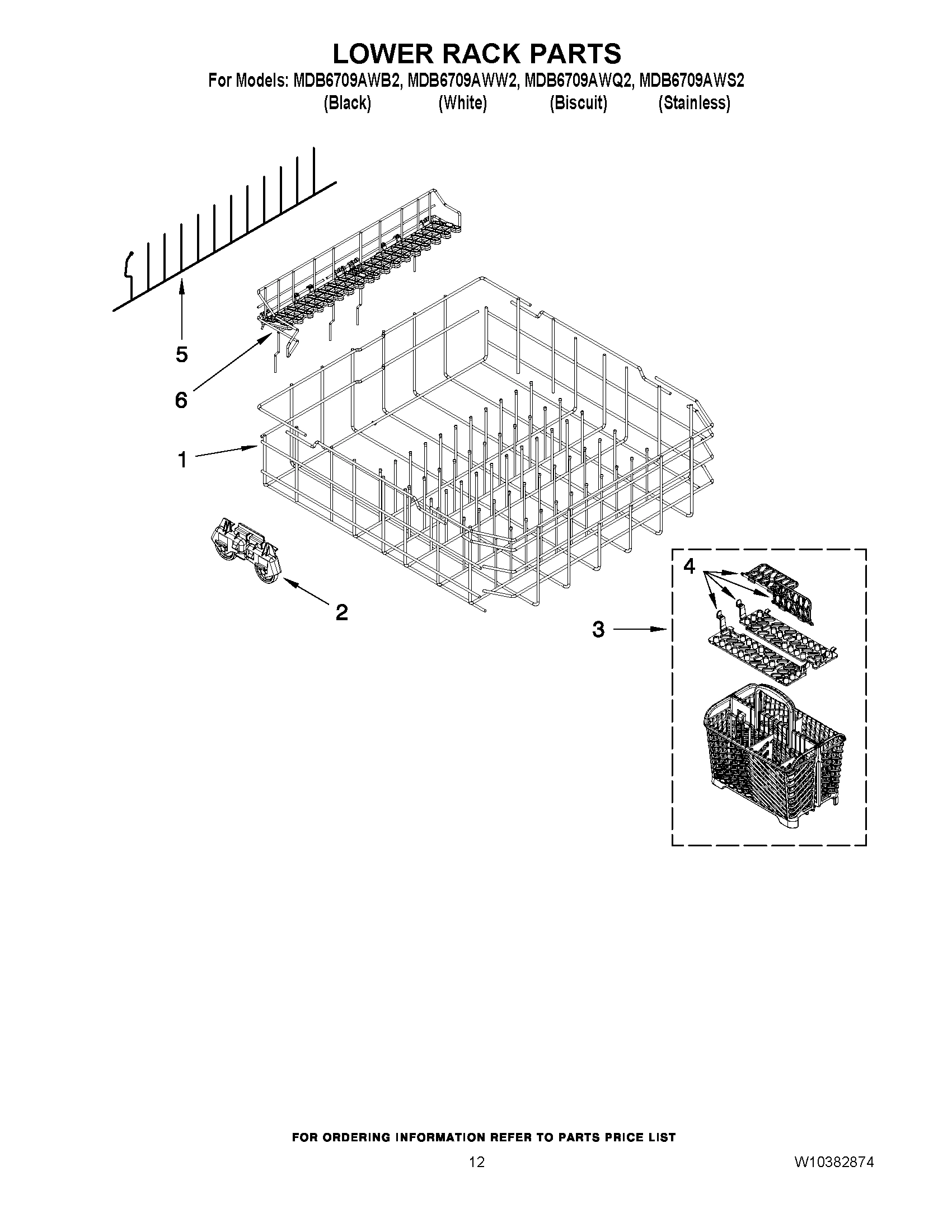

10 - LOWER RACK PARTS

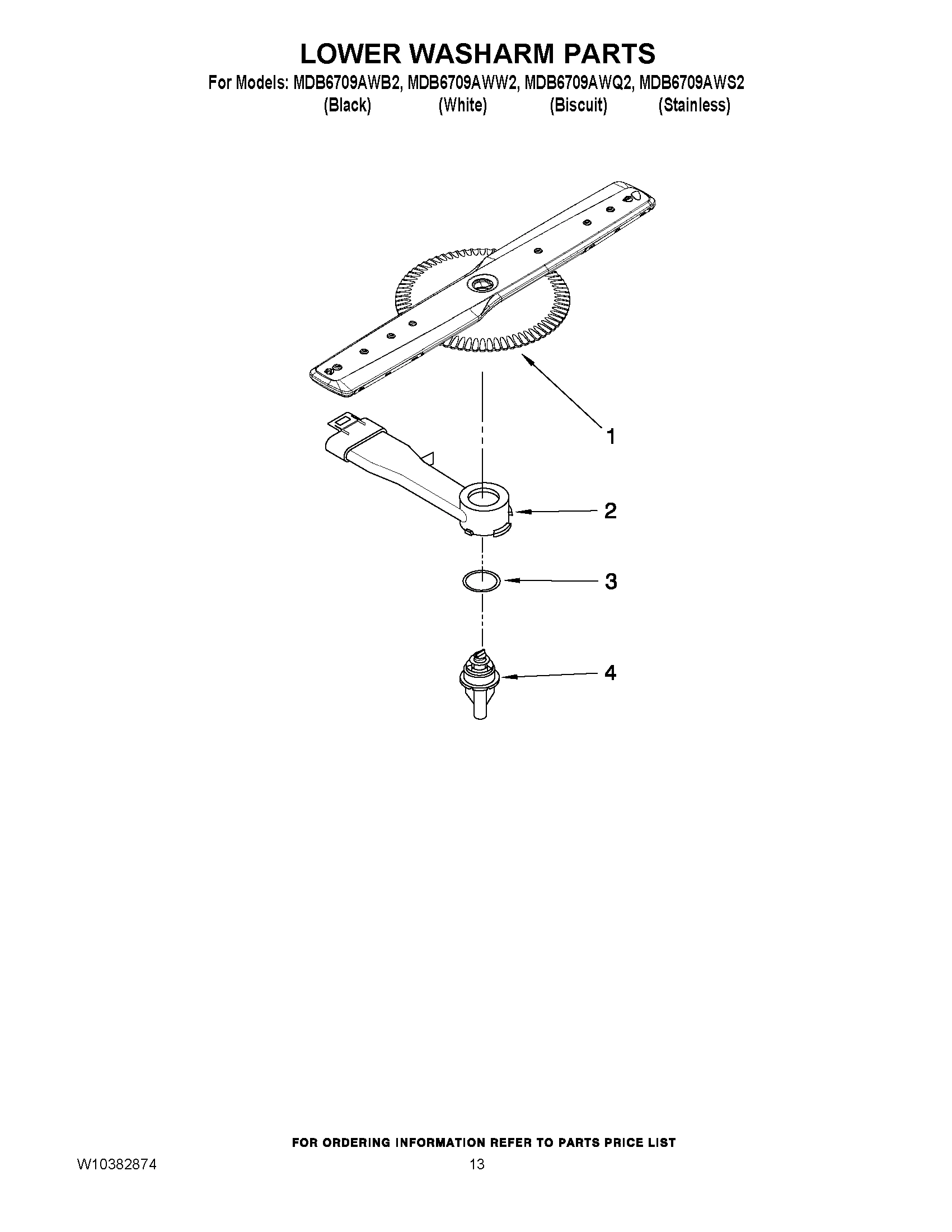

11 - LOWER WASHARM PARTS
12 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MDB6709AWQ2 DISHWASHER
1
TECH SHEET MAY W10142800 Contact Us For Availability
1
MAY W10240116 MAY W10240116 Contact Us For Availability
1
MAY W10240117 MAY W10240117 Contact Us For Availability
1
MAY W10290309 MAY W10290309 Contact Us For Availability
1
MAY W10300273 MAY W10300273 Contact Us For Availability
1
MAY W10240046 MAY W10240046 Contact Us For Availability
1
MAY W10240047 MAY W10240047 Contact Us For Availability
1
MAY W10240048 MAY W10240048 Contact Us For Availability
1
LEVER, OVERFLOW SWITCH MAY 8268892 Contact Us For Availability
1
MAY W10254859 MAY W10254859 Contact Us For Availability
1
MAY 8534952 MAY 8534952 Contact Us For Availability
1
MAY W10254862 MAY W10254862 Contact Us For Availability
1
MAY W10134009 MAY W10134009 Contact Us For Availability
1
MAY W10240139 MAY W10240139 Contact Us For Availability
1
MAY W10199774 MAY W10199774 Contact Us For Availability
1
MAY W10240183 MAY W10240183 Contact Us For Availability
2
MAY 8534853 MAY 8534853 Contact Us For Availability
2
MAY 8534854 MAY 8534854 Contact Us For Availability
2
MAY 8546546 MAY 8546546 Contact Us For Availability
2
MAY 8545608 MAY 8545608 Contact Us For Availability
2
MAY 8531412 MAY 8531412 Contact Us For Availability
2
MAY 8573061 MAY 8573061 Contact Us For Availability
2
MAY 8283527 MAY 8283527 Contact Us For Availability
2
MAY 8533889 MAY 8533889 Contact Us For Availability
2
WASHER, HEATER ELEMENT MAY 717273 Contact Us For Availability
2
STOP, TRACK (NON-REMOVABLE) MAY 8565925 Contact Us For Availability
2
MAY W10082868 MAY W10082868 Contact Us For Availability
2
CAP, INTERNAL REAR FEED MAY 8268343 Contact Us For Availability
3
MAY 8268983 MAY 8268983 Contact Us For Availability
3
MAY W10298355 MAY W10298355 Contact Us For Availability
3
MAY 8575894 MAY 8575894 Contact Us For Availability
3
MAY W10195536 MAY W10195536 Contact Us For Availability
3
MAY W10284090 MAY W10284090 Contact Us For Availability
3
MAY W10348405 MAY W10348405 Contact Us For Availability
3
MAY 8557720 MAY 8557720 Contact Us For Availability
3
NUT, HEATER ELEMENT MAY 8268548 Contact Us For Availability
3
MAY W10254909 MAY W10254909 Contact Us For Availability
3
MAY W10199701 MAY W10199701 Contact Us For Availability
3
MAY 8268340 MAY 8268340 Contact Us For Availability
4
MAY W10274903 MAY W10274903 Contact Us For Availability
4
MAY W10274904 MAY W10274904 Contact Us For Availability
4
MAY W10274905 MAY W10274905 Contact Us For Availability
4
MAY W10274906 MAY W10274906 Contact Us For Availability
4
MAY 8269209 MAY 8269209 Contact Us For Availability
4
SHIELD, DISP. MAY 8531865 Contact Us For Availability
4
MAY 8531323 MAY 8531323 Contact Us For Availability
4
WASHER, PRONGED MAY 3378128 Contact Us For Availability
4
MAY 8572618 MAY 8572618 Contact Us For Availability
4
MAY W10240137 MAY W10240137 Contact Us For Availability
4
MAY 8269262 MAY 8269262 Contact Us For Availability
4
TRACK, RACK MAY 3385089 Contact Us For Availability
4
MAY W10199681 MAY W10199681 Contact Us For Availability
4
SUPPORT, LOWER SPRAYARM MAY W10077898 Contact Us For Availability
5
MAY W10369024 MAY W10369024 Contact Us For Availability
5
ACCESS PANEL (WHITE) MAY W10369026 Contact Us For Availability
5
MAY W10369028 MAY W10369028 Contact Us For Availability
5
LATCH ASSEMBLY MAY W10142939 Contact Us For Availability
5
VENT ASSEMBLY MAY W10164259 Contact Us For Availability
5
MAY 8531327 MAY 8531327 Contact Us For Availability
5
MAY 8573240 MAY 8573240 Contact Us For Availability
5
MAY 8268375 MAY 8268375 Contact Us For Availability
5
MAY W10199811 MAY W10199811 Contact Us For Availability
5
SHIELD, HTR NUT MAY W10343251 Contact Us For Availability
5
MAY W10199682 MAY W10199682 Contact Us For Availability
5
MAY W10240160 MAY W10240160 Contact Us For Availability
6
MAY W10073520 MAY W10073520 Contact Us For Availability
6
MAY 661663 MAY 661663 Contact Us For Availability
6
MAY 8269259 MAY 8269259 Contact Us For Availability
6
MAY 371505 MAY 371505 Contact Us For Availability
6
ACTUATOR ASSY (INCLUDES No. 8) MAY 8575616 Contact Us For Availability
6
MAY W10083957 MAY W10083957 Contact Us For Availability
6
MAY 8268433 MAY 8268433 Contact Us For Availability
6
CUP, SHELF MOUNTING MAY W10289765 Contact Us For Availability
6
MAY W10240162 MAY W10240162 Contact Us For Availability
7
MAY W10331789 MAY W10331789 Contact Us For Availability
7
MAY W10331793 MAY W10331793 Contact Us For Availability
7
MAY W10331794 MAY W10331794 Contact Us For Availability
7
SCREW MAY 304231 Contact Us For Availability
7
DEFLECTOR, VENT (ALSO ORDER ITEM 6) MAY 8575893 Contact Us For Availability
7
MAY W10195049 MAY W10195049 Contact Us For Availability
7
SCREW MAY 8533836 Contact Us For Availability
7
MAY 9741232 MAY 9741232 Contact Us For Availability
7
MAY W10082831 MAY W10082831 Contact Us For Availability
8
Screw MAY 304392 Contact Us For Availability
8
MAY W10205889 MAY W10205889 Contact Us For Availability
8
MAY W10205890 MAY W10205890 Contact Us For Availability
8
MAY W10205891 MAY W10205891 Contact Us For Availability
8
MAY W10199696 MAY W10199696 Contact Us For Availability
8
MOTOR, WAX ASSEMBLY MAY W10082769 Contact Us For Availability
8
MAY 8531857 MAY 8531857 Contact Us For Availability
8
MAY W10240064 MAY W10240064 Contact Us For Availability
9
SCREW MAY 3400071 Contact Us For Availability
9
COVER,CNTRL ASSY MAY W10158350 Contact Us For Availability
9
SEAL, FRONT MAY 8269258 Contact Us For Availability
9
MAY 8268961 MAY 8268961 Contact Us For Availability
9
MAY W10231537 MAY W10231537 Contact Us For Availability
9
VALVE ASSY, MANIFOLD MAY 8575244 Contact Us For Availability
10
BRACKET, DISP, MAY 8535637 Contact Us For Availability
10
MAY W10137608 MAY W10137608 Contact Us For Availability
10
MAY 3378595 MAY 3378595 Contact Us For Availability
10
MAY 3400217 MAY 3400217 Contact Us For Availability
10
MAY W10199807 MAY W10199807 Contact Us For Availability
11
MAY W10199683 MAY W10199683 Contact Us For Availability
11
SWITCH, OVERFILL MAY W10102495 Contact Us For Availability
11
BUSHING, DR SPRG MAY 8268990 Contact Us For Availability
11
MAY W10084567 MAY W10084567 Contact Us For Availability
12
MAY W10341062 MAY W10341062 Contact Us For Availability
12
MAY W10175383 MAY W10175383 Contact Us For Availability
12
MAY 3400014 MAY 3400014 Contact Us For Availability
12
MAY W10298344 MAY W10298344 Contact Us For Availability
13
MAY W10177098 MAY W10177098 Contact Us For Availability
13
MAY 8268895 MAY 8268895 Contact Us For Availability
13
MAY W10317686 MAY W10317686 Contact Us For Availability
13
MAY W10300599 MAY W10300599 Contact Us For Availability
14
MAY 8269296 MAY 8269296 Contact Us For Availability
14
MISCELLANEOUS PARTS BAG (INCL. 2 SCREWS, 2 HO MAY W10292152 Contact Us For Availability
14
MAY 8524584 MAY 8524584 Contact Us For Availability
14
MAY 8533949 MAY 8533949 Contact Us For Availability
15
MAY W10165274 MAY W10165274 Contact Us For Availability
15
MAY 8558995 MAY 8558995 Contact Us For Availability
16
MAY 8524473 MAY 8524473 Contact Us For Availability
16
VOLUTE, BACK (ALSO ORDER ITEMS 21 & 25) MAY W10142656 Contact Us For Availability
17
WHEEL & MOUNT ASSEMBLY (ALSO ORDER ITEM 6) MAY 8575897 Contact Us For Availability
17
MAY 8269144 MAY 8269144 Contact Us For Availability
18
MAY 3400892 MAY 3400892 Contact Us For Availability
18
MAY W10200940 MAY W10200940 Contact Us For Availability
19
MAY 8268991 MAY 8268991 Contact Us For Availability
19
MAY 8268401 MAY 8268401 Contact Us For Availability
20
IMPELLER KIT (ALSO ORDER ITEM 25) MAY 8531017 Contact Us For Availability
21
THERMOSTAT (INCLUDES ITEM 15) MAY 661566 Contact Us For Availability
21
FACE SEAL ASSEMBLY (ALSO ORDER ITEM 25) MAY 8268403 Contact Us For Availability
22
MAY 356138 MAY 356138 Contact Us For Availability
22
MAY W10185368 MAY W10185368 Contact Us For Availability
22
MAY W10185369 MAY W10185369 Contact Us For Availability
23
MAY 8269831 MAY 8269831 Contact Us For Availability
23
MAY W10134017 MAY W10134017 Contact Us For Availability
24
MAY W10334457 MAY W10334457 Contact Us For Availability
25
MAY 8531018 MAY 8531018 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (SUPERIOR B MAY 285006 Contact Us For Availability
NI
MAY 3385556 MAY 3385556 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
MAY 4317824 MAY 4317824 Contact Us For Availability
NI
MAY 4392899 MAY 4392899 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (Biscuit) MAY 4392900 Contact Us For Availability
NI
MAY 4392901 MAY 4392901 Contact Us For Availability
NI
MOISTURE BARRIER KIT MAY 4396277 Contact Us For Availability
NI
MAY 4396603 MAY 4396603 Contact Us For Availability
NI
DISHRACK REPAIR (TIP TINE REPAIR KIT (ENOUGH MAY 4396838 Contact Us For Availability
NI
DISHRACK REPAIR (TIP TINE REPAIR KIT (ENOUGH MAY 4396840 Contact Us For Availability
NI
MAY 6-919539 MAY 6-919539 Contact Us For Availability
NI
DISHRACK REPAIR, VINYL TOUCH-UP (4OZ WHITE) MAY 676453 Contact Us For Availability
NI
DISHRACK REPAIR, VINYL TOUCH-UP (4OZ GREY) MAY 676455 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
ANTI-TIP KIT, FLOOR MOUNT KIT MAY 8171477 Contact Us For Availability
NI
MAY 8171555 MAY 8171555 Contact Us For Availability
NI
MAY 8171556 MAY 8171556 Contact Us For Availability
NI
MAY 8171557 MAY 8171557 Contact Us For Availability
NI
MAY 8171558 MAY 8171558 Contact Us For Availability
NI
MAY 8171656 MAY 8171656 Contact Us For Availability
NI
MAY 8171657 MAY 8171657 Contact Us For Availability
NI
MAY 8171658 MAY 8171658 Contact Us For Availability
NI
MAY 8171659 MAY 8171659 Contact Us For Availability
× ![]()
