Model Maytag MDB4949SHZ1 DISHWASHER, UNDERCOUNTER – Common Parts & Diagrams
01 - COVER SHEET

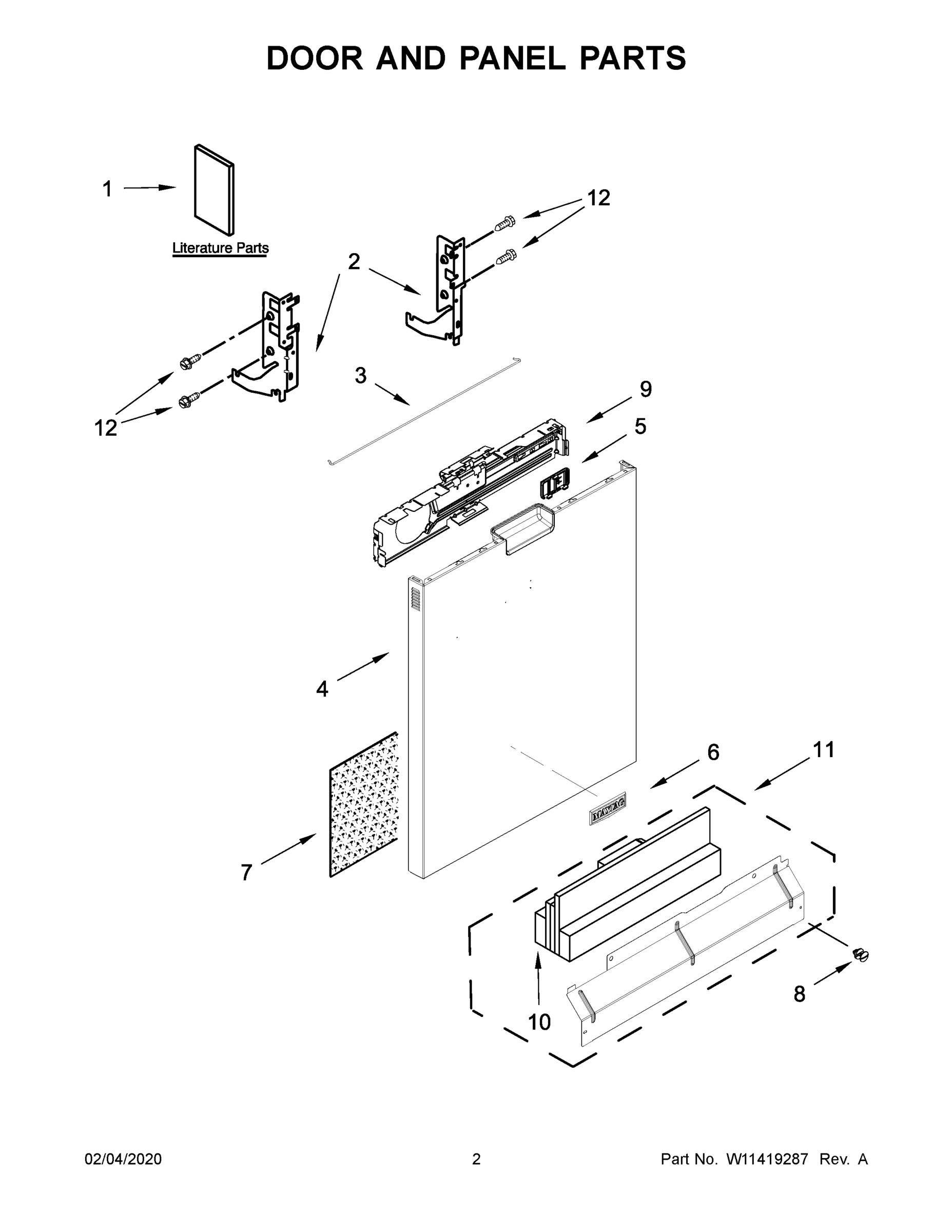

02 - DOOR AND PANEL PARTS

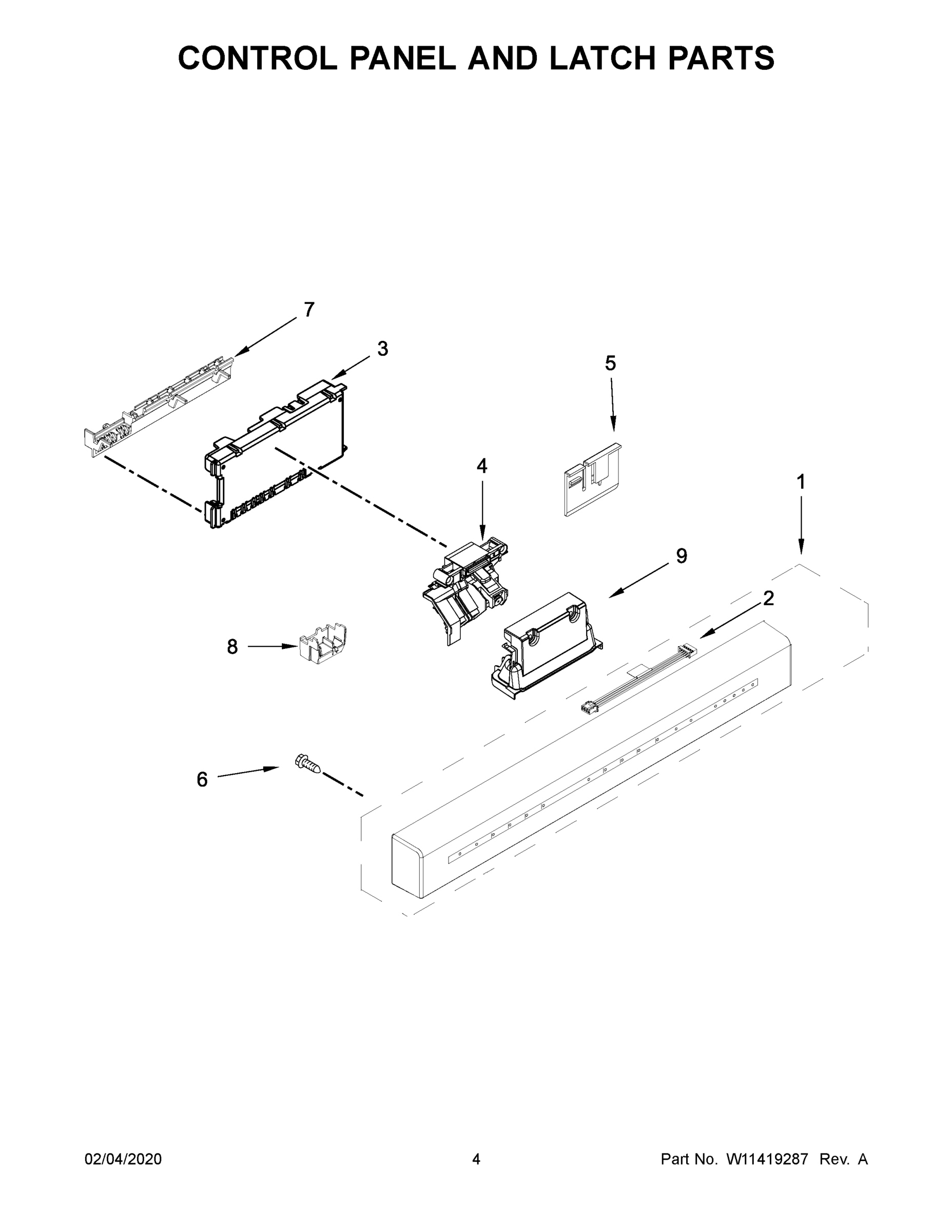

03 - CONTROL PANEL AND LATCH PARTS

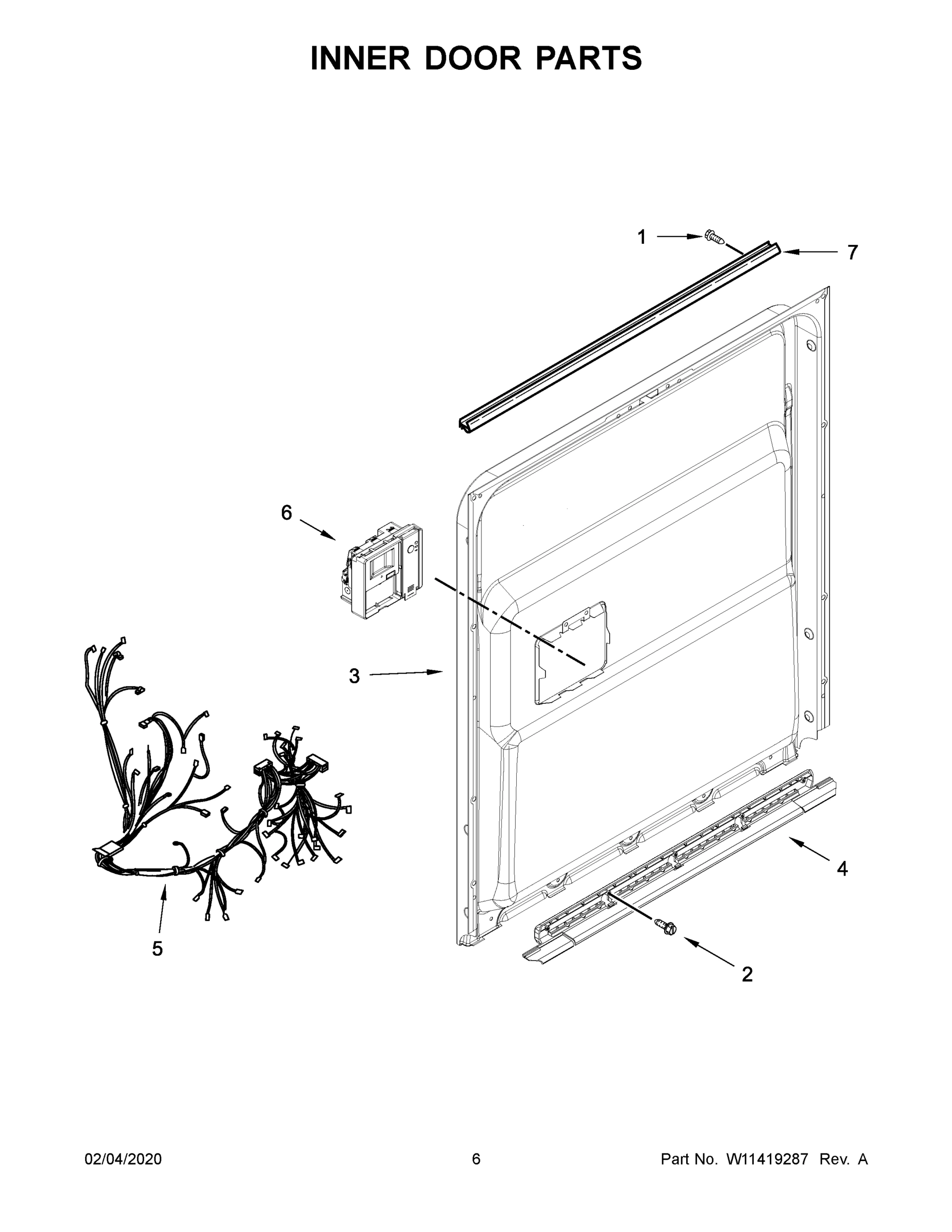

04 - INNER DOOR PARTS

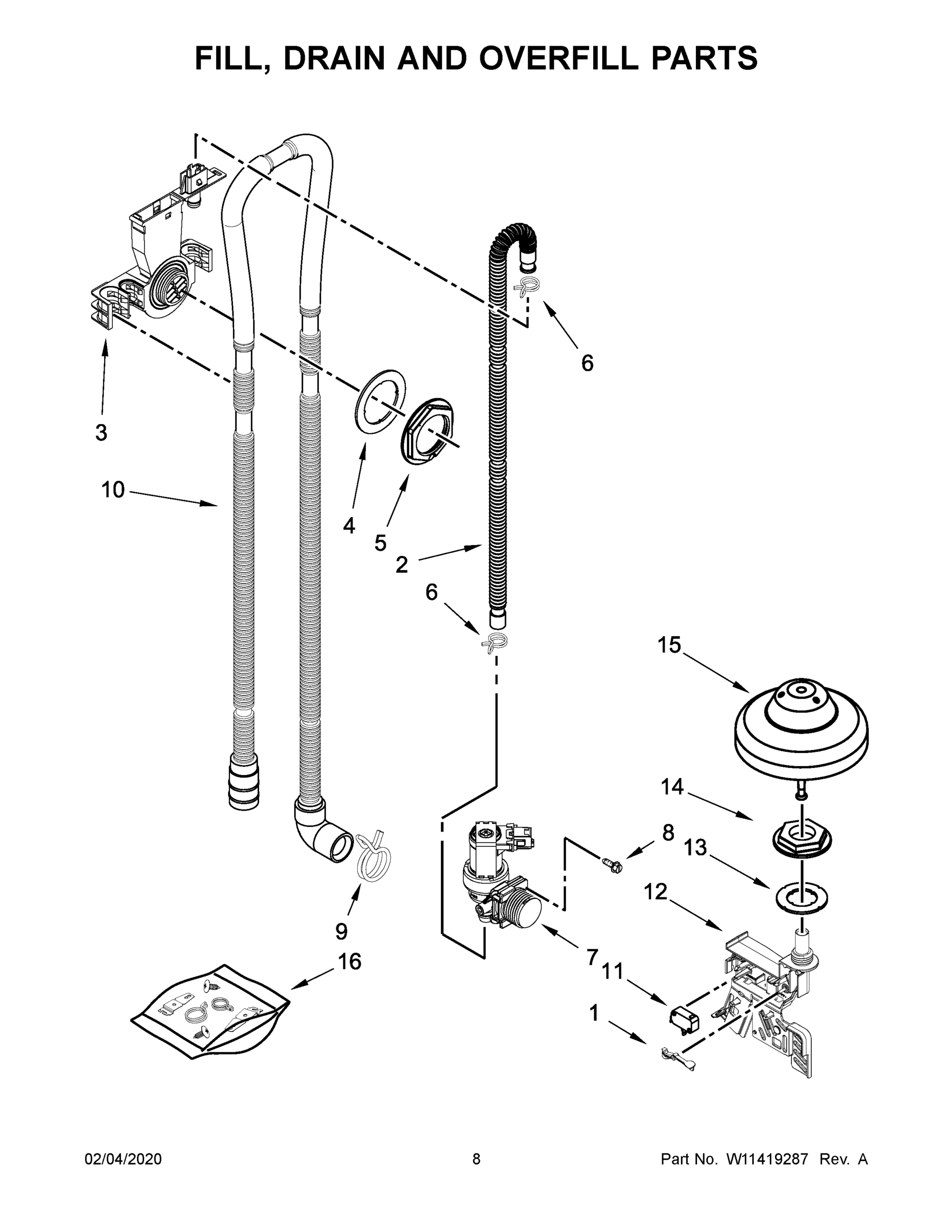

05 - FILL, DRAIN AND OVERFILL PARTS

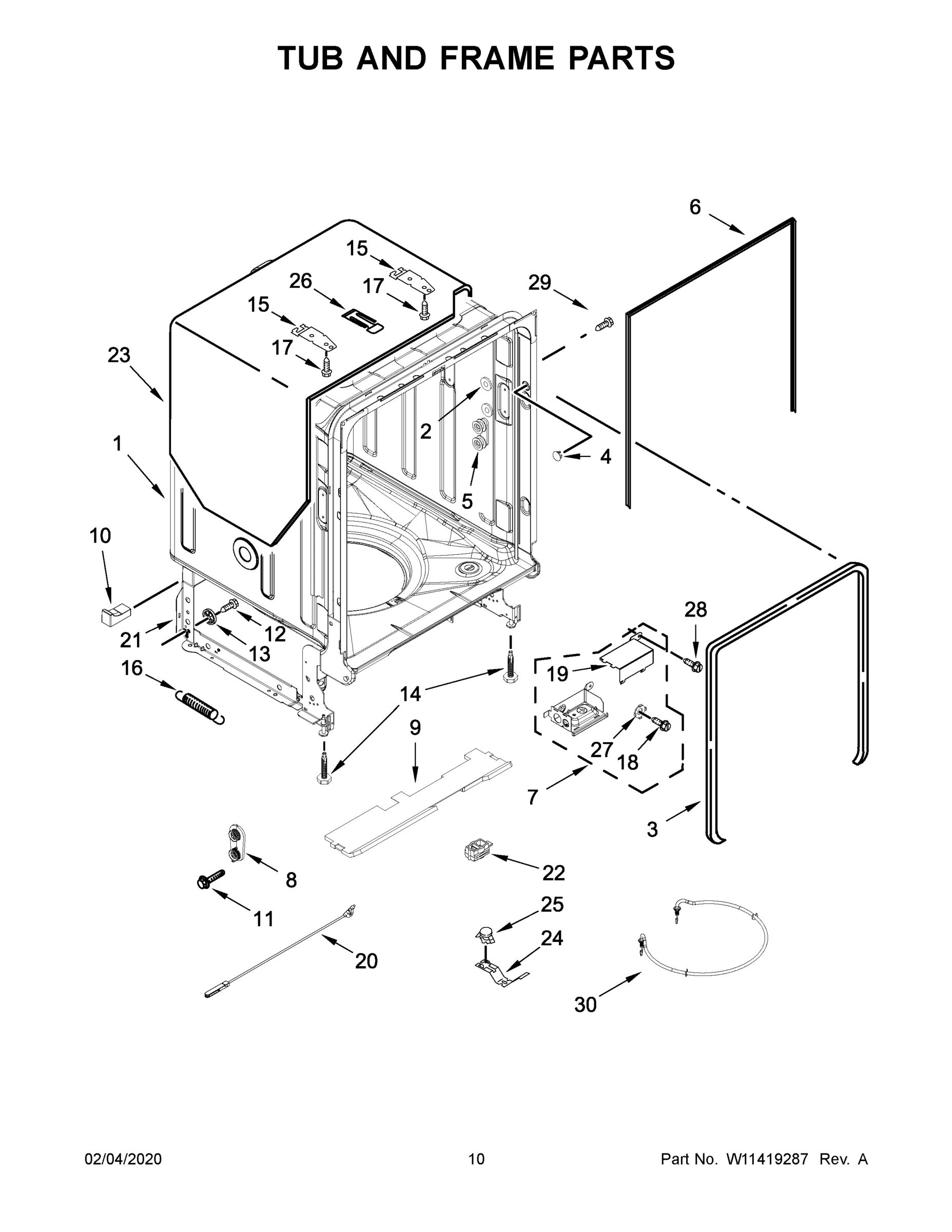

06 - TUB AND FRAME PARTS

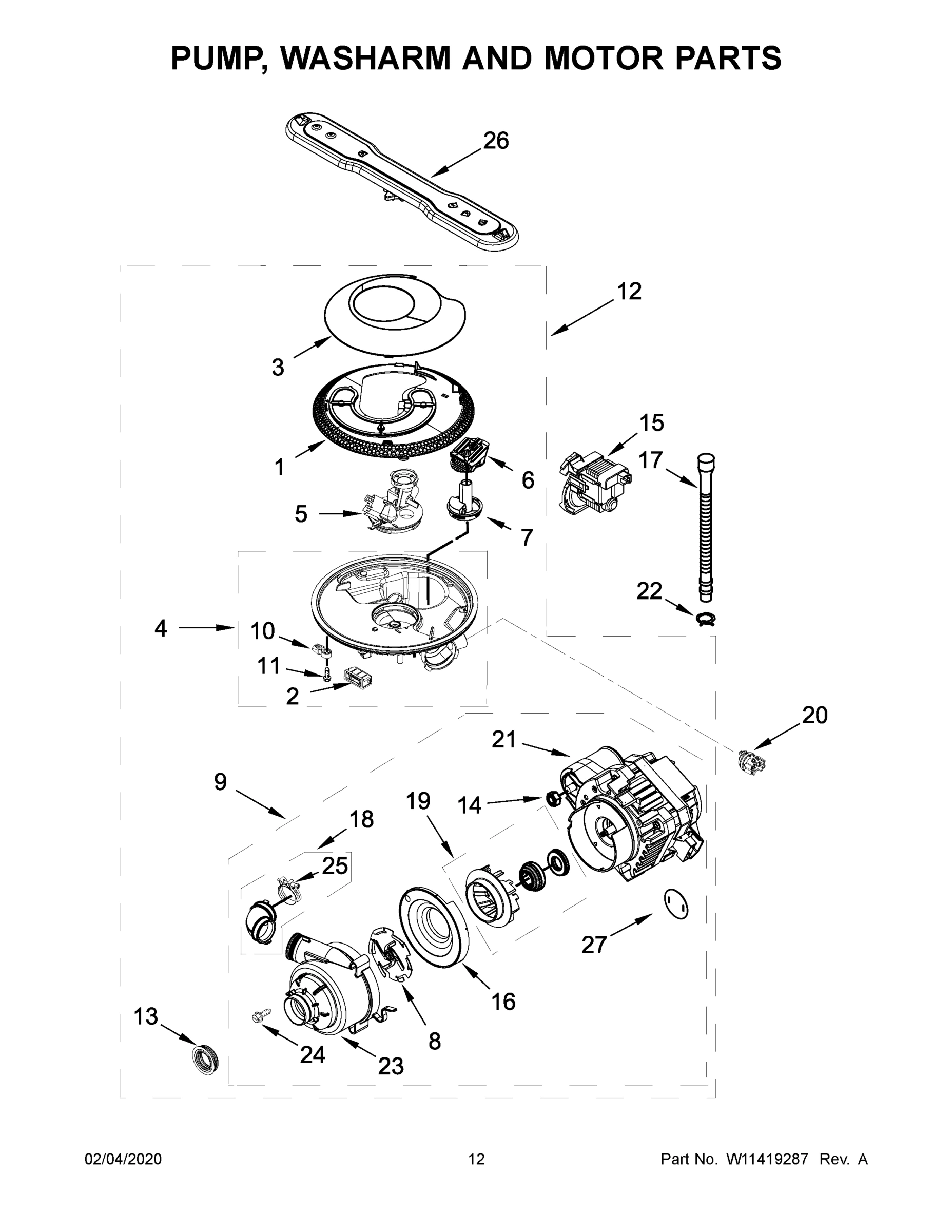

07 - PUMP, WASHARM AND MOTOR PARTS

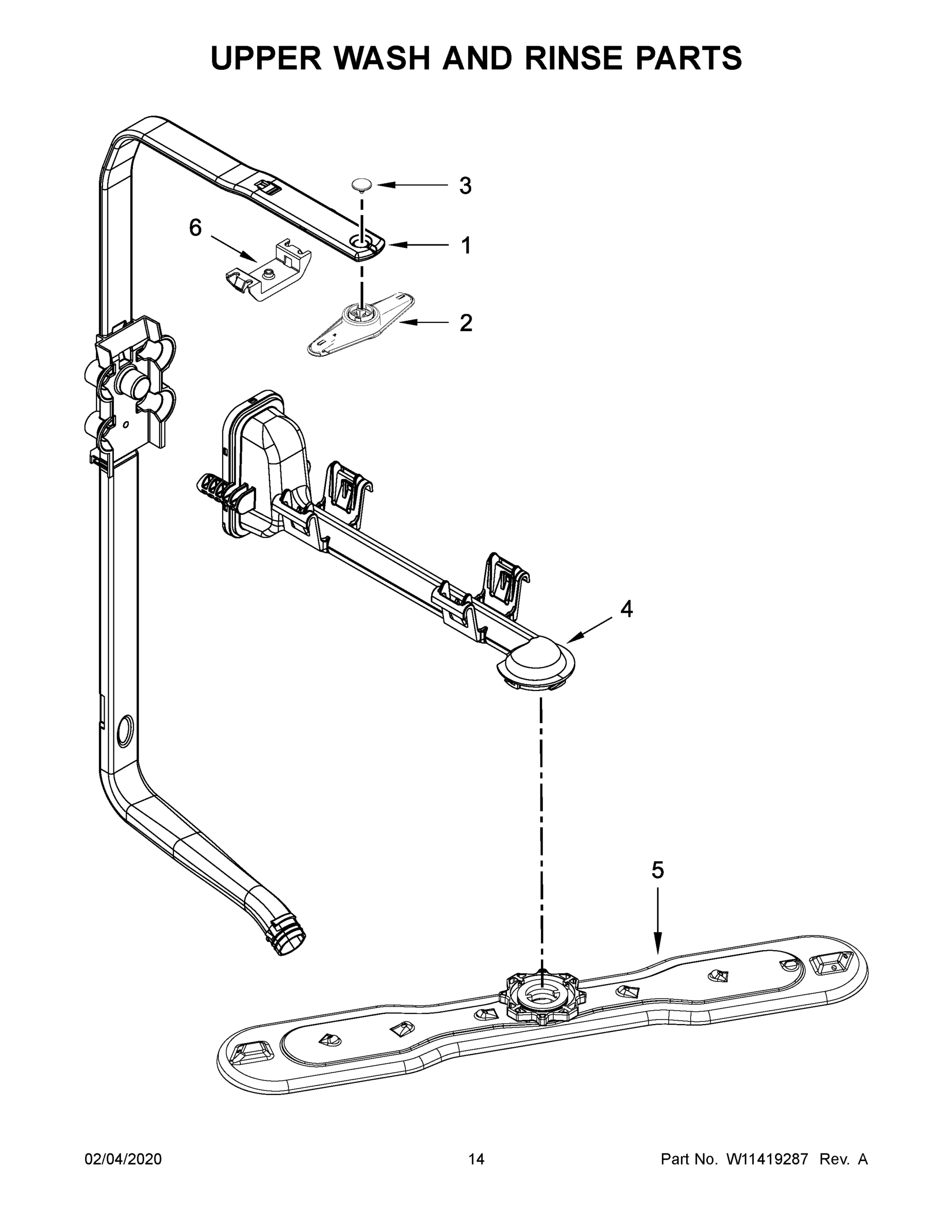

08 - UPPER WASH AND RINSE PARTS

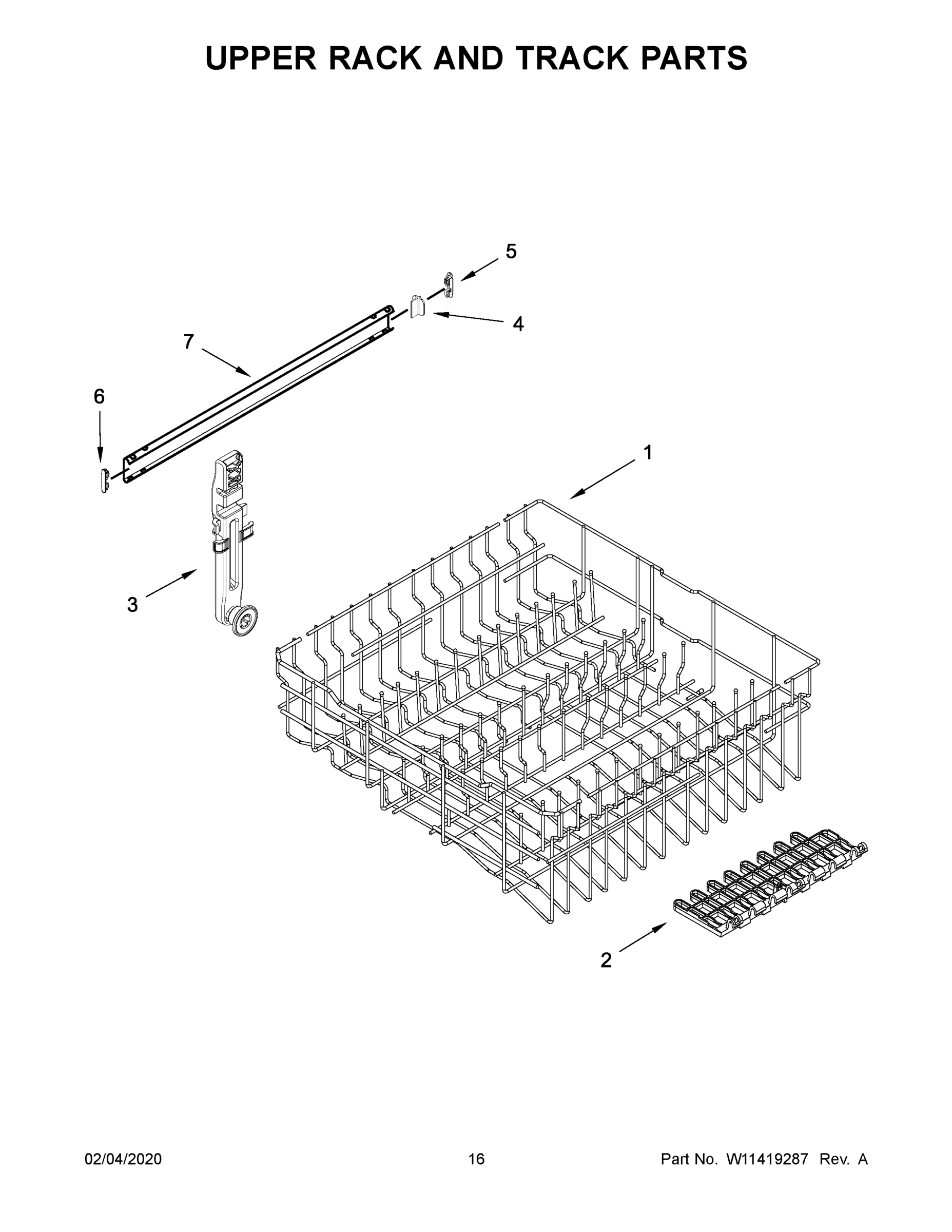

09 - UPPER RACK AND TRACK PARTS

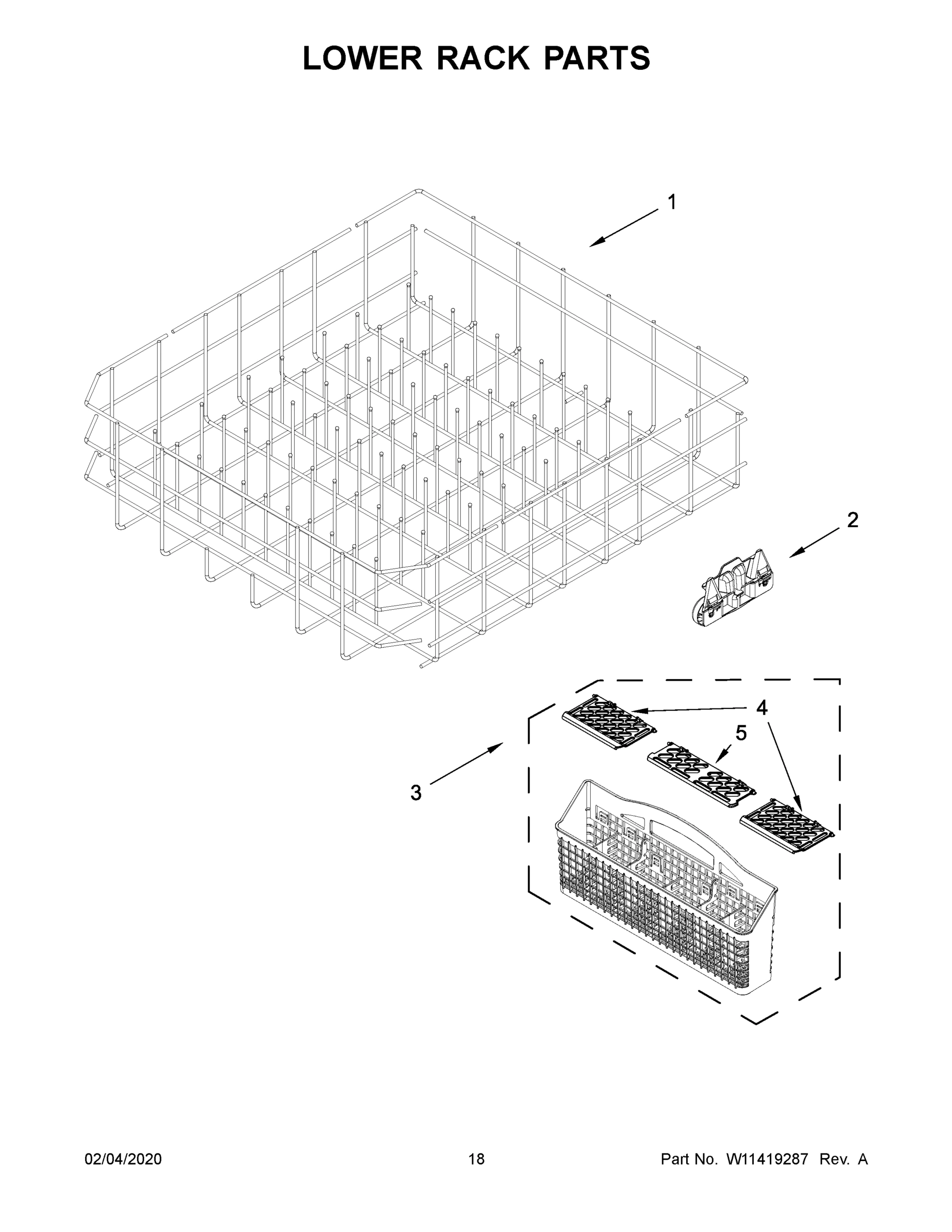

10 - LOWER RACK PARTS
11 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MDB4949SHZ1 DISHWASHER, UNDERCOUNTER
1
INSTALLATION INSTRUCTIONS MAY W10806906 Contact Us For Availability
1
MAY W11366250 MAY W11366250 Contact Us For Availability
1
SCREW MAY W10348409 Contact Us For Availability
1
LEVER, OVERFILL SWITCH MAY W10195037 Contact Us For Availability
1
TUB ASSEMBLY (INCLUDES HEATER ASSEMBLY) MAY W10681492 Contact Us For Availability
1
ACCUMULATOR ASSEMBLY MAY W10591545 Contact Us For Availability
1
FEED TUBE ASSEMBLY (INCLUDES ITEMS 2 & 3) MAY W10340745 Contact Us For Availability
1
MAY W11188800 MAY W11188800 Contact Us For Availability
1
DISHRACK, LOWER MAY W10525641 Contact Us For Availability
1A
ENERGY GUIDE MAY W11236381 Contact Us For Availability
1B
USE & CARE GUIDE MAY W11174463 Contact Us For Availability
1C
MAY W11290951 MAY W11290951 Contact Us For Availability
2
ARM, HINGE (LEFT HAND) MAY 8534854 Contact Us For Availability
2
JUMPER, 4 WIRE MAY W10792164 Contact Us For Availability
2
SCREW MAY 8281217 Contact Us For Availability
2
INLET, HOSE MAY W10769066 Contact Us For Availability
2
GASKET, MOUNTING BRACKET MAY 9743002 Contact Us For Availability
2
MOTOR, ISOLATOR MAY W10195086 Contact Us For Availability
2
SPRAYARM, THIRD LEVEL MAY W10327455 Contact Us For Availability
2
CUPSHELF MAY W10630200 Contact Us For Availability
2
WHEEL & TRANSPORT ASSEMBLY MAY W10195416 Contact Us For Availability
2A
ARM, HINGE (RIGHT HAND) MAY 8534853 Contact Us For Availability
3
STIFFENER, DOOR MAY W10803537 Contact Us For Availability
3
CONTROL, ELECTRONIC MAY W11168783 Contact Us For Availability
3
INNER DOOR MAY W10712597 Contact Us For Availability
3
INLET, WATER (ALSO ORDER ITEM 4) MAY W10195536 Contact Us For Availability
3
GASKET, TUB MAY W10660528 Contact Us For Availability
3
COVER, ACCUMULATOR MAY W10736968 Contact Us For Availability
3
RETAINER MAY 3400918 Contact Us For Availability
3
WHEEL ASSEMBLY, STATIONARY MAY W10571738 Contact Us For Availability
3
SILVERWARE BASKET ASSEMBLY MAY W10630199 Contact Us For Availability
4
PANEL FRONT (ALSO INCLUDES ITEM 6) (STAINLESS MAY W11202764 Contact Us For Availability
4
LATCH ASSEMBLY (INCLUDES SWITCH) MAY W10653840 Contact Us For Availability
4
SEAL, DOOR BOTTOM MAY W10667473 Contact Us For Availability
4
GASKET MAY 8531323 Contact Us For Availability
4
PLUG, TUB MAY W10813122 Contact Us For Availability
4
SUMP WITH SEAL (ALSO ORDER ITEMS 13 & 18) MAY W10482462 Contact Us For Availability
4
MANIFOLD MAY W10571949 Contact Us For Availability
4
SPACER, TRACK MAY W10306230 Contact Us For Availability
4
LID, SIDE MAY W10630198 Contact Us For Availability
5
BLOCK, FOAM MAY W10622466 Contact Us For Availability
5
CLIP, CONTROL MAY W11233967 Contact Us For Availability
5
WIRING HARNESS MAY W10834758 Contact Us For Availability
5
NUT, WATER INLET (ALSO ORDER ITEM 4) MAY W10213825 Contact Us For Availability
5
WHEEL AND MOUNT ASSEMBLY MAY W10078083 Contact Us For Availability
5
COVER, OUTLET MAY W10463892 Contact Us For Availability
5
SPRAYARM, UPPER MAY W10605345 Contact Us For Availability
5
STOP, TRACK (NON-REMOVABLE) MAY 8565925 Contact Us For Availability
5
LID, CENTER MAY W10630197 Contact Us For Availability
6
BADGE MAY W10612925 Contact Us For Availability
6
SCREW (LONG) MAY W10348408 Contact Us For Availability
6
DISPENSER ASSEMBLY MAY W10620296 Contact Us For Availability
6
CLAMP, HOSE MAY 371505 Contact Us For Availability
6
SEAL, CABINET MAY W10835073 Contact Us For Availability
6
PROTECTOR, INLET MAY W10591547 Contact Us For Availability
6
BRACKET, FEED TUBE MAY W10195690 Contact Us For Availability
6
STOP, TRACK (NON-REMOVABLE) MAY W10082860 Contact Us For Availability
7
INSULATION, DOOR MAY W10073520 Contact Us For Availability
7
BRACE, CONNECTOR MAY W10825369 Contact Us For Availability
7
SEAL, CONSOLE/DOOR MAY W10195007 Contact Us For Availability
7
MAY W11130743 MAY W11130743 Contact Us For Availability
7
ASSEMBLY, TERMINAL BOX MAY W10713315 Contact Us For Availability
7
ADAPTER, DRAIN MAY W10591540 Contact Us For Availability
7
TRACK, DISHRACK MAY 3385089 Contact Us For Availability
8
FASTENER (BLACK) MAY W10503548 Contact Us For Availability
8
BOX, CONNECTOR MAY W10825638 Contact Us For Availability
8
DOOR BALANCE ASSEMBLY MAY W10084086 Contact Us For Availability
8
CHOPPER ASSEMBLY MAY W10591562 Contact Us For Availability
9
BRACKET, CONTROL MAY W10641745 Contact Us For Availability
9
HANDLE (BLACK) MAY W11133235 Contact Us For Availability
9
SOUND INSULATION, BOTTOM MAY W10819539 Contact Us For Availability
9
MOTOR ASSEMBLY (ALSO ORDER ITEM 13) MAY W10591569 Contact Us For Availability
10
INSULATION, FOUR LAYER MAY W10518815 Contact Us For Availability
10
DRAIN LOOP WITH CHECK VALVE ASSEMBLY MAY W10545278 Contact Us For Availability
10
TUB SPACER (LEFT HAND) MAY W10195630 Contact Us For Availability
10
TAB, SUMP MAY W10372113 Contact Us For Availability
10A
TUB SPACER (RIGHT HAND) MAY W10195631 Contact Us For Availability
11
ACCESS PANEL (BLACK) MAY W10526114 Contact Us For Availability
11
SWITCH, OVERFILL CONTROL MAY W10734532 Contact Us For Availability
11
SCREW MAY 3400074 Contact Us For Availability
11
SCREW MAY W10348407 Contact Us For Availability
12
SCREW MAY 3400071 Contact Us For Availability
12
HOUSING, OVERFILL (ALSO ORDER ITEM 13) MAY W10647205 Contact Us For Availability
12
SCREW MAY W10348411 Contact Us For Availability
12
SUMP & MOTOR ASSEMBLY MAY W10591570 Contact Us For Availability
13
GASKET, FLAT MAY 8531743 Contact Us For Availability
13
WHEEL LEG MAY W10190778 Contact Us For Availability
13
MAY W11182008 MAY W11182008 Contact Us For Availability
14
NUT, STANDPIPE MAY W10195038 Contact Us For Availability
14
LEVELER, LEG MAY W10619352 Contact Us For Availability
14
NUT MAY 8533949 Contact Us For Availability
15
FLOAT & RETAINER ASSEMBLY MAY W10195036 Contact Us For Availability
15
BRACKET, UNDERCOUNTER MAY 8269145 Contact Us For Availability
15
PUMP, DRAIN MAY W10348269 Contact Us For Availability
16
MISCELLANEOUS PARTS BAG (CONTAINS 2 SCREWS, 2 MAY W10292152 Contact Us For Availability
16
SPRING, DOOR BALANCE MAY 8270020 Contact Us For Availability
16
ENCLOSURE, MOTOR MAY W10591561 Contact Us For Availability
17
SCREW MAY 3367670 Contact Us For Availability
17
HOSE, DRAIN MAY 8269144 Contact Us For Availability
18
SCREW, GROUNDING MAY 3400014 Contact Us For Availability
18
HOSE ASSEMBLY (INCLUDES 2 CLAMPS) MAY W10445975 Contact Us For Availability
19
COVER, TERMINAL BOX MAY W10653292 Contact Us For Availability
19
IMPELLER ASSEMBLY MAY W10591558 Contact Us For Availability
20
CABLE, DOOR MAY W10158291 Contact Us For Availability
20
INDICATOR, OPTICAL WASH MAY W10723295 Contact Us For Availability
21
SUPPORT ASSEMBLY, REAR MAY W10681564 Contact Us For Availability
21
CAPACITOR MAY W10591575 Contact Us For Availability
22
CLAMP, HOSE MAY 370445 Contact Us For Availability
22
SHIELD, THERMOSTAT MAY W10292870 Contact Us For Availability
23
SHIELD, TUB SOUND MAY W10866978 Contact Us For Availability
23
HOUSING, PUMP (ALSO ORDER ITEMS 13 & 18) MAY W10618403 Contact Us For Availability
24
BRACKET, THERMOSTAT MAY W10300703 Contact Us For Availability
24
SCREW MAY W10467002 Contact Us For Availability
25
THERMOSTAT MAY W10195091 Contact Us For Availability
25
CLAMP, HOSE MAY W10169167 Contact Us For Availability
26
STRIKE, LATCH MAY W10544004 Contact Us For Availability
26
SPRAYARM, LOWER MAY W10605800 Contact Us For Availability
27
WASHER, PRONGED CUP MAY 3378128 Contact Us For Availability
27
SHIELD, CAPACITOR MAY W10710432 Contact Us For Availability
28
SCREW MAY 304392 Contact Us For Availability
29
SCREW MAY W10309090 Contact Us For Availability
30
HEATER ELEMENT ASSEMBLY (INCLUDES HEATER WASH MAY W10696509 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BLACK) MAY 285006 Contact Us For Availability
NI
ACCESSORIES, DRAIN HOSE 12 FT. MAY 3385556 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) MAY 350930 Contact Us For Availability
NI
POWER CORD KIT, (INCLUDED CORD & MISC. HARDWA MAY 4317824 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, BULK (1 QT. BISCUIT/BISQUE) MAY 4392900 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BISCUIT/BISQ MAY 4392901 Contact Us For Availability
NI
ACCESSORIES, MOISTURE BARRIER KIT MAY 4396277 Contact Us For Availability
NI
DISHRACK REPAIR, TINE TIP REPAIR KIT (ENOUGH MAY 4396838 Contact Us For Availability
NI
DISHRACK REPAIR, TINE TIP REPAIR KIT (ENOUGH MAY 4396840 Contact Us For Availability
NI
DISHRACK REPAIR, VINYL TOUCH-UP (4OZ SILVER A MAY 4396853 Contact Us For Availability
NI
DISHRACK REPAIR, TINE TIP REPAIR KIT (ENOUGH MAY 4396854 Contact Us For Availability
NI
DISHRACK REPAIR, VINYL TOUCH-UP (4OZ WHITE) MAY 676453 Contact Us For Availability
NI
DISHRACK REPAIR, VINYL TOUCH-UP (4OZ GREY) MAY 676455 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BLACK) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
ANTI-TIP KIT, FLOOR MOUNT KIT MAY 8171477 Contact Us For Availability
NI
ACCESSORIES, SIDE PANEL KITS (WHITE) MAY 8171656 Contact Us For Availability
NI
ACCESSORIES, SIDE PANEL KITS (BLACK) MAY 8171657 Contact Us For Availability
NI
ACCESSORIES, SIDE PANEL KITS (BISCUIT/BISQUE) MAY 8171658 Contact Us For Availability
NI
ACCESSORIES, SIDE PANEL KITS (STAINLESS STEEL MAY 8171659 Contact Us For Availability
NI
ANTI-TIP KIT, SIDE MOUNT KIT MAY 8212560 Contact Us For Availability
NI
ACC MAY W10702080 Contact Us For Availability
NI
MAY W10702081 MAY W10702081 Contact Us For Availability
× ![]()
