Model Maytag MDB4709PAW4 DISHWASHER – Common Parts & Diagrams
01 - COVER SHEET

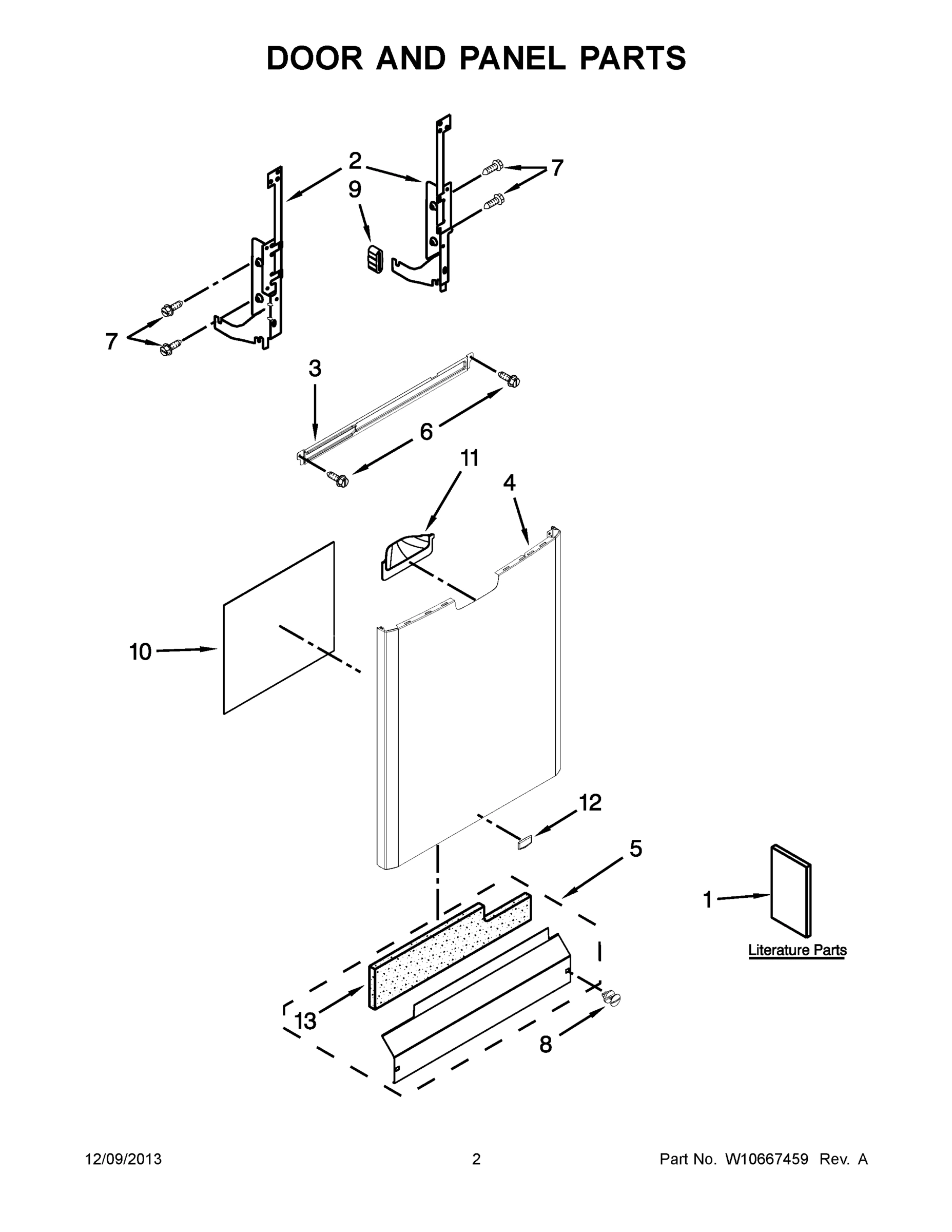

02 - DOOR AND PANEL PARTS

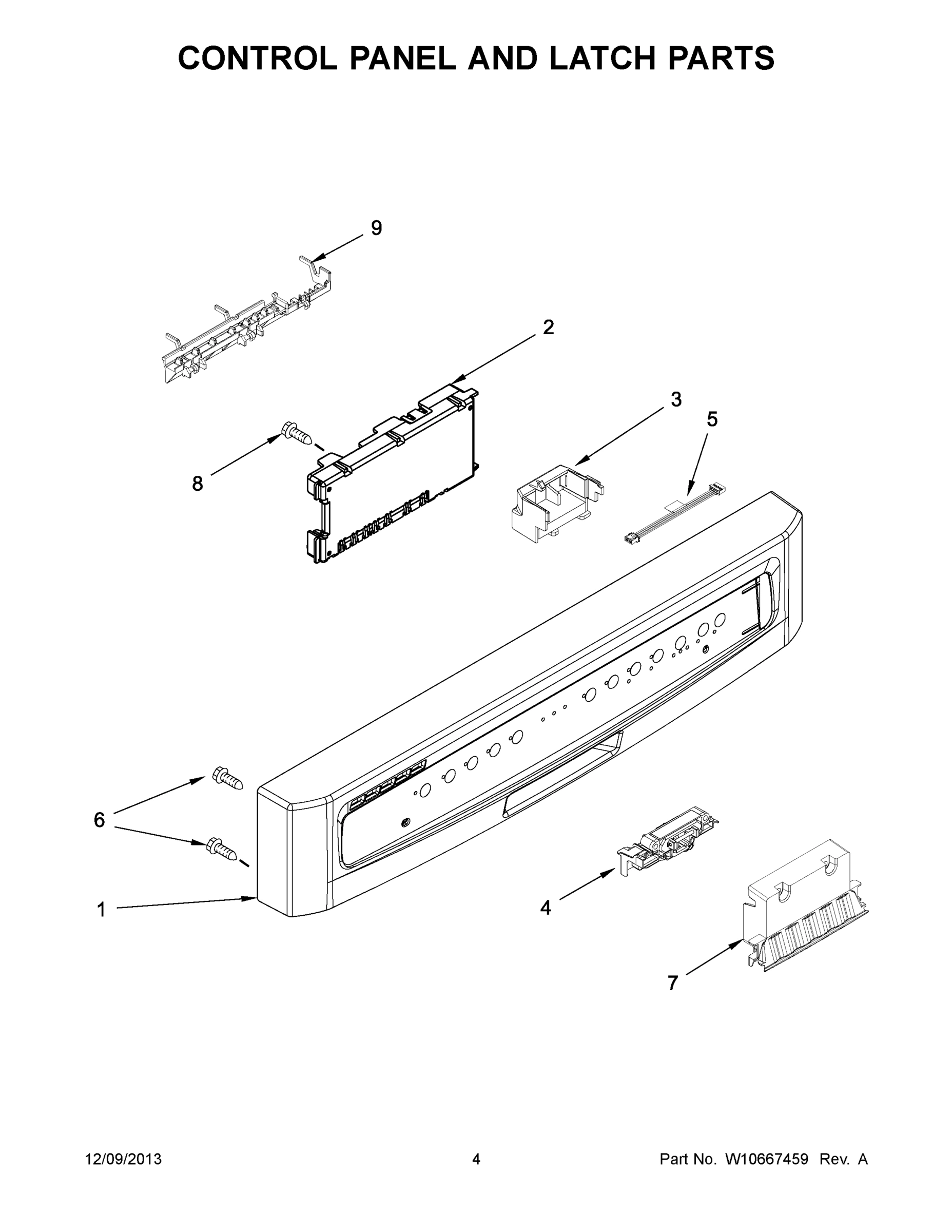

03 - CONTROL PANEL AND LATCH PARTS

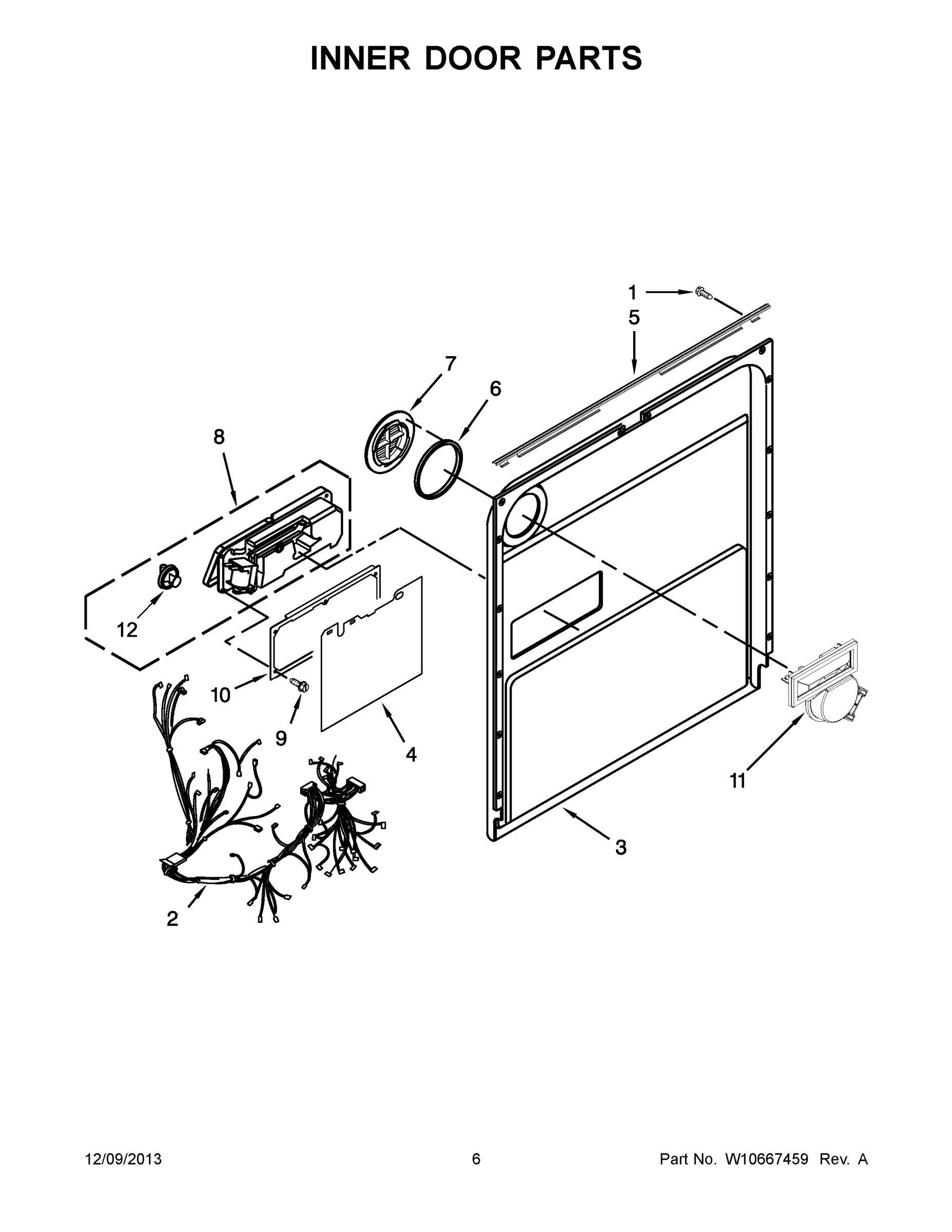

04 - INNER DOOR PARTS

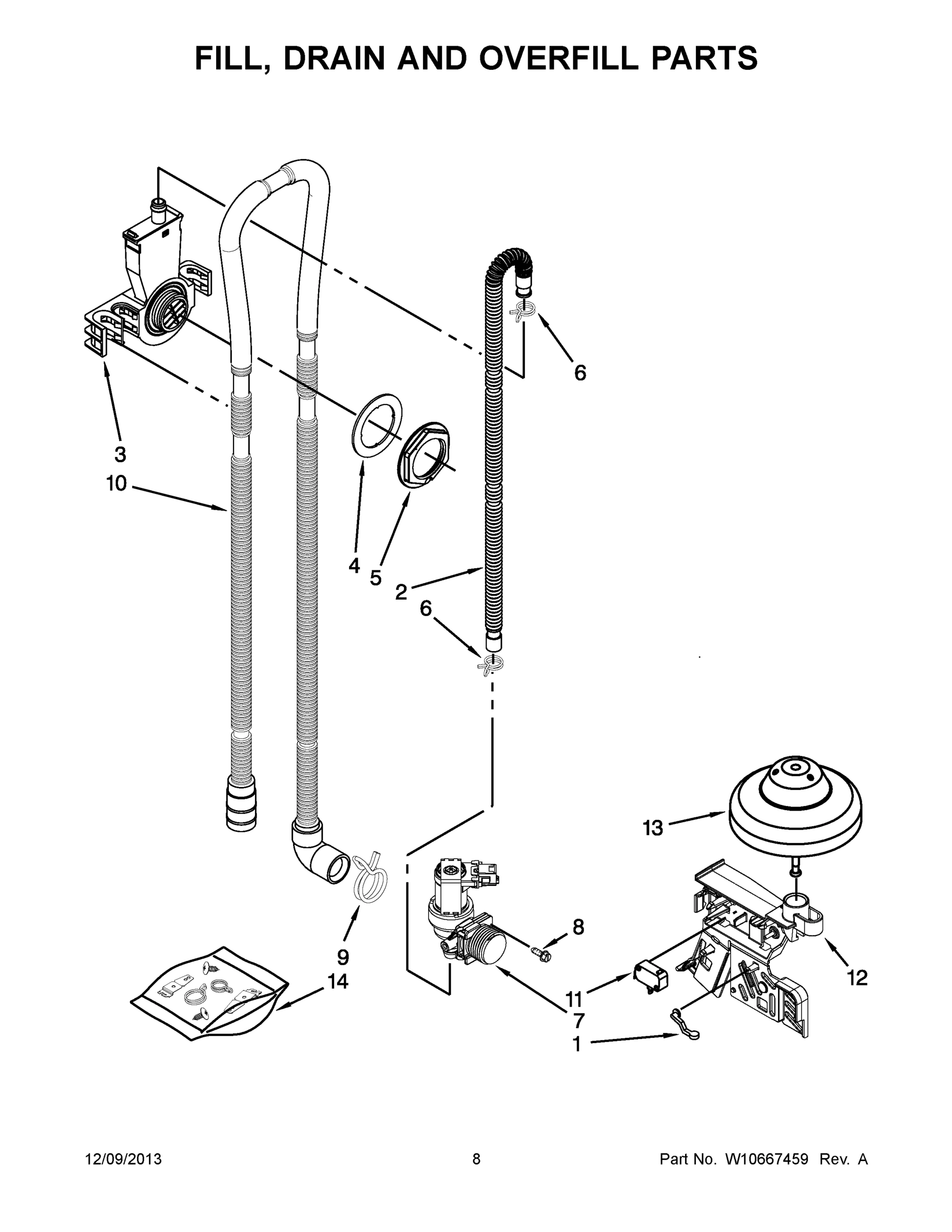

05 - FILL, DRAIN AND OVERFILL PARTS

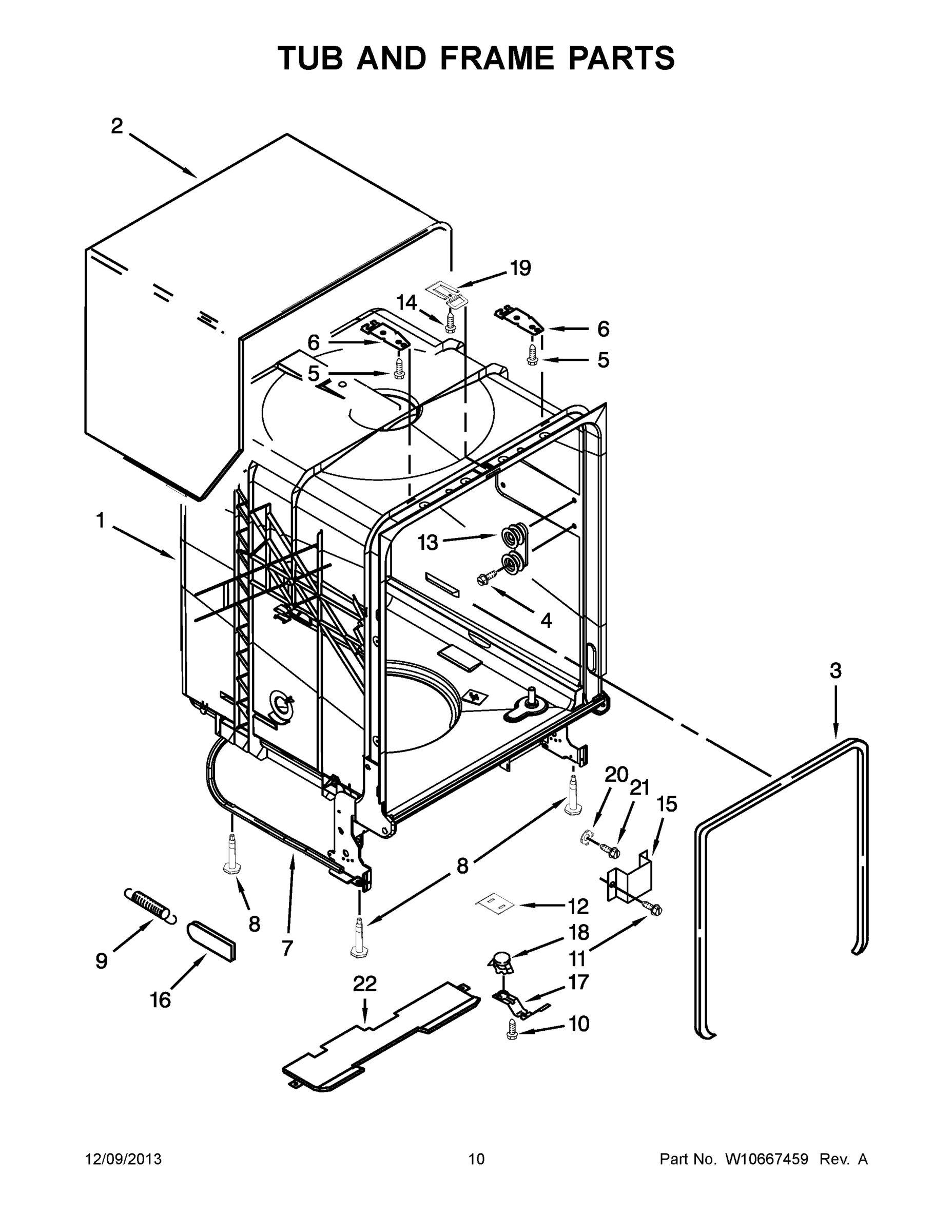

06 - TUB AND FRAME PARTS

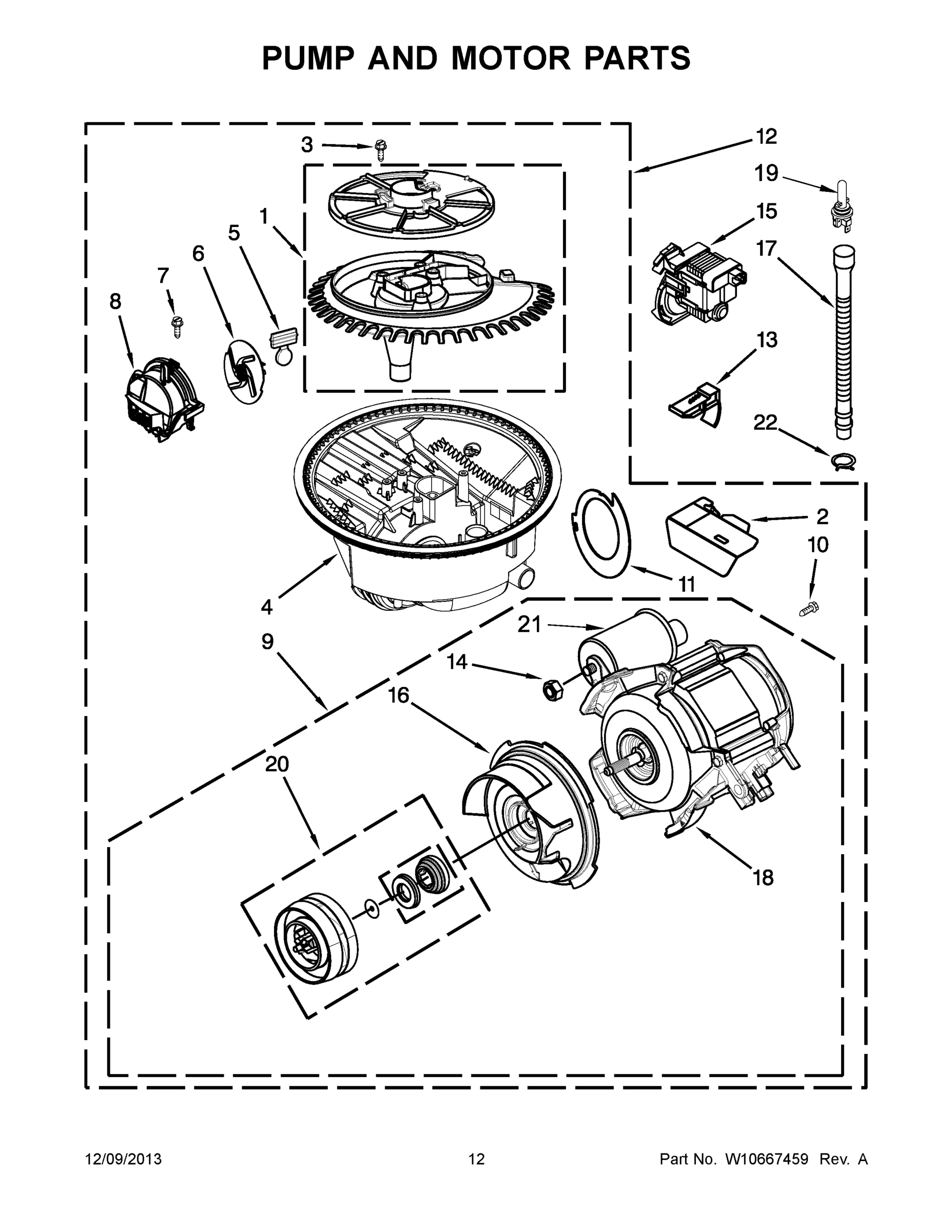

07 - PUMP AND MOTOR PARTS

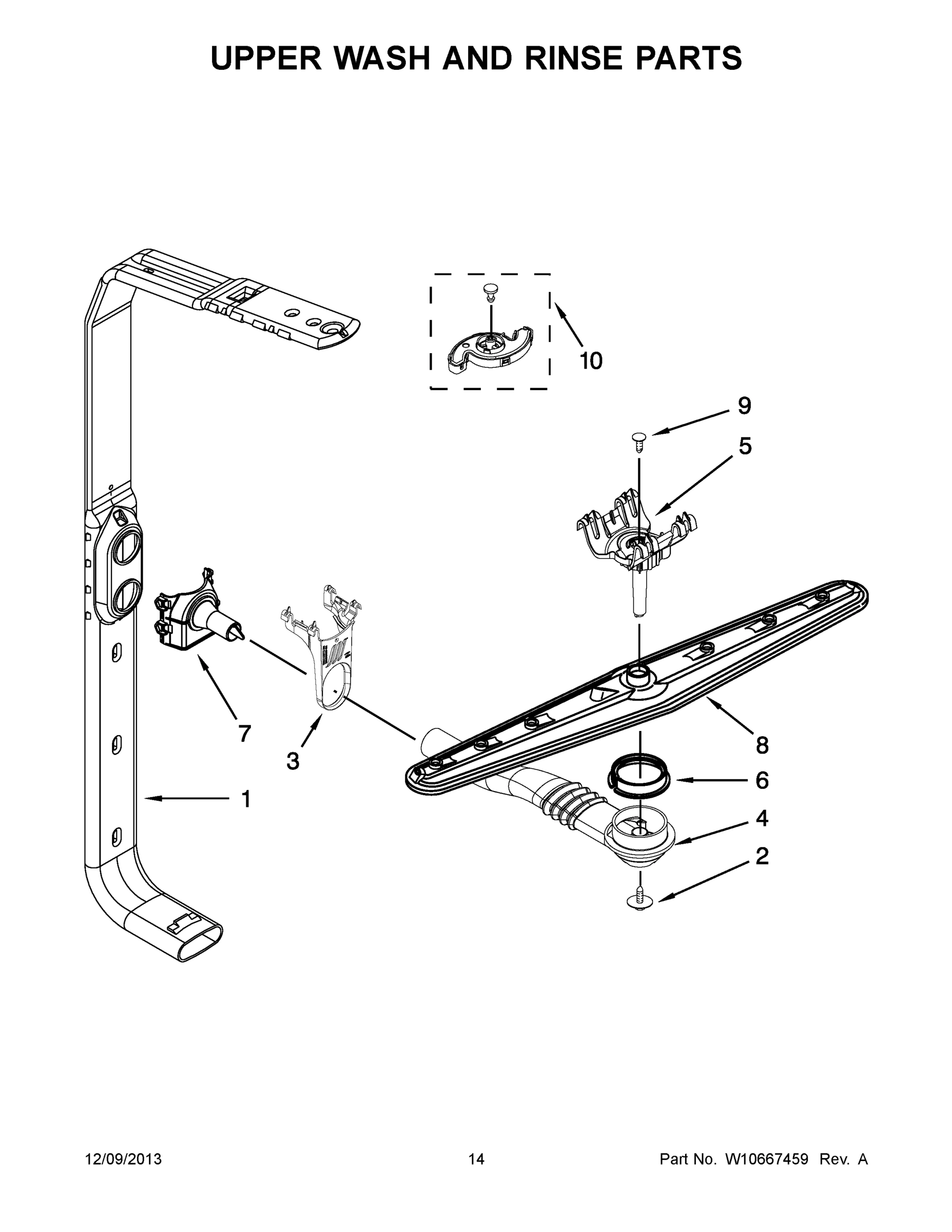

08 - UPPER WASH AND RINSE PARTS

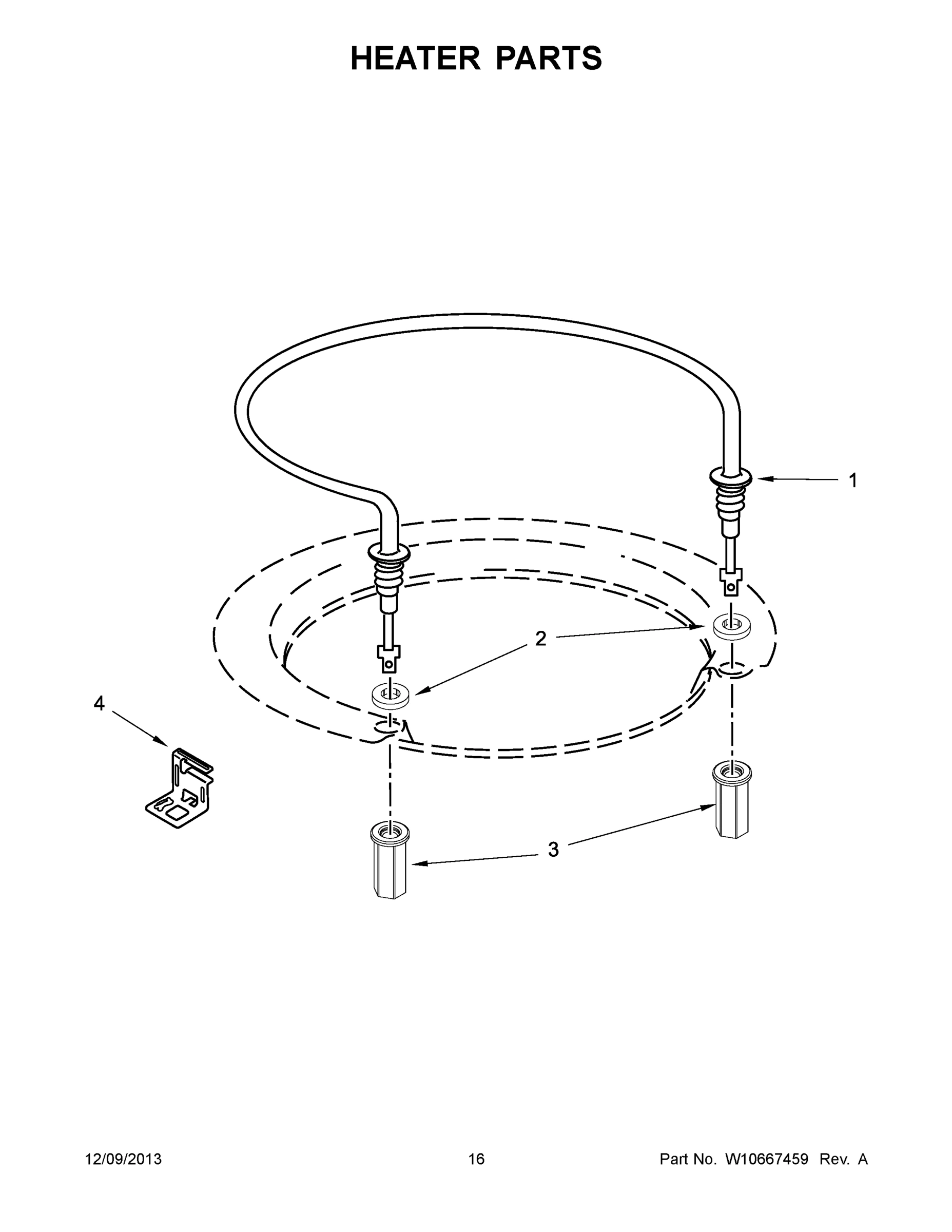

09 - HEATER PARTS

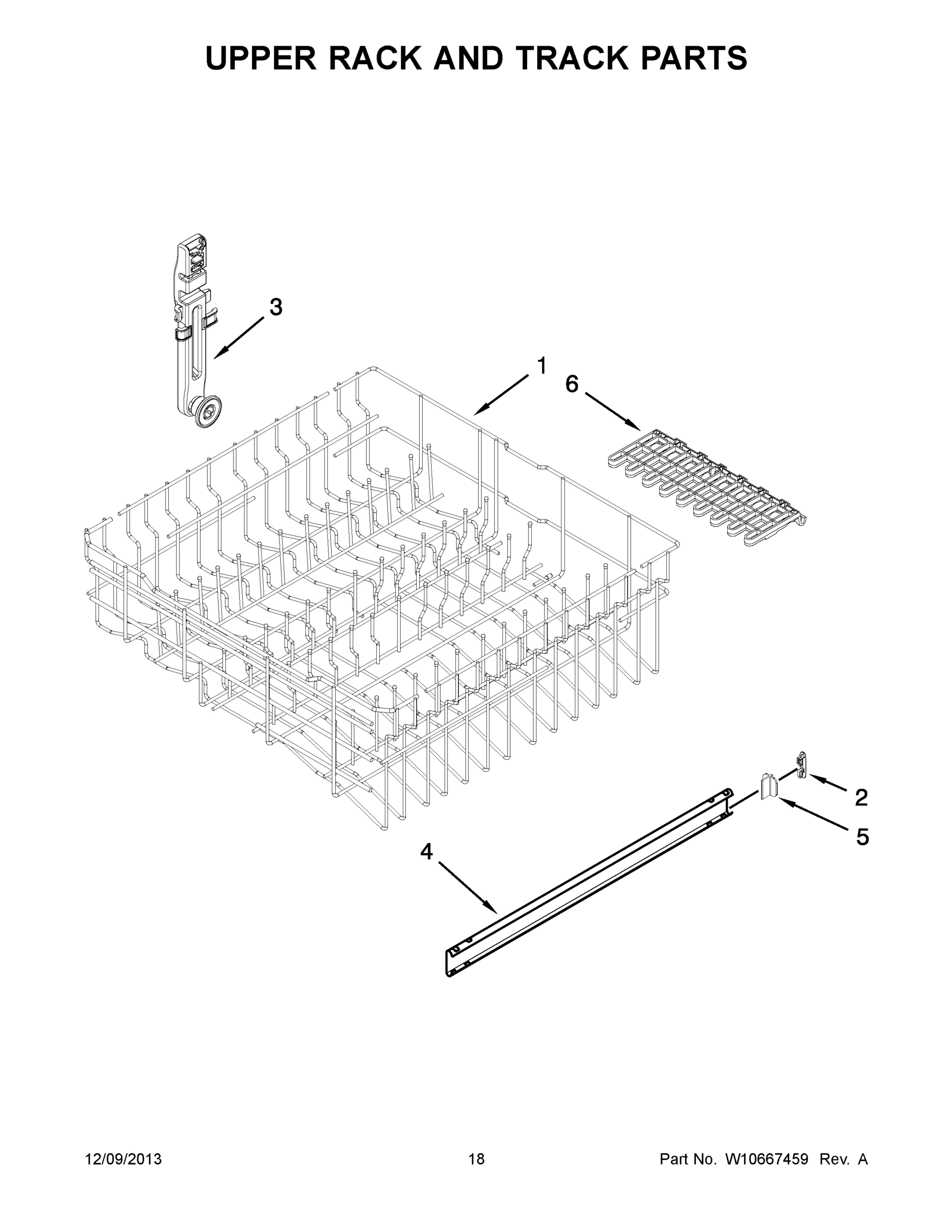

10 - UPPER RACK AND TRACK PARTS

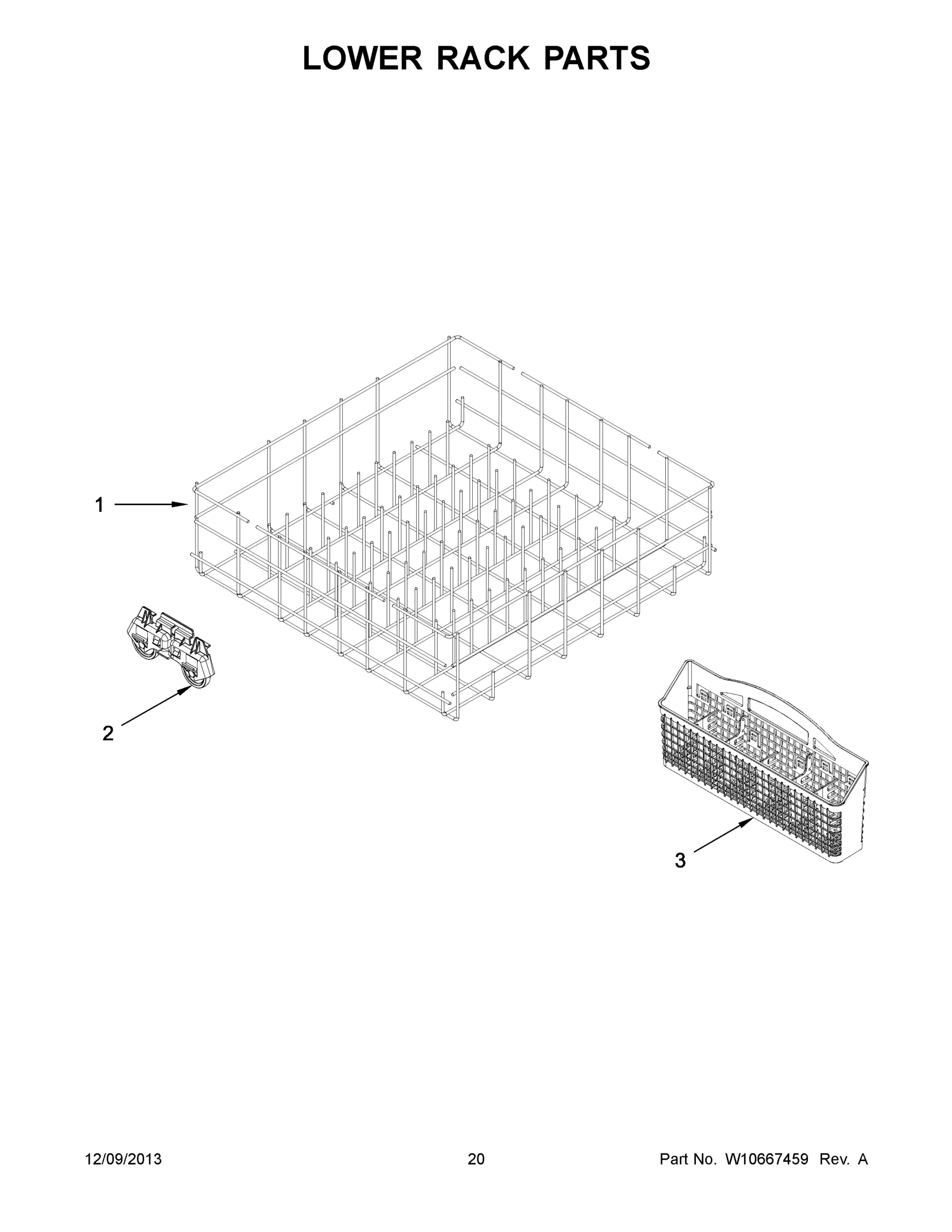

11 - LOWER RACK PARTS

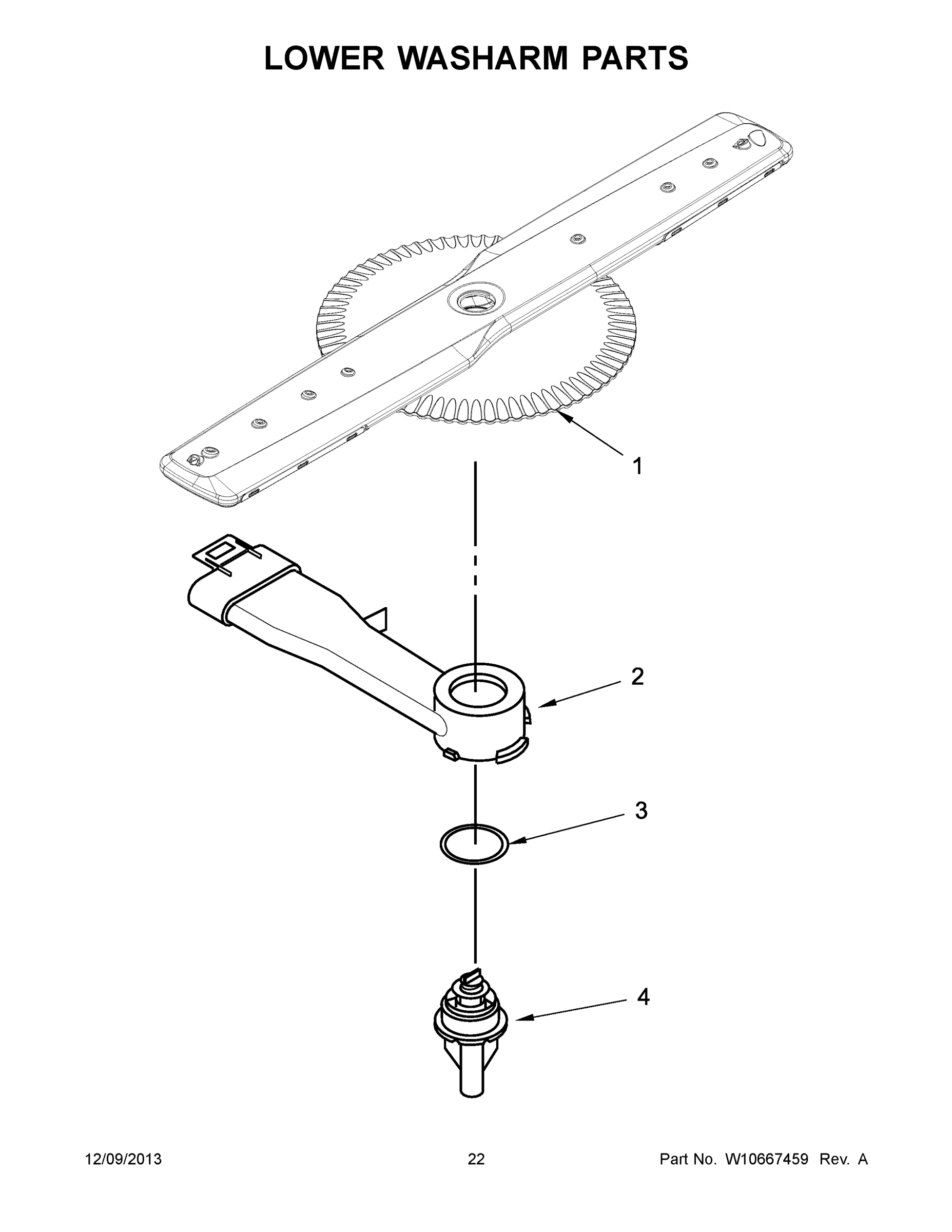

12 - LOWER WASHARM PARTS
13 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MDB4709PAW4 DISHWASHER
1
MAY W10435039 MAY W10435039 Contact Us For Availability
1
MAY W10580509 MAY W10580509 Contact Us For Availability
1
MAY W10580510 MAY W10580510 Contact Us For Availability
1
MAY W10596270 MAY W10596270 Contact Us For Availability
1
MAY W10638718 MAY W10638718 Contact Us For Availability
1
MAY W10329479 MAY W10329479 Contact Us For Availability
1
MAY W10329480 MAY W10329480 Contact Us For Availability
1
CONSOLE ASSEMBLY (INCLUDES ACTIVE OVERLAY & I MAY W10329481 Contact Us For Availability
1
MAY W10471282 MAY W10471282 Contact Us For Availability
1
MAY W10348413 MAY W10348413 Contact Us For Availability
1
LEVER, OVERFILL SWITCH MAY W10195037 Contact Us For Availability
1
MAY W10266935 MAY W10266935 Contact Us For Availability
1
ACCUMULATOR ASSEMBLY MAY 8534952 Contact Us For Availability
1
FEED TUBE ASSEMBLY (INCLUDES ITEM 10) MAY 8559848 Contact Us For Availability
1
MAY W10441445 MAY W10441445 Contact Us For Availability
1
MAY W10449113 MAY W10449113 Contact Us For Availability
1
DISHRACK, LOWER MAY W10201658 Contact Us For Availability
1
MAY W10330588 MAY W10330588 Contact Us For Availability
2
ARM, HINGE (RIGHT HAND) MAY W10274921 Contact Us For Availability
2
ARM, HINGE (LEFT HAND) MAY W10274922 Contact Us For Availability
2
MAY W10539791 MAY W10539791 Contact Us For Availability
2
MAY W10496101 MAY W10496101 Contact Us For Availability
2
HOSE MAY 8531412 Contact Us For Availability
2
SHIELD, TUB SOUND MAY 8573239 Contact Us For Availability
2
MAY 8283527 MAY 8283527 Contact Us For Availability
2
MAY W10349488 MAY W10349488 Contact Us For Availability
2
MAY W10446558 MAY W10446558 Contact Us For Availability
2
STOP, TRACK (NON-REMOVABLE) MAY 8565925 Contact Us For Availability
2
MAY W10082868 MAY W10082868 Contact Us For Availability
2
CAP, INTERNAL REAR FEED MAY 8268343 Contact Us For Availability
3
STIFFENER, DOOR MAY W10195120 Contact Us For Availability
3
MAY W10401190 MAY W10401190 Contact Us For Availability
3
INNER DOOR ASSEMBLY (ALSO ORDER ITEM 6) MAY W10274924 Contact Us For Availability
3
INLET, WATER (ALSO ORDER ITEM 4) MAY W10195536 Contact Us For Availability
3
MAY W10524469 MAY W10524469 Contact Us For Availability
3
MAY W10348405 MAY W10348405 Contact Us For Availability
3
MAY W10199809 MAY W10199809 Contact Us For Availability
3
MAY W10477552 MAY W10477552 Contact Us For Availability
3
WHEEL ASSEMBLY MAY W10254909 Contact Us For Availability
3
MAY W10438331 MAY W10438331 Contact Us For Availability
3
BEARING, LOWER SPRAYARM MAY 8268340 Contact Us For Availability
4
PANEL FRONT (ALSO INCLUDES ITEMS 11 & 12) (BL MAY W10438256 Contact Us For Availability
4
PANEL FRONT ALSO INCLUDES ITEMS 11 & 12) (WHI MAY W10438257 Contact Us For Availability
4
PANEL FRONT (ALSO INCLUDES ITEMS 11& 12) (BIS MAY W10438258 Contact Us For Availability
4
PANEL FRONT (ALSO INCLUDES ITEMS 11 & 12) (ST MAY W10438259 Contact Us For Availability
4
MAY W10574864 MAY W10574864 Contact Us For Availability
4
MAY W10482094 MAY W10482094 Contact Us For Availability
4
MAY 8531323 MAY 8531323 Contact Us For Availability
4
MAY W10341745 MAY W10341745 Contact Us For Availability
4
MAY 8572618 MAY 8572618 Contact Us For Availability
4
MAY W10199810 MAY W10199810 Contact Us For Availability
4
MAY 8269262 MAY 8269262 Contact Us For Availability
4
TRACK, DISHRACK MAY 3385089 Contact Us For Availability
4
HUB, LOWER SPRAYARM MAY W10077898 Contact Us For Availability
5
MAY W10369024 MAY W10369024 Contact Us For Availability
5
ACCESS PANEL (WHITE) MAY W10369026 Contact Us For Availability
5
ACCESS PANEL (BISCUIT/BISQUE) MAY W10369028 Contact Us For Availability
5
MAY W10401502 MAY W10401502 Contact Us For Availability
5
MAY W10274923 MAY W10274923 Contact Us For Availability
5
MAY W10508676 MAY W10508676 Contact Us For Availability
5
MAY 3367670 MAY 3367670 Contact Us For Availability
5
CHECK VALVE, SUMP ASSEMBLY MAY 8268375 Contact Us For Availability
5
MAY W10199808 MAY W10199808 Contact Us For Availability
5
TRACK, SPACER MAY W10306231 Contact Us For Availability
6
MAY 8269259 MAY 8269259 Contact Us For Availability
6
MAY 371505 MAY 371505 Contact Us For Availability
6
MAY 8269145 MAY 8269145 Contact Us For Availability
6
MAY W10083957 MAY W10083957 Contact Us For Availability
6
MAY 8268433 MAY 8268433 Contact Us For Availability
6
CUP SHELF MAY W10289765 Contact Us For Availability
7
MAY 489470 MAY 489470 Contact Us For Availability
7
MAY W10329510 MAY W10329510 Contact Us For Availability
7
BEZEL, VENT (ALSO ORDER ITEM 6) MAY W10334900 Contact Us For Availability
7
MAY W10327250 MAY W10327250 Contact Us For Availability
7
MAY W10271695 MAY W10271695 Contact Us For Availability
7
MAY 9741232 MAY 9741232 Contact Us For Availability
7
PROBE, MANIFOLD MAY 8269295 Contact Us For Availability
8
Screw MAY 304392 Contact Us For Availability
8
MAY W10503548 MAY W10503548 Contact Us For Availability
8
MAY W10503549 MAY W10503549 Contact Us For Availability
8
MAY W10503550 MAY W10503550 Contact Us For Availability
8
DISPENSER ASSEMBLY MAY W10428217 Contact Us For Availability
8
MAY W10304228 MAY W10304228 Contact Us For Availability
8
MAY 8531857 MAY 8531857 Contact Us For Availability
8
SPRAY ARM, UPPER MAY W10082841 Contact Us For Availability
9
BISCUIT/BISQUE MAY 8268961 Contact Us For Availability
9
MAY W10177098 MAY W10177098 Contact Us For Availability
9
MAY W10194937 MAY W10194937 Contact Us For Availability
9
MAY 370445 MAY 370445 Contact Us For Availability
9
MAY W10337934 MAY W10337934 Contact Us For Availability
9
MAY W10239404 MAY W10239404 Contact Us For Availability
9
FASTENER, PUSH-IN MAY W10118464 Contact Us For Availability
10
MAY W10073520 MAY W10073520 Contact Us For Availability
10
SCREW MAY 304231 Contact Us For Availability
10
MAY W10462232 MAY W10462232 Contact Us For Availability
10
MAY W10481093 MAY W10481093 Contact Us For Availability
10
MAY 3400217 MAY 3400217 Contact Us For Availability
10
SPRAYARM, THIRD LEVEL MAY 8557720 Contact Us For Availability
11
MAY W10343320 MAY W10343320 Contact Us For Availability
11
MAY W10343322 MAY W10343322 Contact Us For Availability
11
POCKET, PANEL (BISCUIT/BISQUE) MAY W10343323 Contact Us For Availability
11
MAY W10571386 MAY W10571386 Contact Us For Availability
11
MAY W10329609 MAY W10329609 Contact Us For Availability
11
MAY W10195039 MAY W10195039 Contact Us For Availability
11
MAY W10165274 MAY W10165274 Contact Us For Availability
11
MAY W10084567 MAY W10084567 Contact Us For Availability
12
MAY W10288004 MAY W10288004 Contact Us For Availability
12
MAY W10524922 MAY W10524922 Contact Us For Availability
12
MAY W10316267 MAY W10316267 Contact Us For Availability
12
SHIELD, THERMOSTAT MAY W10339699 Contact Us For Availability
12
MAY W10237169 MAY W10237169 Contact Us For Availability
13
INSULATION TOE PANEL MAY W10073540 Contact Us For Availability
13
MAY W10346525 MAY W10346525 Contact Us For Availability
13
WHEEL ASSEMBLY MAY 8575897 Contact Us For Availability
13
MAY W10300599 MAY W10300599 Contact Us For Availability
14
MISCELLANEOUS PARTS BAG (CONTAINS 2 SCREWS, 2 MAY W10292152 Contact Us For Availability
14
MAY W10277003 MAY W10277003 Contact Us For Availability
14
MAY 8533949 MAY 8533949 Contact Us For Availability
15
MAY 8268991 MAY 8268991 Contact Us For Availability
15
MAY W10348269 MAY W10348269 Contact Us For Availability
16
MAY 8268990 MAY 8268990 Contact Us For Availability
16
VOLUTE, BACK (ALSO ORDER ITEM 20) MAY W10142656 Contact Us For Availability
17
MAY W10539489 MAY W10539489 Contact Us For Availability
17
MAY 8269144 MAY 8269144 Contact Us For Availability
18
MAY 3371618 MAY 3371618 Contact Us For Availability
18
MAY W10239401 MAY W10239401 Contact Us For Availability
19
MAY W10570656 MAY W10570656 Contact Us For Availability
19
INDICATOR, OPTICAL WASH MAY W10134017 Contact Us For Availability
20
WASHER, PRONGED CUP MAY 3378128 Contact Us For Availability
20
IMPELLER KIT MAY 8531017 Contact Us For Availability
21
SCREW, GROUNDING MAY 3400014 Contact Us For Availability
21
MAY W10334457 MAY W10334457 Contact Us For Availability
22
SOUND INSULATION, BOTTOM MAY W10195368 Contact Us For Availability
22
MAY 8269146 MAY 8269146 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BLACK) MAY 285006 Contact Us For Availability
NI
ACCESSORIES, DRAIN HOSE 12 FT. MAY 3385556 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
POWER CORD KIT (INCLUDED CORD & MISC. HARDWAR MAY 4317824 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, BULK (1 QT. BISCUIT/BISQUE) MAY 4392900 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BISCUIT/BISQU MAY 4392901 Contact Us For Availability
NI
ACCESSORIES, MOISTURE BARRIER KIT MAY 4396277 Contact Us For Availability
NI
DISHRACK REPAIR, TINE TIP REPAIR KIT (ENOUGH MAY 4396838 Contact Us For Availability
NI
DISHRACK REPAIR, TINE TIP REPAIR KIT (ENOUGH MAY 4396840 Contact Us For Availability
NI
DISHRACK REPAIR, VINYL TOUCH-UP (4OZ SILVER A MAY 4396853 Contact Us For Availability
NI
DISHRACK REPAIR, TINE TIP REPAIR KIT (ENOUGH MAY 4396854 Contact Us For Availability
NI
DISHRACK REPAIR, VINYL TOUCH-UP (4OZ WHITE) MAY 676453 Contact Us For Availability
NI
DISHRACK REPAIR, VINYL TOUCH-UP (4OZ GREY) MAY 676455 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (White) MAY 799344 Contact Us For Availability
NI
ANTI-TIP KIT, FLOOR MOUNT KIT MAY 8171477 Contact Us For Availability
NI
ACCESSORIES, SIDE PANEL KITS (WHITE) MAY 8171656 Contact Us For Availability
NI
ACCESSORIES, SIDE PANEL KITS (BLACK) MAY 8171657 Contact Us For Availability
NI
ACCESSORIES, SIDE PANEL KITS (BISCUIT/BISQUE) MAY 8171658 Contact Us For Availability
NI
ACCESSORIES, SIDE PANEL KITS (STAINLESS STEEL MAY 8171659 Contact Us For Availability
NI
ANTI-TIP KIT, SIDE MOUNT KIT MAY 8212560 Contact Us For Availability
× ![]()
