Model Whirlpool MD258 DISHWASHER – Common Parts & Diagrams
02 - DETERGENT CUP

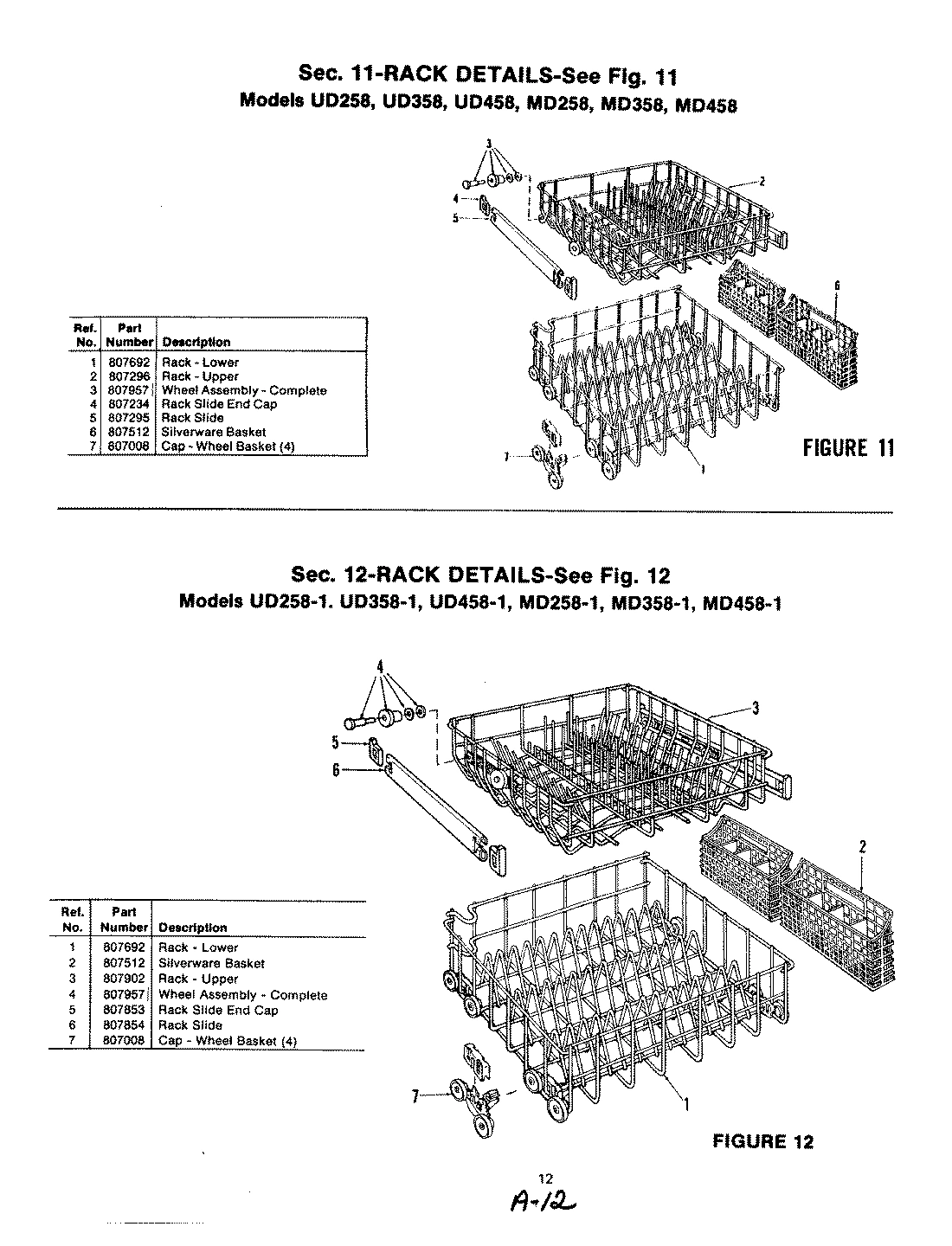

06 - RACK (UD258, MD258)

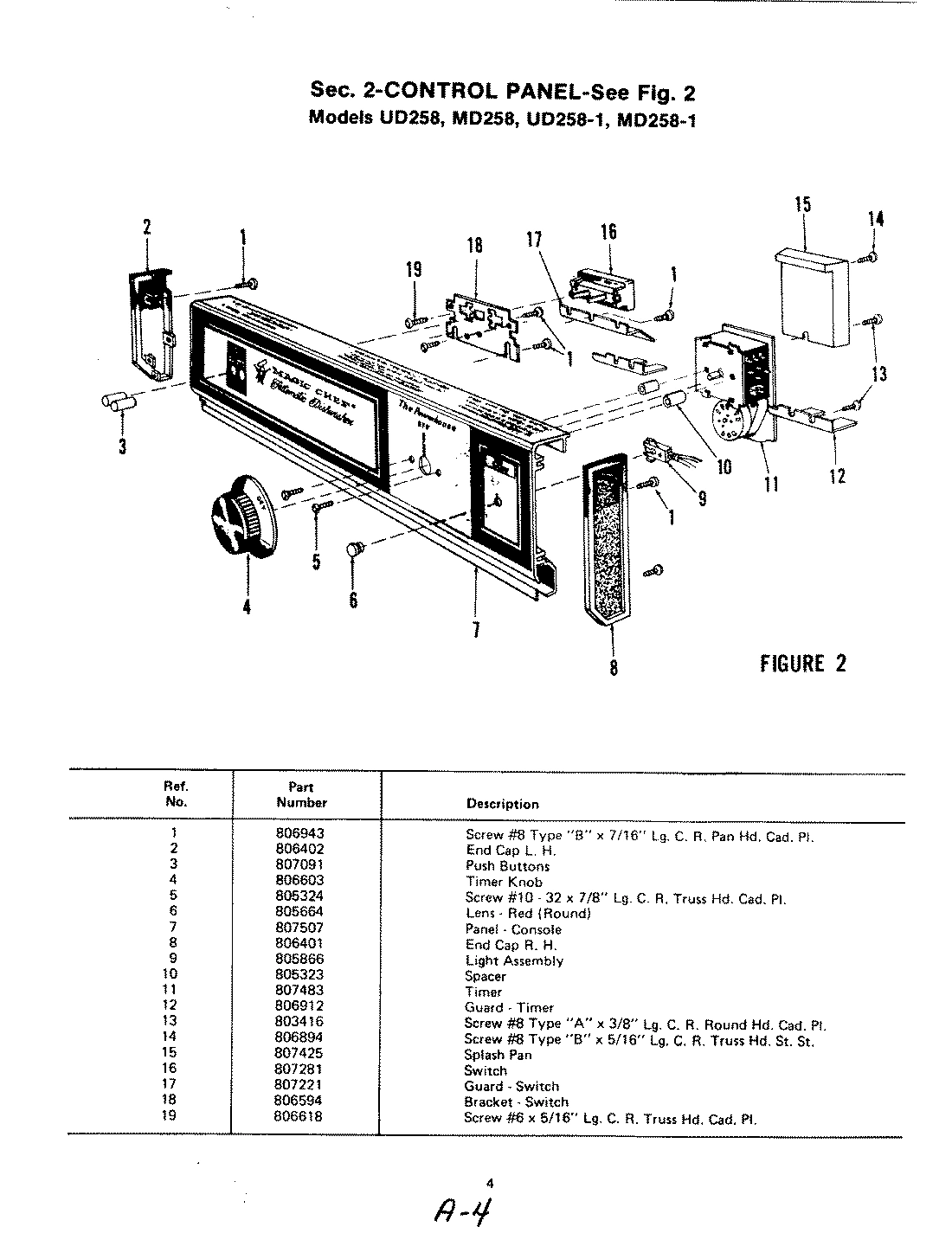

01 - CONTROL PANEL

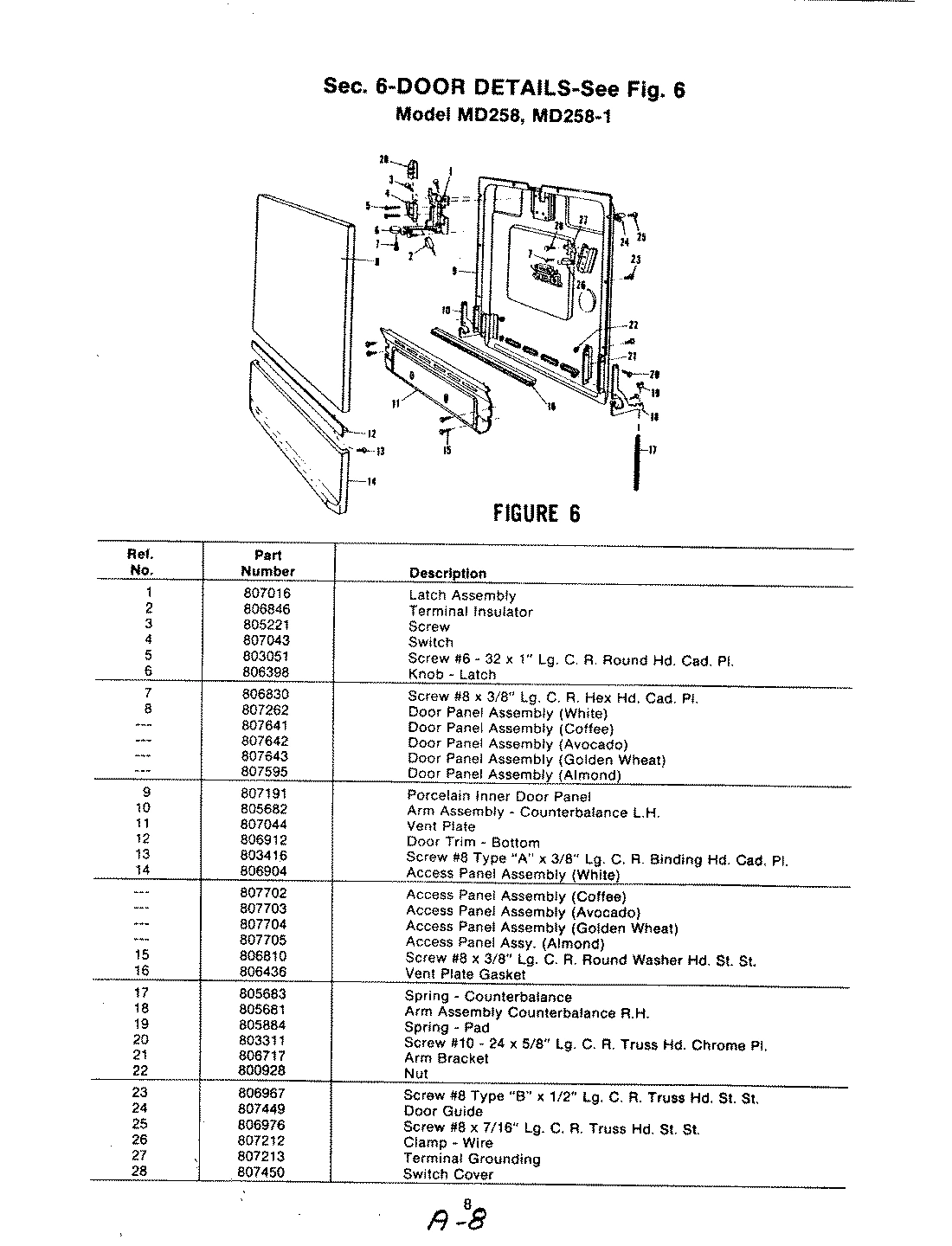

03 - DOOR DETAILS (MD258, MD258-1)

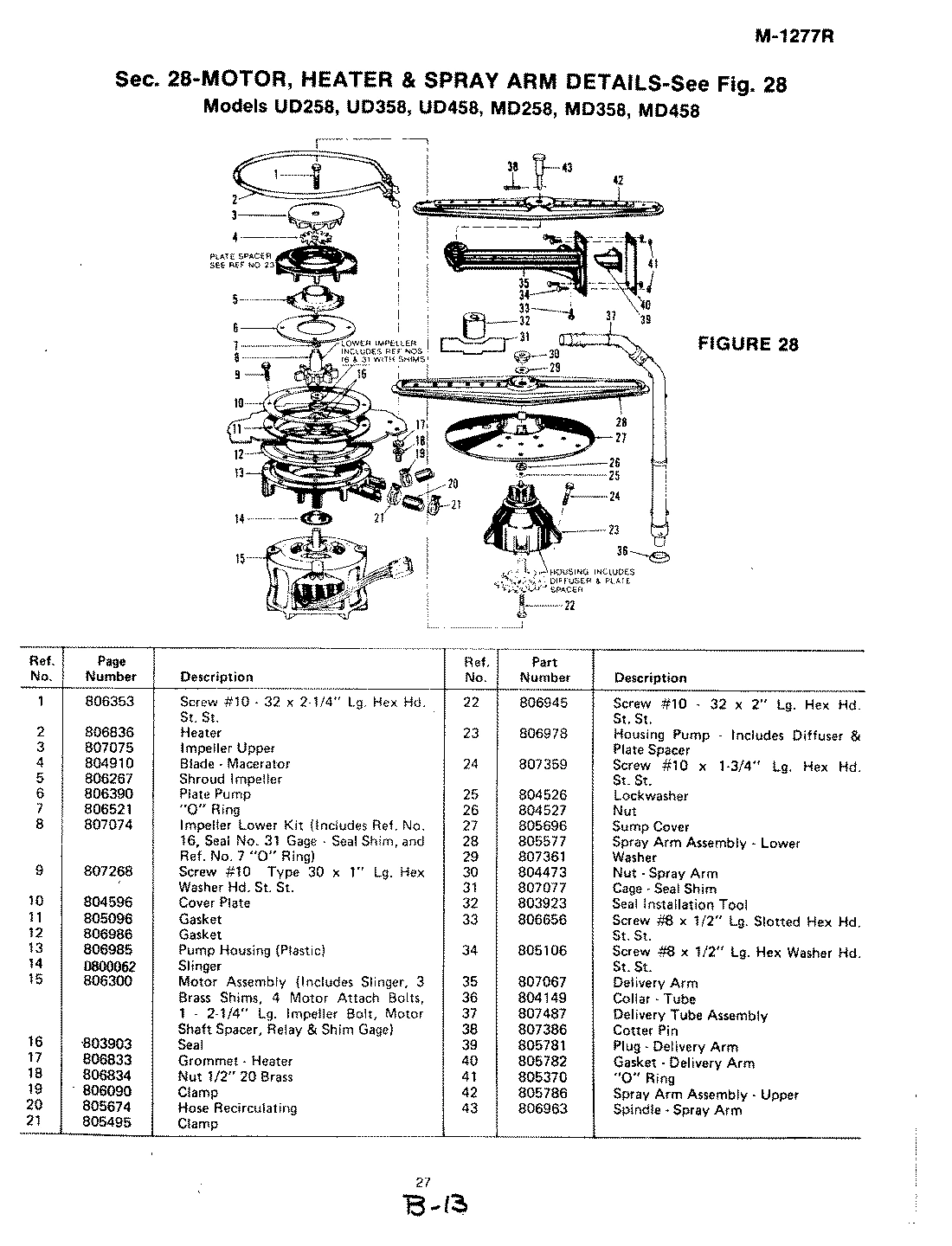

05 - MOTOR, HEATER & SPRAY ARM

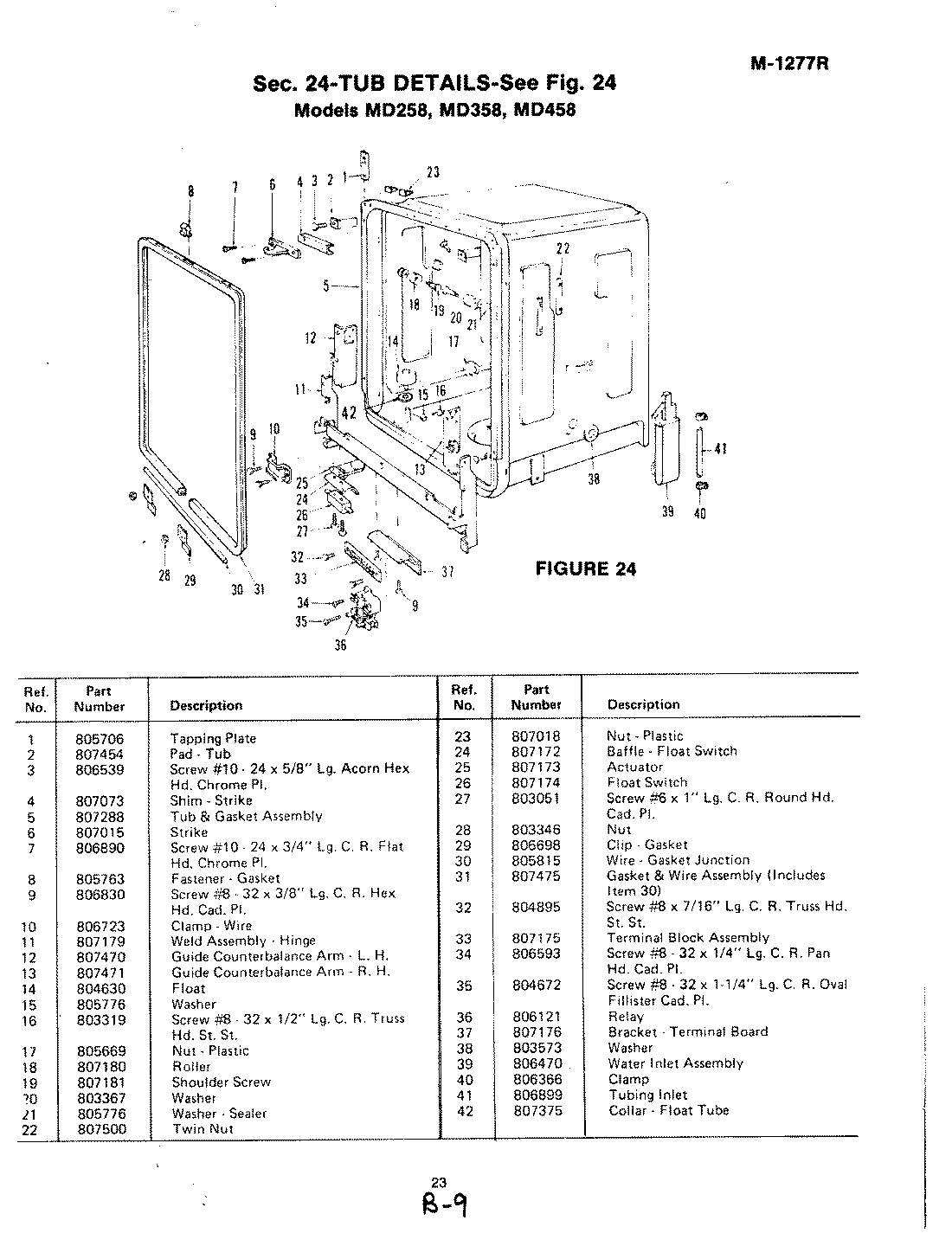

07 - TUB (MD258)

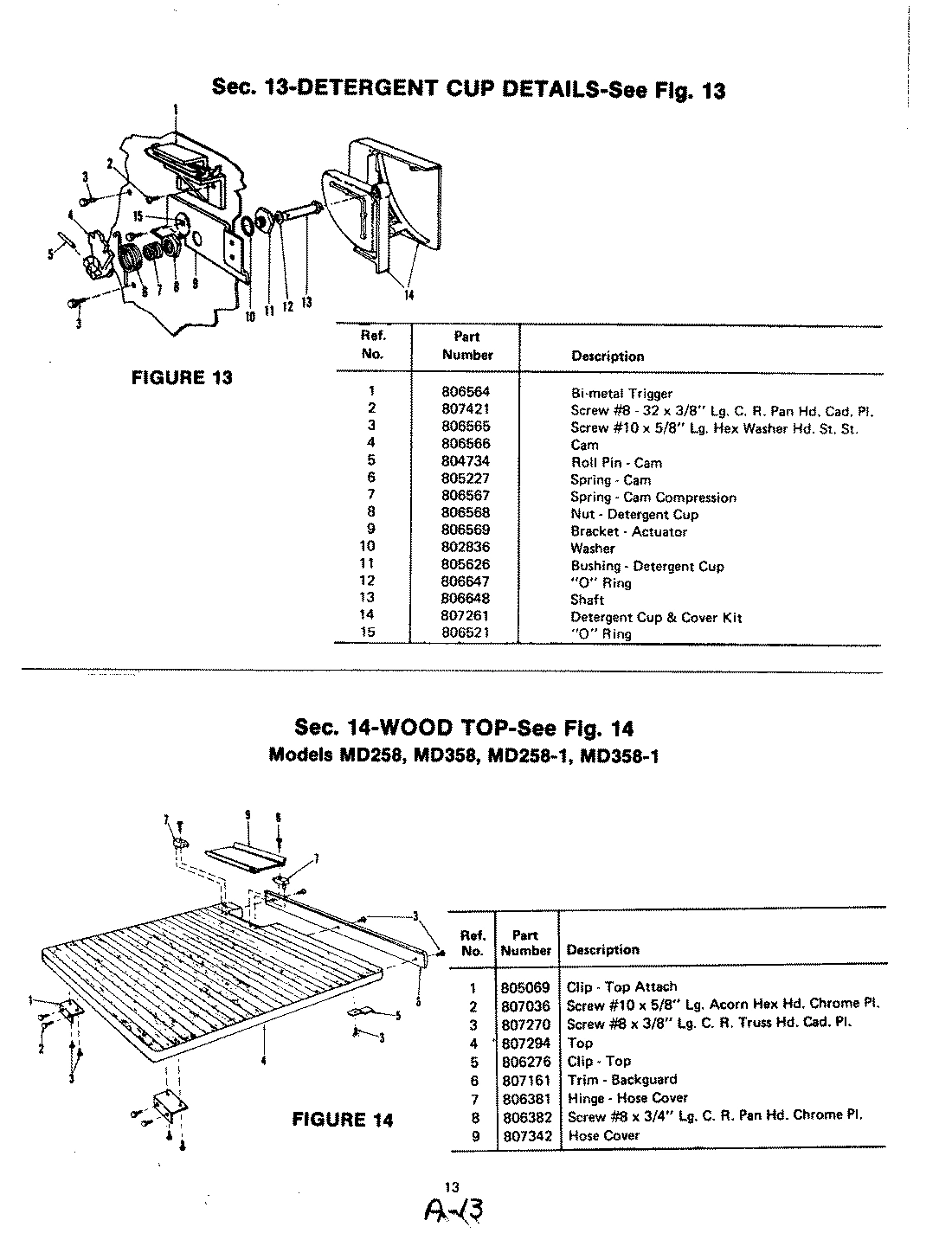

08 - WOOD TOP

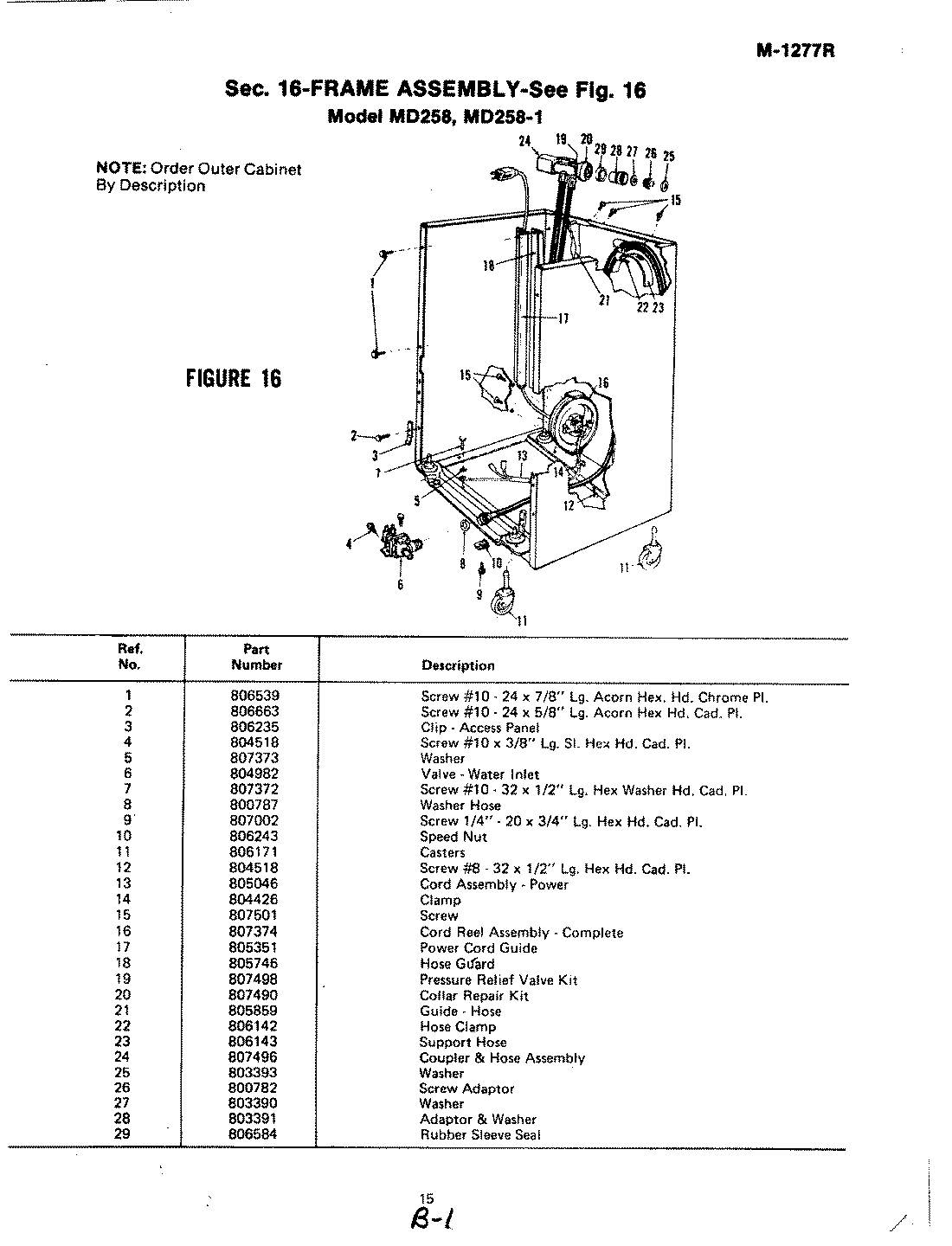

04 - FRAME ASSEMBLY (MD258, MD258-1)
Common parts from model Whirlpool MD258 DISHWASHER
1
TRIGGER WPL 806564 Contact Us For Availability
1
LOWER RACK WPL 807692 Contact Us For Availability
1
SCREW WPL 806943 Contact Us For Availability
1
LATCH ASM WPL 807016 Contact Us For Availability
1
HOUSING WPL 806653 Contact Us For Availability
1
TAPPING PLATE WPL 805706 Contact Us For Availability
1
SCREW WPL 806539 Contact Us For Availability
1
CLIP WPL 805069 Contact Us For Availability
2
LH END CAP WPL 806402 Contact Us For Availability
2
INSULATOR WPL 806846 Contact Us For Availability
2
HEATER KIT WPL 806836 Contact Us For Availability
2
TUB PAD WPL 807454 Contact Us For Availability
2
SCREW WPL 807036 Contact Us For Availability
2
SCREW WPL 806663 Contact Us For Availability
2
HINGE WPL 807171 Contact Us For Availability
3
SCREW WPL 806565 Contact Us For Availability
3
PUSH BUTTON WPL 807091 Contact Us For Availability
3
IMPELLER WPL 807075 Contact Us For Availability
3
CLAMP WPL 806723 Contact Us For Availability
3
SCREW WPL 807270 Contact Us For Availability
3
CLIP WPL 806235 Contact Us For Availability
4
CAM WPL 806566 Contact Us For Availability
4
WHEEL ASM WPL 807957 Contact Us For Availability
4
TIMER KNOB WPL 806603 Contact Us For Availability
4
SWITCH WPL 807043 Contact Us For Availability
4
SCREW WPL 806830 Contact Us For Availability
4
MACERATOR BLADE WPL 804910 Contact Us For Availability
4
STRIKE SHIM WPL 807073 Contact Us For Availability
4
TOP WPL 807294 Contact Us For Availability
5
ROLLPIN WPL 804734 Contact Us For Availability
5
RACK SLIDE WPL 807295 Contact Us For Availability
5
SCREW WPL 805324 Contact Us For Availability
5
SHROUD WPL 806267 Contact Us For Availability
5
TUB & GASKET WPL 807288 Contact Us For Availability
5
BRACKET WPL 807172 Contact Us For Availability
5
CLIP WPL 806276 Contact Us For Availability
5
WASHER WPL 807373 Contact Us For Availability
6
SPRING WPL 805227 Contact Us For Availability
6
SILVRWR BASKET WPL 807512 Contact Us For Availability
6
RED LENS WPL 805664 Contact Us For Availability
6
LATCH KNOB WPL 806398 Contact Us For Availability
6
PUMP PLATE WPL 806390 Contact Us For Availability
6
STRIKE WPL 807015 Contact Us For Availability
6
ACTUATOR WPL 807173 Contact Us For Availability
6
ESCUTCHEON WPL 807161 Contact Us For Availability
6
INLET VALVE WPL 804982 Contact Us For Availability
7
SPRING WPL 806567 Contact Us For Availability
7
O RING WPL 806521 Contact Us For Availability
7
WHEEL ASM WPL 807008 Contact Us For Availability
7
CONTROL PANEL WPL 807507 Contact Us For Availability
7
FLOAT SWITCH WPL 807174 Contact Us For Availability
7
HOSE COVR HINGE WPL 806381 Contact Us For Availability
7
SCREW WPL 807372 Contact Us For Availability
8
NUT WPL 806568 Contact Us For Availability
8
RH END CAP WPL 806401 Contact Us For Availability
8
SCREW WPL 803051 Contact Us For Availability
8
OUTER PANEL WPL 807262 Contact Us For Availability
8
DOOR PANEL WPL 807595 Contact Us For Availability
8
DOOR PANEL WPL 807641 Contact Us For Availability
8
DOOR PANEL WPL 807642 Contact Us For Availability
8
DOOR PANEL WPL 807643 Contact Us For Availability
8
SUB 808042 WPL 807074 Contact Us For Availability
8
CLIP KIT (TUB GASKET) WPL 805763 Contact Us For Availability
8
SCREW WPL 806382 Contact Us For Availability
8
HOSE WASHER WPL 800787 Contact Us For Availability
9
BRACKET WPL 806569 Contact Us For Availability
9
LIGHT ASM WPL 805866 Contact Us For Availability
9
INNER PANEL WPL 807191 Contact Us For Availability
9
CLAMP WPL 807212 Contact Us For Availability
9
SCREW WPL 807268 Contact Us For Availability
9
HOSE COVER WPL 807342 Contact Us For Availability
9
SCREW WPL 807002 Contact Us For Availability
10
GASKET WPL 802836 Contact Us For Availability
10
SPACER WPL 805323 Contact Us For Availability
10
LH ARM WPL 805682 Contact Us For Availability
10
COVER PLATE WPL 804596 Contact Us For Availability
10
SPEEDNUT WPL 806243 Contact Us For Availability
10
TERMINAL BLOCK WPL 807486 Contact Us For Availability
11
BUSHING WPL 805626 Contact Us For Availability
11
TIMER WPL 807483 Contact Us For Availability
11
VENT PLATE WPL 807044 Contact Us For Availability
11
PUMP GASKET WPL 805096 Contact Us For Availability
11
HINGE WPL 807179 Contact Us For Availability
11
CASTER WPL 806171 Contact Us For Availability
12
O-RING WPL 806647 Contact Us For Availability
12
BTM DOOR TRIM WPL 806912 Contact Us For Availability
12
PUMP GASKET WPL 806986 Contact Us For Availability
12
LH GUIDE WPL 807470 Contact Us For Availability
12
SCREW WPL 804672 Contact Us For Availability
13
SHAFT WPL 806648 Contact Us For Availability
13
PUMP HOUSING WPL 806985 Contact Us For Availability
13
RH GUIDE WPL 807471 Contact Us For Availability
13
SUB 805255 WPL 806121 Contact Us For Availability
13
POWER CORD WPL 805046 Contact Us For Availability
14
DETRG CUP KIT WPL 807261 Contact Us For Availability
14
SCREW WPL 806894 Contact Us For Availability
14
ACCESS PANEL WPL 806904 Contact Us For Availability
14
ACCESS PANEL WPL 807702 Contact Us For Availability
14
ACCESS PANEL WPL 807703 Contact Us For Availability
14
ACCESS PANEL WPL 807704 Contact Us For Availability
14
ACCESS PANEL WPL 807705 Contact Us For Availability
14
SLINGER WPL D800062 Contact Us For Availability
14
FLOAT WPL 804630 Contact Us For Availability
14
CLAMP WPL 804426 Contact Us For Availability
14
CHANNEL WPL 806290 Contact Us For Availability
15
SPLASH PAN WPL 807425 Contact Us For Availability
15
SCREW WPL 806810 Contact Us For Availability
15
MOTOR WPL 806300 Contact Us For Availability
15
BRACKET WPL 807176 Contact Us For Availability
15
SCREW WPL 807501 Contact Us For Availability
16
SWITCH WPL 807281 Contact Us For Availability
16
VENT GASKET WPL 806436 Contact Us For Availability
16
GASKET WPL 803903 Contact Us For Availability
16
SCREW WPL 804518 Contact Us For Availability
16
HOSE ASM WPL 807374 Contact Us For Availability
17
SWITCH GUARD WPL 807221 Contact Us For Availability
17
DOOR SPRING WPL 805683 Contact Us For Availability
17
GROMMET WPL 806833 Contact Us For Availability
17
NUT WPL 805669 Contact Us For Availability
17
SCREW WPL 804895 Contact Us For Availability
17
CORD GUIDE WPL 805351 Contact Us For Availability
18
SWITCH BRACKET WPL 806594 Contact Us For Availability
18
RH ARM WPL 805681 Contact Us For Availability
18
NUT WPL 806834 Contact Us For Availability
18
ROLLER WPL 807180 Contact Us For Availability
18
HOSE GUARD WPL 805746 Contact Us For Availability
18
VLV FITTING WPL 806966 Contact Us For Availability
19
SCREW WPL 806618 Contact Us For Availability
19
SPRING PAD WPL 805884 Contact Us For Availability
19
CLAMP WPL 806090 Contact Us For Availability
19
SCREW WPL 807181 Contact Us For Availability
19
RELIEF KIT WPL 807498 Contact Us For Availability
20
SCREW WPL 803311 Contact Us For Availability
20
HOSE WPL 805674 Contact Us For Availability
20
WASHER WPL 803367 Contact Us For Availability
20
SCREW WPL 807001 Contact Us For Availability
20
COLLAR REPAIR WPL 807490 Contact Us For Availability
21
ARM BRACKET WPL 806717 Contact Us For Availability
21
CLAMP WPL 805495 Contact Us For Availability
21
SEALER WPL 805776 Contact Us For Availability
21
HOSE GUIDE WPL 805859 Contact Us For Availability
21
TOE PLATE WPL 806977 Contact Us For Availability
22
NUT WPL 800928 Contact Us For Availability
22
SCREW WPL 806945 Contact Us For Availability
22
TWIN NUT WPL 807500 Contact Us For Availability
22
HOSE CLAMP WPL 806142 Contact Us For Availability
22
TOE PLATE WPL 806295 Contact Us For Availability
23
SCREW WPL 806967 Contact Us For Availability
23
PUMPHOUSING KIT WPL 806978 Contact Us For Availability
23
PLASTIC NUT WPL 807018 Contact Us For Availability
23
HOSE SUPPORT WPL 806143 Contact Us For Availability
23
INLET VALVE WPL 806900 Contact Us For Availability
24
DOOR GUIDE WPL 807449 Contact Us For Availability
24
SCREW WPL 807359 Contact Us For Availability
24
BAFFLE WPL 807177 Contact Us For Availability
24
HOSE ASM WPL 807496 Contact Us For Availability
25
SCREW WPL 803416 Contact Us For Availability
25
SCREW WPL 806976 Contact Us For Availability
25
LOCKWASHER WPL 804526 Contact Us For Availability
25
WASHER WPL 803393 Contact Us For Availability
26
NUT WPL 804527 Contact Us For Availability
26
ADAPTOR WPL 800782 Contact Us For Availability
26
BRACKET WPL 806962 Contact Us For Availability
27
GROUND TERMINAL WPL 807213 Contact Us For Availability
27
SUMP COVER WPL 805696 Contact Us For Availability
27
WASHER WPL 803390 Contact Us For Availability
27
LEVELER WPL 803702 Contact Us For Availability
28
SWITCH COVER WPL 807450 Contact Us For Availability
28
LWR SPRAY ARM WPL 805577 Contact Us For Availability
28
NUT WPL 803346 Contact Us For Availability
28
SCREW WPL 806889 Contact Us For Availability
29
WASHER WPL 807361 Contact Us For Availability
29
CLIP WPL 806698 Contact Us For Availability
29
TERMINAL COVER WPL 800222 Contact Us For Availability
30
NUT WPL 804473 Contact Us For Availability
30
GASKET WIRE WPL 805815 Contact Us For Availability
30
BRACKET WPL 807019 Contact Us For Availability
31
SHIM GAUGE WPL 807077 Contact Us For Availability
31
SUB 808071 WPL 807475 Contact Us For Availability
31
U FRAME WPL 807037 Contact Us For Availability
32
SEAL TOOL WPL 803923 Contact Us For Availability
32
GASKET WPL 806100 Contact Us For Availability
32
SHIELD WPL 807267 Contact Us For Availability
33
TERMINAL BLOCK WPL 807175 Contact Us For Availability
35
DELIVERY ARM WPL 807067 Contact Us For Availability
36
COLLAR WPL 804149 Contact Us For Availability
37
SUPPLY TUBE WPL 807487 Contact Us For Availability
38
COTTER PIN WPL 807386 Contact Us For Availability
38
WASHER WPL 803573 Contact Us For Availability
39
PLUG WPL 805781 Contact Us For Availability
39
WATER INLET WPL 806470 Contact Us For Availability
40
GASKET WPL 805782 Contact Us For Availability
40
CODE J WPL 806366 Contact Us For Availability
41
O RING WPL 805370 Contact Us For Availability
41
SUB 807891 WPL 806899 Contact Us For Availability
42
UPR SPRAY ARM WPL 805786 Contact Us For Availability
42
COLLAR WPL 807375 Contact Us For Availability
43
SPINDLE KIT WPL 806963 Contact Us For Availability
× ![]()
