Model LG MD10SS – Common Parts & Diagrams
Diagram 0
Diagram 1
Diagram 2
Diagram 3
Diagram 4
Diagram 5
Diagram 6
Common parts from model LG MD10SS
*01
LGE 3828W5A1184 LGE 3828W5A1184 Contact Us For Availability
24781M
LGE 4781W1M146X LGE 4781W1M146X Contact Us For Availability
26638A

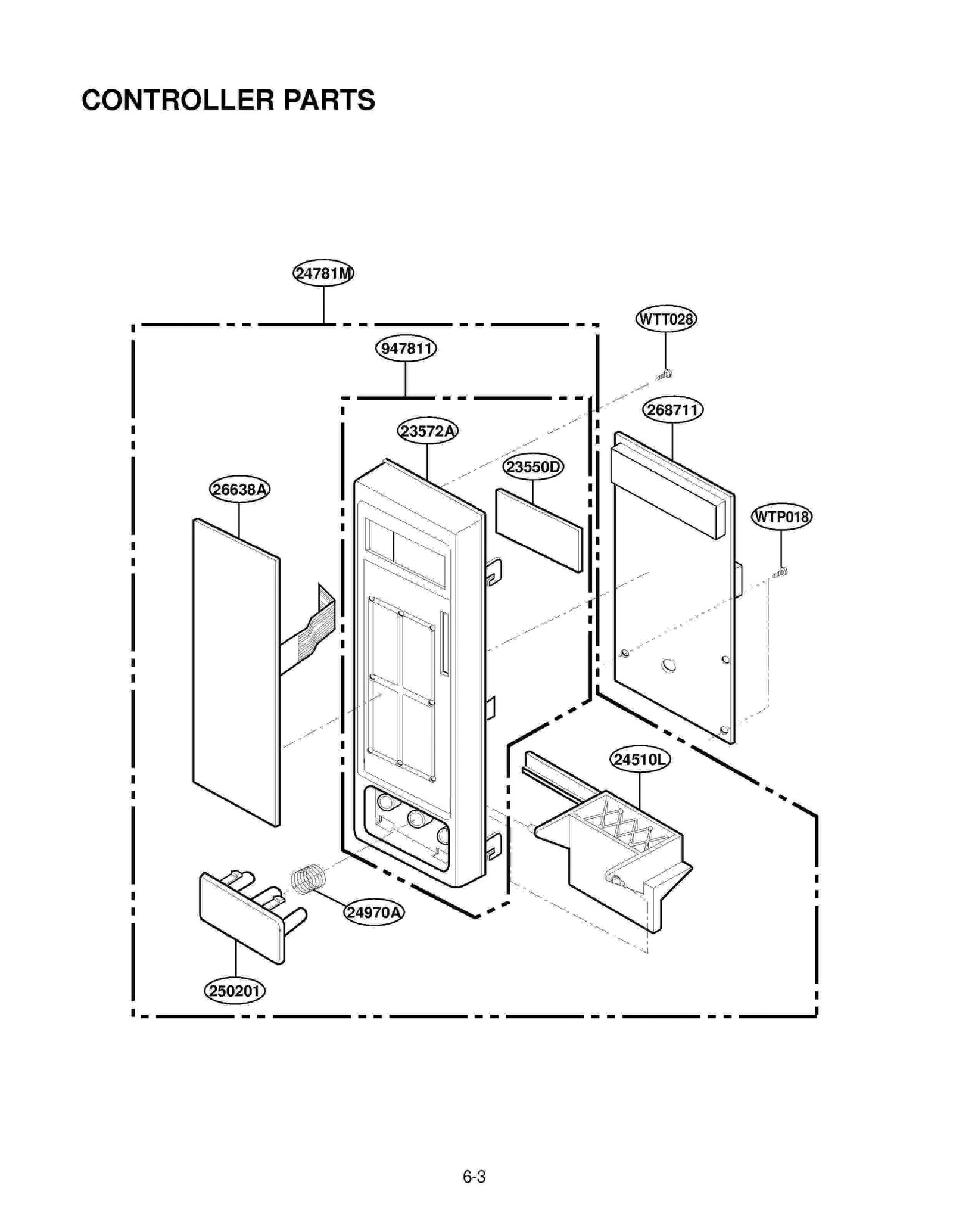

KEY MEMBRANE LGE 6638W2A242A Contact Us For Availability
33052M

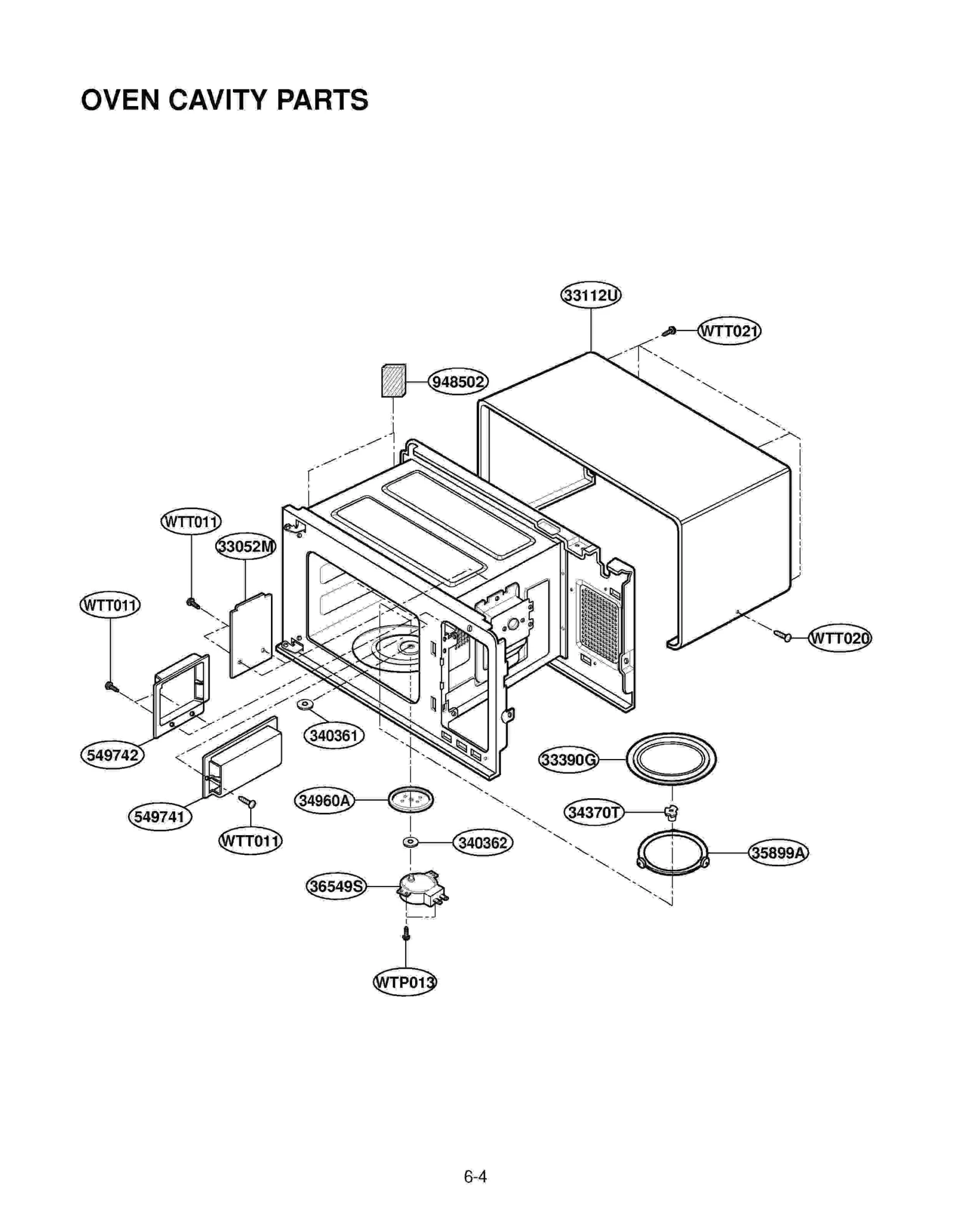

CANOPY,[MICA] LGE 3052W4M001A Contact Us For Availability
33112U
OUT CASE,[U-BENDING] LGE 3112W1U018Q Contact Us For Availability
34370T
T/T SHAFT LGE 3B72373C Contact Us For Availability
36549S
MOTOR(CIRC),SYNCHRONOUS LGE 6549W1S002E Contact Us For Availability
43500A

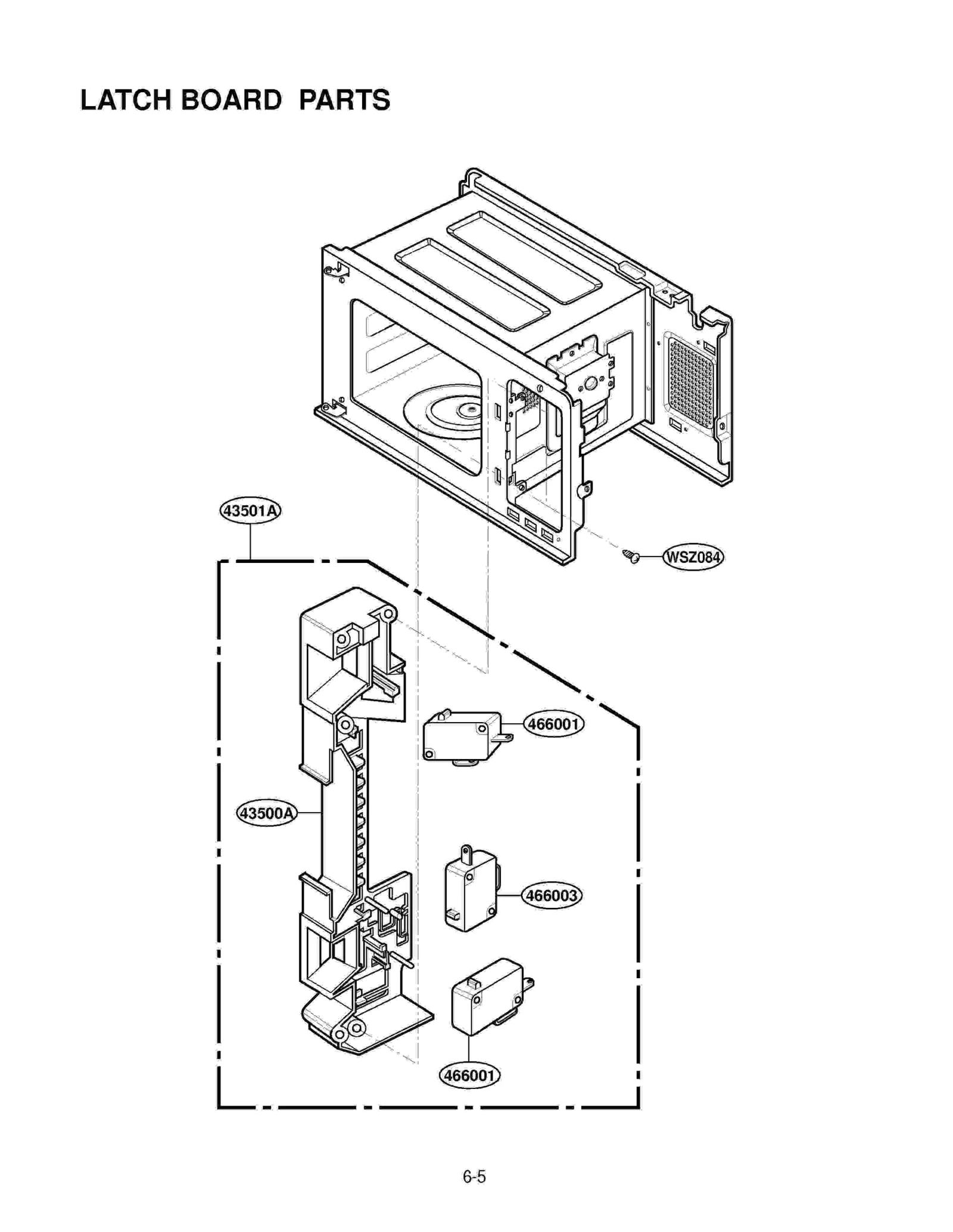

BOARD,LATCH LGE 3500W1A008A Contact Us For Availability
43501A
BOARD ASSY,LATCH LGE 3501W1A003T Contact Us For Availability
54810C
BRACKET HVC MA-690M,1190M,685M LGE 4810W4C003A Contact Us For Availability

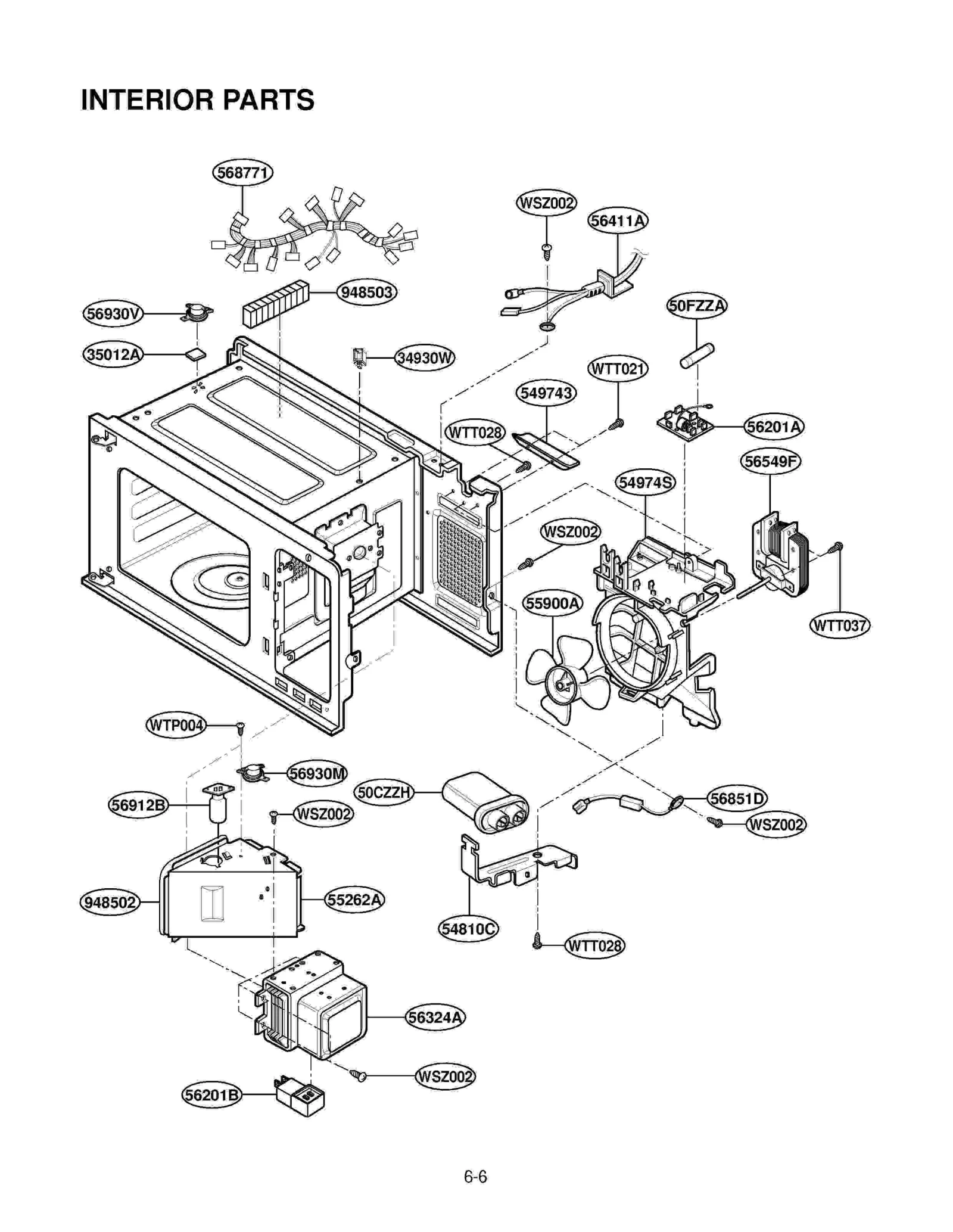

54974S
GUIDE SUCTION LGE 4974W1S010A Contact Us For Availability
55900A
PROPELLER LGE 2B72125A Contact Us For Availability
56170D
TRANSFORMER,HIGH VOL LGE 6170W1D012C Contact Us For Availability
56201A
NOISE FILTER ASSY 100V 50/60HZ LGE 2B72130F Contact Us For Availability
56201B
CHOKE FILTER ASSY MS-100/120/1 LGE 6201W2A019A Contact Us For Availability
56411A
POWER CORD ASSY LGE 6411W2A002S Contact Us For Availability
56549F
MOTOR FAN 120V/60HZ LGE 2B73670B Contact Us For Availability
56930V
THERMOSTAT,BIMETAL LGE 6930W1A001G Contact Us For Availability
63302L

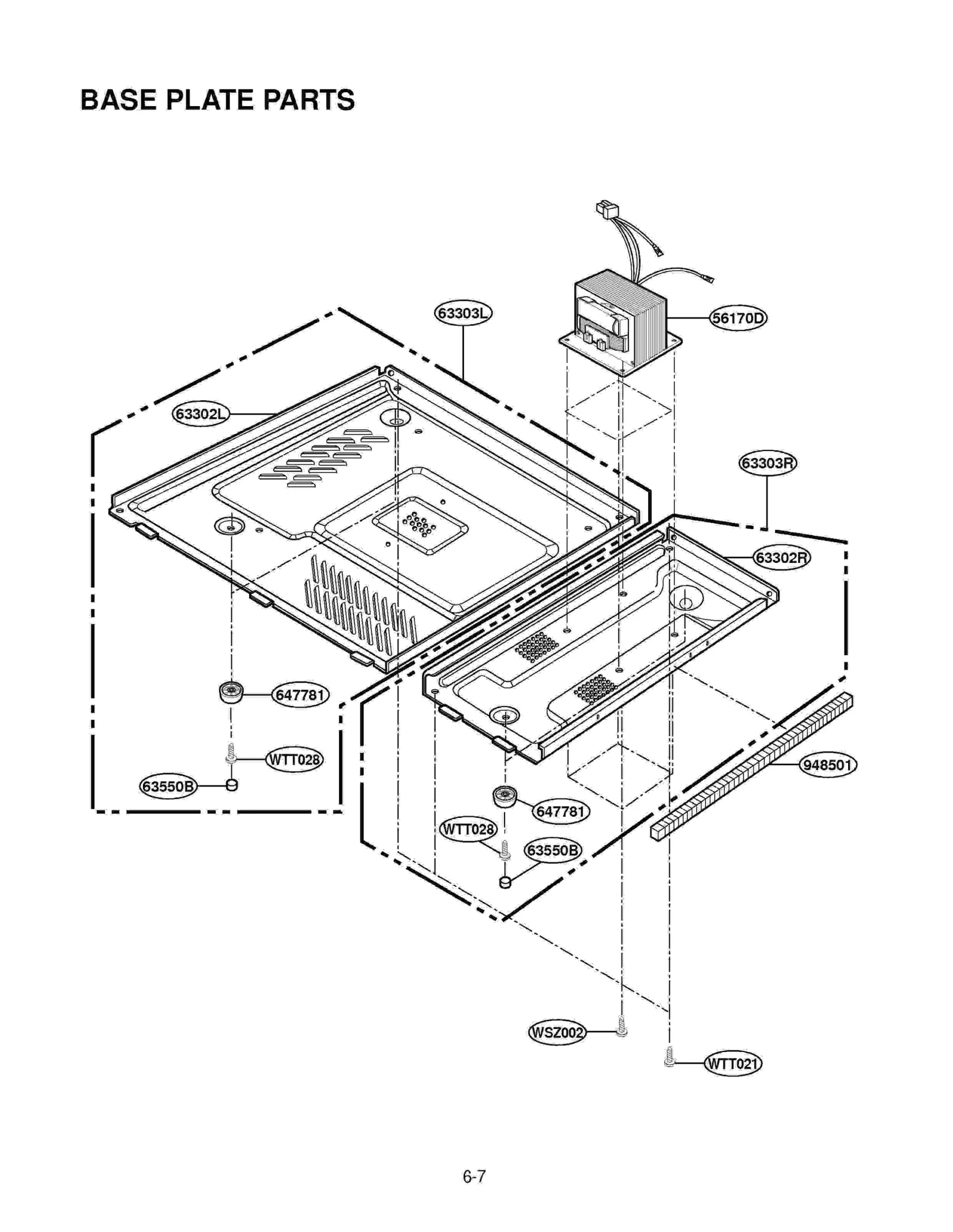

BASE PLATE LGE 3302W1A036H Contact Us For Availability
63302R
BASE PLATE LGE 3302W1A035G Contact Us For Availability
63303L
LGE 3303W1A028H LGE 3303W1A028H Contact Us For Availability
63303R
LGE 3303W2A004G LGE 3303W2A004G Contact Us For Availability
63550B
COVER LGE 3550W3A101A Contact Us For Availability
250201
LGE 5020W3G102H LGE 5020W3G102H Contact Us For Availability
268711
PWB(PCB) ASSY,[MAIN] LGE 6871W2S084L Contact Us For Availability
340361
LGE 4036W3W002A LGE 4036W3W002A Contact Us For Availability
340362
SEAL,WATER LGE 4036W3W001A Contact Us For Availability
466001
SWITCH,MICRO LGE 6600W1K001G Contact Us For Availability
549741
GUIDE,ALL LGE 4974W2G045A Contact Us For Availability
549742
GUIDE,ALL LGE 4974W2G046A Contact Us For Availability
549743
LGE 4974W3G071A LGE 4974W3G071A Contact Us For Availability
568771
LEAD WIRE ASSY LGE 6877W1A193A Contact Us For Availability
647781
LEG LGE 4B73900A Contact Us For Availability
947811
LGE 383EW5A003A LGE 383EW5A003A Contact Us For Availability
948503
CUSHION 15X20X110, MA-873M/30 LGE 3B72246B Contact Us For Availability
948505
Damper LGE 4B73438G Contact Us For Availability
AR4
RESISTOR ARRAY LGE 0RZ1503G610 Contact Us For Availability
BZ1
LGE 6908W3YA01A LGE 6908W3YA01A Contact Us For Availability
C03
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE2276H638 Contact Us For Availability
C06
CAPACITOR,FIXED CERAMIC(High d LGE 0CK1040K948 Contact Us For Availability
C07
CAPACITOR ELECTROLYTIC 4.7M SM LGE 0CE4756K638 Contact Us For Availability
C11
CAPACITOR ELECTROLYTIC CE,47MF LGE 0CE4766K638 Contact Us For Availability
C20
CAPACITOR,FIXED CERAMIC(High d LGE 0CK2230K948 Contact Us For Availability
C81
CAPACITOR CERAMIC (HIGH DIELE) LGE 0CK2210K518 Contact Us For Availability
CN1
CONNECTOR (CIRC) WAF LGE 6630W5V021A Contact Us For Availability
CN3
LGE 6630W5YA19C LGE 6630W5YA19C Contact Us For Availability
CU4
LGE 4850W4C001J LGE 4850W4C001J Contact Us For Availability
D01
DIODE IN4002,MA-1354P,1554M *N LGE 0DD400209AA Contact Us For Availability
D31
DIODE SWIT, 1N4148, MA-654MQ LGE 0DD414809AA Contact Us For Availability
D35
DIODE 1N4148M (ROHM KOREA) MA- LGE 0DD414809AB Contact Us For Availability
DP1
DIGITRON, ALL LGE 6302W5A002A Contact Us For Availability
PT1
TRANSFORMER POWER 120V/60HZ,14 LGE 6010W2P043A Contact Us For Availability
Q01
TRANSISTOR KTA1266-TP-Y(KTA101 LGE 0TR126609AA Contact Us For Availability
Q30
TRANSISTOR LGE 0TR320209BA Contact Us For Availability
Q33
TRANSISTOR LGE 0TR319809AA Contact Us For Availability
R01
Resistor,Carbon Film LGE 0RD1501F608 Contact Us For Availability
R02
FIXED CARBON FILM 4.7K UG8*NSP LGE 0RD4701F608 Contact Us For Availability
R10
Resistor,Carbon Film LGE 0RD1000F608 Contact Us For Availability
R11
RESISTOR FIXED CARBON FILM 10 LGE 0RD0102F608 Contact Us For Availability
R13
RESISTOR FIXED CARBON FILM 100 LGE 0RD1003F608 Contact Us For Availability
R21
RESISTOR FIXED CARBON FILM 22 LGE 0RD2202G608 Contact Us For Availability
R22
RESISTOR FIXED CARBON FILM 1.0 LGE 0RD1001G608 Contact Us For Availability
R30
Resistor,Carbon Film LGE 0RD1002F608 Contact Us For Availability
R31
Resistor,Carbon Film LGE 0RD2701F608 Contact Us For Availability
R33
Resistor,Carbon Film LGE 0RD5601F608 Contact Us For Availability
R51
RESISTOR FIXED CARBON FILM 39 LGE 0RD3900F608 Contact Us For Availability
R55
FIXED CARBON FILM 1M-J *NSP LGE 0RD1004F608 Contact Us For Availability
R81
Resistor,Carbon Film LGE 0RD2202F608 Contact Us For Availability
R101(OPTIO
RESISTOR FIXED CARBON FILM MV- LGE 0RD4702G608 Contact Us For Availability
R110(EMCR
Resistor,Carbon Film LGE 0RD4701G608 Contact Us For Availability
RY1
RELAY LGE 6920W5A008A Contact Us For Availability
RY2
RELAY OZF-S-112LM1P DC12V MV-1 LGE 6920W2YD04A Contact Us For Availability
U01
LGE 0IZZW5A019B LGE 0IZZW5A019B Contact Us For Availability
U10
LGE 0ISS240200A LGE 0ISS240200A Contact Us For Availability
WSZ184
SCREW,DRAWING LGE 1SZZW2Z001E Contact Us For Availability
ZD1
LGE 0DZ510009AA LGE 0DZ510009AA Contact Us For Availability
ZD2
LGE 0DZ750009BB LGE 0DZ750009BB Contact Us For Availability
× ![]()
