Model LG MB-387W MWO-BRO – Common Parts & Diagrams
Diagram 0

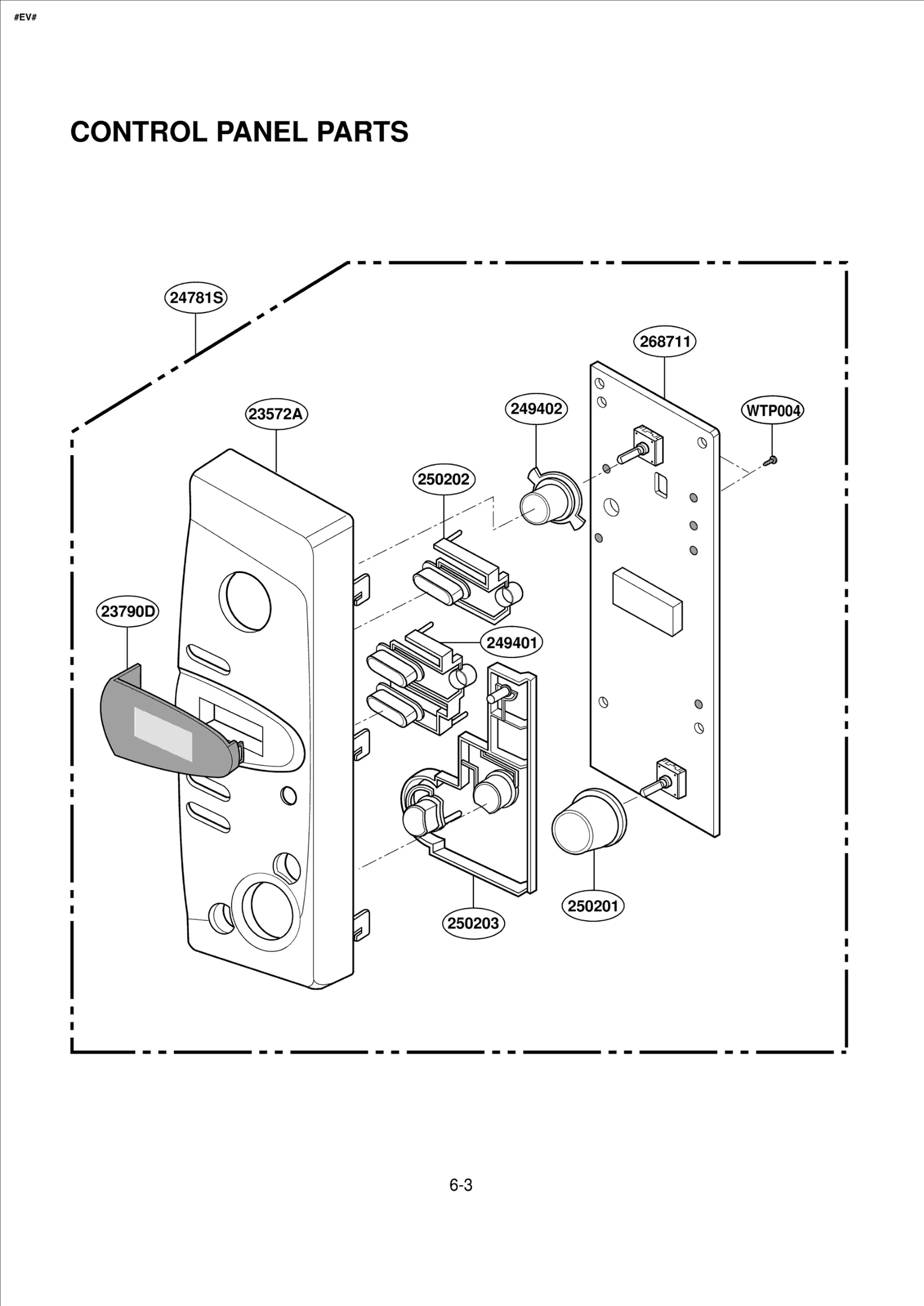

Diagram 1

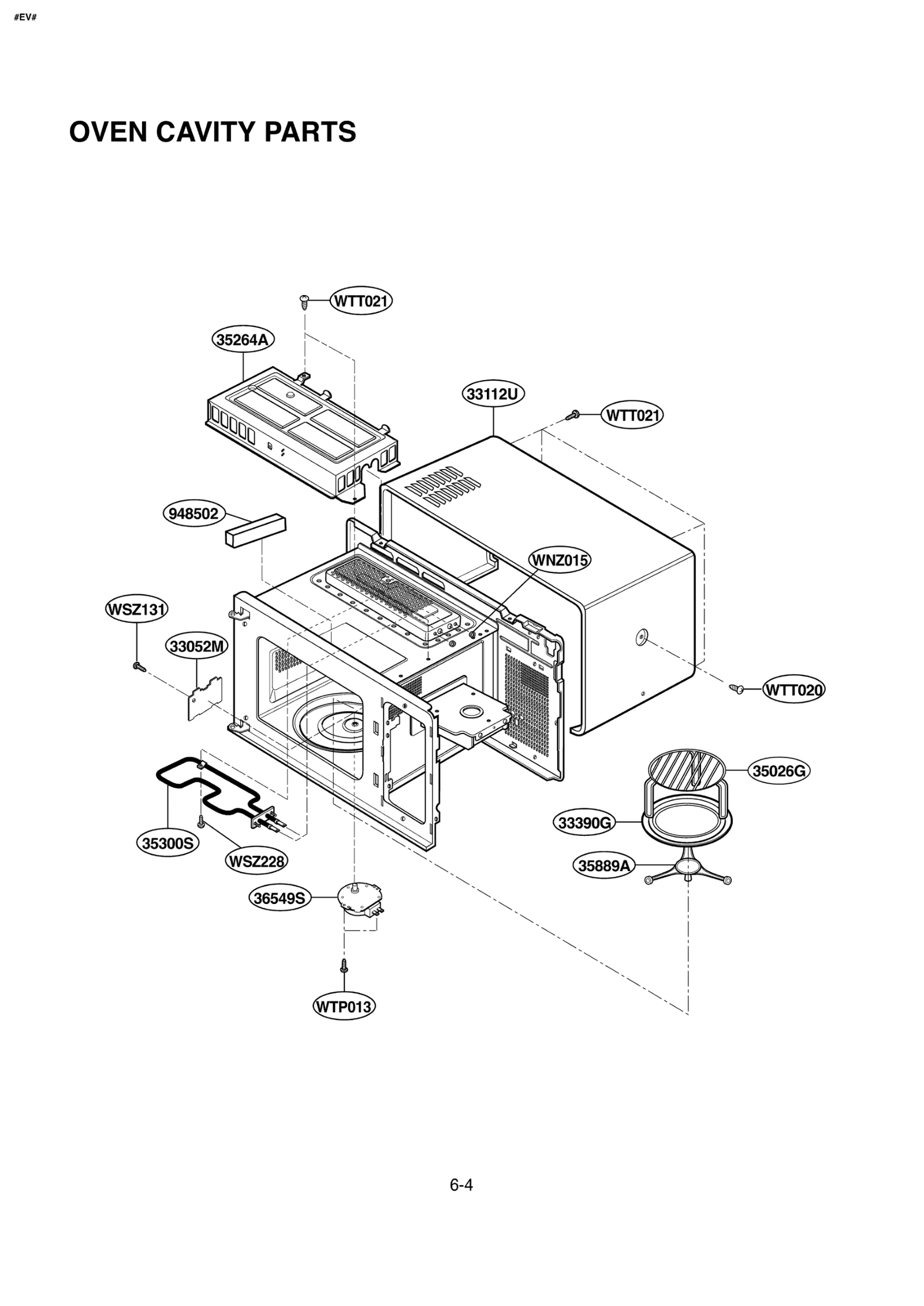

Diagram 2

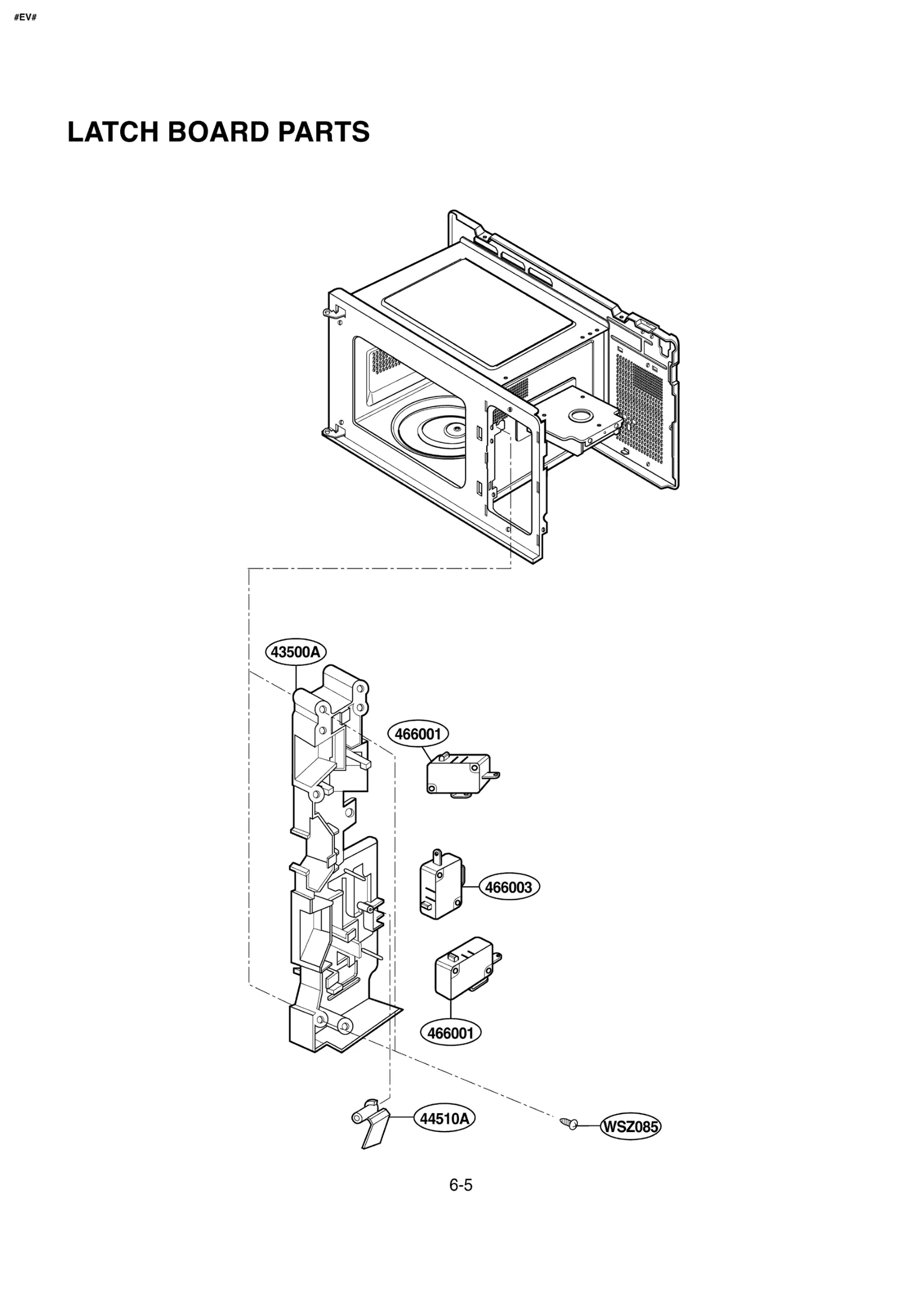

Diagram 3

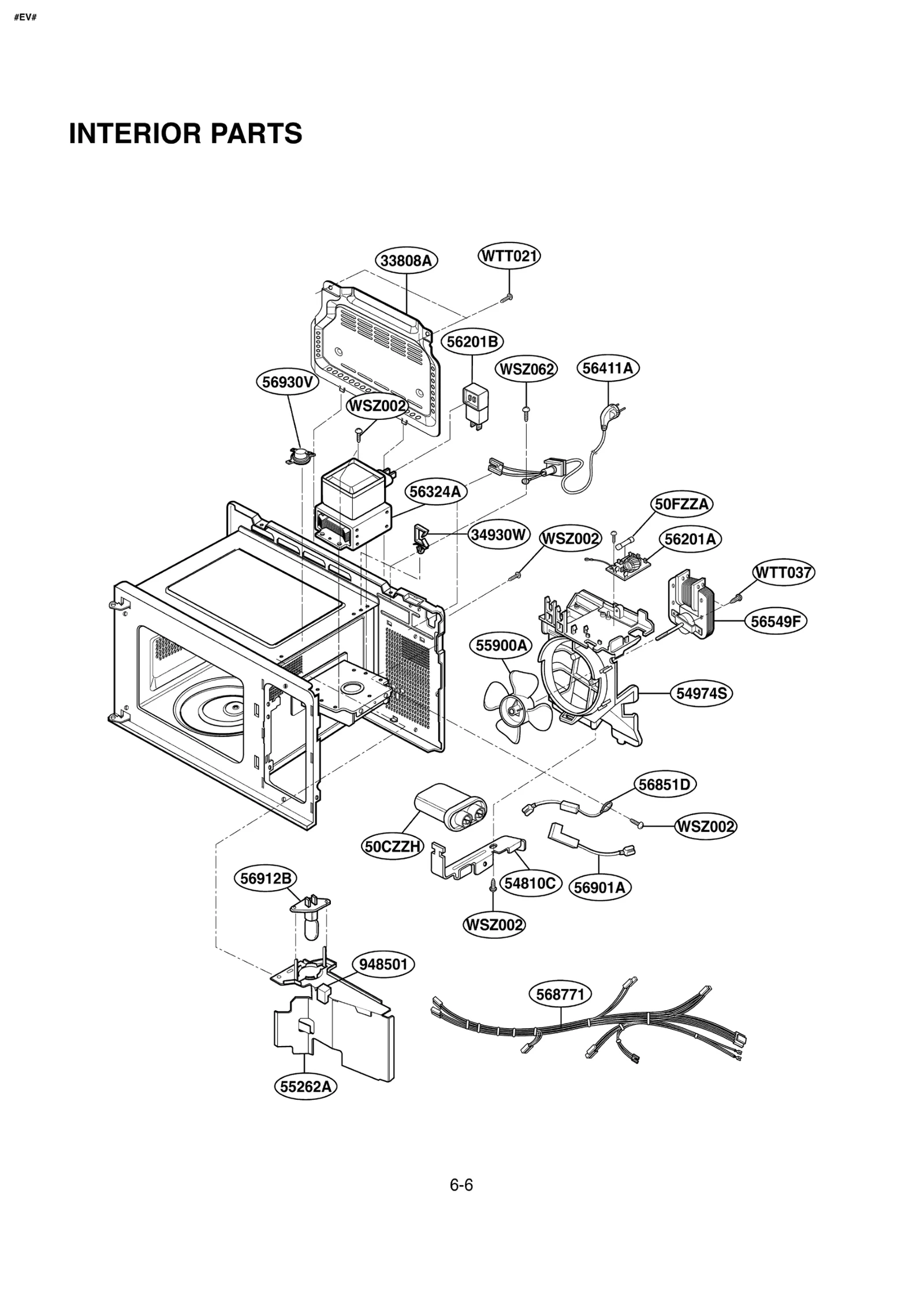

Diagram 4

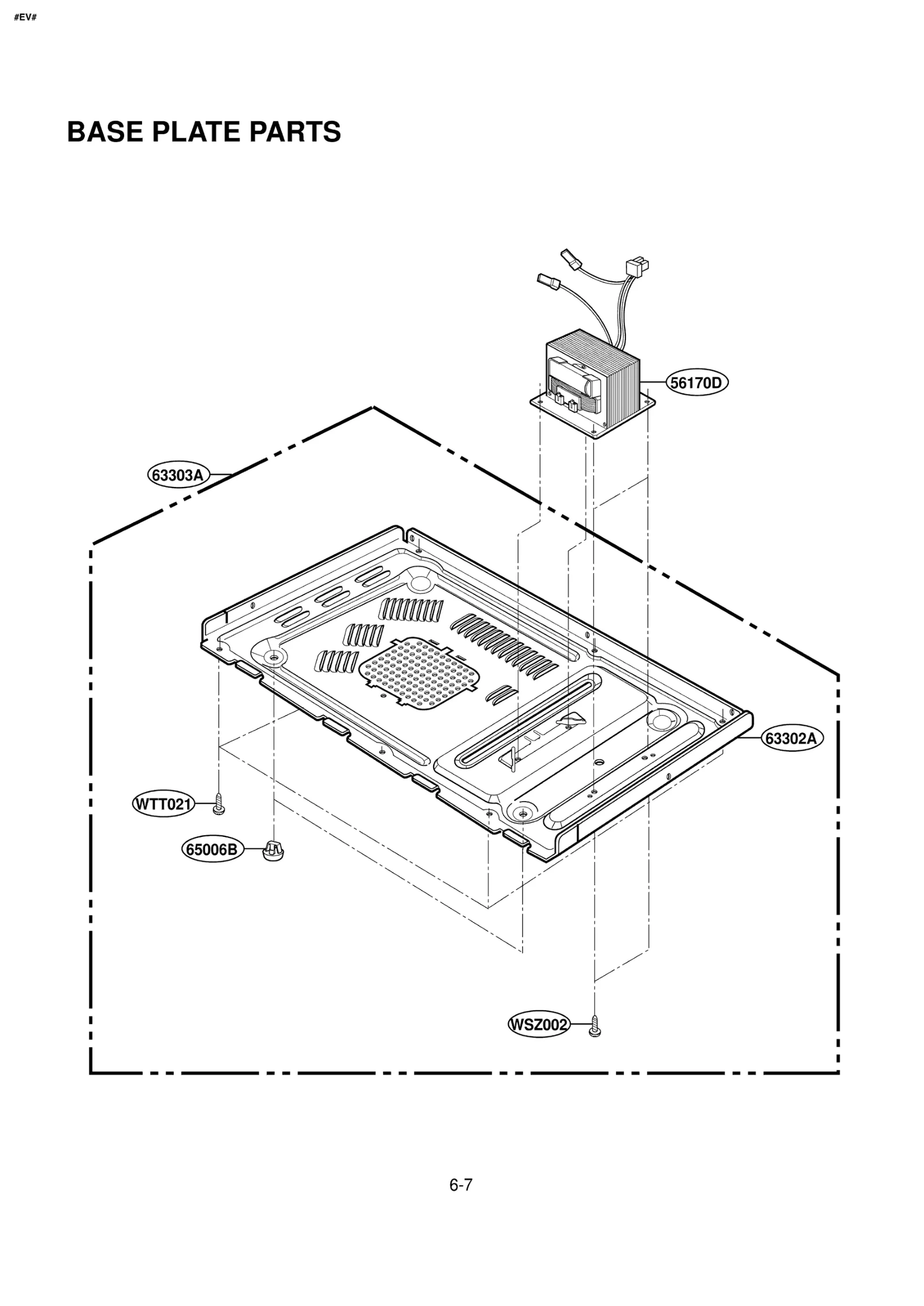

Diagram 5
Diagram 6
Common parts from model LG MB-387W MWO-BRO
*01
LGE 3828W5A2555 LGE 3828W5A2555 Contact Us For Availability
*02
LGE 3828W5S2280 LGE 3828W5S2280 Contact Us For Availability
*10
LGE 3890W3Y402A LGE 3890W3Y402A Contact Us For Availability
14026A
LATCH LGE 4026W2A024A Contact Us For Availability
33808A
LGE ACQ34556702 LGE ACQ34556702 Contact Us For Availability
35026G
SHELF LGE 3750W2A003J Contact Us For Availability
35264A
LGE 5264W1A017C LGE 5264W1A017C Contact Us For Availability
35300S
LGE 5300W1S011A LGE 5300W1S011A Contact Us For Availability
35889A
ROTATING RING ASSEMBLY LGE 5889W2A013E Contact Us For Availability
43500A
BOARD,[LATCH BOARD] LGE 3500W1A011A Contact Us For Availability
43501A
Holder Assembly,Locker LGE 3501W1A044B Contact Us For Availability
54974S
GUIDE,SUCTION LGE 4974W1A001B Contact Us For Availability
56170D
LGE 6170W1D098C LGE 6170W1D098C Contact Us For Availability
56201A
LGE EAM35001806 LGE EAM35001806 Contact Us For Availability
56324A
LGE 6324W1A009B LGE 6324W1A009B Contact Us For Availability
56411A
LGE 6411W2A004R LGE 6411W2A004R Contact Us For Availability
56901A
LGE 6901W1A001A LGE 6901W1A001A Contact Us For Availability
63302A
BASE PLATE LGE 3302W1A054E Contact Us For Availability
63303A
BASE PLATE ASSEMBLY LGE 3303W1A052D Contact Us For Availability
568771
LGE 6877W1A406F LGE 6877W1A406F Contact Us For Availability
948501
LGE 3B72245Y LGE 3B72245Y Contact Us For Availability
WSZ228
Screw,Customzied LGE 1SZZW2Z001R Contact Us For Availability
× ![]()
