Model Maytag MAT20PRAWW0 LAUNDRY, COMMERCIAL, WASHER – Common Parts & Diagrams

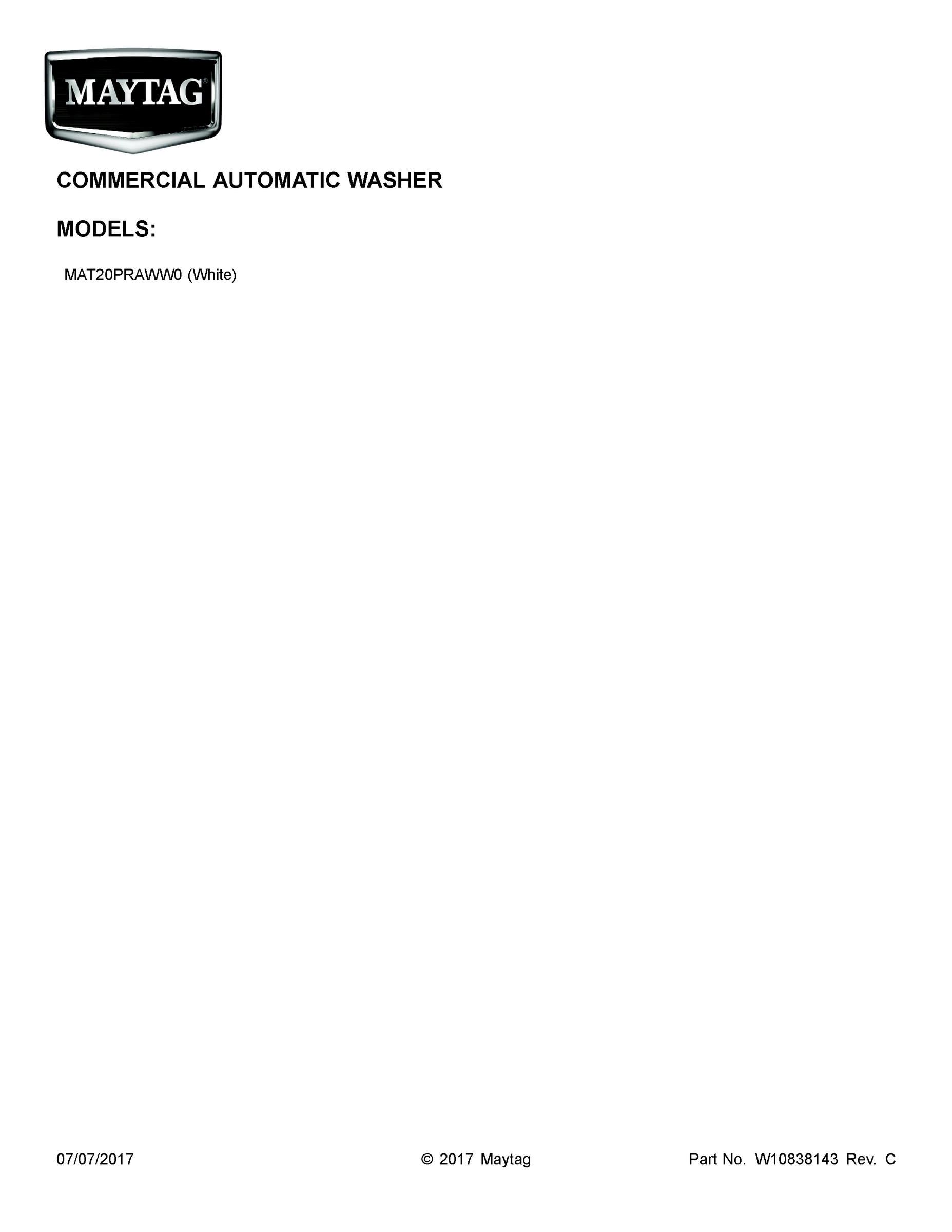

01 - COVER SHEET

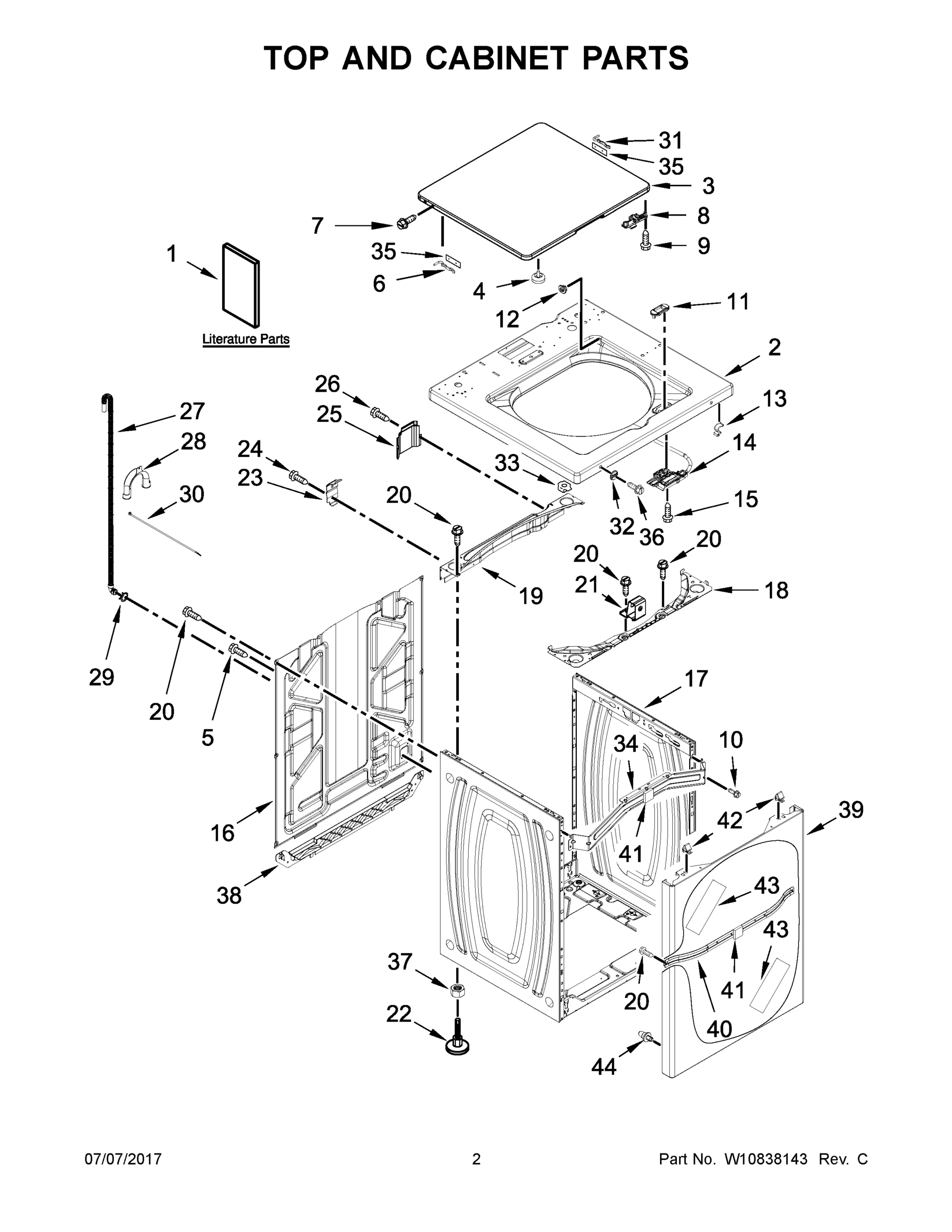

02 - TOP AND CABINET PARTS

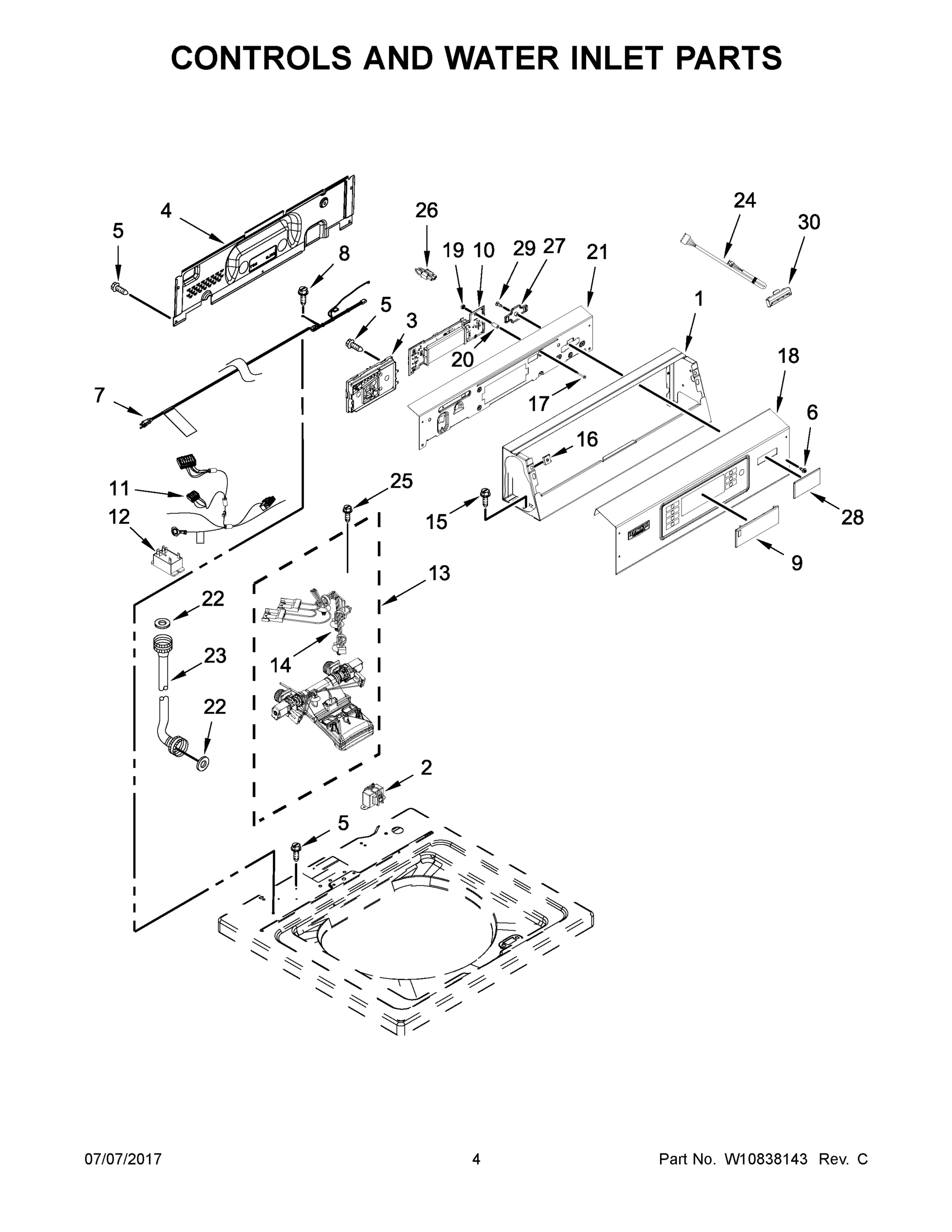

03 - CONTROLS AND WATER INLET PARTS

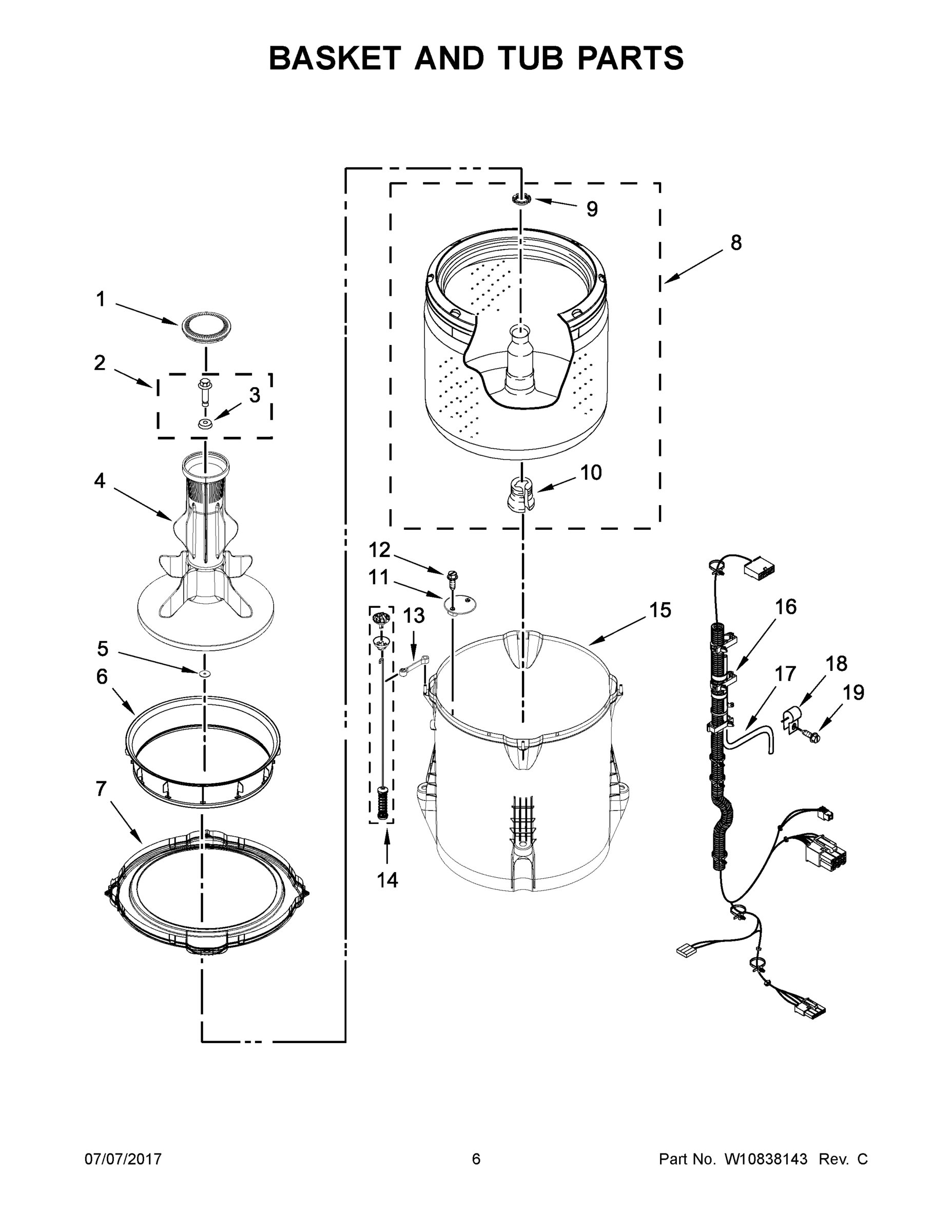

04 - BASKET AND TUB PARTS

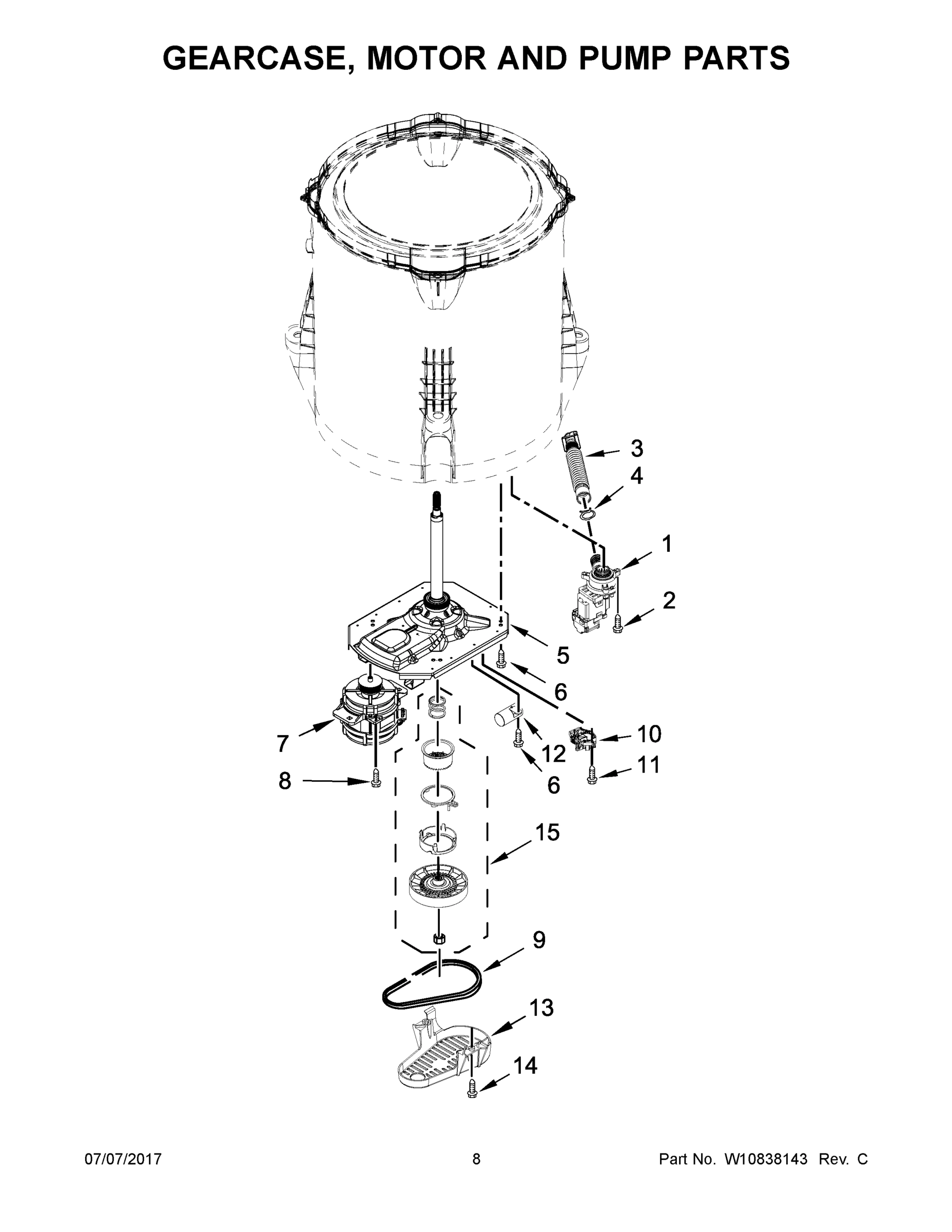

05 - GEARCASE, MOTOR AND PUMP PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MAT20PRAWW0 LAUNDRY, COMMERCIAL, WASHER
1
INSTALLATION INSTRUCTIONS MAY W10837721 Contact Us For Availability
1
CONSOLE MAY W10461095 Contact Us For Availability
1
CAP, AGITATOR MAY W10131111 Contact Us For Availability
1
PUMP ASSEMBLY, DRAIN MAY W10276397 Contact Us For Availability
1A
TECH SHEET MAY W10838072 Contact Us For Availability
2
TOP (WHITE) MAY W10845289 Contact Us For Availability
2
TRANSFORMER MAY W10131839 Contact Us For Availability
2
SCREW AND WASHER MAY W10003790 Contact Us For Availability
2
SCREW MAY W10004910 Contact Us For Availability
3
ASSEMBLY, LID AND BUMPER (WHITE) MAY W10461179 Contact Us For Availability
3
CONTROL UNIT ASSEMBLY, MACHINE & MOTOR MAY W10850499 Contact Us For Availability
3
WASHER MAY 3949550 Contact Us For Availability
3
HOSE, INNER DRAIN ASSEMBLY MAY W10763078 Contact Us For Availability
4
BUMPER, LID MAY W10525268 Contact Us For Availability
4
PANEL, CONSOLE REAR COVER MAY W10461159 Contact Us For Availability
4
AGITATOR MAY W10131112 Contact Us For Availability
4
CLAMP, HOSE MAY 8317496 Contact Us For Availability
5
SCREW MAY 9740848 Contact Us For Availability
5
SCREW MAY W10660565 Contact Us For Availability
5
RUBBER WASHER, IMPELLER MAY W10755559 Contact Us For Availability
5
ASSEMBLY, GEARCASE MAY W11092242 Contact Us For Availability
6
HINGE, LID (LEFT HAND) MAY 91770 Contact Us For Availability
6
SCREW M4X13 MAY W10131119 Contact Us For Availability
6
ADAPTER, BALANCE RING MAY W10424289 Contact Us For Availability
6
SCREW MAY W10249633 Contact Us For Availability
7
SCREW MAY W10119872 Contact Us For Availability
7
CORD, POWER MAY W10916258 Contact Us For Availability
7
RING, TUB MAY W10461196 Contact Us For Availability
7
MOTOR, DRIVE MAY W10850134 Contact Us For Availability
8
STRIKE, LID LOCK (WHITE) MAY W10240513 Contact Us For Availability
8
SCREW MAY 3400076 Contact Us For Availability
8
BASKET ASSEMBLY MAY W10389330 Contact Us For Availability
8
SCREW MAY W10094780 Contact Us For Availability
9
SCREW MAY W10273971 Contact Us For Availability
9
COVER, DISPLAY MAY W10267645 Contact Us For Availability
9
NUT, SPANNER MAY 21366 Contact Us For Availability
9
BELT, DRIVE MAY W10850138 Contact Us For Availability
10
SCREW MAY W10015090 Contact Us For Availability
10
USER INTERFACE MAY W11113315 Contact Us For Availability
10
BLOCK, BASKET DRIVE MAY W10198148 Contact Us For Availability
10
ACTUATOR, SHIFT MAY W10389471 Contact Us For Availability
11
BEZEL, LID LOCK (WHITE) MAY W10392041 Contact Us For Availability
11
HARNESS, UPPER MAY W10843665 Contact Us For Availability
11
FILTER, DRAIN PUMP MAY W10215093 Contact Us For Availability
11
SCREW MAY 9741052 Contact Us For Availability
12
BEARING, LID HINGE MAY 21258 Contact Us For Availability
12
RELAY MAY W11032871 Contact Us For Availability
12
SCREW MAY 8533928 Contact Us For Availability
12
CAPACITOR, MOTOR RUN MAY W10625042 Contact Us For Availability
13
CLIP, HARNESS MAY 90016 Contact Us For Availability
13
INLET ASSEMBLY, WATER MAY W10843663 Contact Us For Availability
13
STRAP, SNUBBER MAY W10839119 Contact Us For Availability
13
SHIELD, PULLEY COVER MAY W10427633 Contact Us For Availability
14
LATCH, LID LOCK ASSEMBLY MAY W10482836 Contact Us For Availability
14
HARNESS, VALVE MAY W10843398 Contact Us For Availability
14
DAMPER ASSEMBLY, TUB SUSPENSION (SET OF 4-INC MAY W10821942 Contact Us For Availability
14
SCREW MAY 357640 Contact Us For Availability
15
SCREW MAY W10588613 Contact Us For Availability
15
SCREW MAY 3390631 Contact Us For Availability
15
TUB MAY W10238320 Contact Us For Availability
15
SPLUTCH KIT (60HZ) MAY W10721967 Contact Us For Availability
16
PANEL, REAR MAY W10250884 Contact Us For Availability
16
NUT, "U" MAY W10131123 Contact Us For Availability
16
HARNESS, LOWER (INCLUDES PRESSURE HOSE) MAY W10843660 Contact Us For Availability
17
CABINET (WHITE) MAY W10845574 Contact Us For Availability
17
SCREW MAY W10137322 Contact Us For Availability
17
HOSE, PRESSURE SWITCH MAY W10531633 Contact Us For Availability
18
BRACE, CABINET TOP - FRONT (WHITE) MAY W10724131 Contact Us For Availability
18
FASCIA MAY W10821635 Contact Us For Availability
18
CLAMP, CABLE MAY W10005430 Contact Us For Availability
19
BRACE, CABINET TOP - REAR MAY W11089573 Contact Us For Availability
19
NUT MAY W10139046 Contact Us For Availability
19
SCREW MAY 8533943 Contact Us For Availability
20
STANDOFF, CIRCUIT BOARD MAY W10133514 Contact Us For Availability
21
LOCK, TOP MAY W10461182 Contact Us For Availability
21
BRACKET, CONTROL MAY W10845298 Contact Us For Availability
22
FOOT, LEVELING MAY W10245373 Contact Us For Availability
22
WASHER, HOSE MAY W10242307 Contact Us For Availability
23
HINGE, TOP MAY W10461176 Contact Us For Availability
23
HOSE, WATER INLET (COLD) MAY W10852720 Contact Us For Availability
23A
HOSE, WATER INLET (HOT) MAY W10852721 Contact Us For Availability
24
SCREW MAY W10142728 Contact Us For Availability
24
CARD READER, HARNESS MAY W10133304 Contact Us For Availability
25
COVER, HARNESS MAY W10461180 Contact Us For Availability
25
SCREW MAY W10213953 Contact Us For Availability
26
JUMPER, SWITCH SERVICE/VAULT MAY W10133282 Contact Us For Availability
27
HOSE, OUTER DRAIN ASSEMBLY MAY W10221546 Contact Us For Availability
27
RETAINER, CARD READER COVER MAY W10137770 Contact Us For Availability
28
U-BEND, DRAIN HOSE MAY W10280024 Contact Us For Availability
28
COVER, CARD READER MAY W10137769 Contact Us For Availability
29
CLAMP, HOSE MAY 356138 Contact Us For Availability
29
SCREW MAY 3400618 Contact Us For Availability
30
TIE, CABLE MAY W10339879 Contact Us For Availability
30
BEZEL MAY W10131115 Contact Us For Availability
31
HINGE, LID (RIGHT HAND) MAY 54583 Contact Us For Availability
32
BUSHING-TOP, SCREW MAY W10461181 Contact Us For Availability
33
NUT, CAGE MAY 90406 Contact Us For Availability
34
BRACKET, FRONT TOP MAY W10882494 Contact Us For Availability
35
PAD, LID HINGE MAY 21097 Contact Us For Availability
36
SCREW MAY W10486616 Contact Us For Availability
37
NUT, HEX MAY 3359452 Contact Us For Availability
38
BRACKET, BASE MAY W10850379 Contact Us For Availability
39
PANEL, FRONT (WHITE) MAY W10811028 Contact Us For Availability
40
BRACKET, FRONT PANEL MAY W10866521 Contact Us For Availability
41
DAMPER, BRACE MAY 8283273 Contact Us For Availability
42
LOCK, TOP FRONT MAY W10862638 Contact Us For Availability
43
DAMPER, SOUND MAY W10414221 Contact Us For Availability
44
RIVET MAY W10866523 Contact Us For Availability
NI
SEALER, GASKET (.20 FL. OZ.) (6ML) MAY 285195 Contact Us For Availability
NI
WATER SYSTEM PARTS, SIPHON BREAK KIT MAY 285834 Contact Us For Availability
NI
WATER SYSTEM PARTS, CONNECTOR ASSEMBLY MAY 285835 Contact Us For Availability
NI
WATER SYSTEM PARTS, 4' DRAIN HOSE W/CLAMP MAY 285863 Contact Us For Availability
NI
WATER SYSTEM PARTS, ADAPTER, STANDPIPE 2" DIA MAY 3363920 Contact Us For Availability
NI
WATER SYSTEM PARTS, HOSE, INLET (10' ) MAY 350008 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. GRAY PRIMER) MAY 350938 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
WATER SYSTEM PARTS, HOSE,HOSE, INLET (6' HOSE MAY 76314 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
ACCESSORY PARTS, WASHER, DRIP TRAY MAY 8212526 Contact Us For Availability
NI
ACCESSORY PARTS, AFFRESH ODOR REMOVER MAY W10135699 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANER, KITCHEN & APPLIANCE MAY W10355010 Contact Us For Availability
NI
WATER SYSTEM PARTS, HOSE FILL KIT MAY W10575888 Contact Us For Availability
NI
ACCESSORY PARTS, MAIN TOP REAR SUPPORT MAY W10576550 Contact Us For Availability
× ![]()
