Model LG MA7005ST Small – Common Parts & Diagrams
Diagram 0

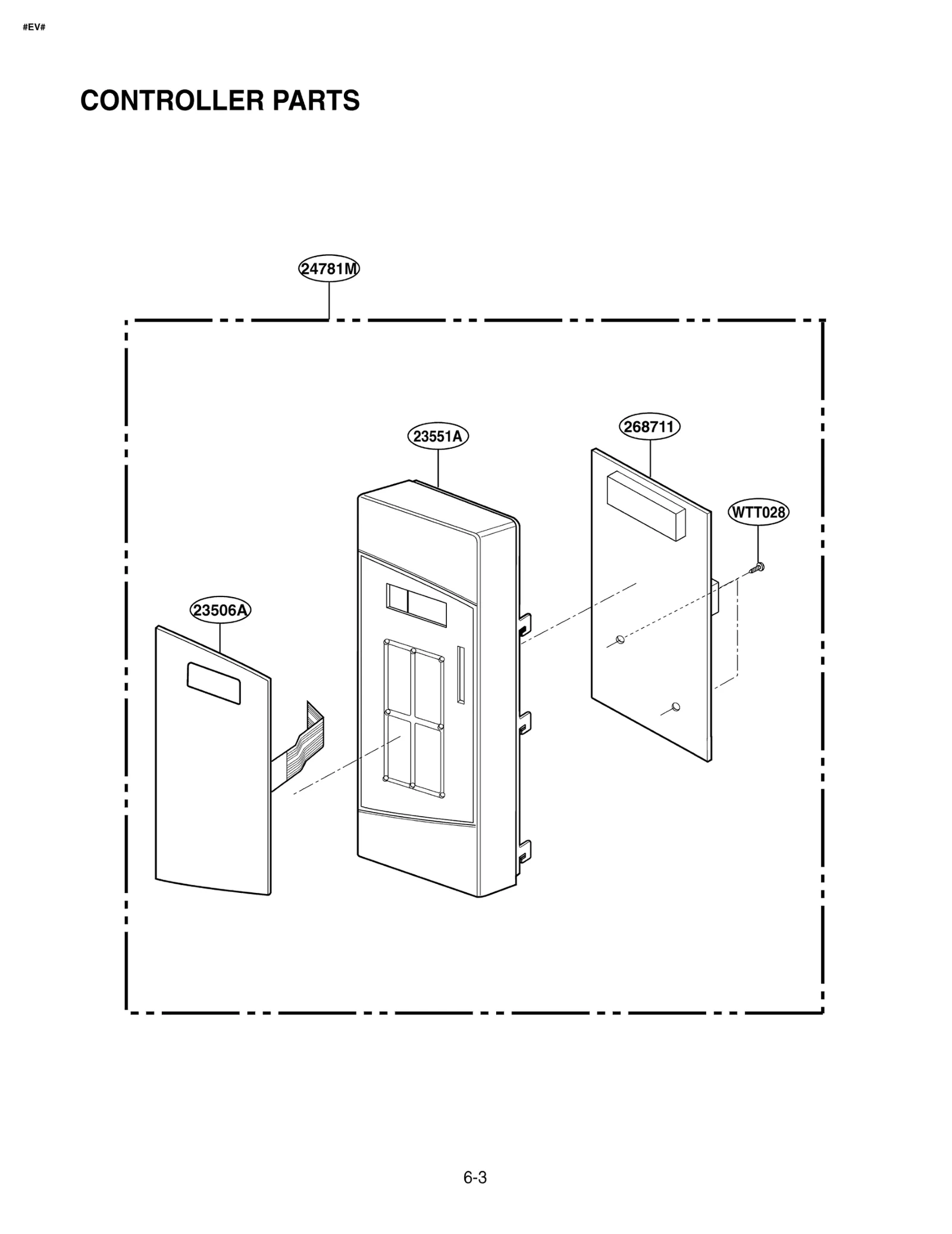

Diagram 1
Diagram 2

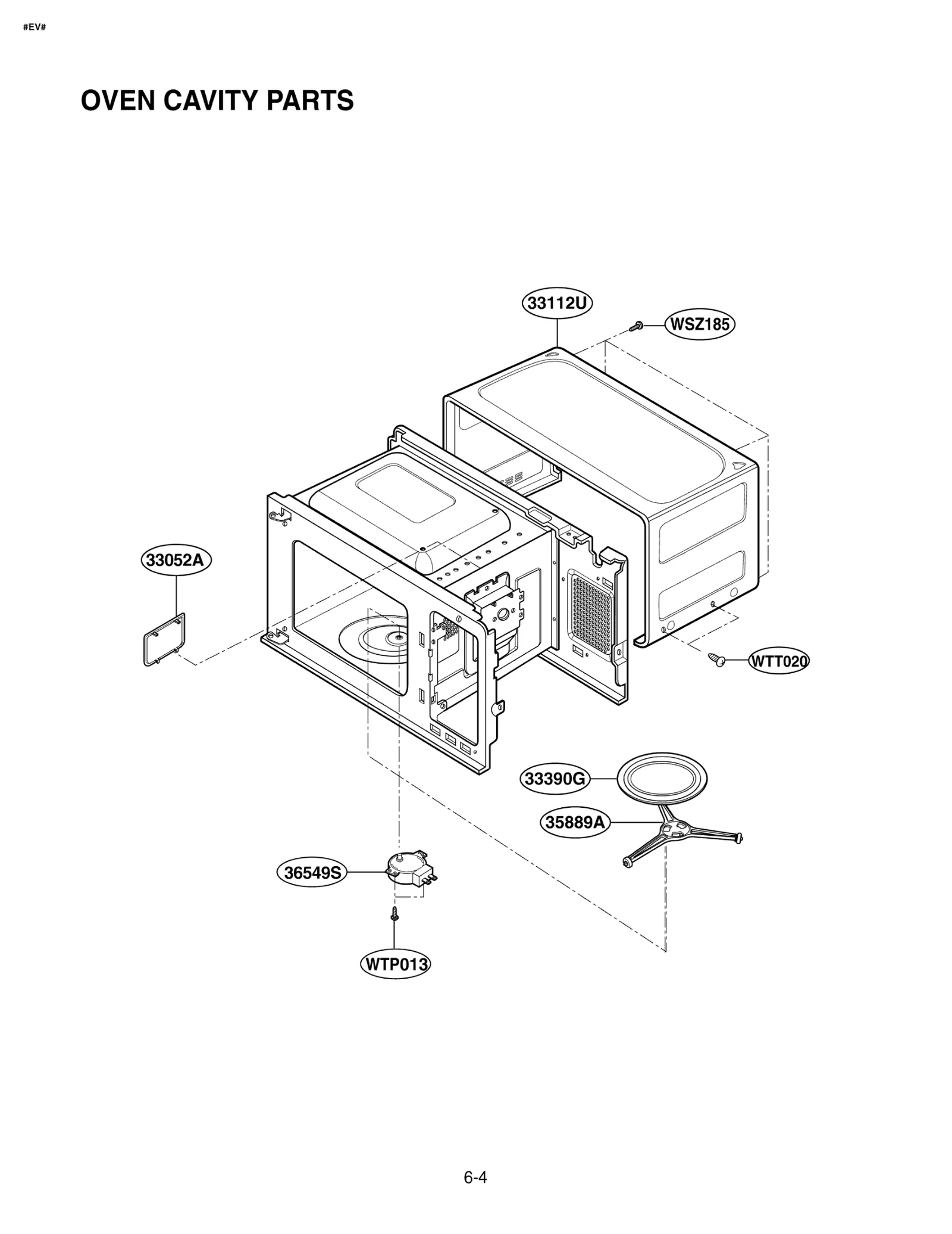

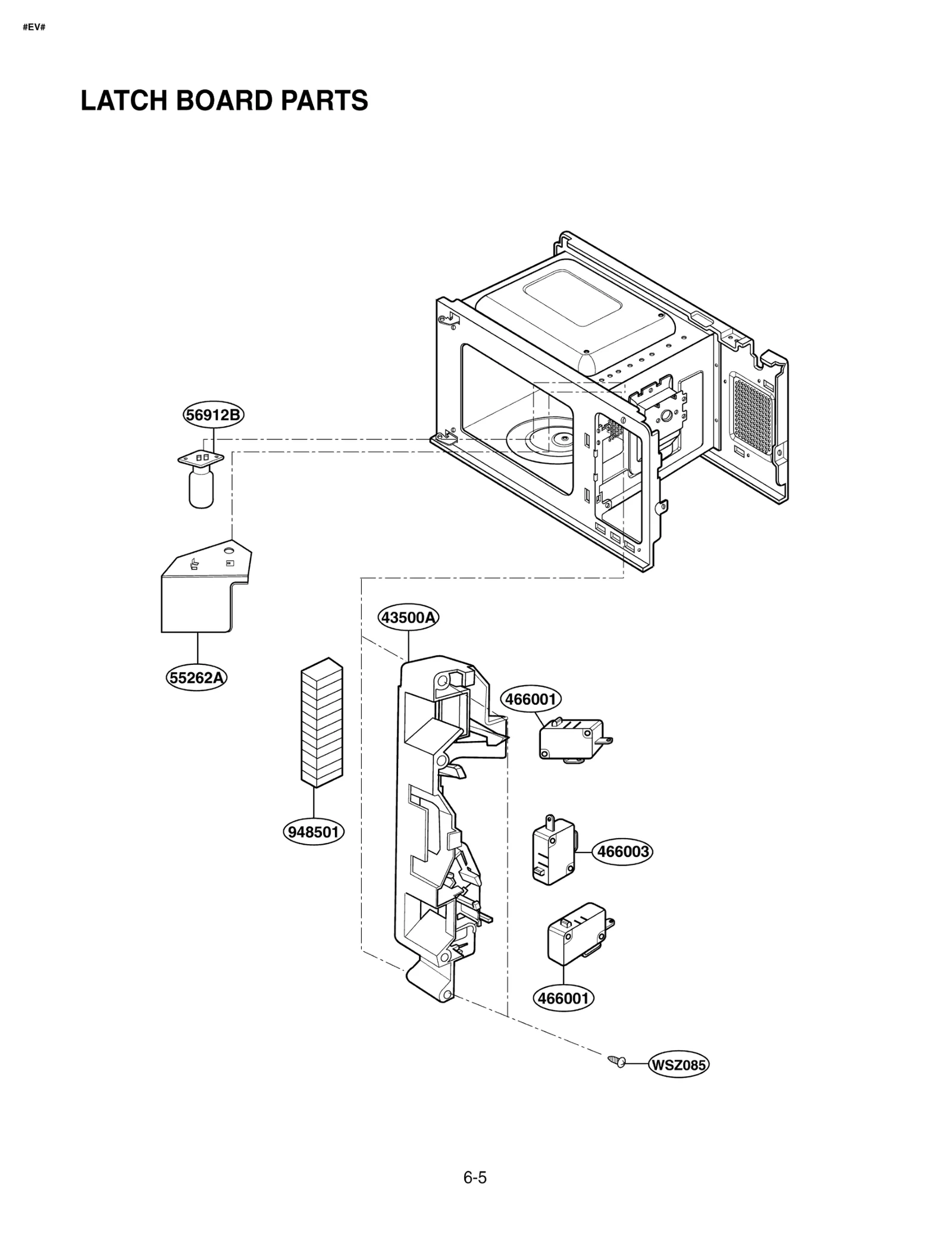

Diagram 3

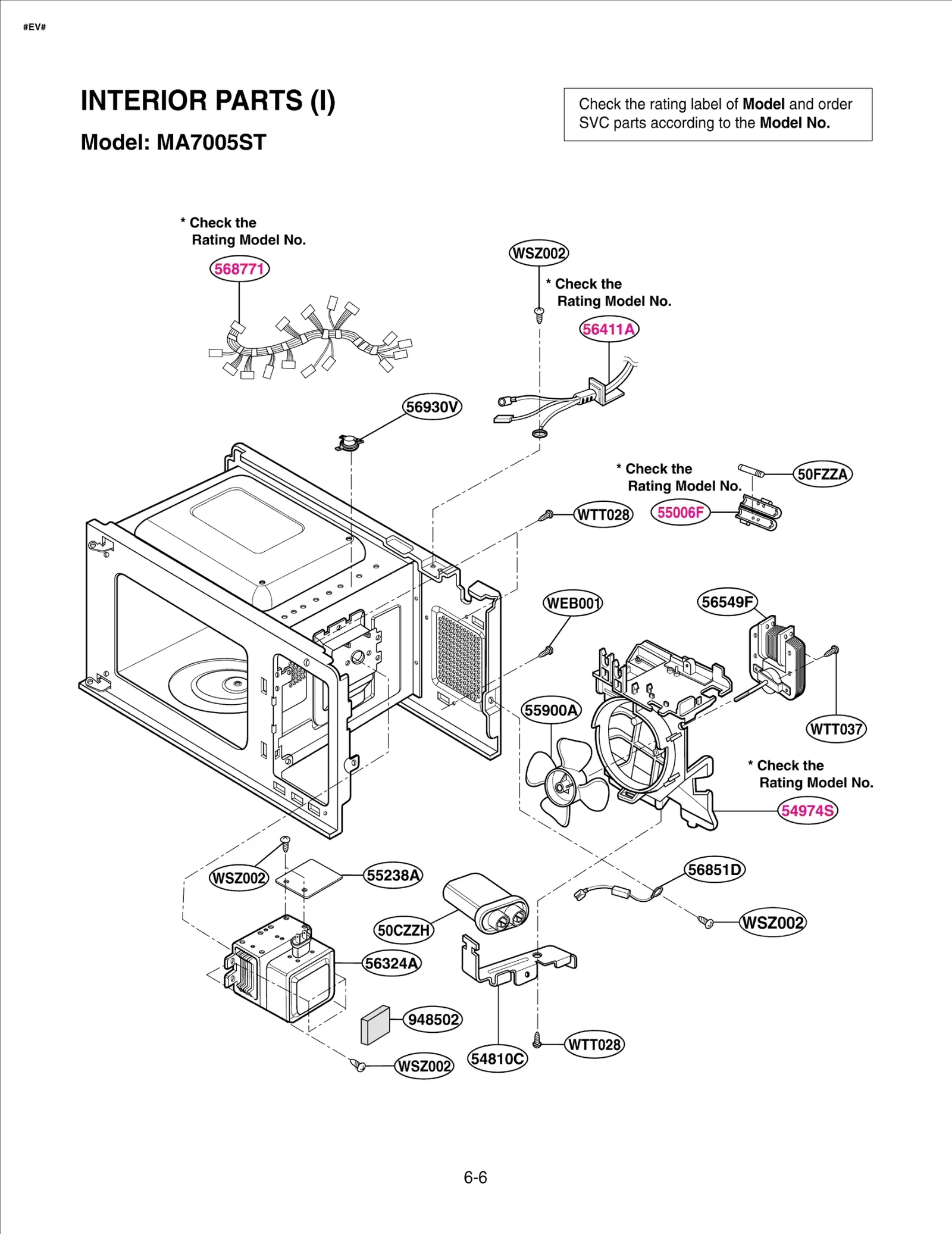

Diagram 4

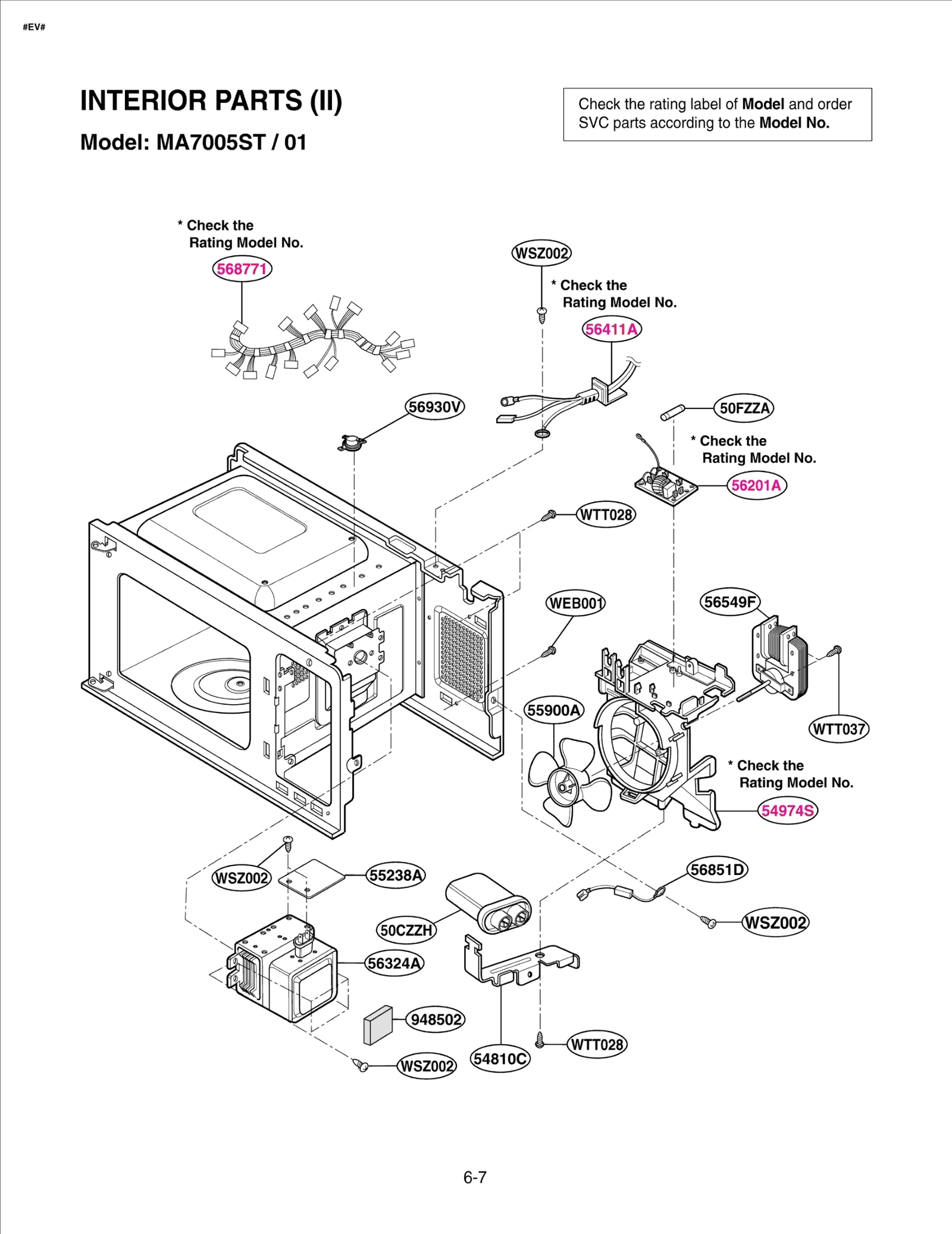

Diagram 5

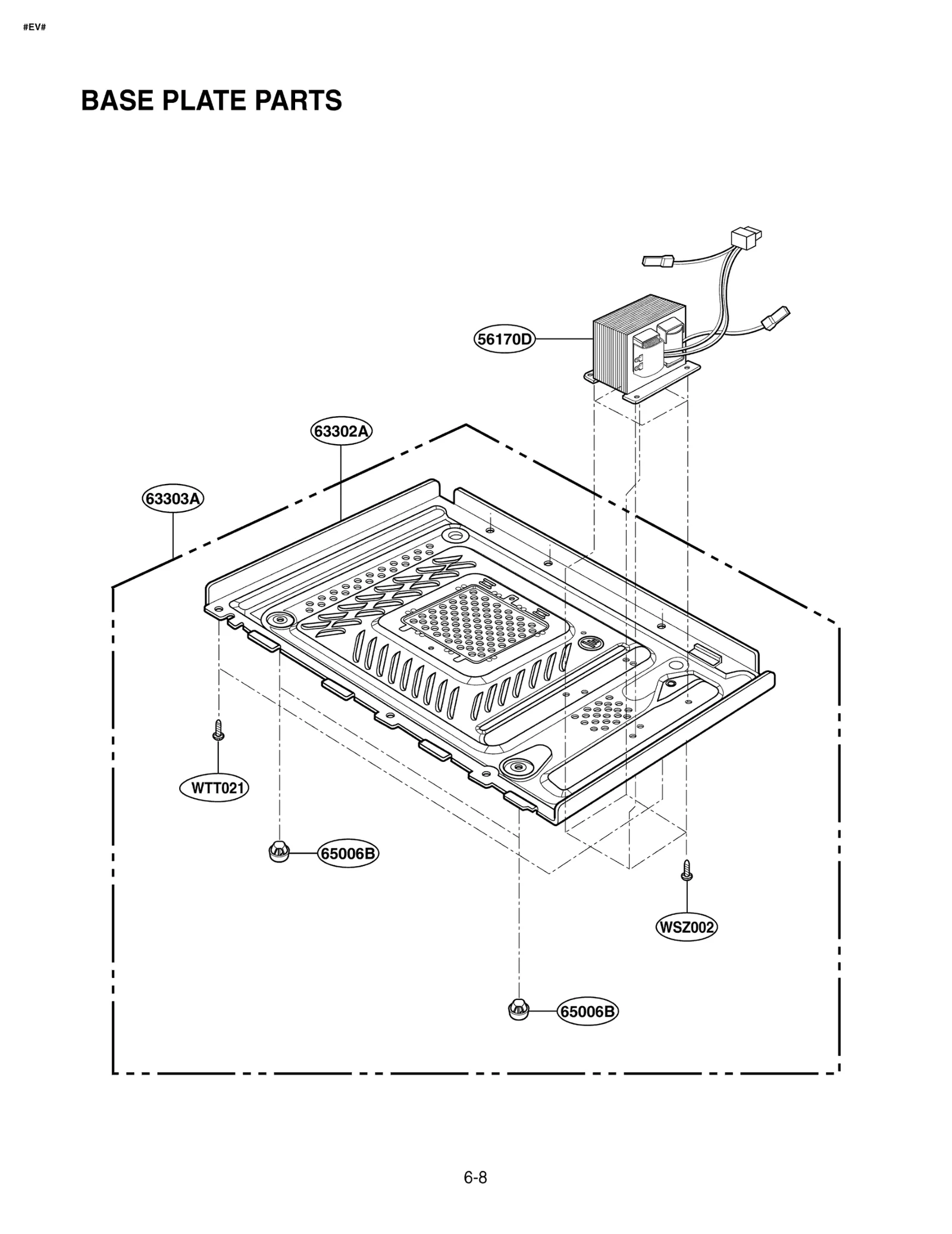

Diagram 6
Diagram 7
Common parts from model LG MA7005ST Small
*01
MANUAL,OWNERS LGE 3828W5A8204 Contact Us For Availability
*02
MANUAL,SERVICE LGE 3828W5S5133 Contact Us For Availability
*10
BOX,COLOR LGE 3890W3C450A Contact Us For Availability
50CZZH
CAPACITOR,[HIGH VOLT LGE 0CZZW1H001L Contact Us For Availability
43500A
BOARD,LATCH LGE 3500W1A034A Contact Us For Availability
54810C
BRACKET,CAPACITOR LGE 4810W1A253A Contact Us For Availability
54974S
GUIDE,SUCTION LGE 4974W1A030A Contact Us For Availability
55006F
CAP,FUSE LGE 5006WRA002D Contact Us For Availability
55238A
GUIDE,AIR LGE 4974W1A042A Contact Us For Availability
55262A
DUCT LGE 5208W1A030A Contact Us For Availability
56324A
MAGNETRON LGE 3B71077E Contact Us For Availability
56549F
MOTOR(CIRC),FAN LGE 6549W1F005P Contact Us For Availability
63302A
BASE PLATE LGE 3302W0A052B Contact Us For Availability
63303A
BASE PLATE ASSEMBLY LGE 3303W1A067C Contact Us For Availability
466003

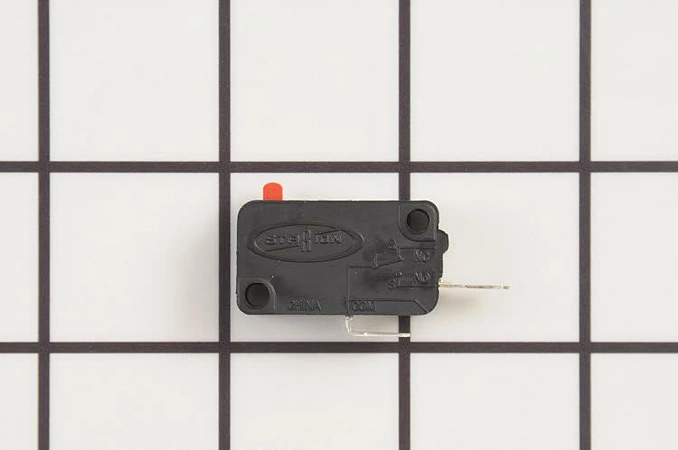

SWITCH,MICRO LGE 6600W1K004E Contact Us For Availability
568771
HARNESS LGE 6877W1A576A Contact Us For Availability
C01
CAPACITOR ELECTROLYTIC KCN21C2 LGE 0CE4776H618 Contact Us For Availability
C04
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE2276H638 Contact Us For Availability
C05
CAPACITOR ELECTROLYTIC LGE 0CE1076D638 Contact Us For Availability
C36
CAPACITOR ELECTROLYTIC 10M SM LGE 0CE1066K638 Contact Us For Availability
D06
DIODE,RECTIFIERS LGE 0DRSB00093A Contact Us For Availability
D33
DIODE,SWITCHING LGE 0DSSB00083A Contact Us For Availability
Q02
TRANSISTOR LGE 0TR320209BA Contact Us For Availability
Q20
TRANSISTOR MA-885M SGESEA MA-1 LGE 0TR107009AD Contact Us For Availability
Q31
TRANSISTOR LGE 0TR319809AA Contact Us For Availability
Q33
TRANSISTOR LGE 0TR105009AB Contact Us For Availability
Q121
TRANSISTOR KTA1266-TP-Y(KTA101 LGE 0TR126609AA Contact Us For Availability
R01
RESISTOR,FIXED CARBON FILM LGE 0RD5600A608 Contact Us For Availability
R04
LGE 0RD0102G608 LGE 0RD0102G608 Contact Us For Availability
R21
Resistor,Carbon Film LGE 0RD1002F608 Contact Us For Availability
R25
FIXED CARBON FILM 4.7K UG8*NSP LGE 0RD4701F608 Contact Us For Availability
R26
RESISTOR FIXED CARBON FILM 47K LGE 0RD4702F608 Contact Us For Availability
R30
LGE 0RD0472G608 LGE 0RD0472G608 Contact Us For Availability
R50
Resistor,Carbon Film LGE 0RD4701G608 Contact Us For Availability
R55
FIXED CARBON FILM 1M-J *NSP LGE 0RD1004F608 Contact Us For Availability
R90
LGE 0RD1503G608 LGE 0RD1503G608 Contact Us For Availability
R93
Resistor,Carbon Film LGE 0RD1503F608 Contact Us For Availability
R111
Resistor,Carbon Film LGE 0RD1000F608 Contact Us For Availability
R116
RESISTOR FIXED CARBON FILM /R LGE 0RD1000G608 Contact Us For Availability
R118
Resistor,Carbon Film LGE 0RD3301F608 Contact Us For Availability
R123
LGE 0RD2001G608 LGE 0RD2001G608 Contact Us For Availability
R130
Resistor,Carbon Film LGE 0RD1202F608 Contact Us For Availability
RY1
RELAY OJ-SS-112LM MA-693M MA-6 LGE 6920W2D010A Contact Us For Availability
× ![]()
