  • LG MA6501W Parts List

Model LG MA6501W MWO-S – Common Parts & Diagrams

*01
MANUAL,OWNERS
MANUAL,OWNERS LGE 3828W5A2610 Contact Us For Availability
View on Model
*02
MANUAL,SERVICE
MANUAL,SERVICE LGE 3828W5S2309 Contact Us For Availability
View on Model
*10
BOX,COLOR
BOX,COLOR LGE 3890W3C113A Contact Us For Availability
View on Model
50CZZH
LGE 0CZZW1H001S
LGE 0CZZW1H001S LGE 0CZZW1H001S Contact Us For Availability
View on Model
14026A
LATCH
LATCH LGE 4026W2A024A Contact Us For Availability
View on Model

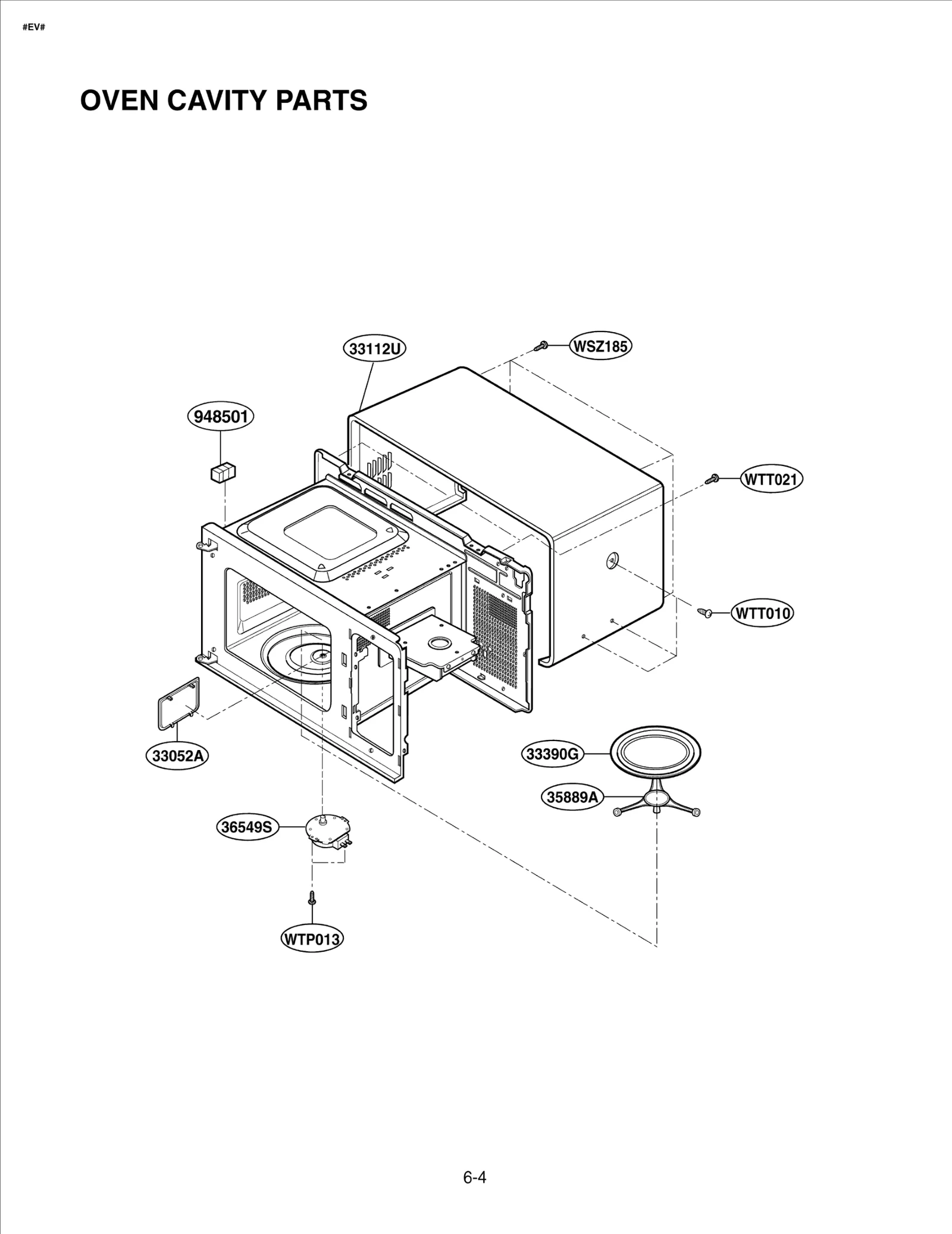

35889A
ROTATING RING ASSEMBLY
ROTATING RING ASSEMBLY LGE 5889W2A013E Contact Us For Availability
View on Model

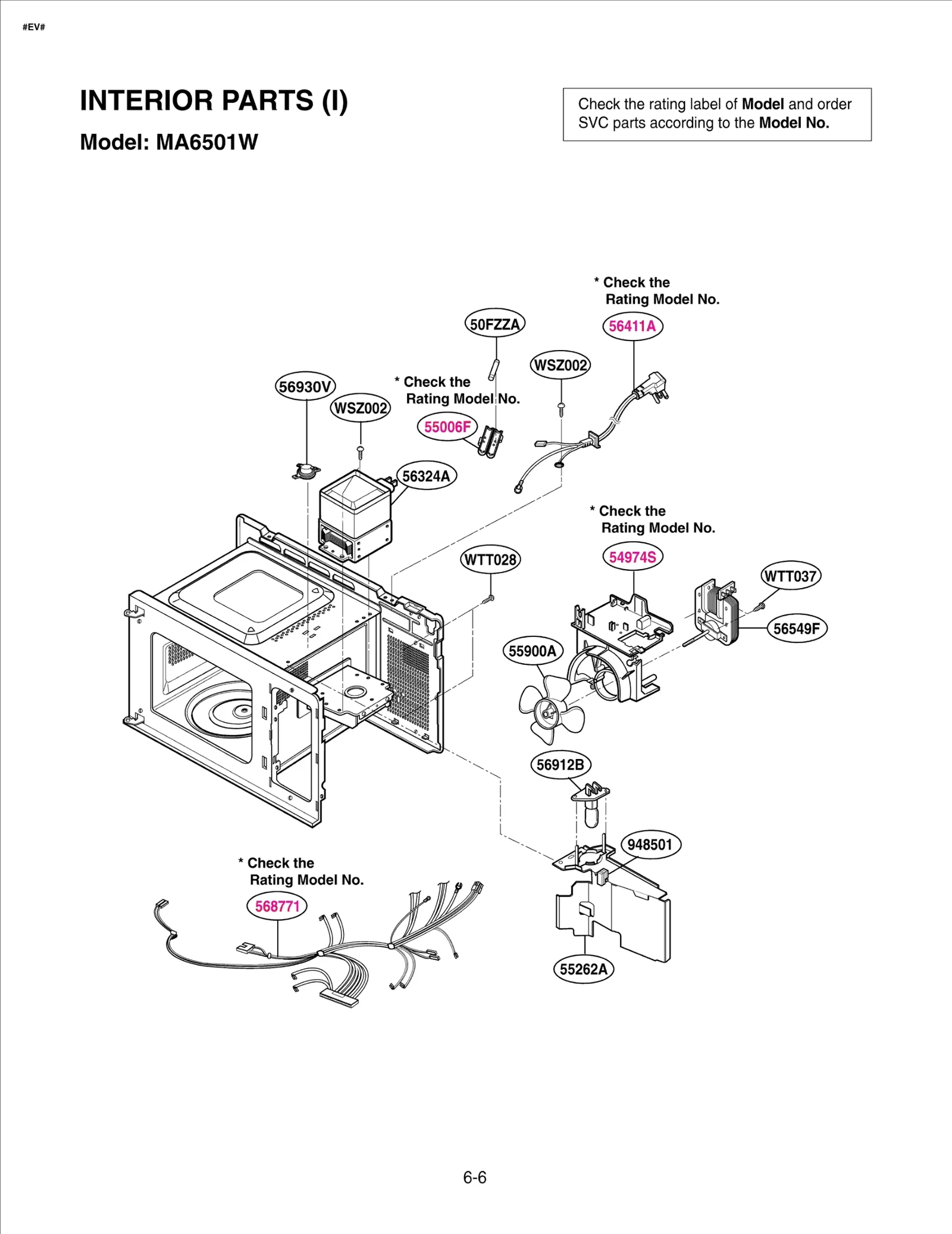

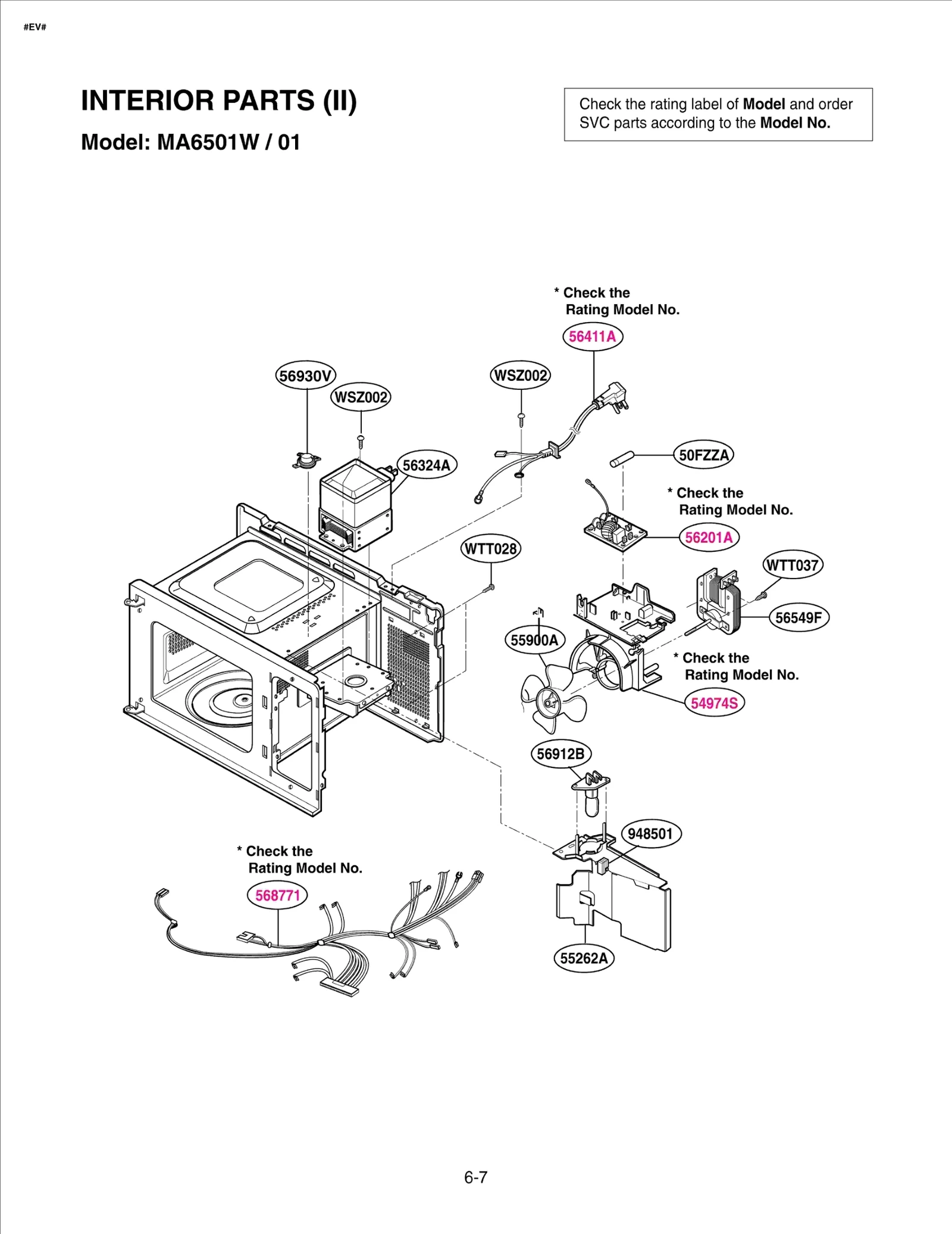

54974S
GUIDE,SUCTION
GUIDE,SUCTION LGE 4974W1A009A Contact Us For Availability
View on Model
55006F
CAP,FUSE
CAP,FUSE LGE 5006WRA002D Contact Us For Availability
View on Model
56170D
TRANSFORMER,HIGH VOLTAGE
TRANSFORMER,HIGH VOLTAGE LGE 6170W1D066A Contact Us For Availability
View on Model
56411A
POWER CORD ASSEMBLY
POWER CORD ASSEMBLY LGE 6411W1A002U Contact Us For Availability
View on Model
56549F
MOTOR(CIRC),FAN
MOTOR(CIRC),FAN LGE 6549W1F005P Contact Us For Availability
View on Model

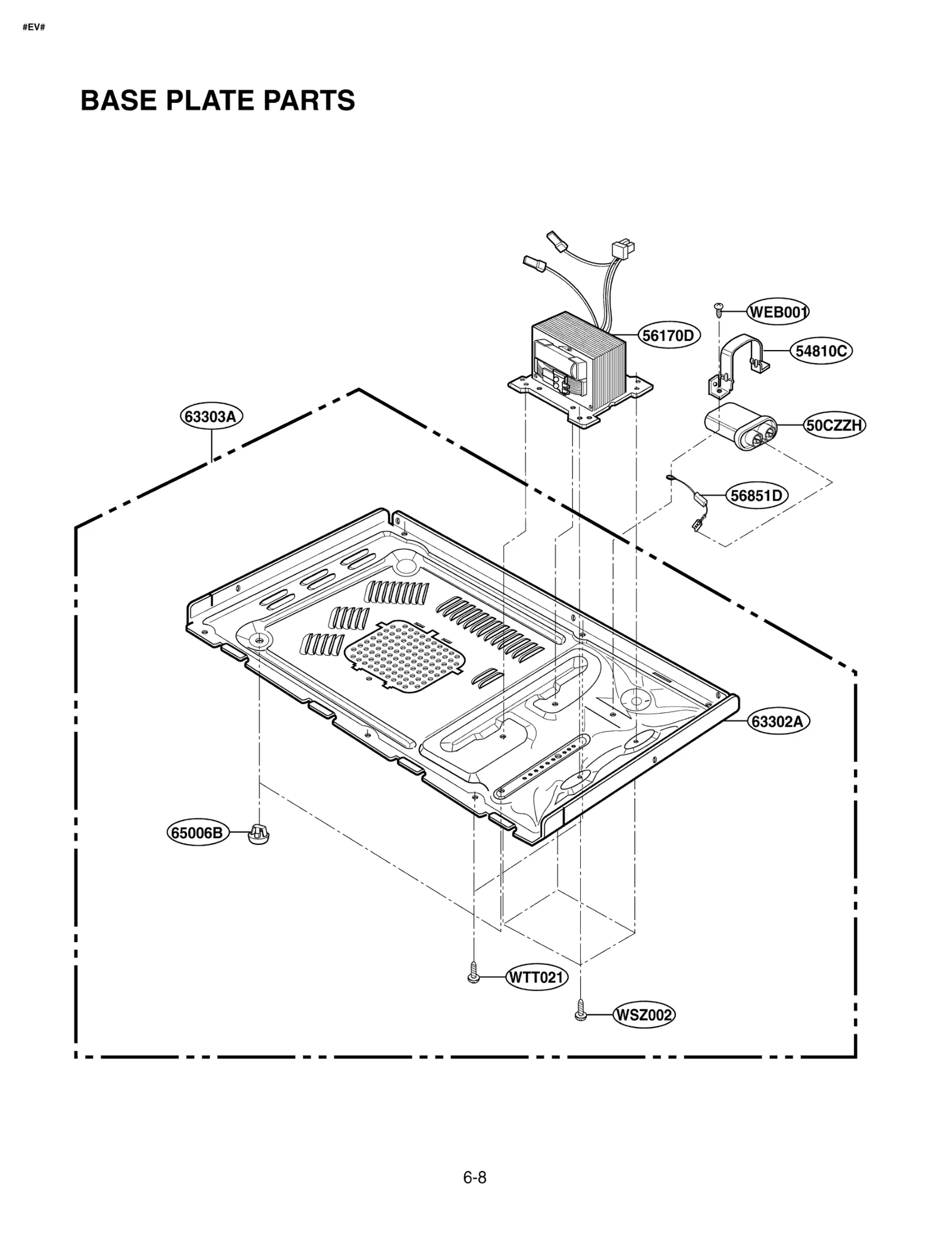

63302A
BASE PLATE
BASE PLATE LGE 3302W1A054G Contact Us For Availability
View on Model
63303A
BASE PLATE ASSEMBLY
BASE PLATE ASSEMBLY LGE 3303W1A052G Contact Us For Availability
View on Model
568771
HARNESS
HARNESS LGE 6877W1A322B Contact Us For Availability
View on Model
