Common parts from model LG MA1720W
*01
MANUAL,OWNERS LGE 3828W5A2471 Contact Us For Availability
*02
MANUAL,SERVICE LGE 3828W5S2188 Contact Us For Availability
*10
BOX,YELLOW LGE 3890W3Y444A Contact Us For Availability
23506A
KEY MEMBRANE LGE 3506W1A211A Contact Us For Availability
23550D
DIGITRON COVER MS-101 S 121 S LGE 3550W4A029B Contact Us For Availability
23572A
PANEL,CONTROL LGE 3720W0C005A Contact Us For Availability
24781M

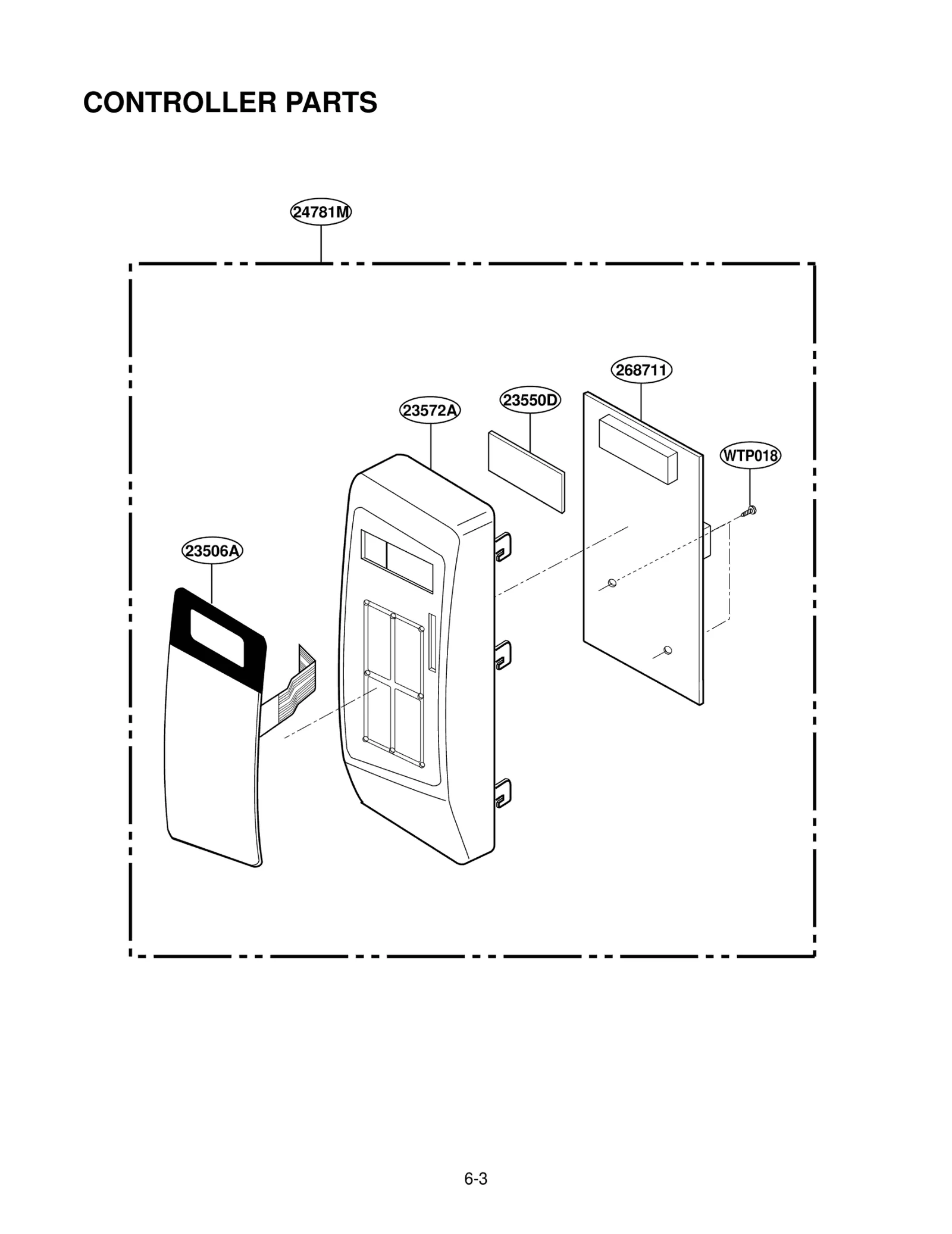

CONTROLLER ASSEMBLY,MICOM LGE 4781W0M023A Contact Us For Availability
33112U

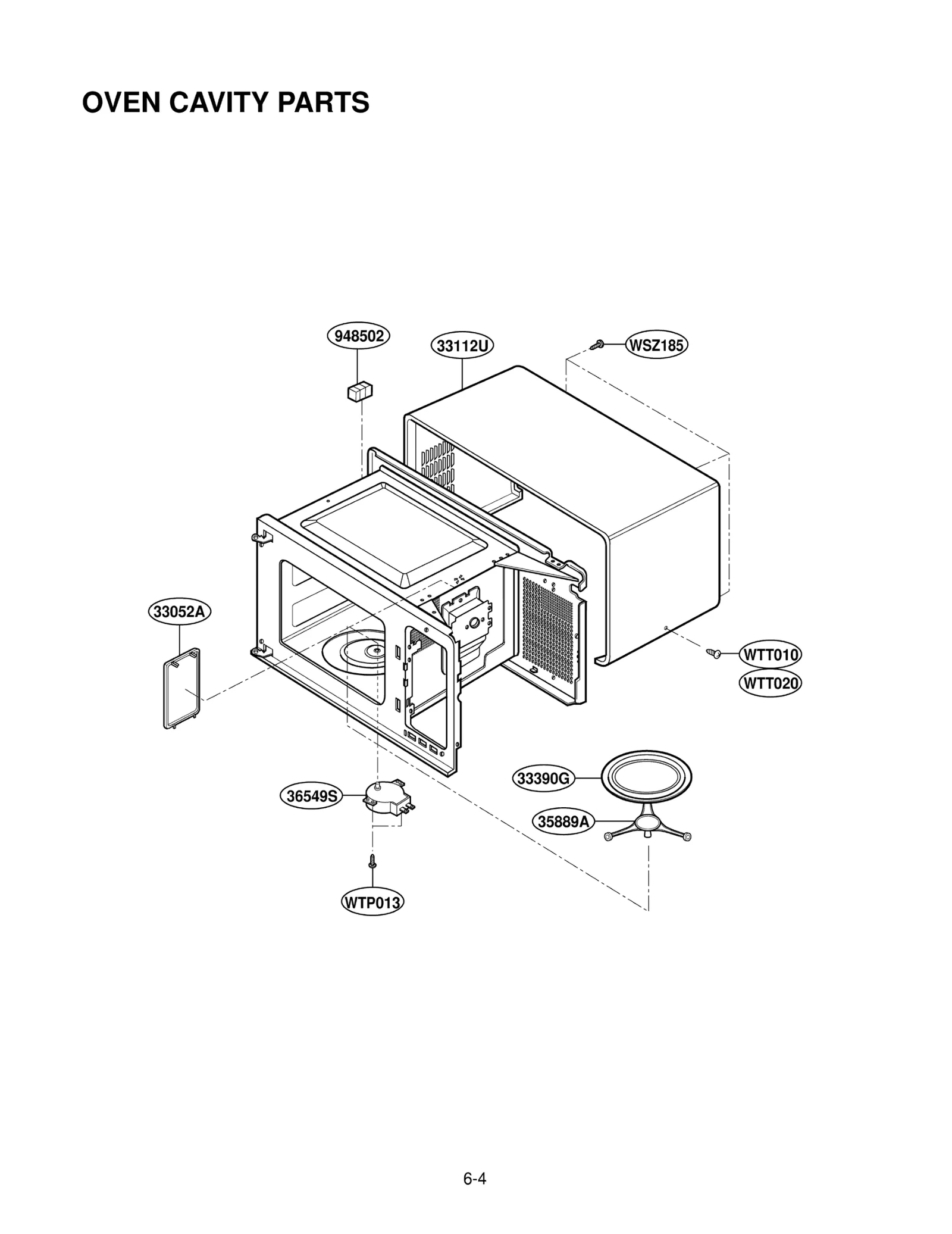

OUT CASE,U-BENDING LGE 3112W0U046B Contact Us For Availability
33390G
TRAY,GLASS LGE 3390W1A012A Contact Us For Availability
35012A
INSULATOR LGE 5012W3A020A Contact Us For Availability
35889A
ROTATING RING ASSEMBLY LGE 5889W1A003A Contact Us For Availability
43500A

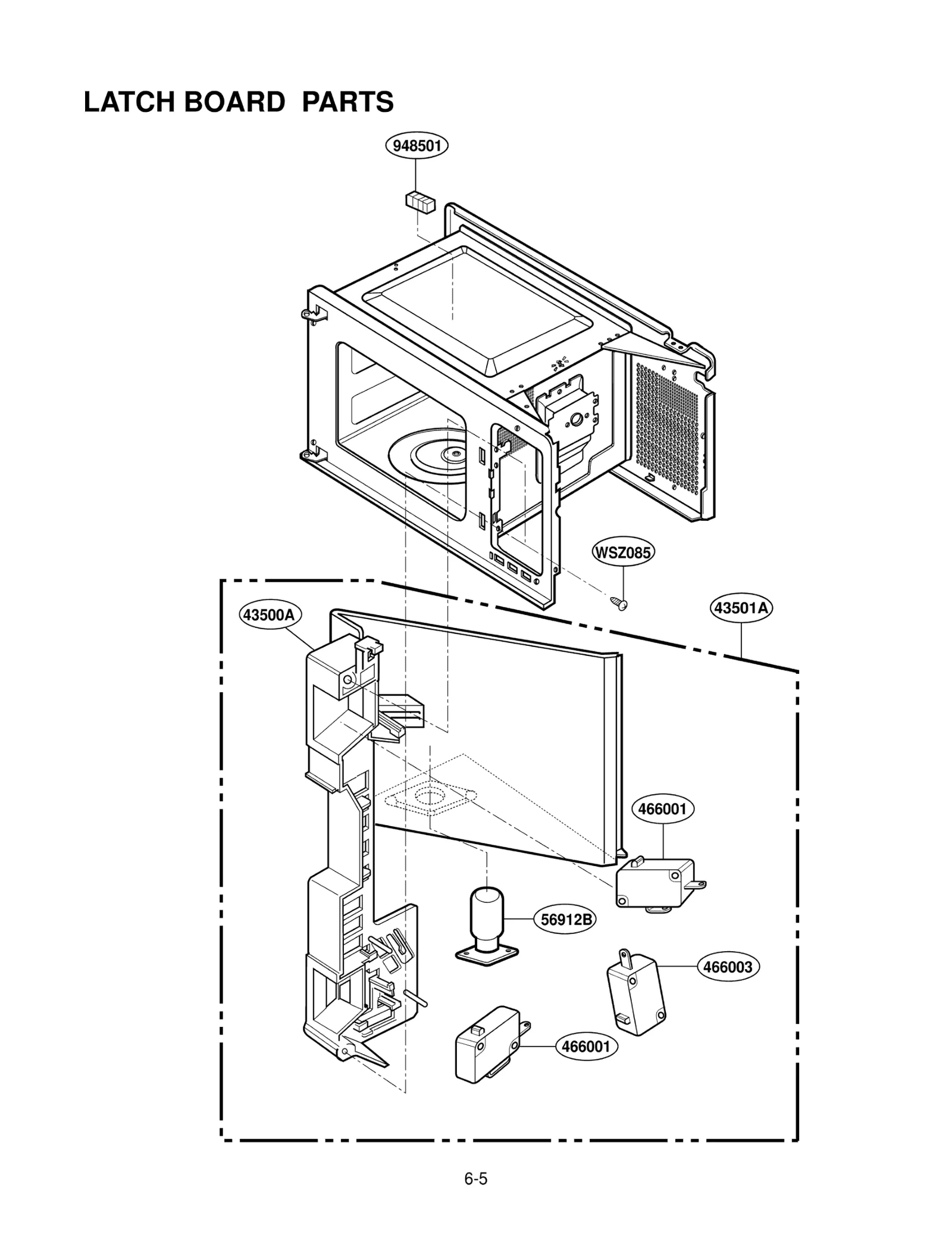

BOARD,LATCH LGE 3500W0A001A Contact Us For Availability
43501A
Holder Assembly,Locker LGE 3501W1A027A Contact Us For Availability
54810C
BRACKET HVC MA-690M,1190M,685M LGE 4810W4C003A Contact Us For Availability
54974S
Guide,Suction LGE 4974W0A003A Contact Us For Availability
55006F
FUSE CAP NATURAL MA-1554M MW LGE 5006WRA002A Contact Us For Availability
55900A
FAN LGE 5900W1A007A Contact Us For Availability
56170D
TRANSFORMER,HIGH VOLTAGE LGE 6170W1D065A Contact Us For Availability
56549F
Confirmed NLA with no LTB option 5/9/14 NB LGE 6549W1F009A Contact Us For Availability
63302A

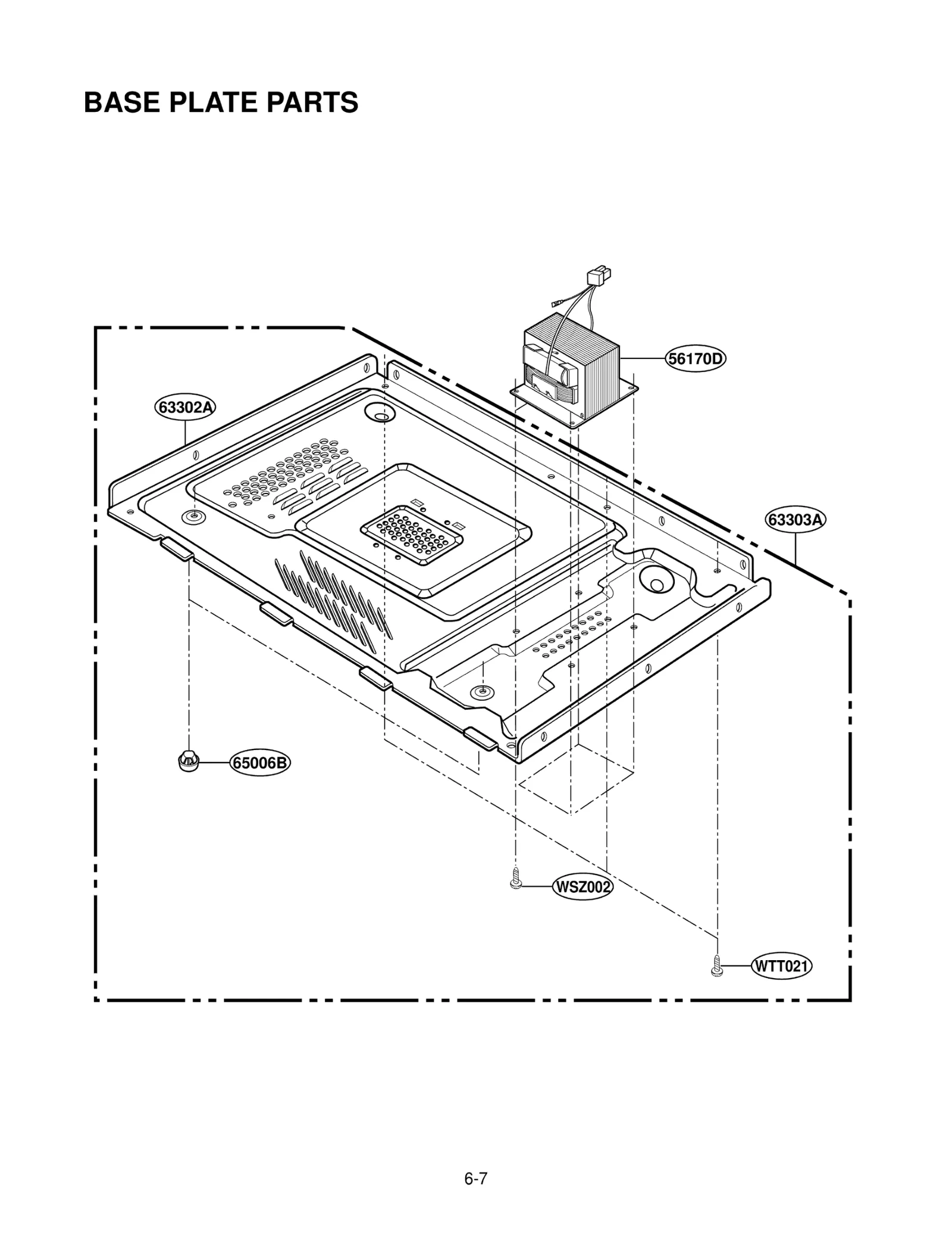

Plate,Base LGE 3302W0A035A Contact Us For Availability
63303A
BASE PLATE ASSEMBLY LGE 3303W0A017A Contact Us For Availability
268711
PWB(PCB) ASSEMBLY,SUB LGE 6871W1S082B Contact Us For Availability
466001
SWITCH,MICRO LGE 6600W1K004C Contact Us For Availability
466003
SWITCH,MICRO LGE 6600W1K004B Contact Us For Availability
568771

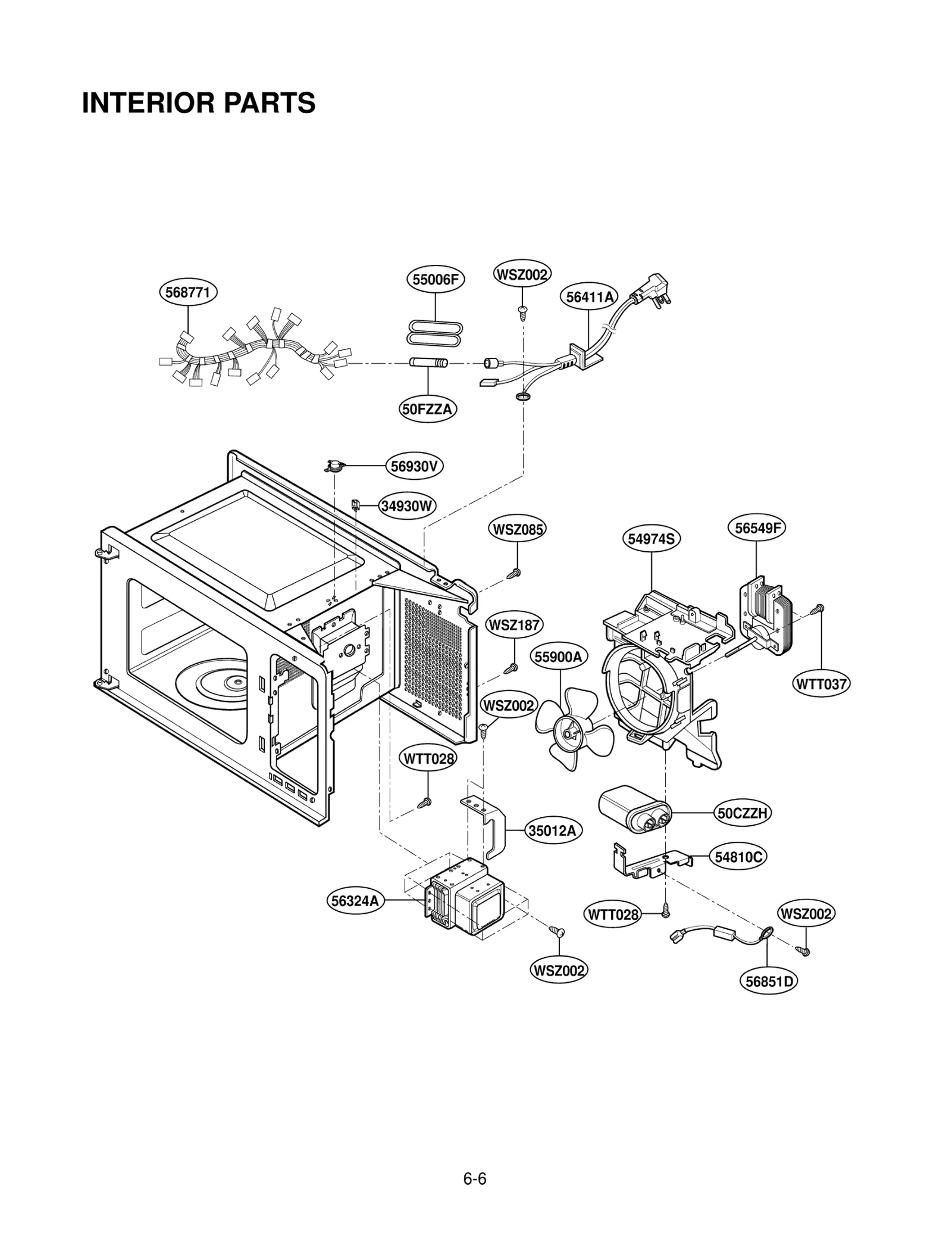

HARNESS LGE 6877W1A187J Contact Us For Availability
948501
LGE 4850W1A005B LGE 4850W1A005B Contact Us For Availability
C11
CAPACITOR ELECTROLYTIC KCN21C2 LGE 0CE4776H618 Contact Us For Availability
C12
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE2276H638 Contact Us For Availability
C13
CAPACITOR ELECTROLYTIC LGE 0CE1076D638 Contact Us For Availability
C15
CAPACITOR,FIXED CERAMIC(High d LGE 0CK1040K948 Contact Us For Availability
C16
CAPACITOR ELECTROLYTIC CE,47MF LGE 0CE4766K638 Contact Us For Availability
C25
CAPACITOR,FIXED CERAMIC(High d LGE 0CK2230K948 Contact Us For Availability
C81
CAPACITOR,FIXED CERAMIC(High d LGE 0CK1020K518 Contact Us For Availability
CN1
CONNECTOR (CIRC),WAFER LGE 6630W5YA12D Contact Us For Availability
CN3
KEY CONNECTOR FCZ254-12D MH-13 LGE 6630W5YA19D Contact Us For Availability
D11
DIODE IN4002,MA-1354P,1554M *N LGE 0DD400209AA Contact Us For Availability
D30
DIODE SWIT, 1N4148, MA-654MQ LGE 0DD414809AA Contact Us For Availability
D84
DIODE 1N4148M (ROHM KOREA) MA- LGE 0DD414809AB Contact Us For Availability
DP1
DIGITRON, ALL LGE 6302W5A002A Contact Us For Availability
PT1
POWER TRANS 120/60 UL,18V/9 SE LGE 6010W2P037A Contact Us For Availability
Q11
TRANSISTOR,BIPOLARS LGE 0TRFC80002A Contact Us For Availability
Q20
TRANSISTOR,BIPOLARS LGE 0TRFC90012A Contact Us For Availability
Q32
TRANSISTOR,BIPOLARS LGE 0TRFC90002A Contact Us For Availability
Q70
TRANSISTOR,BIPOLARS LGE 0TRFC90021A Contact Us For Availability
R1
LGE 0RN2702F408 LGE 0RN2702F408 Contact Us For Availability
R5
RESISTOR,FIXED METAL FILM LGE 0RN4702F408 Contact Us For Availability
R6
RESISTOR,FIXED METAL FILM LGE 0RN4702G408 Contact Us For Availability
R11
Resistor,Carbon Film LGE 0RD1501F608 Contact Us For Availability
R12
Resistor,Carbon Film LGE 0RD1002F608 Contact Us For Availability
R14
LGE 0RD0471G608 LGE 0RD0471G608 Contact Us For Availability
R16
LGE 0RD1003G608 LGE 0RD1003G608 Contact Us For Availability
R21
Resistor,Carbon Film LGE 0RD2202F608 Contact Us For Availability
R23
LGE 0RD2700G608 LGE 0RD2700G608 Contact Us For Availability
R25
FIXED CARBON FILM 4.7K UG8*NSP LGE 0RD4701F608 Contact Us For Availability
R26
RESISTOR FIXED CARBON FILM 47K LGE 0RD4702F608 Contact Us For Availability
R27
RESISTOR FIXED CARBON FILM 1.0 LGE 0RD1001G608 Contact Us For Availability
R31
Resistor,Carbon Film LGE 0RD1000F608 Contact Us For Availability
R32
LGE 0RD2001G608 LGE 0RD2001G608 Contact Us For Availability
R50
Resistor,Carbon Film LGE 0RD4701G608 Contact Us For Availability
R55
FIXED CARBON FILM 1M-J *NSP LGE 0RD1004F608 Contact Us For Availability
R71
RESISTOR FIXED CARBON FILM 100 LGE 0RD1003F608 Contact Us For Availability
R80
LGE 0RN2202G408 LGE 0RN2202G408 Contact Us For Availability
R83
RESISTOR,FIXED METAL FILM LGE 0RN5602F408 Contact Us For Availability
R85
RESISTOR FIXED CARBON FILM 10 LGE 0RD0102F608 Contact Us For Availability
R95
Resistor,Metal Film LGE 0RN4701F408 Contact Us For Availability
RY1
RELAY LGE 6920WRD008A Contact Us For Availability
RY2
RELAY LGE 6920W5A009A Contact Us For Availability
RY3
RELAY OJ-SS-112LM MA-693M MA-6 LGE 6920W2D010A Contact Us For Availability
U01
IC,DRAWING LGE 0IZZW5A164D Contact Us For Availability
WSZ187
SCREW, LGE 1SZZW2A002B Contact Us For Availability
ZD1
DIODE ZENER UZ5.1BS TP26 SM 0 LGE 0DZ510009AE Contact Us For Availability
ZD2
DIODE,ZENERS LGE 0DZ750009QA Contact Us For Availability
× ![]()
