Model LG MA-784B – Common Parts & Diagrams

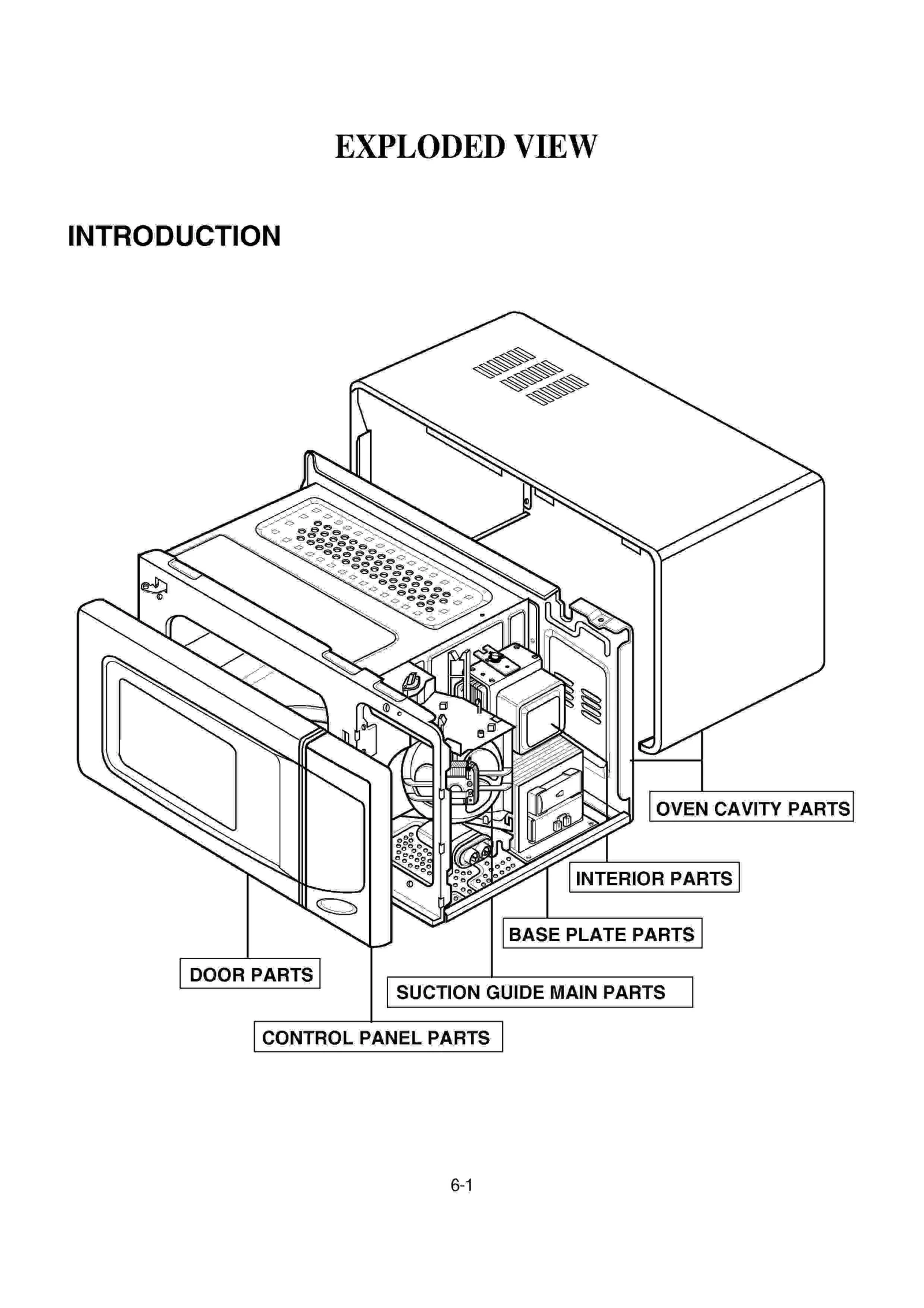

Diagram 0
Diagram 1
Diagram 2
Diagram 3
Diagram 4
Diagram 5
Diagram 6
Common parts from model LG MA-784B
*01
LGE 3828W5A0317 LGE 3828W5A0317 Contact Us For Availability
*02
SM: MA-784B LGE 3828W5S0292 Contact Us For Availability
*10
BOX,[YELLOW] LGE 3890W2Y087A Contact Us For Availability
50CZZH
H.V. CAPACITOR 0.76UF/2100V LGE 6120W3H003C Contact Us For Availability
50FZZA
Fuse,Non Time Delay LGE 3B74133F Contact Us For Availability
13213A
DOOR FRAME ASSY ALL MS-71CM,PA LGE 3213W1A027B Contact Us For Availability
13352A
LGE 3352W2A040B LGE 3352W2A040B Contact Us For Availability
13536A
SEAL TAPE ALL MA780M LGE 3536WRA001J Contact Us For Availability
13552A
CHOKE COVER ALL MS-71CM,PP MS- LGE 3552W1A023A Contact Us For Availability
13581A
LGE 3581W1A125B LGE 3581W1A125B Contact Us For Availability
13720D
PANEL,DOOR LGE 3720W0D083K Contact Us For Availability
14026A
LATCH (ALL) LGE 4026W2A011A Contact Us For Availability
23550D
DIGITRON COVER MS-101 S 121 S LGE 3550W4A029B Contact Us For Availability
23572A
CONTROL PANEL,ALL LGE 3572W0A106K Contact Us For Availability
24510L
LEVER,RELEASE LGE 4510W3L004A Contact Us For Availability
24781M
CONTROLLER ASSEMBLY,[MICOM] LGE 4781W1M156A Contact Us For Availability
26638A
KEY MEMBRANE, ALL LGE 6638W2A070A Contact Us For Availability
33052M
CANOPY MICA MS-71MC MICA SHEET LGE 3052W3M005A Contact Us For Availability
33112U
OUT CASE,U-BENDING LGE 3112W0U022D Contact Us For Availability
33390G
GLASS TRAY LGE 3390W1G005A Contact Us For Availability
33461Z
LGE 3461W1A034E LGE 3461W1A034E Contact Us For Availability
33550H
LGE 3550W2A086B LGE 3550W2A086B Contact Us For Availability
34810H
LGE 4810W3G065A LGE 4810W3G065A Contact Us For Availability
35026G
SHELF LGE 3750W2A003J Contact Us For Availability
35264A
LGE 5264W1A010A LGE 5264W1A010A Contact Us For Availability
35300A
LGE 5300W2A006N LGE 5300W2A006N Contact Us For Availability
35301A
LGE 5301W1E001B LGE 5301W1E001B Contact Us For Availability
36549S
MOTOR SYNCHRONOUS 120V,60HZ,3R LGE 2B72754M Contact Us For Availability
43500A
BOARD LATCH MA-880M/680M/681M LGE 3500WRA001A Contact Us For Availability
43501A
BOARD ASSY LATCH MA-6802,MA-68 LGE 3501WRA001E Contact Us For Availability
53551S
LGE 3550W2A088A LGE 3550W2A088A Contact Us For Availability
54810C
BRACKET HVC MS-72CM,HORIZON LGE 4810W3C001A Contact Us For Availability
54811A
BRACKET ASSY,ALL LGE 4B74615J Contact Us For Availability
54974S
GUIDE,SUCTION LGE 4974W0S009C Contact Us For Availability
55006F
CAP ALL FUSE CAP,NEUTRAL MS-71 LGE 5006W3A011A Contact Us For Availability
56170D
TRANSFORMER HIGH VOLTAGE 120V LGE 6010W2H100A Contact Us For Availability
56324A
MAGNETRON LGE 2B71732B Contact Us For Availability
56411A
POWER CORD ASSY AWG18 SPT-2,UL LGE 2B72325K Contact Us For Availability
56549F
MOTOR FAN 120V/60HZ MS-71MD JC LGE 6549W2F017A Contact Us For Availability
56820A
FUSE HOLDER CLIP MS-152MC MS-7 LGE 6820W3A001A Contact Us For Availability
56930M
THERMOSTAT,BIMETAL LGE 6930W1A002C Contact Us For Availability
63302A
BASE PLATE,ALL LGE 3302W1A043A Contact Us For Availability
63303A
LGE 3303W1A035A LGE 3303W1A035A Contact Us For Availability
250201
BUTTON,RELEASE LGE 5020W2G096F Contact Us For Availability
268711
PWB(PCB) ASSY,[MAIN] LGE 6871W2S062D Contact Us For Availability
348102
LGE 4810W3G085A LGE 4810W3G085A Contact Us For Availability
368771
LEAD WIRE ASSY TT MS-71CM(T/T LGE 6877WRT007D Contact Us For Availability
568771
LGE 6877W1T253A LGE 6877W1T253A Contact Us For Availability
647781
PLASTIC FOOT LEG MA-1260M WGE LGE 4B70770A Contact Us For Availability
AR4
RESISTOR ARRAY LGE 0RZ4702G610 Contact Us For Availability
BZ1
LGE 6908W3YA01A LGE 6908W3YA01A Contact Us For Availability
C01
LGE 0CK2230K935 LGE 0CK2230K935 Contact Us For Availability
C02
LGE 0CE1071K638 LGE 0CE1071K638 Contact Us For Availability
C03
CAPACITOR ELECTROLYT 220UF SME LGE 0CE2272H638 Contact Us For Availability
C06
LGE 0CE4761K638 LGE 0CE4761K638 Contact Us For Availability
C12
LGE 0CK1030H518 LGE 0CK1030H518 Contact Us For Availability
C14
CAPACITOR CERAMIC (HIGH DIELE LGE 0CK2230H518 Contact Us For Availability
CN1
Connector,Wafer LGE 6630W5V009A Contact Us For Availability
CN3
LGE 6630W5YA19C LGE 6630W5YA19C Contact Us For Availability
D03
DIODE IN4002,MA-1354P,1554M *N LGE 0DD400209AA Contact Us For Availability
D06
DIODE 1N4148M (ROHM KOREA) MA- LGE 0DD414809AB Contact Us For Availability
D14
DIODE SWIT, 1N4148, MA-654MQ LGE 0DD414809AA Contact Us For Availability
DP1
DIGITRON 6-BT-199GN(NEW DEMO) LGE 6302W5YA02A Contact Us For Availability
PT1
POWER TRANS 120/60 UL,18V/9 SE LGE 6010W2P037A Contact Us For Availability
Q02
TRANSISTOR (A1015 OR A1266)MA- LGE 0TR101509AB Contact Us For Availability
Q03
LGE 0TR181509AB LGE 0TR181509AB Contact Us For Availability
R02
Resistor,Carbon Film LGE 0RD2202F608 Contact Us For Availability
R05
Resistor,Carbon Film LGE 0RD2701F608 Contact Us For Availability
R06
Resistor,Carbon Film LGE 0RD1002F608 Contact Us For Availability
R09
Resistor,Carbon Film LGE 0RD7500F608 Contact Us For Availability
R10
RESISTOR FIXED CARBON FILM 100 LGE 0RD1003F608 Contact Us For Availability
R11
FIXED CARBON FILM 1M-J *NSP LGE 0RD1004F608 Contact Us For Availability
R16
Resistor,Carbon Film LGE 0RD5600F608 Contact Us For Availability
R19
RESISTOR FIXED CARBON FILM 47K LGE 0RD4702F608 Contact Us For Availability
R21
RESISTOR FIXED CARBON FILM 3.9 LGE 0RD3901F608 Contact Us For Availability
R25
Resistor,Carbon Film LGE 0RD1501F608 Contact Us For Availability
R33(OPTION
FIXED CARBON FILM 4.7K UG8*NSP LGE 0RD4701F608 Contact Us For Availability
R35
Resistor,Carbon Film LGE 0RD5601F608 Contact Us For Availability
R36
Resistor,Carbon Film LGE 0RD2700F608 Contact Us For Availability
R39
Resistor,Carbon Film LGE 0RD0471F608 Contact Us For Availability
RY1
RELAY LGE 6920W5A008A Contact Us For Availability
RY2
RELAY OZF-S-112LM1P DC12V MV-1 LGE 6920W2YD04A Contact Us For Availability
RY3
Relay,Contact LGE 6920W2D014A Contact Us For Availability
U01
IC,DRAWING LGE 0IZZW5A024A Contact Us For Availability
WSZ186
Screw,Customized LGE 1SZZW3A001A Contact Us For Availability
ZD1
DIODE ZENER UZ5.1BS TP26 SM 0 LGE 0DZ510009AE Contact Us For Availability
ZD2
DIODE ZENER MA-885M SGESEA LGE 0DZ560009AB Contact Us For Availability
× ![]()
