Model LG MA-7801L – Common Parts & Diagrams

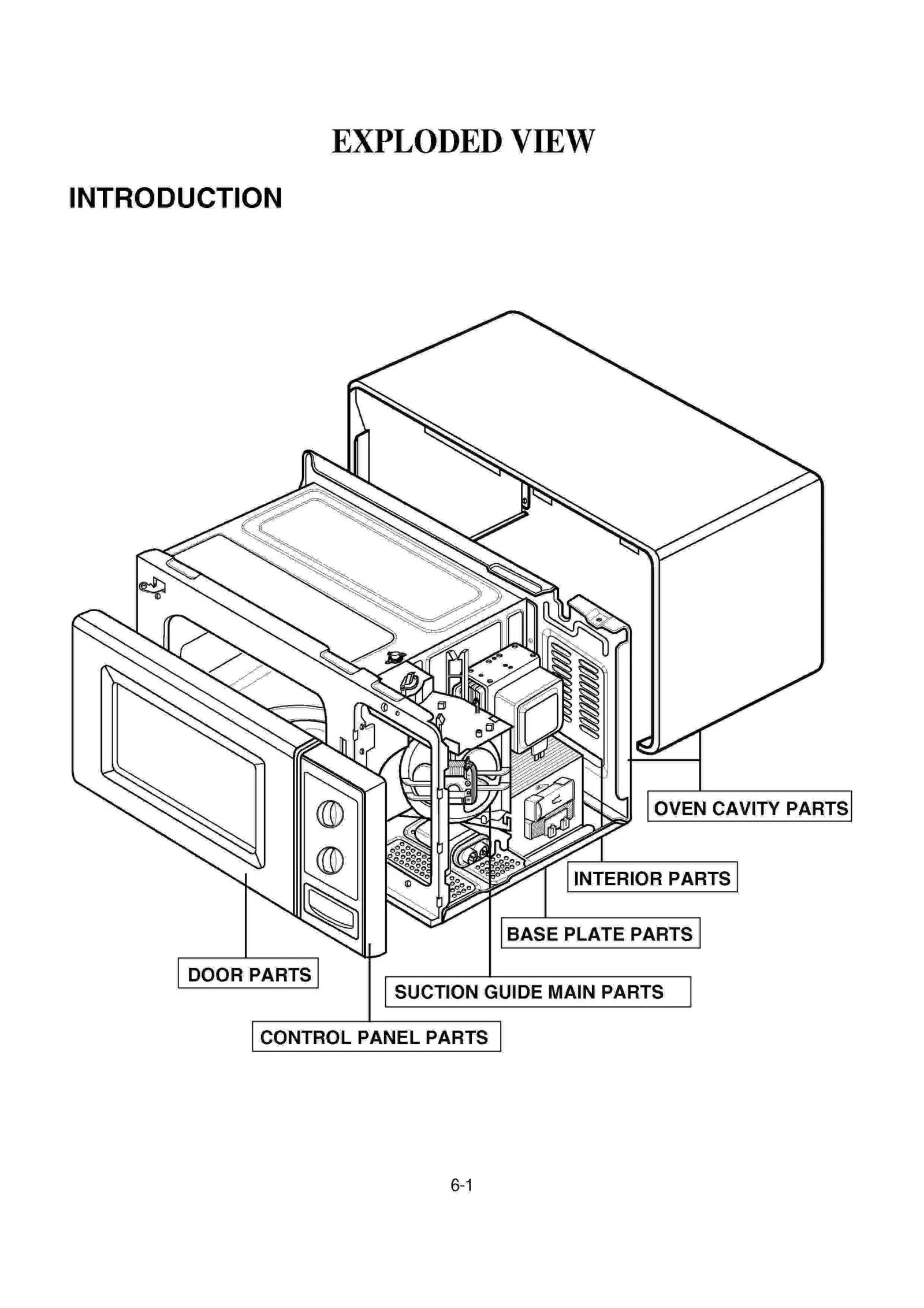

Diagram 0
Diagram 1
Diagram 2
Diagram 3
Diagram 4
Diagram 5
Diagram 6
Common parts from model LG MA-7801L
*01
OM: MA-7801 LGE 3828W5A0198 Contact Us For Availability
*02
SM: MA-7801 LGE 3828W5S0185 Contact Us For Availability
*10
BOX,[YELLOW] LGE 3890W2Y060A Contact Us For Availability
50CZZH
CAPACITOR,DRAWING[HIGH VOLTAGE LGE 0CZZW1H002A Contact Us For Availability
50FZZA
Fuse,Non Time Delay LGE 3B74133F Contact Us For Availability
13213A
DOOR FRAME ASSY ALL MS-71CM,PA LGE 3213W1A027B Contact Us For Availability
13352A
FRONT SCREEN LGE 3352W2A039D Contact Us For Availability
13536A
SEAL TAPE ALL MA780M LGE 3536WRA001J Contact Us For Availability
13552A
CHOKE COVER ALL MS-71CM,PP MS- LGE 3552W1A023A Contact Us For Availability
13581A
DOOR ASSY,GROSS LGE 3581W1A143U Contact Us For Availability
13720D
LGE 3720W1D100A LGE 3720W1D100A Contact Us For Availability
14026A
LATCH (ALL) LGE 4026W2A011A Contact Us For Availability
23572A
LGE 3572W1A111F LGE 3572W1A111F Contact Us For Availability
24510L
LEVER RELEASE MS-72CM MC-122MC LGE 4510W3L002A Contact Us For Availability
24781T
LGE 4781W1T042F LGE 4781W1T042F Contact Us For Availability
26549T
TIMER MOTOR SWITCH SEARS 8901 LGE 2B71446B Contact Us For Availability
33112U
LGE 3112W2U003U LGE 3112W2U003U Contact Us For Availability
33390G
GLASS TRAY LGE 3390W1G005A Contact Us For Availability
33461Z
CAVITY ASSY ALL LGE 3461W1A034B Contact Us For Availability
33502M
CANOPY MICA MS-71MC MICA SHEET LGE 3052W3M005A Contact Us For Availability
34036W
SEAL,WATER LGE 4036W3W001A Contact Us For Availability
36549S
MOTOR SYNCHRONOUS 120V,60HZ,3R LGE 2B72754M Contact Us For Availability
43500A
BOARD LATCH MA-880M/680M/681M LGE 3500WRA001A Contact Us For Availability
43501A
BOARD ASSY LATCH MA-6802,MA-68 LGE 3501WRA001E Contact Us For Availability
54810C
BRACKET HVC MS-72CM,HORIZON LGE 4810W3C001A Contact Us For Availability
54974S
GUIDE,SUCTION LGE 4974W0S009C Contact Us For Availability
55006F
CAP ALL FUSE CAP,NEUTRAL MS-71 LGE 5006W3A011A Contact Us For Availability
56170D
HV TRANSFORMER LGE 6010WRH005D Contact Us For Availability
56324A
MAGNETRON LGE 2B71732B Contact Us For Availability
56411A
POWER CORD ASSY AWG18 SPT-2,UL LGE 2B72325K Contact Us For Availability
56549F
MOTOR FAN 120V/60HZ MS-71MD JC LGE 6549W2F017A Contact Us For Availability
56820A
FUSE HOLDER CLIP MS-152MC MS-7 LGE 6820W3A001A Contact Us For Availability
56930V
THERMOSTAT HORIZONTAL 90/75,PA LGE 6930WRT001C Contact Us For Availability
63302A
BASE PLATE ALL MS-72CM,LEFT MS LGE 3302W1A039A Contact Us For Availability
63302A
BASE PLATE ALL MS-72CM,RIGHT J LGE 3302W1A040A Contact Us For Availability
63303A
BASE PLATE ASSY LGE 3303W1A031B Contact Us For Availability
63303A
BASE PLATE ASSY,ALL LGE 3303W2A001A Contact Us For Availability
249401
LGE 4940W3G007R LGE 4940W3G007R Contact Us For Availability
250201
BUTTON,MWO LGE 5020W3G098M Contact Us For Availability
368771
LEAD WIRE ASSY TT MS-71CM(T/T LGE 6877WRT007D Contact Us For Availability
568771
LEAD WIRE ASSY ALL LGE 6877W1A033A Contact Us For Availability
633031
LGE 3303W1A019A LGE 3303W1A019A Contact Us For Availability
647781
LEG LGE 4B73900A Contact Us For Availability
WSZ186
Screw,Customized LGE 1SZZW3A001A Contact Us For Availability
× ![]()
