Model LG MA-2117W – Common Parts & Diagrams
Diagram 0

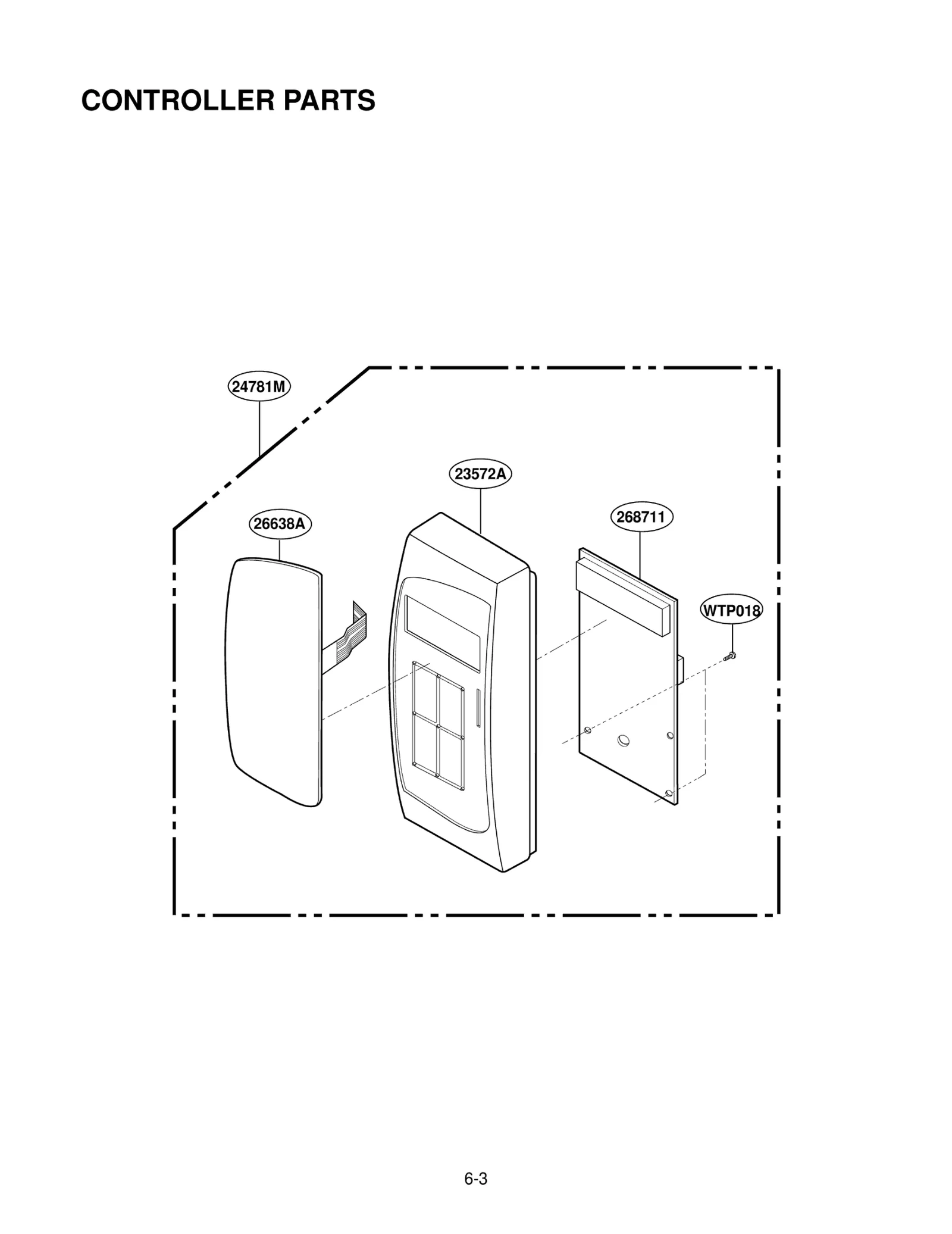

Diagram 1

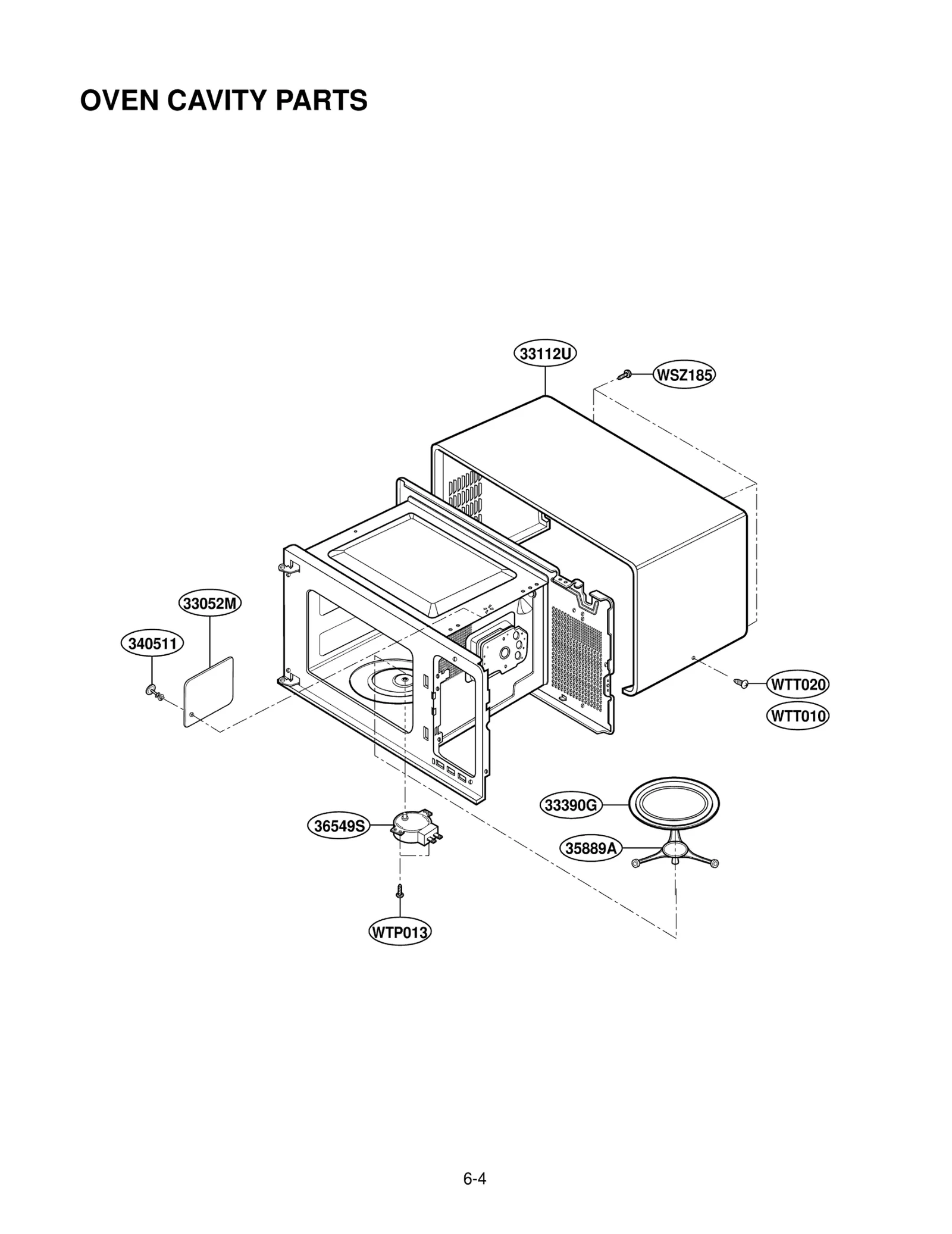

Diagram 2

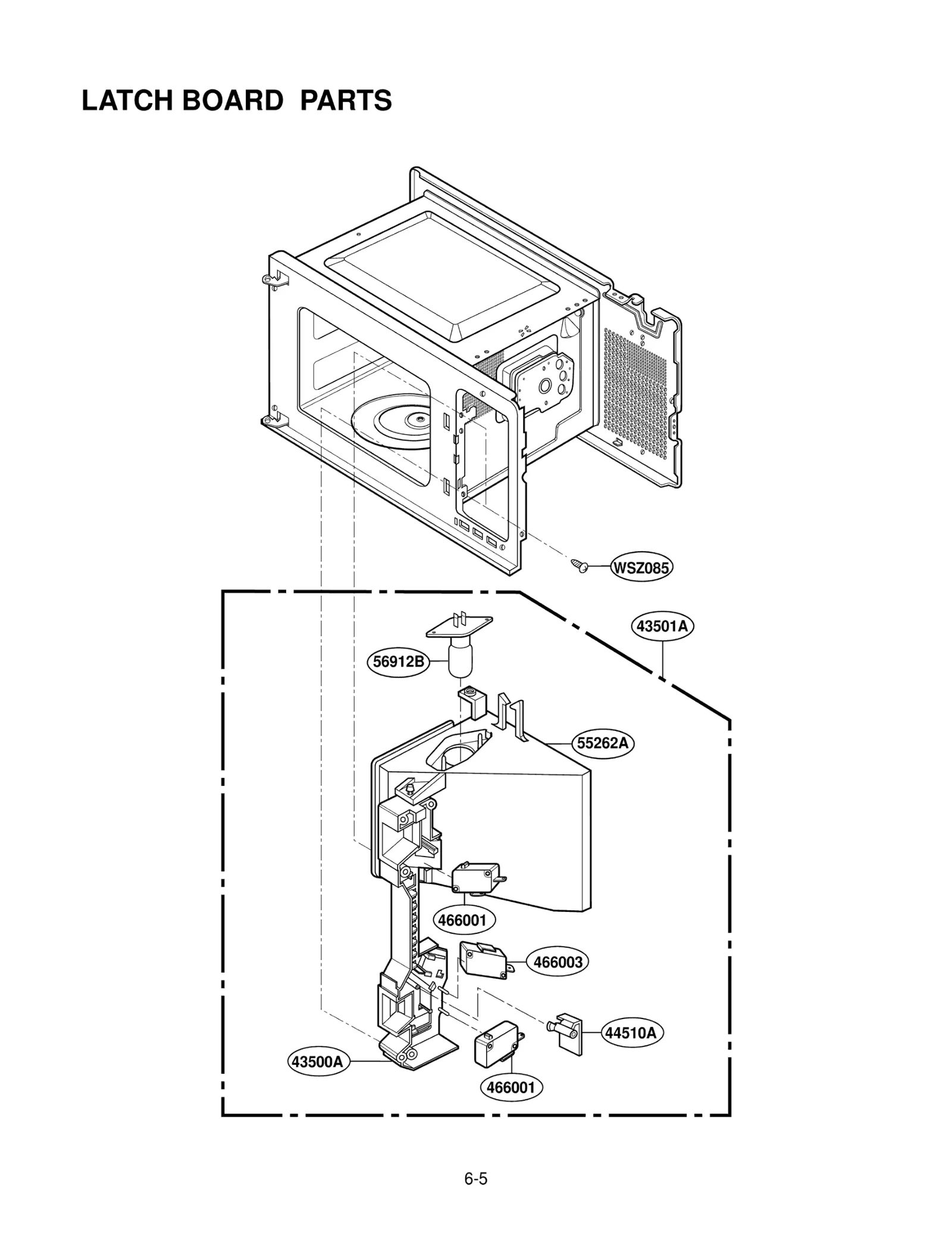

Diagram 3
Diagram 4

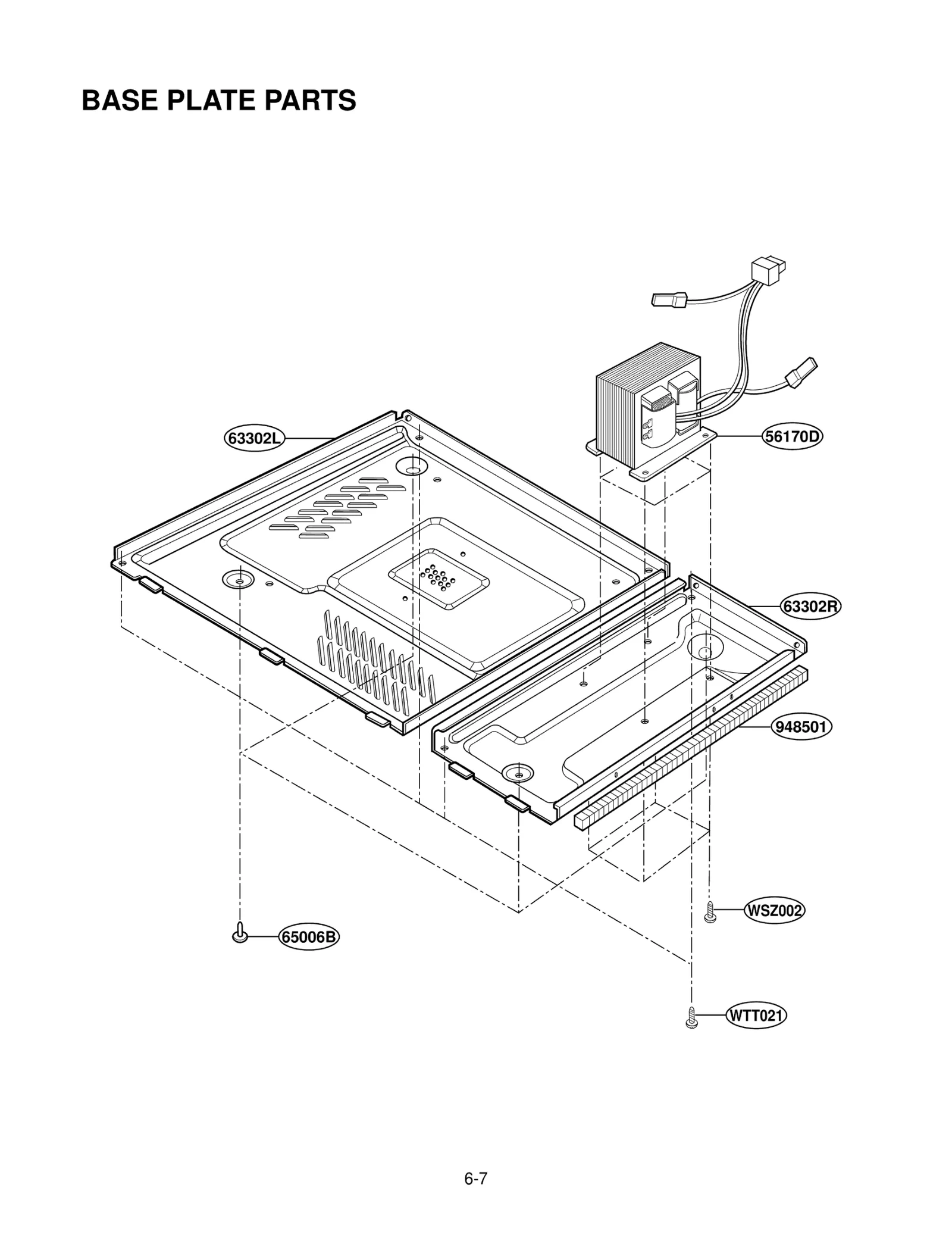

Diagram 5
Diagram 6
Common parts from model LG MA-2117W
50CZZH
Capacitor,High Voltage LGE 6120W3H002C Contact Us For Availability
33052M
CANOPY,MICA LGE 3052W3M011F Contact Us For Availability
33112U
Case,Flat LGE 3112W1F020J Contact Us For Availability
33390G
TRAY,[GLASS] LGE 3390W1G009C Contact Us For Availability
35889A
ROTATING RING ASSY,M LGE 5889W2A011B Contact Us For Availability
36549S
MOTOR(CIRC),SYNCHRONOUS LGE 6549W1S015A Contact Us For Availability
43501A
BOARD ASSEMBLY,LATCH LGE 3501W1A016M Contact Us For Availability
44510A
LEVER-SWITCH MH6110XBBO W/POOL LGE 4510W4A005A Contact Us For Availability
54810C
BRACKET HVC MA-690M,1190M,685M LGE 4810W4C003A Contact Us For Availability
54974S
GUIDE SUCTION LGE 4974W1S010A Contact Us For Availability
55006F
FUSE CAP NATURAL MA-1554M MW LGE 5006WRA002A Contact Us For Availability
55262A
AIR DUCT LGE 5262W2A043B Contact Us For Availability
55900A
PROPELLER LGE 2B72125A Contact Us For Availability
56170D
Transformer,high voltage LGE 6170W1D023B Contact Us For Availability
56170D
TRANSFORMER,HIGH VOLTAGE LGE 6170W1D023J Contact Us For Availability
56170D
Transformer,high voltage LGE 6170W1D050K Contact Us For Availability
56411A
Power Cord Assembly LGE 2B72325H Contact Us For Availability
56411A
POWER CORD ASSY LGE 6411W1A002M Contact Us For Availability
56549F
MOTOR(CIRC),FAN LGE 6549W1F001E Contact Us For Availability
63302L
Plate,Base LGE 3302W0A014A Contact Us For Availability
63302R
LGE 3302W1A046B LGE 3302W1A046B Contact Us For Availability
268711
PCB Assembly,Sub LGE 6871W2S162A Contact Us For Availability
568771
Single Harness LGE 6877W1A251A Contact Us For Availability
MAY000
BOX,[LABEL] LGE 3890W2L004G Contact Us For Availability
× ![]()
