Model LG MA-1905B – Common Parts & Diagrams
Diagram 0
Diagram 1

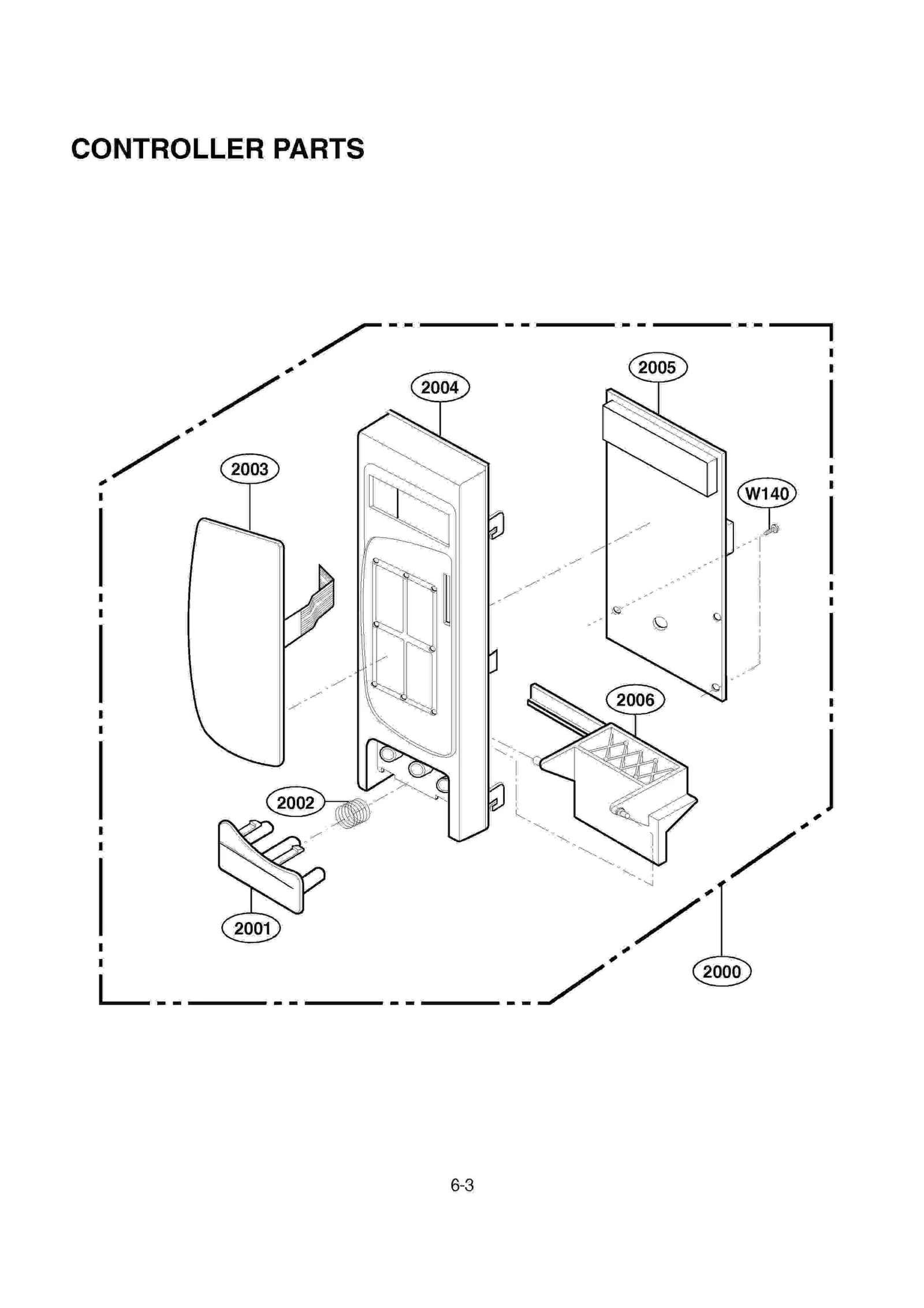

Diagram 2

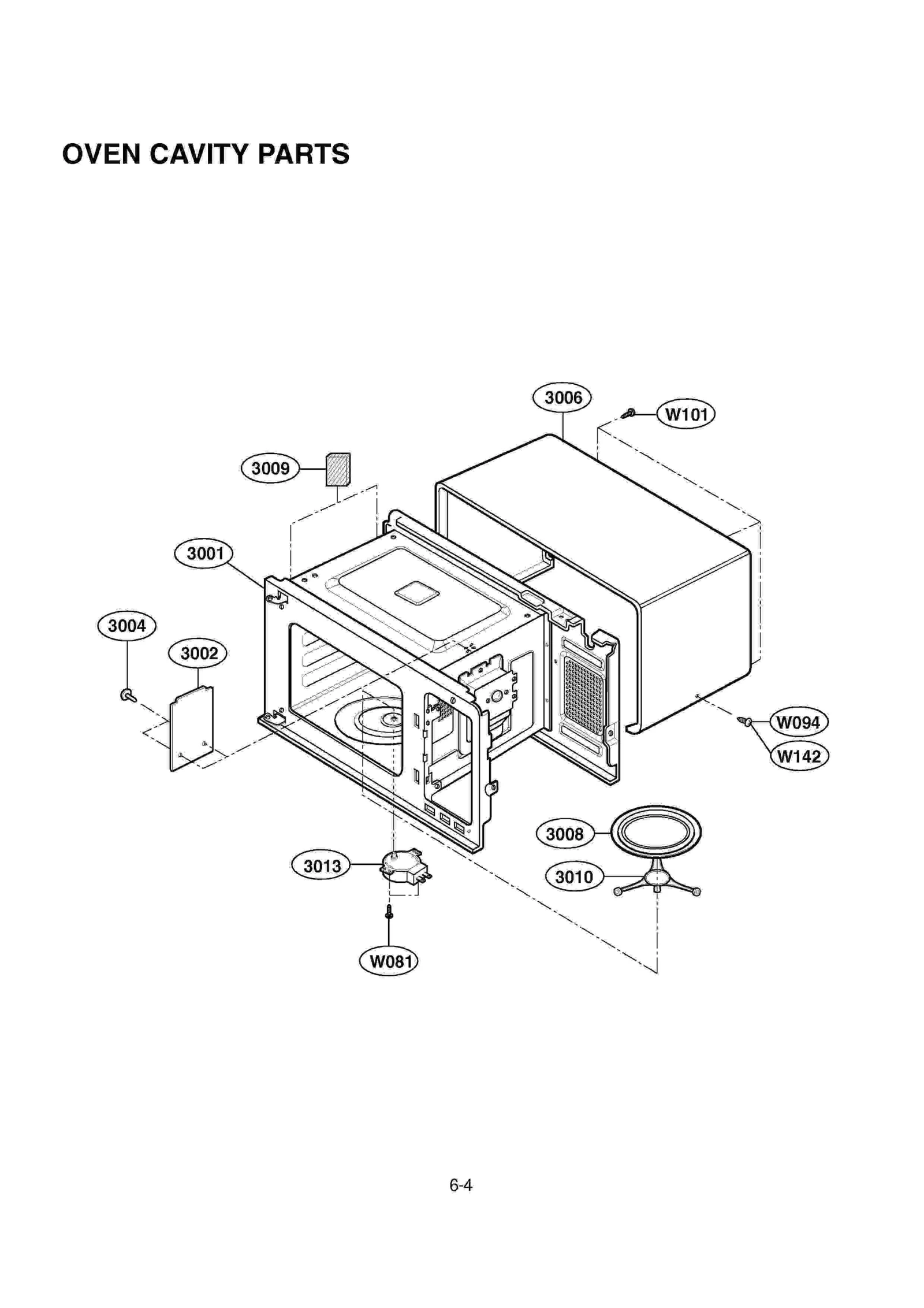

Diagram 3

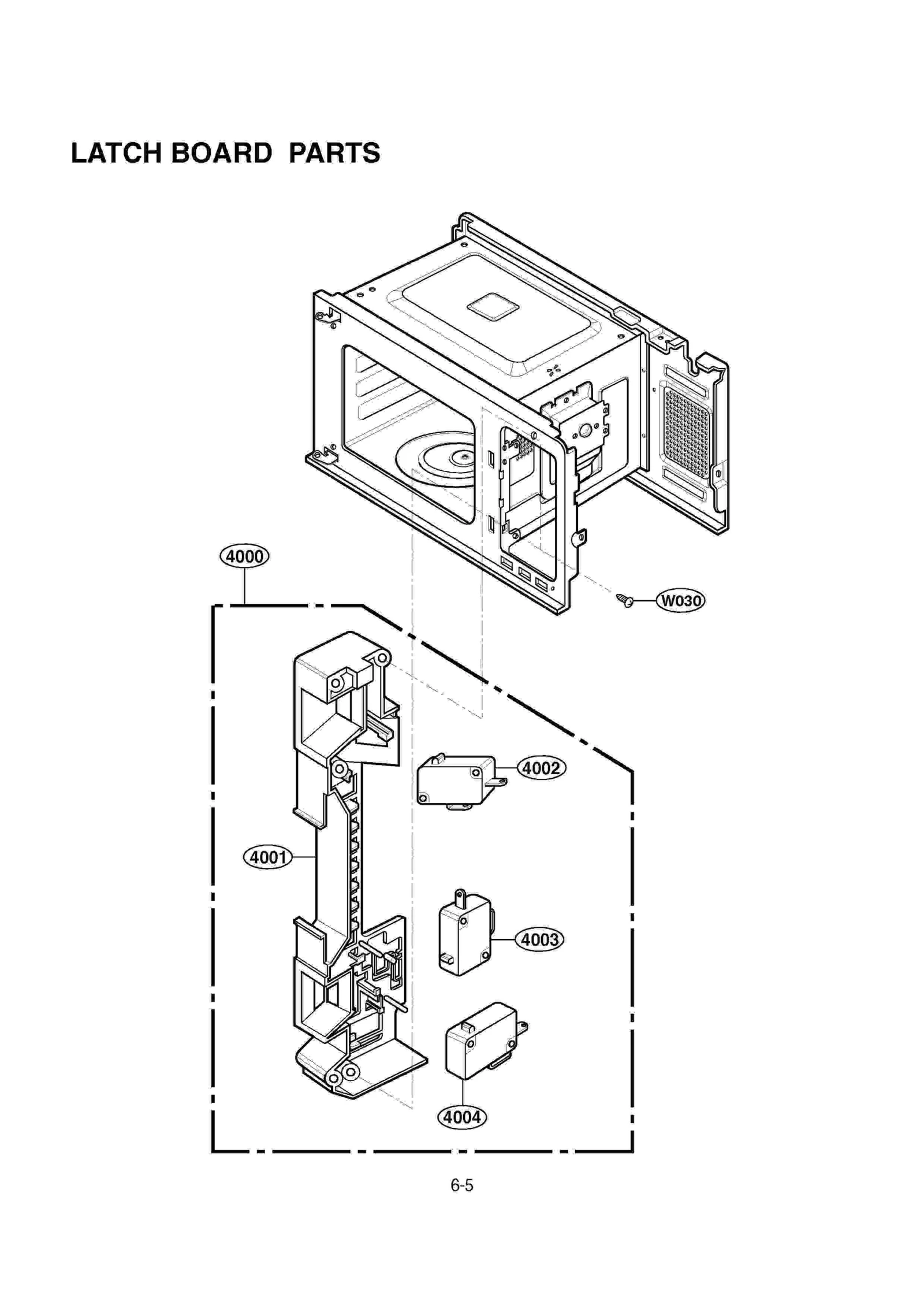

Diagram 4

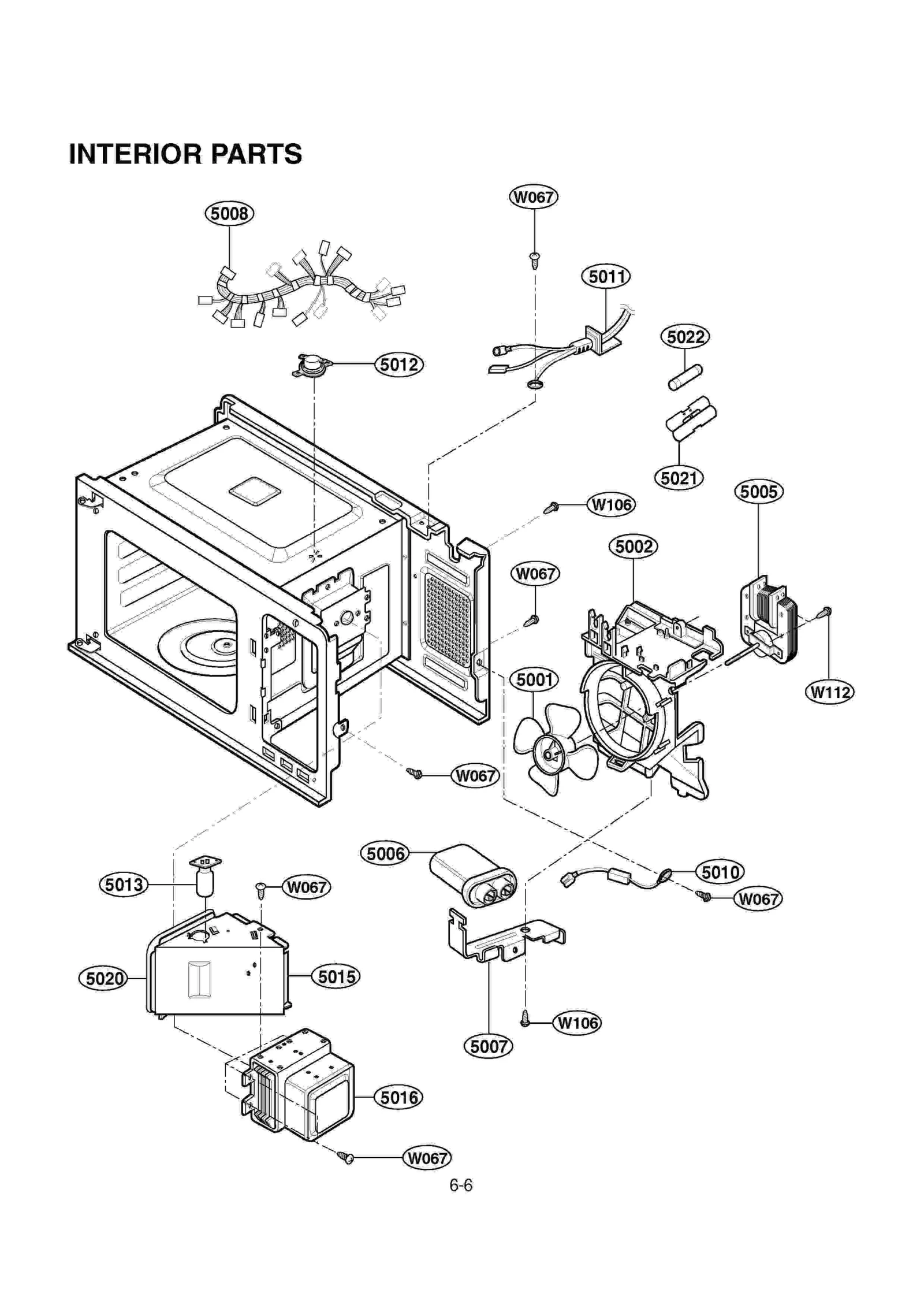

Diagram 5

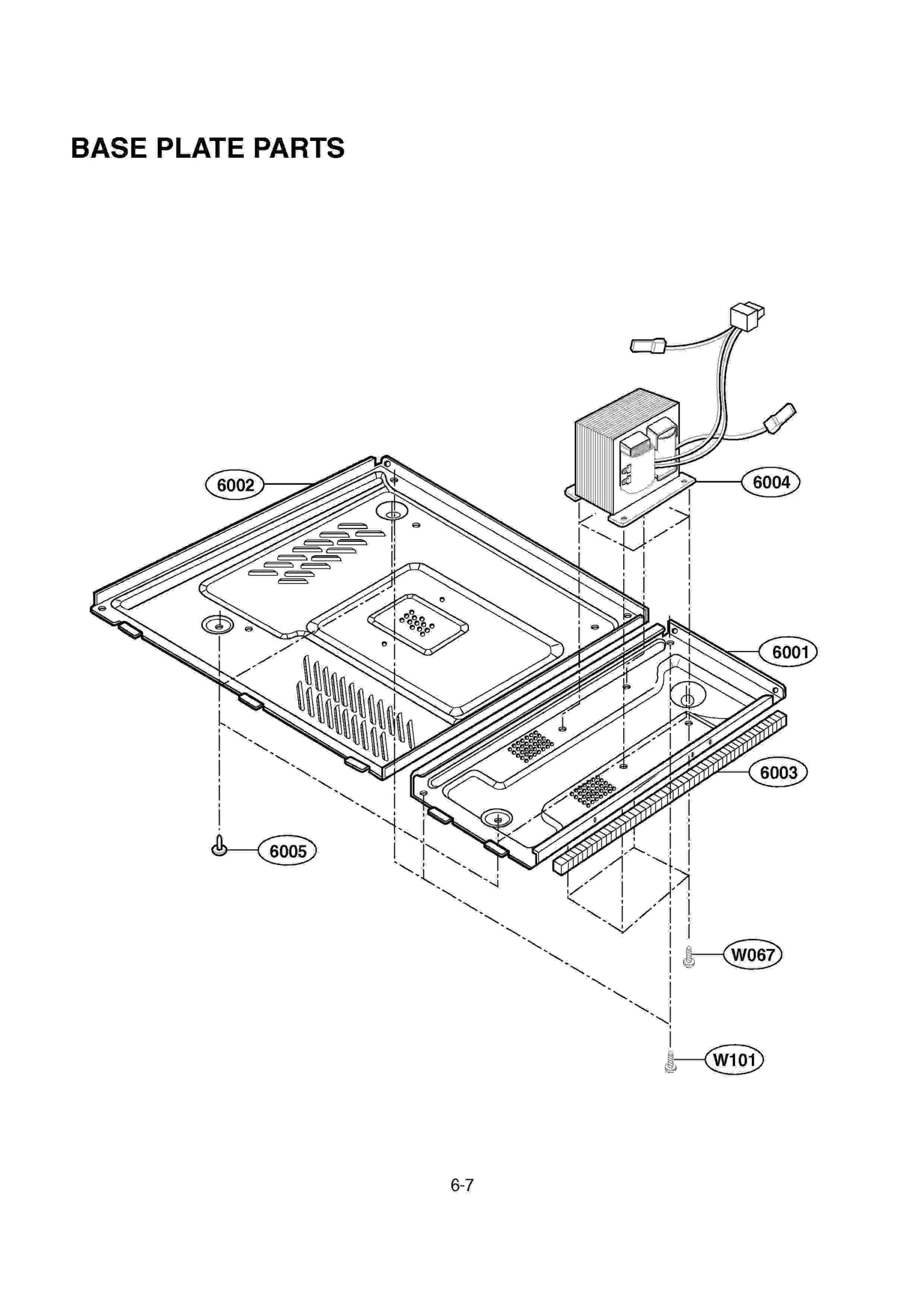

Diagram 6
Common parts from model LG MA-1905B
*01
MANUAL,OWNERS(MWO) LGE 3828W5A0827 Contact Us For Availability
*02
SM:MA1905W/B LGE 3828W5S0754 Contact Us For Availability
*10
BOX,[YELLOW] LGE 3890W2Y174B Contact Us For Availability
13213A
Frame Assembly,Door LGE 3213W0A001G Contact Us For Availability
13352A
FRONT SCREEN,ALL LGE 3352W1A092A Contact Us For Availability
13536A
SEAL TAPE LGE 3536WRA001Q Contact Us For Availability
13552A
Cover,Choke LGE 3552W1A035A Contact Us For Availability
13581A
DOOR GROSS ASSY LGE 3581W1A156D Contact Us For Availability
13720D
LGE 3720W0D115B LGE 3720W0D115B Contact Us For Availability
14026A
LATCH (ALL) - SEARS LGE 4026W2A012A Contact Us For Availability
23550D
DIGITRON COVER MS-101 S 121 S LGE 3550W4A029B Contact Us For Availability
23572A
CONTROL PANEL,ALL LGE 3572W1A149C Contact Us For Availability
24510L
LEVER RELEASE MS-72CM MC-122MC LGE 4510W3L002A Contact Us For Availability
24781M
LGE 4781W1M154B LGE 4781W1M154B Contact Us For Availability
26638A
KEY MEMBRANE LGE 6638W2A183C Contact Us For Availability
33052M
CANOPY MICA LGE 3052W3M008A Contact Us For Availability
33112U
LGE 3112W0U028J LGE 3112W0U028J Contact Us For Availability
33390G
TRAY,GLASS LGE 3390W1G006A Contact Us For Availability
33461Z
CAVITY ASSY LGE 3461W1A041B Contact Us For Availability
35889A
ROTATING RING ASSY,M LGE 5889W2A011B Contact Us For Availability
36549S
MOTOR(CIRC),SYNCHRONOUS LGE 6549W1S011C Contact Us For Availability
43500A
BOARD LATCH MS-101 S 121 S 151 LGE 3500W1A004A Contact Us For Availability
54810C
BRACKET HVC MA-690M,1190M,685M LGE 4810W4C003A Contact Us For Availability
54974S
GUIDE SUCTION LGE 4974W1S010A Contact Us For Availability
55006F
FUSE CAP NATURAL MA-1554M MW LGE 5006WRA002A Contact Us For Availability
55900A
PROPELLER LGE 2B72125A Contact Us For Availability
56170D
TRANSFORMER,HIGH VOL LGE 6170W1D008A Contact Us For Availability
56324A
MAGNETRON LGE 6324W1A001A Contact Us For Availability
56411A
Power Cord Assembly LGE 2B72325H Contact Us For Availability
56549F
MOTOR(CIRC),FAN LGE 6549W1F005B Contact Us For Availability
56930V
THERMOSTAT,BIMETAL LGE 6930W1A001J Contact Us For Availability
63302L
Plate,Base LGE 3302W0A014A Contact Us For Availability
63302R
Plate,Base LGE 3302W1A046A Contact Us For Availability
63303L
BASE PLATE ASSY,MWO LGE 3303W0A010A Contact Us For Availability
63303R
BASE PLATE ASSY,MWO LGE 3303W1A040A Contact Us For Availability
250201
BUTTON,MWO LGE 5020W2A091C Contact Us For Availability
268711
PWB(PCB) ASSY,SUB LGE 6871W2S009V Contact Us For Availability
568771
LEAD WIRE ASSY,ALL LGE 6877W1A088A Contact Us For Availability
948501
SHEET CHECK RM LGE 3B72244H Contact Us For Availability
948503
CUSHION 30X15X100 LGE 3B72246G Contact Us For Availability
AR4
RESISTOR ARRAY LGE 0RZ1503G610 Contact Us For Availability
BZ1
LGE 6908W3YA01A LGE 6908W3YA01A Contact Us For Availability
C01
LGE 0CK2230K935 LGE 0CK2230K935 Contact Us For Availability
C02
LGE 0CE1071K638 LGE 0CE1071K638 Contact Us For Availability
C03
CAPACITOR ELECTROLYT 220UF SME LGE 0CE2272H638 Contact Us For Availability
C05
CAPACITOR CERAMIC (HIGH DIELE LGE 0CK2230H518 Contact Us For Availability
C06
LGE 0CE4761K638 LGE 0CE4761K638 Contact Us For Availability
CN1
CONNECTOR (CIRC) WAF LGE 6630W5V021A Contact Us For Availability
CN3
KEY CONNECTOR FCZ254-12D MH-13 LGE 6630W5YA19D Contact Us For Availability
D08
DIODE 1N4148M (ROHM KOREA) MA- LGE 0DD414809AB Contact Us For Availability
D12
DIODE SWIT, 1N4148, MA-654MQ LGE 0DD414809AA Contact Us For Availability
D16
DIODE IN4002,MA-1354P,1554M *N LGE 0DD400209AA Contact Us For Availability
DP1
DIGITRON, ALL LGE 6302W5A002A Contact Us For Availability
PT1
POWER TRANS 120/60 UL,18V/9 SE LGE 6010W2P037A Contact Us For Availability
Q02
TRANSISTOR (A1015 OR A1266)MA- LGE 0TR101509AB Contact Us For Availability
R02
Resistor,Carbon Film LGE 0RD2202F608 Contact Us For Availability
R05
Resistor,Carbon Film LGE 0RD2701F608 Contact Us For Availability
R09
Resistor,Carbon Film LGE 0RD5600F608 Contact Us For Availability
R10
RESISTOR FIXED CARBON FILM 100 LGE 0RD1003F608 Contact Us For Availability
R11
FIXED CARBON FILM 1M-J *NSP LGE 0RD1004F608 Contact Us For Availability
R12
RESISTOR FIXED CARBON FILM 3.9 LGE 0RD3901F608 Contact Us For Availability
R19
RESISTOR FIXED CARBON FILM 47K LGE 0RD4702F608 Contact Us For Availability
R36
Resistor,Carbon Film LGE 0RD2700F608 Contact Us For Availability
R40
Resistor,Carbon Film LGE 0RD1002F608 Contact Us For Availability
R41
LGE 0RD2001G608 LGE 0RD2001G608 Contact Us For Availability
RY1
RELAY LGE 6920W2D010B Contact Us For Availability
RY2
Relay,Contact LGE 6920W2D014A Contact Us For Availability
U01
LGE 0IHI404318D LGE 0IHI404318D Contact Us For Availability
ZD1
DIODE ZENER UZ5.1BS TP26 SM 0 LGE 0DZ510009AE Contact Us For Availability
ZD2
DIODE ZENER MA-885M SGESEA LGE 0DZ560009AB Contact Us For Availability
× ![]()
