Model LG MA-1305B – Common Parts & Diagrams

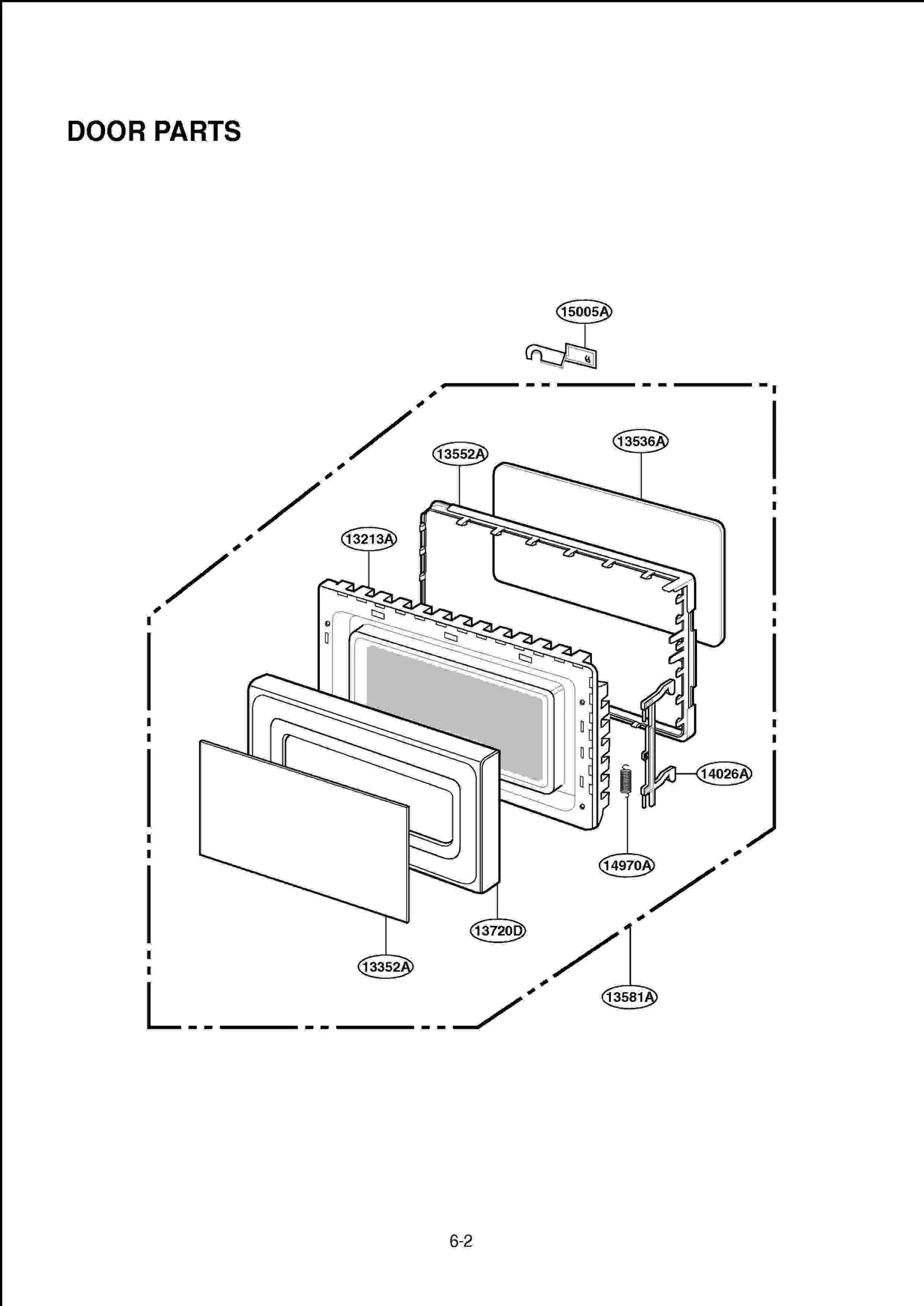

Diagram 0
Diagram 1
Diagram 2
Diagram 3
Diagram 4
Diagram 5
Diagram 6
Diagram 7
Common parts from model LG MA-1305B
*01
MANUAL OWNERS(MWO) LGE 3828W5A0391 Contact Us For Availability
*02
LGE 3828W5S0595 LGE 3828W5S0595 Contact Us For Availability
*10
LGE 3890W2Y085K LGE 3890W2Y085K Contact Us For Availability
33052M
CANOPY MICA LGE 3052W3M008B Contact Us For Availability
33112U
OUT CASE,[U-BENDING] LGE 3112W0U039D Contact Us For Availability
33390G
TRAY GLASS LGE 3390W1G004A Contact Us For Availability
34036W
SEAL,WATER LGE 4036W3W001A Contact Us For Availability
35889A
ROTATING RING ASSY A 0.9.1.0.1 LGE 5889W2A011A Contact Us For Availability
36549S
MOTOR SYNCHRONOUS 120V,60HZ LGE 2B72754K Contact Us For Availability
43500A
BOARD,LATCH LGE 3500W1A008A Contact Us For Availability
43501A
BOARD ASSEMBLY,LATCH LGE 3501W1A003U Contact Us For Availability
54810C
BRACKET HVC MS-72CM,HORIZON LGE 4810W3C001A Contact Us For Availability
54974S
LGE 4974W0S010A LGE 4974W0S010A Contact Us For Availability
56170D
TRANSFORMER HIGH VOL LGE 6170W1D007A Contact Us For Availability
56411A
POWER CORD ASSY SPT-2 AWG16/3 LGE 2B72325L Contact Us For Availability
56549F
MOTOR(CIRC) FAN 120V/60HZ,10.5 LGE 6549W2F017B Contact Us For Availability
56820A
HOLDER ALL 20A,300V MAX,LITTEL LGE 4930W3B025A Contact Us For Availability
63302L
BASE PLATE ALL LEFT,1.2CU.FT J LGE 3302W1A034A Contact Us For Availability
63302R
BASE PLATE ALL RIGHT,1.2CU.FT LGE 3302W1A033A Contact Us For Availability
63303L
BASE PLATE ASSY,ALL LGE 3303W1A026A Contact Us For Availability
63303R
BASE PLATE ASSY ALL LGE 3303W2A003A Contact Us For Availability
368771
LEAD WIRE ASSY TT MS-71CM(T/T LGE 6877WRT007D Contact Us For Availability
568771
LEAD WIRE ASSY, TT LGE 6877W1T254C Contact Us For Availability
647781
LEG LGE 4B73900A Contact Us For Availability
AR4
RESISTOR ARRAY LGE 0RZ1503G610 Contact Us For Availability
C01
LGE 0CK2230K935 LGE 0CK2230K935 Contact Us For Availability
C02
CAPACITOR ELECTROLYTIC LGE 0CE1076K638 Contact Us For Availability
C03
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE2276H638 Contact Us For Availability
C06
CAPACITOR ELECTROLYTIC CE,47MF LGE 0CE4766K638 Contact Us For Availability
C08
CAPACITOR,FIXED CERAMIC(High d LGE 0CK2230K948 Contact Us For Availability
CN1
CONNECTOR (CIRC) WAF LGE 6630W5V021A Contact Us For Availability
CN3
KEY CONNECTOR FCZ254-12D MH-13 LGE 6630W5YA19D Contact Us For Availability
D03
DIODE IN4002,MA-1354P,1554M *N LGE 0DD400209AA Contact Us For Availability
D05
DIODE 1N4148M (ROHM KOREA) MA- LGE 0DD414809AB Contact Us For Availability
DP1
DIGITRON, ALL LGE 6302W5A002A Contact Us For Availability
PT1
POWER TRANS 120/60 UL,18V/9 SE LGE 6010W2P037A Contact Us For Availability
Q05
TRANSISTOR KTA1266-TP-Y(KTA101 LGE 0TR126609AA Contact Us For Availability
R02
Resistor,Carbon Film LGE 0RD2202F608 Contact Us For Availability
R05
Resistor,Carbon Film LGE 0RD2701F608 Contact Us For Availability
R10
RESISTOR FIXED CARBON FILM 100 LGE 0RD1003F608 Contact Us For Availability
R11
FIXED CARBON FILM 1M-J *NSP LGE 0RD1004F608 Contact Us For Availability
R12
RESISTOR FIXED CARBON FILM 3.9 LGE 0RD3901F608 Contact Us For Availability
R16
Resistor,Carbon Film LGE 0RD5600F608 Contact Us For Availability
R30
Resistor,Carbon Film LGE 0RD1002F608 Contact Us For Availability
R33
RESISTOR FIXED CARBON FILM 47K LGE 0RD4702F608 Contact Us For Availability
R36
Resistor,Carbon Film LGE 0RD2700F608 Contact Us For Availability
R41
LGE 0RD2001G608 LGE 0RD2001G608 Contact Us For Availability
RY1
RELAY LGE 6920W2D010B Contact Us For Availability
RY2
Relay,Contact LGE 6920W2D014A Contact Us For Availability
U01
LGE 0IHI404318C LGE 0IHI404318C Contact Us For Availability
ZD1
DIODE ZENER UZ5.1BS TP26 SM 0 LGE 0DZ510009AE Contact Us For Availability
ZD2
DIODE ZENER MA-885M SGESEA LGE 0DZ560009AB Contact Us For Availability
× ![]()
