Model LG MA-1302W – Common Parts & Diagrams
Diagram 0
Diagram 1

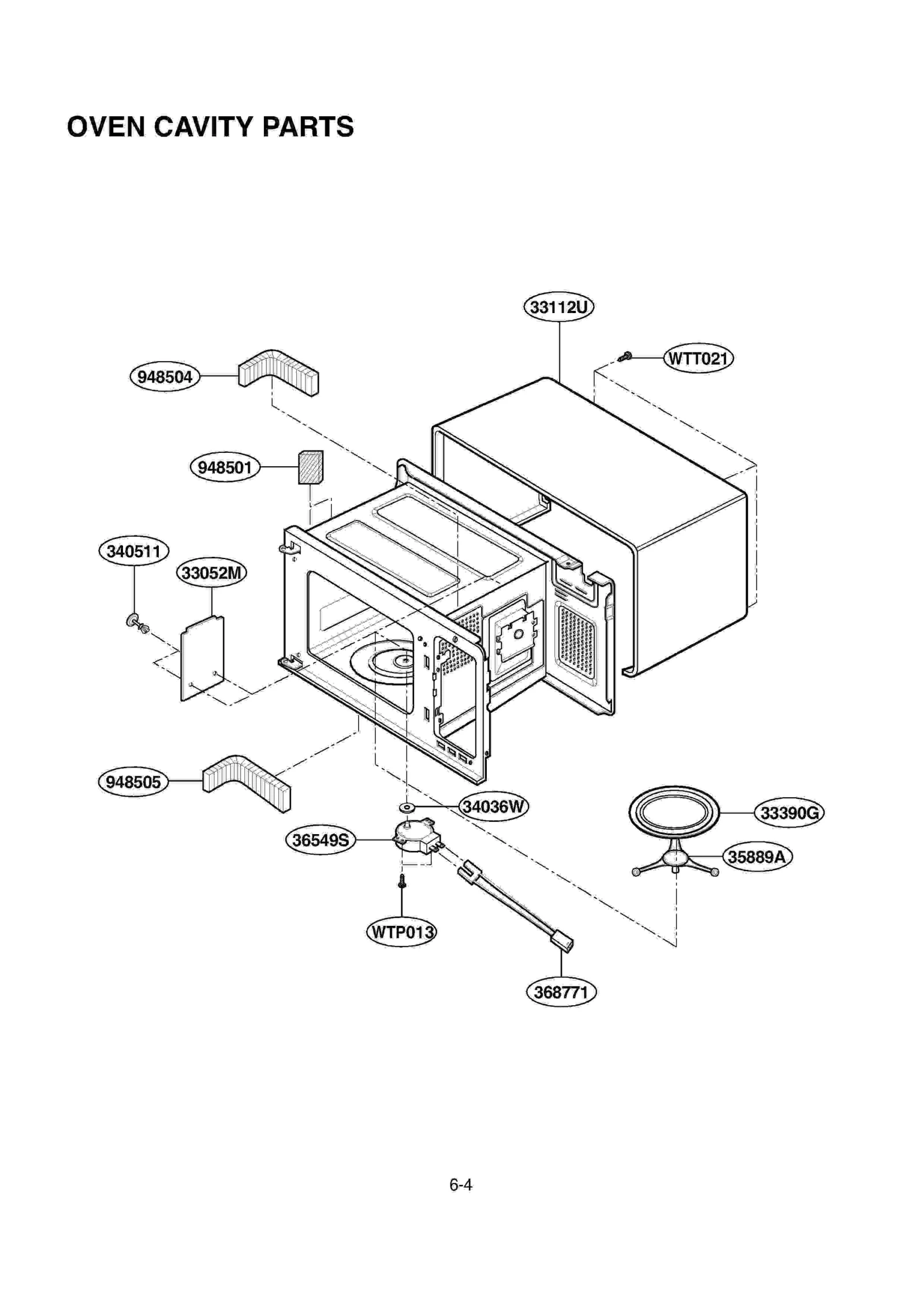

Diagram 2

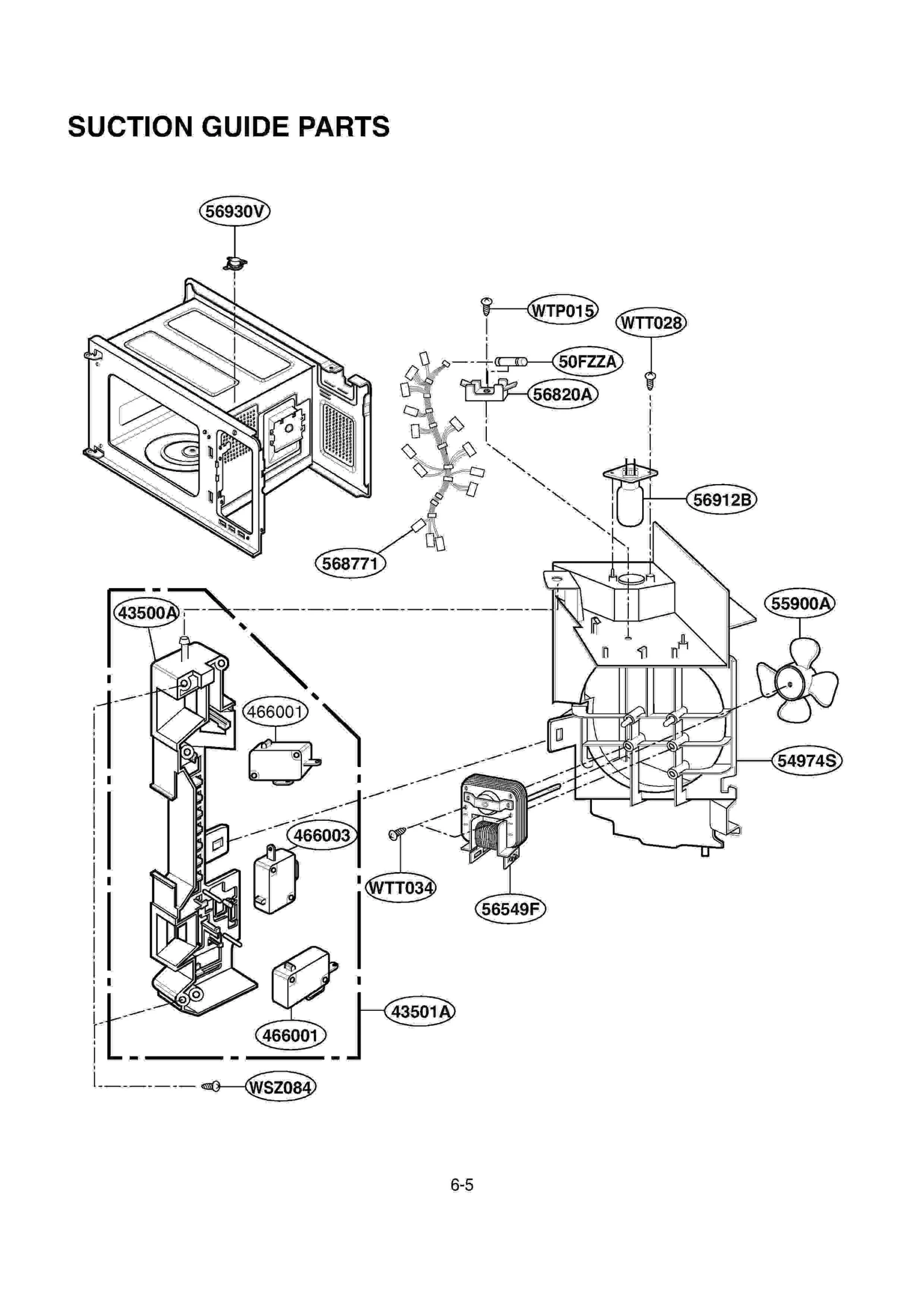

Diagram 3

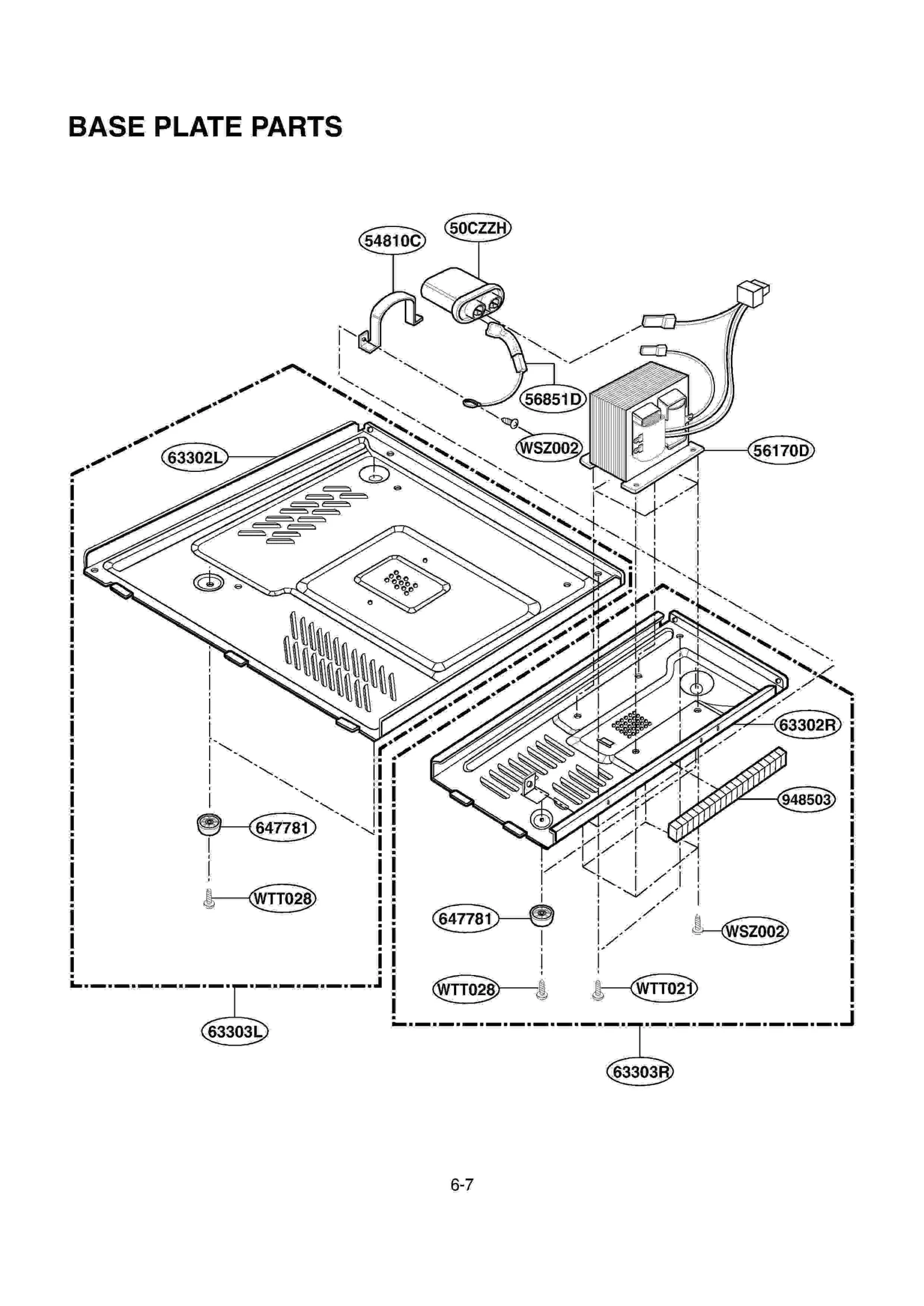

Diagram 4

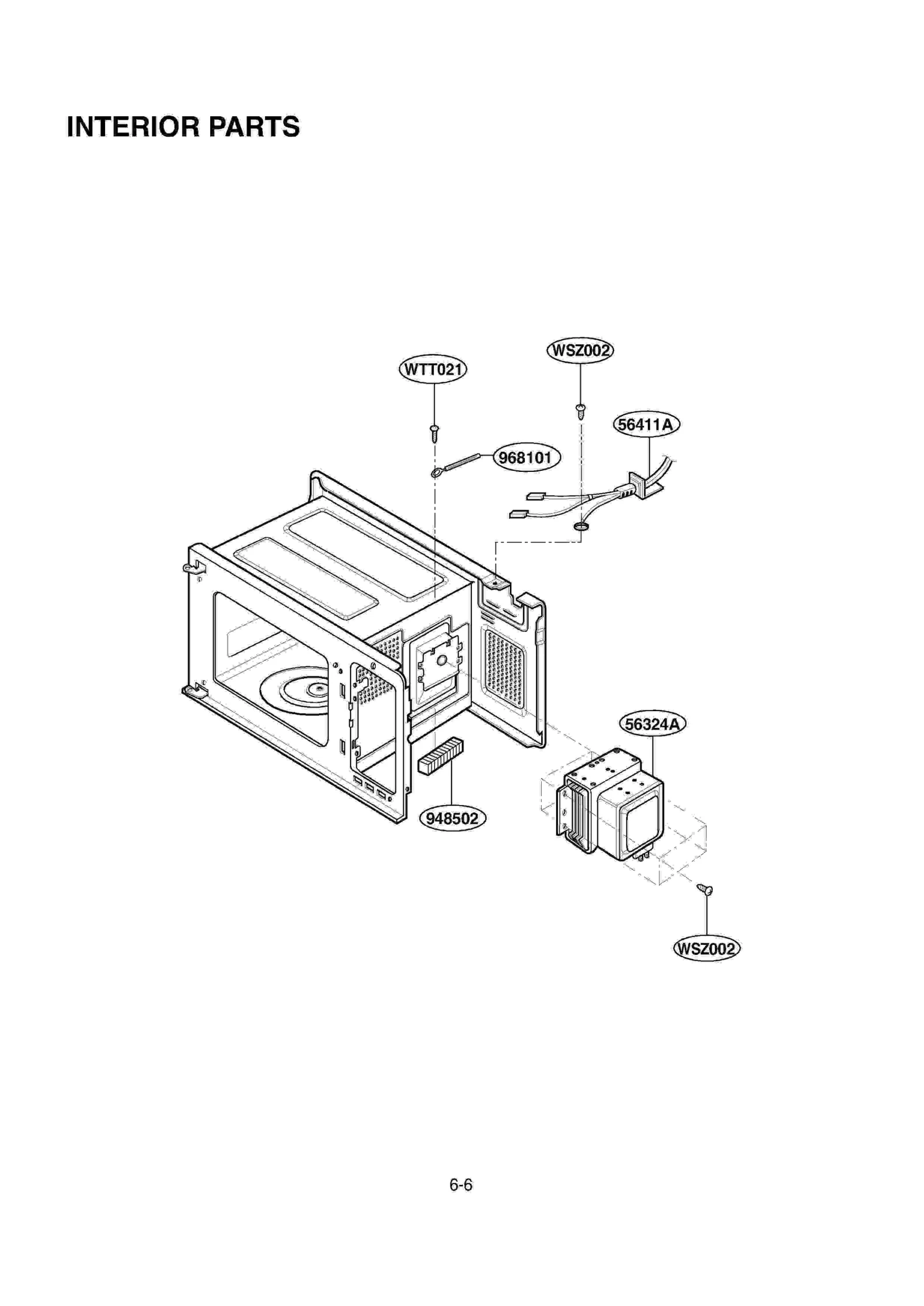

Diagram 5
Common parts from model LG MA-1302W
*01
MANUAL,OWNERS(MWO) LGE 3828W5A0827 Contact Us For Availability
*02
SVC MANUAL LGE 3828W5S0762 Contact Us For Availability
*10
BOX,[YELLOW] LGE 3890W2Y166A Contact Us For Availability
13213A
DOOR FRAME ASSY LGE 3213W1A031J Contact Us For Availability
13352A
FRONT SCREEN,ALL LGE 3352W1A098A Contact Us For Availability
13552A
CHOKE COVER ALL LGE 3552W1A028A Contact Us For Availability
13581A
DOOR ASSY,GROSS LGE 3581W1A165A Contact Us For Availability
13720D
LGE 3720W0D116A LGE 3720W0D116A Contact Us For Availability
14026A
LATCH (ALL) - SEARS LGE 4026W2A012A Contact Us For Availability
23550D
DIGITRON COVER MS-101 S 121 S LGE 3550W4A029B Contact Us For Availability
23572A
CONTROL PANEL,ALL LGE 3572W1A150A Contact Us For Availability
24510L
LEVER RELEASE MS-72CM MC-122MC LGE 4510W3L002A Contact Us For Availability
24781M
LGE 4781W1M150A LGE 4781W1M150A Contact Us For Availability
26638A
KEY MEMBRANE LGE 6638W2A184A Contact Us For Availability
33052M
CANOPY MICA LGE 3052W3M008B Contact Us For Availability
33112U
OUT CASE,[U-BENDING] LGE 3112W0U039C Contact Us For Availability
33390G
TRAY GLASS LGE 3390W1G004A Contact Us For Availability
34036W
SEAL,WATER LGE 4036W3W001A Contact Us For Availability
35889A
ROTATING RING ASSY A 0.9.1.0.1 LGE 5889W2A011A Contact Us For Availability
36549S
MOTOR SYNCHRONOUS 120V,60HZ LGE 2B72754K Contact Us For Availability
43500A
BOARD LATCH MS-101 S 121 S 151 LGE 3500W1A004A Contact Us For Availability
54810C
BRACKET HVC MS-72CM,HORIZON LGE 4810W3C001A Contact Us For Availability
54974S
LGE 4974W0S010A LGE 4974W0S010A Contact Us For Availability
56170D
TRANSFORMER HIGH VOL LGE 6170W1D007A Contact Us For Availability
56411A
POWER CORD ASSY SPT-2 AWG16/3 LGE 2B72325L Contact Us For Availability
56549F
MOTOR(CIRC) FAN 120V/60HZ,10.5 LGE 6549W2F017B Contact Us For Availability
56820A
HOLDER ALL 20A,300V MAX,LITTEL LGE 4930W3B025A Contact Us For Availability
56930V
THERMOSTAT,BIMETAL LGE 6930W1A001J Contact Us For Availability
63302L
BASE PLATE ALL LEFT,1.2CU.FT J LGE 3302W1A034A Contact Us For Availability
63302R
BASE PLATE ASSY ALL LGE 3303W2A003A Contact Us For Availability
63303L
BASE PLATE ASSY,ALL LGE 3303W1A026A Contact Us For Availability
948503
CUSHION 30X15X100 LGE 3B72246G Contact Us For Availability
948506
CUSHION LGE 4B73438A Contact Us For Availability
AR4
RESISTOR ARRAY LGE 0RZ1503G610 Contact Us For Availability
BZ1
LGE 6908W3YA01A LGE 6908W3YA01A Contact Us For Availability
C01
LGE 0CK2230K935 LGE 0CK2230K935 Contact Us For Availability
C02
LGE 0CE1071K638 LGE 0CE1071K638 Contact Us For Availability
C03
CAPACITOR ELECTROLYT 220UF SME LGE 0CE2272H638 Contact Us For Availability
C06
LGE 0CE4761K638 LGE 0CE4761K638 Contact Us For Availability
C14
CAPACITOR CERAMIC (HIGH DIELE LGE 0CK2230H518 Contact Us For Availability
CN1
CONNECTOR (CIRC) WAF LGE 6630W5V021A Contact Us For Availability
CN3
KEY CONNECTOR FCZ254-12D MH-13 LGE 6630W5YA19D Contact Us For Availability
D03
DIODE IN4002,MA-1354P,1554M *N LGE 0DD400209AA Contact Us For Availability
D04
DIODE SWIT, 1N4148, MA-654MQ LGE 0DD414809AA Contact Us For Availability
D05
DIODE 1N4148M (ROHM KOREA) MA- LGE 0DD414809AB Contact Us For Availability
DP1
DIGITRON, ALL LGE 6302W5A002A Contact Us For Availability
PT1
POWER TRANS 120/60 UL,18V/9 SE LGE 6010W2P037A Contact Us For Availability
Q02
TRANSISTOR (A1015 OR A1266)MA- LGE 0TR101509AB Contact Us For Availability
R05
Resistor,Carbon Film LGE 0RD2701F608 Contact Us For Availability
R09
Resistor,Carbon Film LGE 0RD5600F608 Contact Us For Availability
R10
RESISTOR FIXED CARBON FILM 100 LGE 0RD1003F608 Contact Us For Availability
R11
FIXED CARBON FILM 1M-J *NSP LGE 0RD1004F608 Contact Us For Availability
R12
RESISTOR FIXED CARBON FILM 3.9 LGE 0RD3901F608 Contact Us For Availability
R19
RESISTOR FIXED CARBON FILM 47K LGE 0RD4702F608 Contact Us For Availability
R31
Resistor,Carbon Film LGE 0RD1002F608 Contact Us For Availability
R32
Resistor,Carbon Film LGE 0RD2202F608 Contact Us For Availability
R36
Resistor,Carbon Film LGE 0RD2700F608 Contact Us For Availability
R41
LGE 0RD2001G608 LGE 0RD2001G608 Contact Us For Availability
RY1
RELAY LGE 6920W2D010B Contact Us For Availability
RY2
Relay,Contact LGE 6920W2D014A Contact Us For Availability
U01
LGE 0IHI404318D LGE 0IHI404318D Contact Us For Availability
ZD1
DIODE ZENER UZ5.1BS TP26 SM 0 LGE 0DZ510009AE Contact Us For Availability
ZD2
DIODE ZENER MA-885M SGESEA LGE 0DZ560009AB Contact Us For Availability
× ![]()
