Common parts from model LG MA-1301RV
*01
OWNERS MANUAL LGE 3828W5A0928 Contact Us For Availability
*02
LGE 3828W5S0847 LGE 3828W5S0847 Contact Us For Availability
*04
LGE 3828W5U0037 LGE 3828W5U0037 Contact Us For Availability
*10
BOX,[YELLOW] LGE 3890W2Y085L Contact Us For Availability
23550D
DIGITRON COVER MS-101 S 121 S LGE 3550W4A029B Contact Us For Availability
24510L
LEVER RELEASE MS-72CM MC-122MC LGE 4510W3L002A Contact Us For Availability
24781M
LGE 4781W1M147B LGE 4781W1M147B Contact Us For Availability

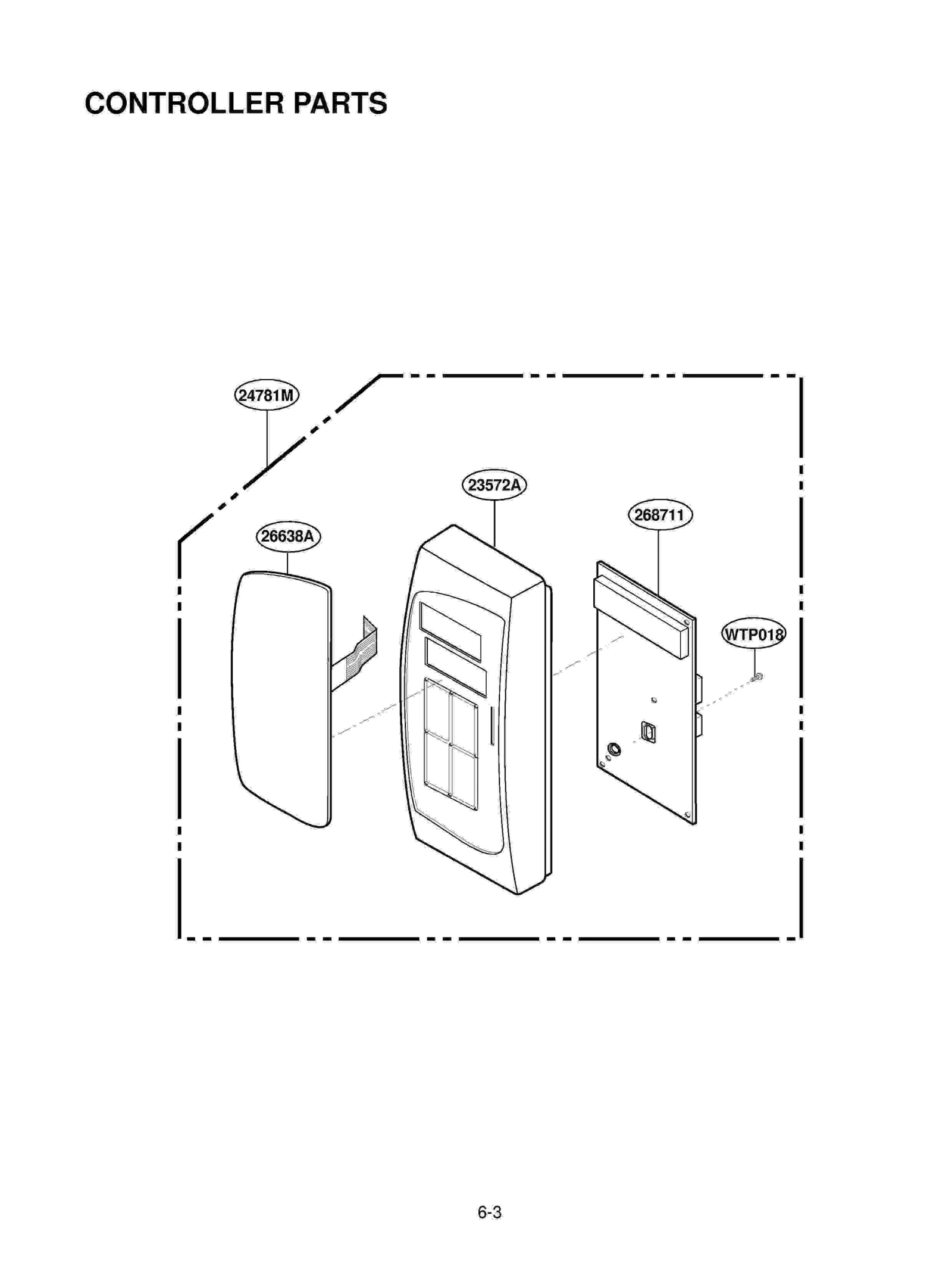

26638A
KEY MEMBRANE ALL LGE 6638W2A067C Contact Us For Availability

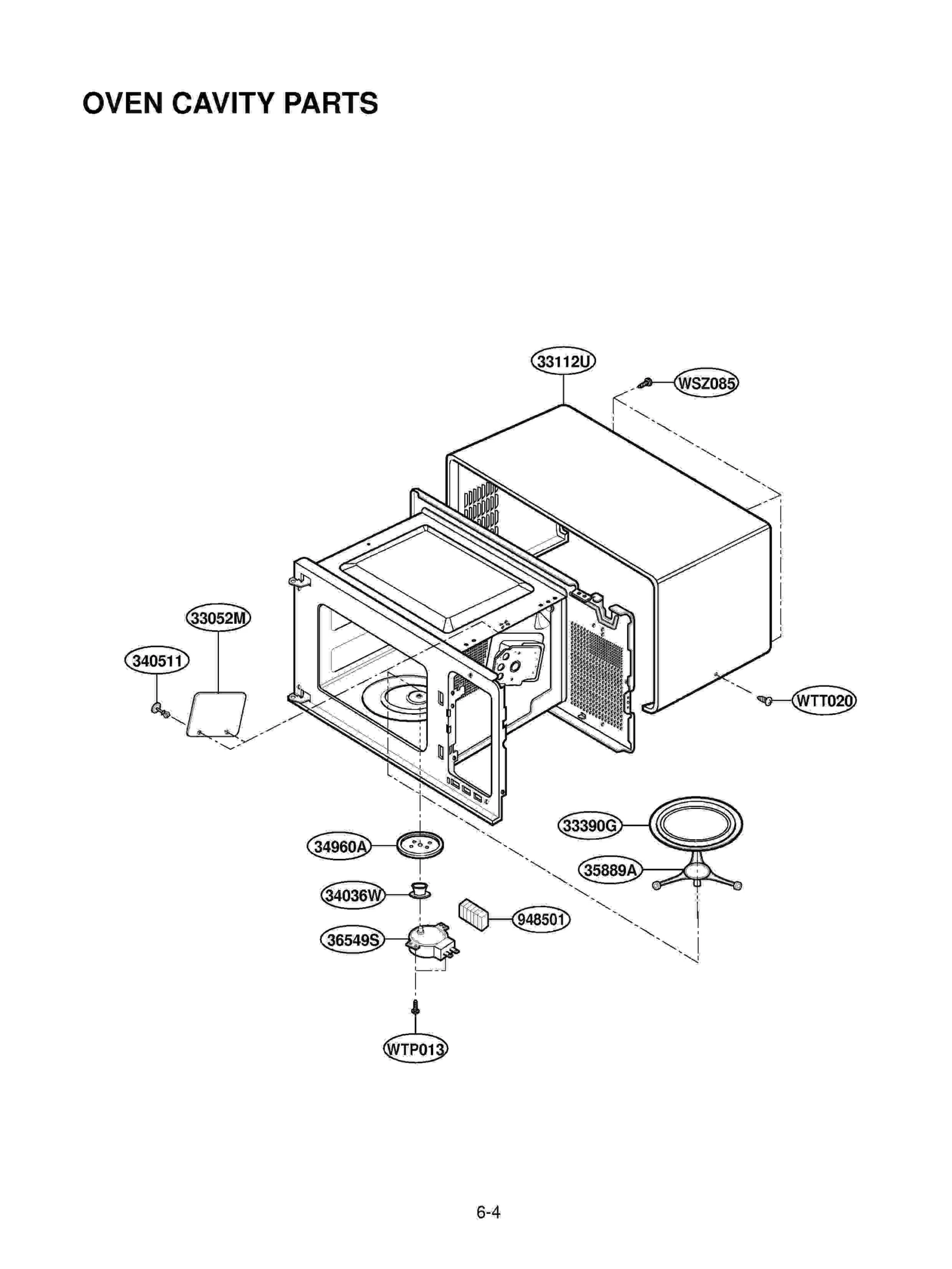

33052M
CANOPY MICA LGE 3052W3M008B Contact Us For Availability
33112U
LGE 3112W0U039F LGE 3112W0U039F Contact Us For Availability
33390G
TRAY GLASS LGE 3390W1G004A Contact Us For Availability
34036W
SEAL,WATER LGE 4036W3W001A Contact Us For Availability
35889A
ROTATING RING ASSY A 0.9.1.0.1 LGE 5889W2A011A Contact Us For Availability
36549S
MOTOR SYNCHRONOUS 120V,60HZ LGE 2B72754K Contact Us For Availability

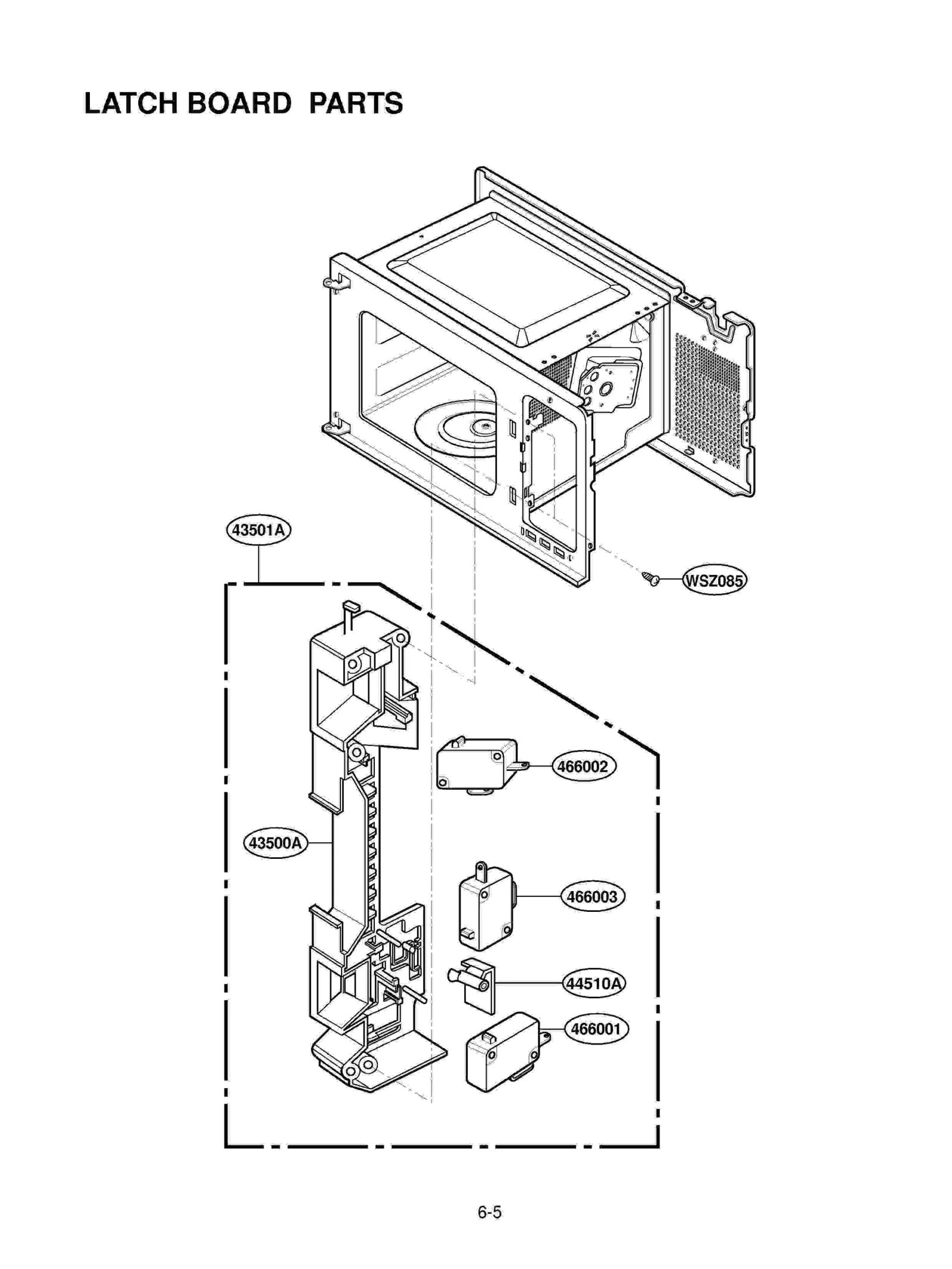

43500A
BOARD LATCH MS-101 S 121 S 151 LGE 3500W1A004A Contact Us For Availability
54810C
BRACKET HVC MA-690M,1190M,685M LGE 4810W4C003A Contact Us For Availability
54974S
GUIDE SUCTION LGE 4974W1S010A Contact Us For Availability
55262A
AIR DUCT MS-101 S 121 S MS-103 LGE 5262W2A018A Contact Us For Availability
55900A
PROPELLER LGE 2B72125A Contact Us For Availability
56170D
H.V. TRANSFORMER LGE 6010W2H107A Contact Us For Availability
56201A
NOISE FILTER ASSY 100V 50/60HZ LGE 2B72130F Contact Us For Availability
56201B
CHOKE FILTER ASSY MS-100/120/1 LGE 6201W2A019A Contact Us For Availability

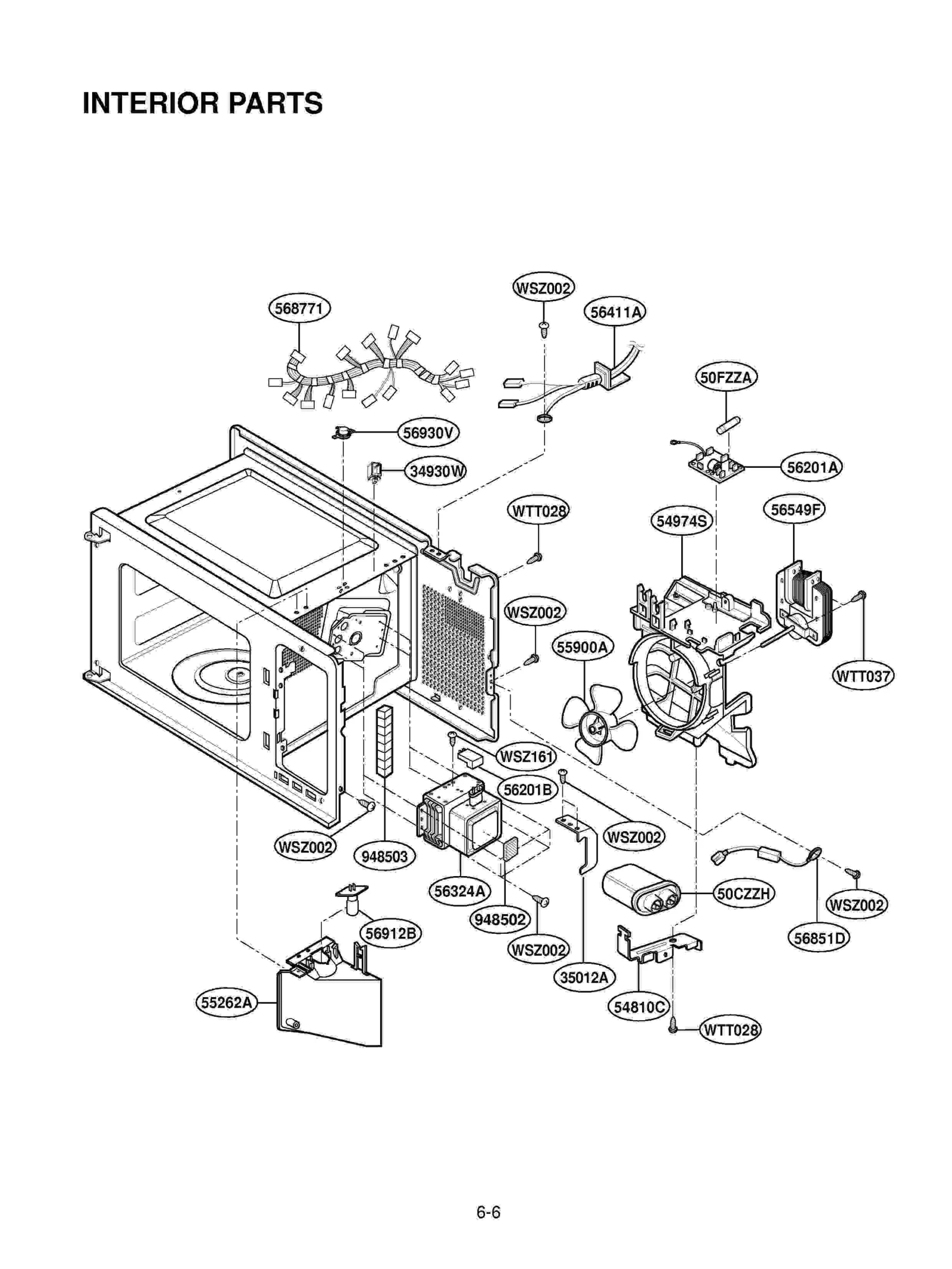

56324A
MAGNETRON LGE 2B71732B Contact Us For Availability
56411A
POWER CORD ASS Y MA-870RV 1161 LGE 6411W2A002B Contact Us For Availability
56549F
MOTOR FAN 120V/60HZ LGE 2B73670B Contact Us For Availability
56930V
THERMOSTAT,BIMETAL LGE 6930W1A001J Contact Us For Availability
63302L
LGE 3302W1A034F LGE 3302W1A034F Contact Us For Availability
63303L
LGE 3303W1A026G LGE 3303W1A026G Contact Us For Availability

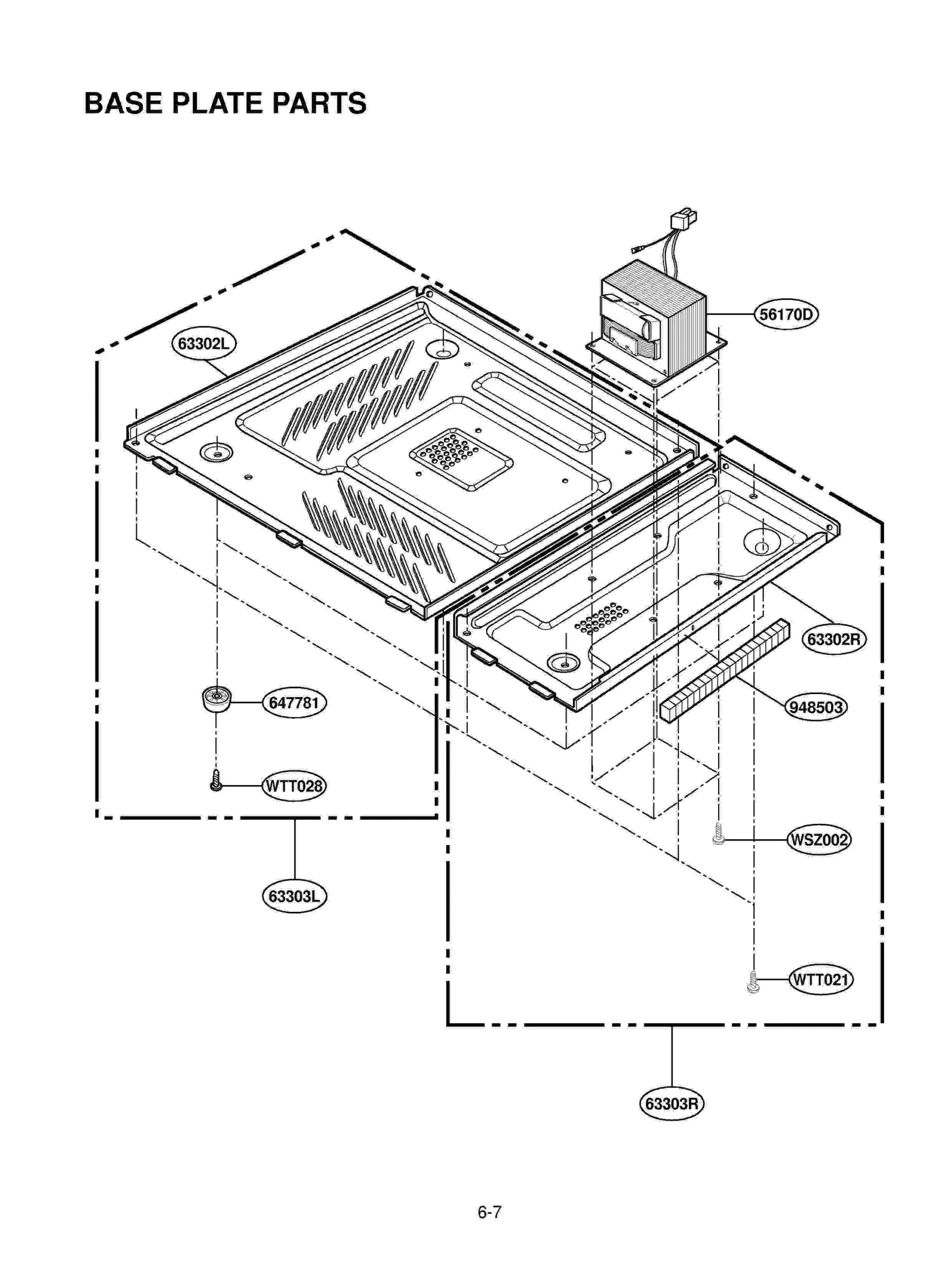

63303R
BASE PLATE ASSY,MWO LGE 3303W2A003G Contact Us For Availability
63861A
LGE 3861W2A002E LGE 3861W2A002E Contact Us For Availability
250201
BUTTON RELEASE 0.9/1.0/1.2CU.F LGE 5020W3G104B Contact Us For Availability
268711
PWB(PCB)ASSY SUB P2-6004,LGEUS LGE 6871W2S004E Contact Us For Availability
568771
LGE 6877W1A131A LGE 6877W1A131A Contact Us For Availability
647781
LEG LGE 4B73900A Contact Us For Availability
AR4
RESISTOR ARRAY LGE 0RZ1503G610 Contact Us For Availability
BZ1
LGE 6908W3YA01A LGE 6908W3YA01A Contact Us For Availability
C01
LGE 0CK2230K935 LGE 0CK2230K935 Contact Us For Availability
C02
LGE 0CE1071K638 LGE 0CE1071K638 Contact Us For Availability
C03
CAPACITOR ELECTROLYT 220UF SME LGE 0CE2272H638 Contact Us For Availability
C05
CAPACITOR CERAMIC (HIGH DIELE LGE 0CK2230H518 Contact Us For Availability
C06
LGE 0CE4761K638 LGE 0CE4761K638 Contact Us For Availability
CN1
Connector,Wafer LGE 6630W5V009A Contact Us For Availability
CN3
KEY CONNECTOR FCZ254-12D MH-13 LGE 6630W5YA19D Contact Us For Availability
D06
DIODE 1N4148M (ROHM KOREA) MA- LGE 0DD414809AB Contact Us For Availability
D09
DIODE SWIT, 1N4148, MA-654MQ LGE 0DD414809AA Contact Us For Availability
D17
DIODE IN4002,MA-1354P,1554M *N LGE 0DD400209AA Contact Us For Availability
DP1
DIGITRON 6-BT-199GN(NEW DEMO) LGE 6302W5YA02A Contact Us For Availability
PT1
POWER TRANS 120/60 UL,18V/9 SE LGE 6010W2P037A Contact Us For Availability
Q02
TRANSISTOR (A1015 OR A1266)MA- LGE 0TR101509AB Contact Us For Availability
Q03
LGE 0TR181509AB LGE 0TR181509AB Contact Us For Availability
R05
Resistor,Carbon Film LGE 0RD2701F608 Contact Us For Availability
R09
Resistor,Carbon Film LGE 0RD7500F608 Contact Us For Availability
R10
RESISTOR FIXED CARBON FILM 100 LGE 0RD1003F608 Contact Us For Availability
R11
FIXED CARBON FILM 1M-J *NSP LGE 0RD1004F608 Contact Us For Availability
R12
RESISTOR FIXED CARBON FILM 3.9 LGE 0RD3901F608 Contact Us For Availability
R15
Resistor,Carbon Film LGE 0RD5601F608 Contact Us For Availability
R16
Resistor,Carbon Film LGE 0RD5600F608 Contact Us For Availability
R18
RESISTOR FIXED CARBON FILM 47K LGE 0RD4702F608 Contact Us For Availability
R28
Resistor,Carbon Film LGE 0RD1002F608 Contact Us For Availability
R32
Resistor,Carbon Film LGE 0RD1202F608 Contact Us For Availability
R33
Resistor,Carbon Film LGE 0RD2202F608 Contact Us For Availability
R36
Resistor,Carbon Film LGE 0RD2700F608 Contact Us For Availability
R39
Resistor,Carbon Film LGE 0RD0471F608 Contact Us For Availability
RY1
RELAY LGE 6920W2D010B Contact Us For Availability
RY2
RELAY OZF-S-112LM1P DC12V MV-1 LGE 6920W2YD04A Contact Us For Availability
U01
LGE 0IHI404316J LGE 0IHI404316J Contact Us For Availability
WTT001
LGE 1SPTG040317 LGE 1SPTG040317 Contact Us For Availability
ZD1
DIODE ZENER UZ5.1BS TP26 SM 0 LGE 0DZ510009AE Contact Us For Availability
ZD2
DIODE ZENER MA-885M SGESEA LGE 0DZ560009AB Contact Us For Availability
× ![]()
