Model Maytag M8RXEGMXB00 REFRIGERATOR – Common Parts & Diagrams
01 - CABINET PARTS

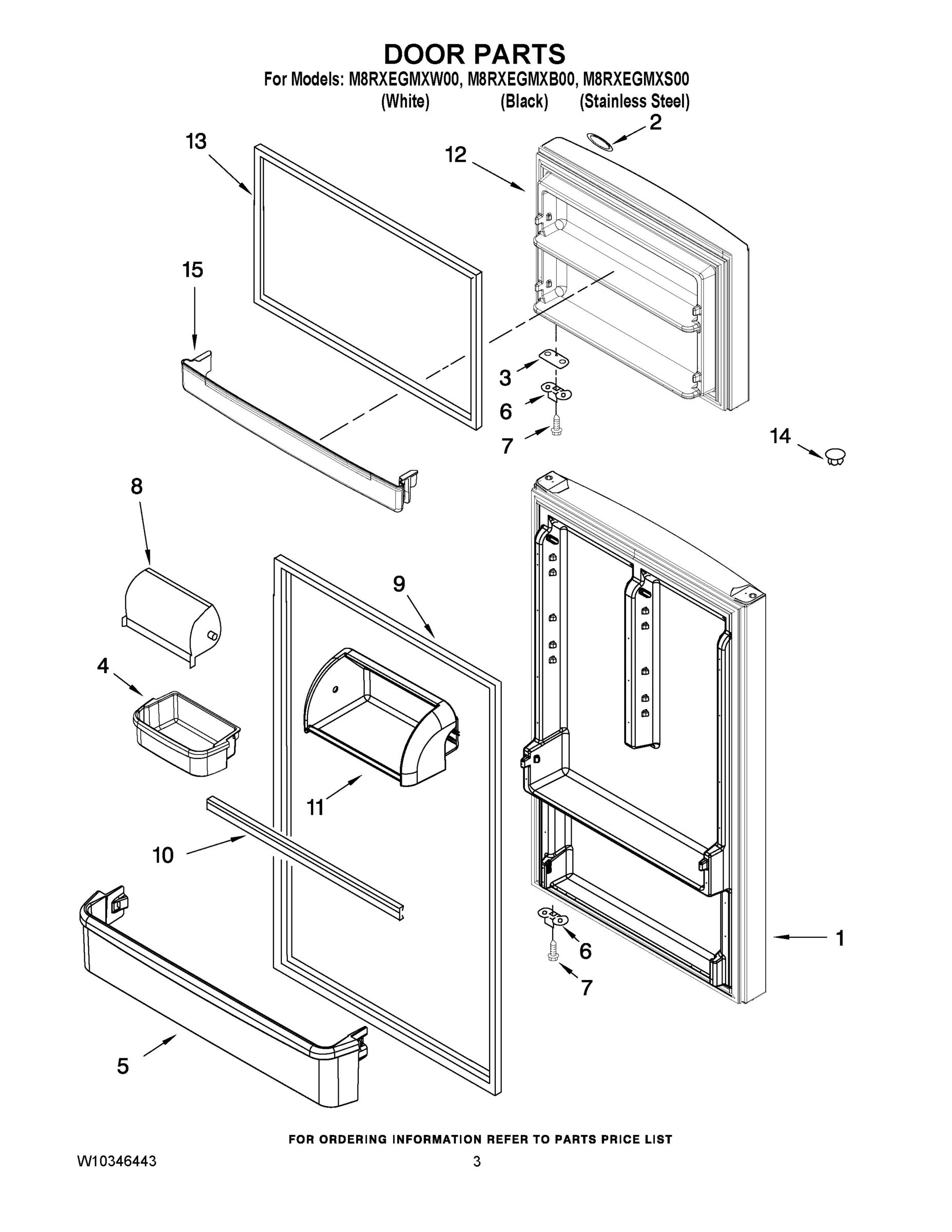

02 - DOOR PARTS

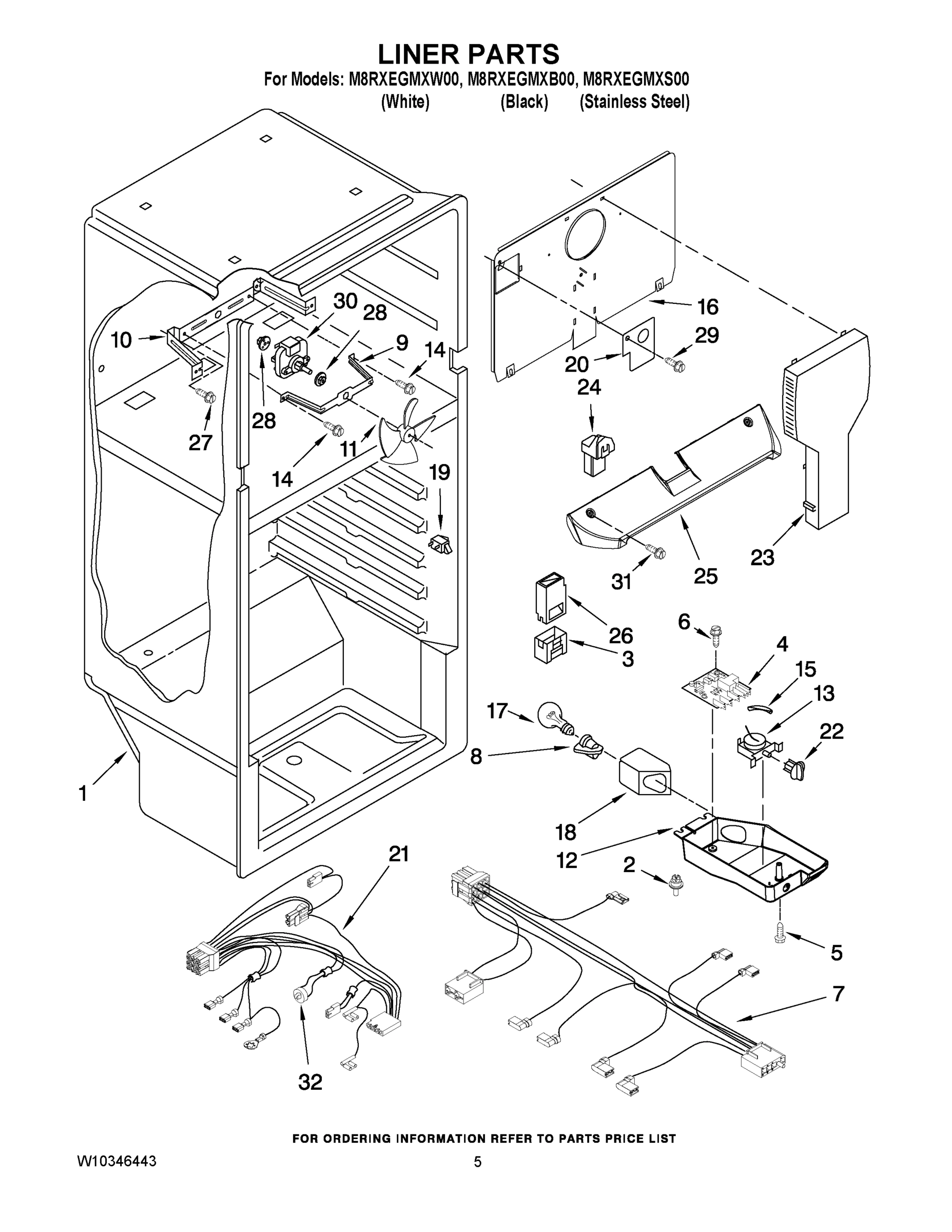

03 - LINER PARTS

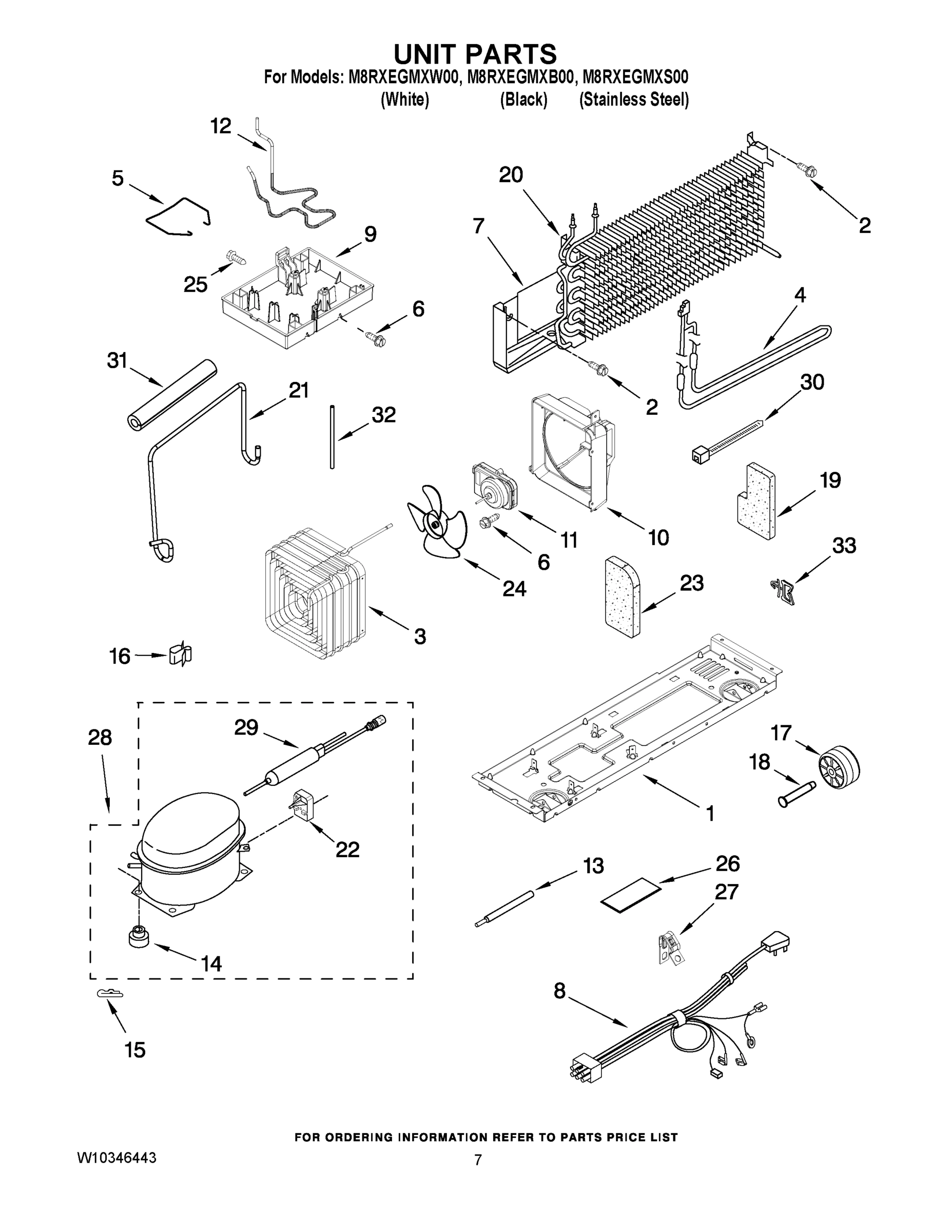

04 - UNIT PARTS

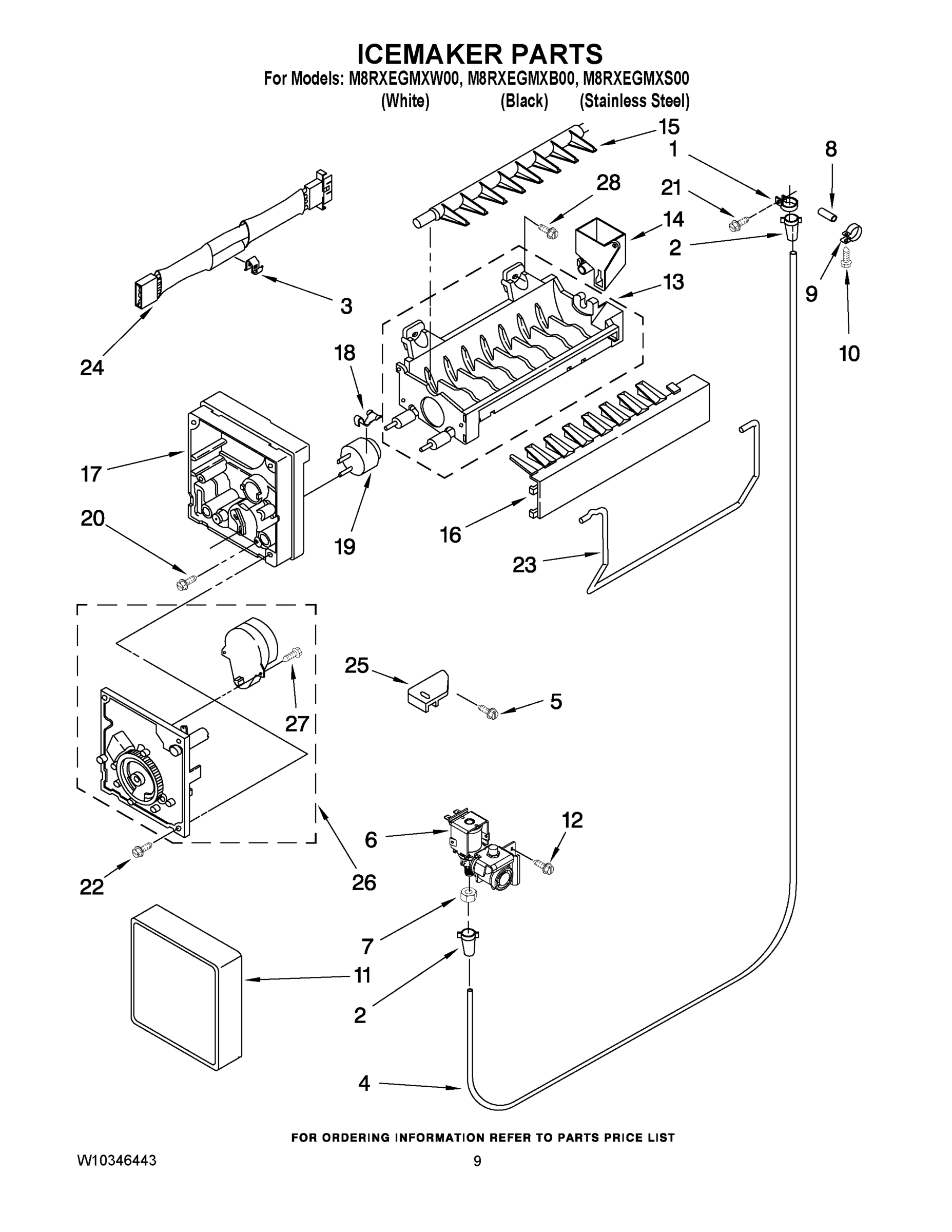

05 - ICEMAKER PARTS

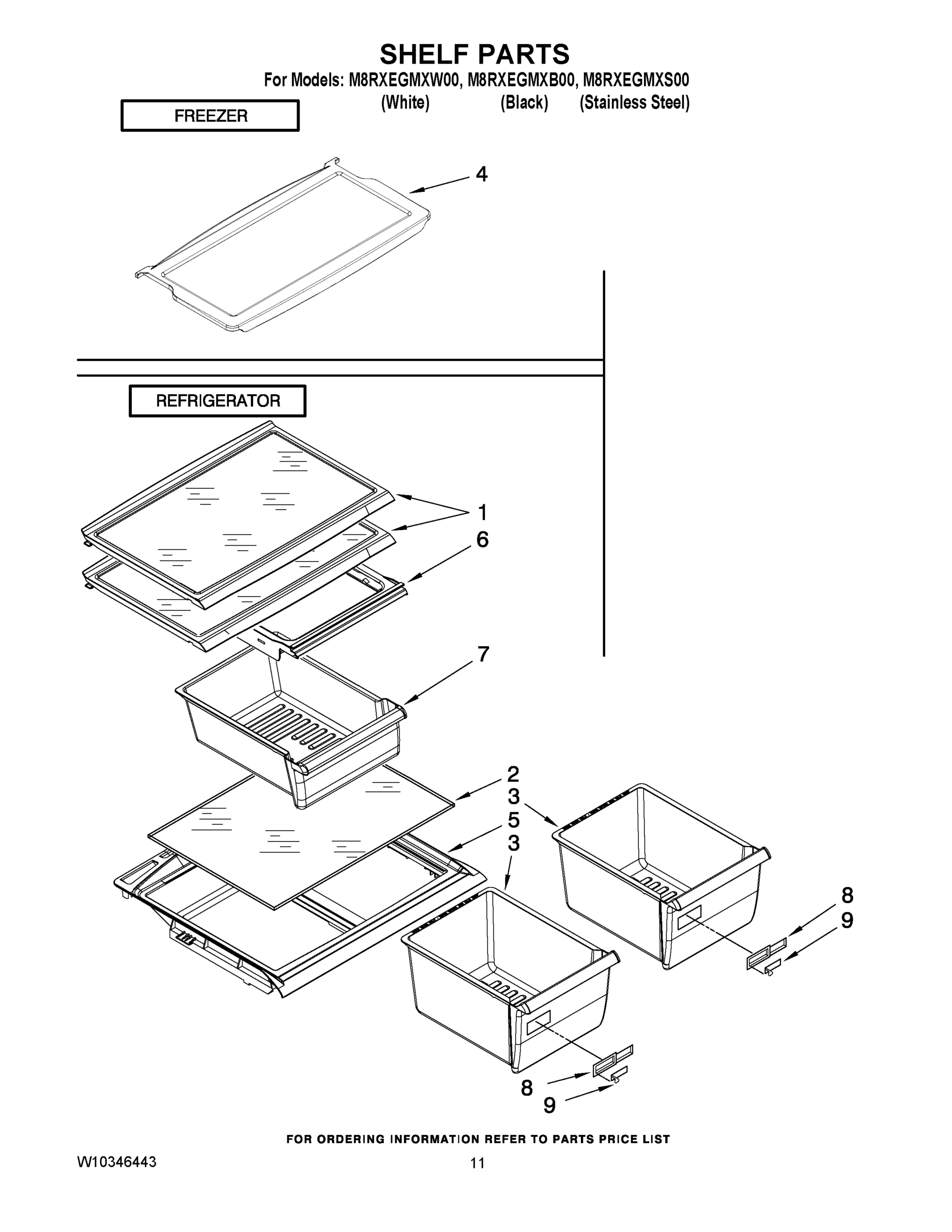

06 - SHELF PARTS
07 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag M8RXEGMXB00 REFRIGERATOR
1
DO-IT-YOURSELF MANUAL REF./FZR. MAY 677969 Contact Us For Availability
1
MAY W10214132 MAY W10214132 Contact Us For Availability
1
MAY W10223141 MAY W10223141 Contact Us For Availability
1
MAY W10309663 MAY W10309663 Contact Us For Availability
1
REFRIGERATOR DOOR PANEL (INCLUDES ILLUS. 9 & MAY 2264716B Contact Us For Availability
1
REFRIGERATOR DOOR PANEL (INCLUDES ILLUS. 9 & MAY 2316153W Contact Us For Availability
1
REFRIGERATOR DOOR PANEL (INCLUDES ILLUS. 9 & MAY W10209800 Contact Us For Availability
1
MAY W10222450 MAY W10222450 Contact Us For Availability
1
MAY 488878 MAY 488878 Contact Us For Availability
1
MAY 2263641 MAY 2263641 Contact Us For Availability
2
Hinge Butt, Top MAY 2261963 Contact Us For Availability
2
Nameplate MAY W10170766 Contact Us For Availability
2
Rivet MAY 939962 Contact Us For Availability
2
MAY 2181939 MAY 2181939 Contact Us For Availability
2
GLASS, COVER MAY 2262441 Contact Us For Availability
3
ROLLER, FRONT MAY W10142530 Contact Us For Availability
3
Shim, Door Stop (Black) MAY 2258681B Contact Us For Availability
3
Shim, Door Stop (White) MAY 2258681W Contact Us For Availability
3
MAY 2183061 MAY 2183061 Contact Us For Availability
3
MAY W10140200 MAY W10140200 Contact Us For Availability
3
CLIP,FUSE MAY 628379 Contact Us For Availability
3
CRISPER PAN (INCLUDES ITEMS 8 & 9) MAY 2256704 Contact Us For Availability
4
MAY 489341 MAY 489341 Contact Us For Availability
4
MAY 2266150 MAY 2266150 Contact Us For Availability
4
MAY 2303825 MAY 2303825 Contact Us For Availability
4
MAY 2176942 MAY 2176942 Contact Us For Availability
4
TUBE WATER MAY 2181944 Contact Us For Availability
4
SHELF, FREEZER MAY 2264803 Contact Us For Availability
5
MAY 2266146 MAY 2266146 Contact Us For Availability
5
MAY 489174 MAY 489174 Contact Us For Availability
5
MAY 489478 MAY 489478 Contact Us For Availability
5
Clip, Condensor MAY 2264835 Contact Us For Availability
5
MAY W10251887 MAY W10251887 Contact Us For Availability
6
Cover, Hinge (White) MAY 2213360 Contact Us For Availability
6
MAY 2213363 MAY 2213363 Contact Us For Availability
6
MAY 2189202 MAY 2189202 Contact Us For Availability
6
Screw MAY 488693 Contact Us For Availability
6
MAY 8533859 MAY 8533859 Contact Us For Availability
6
MAY 2210494 MAY 2210494 Contact Us For Availability
6
MAY 2256601 MAY 2256601 Contact Us For Availability
7
MAY 8533904 MAY 8533904 Contact Us For Availability
7
MAY 2265572 MAY 2265572 Contact Us For Availability
7
MAY 2319224 MAY 2319224 Contact Us For Availability
7
MAY 627018 MAY 627018 Contact Us For Availability
7
MEAT PAN MAY 2261934 Contact Us For Availability
8
MAY 2266389 MAY 2266389 Contact Us For Availability
8
Door, Compartment MAY 2264478 Contact Us For Availability
8
Socket, Light MAY 2162085 Contact Us For Availability
8
WIRE ASSY, UNIT MAY W10253370 Contact Us For Availability
8
MAY 2174755 MAY 2174755 Contact Us For Availability
8
MAY 2212446 MAY 2212446 Contact Us For Availability
9
SCREW MAY W10133299 Contact Us For Availability
9
Door Gasket, Magnetic (Black) MAY 2264723 Contact Us For Availability
9
DOOR GASKET, MAGNETIC (WHITE) MAY W10190032 Contact Us For Availability
9
Fan Support Bracket MAY W10180172 Contact Us For Availability
9
Evaporator Tray MAY 2263928 Contact Us For Availability
9
CLAMP, TUBE MAY 489385 Contact Us For Availability
9
Slide, Humidity Control MAY 2176222 Contact Us For Availability
10
MAY 2262176 MAY 2262176 Contact Us For Availability
10
TRIM, DOOR MAY W10234241 Contact Us For Availability
10
MAY 2197405 MAY 2197405 Contact Us For Availability
10
MAY 2263929 MAY 2263929 Contact Us For Availability
11
SPACER, BACK CB MAY 2266506 Contact Us For Availability
11
MAY 2266057 MAY 2266057 Contact Us For Availability
11
MAY 2169141 MAY 2169141 Contact Us For Availability
11
Motor, Condensor MAY 2188875 Contact Us For Availability
11
COVER MAY W10289690 Contact Us For Availability
12
MAY 489442 MAY 489442 Contact Us For Availability
12
MAY 2166086 MAY 2166086 Contact Us For Availability
12
FREEZER DOOR PANEL (INCLUDES ILLUS. 13 & MOLD MAY 2264717B Contact Us For Availability
12
FREEZER DOOR PANEL (INCLUDES ILLUS. 13 & MOLD MAY 2316154W Contact Us For Availability
12
FREEZER DOOR PANEL (INCLUDES ILLUS. 13 & MOLD MAY W10209793 Contact Us For Availability
12
MAY 2264732 MAY 2264732 Contact Us For Availability
12
TUBE, DISCHARGE (INCL.PRE COOLER) MAY W10209728 Contact Us For Availability
13
SHIM, HINGE CENTER (WHITE) MAY 2166043 Contact Us For Availability
13
SHIM HINGE, CENTER (BLACK) MAY 2215385 Contact Us For Availability
13
Door Gasket, Magnetic (Black) MAY 2264722 Contact Us For Availability
13
DOOR GASKET, MAGNETIC (WHITE) MAY W10190031 Contact Us For Availability
13
MAY 2325701 MAY 2325701 Contact Us For Availability
13
MAY 2174739 MAY 2174739 Contact Us For Availability
13
MAY W10122527 MAY W10122527 Contact Us For Availability
14
MAY 489497 MAY 489497 Contact Us For Availability
14
Hole Plug (White) MAY 2212648 Contact Us For Availability
14
Hole Plug (Black) MAY 2212651 Contact Us For Availability
14
MAY 489399 MAY 489399 Contact Us For Availability
14
Grommet (Production) MAY 1100826 Contact Us For Availability
14
MAY W10122561 MAY W10122561 Contact Us For Availability
15
Hinge Butt, Bottom MAY 2325482 Contact Us For Availability
15
MAY 2266148 MAY 2266148 Contact Us For Availability
15
MAY 1118680 MAY 1118680 Contact Us For Availability
15
MAY 24364001 MAY 24364001 Contact Us For Availability
15
MAY 627843 MAY 627843 Contact Us For Availability
16
HINGE PIN, BOTTOM MAY 2325483 Contact Us For Availability
16
MAY W10244012 MAY W10244012 Contact Us For Availability
16
MAY 939054 MAY 939054 Contact Us For Availability
16
ICE STRIPPER MAY W10122563 Contact Us For Availability
17
MAY 487576 MAY 487576 Contact Us For Availability
17
MAY 2311792 MAY 2311792 Contact Us For Availability
17
Roller MAY 2150304 Contact Us For Availability
17
Support MAY 2194712 Contact Us For Availability
18
MAY 2201567 MAY 2201567 Contact Us For Availability
18
MAY 9791702 MAY 9791702 Contact Us For Availability
18
MAY 2264756 MAY 2264756 Contact Us For Availability
18
MAY 2315522 MAY 2315522 Contact Us For Availability
19
MAY 2174760 MAY 2174760 Contact Us For Availability
19
MAY 1118894 MAY 1118894 Contact Us For Availability
19
MAY 2262191 MAY 2262191 Contact Us For Availability
19
Thermostat (Also Order 542369 Cement Alumilas MAY 628397 Contact Us For Availability
20
MAY 2183998 MAY 2183998 Contact Us For Availability
20
Hole Plug (6) (White) MAY 2201012 Contact Us For Availability
20
MAY 2217783 MAY 2217783 Contact Us For Availability
20
EVAPORATOR ASSY MAY 2263920 Contact Us For Availability
20
MAY 8533917 MAY 8533917 Contact Us For Availability
21
Seal MAY 1106508 Contact Us For Availability
21
WIRING, FREEZER (INCLUDES ITEM 32) MAY W10183127 Contact Us For Availability
21
MAY W10209727 MAY W10209727 Contact Us For Availability
21
SCREW MAY 488886 Contact Us For Availability
22
MAY 2202885 MAY 2202885 Contact Us For Availability
22
START-DEVICE, INVERTER (PRODUCTION) MAY W10233421 Contact Us For Availability
22
MAY 489276 MAY 489276 Contact Us For Availability
23
MAY 2166003 MAY 2166003 Contact Us For Availability
23
Corner Filler (Black) MAY 2215384 Contact Us For Availability
23
MAY 9790408 MAY 9790408 Contact Us For Availability
23
MAY 2262192 MAY 2262192 Contact Us For Availability
23
MAY 627792 MAY 627792 Contact Us For Availability
24
Hood And Foil Assembly MAY 2197052 Contact Us For Availability
24
MAY 2264129 MAY 2264129 Contact Us For Availability
24
MAY 2187464 MAY 2187464 Contact Us For Availability
25
MAY 2261978 MAY 2261978 Contact Us For Availability
25
MAY 2264841 MAY 2264841 Contact Us For Availability
25
MAY 628320 MAY 628320 Contact Us For Availability
26
MAY 2221992 MAY 2221992 Contact Us For Availability
26
SHIELD-ELECTRICAL MAY 2266360 Contact Us For Availability
26
MODULE ASSMBLY (INCLUDES ITEM 27) MAY W10223929 Contact Us For Availability
27
MAY 549193 MAY 549193 Contact Us For Availability
27
Screw MAY 489136 Contact Us For Availability
28
MAY 2264462 MAY 2264462 Contact Us For Availability
28
COMPRESSOR (INCLUDES ITEMS 14, 22, & 29) MAY W10209724 Contact Us For Availability
28
Screw MAY 488208 Contact Us For Availability
29
MAY W10143759 MAY W10143759 Contact Us For Availability
29
DRIER (PRODUCTION) MAY W10190413 Contact Us For Availability
30
MAY 2315539 MAY 2315539 Contact Us For Availability
30
MAY 2263990 MAY 2263990 Contact Us For Availability
31
MAY 2262178 MAY 2262178 Contact Us For Availability
31
MAY 2264838 MAY 2264838 Contact Us For Availability
32
MAY 2266066 MAY 2266066 Contact Us For Availability
32
MAY 2264278 MAY 2264278 Contact Us For Availability
33
CLIP-HARNESS MAY 2266467 Contact Us For Availability
100
COMPLETE ICEMAKER MAY W10190952 Contact Us For Availability
NI
REFRIGERANT CHARGE (3.75 OZS. (R134A)) MAY N/P Contact Us For Availability
NI
MAY 876764 MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (1/4``) MAY 978025 Contact Us For Availability
NI
Valve, Access (5/16``) MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8``) MAY 978027 Contact Us For Availability
NI
Valve, Access (1/2``) MAY 978028 Contact Us For Availability
NI
Valve, Access (5/8``) MAY 978029 Contact Us For Availability
NI
Valve, Access (3/4``) MAY 978030 Contact Us For Availability
NI
TORX SCREW WRENCH MAY 1117510 Contact Us For Availability
NI
SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
CUSTOMER TOUCH-UP MATERIAL (ENAMEL, WHITE (12 MAY 350930 Contact Us For Availability
NI
CUSTOMER TOUCH-UP MATERIAL (ENAMEL, BLACK (12 MAY 350939 Contact Us For Availability
NI
CUSTOMER TOUCH-UP MATERIAL (PRIMER, WHITE (12 MAY 350942 Contact Us For Availability
NI
CUSTOMER TOUCH-UP MATERIAL (BRUSH TOUCH-UP KI MAY 4392899 Contact Us For Availability
NI
REFINISHING MATERIAL (ENAMEL, BISCUIT (1 QT. MAY 4392900 Contact Us For Availability
NI
Customer Touch-Up Material (Enamel, Biscuit ( MAY 4392901 Contact Us For Availability
NI
MAY 479502 MAY 479502 Contact Us For Availability
NI
MAY 503695 MAY 503695 Contact Us For Availability
NI
MAY 505587 MAY 505587 Contact Us For Availability
NI
TOUCH-UP, WHITE PORCELAIN (2 OZ.) MAY 511873 Contact Us For Availability
NI
MAY 542638 MAY 542638 Contact Us For Availability
NI
MAY 542639 MAY 542639 Contact Us For Availability
NI
MAY 606755 MAY 606755 Contact Us For Availability
NI
CUSTOMER TOUCH-UP MATERIAL (BRUSH TOUCH-UP KI MAY 72017 Contact Us For Availability
NI
CUSTOMER TOUCH-UP MATERIAL (BRUSH TOUCH-UP KI MAY 72032 Contact Us For Availability
NI
Refinishing Material (Enamel, Black (1 Qt. Un MAY 799340 Contact Us For Availability
NI
REFINISHING MATERIAL (ENAMEL, WHITE (1 QT. UN MAY 799344 Contact Us For Availability
NI
MAY 799832 MAY 799832 Contact Us For Availability
NI
REFINISHING MATERIAL, KIT, TERMINAL CONNECTOR MAY 833938 Contact Us For Availability
NI
MAY 876029 MAY 876029 Contact Us For Availability
NI
KIT, INSULATION (14 PCS. 3`` X 24`` X 48``) MAY 876305 Contact Us For Availability
NI
KIT, INSULATION (2 PCS. 3`` X 24 `` X 48``) MAY 876370 Contact Us For Availability
NI
MAY 978941 MAY 978941 Contact Us For Availability
× ![]()
