Model LG M5500C-BAF – Common Parts & Diagrams

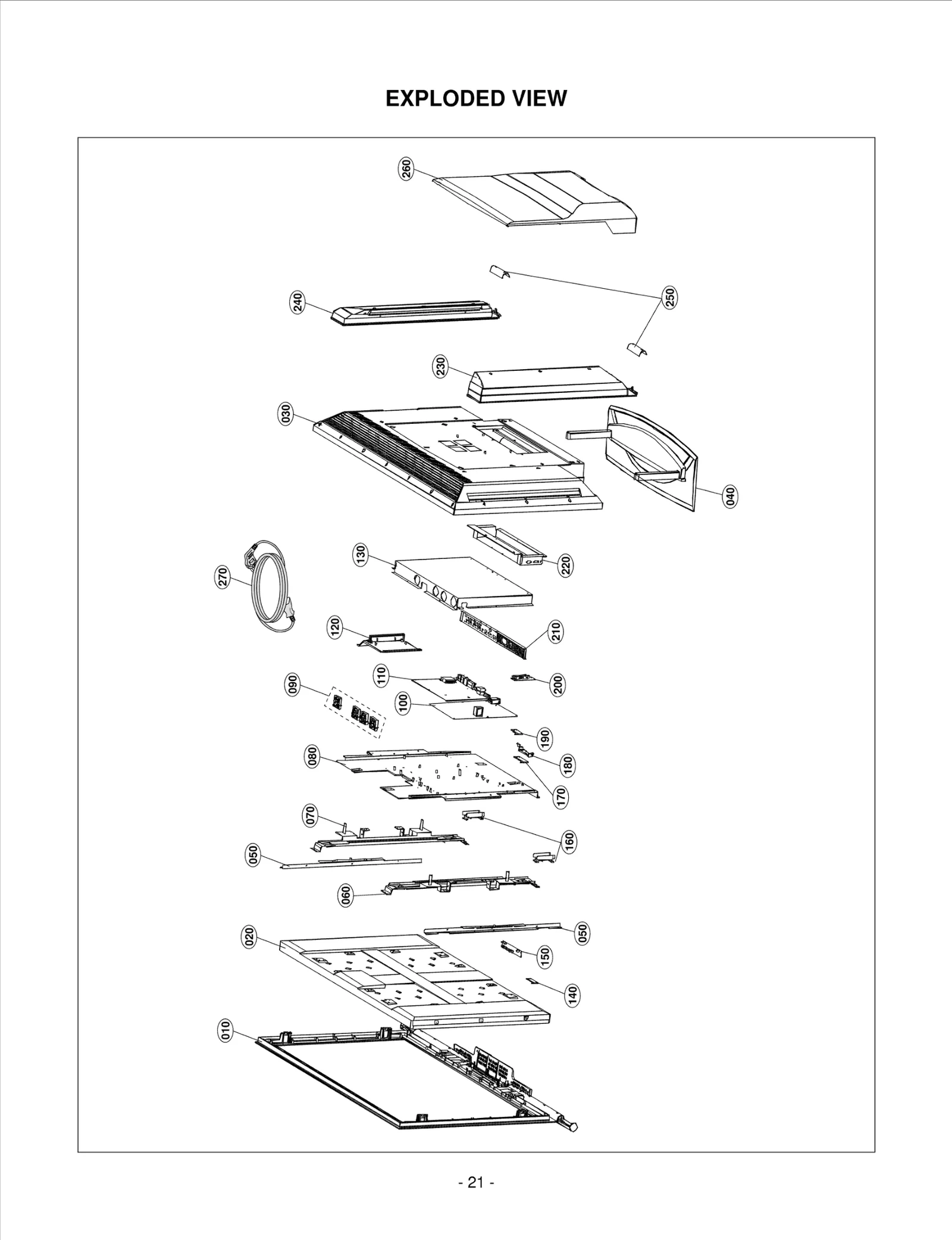

Diagram 0
Diagram 1
Common parts from model LG M5500C-BAF
0
REMOTE CONTROLLER LGE 6710T00003N Contact Us For Availability
0
CABLE,DVI LGE 6866TDV004J Contact Us For Availability
0
Screw,Taptite LGE FAB30013210 Contact Us For Availability
0
Screw Assembly LGE FAB30021802 Contact Us For Availability
0
Harness,Single LGE 5240T0B004A Contact Us For Availability
0
CONNECTOR ASSEMBLY LGE 6631T12005C Contact Us For Availability
0
CORD,A/V LGE 6852TAZ006V Contact Us For Availability
0
CONNECTOR ASSY R-T 1015#18,L12 LGE 387-T13C Contact Us For Availability
0
Plate Assembly LGE 4951TKK215A Contact Us For Availability
0
CONNECTOR ASSEMBLY LGE 6631T20020U Contact Us For Availability
0
CONNECTOR ASSEMBLY LGE 6631T25026G Contact Us For Availability
0
CABLE,D-SUB LGE 6850TD9007D Contact Us For Availability
0
COVER ASSEMBLY LGE 3551TKK558A Contact Us For Availability
0
Door Assembly LGE 3581TKK013A Contact Us For Availability
0
Card LGE 3840TRL062G Contact Us For Availability
0
BOX LGE 3890TSE905J Contact Us For Availability
0
PACKING LGE 3920TKE297B Contact Us For Availability
0
CONNECTOR ASSY LGE 6631T20013D Contact Us For Availability
0
CONNECTOR ASSEMBLY LGE 6631T20013V Contact Us For Availability
0
CONNECTOR ASSEMBLY LGE 6631T20020V Contact Us For Availability
0
Harness,Single LGE 6631T20032N Contact Us For Availability
0
S/W Package LGE 3171TZ1040S Contact Us For Availability
0
Printing Part Assembly LGE 3871TZL516H Contact Us For Availability
0
Screw,Taptite LGE FAB30011003 Contact Us For Availability
0
Manual LGE 38289S0033B Contact Us For Availability
0
CONNECTOR ASSEMBLY LGE 6631T12006Z Contact Us For Availability
0
Screw,Taptite LGE FAB30013601 Contact Us For Availability
0
Screw,Taptite LGE FAB30018803 Contact Us For Availability
0
Box LGE 3890900402F Contact Us For Availability
0
METAL ASSEMBLY LGE 49519K0002D Contact Us For Availability
0
CORD,A/V LGE 6852TAZ006J Contact Us For Availability
0
Screw,Taptite LGE FAB30010106 Contact Us For Availability
0
Screw,Taptite LGE FAB30014101 Contact Us For Availability
0
Card LGE 3840TRL065F Contact Us For Availability
0
METAL ASSEMBLY LGE 4951TKK219A Contact Us For Availability
0
CONNECTOR ASSEMBLY LGE 6631T11023G Contact Us For Availability
020
LCD(LIQUID CRYSTAL D LGE 6304FLP296A Contact Us For Availability
030
Cover Assembly LGE 3809TKE023F Contact Us For Availability
040
TILT SWIVEL ASSEMBLY LGE 3043TKK215C Contact Us For Availability
050
METAL LGE 4950TKK967A Contact Us For Availability
060
METAL ASSEMBLY LGE 4951TKK217A Contact Us For Availability
070
METAL ASSEMBLY LGE 4951TKK216A Contact Us For Availability
080
METAL LGE 4950TKS318C Contact Us For Availability
090
METAL ASSEMBLY LGE 4951TKS238E Contact Us For Availability
100
PWB(PCB) ASSEMBLY,PO LGE 6871TPT320C Contact Us For Availability
110
Main Total Assembly LGE 3313TL4010A Contact Us For Availability
120
METAL LGE 4950TKK968A Contact Us For Availability
130
METAL LGE 4950TKA367A Contact Us For Availability
140
PWB(PCB) ASSEMBLY,SU LGE 6871TST6621 Contact Us For Availability
150
PWB(PCB) ASSEMBLY,SU LGE 6871TSTB54A Contact Us For Availability
160
METAL LGE 4950TKK971A Contact Us For Availability
170
PWB(PCB) ASSEMBLY,SU LGE 6871TST791B Contact Us For Availability
180
PWB(PCB) ASSEMBLY,SU LGE 6871TST775B Contact Us For Availability
190
PWB(PCB) ASSEMBLY,SU LGE 6871TSTA02A Contact Us For Availability
200
PWB(PCB) ASSEMBLY,IN LGE 6871TKT302A Contact Us For Availability
210
Inverter Assembly LGE EAY40324801 Contact Us For Availability
210
Inverter Assembly LGE EAY40324601 Contact Us For Availability
210
METAL LGE 4950TKA286B Contact Us For Availability
211
Inverter Assembly LGE EAY40324701 Contact Us For Availability
211
Inverter Assembly LGE EAY40324901 Contact Us For Availability
220
COVER LGE 3550TKK630C Contact Us For Availability
230
SPEAKER ASSEMBLY LGE 6401TZZ056B Contact Us For Availability
240
SPEAKER ASSEMBLY LGE 6401TZZ055B Contact Us For Availability
250
METAL LGE 4950TKK978A Contact Us For Availability
260
COVER ASSEMBLY LGE 3551TKK556C Contact Us For Availability
C130
CAPACITOR,FIXED CERA LGE 0CK224CF56A Contact Us For Availability
C133
Capacitor,AL,Chip LGE 0CE476VC6DC Contact Us For Availability
C149
CAPACITOR,CHIP LGE 0CH5471K416 Contact Us For Availability
C151
Capacitor,AL,Radial LGE 0CE477EF638 Contact Us For Availability
C212
Capacitor,AL,Chip LGE 0CE225VK6DC Contact Us For Availability
C231
CAPACITOR,FIXED CERA LGE 0CC680CK41A Contact Us For Availability
C305
CAPACITOR,FIXED ELEC LGE 0CE227VF6DC Contact Us For Availability
C348
CAPACITOR,FIXED CERA LGE 0CK473CK56A Contact Us For Availability
C410
Capacitor,AL,Chip LGE 0CE335VK6DC Contact Us For Availability
C425
CAPACITOR,FIXED CERA LGE 0CC270CK41A Contact Us For Availability
C544
Capacitor,Ceramic,Chip LGE 0CC560CK41A Contact Us For Availability
C548
Capacitor,Ceramic,Chip LGE 0CH5560K416 Contact Us For Availability
C560
CAPACITOR,FIXED CERA LGE 0CK152CK51A Contact Us For Availability
C561
CAPACITOR,FIXED CERA LGE 0CC271CK41A Contact Us For Availability
C562
Capacitor,Ceramic,Chip LGE 0CC3R3CK01A Contact Us For Availability
C563
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
C564
Capacitor,AL,Chip LGE 0CH8476H691 Contact Us For Availability
C575
Capacitor,Ceramic,Chip LGE 0CK332CK56A Contact Us For Availability
C585
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107WF6DC Contact Us For Availability
C602
CAPACITOR CHIP[CERAMIC LD-LESS LGE 0CH3103K516 Contact Us For Availability
C678
CAPACITOR,CHIP[AL. E LGE 0CH8106F691 Contact Us For Availability
C720
CAPACITOR,FIXED CERA LGE 0CC331CK41A Contact Us For Availability
C813
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C817
CAPACITOR,FIXED CERA LGE 0CK103CK51A Contact Us For Availability
C820
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C916
CAPACITOR,CHIP[AL. E LGE 0CH8226F691 Contact Us For Availability
C948
Capacitor,Ceramic,Chip LGE 0CC821CK41A Contact Us For Availability
C1000
Capacitor,Ceramic,Axial LGE 0CN1010K519 Contact Us For Availability
C1001
CAPACITOR ELECTROLYTIC 47UF ST LGE 0CE476DF618 Contact Us For Availability
C1002
CAPACITOR,FIXED ELEC LGE 0CE107WH6DC Contact Us For Availability
C3105
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE106SF6DC Contact Us For Availability
C5021
CAPACITOR,FIXED CERA LGE 0CK105CF94A Contact Us For Availability
C5022
CAPACITOR,FIXED CERA LGE 0CK474CH94A Contact Us For Availability
D506
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
D604
DIODE,SWITCHING LGE 0DS226009AA Contact Us For Availability
L402
FILTER(CIRC),EMC LGE 6210TCE001Y Contact Us For Availability
L410
FILTER(CIRC),EMC LGE 6210TCE001R Contact Us For Availability
L509
FILTER(CIRC),EMC LGE 6210TCE001S Contact Us For Availability
L613
Filter,Bead LGE 6210TCE001H Contact Us For Availability
L704
Filter,Bead LGE 6210TCE001P Contact Us For Availability
L711
Filter,Bead LGE 6210TCE001F Contact Us For Availability
L801
FILTER(CIRC),EMC LGE 6210TCE001Z Contact Us For Availability
L1000
INDUCTOR AXIAL LEAD KCN20A82G LGE 0LA0102K119 Contact Us For Availability
LED1
LED LGE 0DL200000CA Contact Us For Availability
Q202
TRANSISTOR LGE 0TR150400BA Contact Us For Availability
Q203
TRANSISTOR LGE 0TR390409AE Contact Us For Availability
Q510
TRANSISTOR LGE 0TR390609FA Contact Us For Availability
Q601
TR,Bipolar LGE 0TR162309CA Contact Us For Availability
R104
RESISTOR,METAL GLAZE LGE 0RJ0752D677 Contact Us For Availability
R105
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R129
RESISTOR CHIP 470K 1/10W 5 D. LGE 0RH4703D622 Contact Us For Availability
R131
Resistor,Chip LGE 0RJ6802D677 Contact Us For Availability
R142
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R163
Resistor,Chip LGE 0RJ0752D477 Contact Us For Availability
R239
Resistor,Chip LGE 0RJ2000D677 Contact Us For Availability
R243
RESISTOR,METAL GLAZE LGE 0RJ3000D677 Contact Us For Availability
R401
RESISTOR,METAL GLAZE LGE 0RJ1002D477 Contact Us For Availability
R426
Resistor,Chip LGE 0RH2701D622 Contact Us For Availability
R431
RESISTOR CHIP 3.3K 1/10W 5 D. LGE 0RH3301D622 Contact Us For Availability
R456
Resistor,Chip LGE 0RH2201D622 Contact Us For Availability
R461
Resistor,Chip LGE 0RJ2201D677 Contact Us For Availability
R527
RESISTOR,METAL GLAZE LGE 0RJ1203D677 Contact Us For Availability
R535
Resistor,Chip LGE 0RJ2002D477 Contact Us For Availability
R537
Resistor,Chip LGE 0RJ2402D677 Contact Us For Availability
R552
Resistor,Chip LGE 0RJ2702D677 Contact Us For Availability
R639
RESISTOR,METAL GLAZE LGE 0RJ2202D677 Contact Us For Availability
R705
RESISTOR,METAL GLAZE LGE 0RJ4703D677 Contact Us For Availability
R714
RESISTOR,METAL GLAZE LGE 0RJ0472D677 Contact Us For Availability
R719
RESISTOR,METAL GLAZE LGE 0RJ0822D677 Contact Us For Availability
R735
RESISTOR,METAL GLAZE LGE 0RJ0682D677 Contact Us For Availability
R817
RESISTOR CHIP 4.7K 1/10W 5 D. LGE 0RH4701D622 Contact Us For Availability
R913
RESISTOR,METAL GLAZE LGE 0RJ1501D677 Contact Us For Availability
R915
Resistor,Chip LGE 0RJ3300D677 Contact Us For Availability
R961
Resistor,Chip LGE 0RH3300D622 Contact Us For Availability
R963
Resistor,Chip LGE 0RJ1005D677 Contact Us For Availability
R1000
RESISTOR FIXED CARBON FILM LGE 0RD0102F609 Contact Us For Availability
R1051
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R1053
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R1072
RESISTOR,METAL GLAZE LGE 0RJ2001D677 Contact Us For Availability
R1093
RESISTOR CHIP 56 1/10W 5 D.R/ LGE 0RH0562D622 Contact Us For Availability
R3108
RESISTOR,METAL GLAZE LGE 0RJ2200D677 Contact Us For Availability
R4006
RESISTOR CHIP 22 1/10W 5 D.R/ LGE 0RH0222D622 Contact Us For Availability
R5023
RESISTOR,METAL GLAZE LGE 0RJ6801D477 Contact Us For Availability
RA913
RESISTOR,METAL GLAZE LGE 0RJ0222C687 Contact Us For Availability
RA929
RESISTOR,METAL GLAZE LGE 0RJ1000C687 Contact Us For Availability
SW910
Switch,Tact LGE 140-058B Contact Us For Availability
TI1
Time Control LGE EAT40319201 Contact Us For Availability
U101
IC,SAMSUNG ELECTRONICS LGE 0ISS780800J Contact Us For Availability
U115
IC,MEMORIES LGE 0ISS524202B Contact Us For Availability
U116
IC,OP Amplifier LGE 0IPRPAD024A Contact Us For Availability
U119
IC,STANDARD LOGIC LGE 0ISTLFA058A Contact Us For Availability
U121
IC,ROHM LGE 0IRH765700B Contact Us For Availability
U122
IC,STANDARD LOGIC LGE 0ISTL00026A Contact Us For Availability
U203
IC,SAMSUNG ELECTRONICS LGE 0ISS780500H Contact Us For Availability
U204
IC,LDO Voltage Regulator LGE 0IPMGKE036A Contact Us For Availability
U303
IC,PERIPHERALS LGE 0IPRPM3002D Contact Us For Availability
U402
IC,PERIPHERALS LGE 0IPRPGN007C Contact Us For Availability
U403
IC Assembly LGE 0IZZTSZ810A Contact Us For Availability
U404
IC,MEMORIES LGE 0IMMRSS040C Contact Us For Availability
U406
IC,MEMORIES LGE 0IMMRHY052C Contact Us For Availability
U501
IC,Sound/Audio Processor LGE 0IPRPMN001C Contact Us For Availability
U502
IC,PERIPHERALS LGE 0IPRPTI036B Contact Us For Availability
U503
IC,Digital Signal Processors LGE 0IPRPJR017A Contact Us For Availability
U505
IC,Transceiver LGE 0IPRPTI015A Contact Us For Availability
U506
IC,Multiplexer LGE 0IMCRTI001A Contact Us For Availability
U523
IC,Temperature Sensor LGE 0IPRPNS030A Contact Us For Availability
U524
IC,OP Amplifier LGE 0IKE358000P Contact Us For Availability
U601
TRANSISTOR,FETS LGE 0TFVI80067A Contact Us For Availability
U603
TRANSISTOR,FETS LGE 0TFIR80009D Contact Us For Availability
U607
TRANSISTOR,FETS LGE 0TFFC80009A Contact Us For Availability
U610
IC,STANDARD LOGIC LGE 0ISTLTI049A Contact Us For Availability
U611
IC,LDO Voltage Regulator LGE 0IPMGSG020A Contact Us For Availability
U702
IC,Ambient Light Sensor LGE 0IPRPTX001A Contact Us For Availability
U801
IC,PERIPHERALS LGE 0IPRPNE011A Contact Us For Availability
U802
IC,MEMORIES LGE 0IMMR00080A Contact Us For Availability
U804
IC,POWER MANAGEMENT LGE 0IPMGRH001D Contact Us For Availability
U901
IC,PERIPHERALS LGE 0IPRPM7001C Contact Us For Availability
U1002
TRANSISTOR,FETS LGE 0TFIR80016B Contact Us For Availability
X401
CRYSTAL LGE 6202TST001A Contact Us For Availability
X801
RESONATOR,CRYSTAL LGE 6212AB2806A Contact Us For Availability
X901
RESONATOR,CRYSTAL LGE 6202TST001H Contact Us For Availability
ZD401
Diode,Zener LGE 0DZ910009FE Contact Us For Availability
ZD804
DIODE,ZENERS LGE 0DZKE00228A Contact Us For Availability
× ![]()
Login and Registration Form
