Model LG M5201CCBA – Common Parts & Diagrams

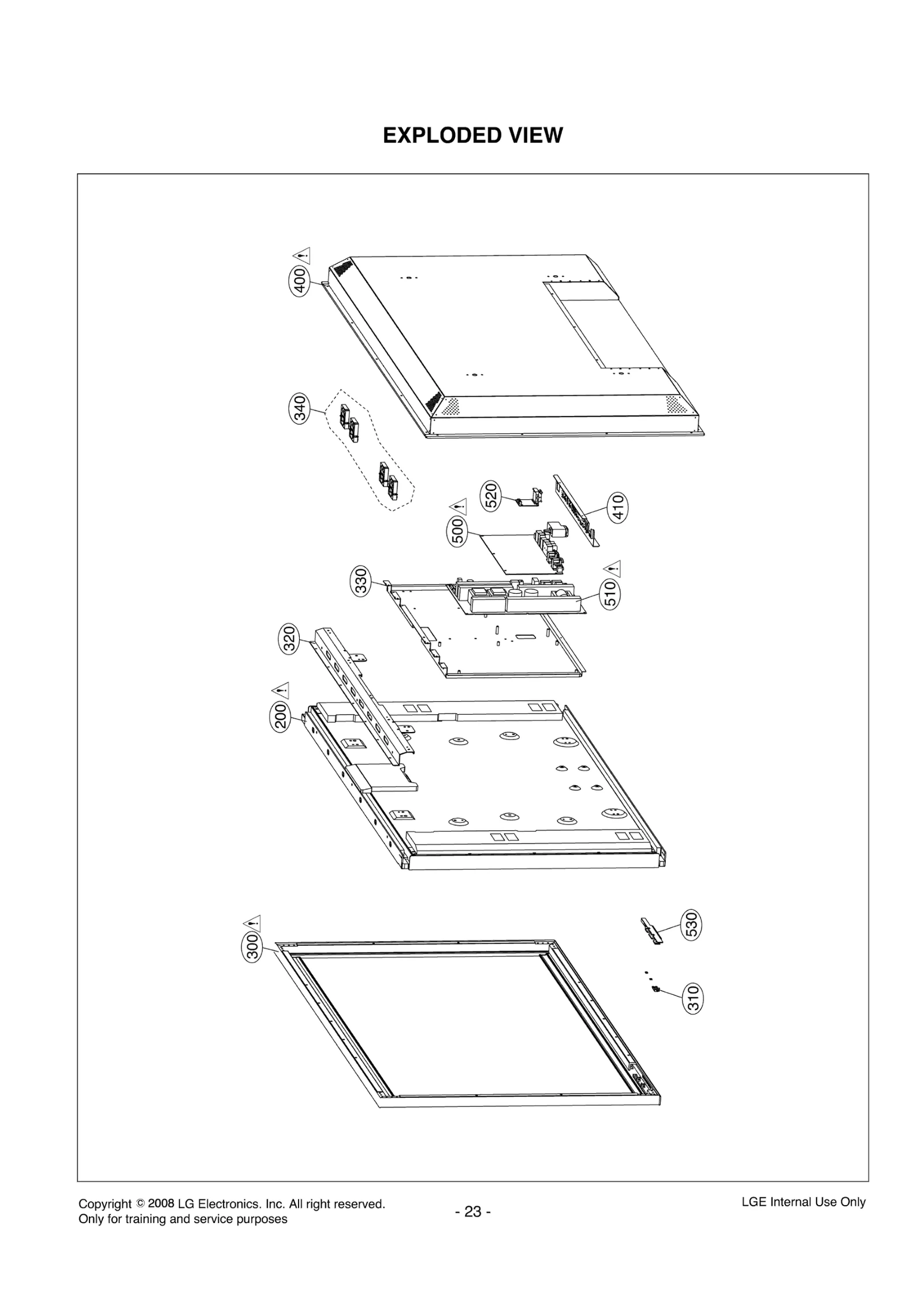

Diagram 0
Diagram 1
Common parts from model LG M5201CCBA
200
LCD,Module-TFT LGE EAJ41784201 Contact Us For Availability
300
Cover Assembly LGE ACQ34561302 Contact Us For Availability
310
Lens LGE 3680TKP097A Contact Us For Availability
320
Supporter LGE MJH37656503 Contact Us For Availability
330
Frame LGE MDQ40826002 Contact Us For Availability
340
Bracket LGE MAZ38576301 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ34560502 Contact Us For Availability
410
Cover LGE MCK39945801 Contact Us For Availability
500
Main Total Assembly LGE EBU60726601 Contact Us For Availability
510
SMPS,AC/DC LGE EAY36675701 Contact Us For Availability
520
PCB Assembly LGE EBR36256605 Contact Us For Availability
530
PCB Assembly,Sub LGE 6871TST481L Contact Us For Availability
A1
POWER CORD LGE 6410TBW004A Contact Us For Availability
A2
Remote Controller As LGE AKB33871403 Contact Us For Availability
A3
CABLE,D-SUB LGE 6850TD9007D Contact Us For Availability
A4
CORD,A/V LGE 6852TAZ006J Contact Us For Availability
A5
CORD,A/V LGE 6852TAZ006V Contact Us For Availability
A6
Holder LGE 341-746B Contact Us For Availability
AL823
Filter,Bead LGE EAM38769509 Contact Us For Availability
C126
Capacitor,AL,Chip LGE 0CE107WK6DC Contact Us For Availability
C131
CAPACITOR,FIXED CERA LGE 0CK104CF56A Contact Us For Availability
C165
CAPACITOR,FIXED ELEC LGE 0CE477WF6DC Contact Us For Availability
C167
CAPACITOR,FIXED CERA LGE 0CC331CK41A Contact Us For Availability
C168
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C204
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C220
CAPACITOR,FIXED CERA LGE 0CK103CK51A Contact Us For Availability
C300
CAPACITOR,FIXED ELEC LGE 0CE226WF6DC Contact Us For Availability
C397
CAPACITOR,FIXED CERA LGE 0CC270CK41A Contact Us For Availability
C410
CAPACITOR,FIXED CERA LGE 0CC151CK41A Contact Us For Availability
C436
CAPACITOR,FIXED ELEC LGE 0CE227WF6DC Contact Us For Availability
C500
CAPACITOR,CHIP[AL. E LGE 0CH8106F691 Contact Us For Availability
C503
CAPACITOR,FIXED CERA LGE 0CK105DF64A Contact Us For Availability
C504
Capacitor,Ceramic,Chip LGE 0CH2103K516 Contact Us For Availability
C582
Capacitor,AL,Radial LGE 0CE477EF638 Contact Us For Availability
C586
Capacitor,Ceramic,Ch LGE 0CK563CK56A Contact Us For Availability
C592
Capacitor,Ceramic,Chip LGE 0CC821CK41A Contact Us For Availability
C594
Capacitor,AL,Chip LGE 0CE105SK6DC Contact Us For Availability
C811
CAPACITOR,FIXED CERA LGE 0CK102CK56A Contact Us For Availability
C821
Capacitor,Ceramic,Chip LGE 0CK682CK51A Contact Us For Availability
C833
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107SF6DC Contact Us For Availability
C840
Capacitor,Film,DIP LGE 0CF4741L438 Contact Us For Availability
C858
CAPACITOR,FIXED CERA LGE 0CK333CK56A Contact Us For Availability
C872
CAPACITOR,FIXED CERA LGE 0CK474CH94A Contact Us For Availability
C878
Capacitor,AL,Chip LGE 0CE335SK6DC Contact Us For Availability
C882
CAPACITOR,FIXED CERA LGE 0CK103CK56A Contact Us For Availability
C888
Capacitor,Ceramic,Chip LGE 0CC560CK41A Contact Us For Availability
C901
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107WF6DC Contact Us For Availability
C907
Capacitor,AL,Chip LGE 0CE106SH6DC Contact Us For Availability
C932
CAPACITOR,FIXED ELEC LGE 0CE108EJK18 Contact Us For Availability
C935
CAPACITOR,FIXED CERA LGE 0CK226FF67A Contact Us For Availability
C942
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C949
Capacitor,AL,Chip LGE EAE30840301 Contact Us For Availability
C955
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C975
Capacitor,AL,Chip LGE 0CE106WH6DC Contact Us For Availability
C978
CAPACITOR,FIXED CERA LGE 0CK105CF94A Contact Us For Availability
C984
CAPACITOR,FIXED ELEC LGE 0CE107WH6DC Contact Us For Availability
CA2
Harness,Single LGE 6631900049E Contact Us For Availability
CA3
Harness,Single LGE 6631900133D Contact Us For Availability
CA4
Harness,Single LGE 6631T20032V Contact Us For Availability
CA5
Harness,Single LGE 6631900012C Contact Us For Availability
CA7
CONNECTOR ASSEMBLY LGE 6631T25024L Contact Us For Availability
CA7
Harness,Single LGE 6631T20029C Contact Us For Availability
D502
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
D516
DIODE,SWITCHING LGE 0DS226009AA Contact Us For Availability
D523
Diode,Rectifier LGE 0DD200009AF Contact Us For Availability
D526
DIODE,RECTIFIERS LGE 0DRSE00048A Contact Us For Availability
D531
DIODE,RECTIFIERS LGE 0DRSE00038A Contact Us For Availability
D534
Diode,TVS LGE EAH33945901 Contact Us For Availability
IC101
IC,Data Controller LGE 0IPRP00692A Contact Us For Availability
IC108
IC,Voltage Regulator LGE EAN32662801 Contact Us For Availability
IC113
IC,POWER MANAGEMENT LGE 0IPMGSG018D Contact Us For Availability
IC116
IC,DC,DC Converter LGE EAN52430801 Contact Us For Availability
IC117
IC,POWER MANAGEMENT LGE 0IPMGRH001G Contact Us For Availability
IC118
IC,LDO Voltage Regulator LGE 0IPRPML001A Contact Us For Availability
IC307
IC,MICRO CHIP TECHNO LGE 0IMP242560A Contact Us For Availability
IC309
IC,NOR Flash Memory LGE 0IMMR00089A Contact Us For Availability
IC311
IC,DDR SDRAM LGE EAN31729202 Contact Us For Availability
IC500
IC,OP Amplifier LGE 0IKE358000P Contact Us For Availability
IC501
IC,Temperature Sensor LGE 0IPRPNS030A Contact Us For Availability
IC502
IC,EEPROM LGE EAN35989901 Contact Us For Availability
IC508
IC,Data Controller LGE 0IPRPS5006C Contact Us For Availability
IC509
IC,Video Processors LGE 0ISA721700C Contact Us For Availability
IC512
IC,OP Amplifier LGE 0IPRPAD024A Contact Us For Availability
IC801
IC LGE 0IPH741400E Contact Us For Availability
IC802
IC,MICRO CONTROLLER LGE 0IMCRTI028C Contact Us For Availability
IC804
IC,MICRO CONTROLLER LGE 0IMCRMN027D Contact Us For Availability
IC805
IC,Sound/Audio Proce LGE 0IPRP00718A Contact Us For Availability
IC808
IC,POWER MANAGEMENT LGE 0IPMG78391A Contact Us For Availability
J1
CONNECTOR (CIRC),WAF LGE 6602T20009J Contact Us For Availability
JK1
Connector,Terminal LGE 385-173B Contact Us For Availability
JK500
JACK,PHONE LGE 6612F00087B Contact Us For Availability
JK501
JACK,DIN LGE 6612B00015A Contact Us For Availability
JK502
JACK,PHONE LGE 6612F00059C Contact Us For Availability
L510
Filter,Bead LGE EAM38769501 Contact Us For Availability
L513
Filter,Bead LGE EAM42641604 Contact Us For Availability
L516
Inductor,Multilayer,Chip LGE EAP40283004 Contact Us For Availability
L517
Filter,Bead LGE EAM38769507 Contact Us For Availability
L521
Filter,Bead LGE EAM38769506 Contact Us For Availability
L527
Filter,Bead LGE EAM42557401 Contact Us For Availability
L810
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
L811
Coil,Choke LGE 6140VB0022A Contact Us For Availability
L822
Inductor,Wire Wound,Chip LGE EAP38274503 Contact Us For Availability
LED1
LED LGE 0DLLT0089AA Contact Us For Availability
M1
Holder LGE MEG41035801 Contact Us For Availability
P101
Connector,Wafer LGE 6602T12005D Contact Us For Availability
P102
Connector,Wafer LGE 6630V091112 Contact Us For Availability
P103
WAFER LGE 6602T25008M Contact Us For Availability
P105
WAFER LGE 6602T25008J Contact Us For Availability
P500
Connector,Wafer LGE 6602T12005C Contact Us For Availability
P502
Connector,DSUB LGE EAG43472001 Contact Us For Availability
P805
CONNECTOR (CIRC),WAF LGE 6602T20008J Contact Us For Availability
P806
Conector,Wafer LGE 6630V93270A Contact Us For Availability
Q101
TRANSISTOR,FETS LGE 0TFIR80016B Contact Us For Availability
Q307
FET LGE EBK60706901 Contact Us For Availability
Q501
TRANSISTOR LGE 0TR150400BA Contact Us For Availability
Q504
TRANSISTOR LGE 0TR390409AE Contact Us For Availability
Q511
TRANSISTOR LGE 0TR830009BA Contact Us For Availability
R7
RESISTOR,METAL GLAZE LGE 0RJ1501D677 Contact Us For Availability
R330
RESISTOR,METAL GLAZE LGE 0RJ0562D677 Contact Us For Availability
R385
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R433
RESISTOR,METAL GLAZE LGE 0RJ1002D477 Contact Us For Availability
R503
RESISTOR,METAL GLAZE LGE 0RJ6801D477 Contact Us For Availability
R591
Resistor,Chip LGE 0RJ1503D677 Contact Us For Availability
R596
Resistor,Chip LGE 0RJ0752D477 Contact Us For Availability
R601
RESISTOR,METAL GLAZE LGE 0RJ6201D677 Contact Us For Availability
R629
RESISTOR,METAL GLAZE LGE 0RJ4703D677 Contact Us For Availability
R666
RESISTOR,METAL GLAZE LGE 0RJ4300D677 Contact Us For Availability
R669
Resistor,Chip LGE 0RJ2000D677 Contact Us For Availability
R671
RESISTOR,METAL GLAZE LGE 0RJ0752D677 Contact Us For Availability
R677
Resistor,Chip LGE 0RJ6802D677 Contact Us For Availability
R690
RESISTOR,METAL GLAZE LGE 0RJ0472D677 Contact Us For Availability
R804
Resistor,Chip LGE 0RJ1501D477 Contact Us For Availability
R813
RESISTOR,METAL GLAZE LGE 0RJ0471D677 Contact Us For Availability
R819
RESISTOR,METAL GLAZE LGE 0RJ0331D677 Contact Us For Availability
R826
Resistor,Chip LGE 0RJ4701D477 Contact Us For Availability
R837
Resistor,Chip LGE 0RJ0221D677 Contact Us For Availability
R864
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R875
RESISTOR,METAL GLAZE LGE 0RJ1001D477 Contact Us For Availability
R877
RESISTOR,METAL GLAZE LGE 0RJ2200D677 Contact Us For Availability
R879
Resistor,Chip LGE 0RJ1000D477 Contact Us For Availability
R884
Resistor,Chip LGE 0RJ0101D677 Contact Us For Availability
R901
Resistor,Chip LGE 0RJ2702D677 Contact Us For Availability
R910
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R931
RESISTOR,METAL GLAZE LGE 0RJ1820D477 Contact Us For Availability
R935
RESISTOR,METAL GLAZE LGE 0RJ1802D677 Contact Us For Availability
R938
RESISTOR,METAL GLAZE LGE 0RJ1302D677 Contact Us For Availability
R944
RESISTOR,METAL GLAZE LGE 0RJ2001D677 Contact Us For Availability
R970
RESISTOR,METAL GLAZE LGE 0RJ1502D677 Contact Us For Availability
R995
Resistor,Chip LGE 0RJ0271D677 Contact Us For Availability
R997
RESISTOR,METAL GLAZE LGE 0RJ0682D677 Contact Us For Availability
R1067
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R1074
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R1077
Resistor,Chip LGE 0RJ2000C678 Contact Us For Availability
R1082
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
SW6
Switch,Tact LGE 6600R00001B Contact Us For Availability
U1
PRE-AMP LGE 6726VV0006D Contact Us For Availability
X501
Resonator,Ceramic LGE 166-E02F Contact Us For Availability
X800
Crystal LGE 6202VDT002H Contact Us For Availability
X801
Crystal LGE 6212AB2015J Contact Us For Availability
X802
Crystal LGE EAW39040101 Contact Us For Availability
ZD800
DIODE,ZENERS LGE 0DZKE00048A Contact Us For Availability
× ![]()
