Model Whirlpool M46FN-14T MICROWAVE – Common Parts & Diagrams

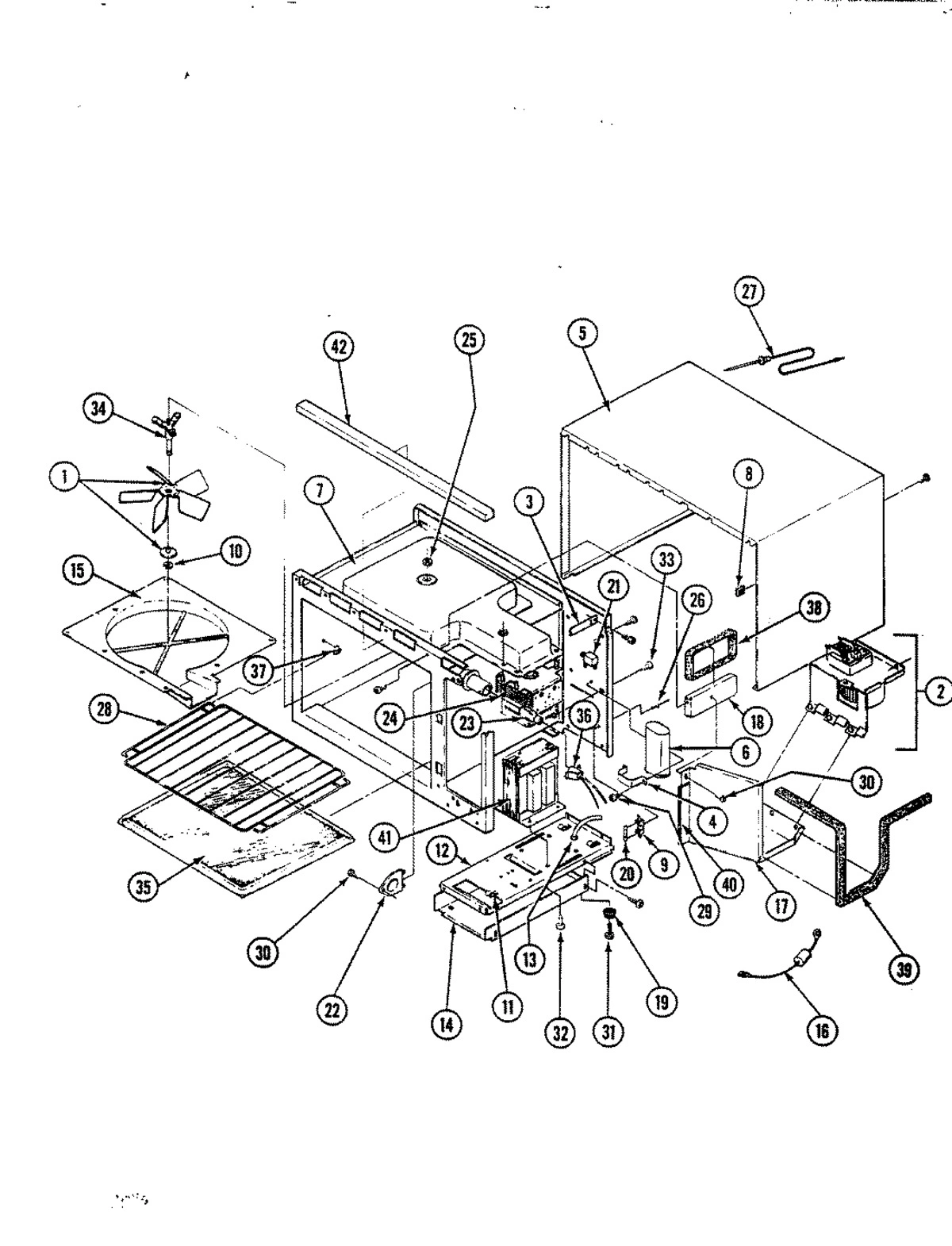

01 - BASE & CAVITY

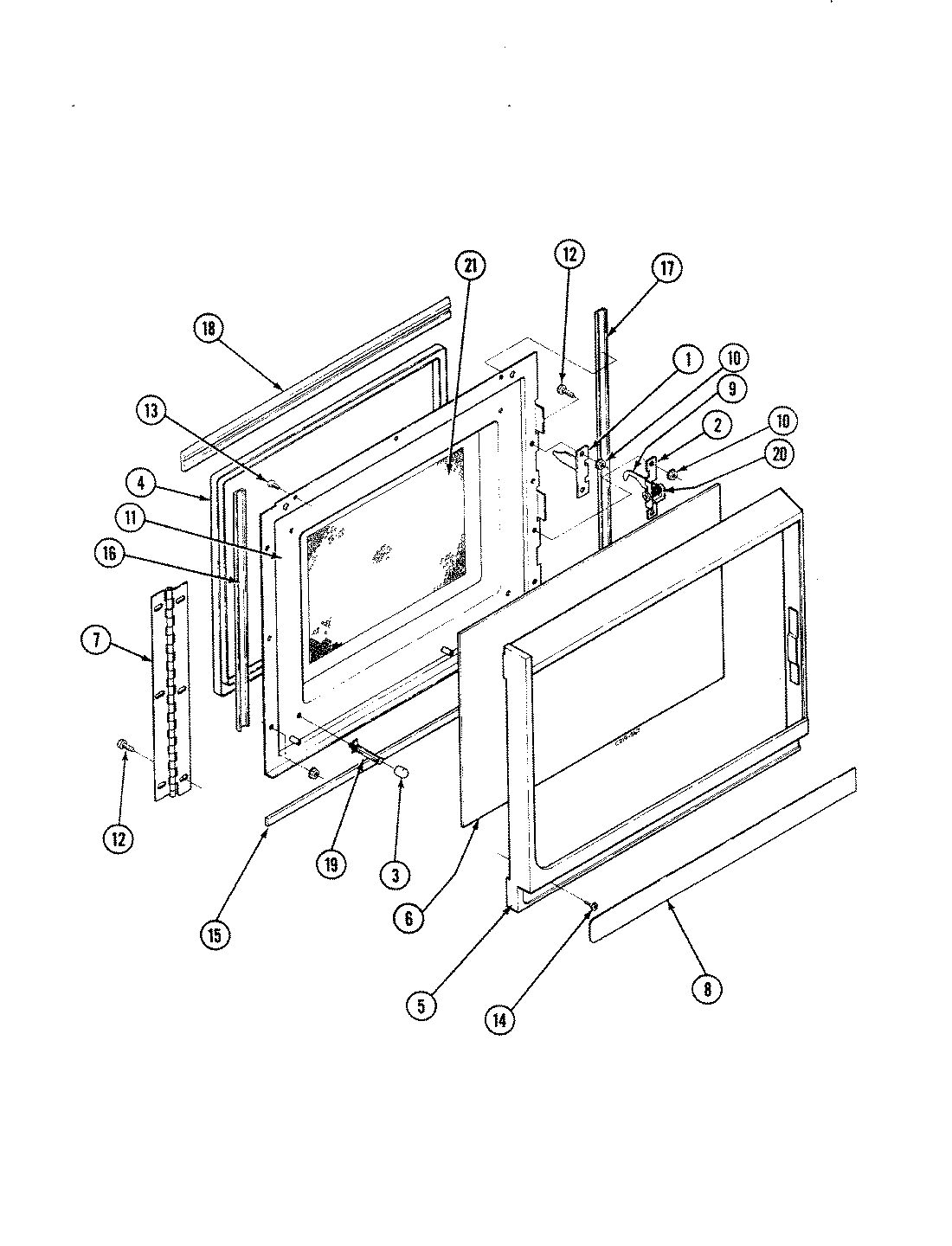

03 - DOOR

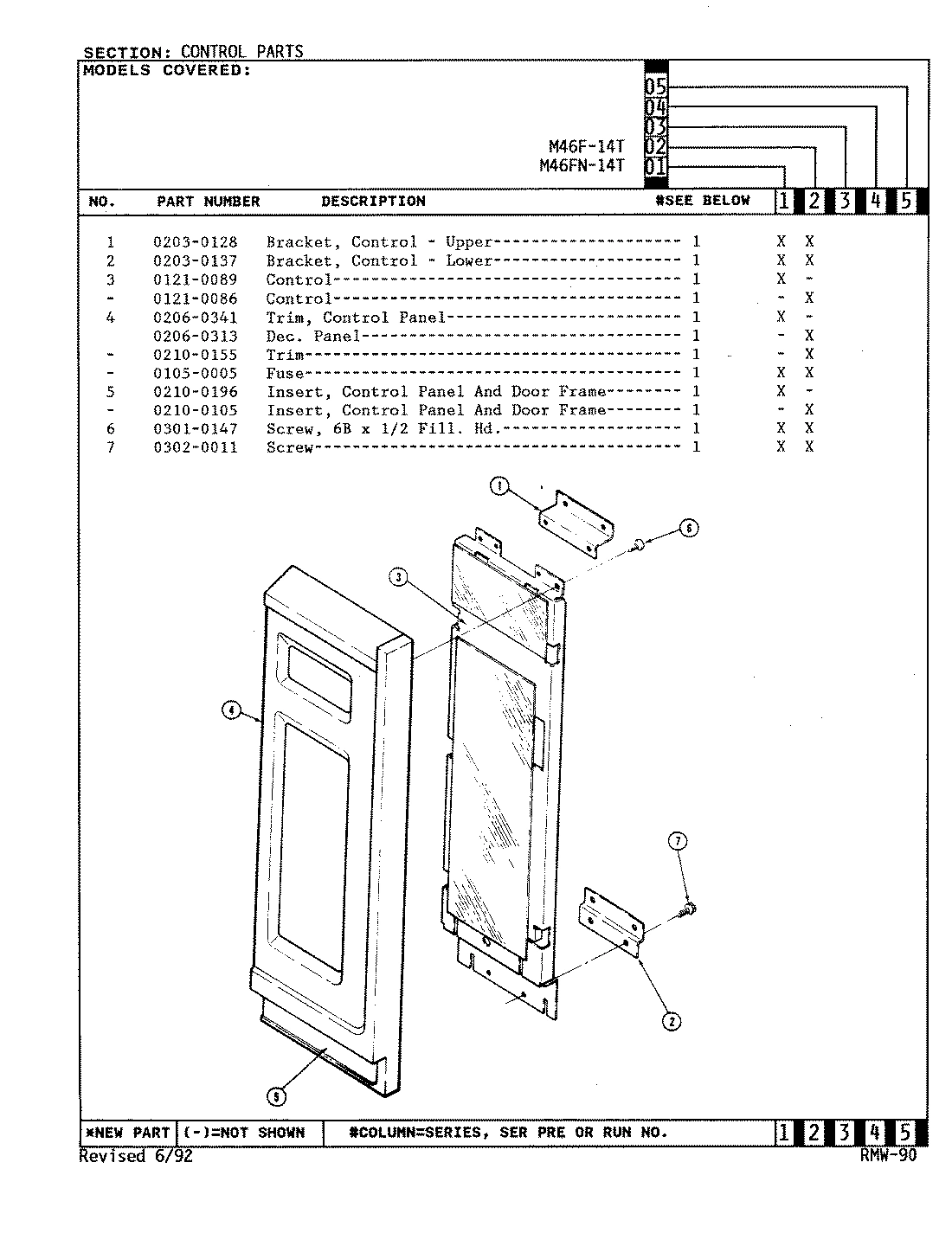

02 - CONTROL PANEL

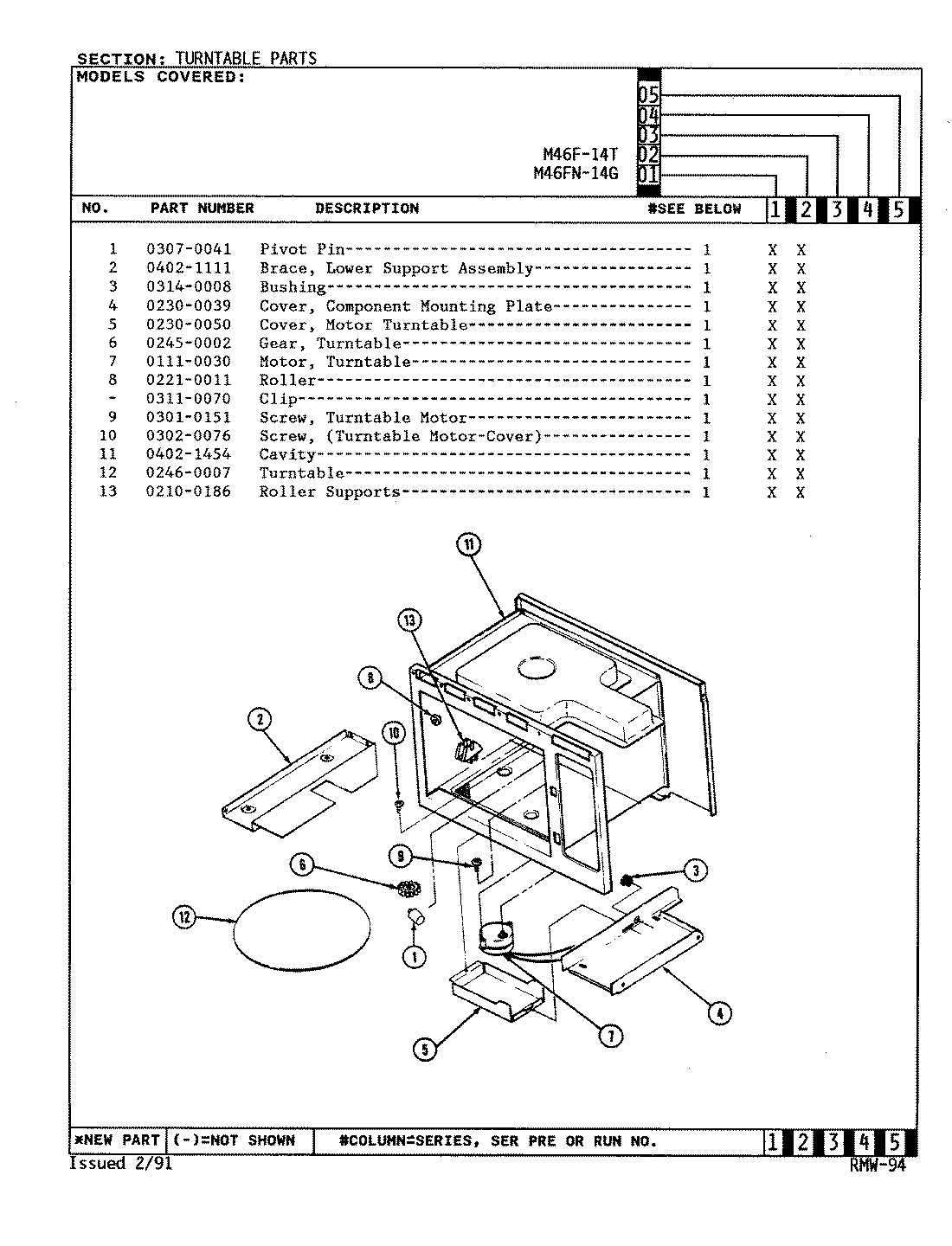

04 - TURNTABLE
Common parts from model Whirlpool M46FN-14T MICROWAVE
1
BLADE, BUSHING ASSEMBLY WPL 04021190 Contact Us For Availability
1
ACTIVATOR, MONITOR WPL Y02030117 Contact Us For Availability
1
BRACKET, CONTROL PANEL-UPPER WPL 02030128 Contact Us For Availability
1
PIN, PIVOT WPL Y03070041 Contact Us For Availability
2
MOTOR, BLOWER WPL 01110029 Contact Us For Availability
2
BLOWER ASSEMBLY WPL 04021191 Contact Us For Availability
2
BRACE, LOWER LEFT SUPPORT WPL 04021484 Contact Us For Availability
2
WHEEL, BLOWER WPL Y01110016 Contact Us For Availability
2
BRACKET, BLOWER SUPPORT WPL Y02030144 Contact Us For Availability
2
HOUSING, BLOWER WPL Y02170119 Contact Us For Availability
2
BRACKET, DOOR LATCH WPL Y02030116 Contact Us For Availability
2
BRACKET, CONTROL PANEL-LOWER WPL 02030137 Contact Us For Availability
2
BRACE WPL 04021111 Contact Us For Availability
3
BRACE, UPPER RIGHT SUPPORT WPL 02020020 Contact Us For Availability
3
BUMPER WPL Y02100135 Contact Us For Availability
3
BOARD, CONTROL WPL 01210089 Contact Us For Availability
3
BUSHING WPL Y03140008 Contact Us For Availability
4
BRACKET WPL 02030123 Contact Us For Availability
4
COVER, MTG PLATE WPL 02300039 Contact Us For Availability
4
FUSE 15A 125V WPL Y01050005 Contact Us For Availability
4
CHOKE, FILLER (WHT) WPL Y02100080 Contact Us For Availability
4
TRIM CONTROL PANEL WPL 02060341 Contact Us For Availability
5
CABINET (WHITE) WPL 02140065 Contact Us For Availability
5
FRAME, DOOR WPL 04021462 Contact Us For Availability
5
INSERT, CONTROL/DOOR WPL Y02100196 Contact Us For Availability
5
COVER, MOTOR TURNTABLE WPL Y02300050 Contact Us For Availability
6
RESISTOR, BLEEDER WPL 01010008 Contact Us For Availability
6
CAPACITOR WPL Y01020023 Contact Us For Availability
6
EXTRUSION, HANDLE (WHT) WPL 02120166 Contact Us For Availability
6
GLASS, DOOR OUTER WPL 02220107 Contact Us For Availability
6
SCREW (TOP) WPL Y03010147 Contact Us For Availability
6
GEAR, TURNTABLE WPL Y02450002 Contact Us For Availability
7
COVER, FRONT EDGE WPL 02300057 Contact Us For Availability
7
HINGE, DOOR WPL 02200016 Contact Us For Availability
7
SCREW WPL 03020011 Contact Us For Availability
7
MOTOR, TURNTABLE WPL Y01110030 Contact Us For Availability
8
CLIP, CABINET (RT) WPL 03110027 Contact Us For Availability
8
CLIP, CABINET (LT) WPL 03110046 Contact Us For Availability
8
ROLLER WPL 02210011 Contact Us For Availability
8
CLIP - PUSH ON WPL Y03110070 Contact Us For Availability
9
CLIP, STIRRER WPL 03110066 Contact Us For Availability
9
LATCH, DOOR WPL 02190056 Contact Us For Availability
9
SCREW WPL 03010151 Contact Us For Availability
10
CLIP WPL Y03110050 Contact Us For Availability
10
SCREW WPL Y03020076 Contact Us For Availability
11
CAVITY WPL 04021454 Contact Us For Availability
11
CLIP, WIRE HARNESS WPL 03110022 Contact Us For Availability
11
PANEL, INNER DOOR WPL 04021461 Contact Us For Availability
12
PLATE, COMPONENT MOUNTING WPL Y02040101 Contact Us For Availability
12
SCREW, 6-32 X 3/8 PH BLACK WPL Y03010157 Contact Us For Availability
12
TURNTABLE WPL Y02460007 Contact Us For Availability
13
CORD, POWER (WHT) WPL 01080055 Contact Us For Availability
13
SCREW WPL Y03010118 Contact Us For Availability
13
SUPPORT, ROLLER WPL Y02100186 Contact Us For Availability
15
COVER, STIRRER WPL Y02300045 Contact Us For Availability
15
SEAL, BOTTOM WPL 02120114 Contact Us For Availability
16
DIODE WPL Y04010206 Contact Us For Availability
16
SEAL, HINGE SIDE WPL Y02120121 Contact Us For Availability
17
DUCT ASSEMBLY, MAGNETRON WPL Y04020842 Contact Us For Availability
17
SEAL, LATCH SIDE WPL Y02120122 Contact Us For Availability
18
SUPPORT, DUCT MAGNETRON WPL Y02170111 Contact Us For Availability
18
SEAL, TOP WPL 02120153 Contact Us For Availability
18
SHIM WPL Y03120064 Contact Us For Availability
19
FOOT, BASE WPL 02230012 Contact Us For Availability
19
SPACER, DOOR WINDOW WPL Y03120069 Contact Us For Availability
20
SPRING, DOOR LATCH WPL Y03180023 Contact Us For Availability
21
WINDOW, POLYESTER WPL Y02220073 Contact Us For Availability
22
LENS, BULB WPL Y02400007 Contact Us For Availability
23
BULB, LIGHT WPL Y01060024 Contact Us For Availability
24
MAGNETRON WPL 01040004 Contact Us For Availability
25
NUT, SHAFT STIRRER WPL 03050007 Contact Us For Availability
26
PLATE, POPCORN WPL 02040094 Contact Us For Availability
28
RACK, OVEN WPL Y02410004 Contact Us For Availability
30
SCREW WPL 03010098 Contact Us For Availability
32
SCREW WPL 03010094 Contact Us For Availability
34
SHAFT, STIRRER WPL 02360058 Contact Us For Availability
35
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
36
RECEPTACLE, LIGHT WPL 01100045 Contact Us For Availability
37
SWITCH, TEMP LIMIT WPL 01180010 Contact Us For Availability
37
SUPPORT, RACK WPL 02010031 Contact Us For Availability
38
TAPE, FOAM WPL 02310109 Contact Us For Availability
39
TAPE, FOAM WPL 02310070 Contact Us For Availability
40
TAPE, FOAM WPL 02310071 Contact Us For Availability
41
TRANSFORMER, H.V. WPL 01130028 Contact Us For Availability
42
TRIM, INTAKE (WHT) WPL 02100197 Contact Us For Availability
42
WIRE HARNESS WPL 04010253 Contact Us For Availability
42
COOKBOOK WPL 06030029 Contact Us For Availability
42
LABEL, COOKING GUIDE WPL Y02240782 Contact Us For Availability
42
HV LEAD WIRE (8 ``) WPL Y04060532 Contact Us For Availability
42
HV LEAD WIRE (16``) WPL Y04060535 Contact Us For Availability
42
MANUAL, USE & CARE WPL Y06010311 Contact Us For Availability
× ![]()
