Model LG M4224CCBH – Common Parts & Diagrams
Diagram 0

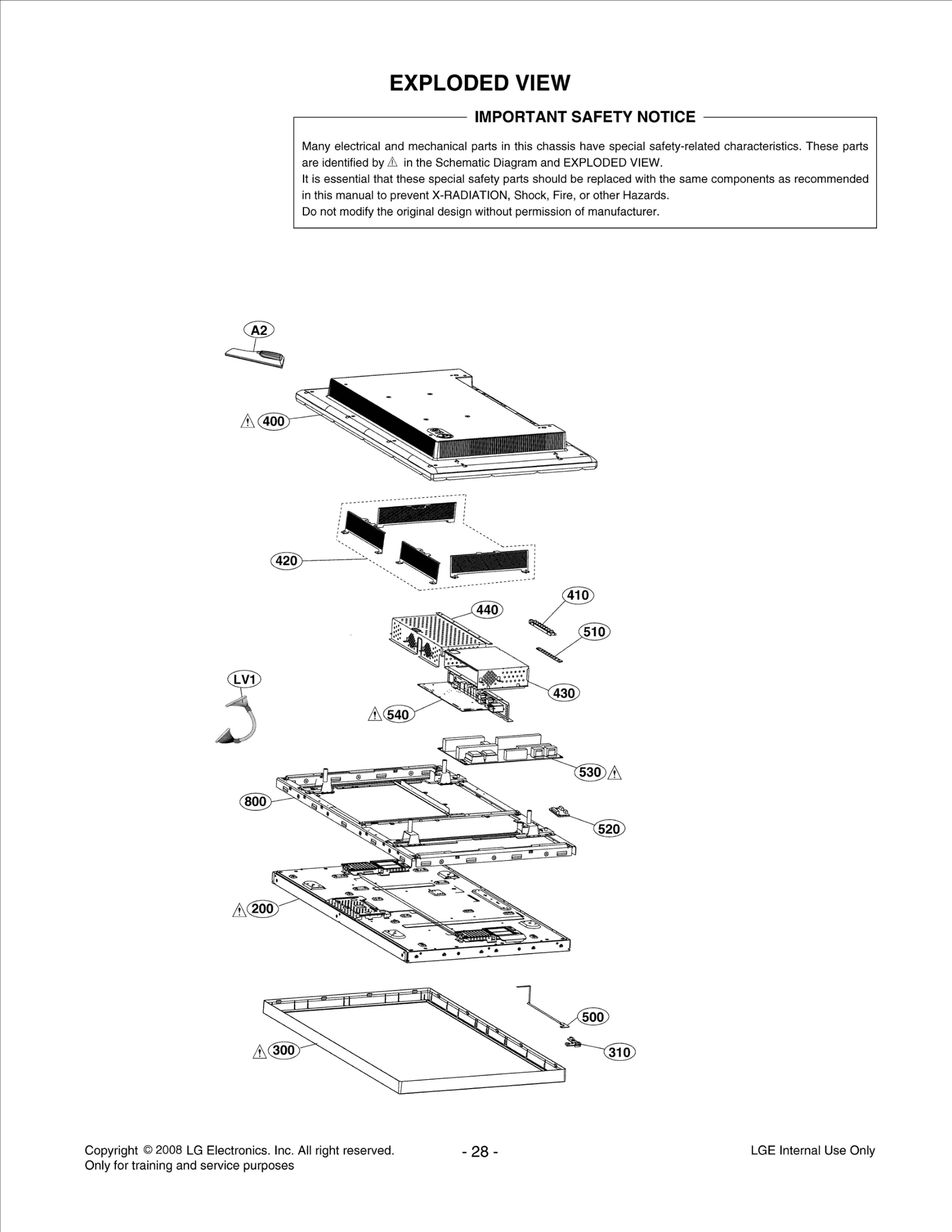

Diagram 1
Common parts from model LG M4224CCBH
200
LCD,Module-TFT LGE EAJ60799301 Contact Us For Availability
300
Cabinet Assembly LGE ABJ69821202 Contact Us For Availability
310
Lens LGE MFB53379702 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ69821302 Contact Us For Availability
410
Knob LGE MEY53379902 Contact Us For Availability
430
Plate,Shield LGE MGJ37884902 Contact Us For Availability
440
Plate,Shield LGE MGJ37885002 Contact Us For Availability
510
Package Assembly LGE AGF33516103 Contact Us For Availability
520
Package Assembly LGE AGF33516306 Contact Us For Availability
540
Package Assembly LGE AGF33515718 Contact Us For Availability
550
Filter,AC Line LGE EAM36140906 Contact Us For Availability
800
Frame Assembly LGE ADV69872505 Contact Us For Availability
801
Plate,Metal LGE MGJ53392902 Contact Us For Availability
802
Plate,Metal LGE MGJ53393002 Contact Us For Availability
803
Plate,Metal LGE MGJ53393102 Contact Us For Availability
804
Plate,Metal LGE MGJ53393202 Contact Us For Availability
806
Plate,Metal LGE MGJ53393402 Contact Us For Availability
807
Plate,Metal LGE MGJ53393504 Contact Us For Availability
808
Plate,Metal LGE MGJ53393702 Contact Us For Availability
901
Cover LGE MCK53380002 Contact Us For Availability
A2
Remote Controller As LGE AKB33871403 Contact Us For Availability
A3
Power Cord LGE 6410TUW003H Contact Us For Availability
AR101
RESISTOR,METAL GLAZE LGE 0RJ1000C687 Contact Us For Availability
AR105
Resistor,Chip LGE 0RJ0562C687 Contact Us For Availability
AR109
Resistor,Array LGE EBC32260501 Contact Us For Availability
C1
CAPACITOR,FIXED CERA LGE 0CK105CF94A Contact Us For Availability
C106
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C121
Capacitor,Ceramic,Chip LGE EAE38454201 Contact Us For Availability
C124
Capacitor,Ceramic,Ch LGE 0CK474DK56A Contact Us For Availability
C135
CAPACITOR,FIXED CERA LGE 0CK102CK56A Contact Us For Availability
C144
CAPACITOR,FIXED ELEC LGE 0CE227WJ6DC Contact Us For Availability
C145
Capacitor,AL,Chip LGE 0CE107WK6DC Contact Us For Availability
C158
CAPACITOR,FIXED CERA LGE 0CK103CK56A Contact Us For Availability
C192
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C196
CAPACITOR,FIXED ELEC LGE 0CE477WF6DC Contact Us For Availability
C200
CAPACITOR,FIXED ELEC LGE 0CE107WH6DC Contact Us For Availability
C202
Capacitor,Ceramic,Chip LGE 0CK224CFG6A Contact Us For Availability
C209
CAPACITOR,FIXED CERA LGE 0CK475DD57A Contact Us For Availability
C231
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C250
CAPACITOR,FIXED CERA LGE 0CK475CC94A Contact Us For Availability
C258
Capacitor,Ceramic,Ch LGE EAE33970001 Contact Us For Availability
C264
CAPACITOR,FIXED CERA LGE 0CK225DK94A Contact Us For Availability
C282
Capacitor,Ceramic,Chip LGE 0CK682CK51A Contact Us For Availability
C305
CAPACITOR,FIXED CERA LGE 0CK104CF56A Contact Us For Availability
C316
Capacitor,Ceramic,Ch LGE 0CZZB00035A Contact Us For Availability
C317
CAPACITOR,FIXED CERA LGE 0CC331CK41A Contact Us For Availability
C319
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C326
Capacitor,Ceramic,Chip LGE EAE50191801 Contact Us For Availability
C330
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C338
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C371
CAPACITOR,FIXED ELEC LGE 0CE337WJ6D8 Contact Us For Availability
C374
Capacitor,Ceramic,Chip LGE EAE60364701 Contact Us For Availability
C391
CAPACITOR,FIXED ELEC LGE 0CE108EJK18 Contact Us For Availability
C398
Capacitor,AL,Chip LGE 0CE476WK6DC Contact Us For Availability
C401
CAPACITOR,FIXED CERA LGE 0CC151CK41A Contact Us For Availability
C402
CAPACITOR,FIXED CERA LGE 0CK474CH94A Contact Us For Availability
C424
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
C453
Capacitor,Ceramic,Chip LGE 0CC560CK41A Contact Us For Availability
CA1
Harness,Single LGE 6631T20010H Contact Us For Availability
CA2
CONNECTOR ASSEMBLY LGE 6631T20041A Contact Us For Availability
CA3
CABLE,D-SUB LGE 6850TD9007D Contact Us For Availability
CA4
CORD,A/V LGE 6852TAZ006J Contact Us For Availability
CA5
Harness,Single LGE EAD42065903 Contact Us For Availability
CA6
Harness,Single LGE EAD52821205 Contact Us For Availability
CA10
Harness,Single LGE 6631900049A Contact Us For Availability
D121
DIODE,SWITCHING LGE 0DS226009AA Contact Us For Availability
D132
DIODE,SWITCHING LGE 0DS181009AA Contact Us For Availability
D134
Diode,Switching LGE 0DSGD00038A Contact Us For Availability
D158
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
IC1
Receiver Module LGE EAV37989901 Contact Us For Availability
IC100
IC,DC,DC Converter LGE EAN55451701 Contact Us For Availability
IC101
IC,DC,DC Converter LGE EAN52430801 Contact Us For Availability
IC103
IC,EEPROM LGE 0IMMRAL014D Contact Us For Availability
IC105
IC,POWER MANAGEMENT LGE 0IPMG00048A Contact Us For Availability
IC113
IC LGE 0IPH741400E Contact Us For Availability
IC114
IC,Voltage Regulator LGE EAN32662801 Contact Us For Availability
IC115
IC,OP Amplifier LGE 0IPRPAD024A Contact Us For Availability
IC118
IC,Voltage Detector LGE 0IPRPKE008A Contact Us For Availability
IC120
IC,Video Processors LGE EAN42073901 Contact Us For Availability
IC122
IC,Timer LGE EAN54696201 Contact Us For Availability
IC123
IC,DDR SDRAM LGE EAN31729202 Contact Us For Availability
IC125
IC,Serial Flash Memory LGE EAN42836701 Contact Us For Availability
IC127
IC,OP Amplifier LGE 0IMO324000C Contact Us For Availability
IC128
Sensor,Temperature LGE EBD38015101 Contact Us For Availability
IC129
IC,Ethernet LGE EAN58379401 Contact Us For Availability
JK101
JACK,DIN LGE 6612B00015A Contact Us For Availability
JK102
Jack,RCA LGE 380-344A Contact Us For Availability
JK105
Connector,BNC LGE 6630A90018E Contact Us For Availability
JK109
Connector,Terminal LGE 385-173B Contact Us For Availability
JK112
Connector,DSUB LGE EAG43472001 Contact Us For Availability
JK113
Jack,Modular LGE EAG38015701 Contact Us For Availability
L2
Filter,Bead LGE EAM30764101 Contact Us For Availability
L4
Filter,Bead LGE EAM38769507 Contact Us For Availability
L104
Inductor,Wire Wound,Chip LGE EAP38274503 Contact Us For Availability
L136
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
LD1
LED,Chip LGE EAV34876201 Contact Us For Availability
LV1
Harness,Single LGE EAD40113910 Contact Us For Availability
M100
Holder LGE MEG41035801 Contact Us For Availability
P1
Connector,FFC/FPC/PIC LGE EAG58469801 Contact Us For Availability
P2
Connector,Wafer LGE 6630V90141B Contact Us For Availability
P5
CONNECTOR (CIRC),WAF LGE 6602T20009J Contact Us For Availability
P101
CONNECTOR (CIRC),WAF LGE 6602T20008J Contact Us For Availability
P107
Connector,Wafer LGE 6602T12005C Contact Us For Availability
P108
Connector,Wafer LGE 6630V091112 Contact Us For Availability
P119
Conector,Wafer LGE 6630V93270A Contact Us For Availability
P125
Connector,Wafer LGE 6602T20009D Contact Us For Availability
P126
Connector,Wafer LGE EAG39798201 Contact Us For Availability
Q106
TRANSISTOR LGE 0TR390609FA Contact Us For Availability
Q112
TRANSISTOR,FETS LGE 0TFIR80016B Contact Us For Availability
Q126
TRANSISTOR LGE 0TR390409AE Contact Us For Availability
Q133
TRANSISTOR,BIPOLARS LGE 0TRIH80001A Contact Us For Availability
R2
Resistor,Chip LGE 0RJ3300D677 Contact Us For Availability
R102
RESISTOR CHIP 4.7K 1/10W 5 D. LGE 0RH4701D622 Contact Us For Availability
R105
Resistor,Chip LGE 0RH1302D622 Contact Us For Availability
R125
RESISTOR,METAL GLAZE LGE 0RJ2202D677 Contact Us For Availability
R126
RESISTOR,METAL GLAZE LGE 0RJ1601E472 Contact Us For Availability
R133
Resistor,Chip LGE 0RJ2000D677 Contact Us For Availability
R153
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R180
RESISTOR,METAL GLAZE LGE 0RJ1002D477 Contact Us For Availability
R204
RESISTOR,METAL GLAZE LGE 0RJ2001D677 Contact Us For Availability
R224
RESISTOR,METAL GLAZE LGE 0RJ2701D677 Contact Us For Availability
R231
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R272
Resistor,Chip LGE 0RJ0271D677 Contact Us For Availability
R322
Resistor,Chip LGE 0RJ0752D477 Contact Us For Availability
R326
RESISTOR,METAL GLAZE LGE 0RJ6201D677 Contact Us For Availability
R330
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R333
RESISTOR,METAL GLAZE LGE 0RJ2200D677 Contact Us For Availability
R385
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
R394
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R399
RESISTOR,METAL GLAZE LGE 0RJ3900D677 Contact Us For Availability
R434
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R458
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R462
RESISTOR,METAL GLAZE LGE 0RJ0752D677 Contact Us For Availability
R470
RESISTOR,METAL GLAZE LGE 0RJ1302D677 Contact Us For Availability
R472
RESISTOR,METAL GLAZE LGE 0RJ4703D677 Contact Us For Availability
R494
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R505
RESISTOR,METAL GLAZE LGE 0RJ0682D677 Contact Us For Availability
R518
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R531
RESISTOR,METAL GLAZE LGE 0RJ1001D477 Contact Us For Availability
R552
Resistor,Chip LGE 0RH0122D622 Contact Us For Availability
R555
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R556
RESISTOR,METAL GLAZE LGE 0RJ0331D677 Contact Us For Availability
R597
RESISTOR,METAL GLAZE LGE 0RJ4300D677 Contact Us For Availability
R600
Resistor,Chip LGE 0RJ6802D677 Contact Us For Availability
R614
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R647
RESISTOR,METAL GLAZE LGE 0RJ1202D677 Contact Us For Availability
R669
RESISTOR,METAL GLAZE LGE 0RJ0102D677 Contact Us For Availability
R703
RESISTOR,METAL GLAZE LGE 0RJ0472D677 Contact Us For Availability
R732
RESISTOR,METAL GLAZE LGE 0RJ1800D677 Contact Us For Availability
R740
Resistor,Chip LGE 0RJ2201D677 Contact Us For Availability
R754
RESISTOR,METAL GLAZE LGE 0RJ1802D677 Contact Us For Availability
SW101
Switch,Tact LGE EBF55334201 Contact Us For Availability
X100
RESONATOR,CRYSTAL LGE 6202VDT002B Contact Us For Availability
X102
Crystal LGE 6212AB2015C Contact Us For Availability
ZD4
Diode,TVS LGE EAH39491701 Contact Us For Availability
× ![]()
