Model LG M4214CCBAP – Common Parts & Diagrams
Diagram 0
Diagram 1

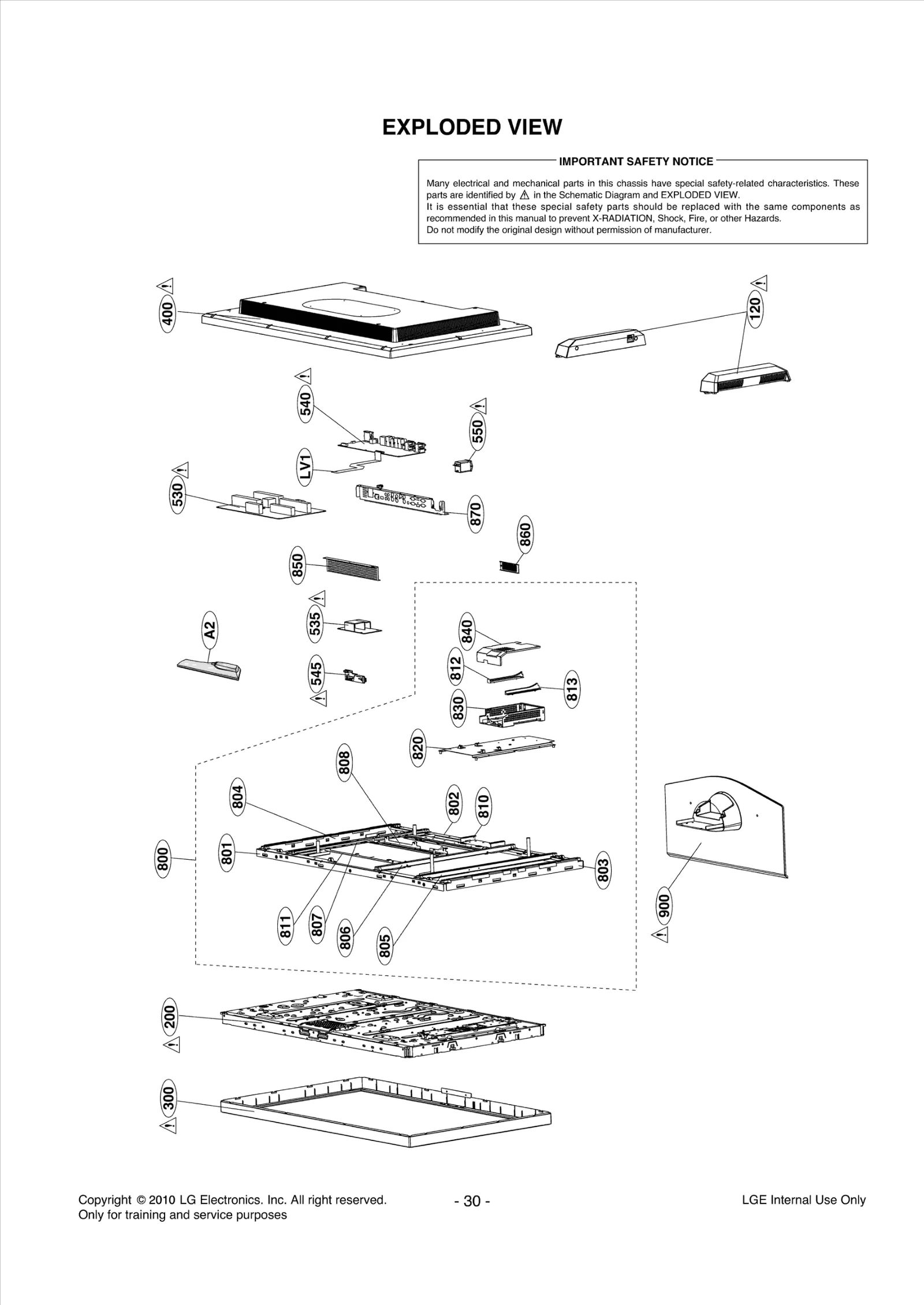

Common parts from model LG M4214CCBAP
200
LCD,Module-TFT LGE EAJ61088201 Contact Us For Availability
300
Cabinet Assembly LGE ABJ33529822 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ32795319 Contact Us For Availability
470
Plate,Metal LGE MGJ37836501 Contact Us For Availability
535
SMPS,AC/DC LGE EAY61229001 Contact Us For Availability
540
PCB Assembly,Main LGE EBR65980720 Contact Us For Availability
540
PCB Assembly,Main LGE EBR65980702 Contact Us For Availability
545
PCB Assembly,Common Interface LGE EBR70038201 Contact Us For Availability
550
Filter,AC Line LGE EAM61230301 Contact Us For Availability
800
Frame Assembly LGE ADV32851514 Contact Us For Availability
801
Plate,Metal LGE MGJ36384701 Contact Us For Availability
802
Plate,Metal LGE MGJ36384801 Contact Us For Availability
803
Plate,Metal LGE MGJ36384901 Contact Us For Availability
804
Plate,Metal LGE MGJ36384902 Contact Us For Availability
805
Plate LGE MGJ32902610 Contact Us For Availability
806
Plate LGE MGJ32902723 Contact Us For Availability
807
Plate LGE MGJ32902505 Contact Us For Availability
808
Plate,Metal LGE MGJ61889605 Contact Us For Availability
810
Plate,Metal LGE MGJ36385001 Contact Us For Availability
811
Supporter LGE MJH62055501 Contact Us For Availability
812
Supporter LGE MJH59708302 Contact Us For Availability
813
Supporter LGE MJH59708301 Contact Us For Availability
820
Frame LGE MDQ62196402 Contact Us For Availability
830
Plate,Shield LGE MGJ62263001 Contact Us For Availability
840
Plate,Shield LGE MGJ62263101 Contact Us For Availability
860
Cover LGE MCK63646601 Contact Us For Availability
870
Plate,Metal LGE MGJ61889706 Contact Us For Availability
910
Cover LGE 35509K0331E Contact Us For Availability
910
Plate LGE 49509K0335A Contact Us For Availability
A1
Title LGE SAC35013401 Contact Us For Availability
A2
Remote Controller Assembly LGE AKB72915219 Contact Us For Availability
A5
CABLE,D-SUB LGE 6850TD9007D Contact Us For Availability
A5
CORD,A/V LGE 6852TAZ006J Contact Us For Availability
AR100
Resistor,Array LGE EBC32260501 Contact Us For Availability
AR114
Resistor,Array LGE EBC39283301 Contact Us For Availability
C1
CAPACITOR,FIXED CERA LGE 0CK105CF94A Contact Us For Availability
C101
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C106
Capacitor,Ceramic,Chip LGE EAE50191801 Contact Us For Availability
C110
CAPACITOR,FIXED ELEC LGE 0CE227WJ6DC Contact Us For Availability
C115
Capacitor,AL,Chip LGE 0CE107WK6DC Contact Us For Availability
C127
Capacitor,Ceramic,Chip LGE EAE33831901 Contact Us For Availability
C160
CAPACITOR,FIXED ELEC LGE 0CE227WF6DC Contact Us For Availability
C179
CAPACITOR,FIXED ELEC LGE 0CE107WH6DC Contact Us For Availability
C239
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C246
CAPACITOR,FIXED ELEC LGE 0CE477WF6DC Contact Us For Availability
C250
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C254
Capacitor,Ceramic,Chip LGE 0CH2682K516 Contact Us For Availability
C258
CAPACITOR,FIXED CERA LGE 0CK104CF56A Contact Us For Availability
C261
Capacitor,Ceramic,Chip LGE 0CK225DF56A Contact Us For Availability
C277
Capacitor,Ceramic,Ch LGE EAE30281301 Contact Us For Availability
C283
CAPACITOR,FIXED CERA LGE 0CK475EF56A Contact Us For Availability
C293
Capacitor,Ceramic,Ch LGE 0CH5240K416 Contact Us For Availability
C299
CAPACITOR,FIXED CERA LGE 0CK475DD57A Contact Us For Availability
C300
Capacitor,AL,Chip LGE 0CE476WK6DC Contact Us For Availability
C328
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C330
CAPACITOR,FIXED ELEC LGE 0CE108EJK18 Contact Us For Availability
C347
Capacitor,Ceramic,Chip LGE 0CC560CK41A Contact Us For Availability
C363
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
C384
CAPACITOR,FIXED ELEC LGE 0CE337WJ6D8 Contact Us For Availability
C387
Capacitor,Ceramic,Ch LGE 0CZZB00035A Contact Us For Availability
C400
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C405
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C423
CAPACITOR,FIXED CERA LGE 0CK102CK56A Contact Us For Availability
C438
CAPACITOR,FIXED CERA LGE 0CK103CK56A Contact Us For Availability
C444
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C445
Capacitor,Ceramic,Chip LGE EAE60364701 Contact Us For Availability
C456
CAPACITOR,FIXED CERA LGE 0CK474DH56A Contact Us For Availability
D124
DIODE,SWITCHING LGE 0DS226009AA Contact Us For Availability
D132
Diode,Switching LGE 0DSGD00038A Contact Us For Availability
D133
DIODE,SWITCHING LGE 0DS181009AA Contact Us For Availability
D143
Diode,TVS LGE EAH39491701 Contact Us For Availability
D171
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
IC1
Receiver Module LGE EAV37989901 Contact Us For Availability
IC101
IC,LDO Voltage Regulator LGE EAN38975801 Contact Us For Availability
IC108
IC,EEPROM LGE 0IMMRAL014D Contact Us For Availability
IC108
IC,EEPROM LGE 0IMMRAL014E Contact Us For Availability
IC110
IC,DC,DC Converter LGE EAN57653801 Contact Us For Availability
IC111
IC LGE 0IPH741400E Contact Us For Availability
IC112
Display SOC,Digital TV LGE EAN60350801 Contact Us For Availability
IC113
IC,Video Amplifier LGE EAN60815201 Contact Us For Availability
IC113
IC,OP Amplifier LGE 0IPRPAD024A Contact Us For Availability
IC116
IC,I/O Support Chip LGE EAN60668101 Contact Us For Availability
IC117
IC,OP Amplifier LGE 0IMO324000C Contact Us For Availability
IC119
IC,Analog Switch LGE EAN30282502 Contact Us For Availability
IC120
IC Assembly LGE EAN60659305 Contact Us For Availability
IC121
IC,Multiplexer LGE 0ISTLTI047A Contact Us For Availability
IC122
IC,DDR2 SDRAM LGE EAN60762901 Contact Us For Availability
IC124
IC,Analog Switch LGE EAN60223701 Contact Us For Availability
IC126
IC,Audio Amplifier LGE EAN60969601 Contact Us For Availability
IC128
IC,EEPROM LGE 0IMMRCS012C Contact Us For Availability
IC129
Sensor,Temperature LGE EBD38015101 Contact Us For Availability
IC130
IC,Timer LGE EAN54696201 Contact Us For Availability
IC131
IC Assembly LGE EAN61017301 Contact Us For Availability
JK100
JACK,DIN LGE 6612B00015A Contact Us For Availability
JK101
JACK,PHONE LGE 6612F00059C Contact Us For Availability
JK102
Connector,BNC LGE 6630A90018E Contact Us For Availability
JK104
Jack,RCA LGE 380-344A Contact Us For Availability
JK107
Connector,Terminal LGE 385-173B Contact Us For Availability
JK109
Jack,Modular LGE EAG38015701 Contact Us For Availability
JK109
Jack,Modular LGE EAG38015702 Contact Us For Availability
JK110
Connector,DSUB LGE EAG43472001 Contact Us For Availability
L3
Filter,Bead LGE EAM38769507 Contact Us For Availability
L115
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
L118
Inductor,Wire Wound,Chip LGE EAP32842802 Contact Us For Availability
LD2
LED LGE 0DLBE0048AA Contact Us For Availability
LD2
LED,Chip LGE EAV34876201 Contact Us For Availability
LV1
Cable,FFC LGE EAD61220101 Contact Us For Availability
P1
Harness,Single LGE EAD37197601 Contact Us For Availability
P3
Connector,Wafer LGE 6630VJ01802 Contact Us For Availability
P4
Connector,Wafer LGE 6602T20009D Contact Us For Availability
P5
CONNECTOR (CIRC),WAF LGE 6602T20008J Contact Us For Availability
P101
CONNECTOR (CIRC),WAF LGE 6602T20009C Contact Us For Availability
P103
Connector,Wafer LGE EAG39798201 Contact Us For Availability
P113
CONNECTOR (CIRC),WAF LGE 6630VF03931 Contact Us For Availability
P115
Conector,Wafer LGE 6630V93270A Contact Us For Availability
Q108
TRANSISTOR LGE 0TR390609FA Contact Us For Availability
Q118
FET LGE EBK60706901 Contact Us For Availability
Q128
TRANSISTOR LGE 0TR390409AE Contact Us For Availability
R2
Resistor,Chip LGE 0RJ3300D677 Contact Us For Availability
R102
RESISTOR CHIP 4.7K 1/10W 5 D. LGE 0RH4701D622 Contact Us For Availability
R105
Resistor,Chip LGE 0RH1302D622 Contact Us For Availability
R150
RESISTOR,METAL GLAZE LGE 0RJ1002D477 Contact Us For Availability
R151
RESISTOR,METAL GLAZE LGE 0RJ2701D677 Contact Us For Availability
R197
Resistor,Chip LGE 0RJ3601D677 Contact Us For Availability
R199
Resistor,Chip LGE 0RJ1501D477 Contact Us For Availability
R206
RESISTOR,METAL GLAZE LGE 0RJ2202D677 Contact Us For Availability
R207
RESISTOR,METAL GLAZE LGE 0RJ1601E472 Contact Us For Availability
R220
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R236
RESISTOR,METAL GLAZE LGE 0RJ0102D677 Contact Us For Availability
R243
Resistor,Chip LGE 0RJ2002D477 Contact Us For Availability
R263
Resistor,Chip LGE 0RJ1801D677 Contact Us For Availability
R264
Resistor,Chip LGE 0RJ3600D477 Contact Us For Availability
R265
Resistor,Chip LGE 0RJ4301D477 Contact Us For Availability
R267
Resistor,Chip LGE 0RJ0271D677 Contact Us For Availability
R298
Resistor,Chip LGE 0RJ1242D477 Contact Us For Availability
R315
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
R317
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R342
Resistor,Chip LGE 0RJ3900E472 Contact Us For Availability
R348
Resistor,Chip LGE 0RJ0752D477 Contact Us For Availability
R357
RESISTOR,METAL GLAZE LGE 0RJ6201D677 Contact Us For Availability
R380
RESISTOR,METAL GLAZE LGE 0RJ1302D677 Contact Us For Availability
R419
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R482
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R491
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R550
RESISTOR,METAL GLAZE LGE 0RJ0752D677 Contact Us For Availability
R568
RESISTOR,METAL GLAZE LGE 0RJ1202D677 Contact Us For Availability
R573
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R578
Resistor,Chip LGE 0RJ0332C478 Contact Us For Availability
R605
Resistor,Chip LGE 0RJ0562D477 Contact Us For Availability
R608
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R632
RESISTOR,METAL GLAZE LGE 0RJ1001D477 Contact Us For Availability
R643
Resistor,Chip LGE 0RJ2201D677 Contact Us For Availability
R649
RESISTOR,METAL GLAZE LGE 0RJ4703D677 Contact Us For Availability
R663
RESISTOR,METAL GLAZE LGE 0RJ1800D677 Contact Us For Availability
R685
RESISTOR,METAL GLAZE LGE 0RJ0472D677 Contact Us For Availability
R695
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R717
Resistor,Chip LGE 0RH0122D622 Contact Us For Availability
R723
RESISTOR,METAL GLAZE LGE 0RJ0331D677 Contact Us For Availability
R819
Resistor,Chip LGE 0RJ4302D677 Contact Us For Availability
R822
RESISTOR,METAL GLAZE LGE 0RJ3002D477 Contact Us For Availability
R823
Resistor,Chip LGE 0RJ4701D477 Contact Us For Availability
R843
Resistor,Chip LGE 0RJ2000D677 Contact Us For Availability
R872
RESISTOR,METAL GLAZE LGE 0RJ4990D477 Contact Us For Availability
R876
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
S1
Cover,Rear LGE MCK62976201 Contact Us For Availability
S2
CONNECTOR ASSEMBLY LGE 6631900063C Contact Us For Availability
S4
PCB Assembly LGE EBR36353209 Contact Us For Availability
S4
Harness,Single LGE EAD61178701 Contact Us For Availability
S6
Harness,Single LGE 6631900049U Contact Us For Availability
S8
Harness,Single LGE EAD61219901 Contact Us For Availability
S8
Primary Cell Battery,Lithium LGE EAC40458601 Contact Us For Availability
S10
Bracket LGE 4810900107A Contact Us For Availability
S10
Harness,Single LGE EAD42065915 Contact Us For Availability
S11
Plate LGE 49509K0334A Contact Us For Availability
S11
Cover Assembly LGE ACQ30234009 Contact Us For Availability
S15
LED Assembly LGE EAV36674801 Contact Us For Availability
S16
Lens LGE MFB36383901 Contact Us For Availability
S16
Lens LGE MFB36381601 Contact Us For Availability
S17
Plate,Shield LGE MGJ37837201 Contact Us For Availability
S17
PCB Assembly LGE EBR36105001 Contact Us For Availability
S19
Knob LGE MEY36384601 Contact Us For Availability
S19
CONNECTOR ASSEMBLY LGE 6631900048A Contact Us For Availability
S22
PCB Assembly,Main LGE EBR36033103 Contact Us For Availability
SW107
SWITCH LGE 140-058E Contact Us For Availability
X102
Crystal LGE 6212AB2015C Contact Us For Availability
ZD2
Diode,Zener LGE EAH60270608 Contact Us For Availability
ZD4
Diode,TVS LGE EAH33945901 Contact Us For Availability
× ![]()
Login and Registration Form
