Model LG M4210D-B21 – Common Parts & Diagrams

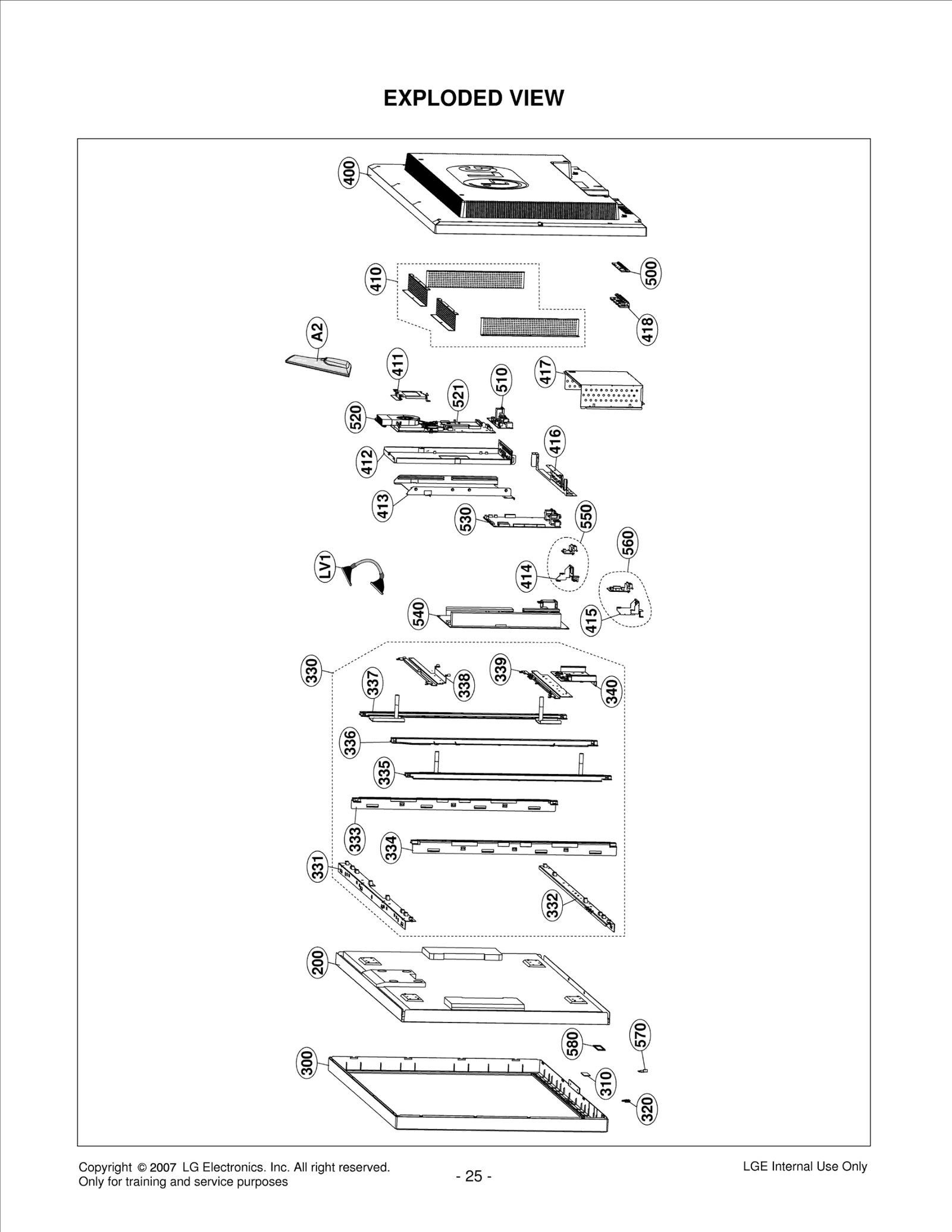

Diagram 0
Diagram 1
Common parts from model LG M4210D-B21
1
Plate LGE 4950TKS260B Contact Us For Availability
1
Solder Soldering LGE SS0000011AA Contact Us For Availability
300
Cabinet Assembly LGE ABJ36503801 Contact Us For Availability
310
Lens LGE MFB36381601 Contact Us For Availability
320
Lens LGE MFB36383901 Contact Us For Availability
330
Frame Assembly LGE ADV32851503 Contact Us For Availability
331
Plate,Metal LGE MGJ36384703 Contact Us For Availability
332
Plate,Metal LGE MGJ36384803 Contact Us For Availability
333
Plate,Metal LGE MGJ36384905 Contact Us For Availability
334
Plate,Metal LGE MGJ36384906 Contact Us For Availability
335
Plate LGE MGJ32902505 Contact Us For Availability
336
Plate LGE MGJ32902706 Contact Us For Availability
337
Plate LGE MGJ32902603 Contact Us For Availability
338
Supporter LGE MJH38363801 Contact Us For Availability
339
Plate LGE MGJ32902904 Contact Us For Availability
340
Plate,Metal LGE MGJ36385001 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ33530707 Contact Us For Availability
410
Plate,Shield LGE MGJ37837201 Contact Us For Availability
411
Supporter LGE MJH38361301 Contact Us For Availability
412
Supporter LGE MJH38359201 Contact Us For Availability
413
Supporter LGE MJH38358901 Contact Us For Availability
414
Plate,Metal LGE MGJ37836301 Contact Us For Availability
415
Plate,Metal LGE MGJ37836501 Contact Us For Availability
416
Plate,Shield LGE MGJ36391102 Contact Us For Availability
417
Plate,Shield LGE MGJ37884901 Contact Us For Availability
418
Knob LGE MEY36384601 Contact Us For Availability
500
PCB Assembly LGE EBR36105001 Contact Us For Availability
510
LAN Card,USB LGE EBM36027201 Contact Us For Availability
520
HDD LGE EAZ38296701 Contact Us For Availability
530
Main Total Assembly LGE EBU37084102 Contact Us For Availability
540
SMPS,AC/DC LGE EAY36736701 Contact Us For Availability
550
PCB Assembly LGE EBR36353201 Contact Us For Availability
560
PCB Assembly LGE EBR36353202 Contact Us For Availability
570
Auto Insert PCB Asse LGE EBR36033101 Contact Us For Availability
580
LED Assembly LGE EAV36674801 Contact Us For Availability
A1
S/W Package LGE SAB33111201 Contact Us For Availability
A2
Remote Controller Assembly LGE AKB33871404 Contact Us For Availability
A4
CABLE,DVI LGE 6866TDV004J Contact Us For Availability
A4
CABLE,DVI LGE 6866TDV004U Contact Us For Availability
A5
CORD,A/V LGE 6852TAZ006J Contact Us For Availability
A5
Cable,Assembly LGE 6850TD9008C Contact Us For Availability
A5
CABLE,D-SUB LGE 6850TD9008B Contact Us For Availability
A7
CABLE,D-SUB LGE 6850TD9001K Contact Us For Availability
AC1
Filter,AC Line LGE EAM36140901 Contact Us For Availability
AN1
Antenna Assembly LGE EAA38707702 Contact Us For Availability
C1
Harness,Single LGE EAD37523101 Contact Us For Availability
C2
CONNECTOR ASSEMBLY LGE 6631T12005C Contact Us For Availability
C3
Harness,Single LGE EAD37523102 Contact Us For Availability
C4
CONNECTOR ASSEMBLY LGE 6631900063C Contact Us For Availability
C5
Harness,Single LGE EAD36184801 Contact Us For Availability
C6
Harness,Single LGE 6631900065B Contact Us For Availability
C7
Harness,Single LGE 6631900012C Contact Us For Availability
C9
Harness,Single LGE 6631T25025G Contact Us For Availability
C10
Harness,Single LGE 6631900049G Contact Us For Availability
C11
CONNECTOR ASSEMBLY LGE 6631900048A Contact Us For Availability
C105
Capacitor,Ceramic,Chip LGE 0CK224CFG6A Contact Us For Availability
C119
CAPACITOR,FIXED CERA LGE 0CK474DH56A Contact Us For Availability
C168
Capacitor,Ceramic,Ch LGE 0CK106DC67A Contact Us For Availability
C182
CAPACITOR,FIXED CERA LGE 0CC151CK41A Contact Us For Availability
C202
CAPACITOR,FIXED CERA LGE 0CC680CK41A Contact Us For Availability
C218
Capacitor,Ceramic,Chip LGE 0CH5101K416 Contact Us For Availability
C307
CAPACITOR,CHIP[AL. E LGE 0CH8106F691 Contact Us For Availability
C309
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107WF6DC Contact Us For Availability
C315
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
C320
CAPACITOR,CHIP[AL. E LGE 0CH8226F691 Contact Us For Availability
C410
CAPACITOR,FIXED ELEC LGE 0CE477WF6DC Contact Us For Availability
C416
CAPACITOR,FIXED CERA LGE 0CK103CK51A Contact Us For Availability
C419
CAPACITOR,FIXED ELEC LGE 0CE227WF6DC Contact Us For Availability
C424
Capacitor,Ceramic,Chip LGE 0CH2103K516 Contact Us For Availability
C501
Capacitor,Ceramic,Chip LGE 0CH5030K116 Contact Us For Availability
C502
CAPACITOR,FIXED ELEC LGE 0CE226WF6DC Contact Us For Availability
C506
Capacitor,Ceramic,Chip LGE 0CC560CK41A Contact Us For Availability
C514
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C527
Capacitor,AL,Chip LGE 0CE106WH6DC Contact Us For Availability
C528
CAPACITOR,FIXED ELEC LGE 0CE106WFKDC Contact Us For Availability
C529
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C538
CAPACITOR,FIXED CERA LGE 0CK103CK56A Contact Us For Availability
C542
Capacitor,AL,Radial LGE 0CE477BJ618 Contact Us For Availability
C544
CAPACITOR,FIXED CERA LGE 0CK105CF94A Contact Us For Availability
C584
CAPACITOR,FIXED CERA LGE 0CK102CK56A Contact Us For Availability
C585
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
D2
LED LGE 0DLBE0248AA Contact Us For Availability
D304
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
D305
DIODE,SWITCHING LGE 0DS226009AA Contact Us For Availability
F1
Fan Module LGE EAL39145201 Contact Us For Availability
F2
FAN LGE 5900T52001E Contact Us For Availability
IC1
Receiver Module LGE EAV37989901 Contact Us For Availability
IC100
IC Assembly LGE EAN37082102 Contact Us For Availability
IC101
IC,KEC LGE 0IKE704200H Contact Us For Availability
IC102
IC,Video Processors LGE EAN31470703 Contact Us For Availability
IC104
IC,SDRAM LGE EAN32236001 Contact Us For Availability
IC105
IC,MEMORIES LGE 0IMMRSG036B Contact Us For Availability
IC201
IC,MEMORIES LGE 0IMMR00014A Contact Us For Availability
IC203
IC,STANDARD LOGIC LGE 0ISTL00031A Contact Us For Availability
IC204
IC,Analog Switch LGE EAN30399701 Contact Us For Availability
IC302
IC,Temperature Sensor LGE 0IPRPNS030A Contact Us For Availability
IC303
IC,OP Amplifier LGE 0IKE358000P Contact Us For Availability
IC305
IC,OP Amplifier LGE 0IPRPAD024A Contact Us For Availability
IC401
IC,POWER MANAGEMENT LGE 0IPMG00028A Contact Us For Availability
IC403
IC,LDO Voltage Regulator LGE 0IPMGKE036A Contact Us For Availability
IC404
IC,POWER MANAGEMENT LGE 0IPMGSG016A Contact Us For Availability
IC501
IC,Audio Amplifier LGE EAN32404602 Contact Us For Availability
J1
Connector,Terminal LGE 6612J00033D Contact Us For Availability
J200
CONNECTOR (CIRC),D-S LGE 6630TGA005B Contact Us For Availability
J202
Connector,Wafer LGE 6602T12007D Contact Us For Availability
J300
Connector,DSUB LGE 6630GY00709 Contact Us For Availability
J302
Connector,Wafer LGE 6630V091112 Contact Us For Availability
J303
JACK,PHONE LGE 6612F00087B Contact Us For Availability
J400
WAFER LGE 6602T25008J Contact Us For Availability
J401
WAFER LGE 6602T25008M Contact Us For Availability
J402
CONNECTOR (CIRC),WAF LGE 6602T25008L Contact Us For Availability
J406
Connector,Wafer LGE 6630V90116A Contact Us For Availability
J407
Conector,Wafer LGE 6630V93270A Contact Us For Availability
J410
CONNECTOR (CIRC),WAF LGE 6602T20008J Contact Us For Availability
J501
JACK,PHONE LGE 6612F00059C Contact Us For Availability
J514
Connector,Wafer LGE 6602T12004B Contact Us For Availability
J515
Conector,Wafer LGE 6630V90219A Contact Us For Availability
L101
Filter,Bead LGE EAM38769502 Contact Us For Availability
L404
Filter,Bead LGE EAM42641604 Contact Us For Availability
L411
Filter,Bead LGE EAM38769507 Contact Us For Availability
L506
Filter,Bead LGE EAM38769501 Contact Us For Availability
L509
Inductor,Wire Wound, LGE EAP32842806 Contact Us For Availability
L515
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
LV1
Harness,Single LGE 6631900133E Contact Us For Availability
LV1
Harness,Single LGE EAD37265401 Contact Us For Availability
M10
Holder LGE 4930BM9009A Contact Us For Availability
P1
Connector,Wafer LGE 6602T25008B Contact Us For Availability
P1
Harness,Single LGE EAD37197601 Contact Us For Availability
P2
PCB Assembly,Sub LGE EBR38084401 Contact Us For Availability
P3
Connector,Wafer LGE 6630VJ01802 Contact Us For Availability
P4
Connector,Wafer LGE 6602T20009D Contact Us For Availability
P101
CONNECTOR (CIRC),WAF LGE 6602T20009C Contact Us For Availability
Q200
TRANSISTOR,BIPOLARS LGE 0TRDI80002A Contact Us For Availability
Q303
TRANSISTOR,FETS LGE 0TFIR80016B Contact Us For Availability
Q406
TRANSISTOR LGE 0TR390609FA Contact Us For Availability
Q407
TRANSISTOR,FETS LGE 0TFFC80009A Contact Us For Availability
Q409
TRANSISTOR LGE 0TR390409AE Contact Us For Availability
Q508
TR,Bipolar LGE 0TR162309CA Contact Us For Availability
Q511
TRANSISTOR LGE 0TR830009BA Contact Us For Availability
Q513
TRANSISTOR,FETS LGE 0TFVI80067A Contact Us For Availability
R102
Resistor,Chip LGE 0RH0202D622 Contact Us For Availability
R105
Resistor,Chip LGE 0RH1302D622 Contact Us For Availability
R106
RESISTOR CHIP 4.7K 1/10W 5 D. LGE 0RH4701D622 Contact Us For Availability
R109
RESISTOR,METAL GLAZE LGE 0RJ0562D677 Contact Us For Availability
R130
Resistor,Chip LGE 0RJ2702D677 Contact Us For Availability
R205
RESISTOR,METAL GLAZE LGE 0RJ0752D677 Contact Us For Availability
R225
RESISTOR,METAL GLAZE LGE 0RJ0472D677 Contact Us For Availability
R252
Resistor,Chip LGE 0RJ2000D677 Contact Us For Availability
R262
RESISTOR,METAL GLAZE LGE 0RJ0102D677 Contact Us For Availability
R267
RESISTOR,METAL GLAZE LGE 0RJ1501D677 Contact Us For Availability
R271
RESISTOR,METAL GLAZE LGE 0RJ0682D677 Contact Us For Availability
R288
Resistor,Chip LGE 0RJ0271D677 Contact Us For Availability
R311
RESISTOR,METAL GLAZE LGE 0RJ2001D677 Contact Us For Availability
R323
Resistor,Chip LGE 0RJ1201D677 Contact Us For Availability
R324
Resistor,Chip LGE 0RJ0752D477 Contact Us For Availability
R329
RESISTOR,METAL GLAZE LGE 0RJ6801D477 Contact Us For Availability
R400
Resistor,Chip LGE 0RJ2201D677 Contact Us For Availability
R405
Resistor,Chip LGE 0RH1600D622 Contact Us For Availability
R411
RESISTOR,FIXED SMALL LGE 0RX0471K668 Contact Us For Availability
R510
RESISTOR,METAL GLAZE LGE 0RJ2203D677 Contact Us For Availability
R511
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R526
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R537
Resistor,Chip LGE 0RJ0561D677 Contact Us For Availability
R546
RESISTOR,METAL GLAZE LGE 0RJ0331D677 Contact Us For Availability
R551
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R564
RESISTOR,METAL GLAZE LGE 0RJ2202D677 Contact Us For Availability
R565
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
RA146
RESISTOR,METAL GLAZE LGE 0RJ0222C687 Contact Us For Availability
SW101
SWITCH LGE 140-058E Contact Us For Availability
X10
Crystal LGE EAW39040101 Contact Us For Availability
X100
Crystal LGE EAW44309701 Contact Us For Availability
X101
CRYSTAL,STANDARD LGE 156-A02R Contact Us For Availability
ZD100
Diode,Zener LGE 0DZ910009FE Contact Us For Availability
ZD205
DIODE,ZENERS LGE 0DZ560009GB Contact Us For Availability
ZD500
DIODE,ZENERS LGE 0DZRM00248A Contact Us For Availability
× ![]()
Login and Registration Form
