Model LG M4210C-BAC – Common Parts & Diagrams

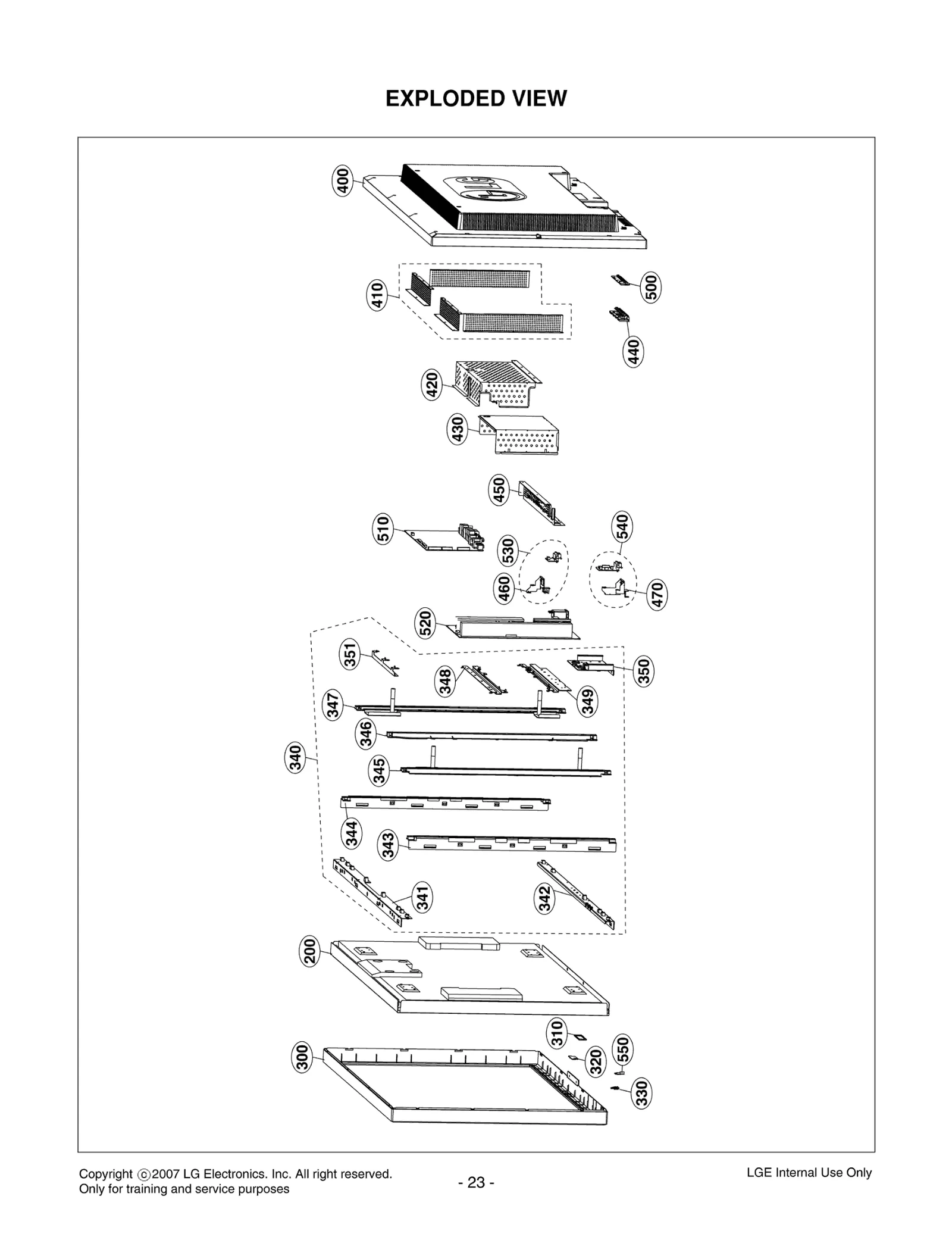

Diagram 0
Diagram 1
Common parts from model LG M4210C-BAC
300
Cabinet Assembly LGE ABJ33529802 Contact Us For Availability
310
LED Assembly LGE EAV36674801 Contact Us For Availability
320
Lens LGE MFB36381602 Contact Us For Availability
330
Lens LGE MFB36383902 Contact Us For Availability
340
Frame Assembly LGE ADV32851502 Contact Us For Availability
341
Plate,Metal LGE MGJ36384702 Contact Us For Availability
342
Plate,Metal LGE MGJ36384802 Contact Us For Availability
343
Plate,Metal LGE MGJ36384904 Contact Us For Availability
344
Plate,Metal LGE MGJ36384903 Contact Us For Availability
345
Plate LGE MGJ32902508 Contact Us For Availability
346
Plate LGE MGJ32902711 Contact Us For Availability
347
Plate LGE MGJ32902606 Contact Us For Availability
348
Plate LGE MGJ32902807 Contact Us For Availability
349
Plate LGE MGJ32902906 Contact Us For Availability
350
Plate,Metal LGE MGJ36385002 Contact Us For Availability
351
Plate,Metal LGE MGJ36425302 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ33530702 Contact Us For Availability
410
Plate,Shield LGE MGJ37837201 Contact Us For Availability
420
Plate,Shield LGE MGJ37885002 Contact Us For Availability
430
Plate,Shield LGE MGJ37884902 Contact Us For Availability
440
Knob LGE MEY36384602 Contact Us For Availability
450
Plate,Shield LGE MGJ36391101 Contact Us For Availability
460
Plate,Metal LGE MGJ37836301 Contact Us For Availability
470
Plate,Metal LGE MGJ37836501 Contact Us For Availability
500
PCB Assembly LGE EBR36105001 Contact Us For Availability
510
Main Total Assembly LGE 33139L4002E Contact Us For Availability
520
COMMERCIAL LC SERIES CAPACITOR LGE EAY32731102 Contact Us For Availability
530
PCB Assembly LGE EBR36353201 Contact Us For Availability
540
PCB Assembly LGE EBR36353202 Contact Us For Availability
550
Auto Insert PCB Asse LGE EBR36033101 Contact Us For Availability
A1
Manual LGE MFL38756101 Contact Us For Availability
A2
Remote Controller LGE 6710T00003P Contact Us For Availability
A4
BATTERY,MANGANESE LGE 130-013B Contact Us For Availability
A5
CABLE,D-SUB LGE 6850TD9007D Contact Us For Availability
A6
CORD,A/V LGE 6852TAZ006J Contact Us For Availability
A7
CORD,A/V LGE 6852TAZ006V Contact Us For Availability
A8
S/W Package LGE SAB30658902 Contact Us For Availability
AR442
RESISTOR,METAL GLAZE LGE 0RJ0222C687 Contact Us For Availability
B1
BOX LGE 3890900400A Contact Us For Availability
B4
Box LGE MAY32943852 Contact Us For Availability
B5
Box LGE 3890TKD002Z Contact Us For Availability
B7
Box LGE 3890TKD002P Contact Us For Availability
B8
Box LGE MAY37461301 Contact Us For Availability
C1
Harness,Single LGE 6631T25025G Contact Us For Availability
C2
Harness,Single LGE EAD37197601 Contact Us For Availability
C3
CONNECTOR ASSEMBLY LGE 6631900048A Contact Us For Availability
C4
Harness,Single LGE 6631900049G Contact Us For Availability
C5
CONNECTOR ASSEMBLY LGE 6631T20041B Contact Us For Availability
C6
CONNECTOR ASSEMBLY LGE 6631900012E Contact Us For Availability
C9
CONNECTOR ASSEMBLY LGE 6631900063C Contact Us For Availability
C10
Harness,Single LGE EAD36184801 Contact Us For Availability
C123
CAPACITOR,FIXED CERA LGE 0CK104CF56A Contact Us For Availability
C126
Capacitor,AL,Chip LGE 0CE107WK6DC Contact Us For Availability
C186
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107WF6DC Contact Us For Availability
C229
CAPACITOR,FIXED ELEC LGE 0CE477WF6DC Contact Us For Availability
C233
CAPACITOR,FIXED ELEC LGE 0CE107WH6DC Contact Us For Availability
C241
CAPACITOR,FIXED CERA LGE 0CK105CF94A Contact Us For Availability
C246
CAPACITOR,FIXED CERA LGE 0CK103CK51A Contact Us For Availability
C319
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C399
CAPACITOR,FIXED CERA LGE 0CC270CK41A Contact Us For Availability
C436
CAPACITOR,FIXED ELEC LGE 0CE227WF6DC Contact Us For Availability
C485
CAPACITOR,FIXED ELEC LGE 0CE226WF6DC Contact Us For Availability
C500
CAPACITOR,CHIP[AL. E LGE 0CH8106F691 Contact Us For Availability
C501
Capacitor,Ceramic,Chip LGE 0CH2103K516 Contact Us For Availability
C503
CAPACITOR,FIXED CERA LGE 0CK105DF64A Contact Us For Availability
C513
CAPACITOR,FIXED CERA LGE 0CK474CH94A Contact Us For Availability
C577
CAPACITOR,FIXED CERA LGE 0CC151CK41A Contact Us For Availability
C582
Capacitor,AL,Radial LGE 0CE477EF638 Contact Us For Availability
C586
Capacitor,Ceramic,Ch LGE 0CK563CK56A Contact Us For Availability
C592
Capacitor,Ceramic,Chip LGE 0CC821CK41A Contact Us For Availability
C594
Capacitor,AL,Chip LGE 0CE105SK6DC Contact Us For Availability
C617
Capacitor,Ceramic,Chip LGE 0CH5680K416 Contact Us For Availability
C638
CAPACITOR,FIXED CERA LGE 0CC331CK41A Contact Us For Availability
C810
CAPACITOR,FIXED CERA LGE 0CK102CK56A Contact Us For Availability
C821
Capacitor,Ceramic,Chip LGE 0CK682CK51A Contact Us For Availability
C833
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107SF6DC Contact Us For Availability
C841
Capacitor,AL,Chip LGE 0CE335SK6DC Contact Us For Availability
C858
CAPACITOR,FIXED CERA LGE 0CK333CK56A Contact Us For Availability
C865
CAPACITOR,FIXED CERA LGE 0CK103CK56A Contact Us For Availability
C869
Capacitor,Film,DIP LGE 0CF4741L438 Contact Us For Availability
C889
Capacitor,Ceramic,Chip LGE 0CC560CK41A Contact Us For Availability
C907
Capacitor,AL,Chip LGE 0CE106SH6DC Contact Us For Availability
C933
CAPACITOR,FIXED ELEC LGE 0CE108EJK18 Contact Us For Availability
C936
CAPACITOR,FIXED CERA LGE 0CK226FF67A Contact Us For Availability
D2
LED LGE 0DLBE0248AA Contact Us For Availability
D501
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
D516
DIODE,SWITCHING LGE 0DS226009AA Contact Us For Availability
D522
Diode,Rectifier LGE 0DD200009AF Contact Us For Availability
D527
DIODE,RECTIFIERS LGE 0DRSE00048A Contact Us For Availability
D529
DIODE,RECTIFIERS LGE 0DRSE00038A Contact Us For Availability
D534
Diode,TVS LGE EAH33945901 Contact Us For Availability
IC1
Receiver Module LGE EAV37989901 Contact Us For Availability
IC111
IC,Voltage Regulator LGE EAN32662801 Contact Us For Availability
IC114
IC,POWER MANAGEMENT LGE 0IPMGSG018D Contact Us For Availability
IC116
IC,POWER MANAGEMENT LGE 0IPMG00027A Contact Us For Availability
IC118
IC,LDO Voltage Regulator LGE 0IPRPML001A Contact Us For Availability
IC307
IC,MICRO CHIP TECHNO LGE 0IMP242560A Contact Us For Availability
IC309
IC Assembly LGE EAN36016101 Contact Us For Availability
IC311
IC,MEMORIES LGE 0IMMRHY052C Contact Us For Availability
IC500
IC,OP Amplifier LGE 0IKE358000P Contact Us For Availability
IC501
IC,Temperature Sensor LGE 0IPRPNS030A Contact Us For Availability
IC503
IC,PERIPHERALS LGE 0IPRP00009A Contact Us For Availability
IC506
IC,EEPROM LGE EAN35989901 Contact Us For Availability
IC508
IC,I/O Support Chip LGE 0IPRP00735A Contact Us For Availability
IC509
IC,Video Processors LGE 0ISA721700C Contact Us For Availability
IC510
IC,OP Amplifier LGE 0IPRPAD024A Contact Us For Availability
IC801
IC LGE 0IPH741400E Contact Us For Availability
IC802
IC,MICRO CONTROLLER LGE 0IMCRTI028C Contact Us For Availability
IC804
IC,MICRO CONTROLLER LGE 0IMCRMN027D Contact Us For Availability
IC805
IC,Sound/Audio Proce LGE 0IPRP00718A Contact Us For Availability
IC807
IC,POWER MANAGEMENT LGE 0IPMGRH001G Contact Us For Availability
J1
Connector,Terminal LGE 6612J00033D Contact Us For Availability
JK500
JACK,PHONE LGE 6612F00087B Contact Us For Availability
JK501
JACK,DIN LGE 6612B00015A Contact Us For Availability
JK502
JACK,PHONE LGE 6612F00059C Contact Us For Availability
JK512
Connector,BNC LGE 6630A90018C Contact Us For Availability
L513
FILTER(CIRC),EMC LGE 6210TCE001Y Contact Us For Availability
L516
INDUCTOR,CHIP LGE 0LC1032101A Contact Us For Availability
L521
Filter,Bead LGE 6210TCE001P Contact Us For Availability
L527
Filter,Bead LGE 6210TCE001F Contact Us For Availability
L811
Coil,Choke LGE 6140VB0022A Contact Us For Availability
L814
FILTER(CIRC),EMC LGE 6210TCE001S Contact Us For Availability
L827
Filter,Bead LGE 6210TCE001H Contact Us For Availability
P3
Connector,Wafer LGE 6630VJ01802 Contact Us For Availability
P4
Connector,Wafer LGE 6602T20009D Contact Us For Availability
P5
CARTON PLATE LGE 3918TKK040A Contact Us For Availability
P5
CONNECTOR (CIRC),WAF LGE 6602T20008J Contact Us For Availability
P6
CARTON PLATE LGE 3918TKK040B Contact Us For Availability
P7
CARTON PLATE LGE 3918TKK038L Contact Us For Availability
P8
Packing LGE 3920900086H Contact Us For Availability
P9
Packing LGE MFZ36448801 Contact Us For Availability
P11
Packing LGE MFZ37372408 Contact Us For Availability
P15
CARTON PLATE LGE 3918TKK038J Contact Us For Availability
P101
CONNECTOR (CIRC),WAF LGE 6602T20009C Contact Us For Availability
P103
WAFER LGE 6602T25008M Contact Us For Availability
P105
WAFER LGE 6602T25008J Contact Us For Availability
P106
CONNECTOR (CIRC),WAF LGE 6602T25008L Contact Us For Availability
P302
Connector,Wafer LGE 6630V90116A Contact Us For Availability
P502
Connector,DSUB LGE 6630GY00709 Contact Us For Availability
P803
Connector,Wafer LGE 6602T25008B Contact Us For Availability
Q501
TRANSISTOR LGE 0TR150400BA Contact Us For Availability
Q504
TRANSISTOR LGE 0TR390409AE Contact Us For Availability
Q511
TRANSISTOR LGE 0TR830009BA Contact Us For Availability
Q818
TRANSISTOR LGE 0TR390609FA Contact Us For Availability
R101
Resistor,Chip LGE 0RH1302D622 Contact Us For Availability
R106
RESISTOR CHIP 4.7K 1/10W 5 D. LGE 0RH4701D622 Contact Us For Availability
R424
RESISTOR,METAL GLAZE LGE 0RJ1002D477 Contact Us For Availability
R503
RESISTOR,METAL GLAZE LGE 0RJ6801D477 Contact Us For Availability
R540
RESISTOR,METAL GLAZE LGE 0RJ2001D677 Contact Us For Availability
R584
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R591
Resistor,Chip LGE 0RJ1503D677 Contact Us For Availability
R594
Resistor,Chip LGE 0RJ0752D477 Contact Us For Availability
R601
RESISTOR,METAL GLAZE LGE 0RJ6201D677 Contact Us For Availability
R614
RESISTOR,METAL GLAZE LGE 0RJ0472D677 Contact Us For Availability
R629
RESISTOR,METAL GLAZE LGE 0RJ4703D677 Contact Us For Availability
R666
RESISTOR,METAL GLAZE LGE 0RJ4300D677 Contact Us For Availability
R669
Resistor,Chip LGE 0RJ2000D677 Contact Us For Availability
R673
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R677
Resistor,Chip LGE 0RJ6802D677 Contact Us For Availability
R695
RESISTOR,METAL GLAZE LGE 0RJ0752D677 Contact Us For Availability
R804
Resistor,Chip LGE 0RJ1501D477 Contact Us For Availability
R813
RESISTOR,METAL GLAZE LGE 0RJ0471D677 Contact Us For Availability
R818
Resistor,Chip LGE 0RJ4701D477 Contact Us For Availability
R819
RESISTOR,METAL GLAZE LGE 0RJ0331D677 Contact Us For Availability
R857
Resistor,Chip LGE 0RJ0221D677 Contact Us For Availability
R873
Resistor,Chip LGE 0RJ0101D677 Contact Us For Availability
R874
RESISTOR,METAL GLAZE LGE 0RJ2200D677 Contact Us For Availability
R875
RESISTOR,METAL GLAZE LGE 0RJ1001D477 Contact Us For Availability
R880
Resistor,Chip LGE 0RJ1000D477 Contact Us For Availability
R901
Resistor,Chip LGE 0RJ2702D677 Contact Us For Availability
R931
RESISTOR,METAL GLAZE LGE 0RJ1820D477 Contact Us For Availability
R987
RESISTOR,METAL GLAZE LGE 0RJ1502D677 Contact Us For Availability
R990
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R995
Resistor,Chip LGE 0RJ0271D677 Contact Us For Availability
R997
RESISTOR,METAL GLAZE LGE 0RJ0682D677 Contact Us For Availability
R1026
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R1042
RESISTOR,METAL GLAZE LGE 0RJ0562D677 Contact Us For Availability
R1044
RESISTOR,METAL GLAZE LGE 0RJ1501D677 Contact Us For Availability
SW108
SWITCH LGE 140-058E Contact Us For Availability
X501
Resonator,Ceramic LGE 166-E02F Contact Us For Availability
X800
Crystal LGE 6202VDT002H Contact Us For Availability
X801
Crystal LGE 6212AB2015J Contact Us For Availability
ZD800
DIODE,ZENERS LGE 0DZKE00048A Contact Us For Availability
× ![]()
Login and Registration Form
