Model Whirlpool M41D-6P MICROWAVE – Common Parts & Diagrams

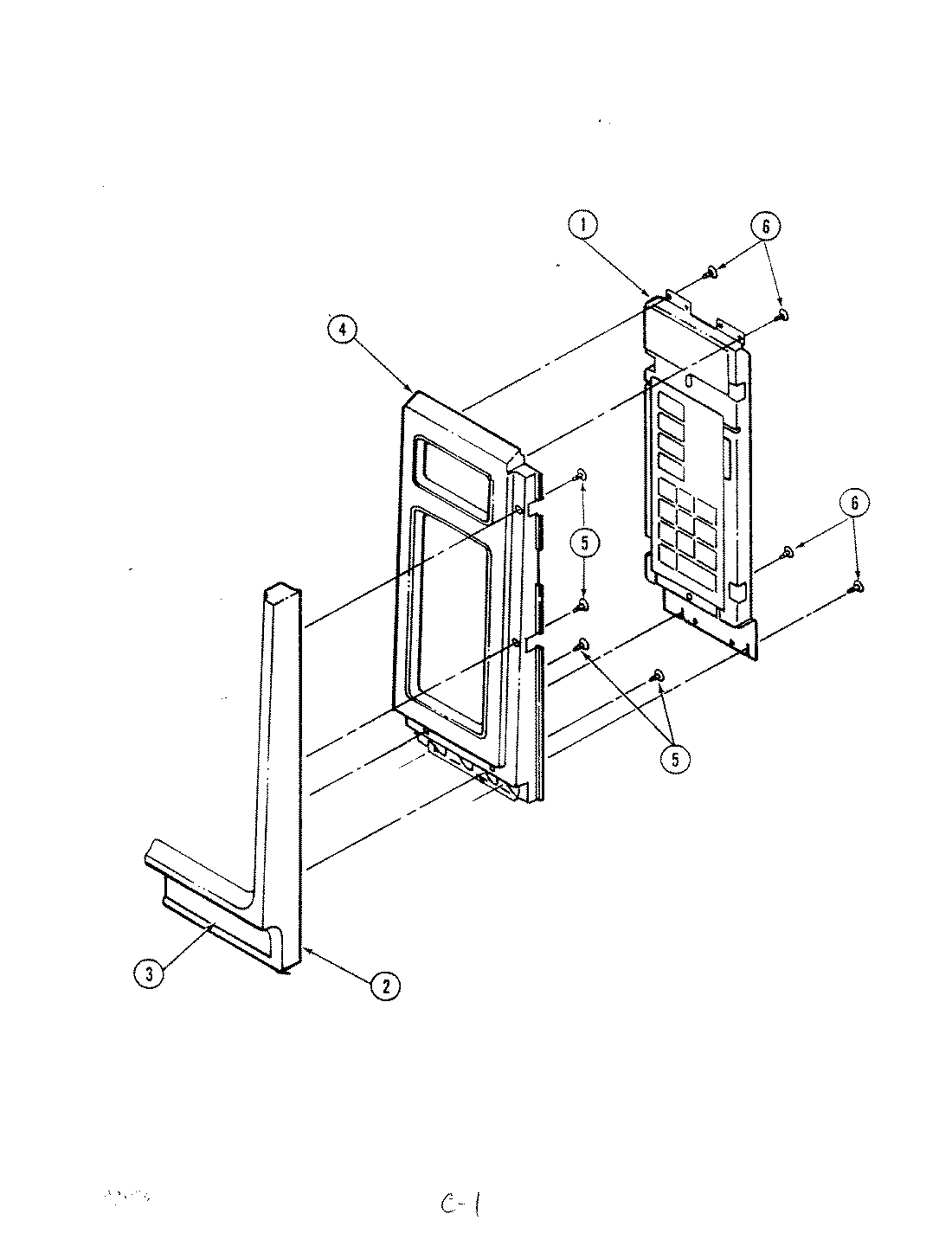

02 - CONTROL PANEL

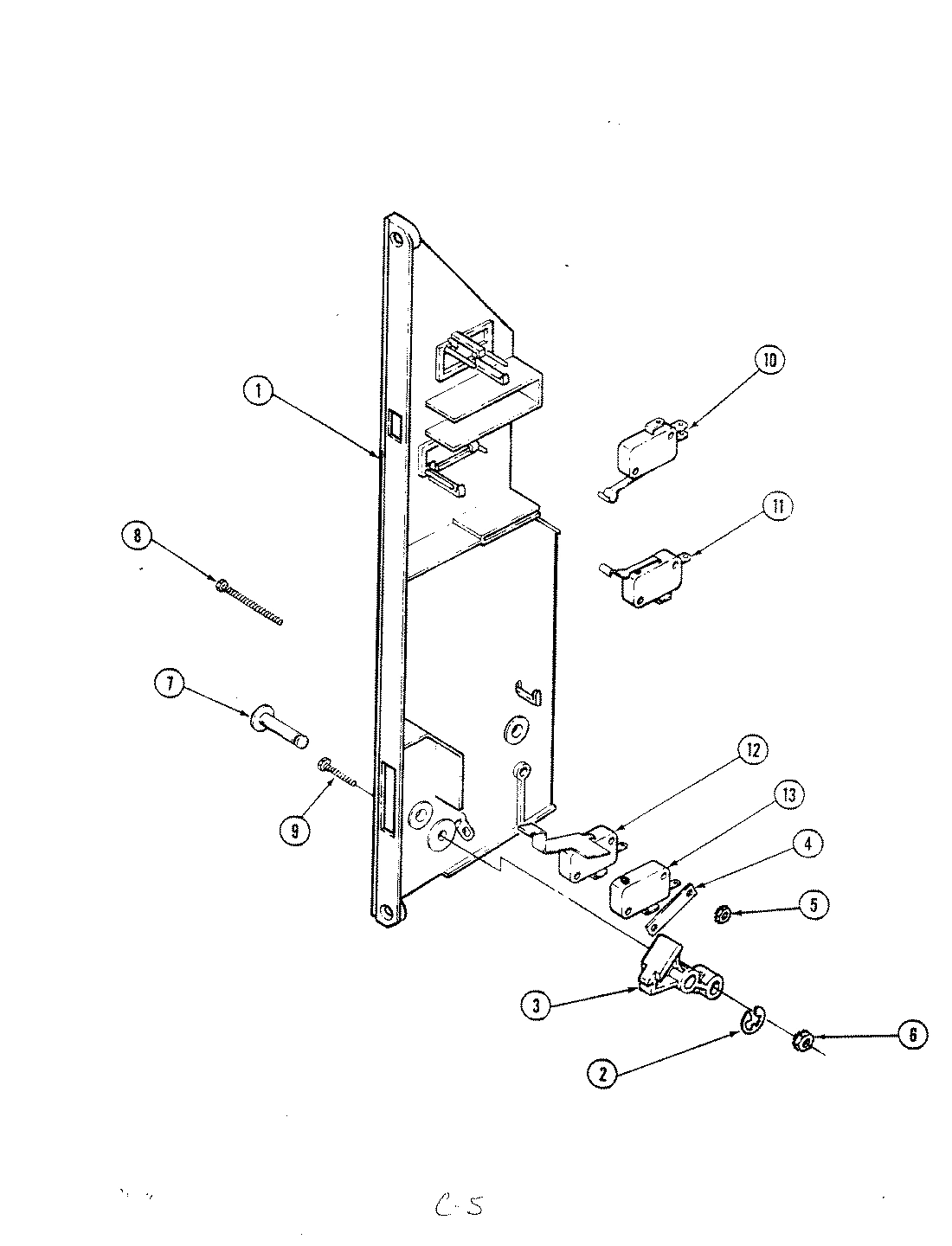

04 - INTERLOCK SWITCH ASSY.

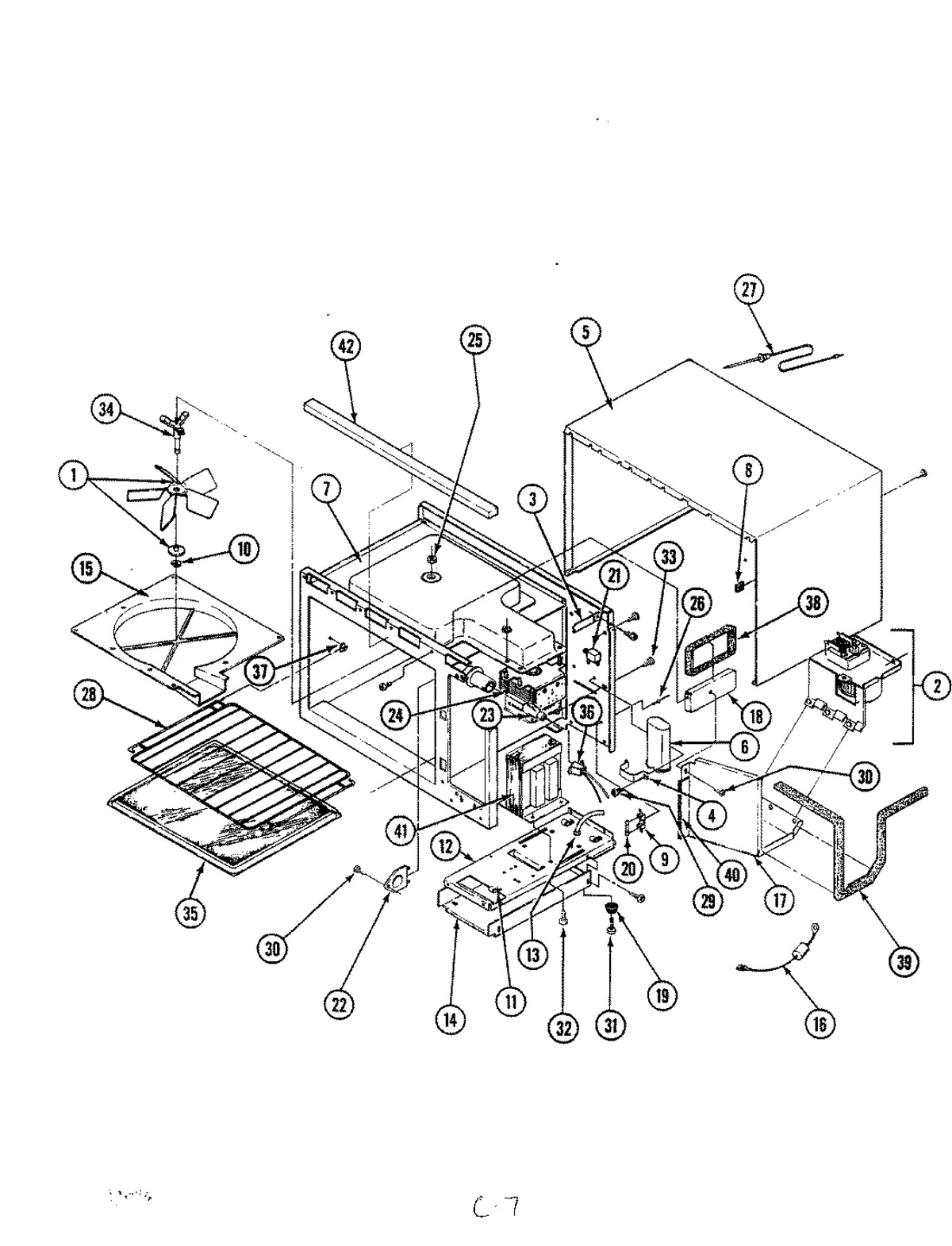

01 - BASE & CAVITY

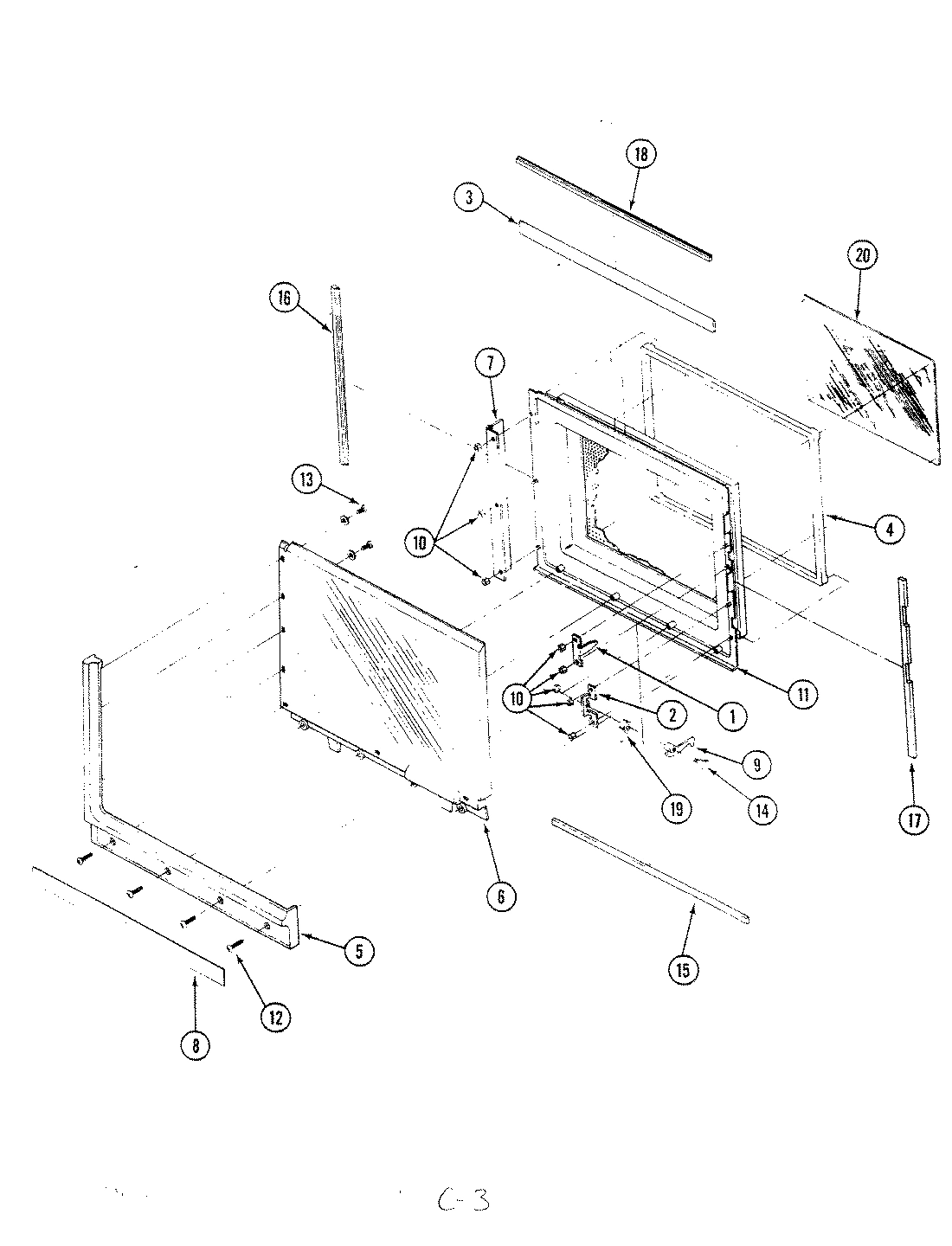

03 - DOOR
Common parts from model Whirlpool M41D-6P MICROWAVE
1
BOARD, CONTROL WPL 01210052 Contact Us For Availability
1
BRACKET, INTERLOCK WPL Y02030133 Contact Us For Availability
1
BLADE, BUSHING ASSEMBLY WPL 04021190 Contact Us For Availability
1
ACTIVATOR, MONITOR WPL Y02030117 Contact Us For Availability
2
TRIM, CTRL PNL BEZ WPL 02100155 Contact Us For Availability
2
CLIP, RETAINER WPL 03110040 Contact Us For Availability
2
MOTOR, BLOWER WPL 01110029 Contact Us For Availability
2
BRACE WPL 04020816 Contact Us For Availability
2
BLOWER ASSEMBLY WPL 04021191 Contact Us For Availability
2
WHEEL, BLOWER WPL Y01110016 Contact Us For Availability
2
BRACKET, BLOWER SUPPORT WPL Y02030144 Contact Us For Availability
2
HOUSING, BLOWER WPL Y02170119 Contact Us For Availability
2
BRACKET, DOOR LATCH WPL Y02030116 Contact Us For Availability
3
LATCH, DOOR INTERLOCK WPL 02190049 Contact Us For Availability
3
BRACE, UPPER RIGHT SUPPORT WPL 02020020 Contact Us For Availability
3
TAPE, BUFFER WPL 02310129 Contact Us For Availability
4
DECORATIVE PANEL WPL 02060212 Contact Us For Availability
4
SWITCH INSULATOR WPL 01100032 Contact Us For Availability
4
BRACKET WPL 02030123 Contact Us For Availability
4
CHOKE, FILLER (WHT) WPL Y02100080 Contact Us For Availability
5
SCREW WPL 03020063 Contact Us For Availability
5
NUT WPL Y03050001 Contact Us For Availability
5
WRAPPER WPL Y02140042 Contact Us For Availability
5
TRIM, DOOR BEZEL WPL 02100156 Contact Us For Availability
6
SCREW WPL 03020092 Contact Us For Availability
6
NUT WPL 03050003 Contact Us For Availability
6
RESISTOR, BLEEDER WPL 01010008 Contact Us For Availability
6
CAPACITOR WPL Y01020023 Contact Us For Availability
6
GLASS, OUTER WPL 02220077 Contact Us For Availability
7
PIN, LEVER & PIVOT LATCH WPL Y03070031 Contact Us For Availability
7
CAVITY WPL 04021309 Contact Us For Availability
7
HINGE, DOOR WPL Y02200017 Contact Us For Availability
8
INSERT, CONTROL & DR WPL 02100136 Contact Us For Availability
8
SCREW WPL 03010131 Contact Us For Availability
8
CLIP, CABINET (RT) WPL 03110027 Contact Us For Availability
8
CLIP, CABINET (LT) WPL 03110046 Contact Us For Availability
9
SCREW WPL 03010114 Contact Us For Availability
9
SWITCH ASSY, INTERLOCK WPL 04021133 Contact Us For Availability
9
SWITCH, INTERLOCK ASSY WPL 04021452 Contact Us For Availability
9
SWITCH, INTERLOCK ASSY. WPL 04021546 Contact Us For Availability
9
CLIP CANOE WPL Y03110021 Contact Us For Availability
9
LATCH, DOOR WPL 02190056 Contact Us For Availability
10
SWITCH, SECONDARY INTERLOCK WPL Y01140038 Contact Us For Availability
10
CLIP, STIRRER WPL Y03110055 Contact Us For Availability
11
SWITCH, MONITOR INTERLOCK WPL Y01140030 Contact Us For Availability
11
CLIP, WIRE HARNESS WPL 03110022 Contact Us For Availability
11
PANEL, INNER DOOR WPL 04021265 Contact Us For Availability
11
PANEL, INNER DOOR WPL 04021365 Contact Us For Availability
12
SWITCH, PRIMARY INTERLOCK WPL 01140068 Contact Us For Availability
12
SWITCH, PRIMARY INTERLOCK WPL Y01140042 Contact Us For Availability
12
PLATE, COMP MTG WPL 02040074 Contact Us For Availability
12
SCREW WPL Y03010121 Contact Us For Availability
13
SWITCH, LOGIC INTERLOCK WPL Y01140043 Contact Us For Availability
13
LEVER, INTERLOCK SWITCH WPL Y02180016 Contact Us For Availability
13
CORD, POWER (BLK) WPL 01080050 Contact Us For Availability
13
SCREW & WASHER (HI LO) WPL Y03020071 Contact Us For Availability
14
COVER, COMP MNTG WPL 02300020 Contact Us For Availability
14
SCREW WPL Y03010113 Contact Us For Availability
15
COVER, STIRRER WPL Y02300045 Contact Us For Availability
15
SEAL, BOTTOM WPL 02120114 Contact Us For Availability
16
DIODE WPL Y04010206 Contact Us For Availability
16
SEAL, HINGE SIDE WPL Y02120121 Contact Us For Availability
17
DUCT ASSEMBLY, MAGNETRON WPL Y04020842 Contact Us For Availability
17
SEAL, LATCH SIDE WPL Y02120122 Contact Us For Availability
18
SUPPORT, MAG DUCT WPL Y02170112 Contact Us For Availability
18
SEAL, TOP WPL 02120118 Contact Us For Availability
18
SHIM WPL Y03120064 Contact Us For Availability
19
FOOT, BASE WPL Y02230008 Contact Us For Availability
19
SPRING, DOOR LATCH WPL Y03180023 Contact Us For Availability
20
FUSE 15A 125V WPL Y01050005 Contact Us For Availability
20
WINDOW, POLYESTER WPL Y02220073 Contact Us For Availability
21
JACK, PROBE WPL 01170008 Contact Us For Availability
22
LENS, BULB WPL Y02400007 Contact Us For Availability
23
LAMP, OVEN WPL Y01060028 Contact Us For Availability
24
MAGNETRON WPL 01040004 Contact Us For Availability
25
NUT, SHAFT STIRRER WPL 03050007 Contact Us For Availability
25
PROBE JACK NUT WPL 03050035 Contact Us For Availability
26
RIVET, POP WPL Y03060004 Contact Us For Availability
27
PROBE, TEMP. WPL 01220006 Contact Us For Availability
28
RACK, OVEN WPL Y02410004 Contact Us For Availability
29
SCREW WPL Y03020076 Contact Us For Availability
30
SCREW WPL 03010098 Contact Us For Availability
32
SCREW WPL 03010094 Contact Us For Availability
34
SHAFT, STIRRER WPL 02360045 Contact Us For Availability
35
SHELF, GLASS WPL Y02280024 Contact Us For Availability
36
SOCKET, LAMP WPL 01100041 Contact Us For Availability
36
PROBE JACK LOCKNUT WPL 03030011 Contact Us For Availability
37
SUPPORT, RACK WPL 02010031 Contact Us For Availability
37
SUPPORT WPL 02010039 Contact Us For Availability
37
SWITCH, TEMPERATURE LIMIT WPL Y01180008 Contact Us For Availability
38
TAPE, FOAM WPL 02310109 Contact Us For Availability
39
TAPE, FOAM WPL 02310070 Contact Us For Availability
40
TAPE, FOAM WPL 02310071 Contact Us For Availability
41
TRANSFORMER, H.V. WPL 01130028 Contact Us For Availability
42
TRIM WPL 02100157 Contact Us For Availability
42
WIRING HARNESS WPL 04010158 Contact Us For Availability
42
HV LEAD WIRE (8 ``) WPL Y04060532 Contact Us For Availability
42
HV LEAD WIRE (16``) WPL Y04060535 Contact Us For Availability
42
MANUAL, USE & CARE WPL Y06010233 Contact Us For Availability
× ![]()
