Model Whirlpool M41D-10P MICROWAVE – Common Parts & Diagrams

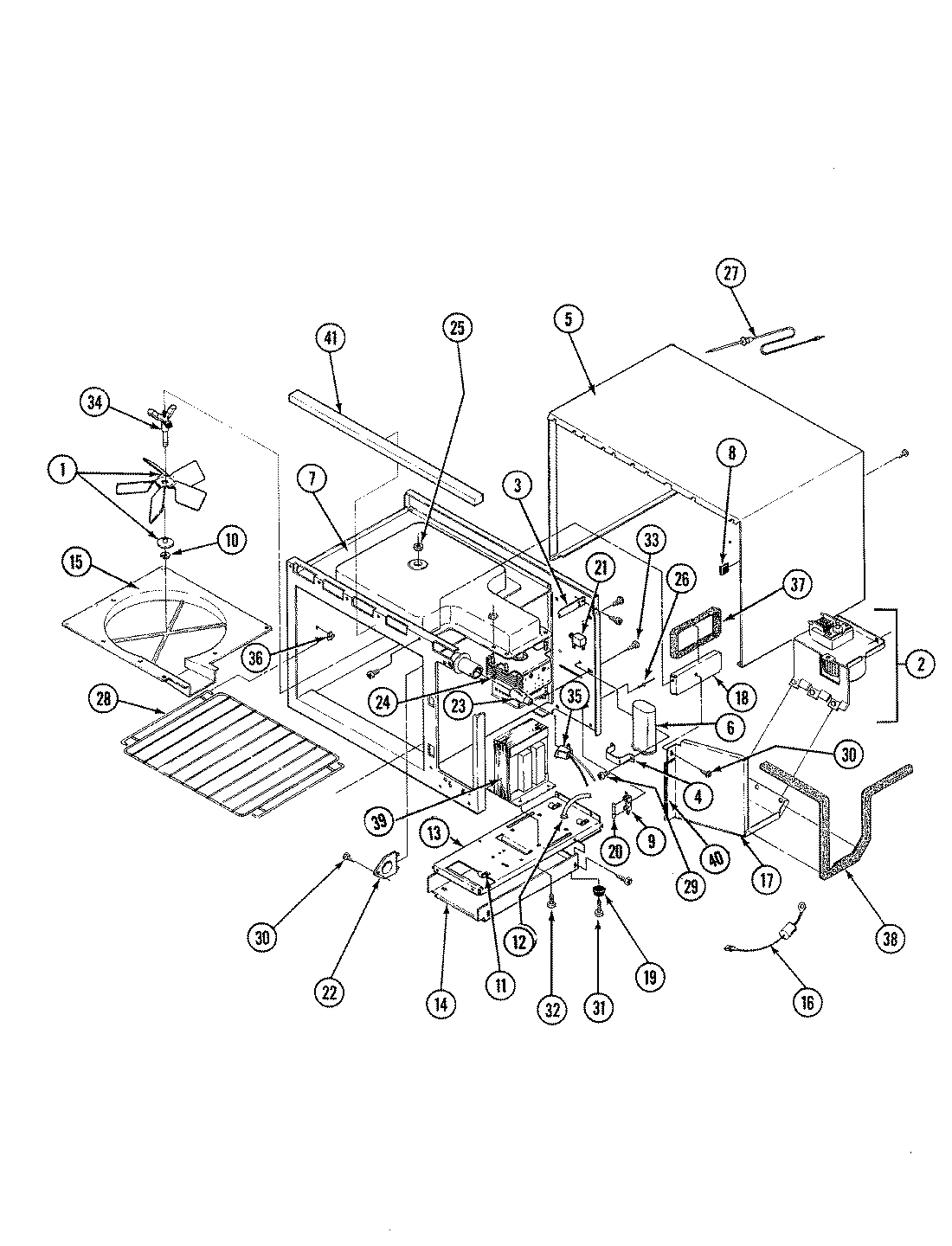

01 - BASE & CAVITY

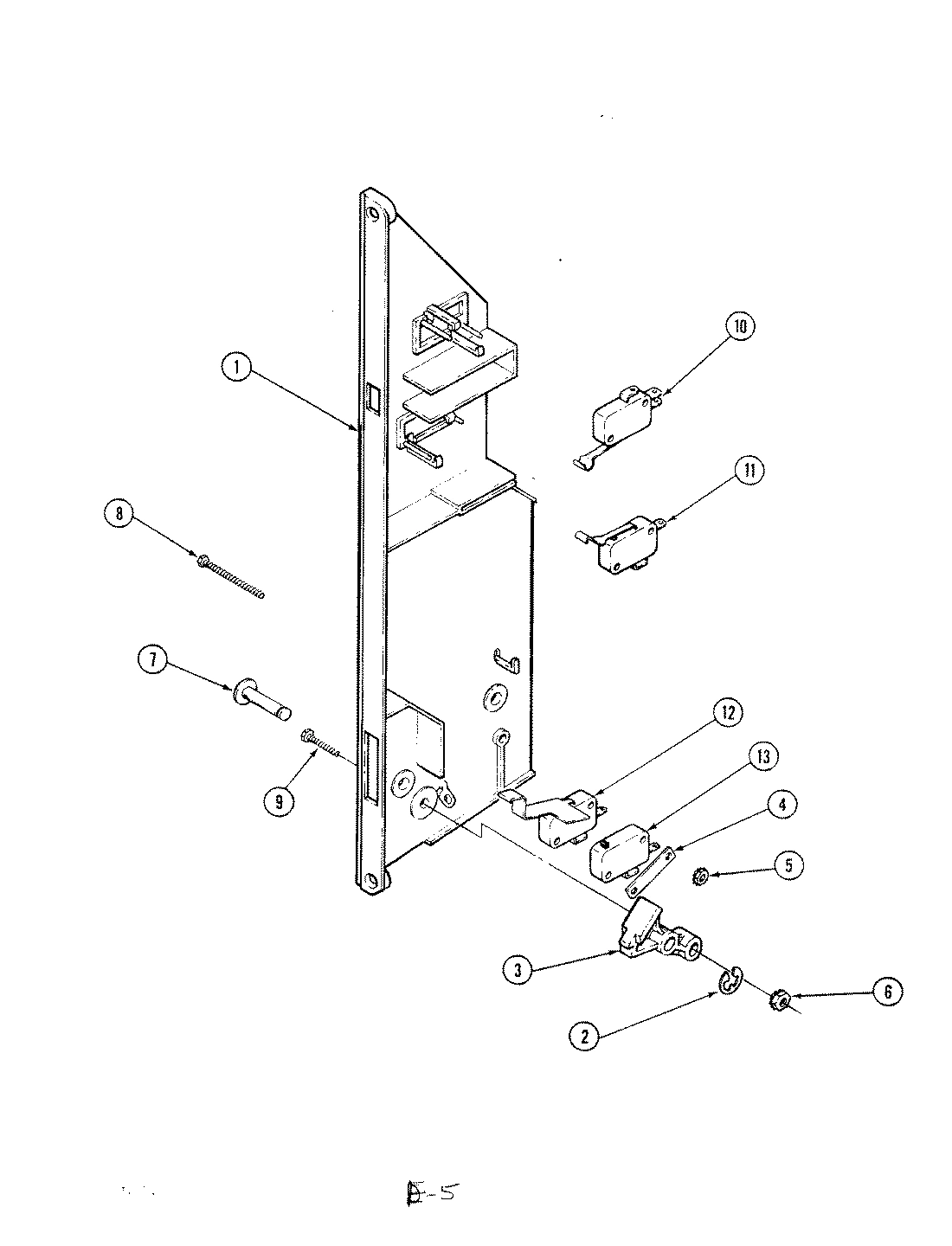

04 - INTERLOCK SWITCH ASSY.

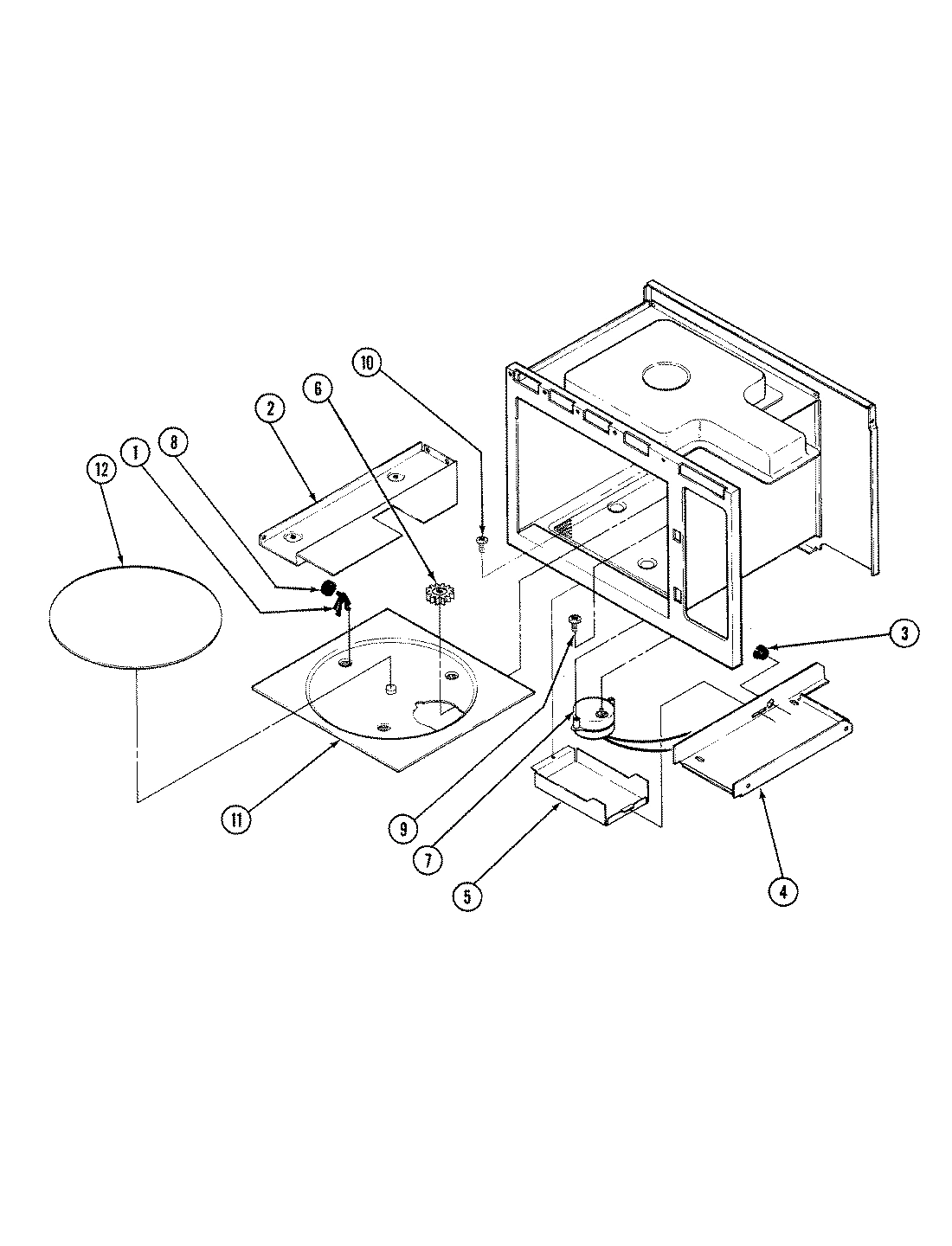

05 - TURNTABLE

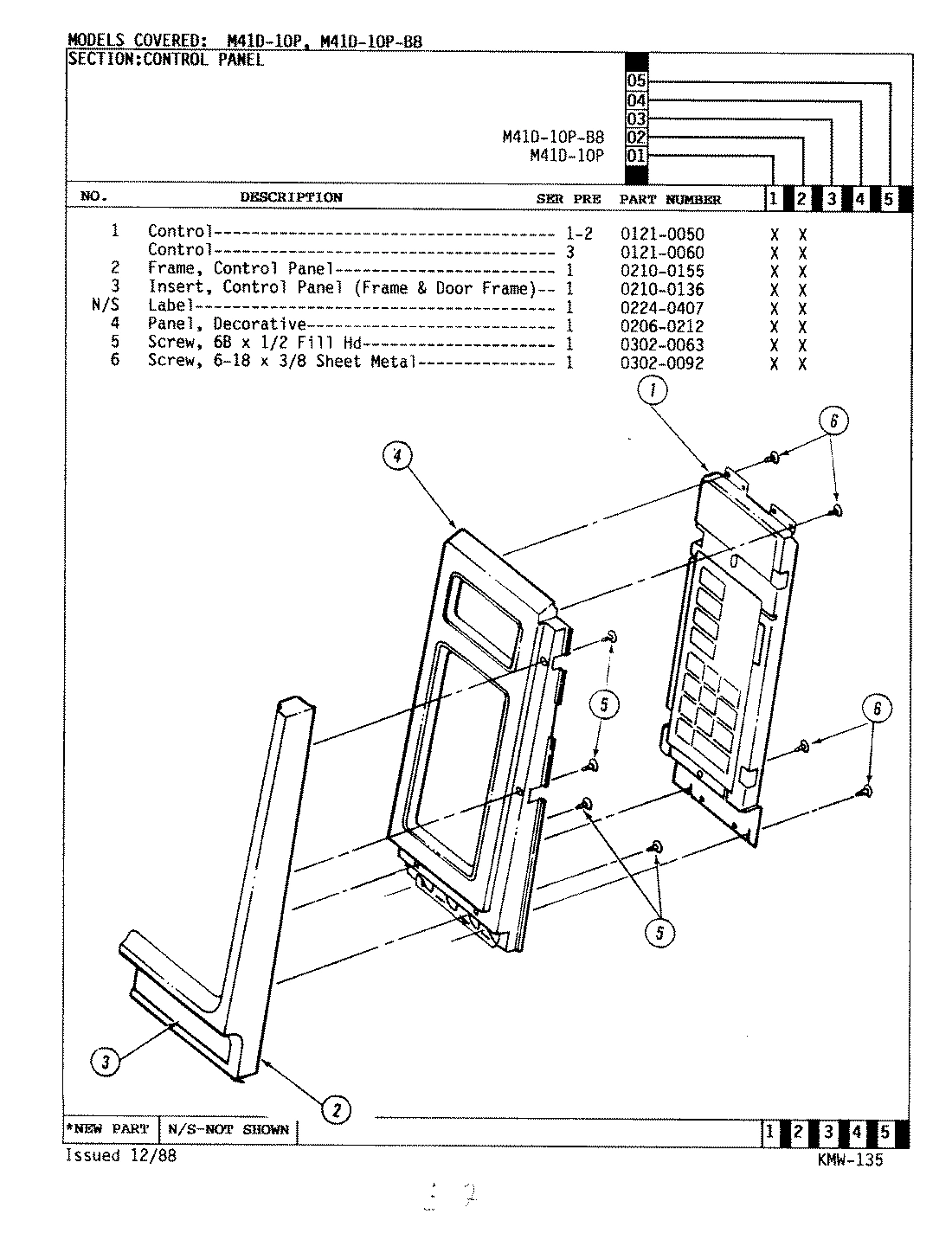

02 - CONTROL PANEL

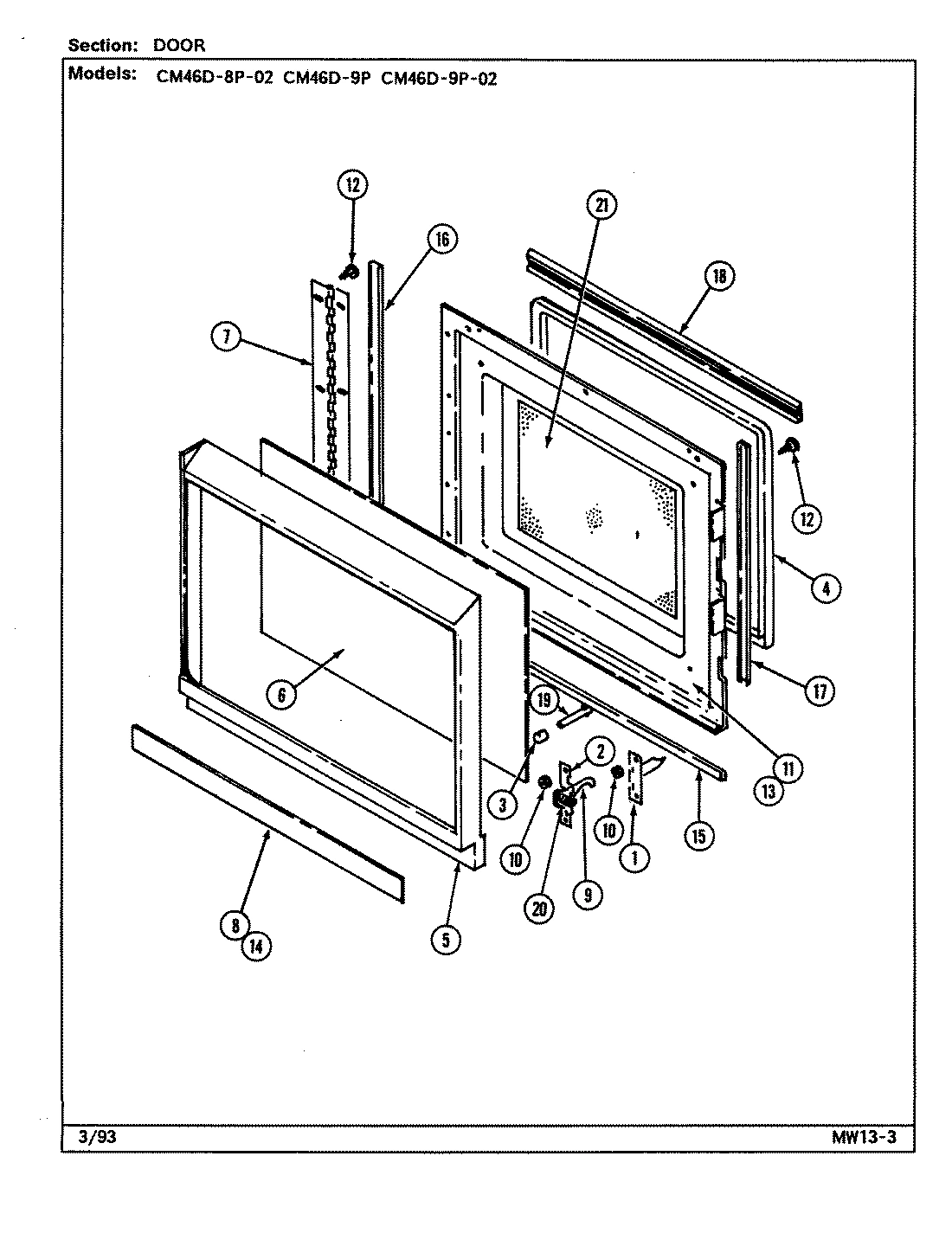

03 - DOOR
Common parts from model Whirlpool M41D-10P MICROWAVE
1
BLADE, BUSHING ASSEMBLY WPL 04021190 Contact Us For Availability
1
BRACKET, INTERLOCK WPL Y02030133 Contact Us For Availability
1
BEARING WPL Y02440001 Contact Us For Availability
1
BOARD, CONTROL WPL Y01210050 Contact Us For Availability
1
BOARD, CONTROL WPL Y01210060 Contact Us For Availability
1
ACTIVATOR, MONITOR WPL Y02030117 Contact Us For Availability
2
BLOWER ASSEMBLY WPL 04021191 Contact Us For Availability
2
SUPPORT TURNTABLE WPL Y02020024 Contact Us For Availability
2
CLIP, RETAINER WPL 03110040 Contact Us For Availability
2
BRACE WPL 04021111 Contact Us For Availability
2
TRIM, CTRL PNL BEZ WPL 02100155 Contact Us For Availability
2
CHOKE, FILLER (WHT) WPL Y02100080 Contact Us For Availability
3
BRACE, UPPER RIGHT SUPPORT WPL 02020020 Contact Us For Availability
3
LATCH, DOOR INTERLOCK WPL 02190049 Contact Us For Availability
3
BUSHING WPL Y03140008 Contact Us For Availability
3
LABEL, RELAMPING WPL 02240407 Contact Us For Availability
3
TRIM, DOOR BEZEL WPL 02100156 Contact Us For Availability
4
BRACKET WPL 02030123 Contact Us For Availability
4
PLATE, COMPONENT MOUNTING WPL 02040053 Contact Us For Availability
4
SWITCH INSULATOR WPL 01100032 Contact Us For Availability
4
DECORATIVE PANEL WPL 02060212 Contact Us For Availability
4
GLASS, OUTER WPL 02220077 Contact Us For Availability
5
WRAPPER WPL Y02140042 Contact Us For Availability
5
NUT WPL Y03050001 Contact Us For Availability
5
COVER, MOTOR TURNTABLE WPL Y02300050 Contact Us For Availability
5
SCREW WPL 03020063 Contact Us For Availability
5
HINGE, DOOR WPL 02200016 Contact Us For Availability
6
CAPACITOR WPL Y01020022 Contact Us For Availability
6
NUT WPL 03050003 Contact Us For Availability
6
TURNTABLE, LABEL WPL 02240624 Contact Us For Availability
6
GEAR, TURNTABLE WPL Y02450002 Contact Us For Availability
6
INSERT, CONTROL & DR WPL 02100136 Contact Us For Availability
6
SCREW WPL 03020092 Contact Us For Availability
7
CAVITY WPL 04021310 Contact Us For Availability
7
PIN, LEVER & PIVOT LATCH WPL Y03070031 Contact Us For Availability
7
MOTOR, TURNTABLE WPL 01110022 Contact Us For Availability
7
LATCH, DOOR WPL 02190056 Contact Us For Availability
8
CLIP, CABINET (RT) WPL 03110027 Contact Us For Availability
8
CLIP, CABINET (LT) WPL 03110046 Contact Us For Availability
8
SCREW WPL 03010131 Contact Us For Availability
8
ROLLER WPL 02210010 Contact Us For Availability
9
SCREW WPL 03010114 Contact Us For Availability
9
SWITCH, INTERLOCK ASSY WPL 04021452 Contact Us For Availability
9
SWITCH, INTERLOCK ASSY. WPL 04021546 Contact Us For Availability
9
SCREW WPL 03010098 Contact Us For Availability
9
PANEL, INNER DOOR WPL 04021265 Contact Us For Availability
9
PANEL, INNER DOOR WPL 04021365 Contact Us For Availability
10
CLIP WPL Y03110050 Contact Us For Availability
10
SCREW WPL 03020077 Contact Us For Availability
10
SWITCH, SECONDARY INTERLOCK WPL Y01140038 Contact Us For Availability
10
SCREW WPL Y03010118 Contact Us For Availability
11
SWITCH, MONITOR INTERLOCK WPL Y01140030 Contact Us For Availability
11
SHELF ASSEMBLY WPL 02280033 Contact Us For Availability
11
SHELF, TURNTABLE WPL 02280035 Contact Us For Availability
11
SCREW & WASHER (HI LO) WPL Y03020071 Contact Us For Availability
12
CORD, POWER (BLK) WPL 01080050 Contact Us For Availability
12
SWITCH, PRIMARY INTERLOCK WPL 01140068 Contact Us For Availability
12
SWITCH, PRIMARY INTERLOCK WPL Y01140042 Contact Us For Availability
12
TURNTABLE WPL 02460001 Contact Us For Availability
12
TURNTABLE WPL 02460004 Contact Us For Availability
12
SEAL, BOTTOM WPL 02120114 Contact Us For Availability
13
PLATE, COMP MTG WPL 02040074 Contact Us For Availability
13
SWITCH, LOGIC INTERLOCK WPL Y01140043 Contact Us For Availability
13
LEVER, INTERLOCK SWITCH WPL Y02180016 Contact Us For Availability
13
SEAL, HINGE SIDE WPL Y02120121 Contact Us For Availability
14
COVER, MTG PLATE WPL 02300039 Contact Us For Availability
14
SEAL, LATCH SIDE WPL Y02120122 Contact Us For Availability
15
COVER, STIRRER WPL Y02300045 Contact Us For Availability
15
SEAL, TOP WPL 02120118 Contact Us For Availability
15
SHIM WPL Y03120064 Contact Us For Availability
16
DIODE WPL Y04010206 Contact Us For Availability
16
TAPE, BUFFER WPL 02310129 Contact Us For Availability
17
DUCT ASSEMBLY, MAGNETRON WPL Y04020842 Contact Us For Availability
17
WINDOW, POLYESTER WPL Y02220073 Contact Us For Availability
18
SUPPORT, MAG DUCT WPL Y02170112 Contact Us For Availability
19
FOOT, BASE WPL Y02230008 Contact Us For Availability
20
FUSE 15A 125V WPL Y01050005 Contact Us For Availability
21
PROBE, JACK WPL 01170010 Contact Us For Availability
22
LENS, BULB WPL Y02400007 Contact Us For Availability
23
BULB, LIGHT WPL Y01060024 Contact Us For Availability
24
MAGNETRON WPL 01040004 Contact Us For Availability
25
PROBE JACK NUT WPL 03050035 Contact Us For Availability
27
PROBE, TEMP. WPL 01220006 Contact Us For Availability
28
RACK, OVEN WPL Y02410004 Contact Us For Availability
29
GROUND SCREW WPL 03010082 Contact Us For Availability
32
SCREW WPL 03010094 Contact Us For Availability
33
SCREW WPL 03010124 Contact Us For Availability
33
SCREW WPL 03020060 Contact Us For Availability
34
SHAFT, STIRRER WPL 02360045 Contact Us For Availability
35
SOCKET, LAMP WPL 01100041 Contact Us For Availability
35
PROBE JACK LOCKNUT WPL 03030011 Contact Us For Availability
35
STRAIN RELIEF WPL 03150018 Contact Us For Availability
36
SUPPORT, RACK WPL 02010031 Contact Us For Availability
36
SUPPORT, RACK WPL 02010049 Contact Us For Availability
37
TAPE, FOAM WPL 02310070 Contact Us For Availability
38
TAPE, FOAM WPL 02310109 Contact Us For Availability
38
SWITCH, TEMPERATURE LIMIT WPL Y01180008 Contact Us For Availability
39
TRANSFORMER, H.V. WPL 01130028 Contact Us For Availability
40
TAPE, FOAM WPL 02310071 Contact Us For Availability
41
TRIM WPL 02100157 Contact Us For Availability
41
WIRE HARNESS WPL 04010202 Contact Us For Availability
41
HV LEAD WIRE (8 ``) WPL Y04060532 Contact Us For Availability
41
HV LEAD WIRE (16``) WPL Y04060535 Contact Us For Availability
× ![]()
