Model Whirlpool M41D-1 MICROWAVE – Common Parts & Diagrams

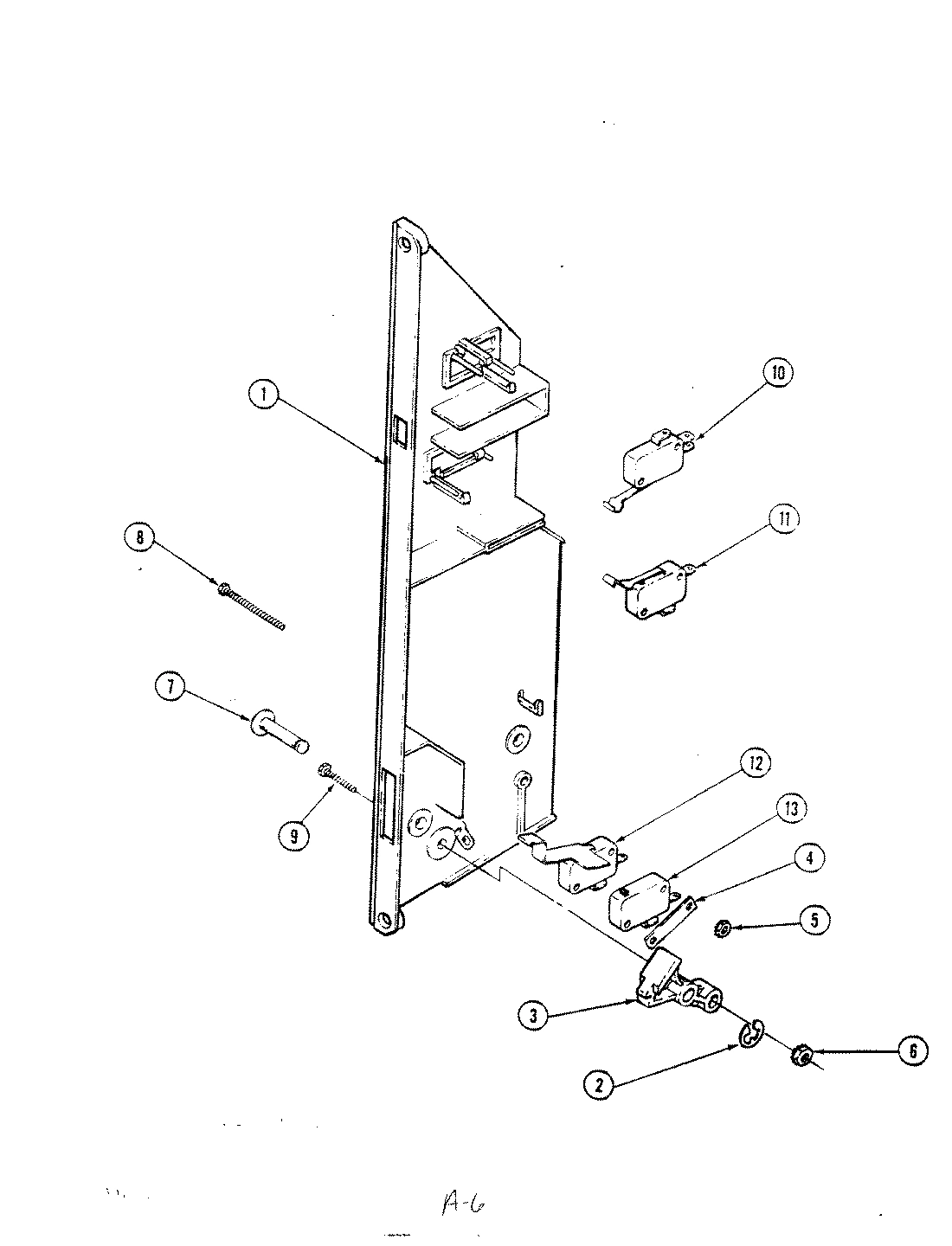

04 - INTERLOCK SWITCH ASSY.

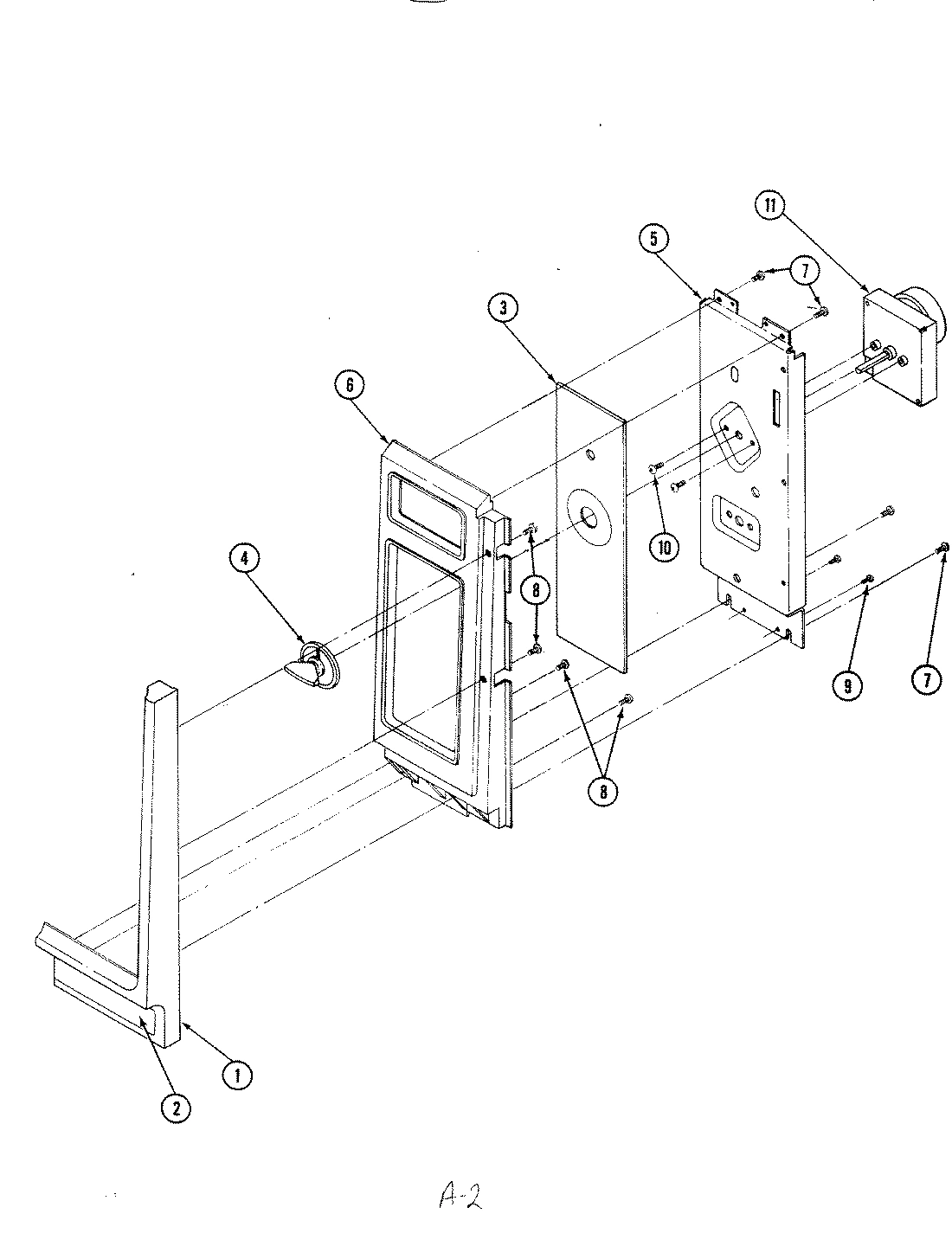

02 - CONTROL PANEL

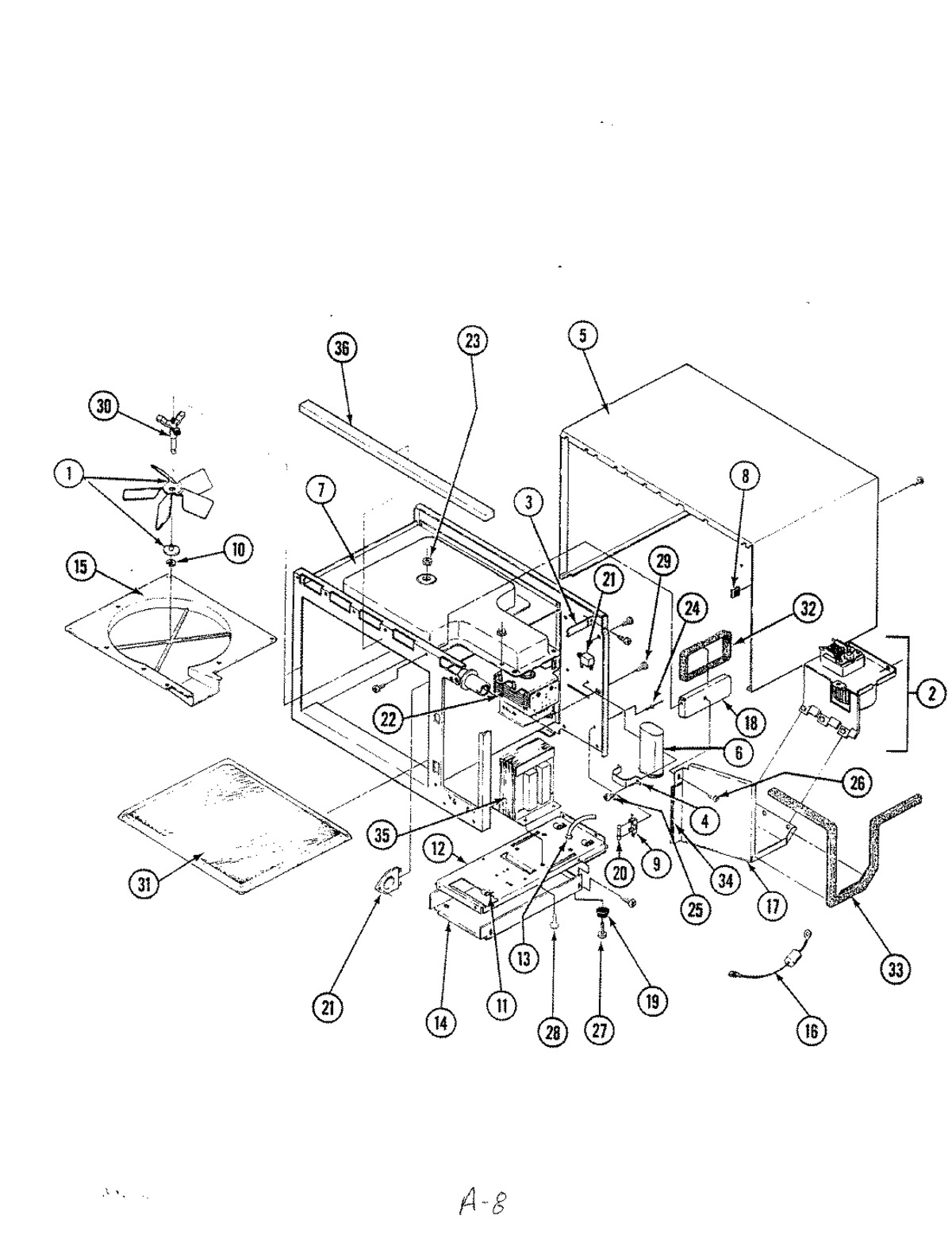

01 - BASE & CAVITY

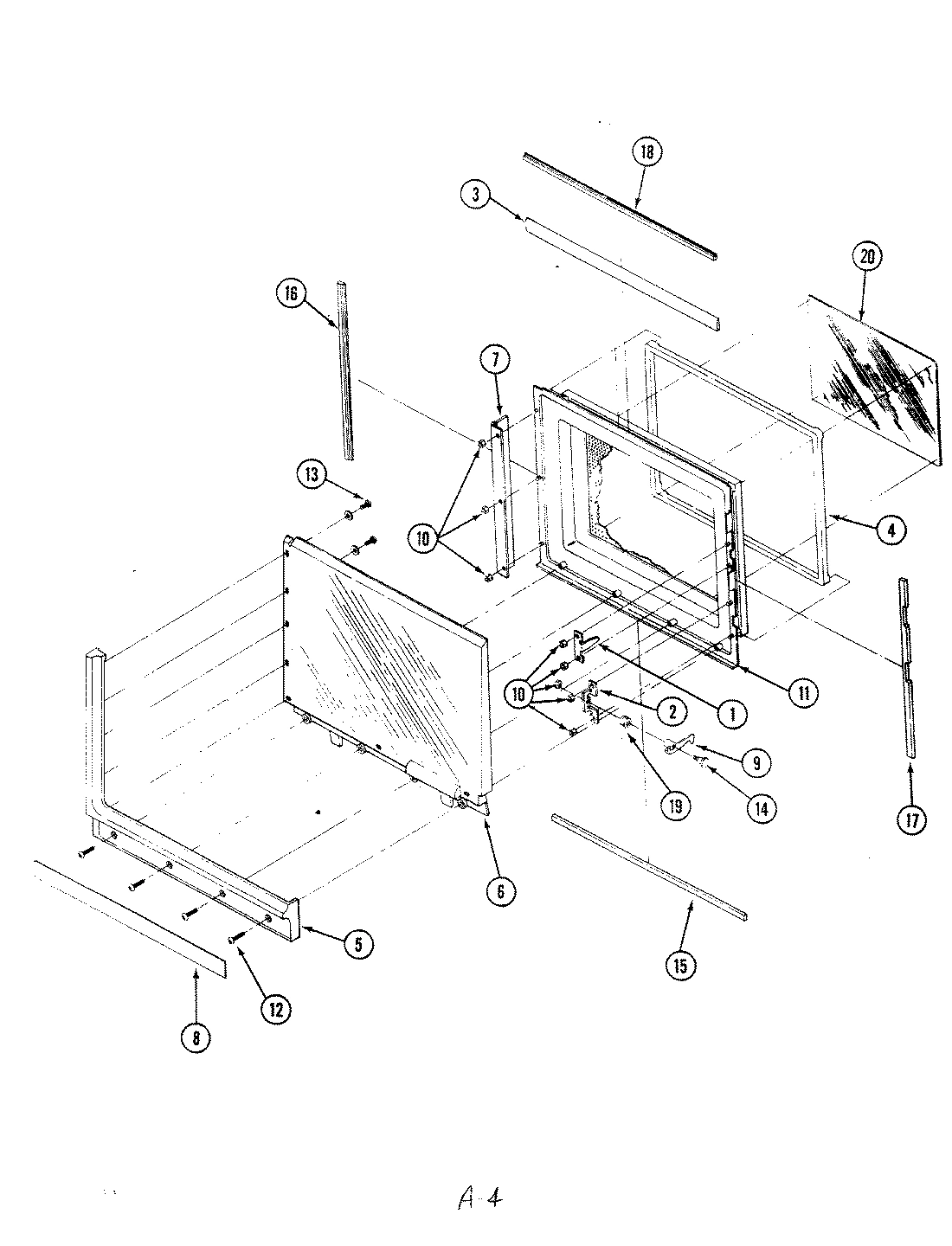

03 - DOOR
Common parts from model Whirlpool M41D-1 MICROWAVE
1
BRACKET, INTERLOCK WPL Y02030133 Contact Us For Availability
1
TRIM, CONTROL PANEL (BLK) WPL 02100152 Contact Us For Availability
1
BLADE, BUSHING ASSEMBLY WPL 04021190 Contact Us For Availability
1
ACTIVATOR, MONITOR WPL Y02030117 Contact Us For Availability
2
CLIP, RETAINER WPL 03110040 Contact Us For Availability
2
MOTOR, BLOWER WPL 01110029 Contact Us For Availability
2
BRACE WPL 04020816 Contact Us For Availability
2
BLOWER ASSEMBLY WPL 04021191 Contact Us For Availability
2
WHEEL, BLOWER WPL Y01110016 Contact Us For Availability
2
BRACKET, BLOWER SUPPORT WPL Y02030144 Contact Us For Availability
2
HOUSING, BLOWER WPL Y02170119 Contact Us For Availability
2
BRACKET, DOOR LATCH WPL Y02030116 Contact Us For Availability
3
LATCH, DOOR INTERLOCK WPL 02190049 Contact Us For Availability
3
INSERT, DEC PANEL WPL 02060251 Contact Us For Availability
3
BRACE, UPPER RIGHT SUPPORT WPL 02020020 Contact Us For Availability
3
TAPE, BUFFER WPL 02310129 Contact Us For Availability
4
INSULATOR, SWITCH WPL Y01100043 Contact Us For Availability
4
KNOB, TIMER WPL 02330048 Contact Us For Availability
4
BRACKET WPL 02030123 Contact Us For Availability
4
CHOKE, FILLER (WHT) WPL Y02100080 Contact Us For Availability
5
NUT WPL Y03050001 Contact Us For Availability
5
PANEL, CONTROL MNTR WPL 02060245 Contact Us For Availability
5
CABINET-ALMOND WPL Y02140050 Contact Us For Availability
5
TRIM, DOOR (BLK) WPL 02100153 Contact Us For Availability
6
NUT WPL 03050003 Contact Us For Availability
6
PANEL, CONTROL (BLK) WPL 02060314 Contact Us For Availability
6
RESISTOR, BLEEDER WPL 01010008 Contact Us For Availability
6
CAPACITOR WPL Y01020023 Contact Us For Availability
6
GLASS, OUTER WPL 02220077 Contact Us For Availability
7
PIN, LEVER & PIVOT LATCH WPL Y03070031 Contact Us For Availability
7
SCREW WPL 03020092 Contact Us For Availability
7
CAVITY WPL 04021309 Contact Us For Availability
7
CAVITY WPL 04021362 Contact Us For Availability
7
HINGE, DOOR WPL 02200016 Contact Us For Availability
8
INSERT WPL 02100094 Contact Us For Availability
8
SCREW WPL 03020063 Contact Us For Availability
8
CLIP, CABINET (RT) WPL 03110027 Contact Us For Availability
8
CLIP, CABINET (LT) WPL 03110046 Contact Us For Availability
9
SCREW WPL 03010114 Contact Us For Availability
9
SWITCH, INTERLOCK ASSEMBLY WPL 04021134 Contact Us For Availability
9
SCREW WPL 03020061 Contact Us For Availability
9
CLIP CANOE WPL Y03110021 Contact Us For Availability
9
LATCH, DOOR WPL 02190056 Contact Us For Availability
10
SWITCH, SECONDARY INTERLOCK WPL Y01140038 Contact Us For Availability
10
SCREW WPL 03020041 Contact Us For Availability
10
CLIP, STIRRER WPL Y03110055 Contact Us For Availability
11
SWITCH, MONITOR INTERLOCK WPL Y01140030 Contact Us For Availability
11
TIMER WPL 01070038 Contact Us For Availability
11
CLIP, WIRE HARNESS WPL 03110022 Contact Us For Availability
11
PANEL, INNER DOOR WPL Y04021364 Contact Us For Availability
11
PANEL, INNER DOOR WPL Y04021369 Contact Us For Availability
12
SWITCH, PRIMARY INTERLOCK WPL Y01140042 Contact Us For Availability
12
PLATE, COMP MTG WPL 02040074 Contact Us For Availability
12
SCREW WPL Y03010121 Contact Us For Availability
13
SWITCH, LOGIC INTERLOCK WPL Y01140043 Contact Us For Availability
13
CORD, POWER WPL 01080052 Contact Us For Availability
13
SCREW & WASHER (HI LO) WPL Y03020071 Contact Us For Availability
14
COVER, COMP MNTG WPL 02300020 Contact Us For Availability
14
SCREW WPL Y03010113 Contact Us For Availability
15
COVER, STIRRER WPL Y02300045 Contact Us For Availability
15
SEAL, BOTTOM WPL 02120114 Contact Us For Availability
16
DIODE WPL Y04010206 Contact Us For Availability
16
SEAL, HINGE SIDE WPL Y02120121 Contact Us For Availability
17
DUCT ASSEMBLY, MAGNETRON WPL Y04020842 Contact Us For Availability
17
SEAL, LATCH SIDE WPL Y02120122 Contact Us For Availability
18
SUPPORT, MAG DUCT WPL Y02170112 Contact Us For Availability
18
SEAL, TOP WPL 02120118 Contact Us For Availability
18
SHIM WPL Y03120064 Contact Us For Availability
19
FOOT, BASE WPL Y02230008 Contact Us For Availability
19
SPRING, DOOR LATCH WPL Y03180023 Contact Us For Availability
20
FUSE 15A 125V WPL Y01050005 Contact Us For Availability
20
WINDOW, POLYESTER WPL Y02220073 Contact Us For Availability
21
LENS, BULB WPL Y02400007 Contact Us For Availability
22
MAGNETRON WPL 01040004 Contact Us For Availability
23
NUT, SHAFT STIRRER WPL 03050007 Contact Us For Availability
24
RIVET, POP WPL Y03060004 Contact Us For Availability
25
SCREW WPL Y03020076 Contact Us For Availability
26
SCREW WPL 03010098 Contact Us For Availability
28
SCREW WPL 03010094 Contact Us For Availability
30
SHAFT, STIRRER WPL 02360045 Contact Us For Availability
31
SWITCH, TEMPERATURE LIMIT WPL Y01180008 Contact Us For Availability
31
SHELF, BOTTOM (PLASTIC) WPL Y02280041 Contact Us For Availability
32
TAPE, FOAM WPL 02310109 Contact Us For Availability
33
TAPE, FOAM WPL 02310070 Contact Us For Availability
34
TAPE, FOAM WPL 02310071 Contact Us For Availability
35
TRANSFORMER, H.V. WPL 01130028 Contact Us For Availability
36
TRIM, EXHAUST INTAKE (BLK) WPL 02100154 Contact Us For Availability
36
HARNESS, WIRE WPL 04010171 Contact Us For Availability
36
HV LEAD WIRE (8 ``) WPL Y04060532 Contact Us For Availability
36
HV LEAD WIRE (16``) WPL Y04060535 Contact Us For Availability
× ![]()
