Model Whirlpool M41C-6-X9 MICROWAVE – Common Parts & Diagrams

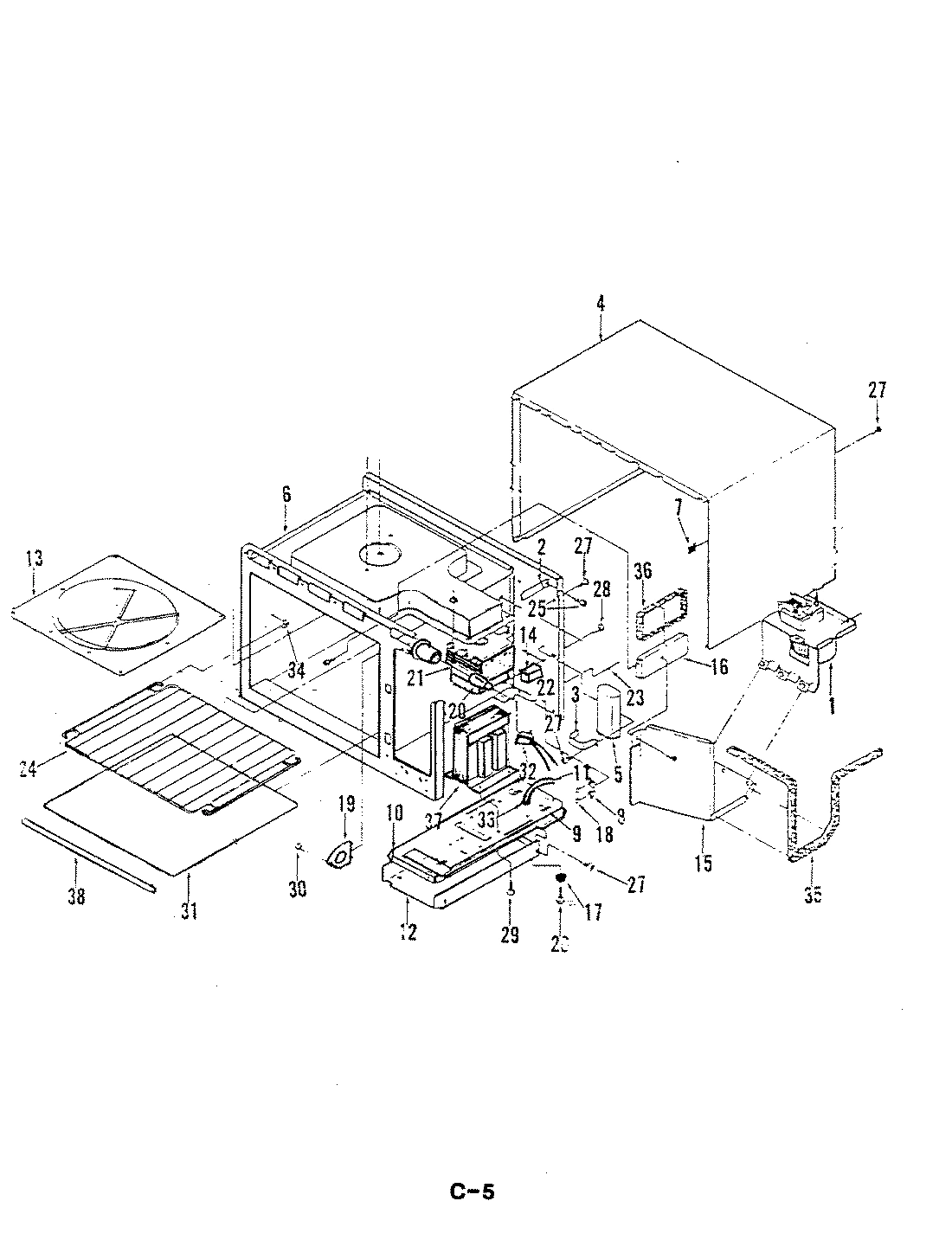

01 - BASE/ENCLOSURE PARTS/COOLING SYSTEM

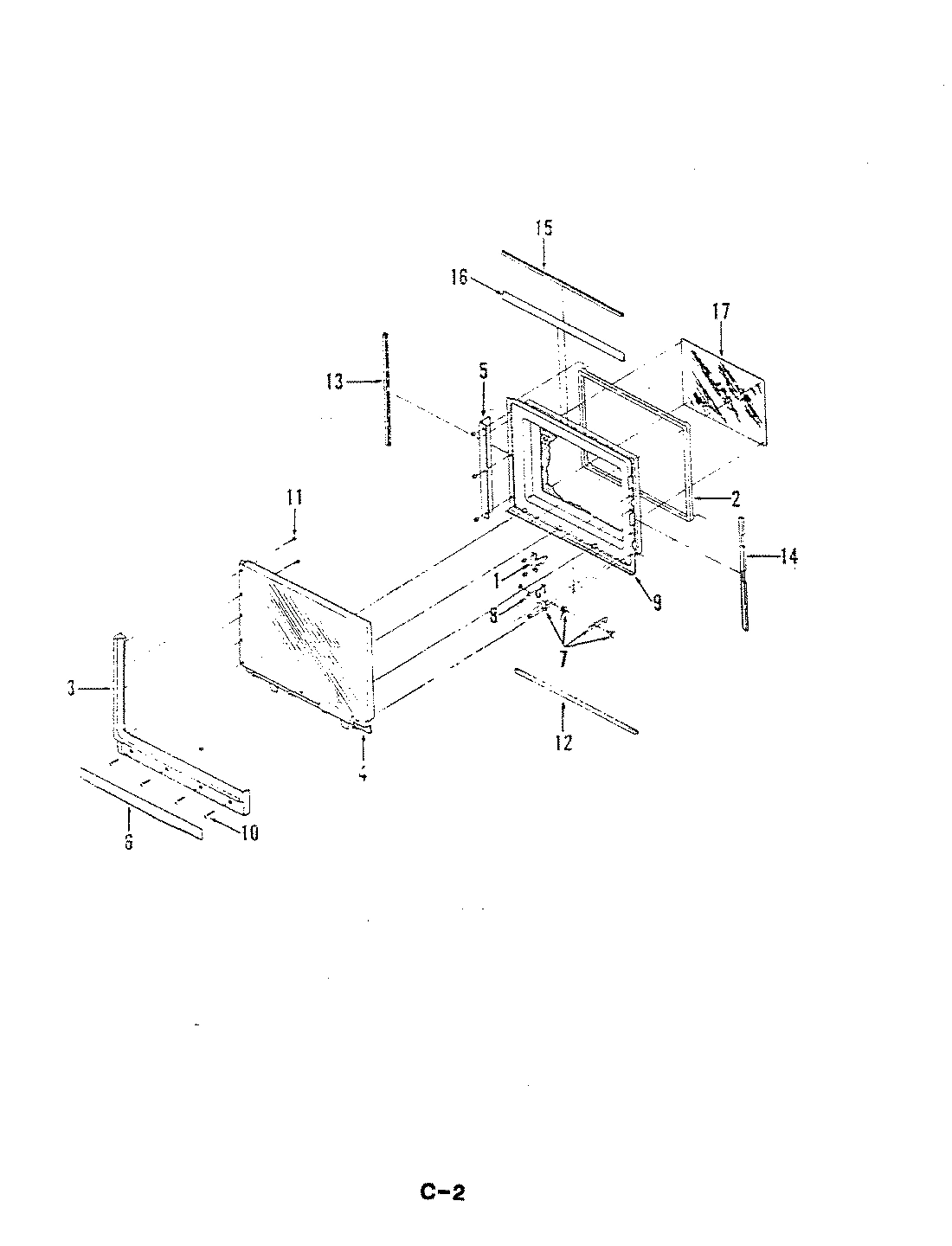

03 - DOOR

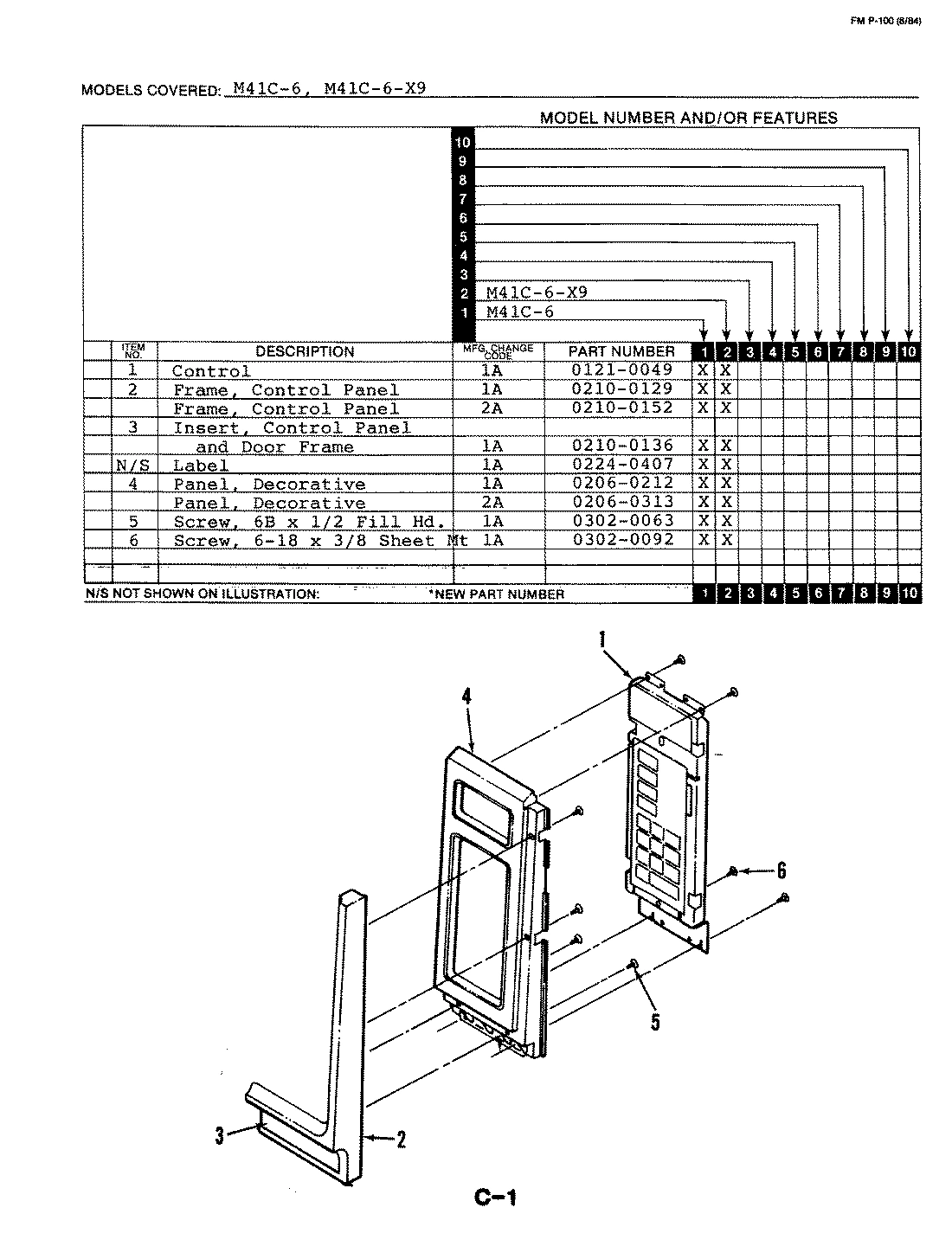

02 - CONTROL PANEL

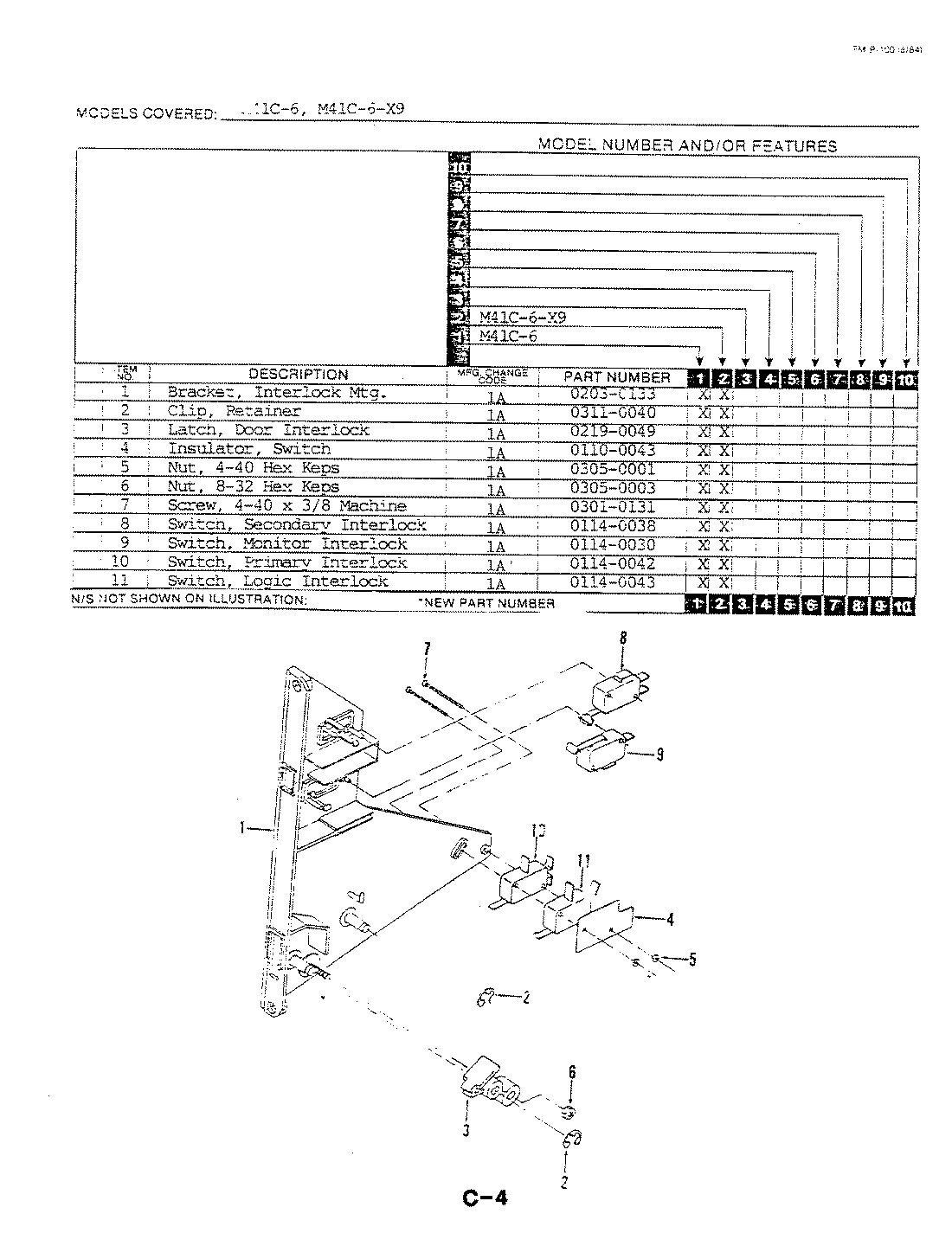

04 - LATCH RELEASE
Common parts from model Whirlpool M41C-6-X9 MICROWAVE
1
BLOWER ASSEMBLY WPL 04021191 Contact Us For Availability
1
SUPPORT TURNTABLE WPL Y02020024 Contact Us For Availability
1
ACTIVATOR, MONITOR WPL Y02030117 Contact Us For Availability
1
BOARD, CONTROL WPL 01210049 Contact Us For Availability
1
BRACKET, INTERLOCK WPL Y02030133 Contact Us For Availability
2
BRACE, UPPER RIGHT SUPPORT WPL 02020020 Contact Us For Availability
2
CHOKE, FILLER (WHT) WPL Y02100080 Contact Us For Availability
2
FRAME, CONTROL WPL 02100129 Contact Us For Availability
2
TRIM, CONTROL PANEL (BLK) WPL 02100152 Contact Us For Availability
2
CLIP, RETAINER WPL 03110040 Contact Us For Availability
3
BRACKET WPL 02030123 Contact Us For Availability
3
TRIM, DOOR FRAME WPL 02100063 Contact Us For Availability
3
TRIM, DOOR (BLK) WPL 02100153 Contact Us For Availability
3
INSERT, CONTROL & DR WPL 02100136 Contact Us For Availability
3
LABEL, RELAMPING WPL 02240407 Contact Us For Availability
3
LATCH, DOOR INTERLOCK WPL 02190049 Contact Us For Availability
4
CABINET-ALMOND WPL Y02140050 Contact Us For Availability
4
GLASS, OUTER WPL 02220077 Contact Us For Availability
4
DECORATIVE PANEL WPL 02060212 Contact Us For Availability
4
CONTROL PANEL WPL 02060313 Contact Us For Availability
4
INSULATOR, SWITCH WPL Y01100043 Contact Us For Availability
5
CAPACITOR WPL Y01020022 Contact Us For Availability
5
SCREW WPL 03020063 Contact Us For Availability
5
NUT WPL Y03050001 Contact Us For Availability
6
CAVITY WPL 04021188 Contact Us For Availability
6
SCREW WPL 03020092 Contact Us For Availability
6
NUT WPL 03050003 Contact Us For Availability
7
CLIP, CABINET (RT) WPL 03110027 Contact Us For Availability
7
CLIP, CABINET (LT) WPL 03110046 Contact Us For Availability
7
SCREW WPL 03010131 Contact Us For Availability
8
SWITCH, SECONDARY INTERLOCK WPL Y01140038 Contact Us For Availability
9
CLIP WPL 03110051 Contact Us For Availability
9
SWITCH, MONITOR INTERLOCK WPL Y01140030 Contact Us For Availability
10
PLATE, COMP MTG WPL 02040074 Contact Us For Availability
10
SWITCH, PRIMARY INTERLOCK WPL Y01140042 Contact Us For Availability
11
CORD, POWER WPL 01080052 Contact Us For Availability
11
SWITCH, LOGIC INTERLOCK WPL Y01140043 Contact Us For Availability
12
COVER, COMP MNTG WPL 02300020 Contact Us For Availability
13
COVER, STIRRER WPL Y02300045 Contact Us For Availability
14
DIODE WPL Y01030012 Contact Us For Availability
15
DUCT ASSEMBLY, MAGNETRON WPL Y04020842 Contact Us For Availability
16
SUPPORT, MAG DUCT WPL Y02170112 Contact Us For Availability
17
FOOT, BASE WPL Y02230008 Contact Us For Availability
18
FUSE 15A 125V WPL Y01050005 Contact Us For Availability
19
LENS, BULB WPL Y02400007 Contact Us For Availability
20
BULB, LIGHT WPL Y01060024 Contact Us For Availability
21
MAGNETRON WPL 01040004 Contact Us For Availability
22
NUT LOCK 1/2 X 20 WPL 03050021 Contact Us For Availability
24
RACK, OVEN WPL Y02410004 Contact Us For Availability
25
GROUND SCREW WPL 03010082 Contact Us For Availability
27
SCREW WPL 03020077 Contact Us For Availability
28
SCREW WPL 03010124 Contact Us For Availability
29
SCREW WPL 03010094 Contact Us For Availability
30
SCREW WPL 03020060 Contact Us For Availability
31
SHELF WPL Y02280013 Contact Us For Availability
32
SOCKET, LAMP WPL 01100041 Contact Us For Availability
33
STRAIN, RELIEF WPL 03150023 Contact Us For Availability
34
SUPPORT, RACK WPL 02010031 Contact Us For Availability
34
SWITCH, TEMPERATURE LIMIT WPL Y01180008 Contact Us For Availability
35
TAPE, FOAM WPL 02310070 Contact Us For Availability
37
TRANSFORMER, H.V. WPL 01130028 Contact Us For Availability
37
VENT TRIM WPL 02100069 Contact Us For Availability
37
TRIM, EXHAUST INTAKE (BLK) WPL 02100154 Contact Us For Availability
38
SHELF TRIM WPL 02100052 Contact Us For Availability
38
WIRING HARNESS WPL 04010168 Contact Us For Availability
38
HV LEAD WIRE WPL 04060534 Contact Us For Availability
38
HV LEAD WIRE (8 ``) WPL Y04060532 Contact Us For Availability
38
HV LEAD WIRE (16``) WPL Y04060535 Contact Us For Availability
× ![]()
