Model Whirlpool M41B-2 MICROWAVE – Common Parts & Diagrams

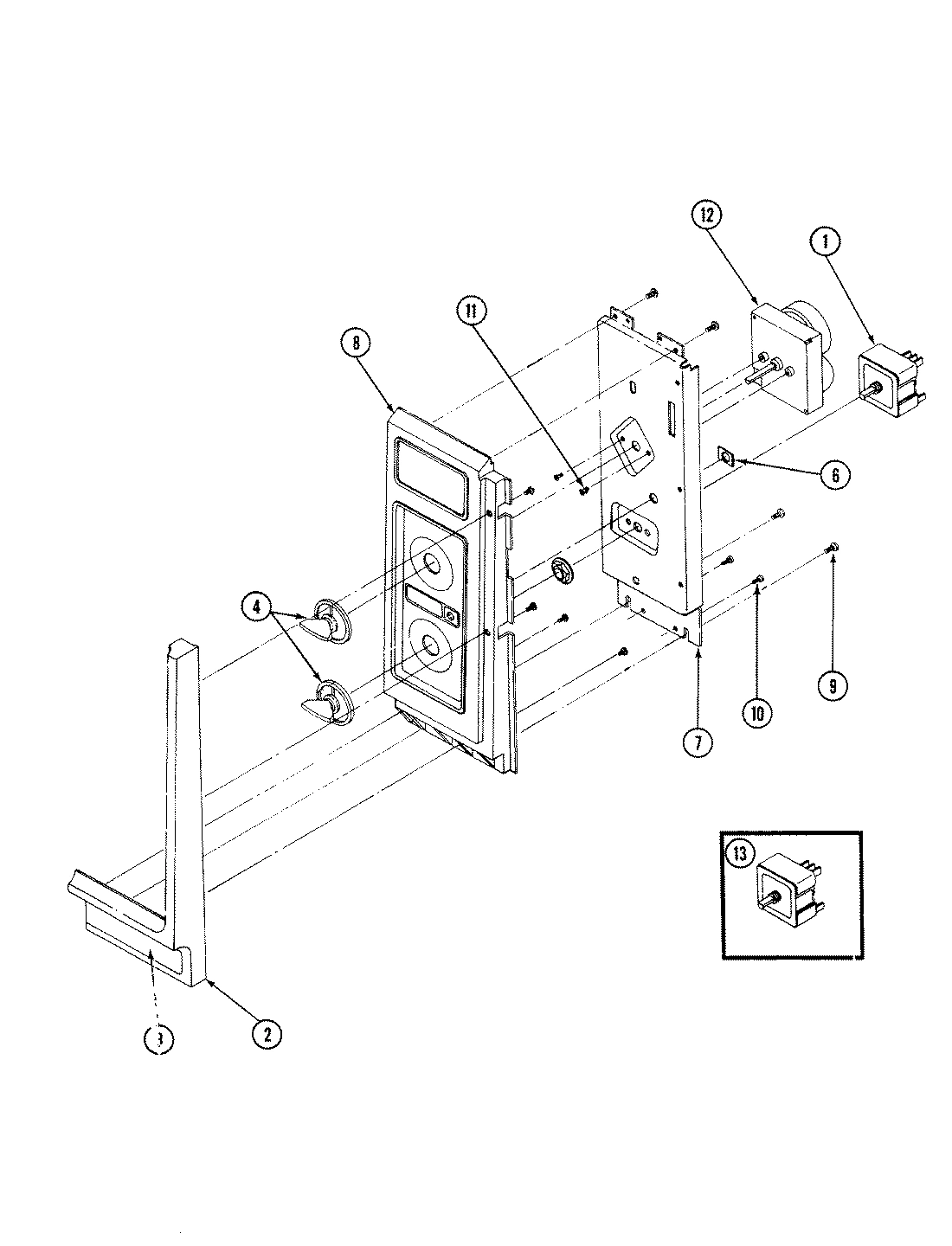

02 - CONTROL PANEL

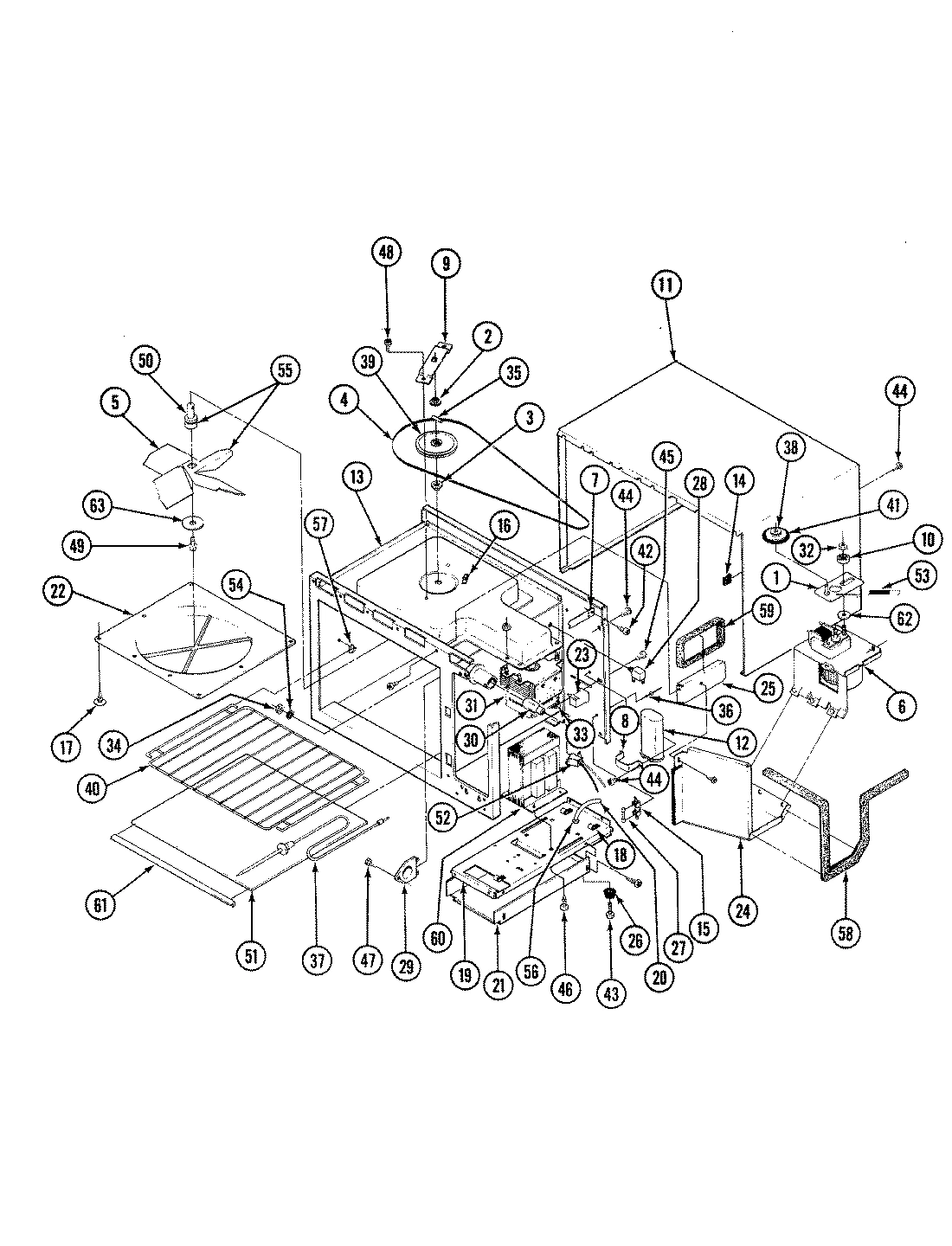

01 - BASE & CAVITY

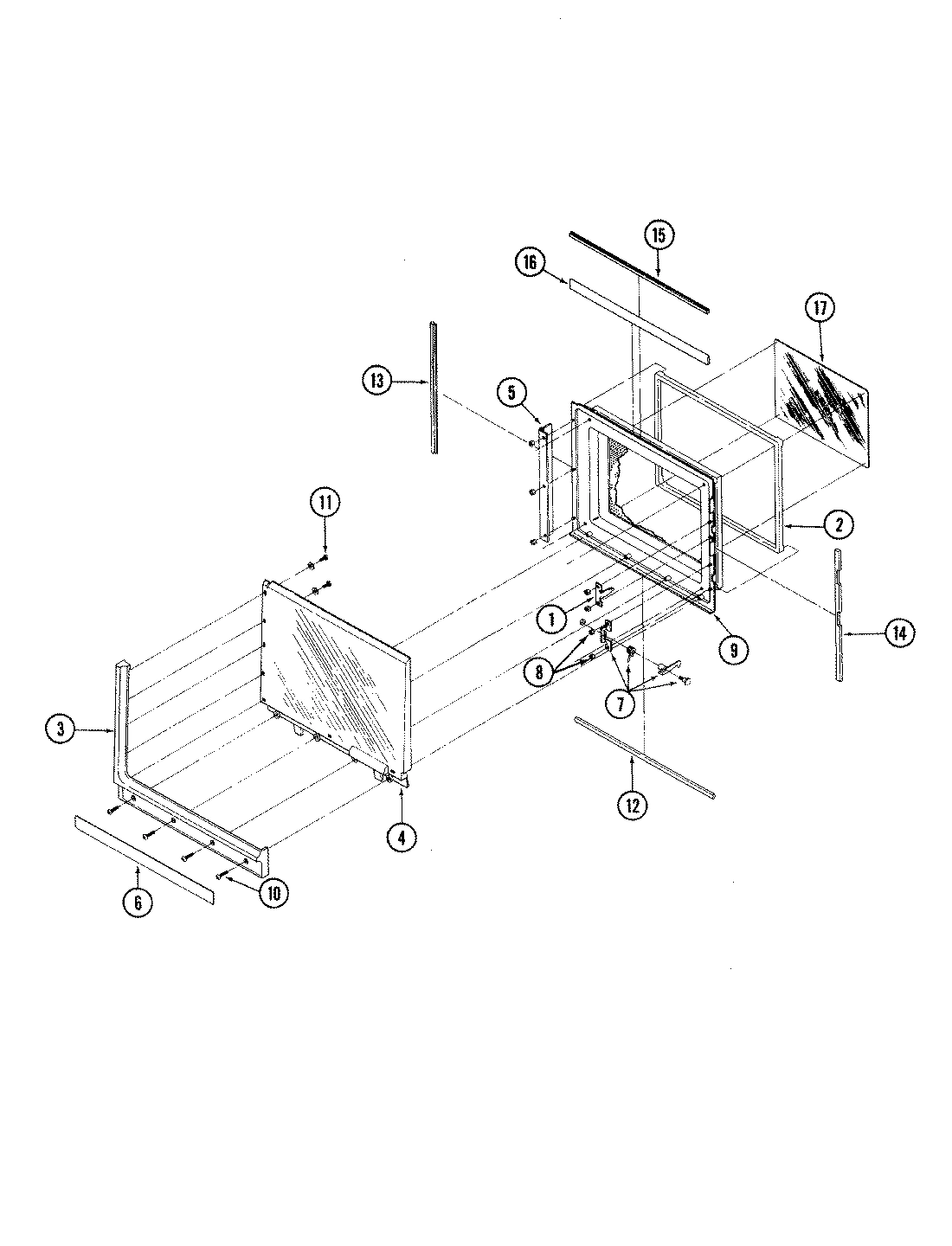

03 - DOOR

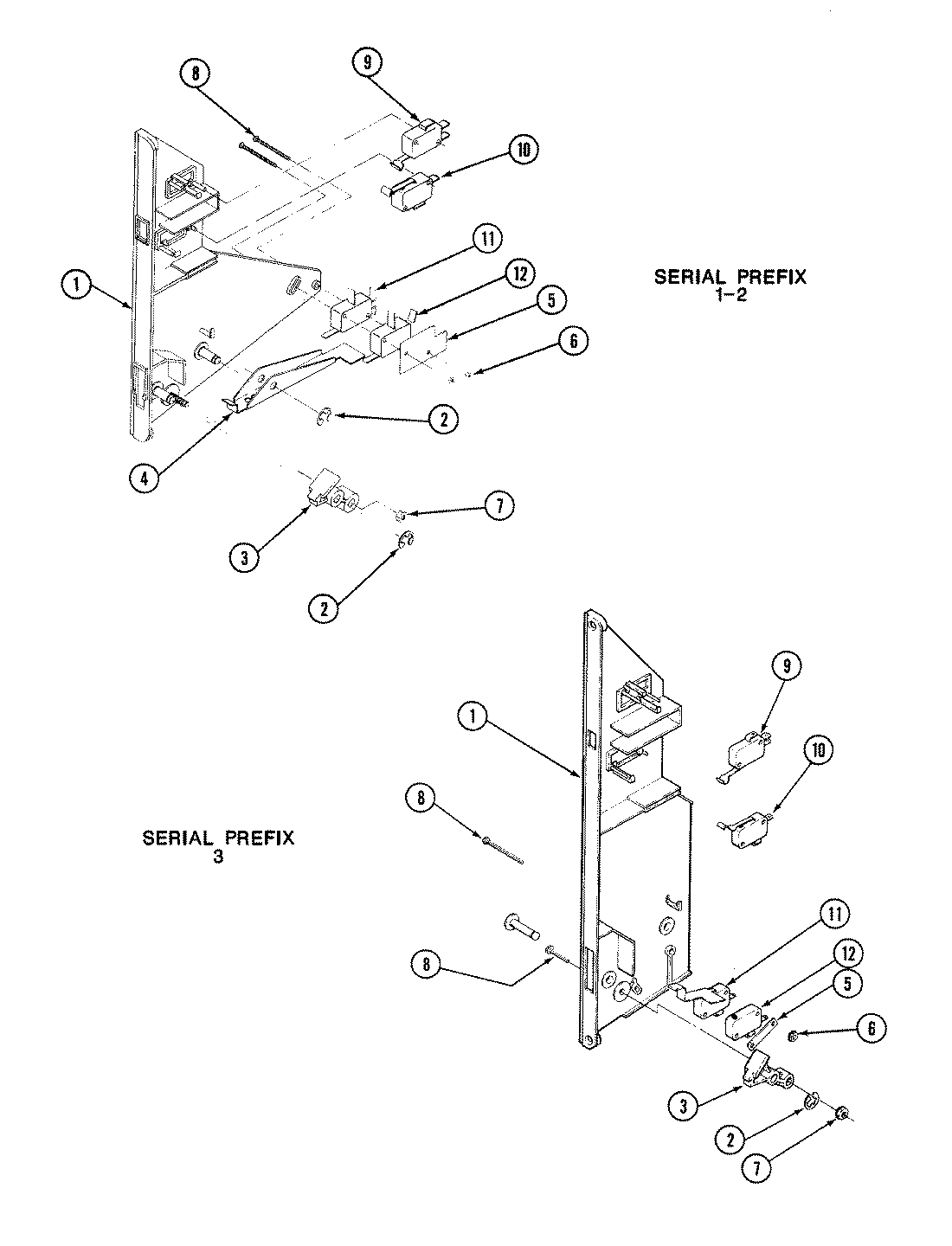

04 - LATCH RELEASE
Common parts from model Whirlpool M41B-2 MICROWAVE
1
BOARD, CONTROL WPL 01200013 Contact Us For Availability
1
ARM, IDLER SHAFT WPL 04020962 Contact Us For Availability
1
ACTIVATOR, MONITOR WPL Y02030117 Contact Us For Availability
1
BRACKET INTER WPL 02030115 Contact Us For Availability
2
FRAME WPL 02100061 Contact Us For Availability
2
BEARING WPL 03140016 Contact Us For Availability
2
CHOKE, FILLER (WHT) WPL Y02100080 Contact Us For Availability
2
CLIP, RETAINER WPL 03110040 Contact Us For Availability
3
INSERT, PANEL WPL Y02060247 Contact Us For Availability
3
BEARING WPL 03140015 Contact Us For Availability
3
TRIM, DOOR FRAME WPL 02100063 Contact Us For Availability
3
LATCH, DOOR INTERLOCK WPL 02190049 Contact Us For Availability
4
LABEL, RELAMPING WPL 02240407 Contact Us For Availability
4
KNOB WPL 02330047 Contact Us For Availability
4
BELT WPL 02390010 Contact Us For Availability
4
STIRRER BELT WPL Y02390008 Contact Us For Availability
4
GLASS, OUTER WPL 02220077 Contact Us For Availability
4
SWITCH LEVER WPL 02180010 Contact Us For Availability
5
STIRRER BLADE WPL 02360031 Contact Us For Availability
5
BLADE WPL 02360041 Contact Us For Availability
5
HINGE, DOOR WPL 02200016 Contact Us For Availability
5
SWITCH INSULATOR WPL 01100032 Contact Us For Availability
6
INSERT WPL 02100103 Contact Us For Availability
6
MOTOR WPL 01110014 Contact Us For Availability
6
BLOWER MOTOR WPL 01110015 Contact Us For Availability
6
BRACE WPL 04020816 Contact Us For Availability
6
BLOWER MOTOR ASSY WPL 04020966 Contact Us For Availability
6
BLOWER ASSY. WPL 04021096 Contact Us For Availability
6
WHEEL, BLOWER WPL Y01110016 Contact Us For Availability
6
BRACKET WPL Y02030112 Contact Us For Availability
6
HOUSING, BLOWER WPL Y02170119 Contact Us For Availability
6
NUT WPL Y03050001 Contact Us For Availability
7
PANEL, CONTROL MNTR WPL 02060245 Contact Us For Availability
7
BRACE, UPPER RIGHT SUPPORT WPL 02020020 Contact Us For Availability
7
NUT WPL 03050003 Contact Us For Availability
7
+ DOOR LATCH ASSY WPL 07020149 Contact Us For Availability
8
DECORATIVE WPL 02060215 Contact Us For Availability
8
BRACKET WPL 02030123 Contact Us For Availability
8
NUT WPL 03050033 Contact Us For Availability
8
SCREW WPL 03010122 Contact Us For Availability
9
SCREW WPL 03020063 Contact Us For Availability
9
BRACKET WPL 02030121 Contact Us For Availability
9
PANEL, INNER DOOR WPL 04020998 Contact Us For Availability
9
SWITCH, SECONDARY INTERLOCK WPL Y01140038 Contact Us For Availability
10
SCREW WPL 03020061 Contact Us For Availability
10
BUSHING PULLEY WPL 02360022 Contact Us For Availability
10
BUSHING WPL 02360034 Contact Us For Availability
10
BUSHING WPL 03140014 Contact Us For Availability
10
SCREW WPL Y03010118 Contact Us For Availability
10
SWITCH, MONITOR INTERLOCK WPL Y01140030 Contact Us For Availability
11
SCREW WPL 03020041 Contact Us For Availability
11
CABINET-ALMOND WPL Y02140050 Contact Us For Availability
11
SCREW & WASHER (HI LO) WPL Y03020071 Contact Us For Availability
11
SWITCH WPL Y01140040 Contact Us For Availability
11
SWITCH, PRIMARY INTERLOCK WPL Y01140042 Contact Us For Availability
12
TIMER WPL 01070038 Contact Us For Availability
12
RESISTOR, BLEEDER WPL 01010008 Contact Us For Availability
12
SEAL, BOTTOM WPL 02120114 Contact Us For Availability
13
TIMER WPL 01070039 Contact Us For Availability
13
STRAIN RELIEF WPL 03150015 Contact Us For Availability
13
SEAL, HINGE SIDE WPL Y02120121 Contact Us For Availability
14
CLIP, CABINET (RT) WPL 03110027 Contact Us For Availability
14
CLIP, CABINET (LT) WPL 03110046 Contact Us For Availability
14
SEAL, LATCH SIDE WPL Y02120122 Contact Us For Availability
15
PLASTIC GUIDE WPL Y03110052 Contact Us For Availability
15
SEAL, TOP WPL 02120118 Contact Us For Availability
15
SHIM WPL Y03120064 Contact Us For Availability
16
CLIP WPL 03110056 Contact Us For Availability
16
TAPE, BUFFER WPL 02310129 Contact Us For Availability
17
CLIP STIRRER WPL 03110018 Contact Us For Availability
17
CLIP WPL Y03110050 Contact Us For Availability
17
WINDOW, POLYESTER WPL Y02220073 Contact Us For Availability
18
CLIP WPL 03110051 Contact Us For Availability
19
PLATE, COMPONENT MOUNTING WPL 02040053 Contact Us For Availability
20
CORD, POWER (BLK) WPL 01080050 Contact Us For Availability
21
COVER, COMP MNTG WPL 02300020 Contact Us For Availability
22
COVER, STIRRER WPL Y02300021 Contact Us For Availability
23
DIODE WPL Y01030010 Contact Us For Availability
24
DUCT ASSEMBLY, MAGNETRON WPL Y04020842 Contact Us For Availability
25
SUPPORT, MAG DUCT WPL Y02170112 Contact Us For Availability
26
FOOT, BASE WPL Y02230008 Contact Us For Availability
27
FUSE 15A 125V WPL Y01050005 Contact Us For Availability
27
GUIDE WPL Y02360036 Contact Us For Availability
29
LENS, BULB WPL Y02400007 Contact Us For Availability
30
BULB, LIGHT WPL Y01060024 Contact Us For Availability
31
MAGNETRON WPL 01040004 Contact Us For Availability
33
NUT LOCK 1/2 X 20 WPL 03050021 Contact Us For Availability
35
COTTER PIN WPL 03070013 Contact Us For Availability
35
PIN WPL 03070034 Contact Us For Availability
35
PROBE JACK PLUG WPL 03210006 Contact Us For Availability
35
PLUG WPL 03210007 Contact Us For Availability
36
POP-RIVET WPL Y03060023 Contact Us For Availability
38
PULLEY, IDLER SHAFT ARM WPL 02360037 Contact Us For Availability
39
PULLEY WPL 02360038 Contact Us For Availability
39
STIRRER PULLEY WPL 04020796 Contact Us For Availability
41
RUBBER,IDLER SHAFT WPL 02210008 Contact Us For Availability
42
GROUND SCREW WPL 03010082 Contact Us For Availability
44
SCREW WPL 03020077 Contact Us For Availability
45
SCREW WPL 03010124 Contact Us For Availability
46
SCREW WPL 03010094 Contact Us For Availability
47
SCREW WPL 03020060 Contact Us For Availability
48
SCREW WPL 03010129 Contact Us For Availability
49
SCREW WPL 03020004 Contact Us For Availability
49
SCREW WPL 03020074 Contact Us For Availability
50
S WPL 02360035 Contact Us For Availability
50
WPL 02360039 WPL 02360039 Contact Us For Availability
51
WPL Y02280013 WPL Y02280013 Contact Us For Availability
52
WPL 01100033 WPL 01100033 Contact Us For Availability
53
WPL 03120021 WPL 03120021 Contact Us For Availability
53
WPL 03180024 WPL 03180024 Contact Us For Availability
54
WPL 03030012 WPL 03030012 Contact Us For Availability
55
WPL 04020778 WPL 04020778 Contact Us For Availability
55
WPL 04020965 WPL 04020965 Contact Us For Availability
56
WPL 03150018 WPL 03150018 Contact Us For Availability
57
WPL Y01180008 WPL Y01180008 Contact Us For Availability
58
WPL 02310070 WPL 02310070 Contact Us For Availability
59
WPL 02310109 WPL 02310109 Contact Us For Availability
60
WPL 01130028 WPL 01130028 Contact Us For Availability
60
WPL 02100069 WPL 02100069 Contact Us For Availability
61
WPL 02100052 WPL 02100052 Contact Us For Availability
62
WPL 03040034 WPL 03040034 Contact Us For Availability
63
WPL 0304 WPL 0304 Contact Us For Availability
× ![]()
