Model Whirlpool M416 MICROWAVE – Common Parts & Diagrams

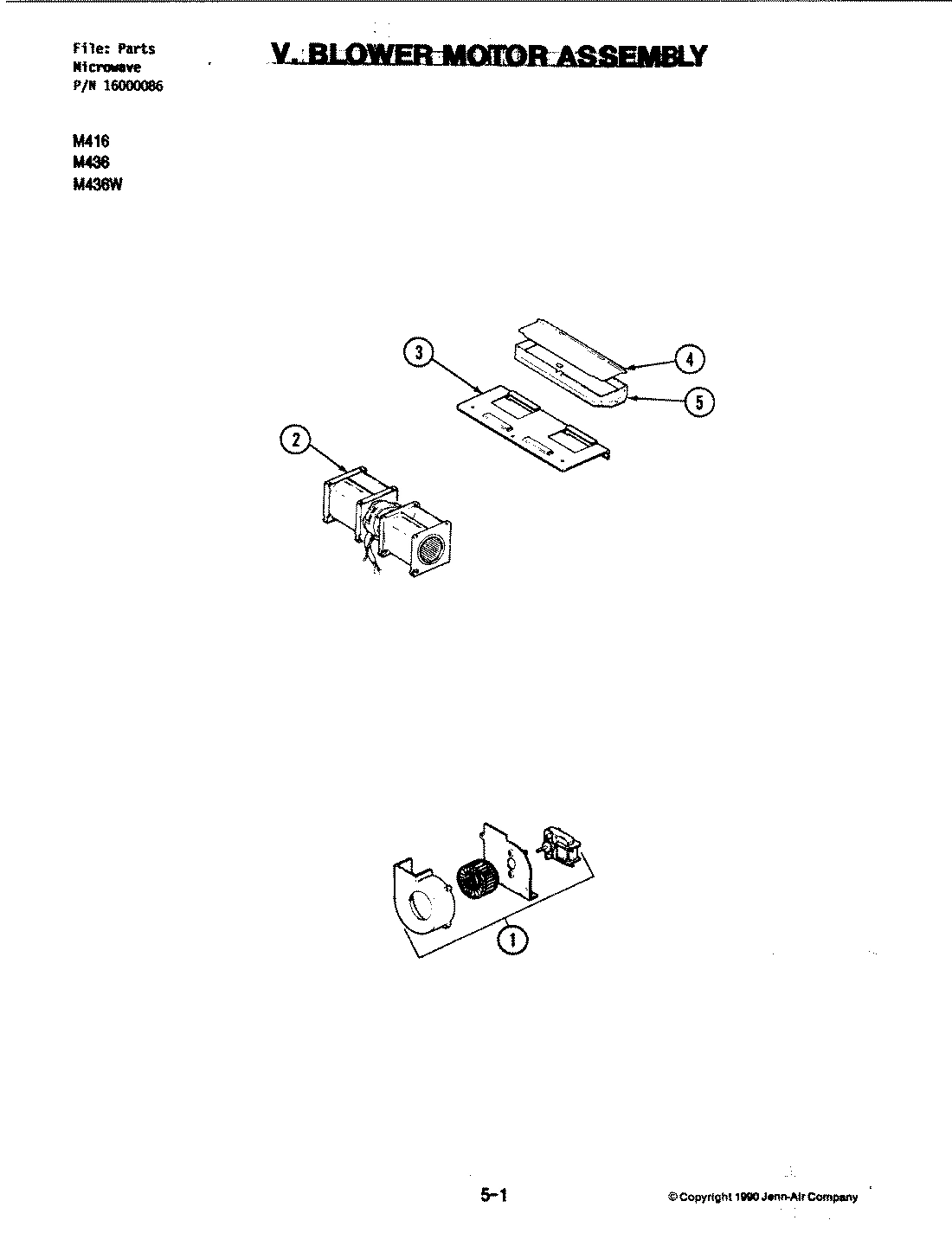

01 - BLOWER MOTOR ASSEMBLY

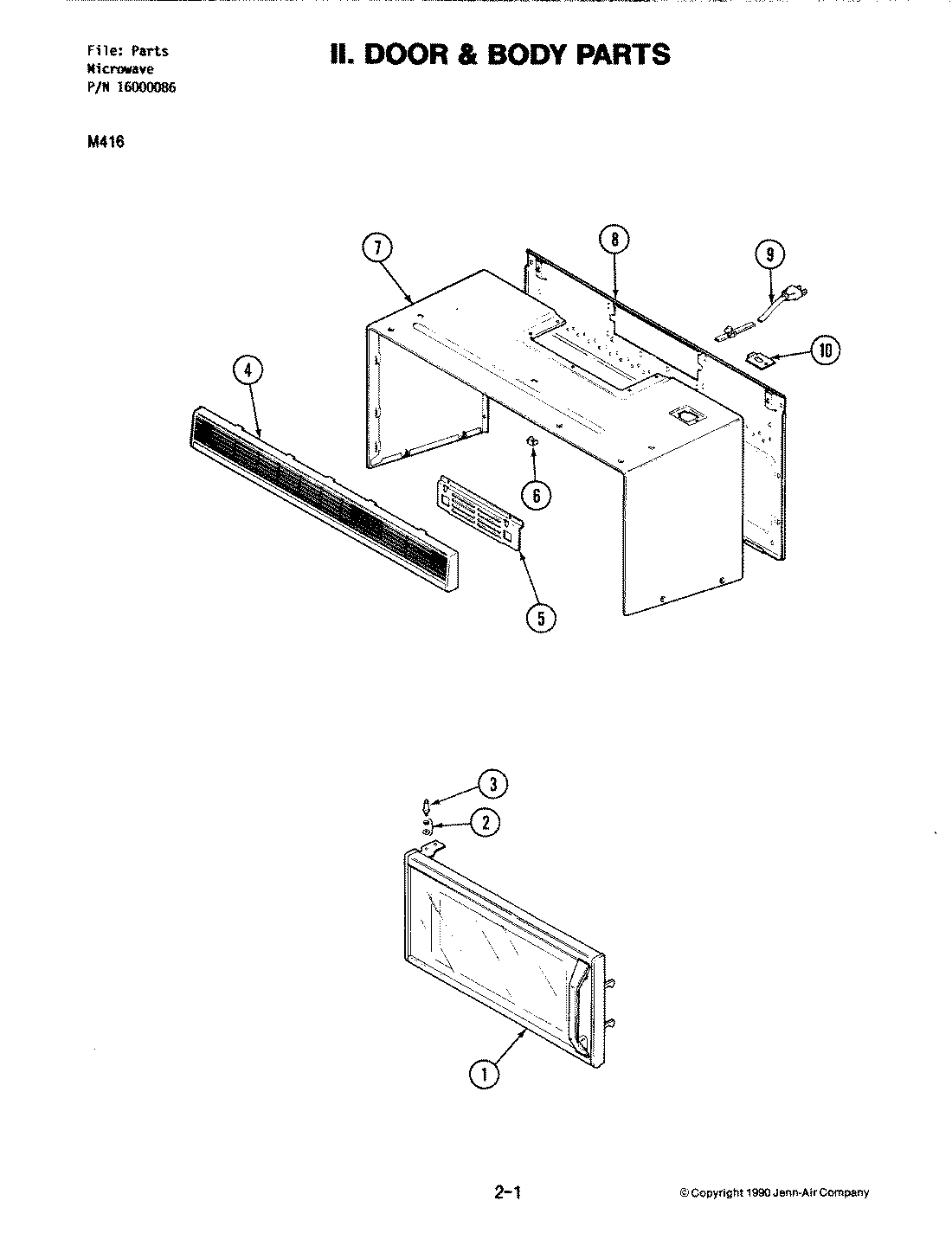

03 - DOOR & BODY PARTS

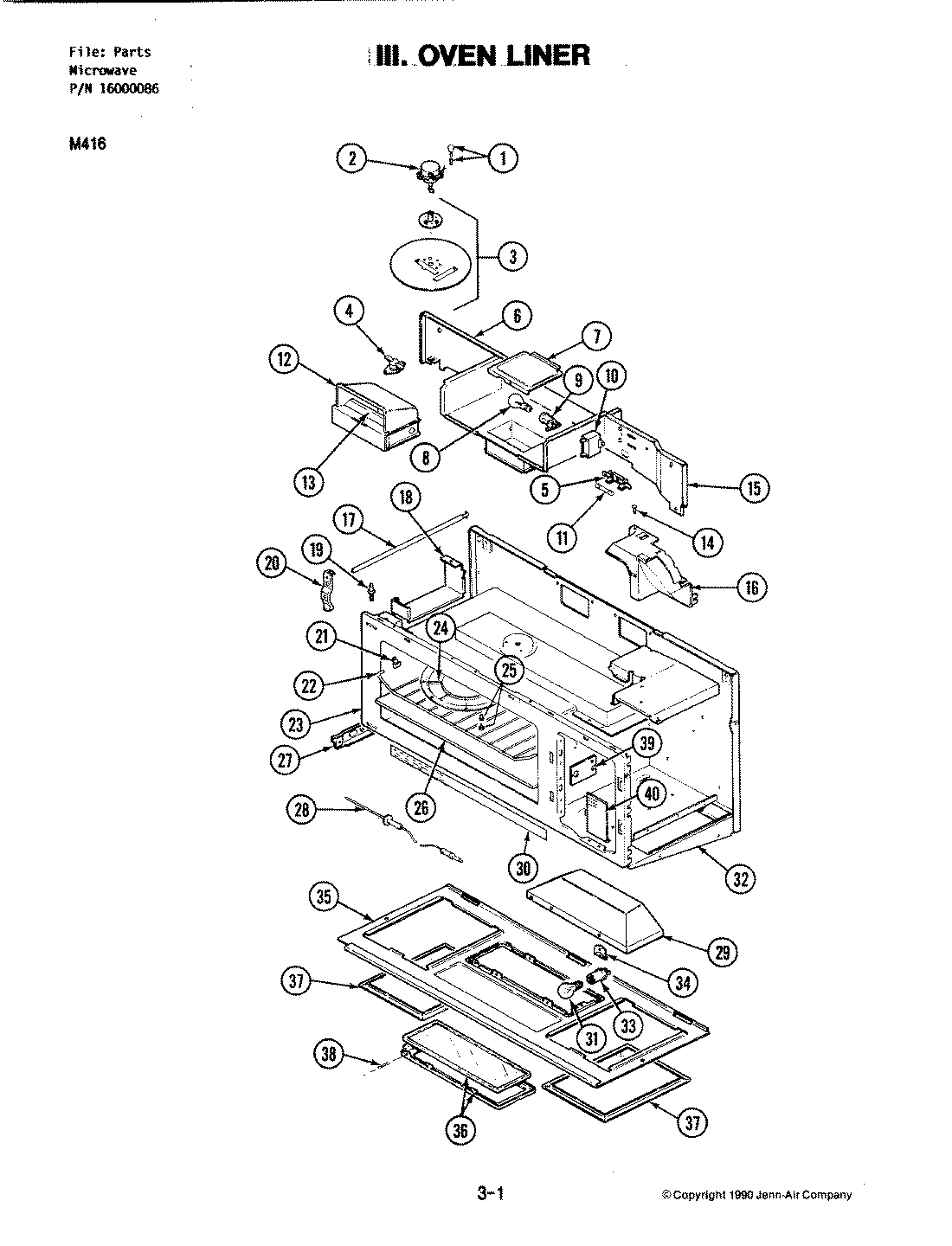

05 - OVEN LINER

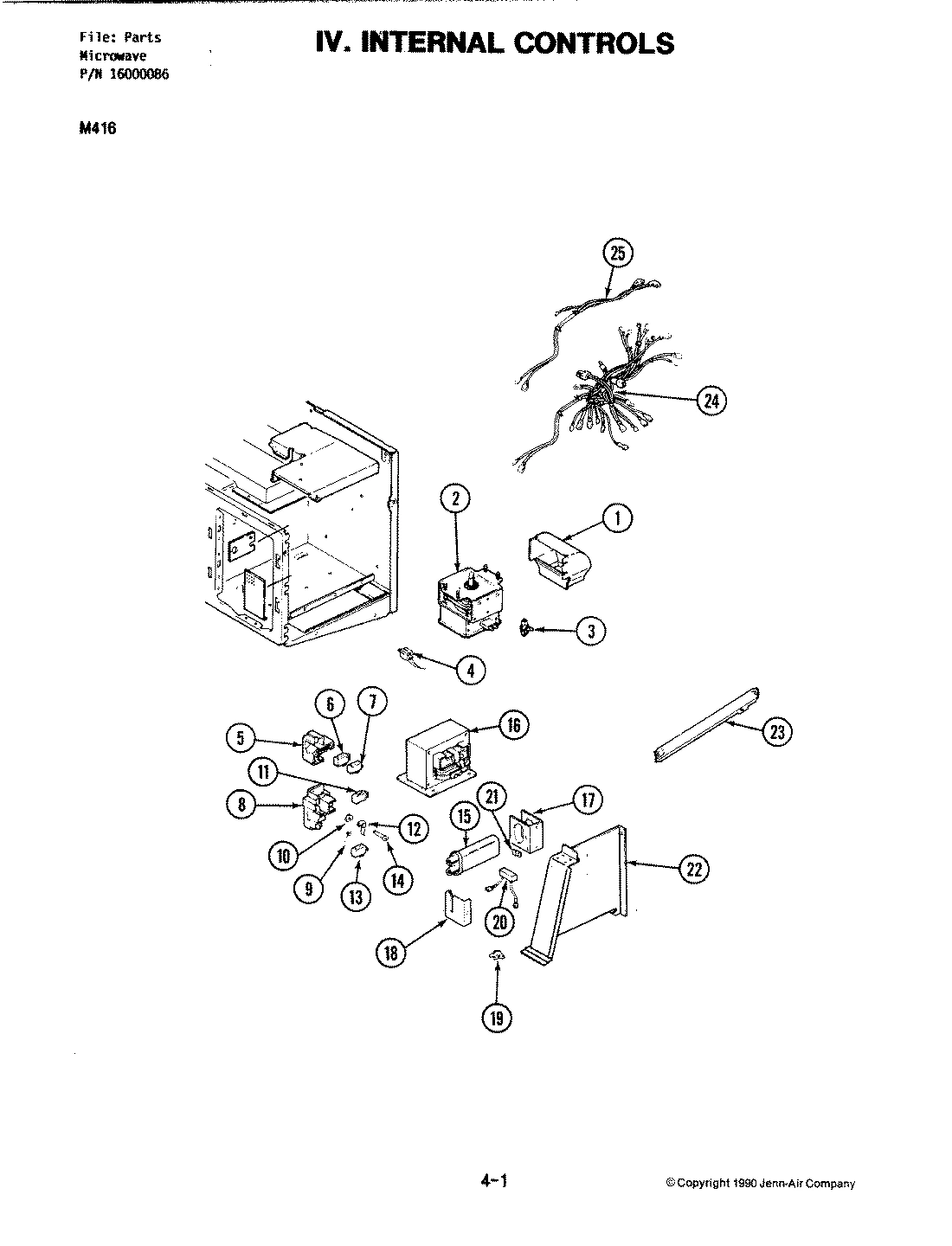

04 - INTERNAL CONTROLS

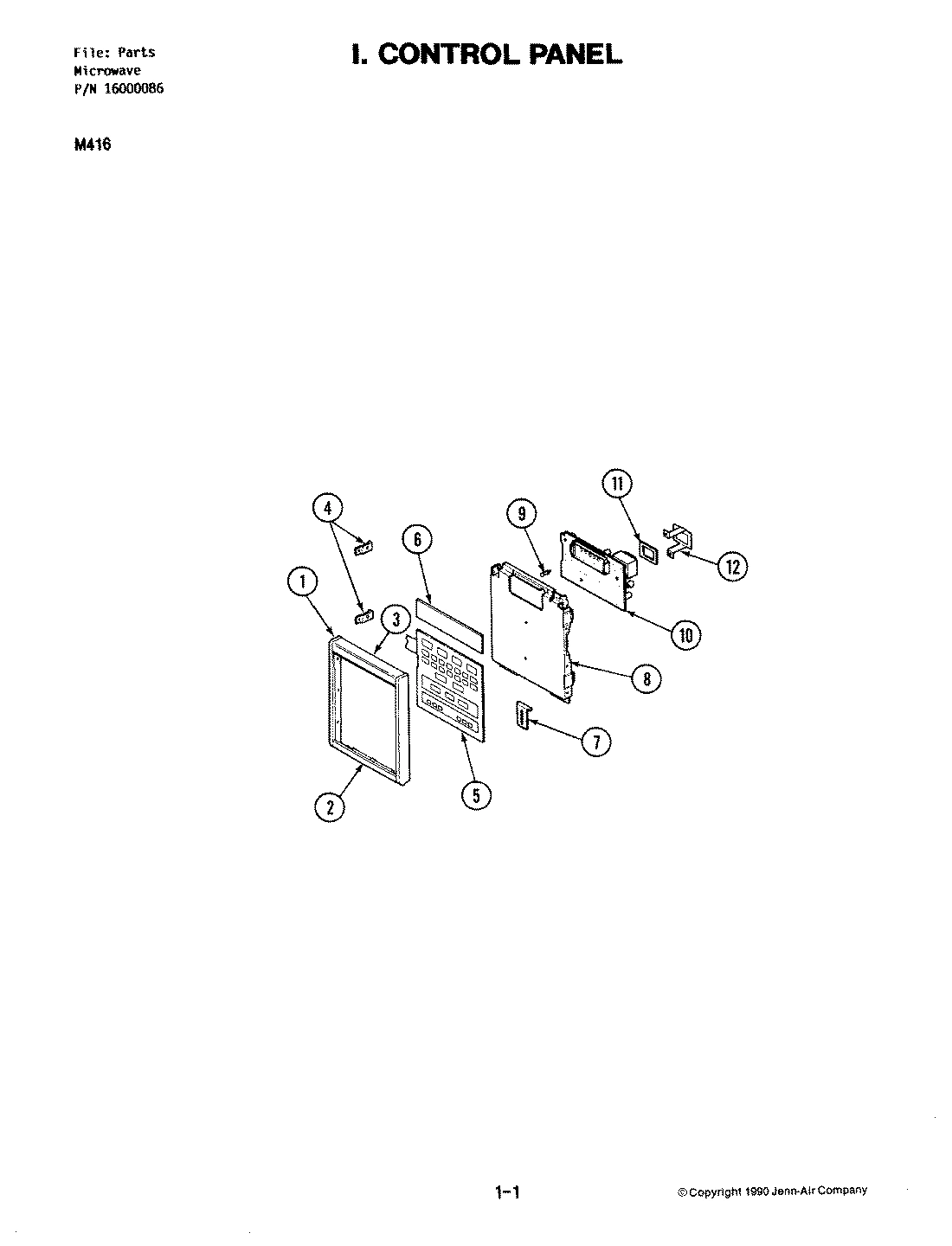

02 - CONTROL PANEL
Common parts from model Whirlpool M416 MICROWAVE
1
MOTOR, BLOWER WPL 27200010 Contact Us For Availability
1
DOOR ASSEMBLY WB55X698 WPL 05200103 Contact Us For Availability
1
AIR GUIDE - SIDE WPL 05200075 Contact Us For Availability
1
CONTROL PANEL WPL 05200054 Contact Us For Availability
2
MOTOR, VENT. WPL 27200018 Contact Us For Availability
2
SCREW - BLOWER MOTOR WPL 05200115 Contact Us For Availability
2
SCREW - GRILLE WPL 05200119 Contact Us For Availability
2
SCREW WPL 30050162 Contact Us For Availability
2
WASHER WPL 32800033 Contact Us For Availability
2
WASHER WPL 32800040 Contact Us For Availability
2
SCREW WPL Y05200048 Contact Us For Availability
2
MOTOR - STIRRER WPL 05200083 Contact Us For Availability
2
MAGNETRON WPL Y05200074 Contact Us For Availability
2
TRIM, BOTTOM WPL 32300099 Contact Us For Availability
3
BRACKET, MOTOR SUPPORT WPL Y05200065 Contact Us For Availability
3
SPACER, STIRRER WPL 30650009 Contact Us For Availability
3
STIRRER BLADE ASSY WPL Y05200107 Contact Us For Availability
3
THERMOSTAT, SWITCH WPL 31600010 Contact Us For Availability
3
TRIM, TOP WPL 32300100 Contact Us For Availability
4
GRILLE ASSEMBLY WPL 05200068 Contact Us For Availability
4
FLAME, SENSOR WPL 05200060 Contact Us For Availability
4
RECEPTACLE WPL 29150009 Contact Us For Availability
4
BRACKET, FRONT PANEL WPL 05200093 Contact Us For Availability
5
DOOR, DAMPER WPL 23050002 Contact Us For Availability
5
FRAME, DAMPER WPL Y05200066 Contact Us For Availability
5
LATCH, BRACKET (UPPER) WPL 22750041 Contact Us For Availability
5
KEY PANEL ASSY WPL 05200098 Contact Us For Availability
6
DUCT ASSEMBLY - UPPER WPL 05200057 Contact Us For Availability
6
SWITCH, DOOR WPL 05200081 Contact Us For Availability
6
CRYSTAL WPL 05200088 Contact Us For Availability
7
WRAPPER WPL 05200009 Contact Us For Availability
7
COVER, LAMP WPL 05200059 Contact Us For Availability
7
SWITCH, PRIMARY WPL 31350086 Contact Us For Availability
7
HINGE ASSEMBLY WPL 25200010 Contact Us For Availability
8
PLATE MOUNTING WPL 05200056 Contact Us For Availability
8
LIGHT, OVEN WPL 26650003 Contact Us For Availability
8
LATCH, BRACKET (LOWER) WPL 22750043 Contact Us For Availability
8
BRACKET, CONTROL PANEL WPL 05200092 Contact Us For Availability
9
CORD, POWER SUPPLY WPL 05200064 Contact Us For Availability
9
RECEPTACLE, BULB WPL 05200052 Contact Us For Availability
9
SPRING, HOOK WPL 30700024 Contact Us For Availability
9
SUPPORT, TUB WPL 05200106 Contact Us For Availability
9
SCREW WPL 31050171 Contact Us For Availability
10
INSTALLATION KIT WPL 26100007 Contact Us For Availability
10
CLAMP, CABLE WPL Y05200026 Contact Us For Availability
10
CAPACITOR - MOTOR WPL Y05200095 Contact Us For Availability
10
CAM, SWITCH WPL 21950007 Contact Us For Availability
10
SMART BOARD & DISPLAY WPL 05200134 Contact Us For Availability
11
FUSE 15A 125V WPL Y01050005 Contact Us For Availability
11
SWITCH WPL Y01140049 Contact Us For Availability
11
COVER, LV TRANSFORMER WPL 05200101 Contact Us For Availability
12
DUCT EXHAUST WPL 05200072 Contact Us For Availability
12
LEVER, HOOK WPL 26600017 Contact Us For Availability
12
BRACKET, LV TRANSFORMER WPL 05200102 Contact Us For Availability
13
BRACKET - EXHAUST WPL 05200073 Contact Us For Availability
13
SWITCH, SECONDARY WPL 31350085 Contact Us For Availability
14
SCREW, CAM WPL 30050114 Contact Us For Availability
15
CAPACITOR - HV WPL Y05200079 Contact Us For Availability
16
DUCT WPL 05200108 Contact Us For Availability
16
TRANSFORMER, H.V. WPL 05200076 Contact Us For Availability
17
DUCT ASSEMBLY WPL 05200058 Contact Us For Availability
17
BRACKET - HV CAPACITOR WPL 05200078 Contact Us For Availability
18
DUCT - SIDE - LEFT WPL 05200061 Contact Us For Availability
18
BARRIER WPL 20800007 Contact Us For Availability
19
U-BOLT WPL 05200023 Contact Us For Availability
19
CLIP WPL 05200034 Contact Us For Availability
20
GUIDE, MTG SHAFT WPL 25200011 Contact Us For Availability
20
DIODE WPL 23150004 Contact Us For Availability
21
SUPPORT, RACK WPL Y05200084 Contact Us For Availability
21
FASTENER, HVC (SCREW) WPL 05200077 Contact Us For Availability
22
RACK WPL 29050014 Contact Us For Availability
22
DUCT - SIDE WPL 05200080 Contact Us For Availability
23
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
23
BRACKET WPL 21450048 Contact Us For Availability
24
COVER - STIRRER WPL 05200082 Contact Us For Availability
24
MAIN WIRE HARNESS WPL 05200096 Contact Us For Availability
25
PUSH RIVET WPL 29500005 Contact Us For Availability
25
WIRE HARNESS WPL 05200097 Contact Us For Availability
26
SHELVE WPL 30250004 Contact Us For Availability
27
BASE - BRIDGE - LEFT WPL 05200071 Contact Us For Availability
28
PROBE WPL 28600002 Contact Us For Availability
29
COVER LAMP WPL 05200111 Contact Us For Availability
30
COOK CODE LABEL WPL 05200086 Contact Us For Availability
31
LAMP WPL 26350005 Contact Us For Availability
32
BASE PLATE WPL Y05200063 Contact Us For Availability
33
RECEPTACLE, BULB (COOKTOP) WPL 05200053 Contact Us For Availability
34
BRACKET - SOCKET WPL 05200112 Contact Us For Availability
35
BOTTOM PLATE ASSEMBLY WPL 05200070 Contact Us For Availability
36
COVER GLASS ASSEMBLY WPL Y05200109 Contact Us For Availability
37
FILTER, AIR WPL 23900003 Contact Us For Availability
37
FILTER KIT (CHARCOAL) WPL Y05200037 Contact Us For Availability
38
PIN WIRE WPL 05200035 Contact Us For Availability
39
COVER, MAGNETRON WPL 20800006 Contact Us For Availability
40
BARRIER, H.V. TRANSFORMER WPL 21450050 Contact Us For Availability
× ![]()
