Model Whirlpool M40B-3 MICROWAVE – Common Parts & Diagrams

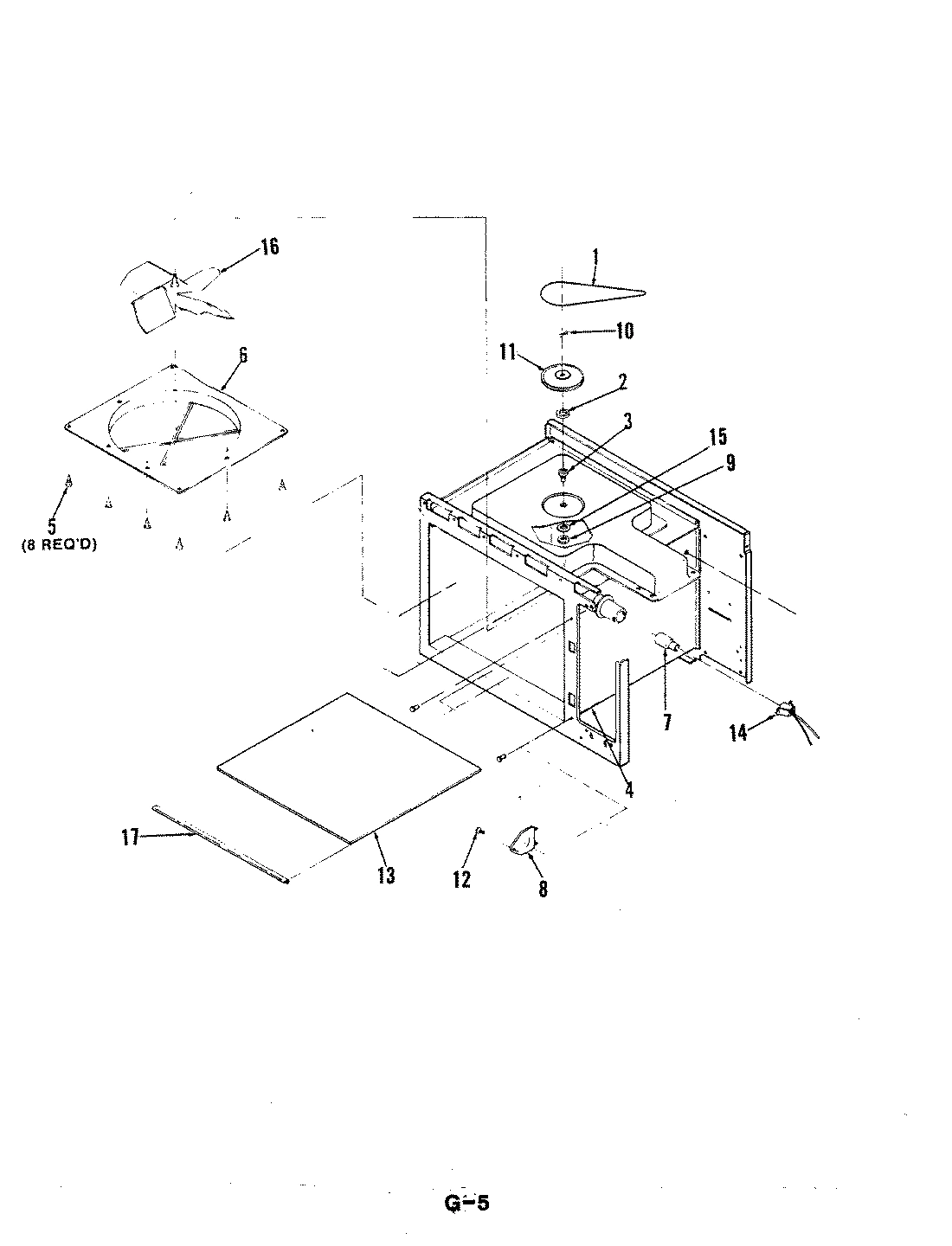

03 - CAVITY

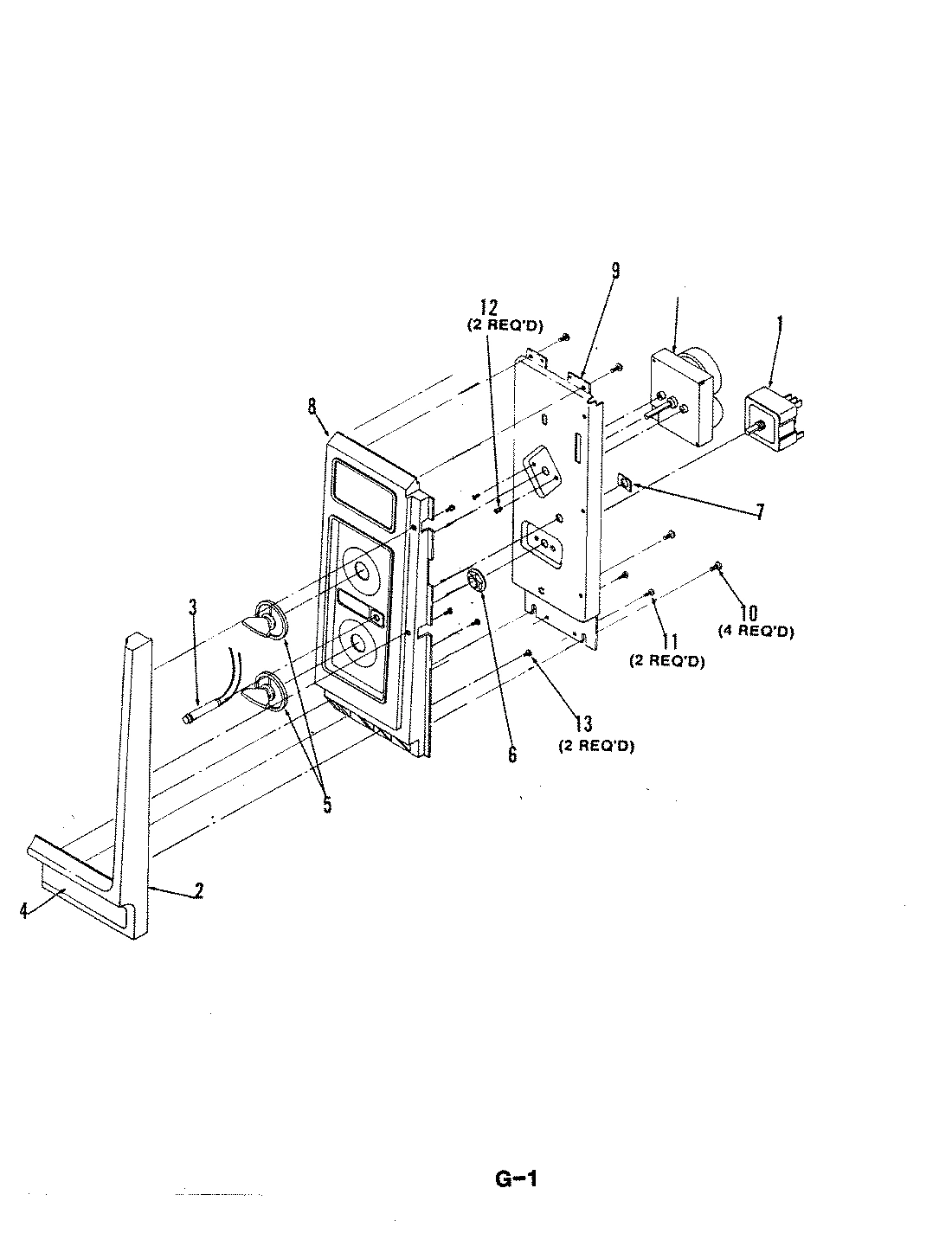

05 - CONTROL PANEL

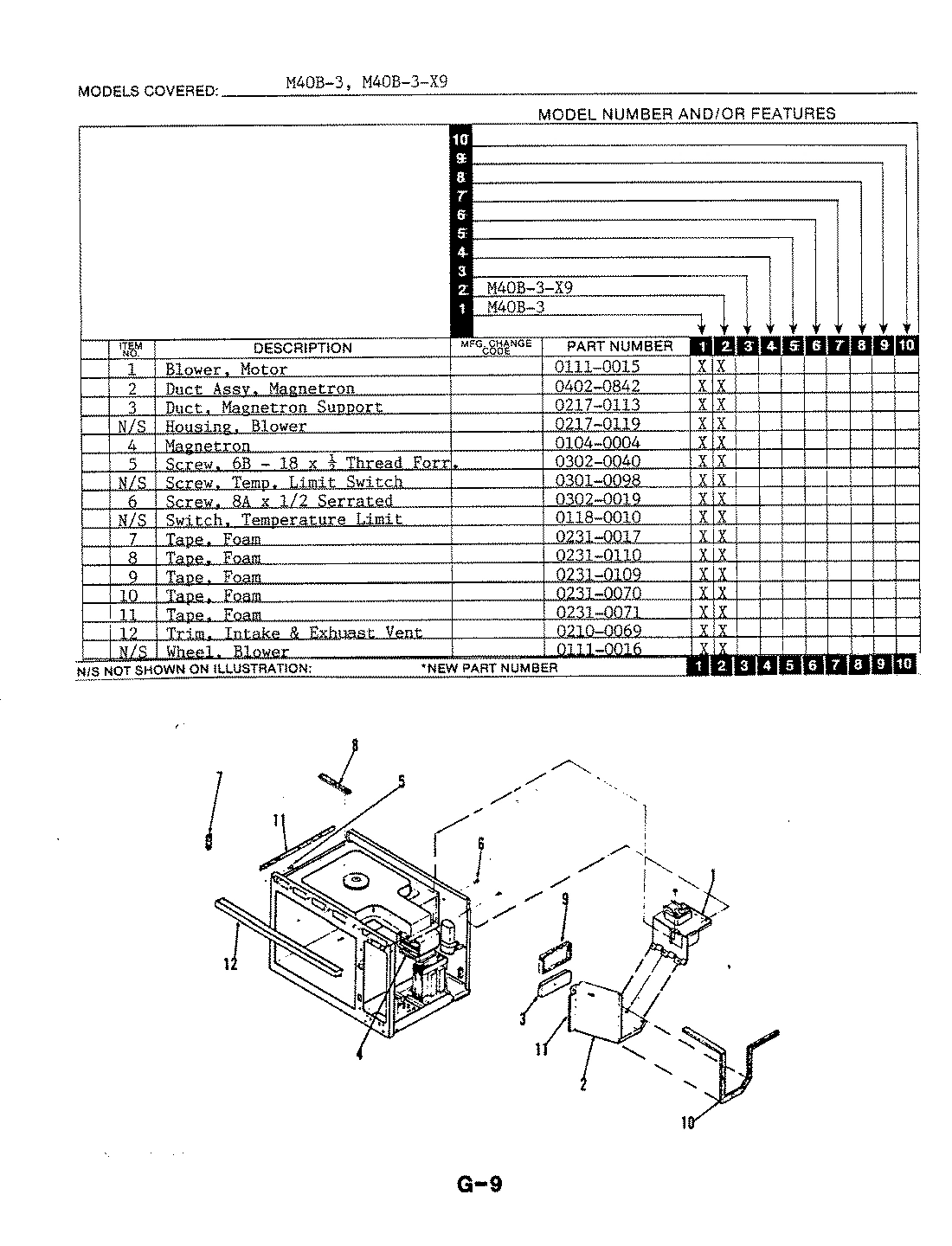

06 - COOLING SYSTEM

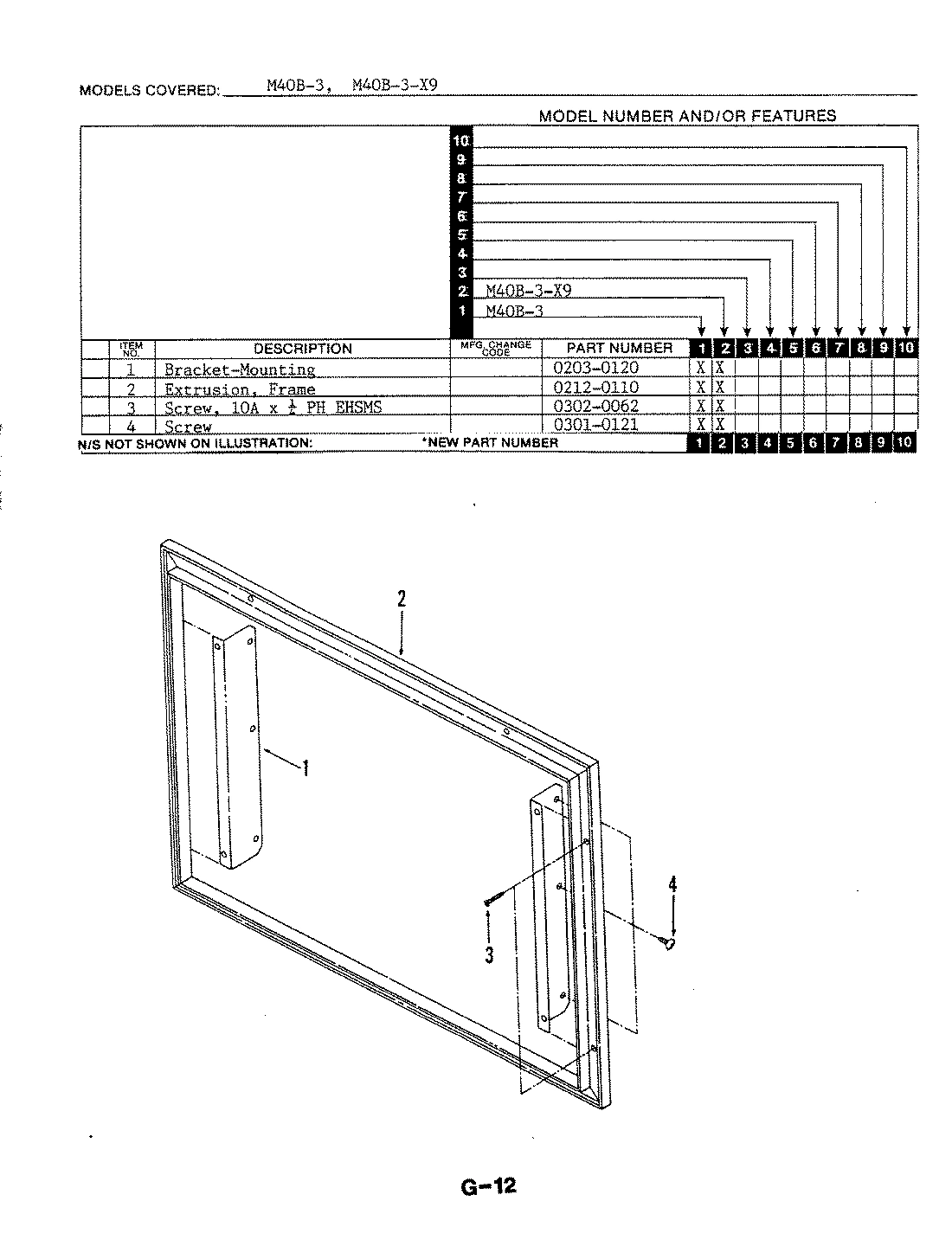

02 - BUILT-IN KIT

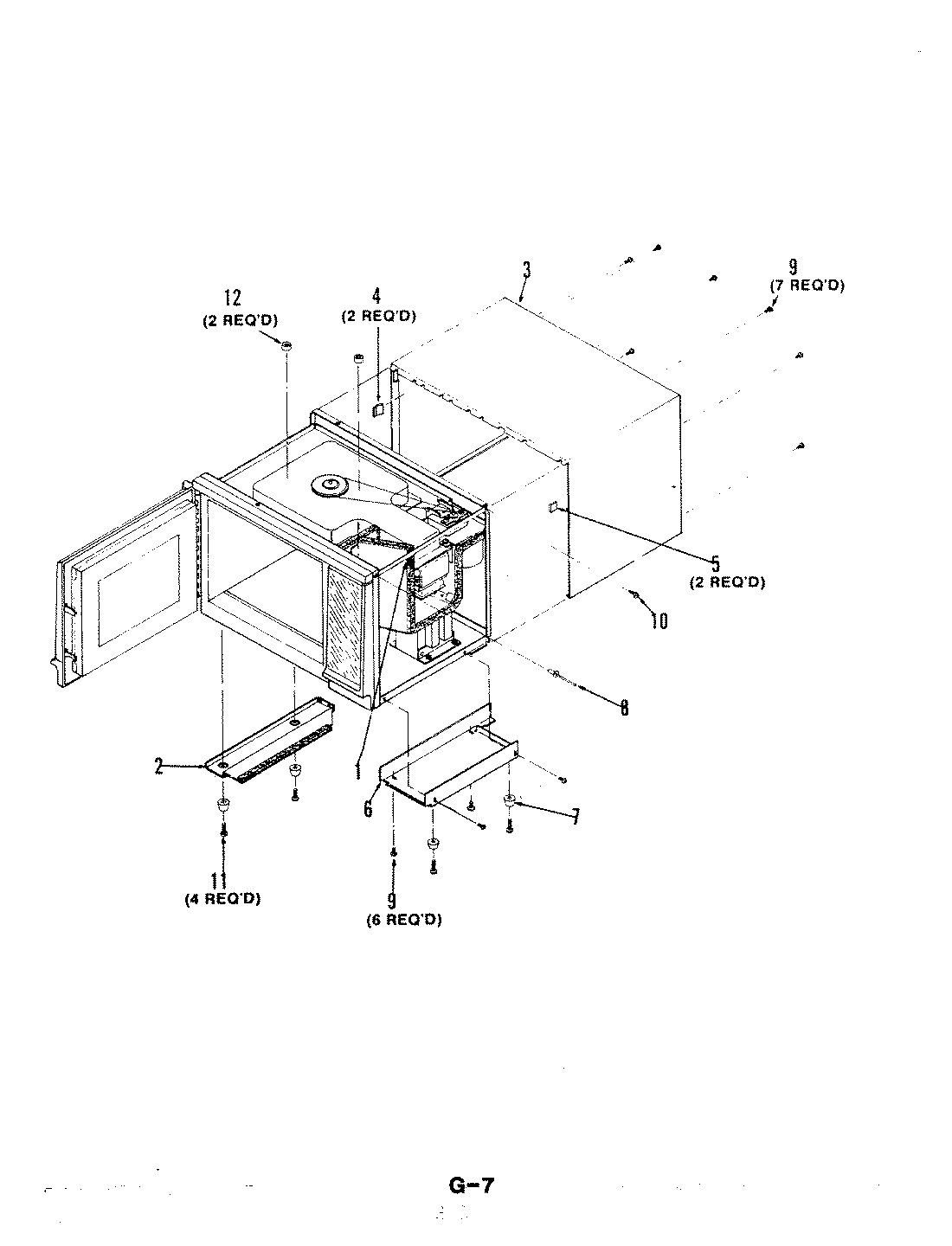

01 - BASE

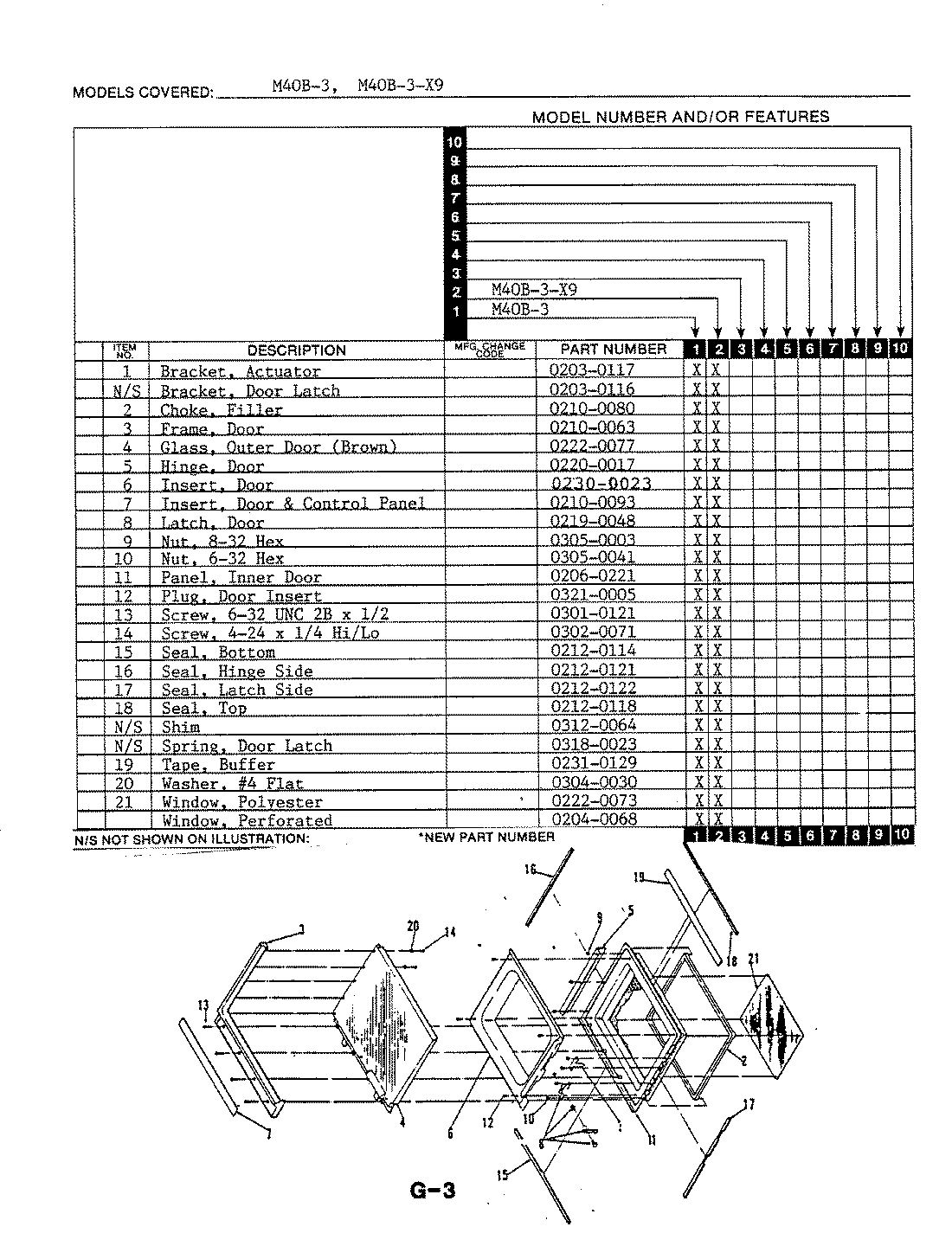

07 - DOOR

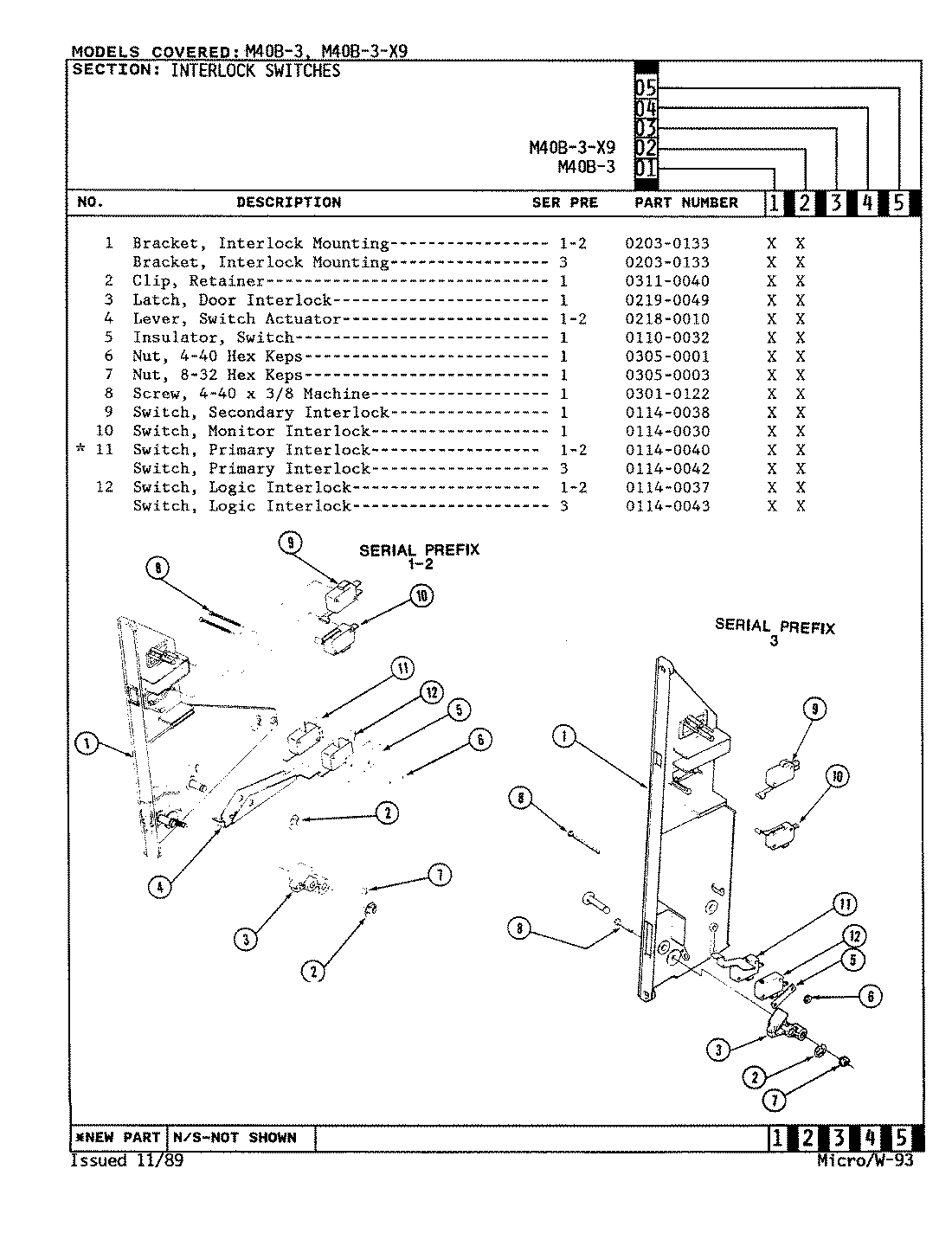

08 - INTERLOCK SWITCHES

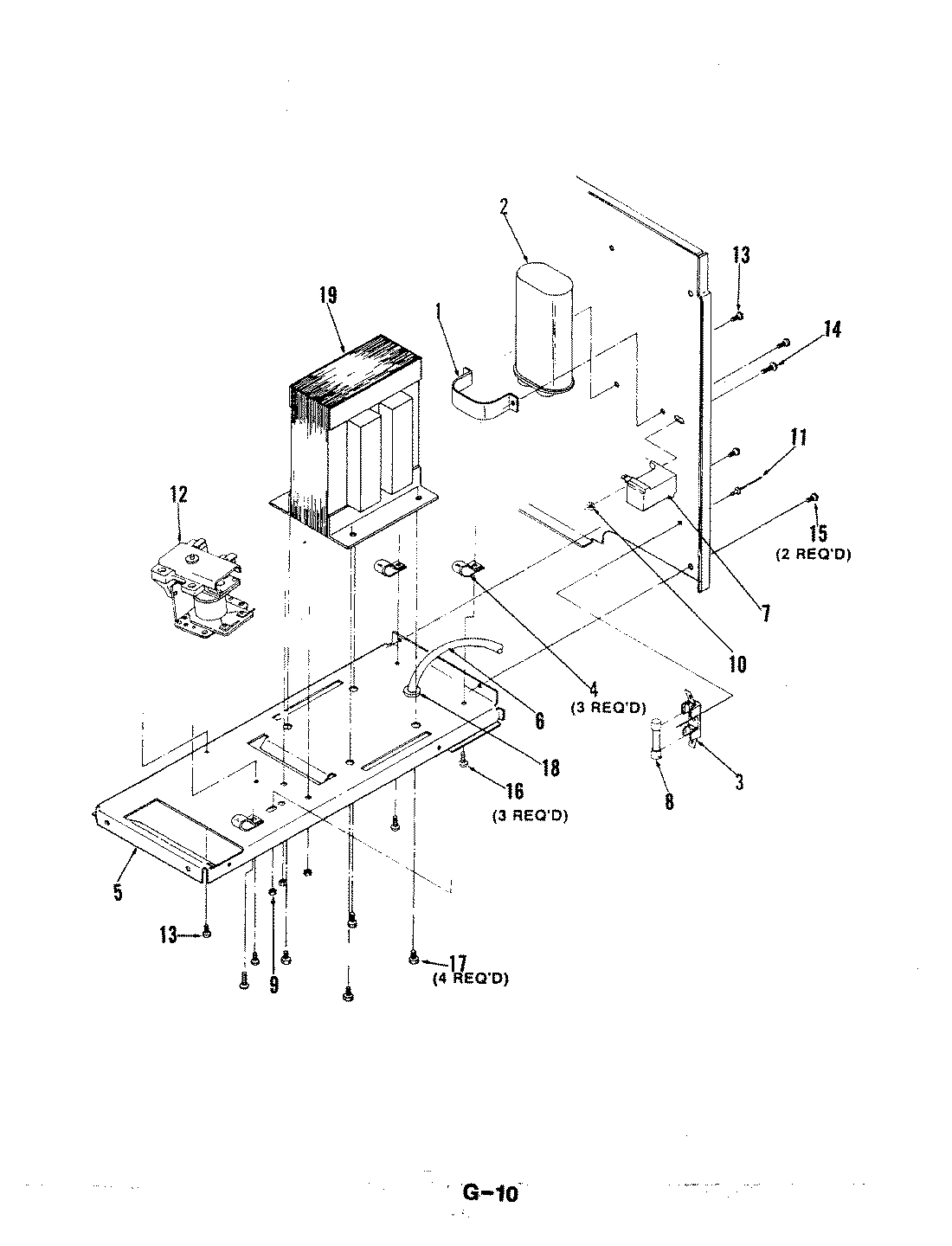

04 - COMPONENT MOUNTING PLATE
Common parts from model Whirlpool M40B-3 MICROWAVE
1
STIRRER BELT WPL Y02390008 Contact Us For Availability
1
BOARD, CONTROL WPL 01200013 Contact Us For Availability
1
BLOWER MOTOR WPL 01110015 Contact Us For Availability
1
BRACKET, MOUNTING WPL 02030120 Contact Us For Availability
1
BRACE, UPPER RIGHT SUPPORT WPL 02020020 Contact Us For Availability
1
BRACKET, DOOR LATCH WPL Y02030116 Contact Us For Availability
1
ACTIVATOR, MONITOR WPL Y02030117 Contact Us For Availability
1
BRACKET, INTERLOCK WPL Y02030133 Contact Us For Availability
1
BRACKET WPL 02030123 Contact Us For Availability
2
BUSHING PULLEY WPL 02360022 Contact Us For Availability
2
FRAME WPL 02100061 Contact Us For Availability
2
DUCT ASSEMBLY, MAGNETRON WPL Y04020842 Contact Us For Availability
2
TRIM WPL 02120110 Contact Us For Availability
2
SUPPORT TURNTABLE WPL Y02020024 Contact Us For Availability
2
CHOKE, FILLER (WHT) WPL Y02100080 Contact Us For Availability
2
CLIP, RETAINER WPL 03110040 Contact Us For Availability
3
BUSHING WPL 02360034 Contact Us For Availability
3
LAMP ASSY WPL 01060027 Contact Us For Availability
3
DUCT, MAGNETRON SUPPORT WPL 02170113 Contact Us For Availability
3
HOUSING, BLOWER WPL Y02170119 Contact Us For Availability
3
SCREW WPL 03020062 Contact Us For Availability
3
CABINET (BLK) WPL 02140041 Contact Us For Availability
3
TRIM, DOOR FRAME WPL 02100063 Contact Us For Availability
3
LATCH, DOOR INTERLOCK WPL 02190049 Contact Us For Availability
4
CAVITY WPL 04020999 Contact Us For Availability
4
MAGNETRON WPL 01040004 Contact Us For Availability
4
CLIP, CABINET (LT) WPL 03110046 Contact Us For Availability
4
GLASS, OUTER WPL 02220077 Contact Us For Availability
4
SWITCH LEVER WPL 02180010 Contact Us For Availability
4
CLIP WPL 03110051 Contact Us For Availability
5
CLIP WPL Y03110050 Contact Us For Availability
5
LABEL, RELAMPING WPL 02240407 Contact Us For Availability
5
KNOB, TIMER WPL 02330048 Contact Us For Availability
5
SCREW WPL 03010098 Contact Us For Availability
5
SCREW WPL 03020040 Contact Us For Availability
5
CLIP, CABINET (RT) WPL 03110027 Contact Us For Availability
5
HINGE, DOOR WPL Y02200017 Contact Us For Availability
5
SWITCH INSULATOR WPL 01100032 Contact Us For Availability
5
PLATE, COMPONENT MOUNTING WPL 02040053 Contact Us For Availability
6
COVER, STIRRER WPL Y02300021 Contact Us For Availability
6
GUIDE WPL Y02360036 Contact Us For Availability
6
NUT LOCK 1/2 X 20 WPL 03050021 Contact Us For Availability
6
SWITCH, TEMP LIMIT WPL 01180010 Contact Us For Availability
6
COVER, COMP MNTG WPL 02300020 Contact Us For Availability
6
DOOR INSERT WPL 02300023 Contact Us For Availability
6
NUT WPL Y03050001 Contact Us For Availability
6
CORD, POWER (BLK) WPL 01080050 Contact Us For Availability
7
BULB, LIGHT WPL Y01060024 Contact Us For Availability
7
INSERT, DOOR/CONTROL PNL WPL 02100093 Contact Us For Availability
7
NUT WPL Y03050032 Contact Us For Availability
7
PER FT WPL 02310017 Contact Us For Availability
7
FOOT, BASE WPL Y02230008 Contact Us For Availability
7
DIODE WPL Y01030010 Contact Us For Availability
8
LENS, BULB WPL Y02400007 Contact Us For Availability
8
DECORATIVE WPL 02060215 Contact Us For Availability
8
PANEL, CONTROL MNTG WPL 02060228 Contact Us For Availability
8
FOAM TAPE 4`` WPL Y02310110 Contact Us For Availability
8
POP RIVET WPL 03060013 Contact Us For Availability
8
DOOR LATCH WPL 02190048 Contact Us For Availability
8
SCREW WPL 03010122 Contact Us For Availability
8
FUSE 15A 125V WPL Y01050005 Contact Us For Availability
9
PANEL, CONTROL MNTG WPL 02060285 Contact Us For Availability
9
SCREW WPL 03020019 Contact Us For Availability
9
TAPE, FOAM WPL 02310109 Contact Us For Availability
9
SWITCH, SECONDARY INTERLOCK WPL Y01140038 Contact Us For Availability
10
COTTER PIN WPL 03070013 Contact Us For Availability
10
SCREW WPL 03020063 Contact Us For Availability
10
TAPE, FOAM WPL 02310070 Contact Us For Availability
10
GROUND SCREW WPL 03010082 Contact Us For Availability
10
NUT WPL 03050003 Contact Us For Availability
10
SWITCH, MONITOR INTERLOCK WPL Y01140030 Contact Us For Availability
11
STIRRER PULLEY WPL 04020796 Contact Us For Availability
11
SCREW WPL 03020061 Contact Us For Availability
11
TAPE, FOAM WPL 02310071 Contact Us For Availability
11
INNER DOOR WPL 02060221 Contact Us For Availability
11
SWITCH WPL Y01140040 Contact Us For Availability
11
SWITCH, PRIMARY INTERLOCK WPL Y01140042 Contact Us For Availability
12
SCREW WPL 03020060 Contact Us For Availability
12
SCREW WPL 03020041 Contact Us For Availability
12
TAPE, FOAM WPL 02310122 Contact Us For Availability
12
TAPE, FOAM WPL 02310123 Contact Us For Availability
12
VENT TRIM WPL 02100069 Contact Us For Availability
12
WHEEL, BLOWER WPL Y01110016 Contact Us For Availability
12
WAVEGUIDE BUMPER WPL 03120021 Contact Us For Availability
12
FOAM TAPE 6`` WPL Y02310106 Contact Us For Availability
12
DR INSERT PLUG WPL 03210005 Contact Us For Availability
12
SWITCH WPL 01140037 Contact Us For Availability
12
SWITCH, LOGIC INTERLOCK WPL Y01140043 Contact Us For Availability
12
RELAY WPL 01120028 Contact Us For Availability
13
SHELF WPL Y02280013 Contact Us For Availability
13
SCREW WPL 03020054 Contact Us For Availability
13
SCREW WPL Y03010121 Contact Us For Availability
13
SCREW WPL 03020030 Contact Us For Availability
14
LAMP SOCKET WPL 01100033 Contact Us For Availability
14
TIMER WPL 01070038 Contact Us For Availability
14
TIMER, DEFROST WPL Y01070041 Contact Us For Availability
14
SCREW & WASHER (HI LO) WPL Y03020071 Contact Us For Availability
14
SCREW WPL 03010124 Contact Us For Availability
15
STARWASHER WPL 03030012 Contact Us For Availability
15
SEAL, BOTTOM WPL 02120114 Contact Us For Availability
16
STIRRER ASSY WPL 04020778 Contact Us For Availability
16
SEAL, HINGE SIDE WPL Y02120121 Contact Us For Availability
17
SHELF TRIM WPL 02100052 Contact Us For Availability
17
SEAL, LATCH SIDE WPL Y02120122 Contact Us For Availability
17
SCREW WPL 03010094 Contact Us For Availability
17
SCREW WPL Y03020076 Contact Us For Availability
18
SEAL, TOP WPL 02120118 Contact Us For Availability
18
SHIM WPL Y03120064 Contact Us For Availability
18
SPRING, DOOR LATCH WPL Y03180023 Contact Us For Availability
18
STRAIN RELIEF WPL 03150018 Contact Us For Availability
19
TAPE, BUFFER WPL 02310129 Contact Us For Availability
19
TRANSFORMER, H.V. WPL 01130028 Contact Us For Availability
19
WIRING HARNESS WPL 04010179 Contact Us For Availability
19
LEAD WIRE 8`` WPL Y04060341 Contact Us For Availability
19
H V LEAD 5``GRAY WPL Y04060510 Contact Us For Availability
19
H.V. LEAD 16`` GRAY WPL Y04060511 Contact Us For Availability
20
WASHER WPL 03040030 Contact Us For Availability
21
WINDOW, PERFORATED WPL 02040068 Contact Us For Availability
21
WINDOW, POLYESTER WPL Y02220073 Contact Us For Availability
× ![]()
