Model Whirlpool M406 MICROWAVE – Common Parts & Diagrams
01 - BLOWER MOTOR ASSEMBLY

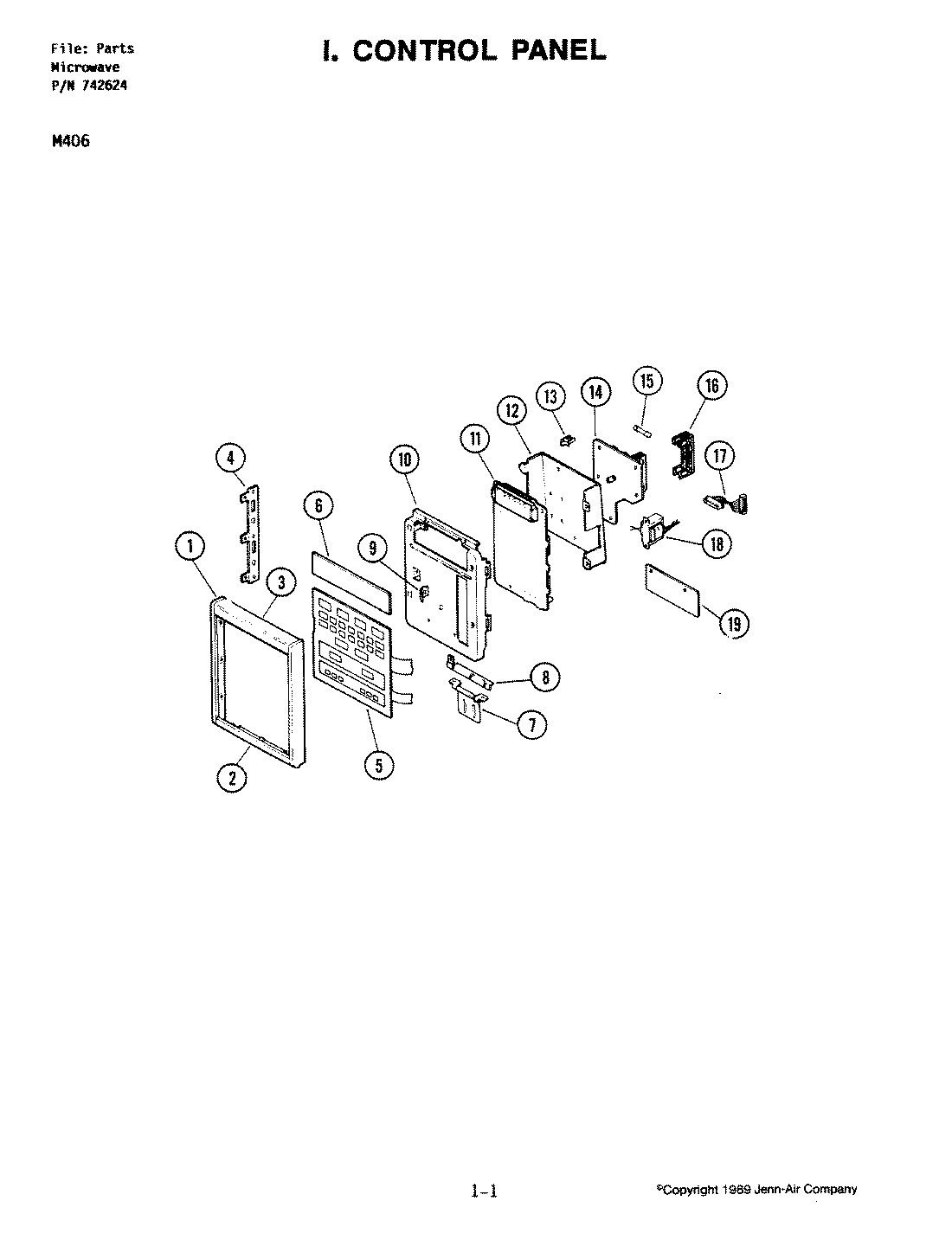

02 - CONTROL PANEL

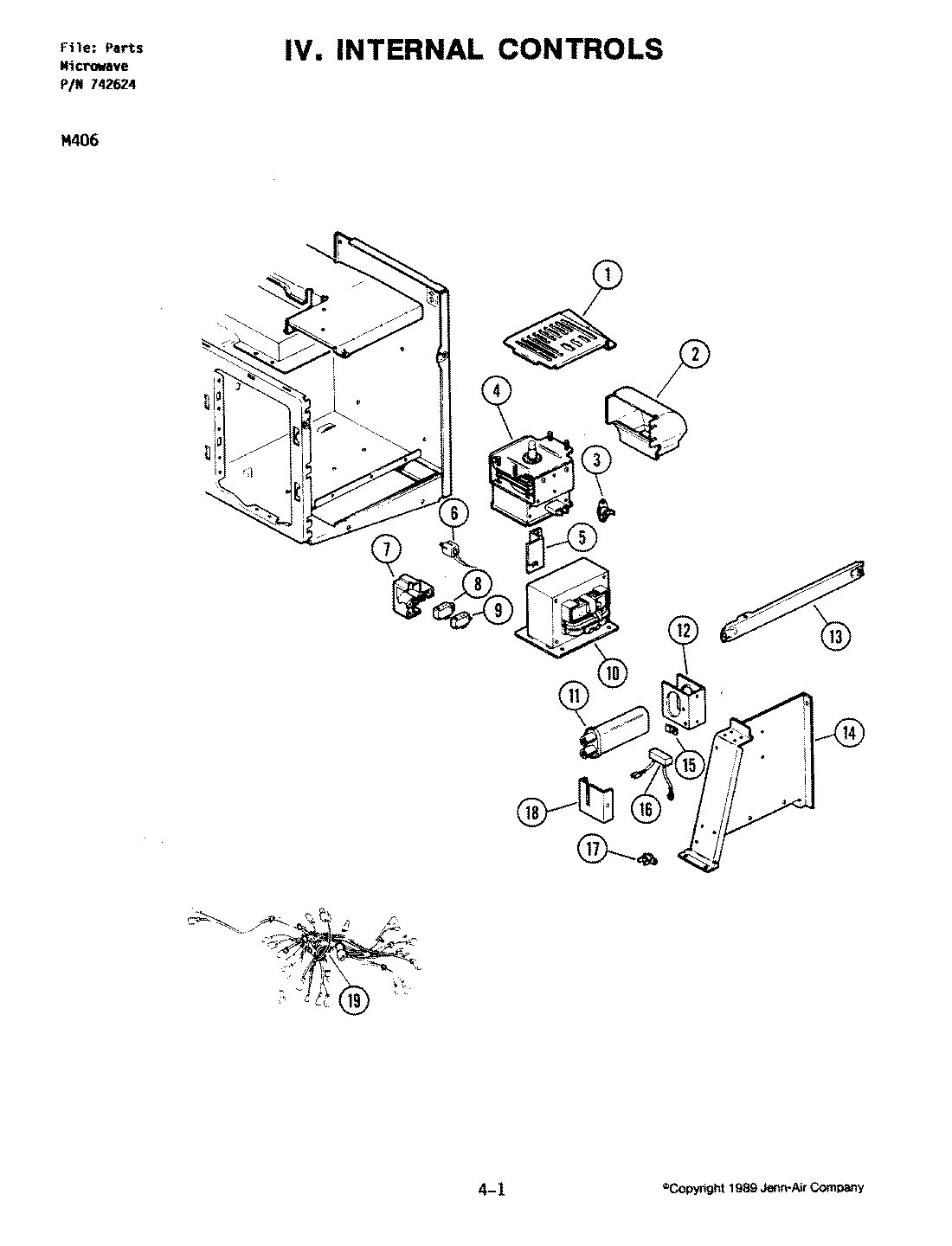

05 - INTERNAL CONTROLS
04 - HARDWARE

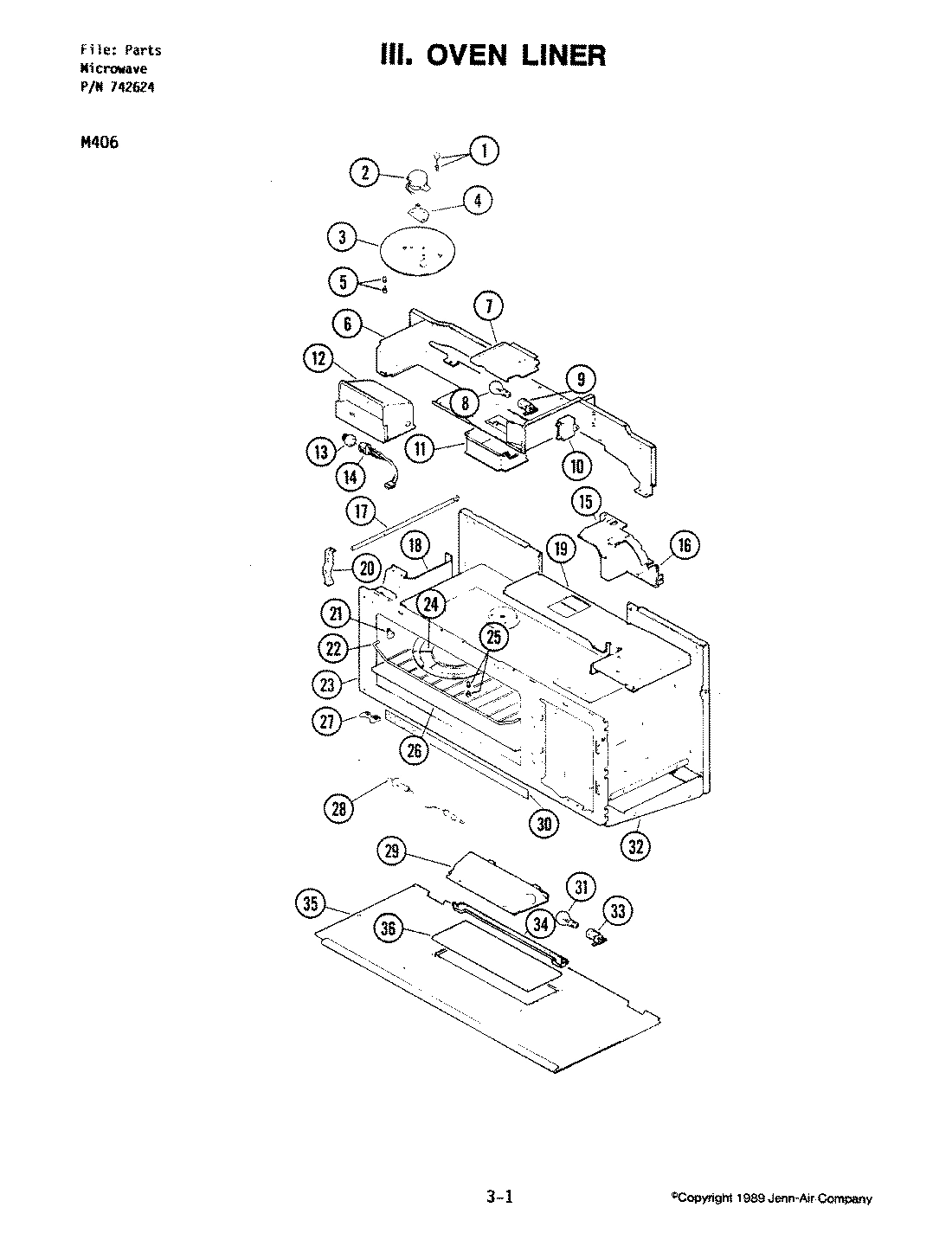

06 - OVEN LINER

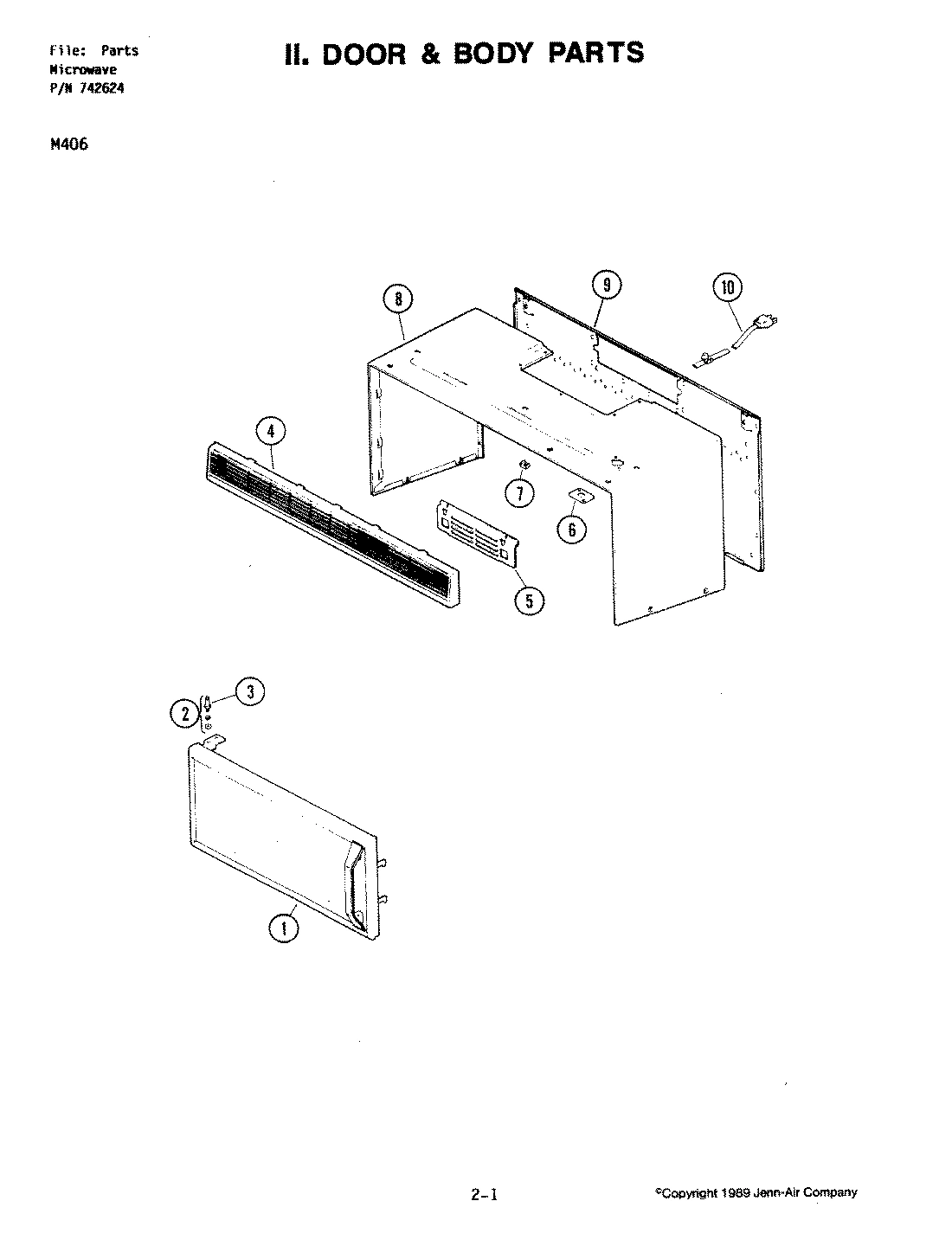

03 - DOOR & BODY PARTS
Common parts from model Whirlpool M406 MICROWAVE
1
MOTOR, BLOWER WPL 27200010 Contact Us For Availability
1
TRIM CONTROL WPL 32300075 Contact Us For Availability
1
PLUG, MOUNTING PLATE WPL 28500004 Contact Us For Availability
1
SCREW WPL Y05200006 Contact Us For Availability
1
RIVET, PUSH WPL 29500006 Contact Us For Availability
1
DOOR ASSY. WPL 23250008 Contact Us For Availability
2
MOTOR, FAN ASSEMBLY WPL 27200019 Contact Us For Availability
2
TRIM, BOTTOM WPL 32300099 Contact Us For Availability
2
AIR GUIDE SIDE WPL 23350018 Contact Us For Availability
2
SCREW WPL 05200038 Contact Us For Availability
2
MOTOR, STIRRER WPL 27200011 Contact Us For Availability
2
WASHER WPL 32800033 Contact Us For Availability
3
BRACKET, MOTOR WPL 31300019 Contact Us For Availability
3
TRIM, TOP WPL 32300100 Contact Us For Availability
3
THERMOSTAT WPL 31600008 Contact Us For Availability
3
SCREW WPL 05200039 Contact Us For Availability
3
BLADE, STIRRER WPL 21100004 Contact Us For Availability
3
SPACER, STIRRER WPL 30650009 Contact Us For Availability
3
BOLT WPL 30050112 Contact Us For Availability
4
BRACKET, ADJUSTMENT WPL 21450075 Contact Us For Availability
4
BRACKET, PANEL WPL 21450045 Contact Us For Availability
4
MAGNETRON WPL 27050004 Contact Us For Availability
4
SCREW WPL 05200040 Contact Us For Availability
4
MOUNTING, STIRRER WPL 21450049 Contact Us For Availability
4
VENT WPL 32650009 Contact Us For Availability
5
DAMPER, HOOD ASSEMBLY WPL 23600003 Contact Us For Availability
5
TOUCH PANEL WPL 31350089 Contact Us For Availability
5
BARRIER, H.V. TRANSFORMER WPL 21450050 Contact Us For Availability
5
SCREW WPL 05200041 Contact Us For Availability
5
DAMPER WPL 20800003 Contact Us For Availability
6
DOOR, DAMPER WPL 23050002 Contact Us For Availability
6
DISPLAY, WINDOW WPL 32850004 Contact Us For Availability
6
RECEPTACLE, PROBE WPL 29150006 Contact Us For Availability
6
BAFFLE, UPPER WPL 20450004 Contact Us For Availability
6
BRACKET, CORD WPL 21450043 Contact Us For Availability
7
HINGE ASSEMBLY WPL 25200010 Contact Us For Availability
7
COVER, SWITCH UPPER WPL 22750029 Contact Us For Availability
7
LATCH, BRACKET (LOWER) WPL 22750043 Contact Us For Availability
7
SCREW WPL 05200043 Contact Us For Availability
7
REFLECTOR, LAMP WPL 29200003 Contact Us For Availability
7
NUT WPL 27350040 Contact Us For Availability
8
SUPPORT WPL 31300016 Contact Us For Availability
8
SWITCH, DOOR WPL 31350039 Contact Us For Availability
8
SCREW WPL Y05200044 Contact Us For Availability
8
LAMP, OVEN 30 W WPL 26350004 Contact Us For Availability
8
WRAPPER WPL 32950004 Contact Us For Availability
9
PLATE, GROUND WPL 28450022 Contact Us For Availability
9
SWITCH, MONITOR WPL 31350059 Contact Us For Availability
9
SWITCH WPL 31350063 Contact Us For Availability
9
SWITCH WPL 31350070 Contact Us For Availability
9
SCREW WPL 05200045 Contact Us For Availability
9
PLATE, MOUNTING WPL 28450021 Contact Us For Availability
10
BRACKET WPL 21450044 Contact Us For Availability
10
TRANSFORMER WPL 32150009 Contact Us For Availability
10
SCREW WPL 05200046 Contact Us For Availability
10
INSTALLATION KIT WPL 26100003 Contact Us For Availability
10
CAPACITOR, MOTOR WPL 22100006 Contact Us For Availability
10
CORD POWER WPL 22700002 Contact Us For Availability
11
CONTROL BOARD WPL 21250007 Contact Us For Availability
11
CAPACITOR WPL 22100004 Contact Us For Availability
11
SCREW WPL 05200047 Contact Us For Availability
11
REFLECTOR WPL 29200002 Contact Us For Availability
12
COVER, CONTROL PANEL WPL 22750028 Contact Us For Availability
12
BRACKET, CAPACITOR WPL 21450046 Contact Us For Availability
12
SCREW WPL 31050171 Contact Us For Availability
12
DUCT, AIR WPL 23350015 Contact Us For Availability
13
SPACER PCB WPL 30650007 Contact Us For Availability
13
BRACKET WPL 21450048 Contact Us For Availability
13
SCREW WPL Y05200048 Contact Us For Availability
13
SENSOR WPL 30180001 Contact Us For Availability
14
BOARD WPL 21250005 Contact Us For Availability
14
DUCT, SIDE (RT) WPL 31300021 Contact Us For Availability
14
SCREW WPL 05200049 Contact Us For Availability
14
CABLE, SENSOR WPL 21900002 Contact Us For Availability
15
FUSE 15A 125V WPL Y01050005 Contact Us For Availability
15
FASTENER WPL 23850004 Contact Us For Availability
15
DUCT WPL 23350016 Contact Us For Availability
16
SHIELD, PCB WPL 30300002 Contact Us For Availability
16
DIODE WPL 23150004 Contact Us For Availability
16
DUCT WPL 23350017 Contact Us For Availability
17
THERMOSTAT - HOOD WPL 31600006 Contact Us For Availability
17
POWER CORD HANGER WPL 05200007 Contact Us For Availability
17
SHAFT ASSEMBLY WPL 30200005 Contact Us For Availability
18
HARNESS WPL 25120001 Contact Us For Availability
18
TRANSFORMER WPL 32150013 Contact Us For Availability
18
BARRIER WPL 20800007 Contact Us For Availability
18
DUCT, SIDE LEFT WPL 31300020 Contact Us For Availability
19
SHIELD, CONDENSER WPL 30300008 Contact Us For Availability
19
SUPPORT, MOTOR WPL 31300017 Contact Us For Availability
20
GUIDE, MTG SHAFT WPL 25200011 Contact Us For Availability
21
RACK, SUPPORT WPL 31300018 Contact Us For Availability
22
RACK WPL 29050006 Contact Us For Availability
23
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
24
COVER, STIRRER WPL 22750026 Contact Us For Availability
25
PUSH RIVET WPL 29500005 Contact Us For Availability
26
SHELF, W/GASKET WPL 30250003 Contact Us For Availability
27
CLIP, BOTTOM WPL 25200012 Contact Us For Availability
28
PROBE WPL 28600002 Contact Us For Availability
29
COVER, LIGHT WPL 22750027 Contact Us For Availability
30
LABEL, MENU CODE WPL 26300001 Contact Us For Availability
31
LAMP WPL 26350005 Contact Us For Availability
32
BASE WPL 20850005 Contact Us For Availability
33
RECEPTACLE, LAMP WPL 29150007 Contact Us For Availability
34
BRACKET, GLASS WPL 21450047 Contact Us For Availability
35
PLATE, BOTTOM WPL 28450034 Contact Us For Availability
36
GLASS, LAMP WPL 24550013 Contact Us For Availability
× ![]()
