Model LG M3704CCBH – Common Parts & Diagrams

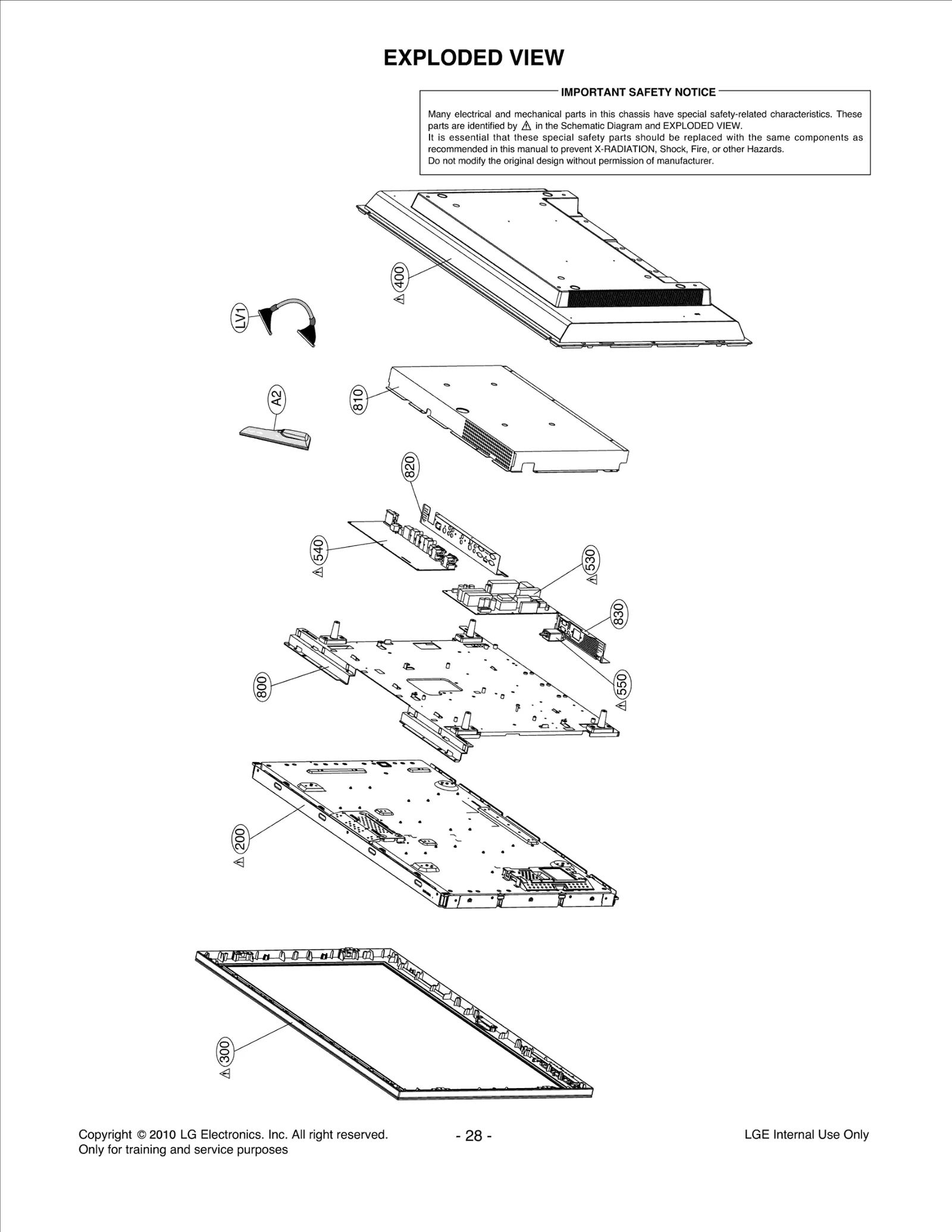

Diagram 0
Diagram 1
Common parts from model LG M3704CCBH
2
Screw,Taptite LGE FAB30013616 Contact Us For Availability
4
Tape,Polyester LGE RAB33015603 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ61310701 Contact Us For Availability
300
Cabinet Assembly LGE ABJ73527402 Contact Us For Availability
530
SMPS,AC/DC LGE EAY58582901 Contact Us For Availability
540
Package Assembly LGE AGF30312608 Contact Us For Availability
550
Filter,AC Line LGE EAM36140906 Contact Us For Availability
810
Plate LGE 4950TKG013E Contact Us For Availability
820
Plate LGE 48149K0059F Contact Us For Availability
830
Plate LGE 4950TKK943C Contact Us For Availability
A1
Title LGE SAC31520604 Contact Us For Availability
A2
Remote Controller Assembly LGE AKB72915294 Contact Us For Availability
A3
Power Cord LGE 6410TUW003H Contact Us For Availability
AR103
Resistor,Array LGE EBC32260501 Contact Us For Availability
AR115
Resistor,Array LGE EBC39283301 Contact Us For Availability
C2
CAPACITOR,FIXED CERA LGE 0CK105CF94A Contact Us For Availability
C110
CAPACITOR,FIXED ELEC LGE 0CE227WJ6DC Contact Us For Availability
C115
Capacitor,AL,Chip LGE 0CE107WK6DC Contact Us For Availability
C160
CAPACITOR,FIXED ELEC LGE 0CE227WF6DC Contact Us For Availability
C162
CAPACITOR,FIXED ELEC LGE 0CE107WH6DC Contact Us For Availability
C190
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C219
Capacitor,Ceramic,Chip LGE EAE33831901 Contact Us For Availability
C239
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C246
CAPACITOR,FIXED ELEC LGE 0CE477WF6DC Contact Us For Availability
C251
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C254
Capacitor,Ceramic,Chip LGE 0CH2682K516 Contact Us For Availability
C268
Capacitor,Ceramic,Chip LGE 0CK225DF56A Contact Us For Availability
C277
Capacitor,Ceramic,Ch LGE EAE30281301 Contact Us For Availability
C283
CAPACITOR,FIXED CERA LGE 0CK475EF56A Contact Us For Availability
C294
Capacitor,Ceramic,Ch LGE 0CH5240K416 Contact Us For Availability
C299
CAPACITOR,FIXED CERA LGE 0CK475DD57A Contact Us For Availability
C300
Capacitor,AL,Chip LGE 0CE476WK6DC Contact Us For Availability
C329
CAPACITOR,FIXED ELEC LGE 0CE108EJK18 Contact Us For Availability
C344
Capacitor,Ceramic,Chip LGE 0CC560CK41A Contact Us For Availability
C349
Capacitor,Ceramic,Chip LGE EAE50191801 Contact Us For Availability
C357
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
C381
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C382
CAPACITOR,FIXED CERA LGE 0CK104CF56A Contact Us For Availability
C386
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C387
Capacitor,Ceramic,Ch LGE 0CZZB00035A Contact Us For Availability
C400
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C417
CAPACITOR,FIXED CERA LGE 0CK102CK56A Contact Us For Availability
C431
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C445
Capacitor,Ceramic,Chip LGE EAE60364701 Contact Us For Availability
C450
CAPACITOR,FIXED ELEC LGE 0CE337WJ6D8 Contact Us For Availability
C453
CAPACITOR,FIXED CERA LGE 0CK103CK56A Contact Us For Availability
C456
CAPACITOR,FIXED CERA LGE 0CK474DH56A Contact Us For Availability
D132
Diode,Switching LGE 0DSGD00038A Contact Us For Availability
D133
DIODE,SWITCHING LGE 0DS181009AA Contact Us For Availability
D144
Diode,TVS LGE EAH39491701 Contact Us For Availability
D166
DIODE,SWITCHING LGE 0DS226009AA Contact Us For Availability
D170
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
IC101
IC,LDO Voltage Regulator LGE EAN38975801 Contact Us For Availability
IC104
IC,DC,DC Converter LGE EAN57653801 Contact Us For Availability
IC108
IC,EEPROM LGE 0IMMRAL014D Contact Us For Availability
IC108
IC,EEPROM LGE 0IMMRAL014E Contact Us For Availability
IC111
IC LGE 0IPH741400E Contact Us For Availability
IC112
Display SOC,Digital TV LGE EAN60350801 Contact Us For Availability
IC114
IC,OP Amplifier LGE 0IPRPAD024A Contact Us For Availability
IC114
IC,Video Amplifier LGE EAN60815201 Contact Us For Availability
IC116
IC,I/O Support Chip LGE EAN60668101 Contact Us For Availability
IC117
IC,OP Amplifier LGE 0IMO324000C Contact Us For Availability
IC117
IC,OP Amplifier LGE EAN61829701 Contact Us For Availability
IC119
IC,Analog Switch LGE EAN30282502 Contact Us For Availability
IC120
IC Assembly LGE EAN60659305 Contact Us For Availability
IC121
IC,Multiplexer LGE 0ISTLTI047A Contact Us For Availability
IC124
IC,Analog Switch LGE EAN60223701 Contact Us For Availability
IC125
IC,DDR2 SDRAM LGE EAN60762901 Contact Us For Availability
IC125
IC,DDR2 SDRAM LGE EAN60762902 Contact Us For Availability
IC126
IC,Audio Amplifier LGE EAN60969601 Contact Us For Availability
IC128
IC,EEPROM LGE EAN61925801 Contact Us For Availability
IC129
Sensor,Temperature LGE EBD38015101 Contact Us For Availability
IC130
IC,Timer LGE EAN54696201 Contact Us For Availability
J1
CONNECTOR (CIRC),WAF LGE 6602T20009J Contact Us For Availability
JK100
JACK,DIN LGE 6612B00015A Contact Us For Availability
JK101
JACK,PHONE LGE 6612F00059C Contact Us For Availability
JK102
Connector,BNC LGE 6630A90018E Contact Us For Availability
JK104
Jack,RCA LGE 380-344A Contact Us For Availability
JK107
Connector,Terminal LGE 385-173B Contact Us For Availability
JK109
Jack,Modular LGE EAG38015702 Contact Us For Availability
JK109
Jack,Modular LGE EAG38015701 Contact Us For Availability
JK110
Connector,DSUB LGE EAG43472001 Contact Us For Availability
L1
Filter,Bead LGE EAM38769507 Contact Us For Availability
L125
Inductor,Wire Wound,Chip LGE EAP32842802 Contact Us For Availability
L127
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
LED1
LED LGE 0DLLT0089AA Contact Us For Availability
P101
CONNECTOR (CIRC),WAF LGE 6602T20008J Contact Us For Availability
P104
Connector,Wafer LGE EAG60376901 Contact Us For Availability
P105
Connector,Wafer LGE 6602T12005D Contact Us For Availability
P115
Conector,Wafer LGE 6630V93270A Contact Us For Availability
Q117
FET LGE EBK60706901 Contact Us For Availability
Q128
TR,Bipolar LGE 0TRKE80046A Contact Us For Availability
Q133
TRANSISTOR LGE 0TR150400BA Contact Us For Availability
Q134
TRANSISTOR LGE 0TR390609FA Contact Us For Availability
Q134
TR,Bipolar LGE 0TR390609DC Contact Us For Availability
R1
RESISTOR,METAL GLAZE LGE 0RJ0562D677 Contact Us For Availability
R8
RESISTOR,METAL GLAZE LGE 0RJ1501D677 Contact Us For Availability
R9
RESISTOR,METAL GLAZE LGE 0RJ2001D677 Contact Us For Availability
R160
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R182
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R193
RESISTOR,METAL GLAZE LGE 0RJ1601E472 Contact Us For Availability
R200
RESISTOR,METAL GLAZE LGE 0RJ0102D677 Contact Us For Availability
R203
Resistor,Chip LGE 0RJ2701D477 Contact Us For Availability
R204
RESISTOR,METAL GLAZE LGE 0RJ2001D477 Contact Us For Availability
R243
Resistor,Chip LGE 0RJ2002D477 Contact Us For Availability
R263
Resistor,Chip LGE 0RJ1801D677 Contact Us For Availability
R264
Resistor,Chip LGE 0RJ3600D477 Contact Us For Availability
R265
Resistor,Chip LGE 0RJ4301D477 Contact Us For Availability
R269
Resistor,Chip LGE 0RJ0271D677 Contact Us For Availability
R294
RESISTOR,METAL GLAZE LGE 0RJ2202D677 Contact Us For Availability
R298
Resistor,Chip LGE 0RJ1242D477 Contact Us For Availability
R316
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
R317
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R319
RESISTOR,METAL GLAZE LGE 0RJ0472D677 Contact Us For Availability
R342
Resistor,Chip LGE 0RJ3900E472 Contact Us For Availability
R359
RESISTOR,METAL GLAZE LGE 0RJ6201D677 Contact Us For Availability
R380
RESISTOR,METAL GLAZE LGE 0RJ1302D677 Contact Us For Availability
R470
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R492
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R555
RESISTOR,METAL GLAZE LGE 0RJ0752D677 Contact Us For Availability
R570
RESISTOR,METAL GLAZE LGE 0RJ1001D477 Contact Us For Availability
R574
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R587
Resistor,Chip LGE 0RJ0332C478 Contact Us For Availability
R596
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R597
Resistor,Chip LGE 0RJ0562D477 Contact Us For Availability
R629
Resistor,Chip LGE 0RJ0752D477 Contact Us For Availability
R634
RESISTOR,METAL GLAZE LGE 0RJ1202D677 Contact Us For Availability
R643
Resistor,Chip LGE 0RJ2201D677 Contact Us For Availability
R645
RESISTOR,METAL GLAZE LGE 0RJ4703D677 Contact Us For Availability
R675
RESISTOR,METAL GLAZE LGE 0RJ1800D677 Contact Us For Availability
R695
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R726
RESISTOR,METAL GLAZE LGE 0RJ0331D677 Contact Us For Availability
R756
Resistor,Chip LGE 0RH0122D622 Contact Us For Availability
R782
Resistor,Chip LGE 0RJ4701D477 Contact Us For Availability
R819
Resistor,Chip LGE 0RJ4302D677 Contact Us For Availability
R825
RESISTOR,METAL GLAZE LGE 0RJ1002D477 Contact Us For Availability
R842
Resistor,Chip LGE 0RJ2000D677 Contact Us For Availability
R876
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
SW6
Switch,Tact LGE 6600R00001B Contact Us For Availability
U1
PRE-AMP LGE 6726VV0006D Contact Us For Availability
U1
REMOTE CONTROLLER RE LGE 6726TV0001A Contact Us For Availability
X102
Crystal LGE 6212AB2015C Contact Us For Availability
ZD5
Diode,Zener LGE EAH60270608 Contact Us For Availability
× ![]()
