Model LG M3703CCBH – Common Parts & Diagrams

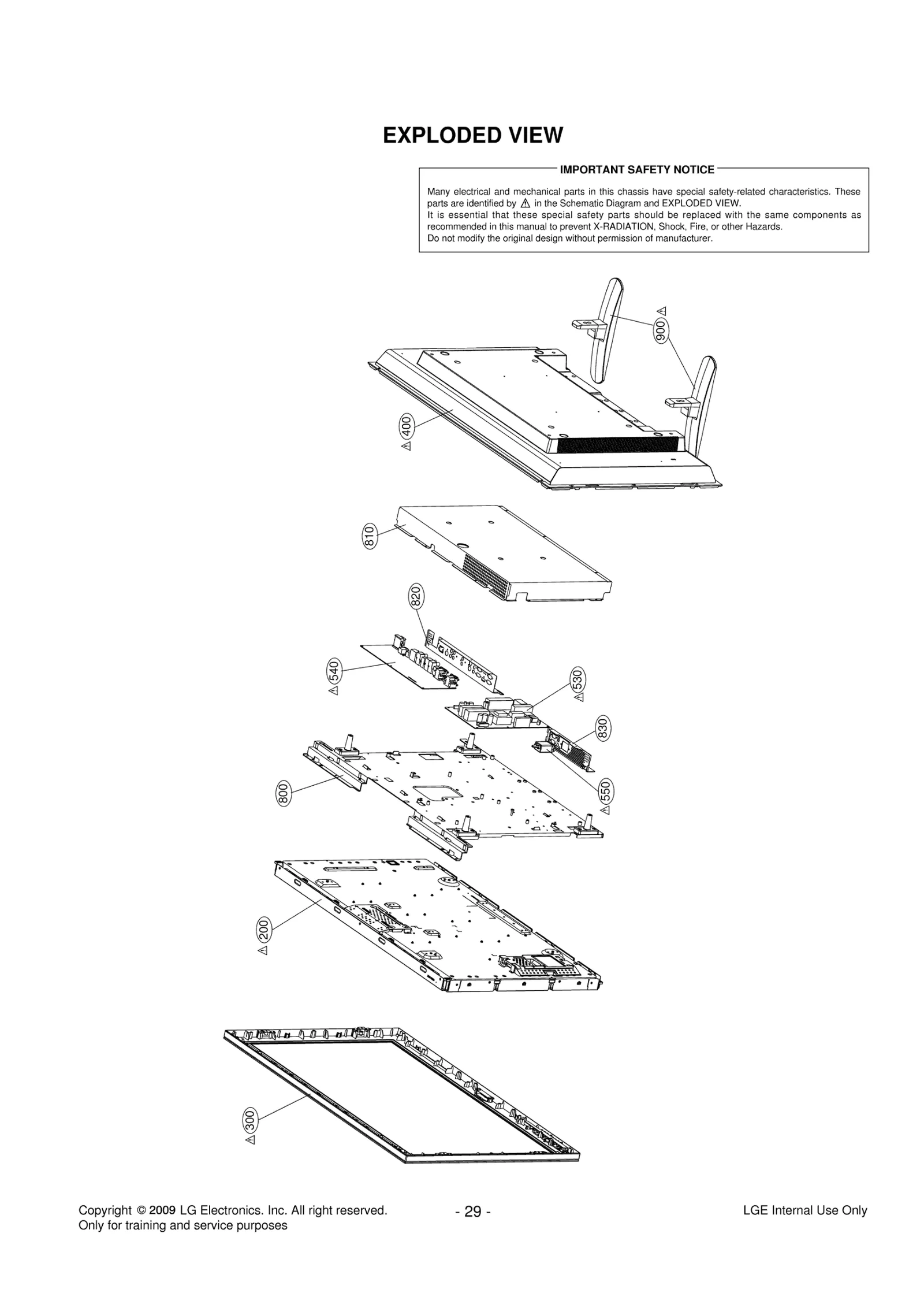

Diagram 0
Diagram 1
Common parts from model LG M3703CCBH
2
Thinner LGE 7267TKK002A Contact Us For Availability
122
Plate LGE 4950TKK762A Contact Us For Availability
200
LCD,Module-TFT LGE EAJ57535001 Contact Us For Availability
300
Cover Assembly LGE 3091TKL115W Contact Us For Availability
301
Lens LGE 3680TKK034A Contact Us For Availability
400
Cover Assembly LGE 3809TKL084U Contact Us For Availability
501
Lens LGE 3680TKP097A Contact Us For Availability
510
Package Assembly LGE 3911TC0013A Contact Us For Availability
530
SMPS,AC/DC LGE EAY58582901 Contact Us For Availability
540
Package Assembly LGE AGF30312605 Contact Us For Availability
550
Filter,AC Line LGE EAM36140906 Contact Us For Availability
800
Bracket LGE MAZ62204301 Contact Us For Availability
801
Plate LGE 4950TKG013E Contact Us For Availability
810
Plate Assembly LGE 4951TKS167M Contact Us For Availability
820
Plate LGE 4950TKG013C Contact Us For Availability
830
Plate LGE 4950TKK943C Contact Us For Availability
A2
Remote Controller As LGE AKB33871403 Contact Us For Availability
A3
Power Cord LGE 6410TUW003H Contact Us For Availability
AR100
RESISTOR,METAL GLAZE LGE 0RJ1000C687 Contact Us For Availability
AR104
Resistor,Chip LGE 0RJ0562C687 Contact Us For Availability
AR112
Resistor,Array LGE EBC32260501 Contact Us For Availability
C2
CAPACITOR,FIXED CERA LGE 0CK105CF94A Contact Us For Availability
C121
Capacitor,Ceramic,Chip LGE EAE38454201 Contact Us For Availability
C124
Capacitor,Ceramic,Ch LGE 0CK474DK56A Contact Us For Availability
C132
CAPACITOR,FIXED ELEC LGE 0CE107WH6DC Contact Us For Availability
C144
CAPACITOR,FIXED ELEC LGE 0CE227WJ6DC Contact Us For Availability
C145
Capacitor,AL,Chip LGE 0CE107WK6DC Contact Us For Availability
C177
CAPACITOR,FIXED CERA LGE 0CK103CK56A Contact Us For Availability
C195
CAPACITOR,FIXED ELEC LGE 0CE477WF6DC Contact Us For Availability
C202
Capacitor,Ceramic,Chip LGE 0CK224CFG6A Contact Us For Availability
C209
CAPACITOR,FIXED CERA LGE 0CK475DD57A Contact Us For Availability
C237
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C242
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C250
CAPACITOR,FIXED CERA LGE 0CK475CC94A Contact Us For Availability
C258
Capacitor,Ceramic,Ch LGE EAE33970001 Contact Us For Availability
C268
CAPACITOR,FIXED CERA LGE 0CK225DK94A Contact Us For Availability
C282
Capacitor,Ceramic,Chip LGE 0CK682CK51A Contact Us For Availability
C307
Capacitor,Ceramic,Chip LGE EAE50191801 Contact Us For Availability
C308
CAPACITOR,FIXED CERA LGE 0CK104CF56A Contact Us For Availability
C315
Capacitor,Ceramic,Ch LGE 0CZZB00035A Contact Us For Availability
C331
CAPACITOR,FIXED CERA LGE 0CK102CK56A Contact Us For Availability
C338
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C351
Capacitor,Ceramic,Chip LGE EAE60364701 Contact Us For Availability
C372
CAPACITOR,FIXED ELEC LGE 0CE337WJ6D8 Contact Us For Availability
C391
CAPACITOR,FIXED ELEC LGE 0CE108EJK18 Contact Us For Availability
C398
Capacitor,AL,Chip LGE 0CE476WK6DC Contact Us For Availability
C401
CAPACITOR,FIXED CERA LGE 0CC151CK41A Contact Us For Availability
C402
CAPACITOR,FIXED CERA LGE 0CK474CH94A Contact Us For Availability
C436
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
C452
Capacitor,Ceramic,Chip LGE 0CC560CK41A Contact Us For Availability
C460
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C480
CAPACITOR,FIXED CERA LGE 0CC331CK41A Contact Us For Availability
C482
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C484
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
CA1
CONNECTOR ASSY R-T 1015#18,L12 LGE 387-T13C Contact Us For Availability
CA2
Harness,Single LGE 6631T20029C Contact Us For Availability
CA3
CONNECTOR ASSEMBLY LGE 6631T12006P Contact Us For Availability
CA4
Harness,Single LGE EAD60673304 Contact Us For Availability
CA5
Harness,Single LGE 6631900049A Contact Us For Availability
D121
DIODE,SWITCHING LGE 0DS226009AA Contact Us For Availability
D131
DIODE,SWITCHING LGE 0DS181009AA Contact Us For Availability
D134
Diode,Switching LGE 0DSGD00038A Contact Us For Availability
D135
Diode,TVS LGE EAH39491701 Contact Us For Availability
D159
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
IC100
IC,DC,DC Converter LGE EAN55451701 Contact Us For Availability
IC101
IC,DC,DC Converter LGE EAN52430801 Contact Us For Availability
IC105
IC,POWER MANAGEMENT LGE 0IPMG00048A Contact Us For Availability
IC111
IC,EEPROM LGE 0IMMRAL014D Contact Us For Availability
IC113
IC LGE 0IPH741400E Contact Us For Availability
IC114
IC,Voltage Regulator LGE EAN32662801 Contact Us For Availability
IC117
IC,OP Amplifier LGE 0IPRPAD024A Contact Us For Availability
IC118
IC,Voltage Detector LGE 0IPRPKE008A Contact Us For Availability
IC120
IC,Video Processors LGE EAN42073901 Contact Us For Availability
IC122
IC,Timer LGE EAN54696201 Contact Us For Availability
IC123
IC,DDR SDRAM LGE EAN31729202 Contact Us For Availability
IC125
IC,Serial Flash Memory LGE EAN42836701 Contact Us For Availability
IC125
IC,Serial Flash Memo LGE EAN32215001 Contact Us For Availability
IC127
IC,OP Amplifier LGE 0IMO324000C Contact Us For Availability
IC128
Sensor,Temperature LGE EBD38015101 Contact Us For Availability
IC129
IC,Ethernet LGE EAN58379401 Contact Us For Availability
J1
CONNECTOR (CIRC),WAF LGE 6602T20009J Contact Us For Availability
JK101
JACK,DIN LGE 6612B00015A Contact Us For Availability
JK102
Jack,RCA LGE 380-344A Contact Us For Availability
JK105
Connector,BNC LGE 6630A90018E Contact Us For Availability
JK109
Connector,Terminal LGE 385-173B Contact Us For Availability
JK112
Connector,DSUB LGE EAG43472001 Contact Us For Availability
JK113
Jack,Modular LGE EAG38015701 Contact Us For Availability
L1
Filter,Bead LGE EAM38769507 Contact Us For Availability
L104
Inductor,Wire Wound,Chip LGE EAP38274503 Contact Us For Availability
L157
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
LED1
LED LGE 0DLLT0089AA Contact Us For Availability
M100
Holder LGE MEG41035801 Contact Us For Availability
P100
CONNECTOR (CIRC),WAF LGE 6602T20008J Contact Us For Availability
P103
Connector,Wafer LGE 6602T12005D Contact Us For Availability
P107
Connector,Wafer LGE 6602T12005C Contact Us For Availability
P108
Connector,Wafer LGE 6630V091112 Contact Us For Availability
P118
Connector,Wafer LGE EAG60376901 Contact Us For Availability
P120
Connector,FFC/FPC/PIC LGE EAG60692101 Contact Us For Availability
P125
Connector,Wafer LGE 6602T20009D Contact Us For Availability
Q112
TRANSISTOR,FETS LGE 0TFIR80016B Contact Us For Availability
Q127
TRANSISTOR LGE 0TR390409AE Contact Us For Availability
Q133
TRANSISTOR,BIPOLARS LGE 0TRIH80001A Contact Us For Availability
Q803
TRANSISTOR LGE 0TR390609FA Contact Us For Availability
R1
RESISTOR,METAL GLAZE LGE 0RJ0562D677 Contact Us For Availability
R8
RESISTOR,METAL GLAZE LGE 0RJ1501D677 Contact Us For Availability
R125
RESISTOR,METAL GLAZE LGE 0RJ2202D677 Contact Us For Availability
R126
RESISTOR,METAL GLAZE LGE 0RJ1601E472 Contact Us For Availability
R143
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R152
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R180
RESISTOR,METAL GLAZE LGE 0RJ1002D477 Contact Us For Availability
R204
RESISTOR,METAL GLAZE LGE 0RJ2001D677 Contact Us For Availability
R240
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R256
Resistor,Chip LGE 0RJ0271D677 Contact Us For Availability
R321
Resistor,Chip LGE 0RJ0752D477 Contact Us For Availability
R324
RESISTOR,METAL GLAZE LGE 0RJ6201D677 Contact Us For Availability
R336
RESISTOR,METAL GLAZE LGE 0RJ2200D677 Contact Us For Availability
R387
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
R399
RESISTOR,METAL GLAZE LGE 0RJ3900D677 Contact Us For Availability
R400
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R426
Resistor,Chip LGE 0RJ2201D677 Contact Us For Availability
R458
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R462
RESISTOR,METAL GLAZE LGE 0RJ0752D677 Contact Us For Availability
R467
RESISTOR,METAL GLAZE LGE 0RJ1302D677 Contact Us For Availability
R480
RESISTOR,METAL GLAZE LGE 0RJ4703D677 Contact Us For Availability
R497
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R505
RESISTOR,METAL GLAZE LGE 0RJ0682D677 Contact Us For Availability
R509
RESISTOR,METAL GLAZE LGE 0RJ1001D477 Contact Us For Availability
R518
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R525
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R555
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R581
RESISTOR,METAL GLAZE LGE 0RJ0331D677 Contact Us For Availability
R583
Resistor,Chip LGE 0RH0122D622 Contact Us For Availability
R594
Resistor,Chip LGE 0RJ2000D677 Contact Us For Availability
R597
RESISTOR,METAL GLAZE LGE 0RJ4300D677 Contact Us For Availability
R600
Resistor,Chip LGE 0RJ6802D677 Contact Us For Availability
R638
RESISTOR,METAL GLAZE LGE 0RJ1202D677 Contact Us For Availability
R703
RESISTOR,METAL GLAZE LGE 0RJ0472D677 Contact Us For Availability
R731
RESISTOR,METAL GLAZE LGE 0RJ1800D677 Contact Us For Availability
R754
RESISTOR,METAL GLAZE LGE 0RJ1802D677 Contact Us For Availability
R795
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R802
RESISTOR CHIP 4.7K 1/10W 5 D. LGE 0RH4701D622 Contact Us For Availability
R814
RESISTOR,METAL GLAZE LGE 0RJ2001D477 Contact Us For Availability
R815
Resistor,Chip LGE 0RJ2701D477 Contact Us For Availability
R826
Resistor,Chip LGE 0RH5100D622 Contact Us For Availability
SW8
Switch,Tact LGE 6600R00001B Contact Us For Availability
U1
REMOTE CONTROLLER RE LGE 6726TV0001A Contact Us For Availability
U1
PRE-AMP LGE 6726VV0006D Contact Us For Availability
X100
RESONATOR,CRYSTAL LGE 6202VDT002B Contact Us For Availability
X102
Crystal LGE 6212AB2015C Contact Us For Availability
× ![]()
