Model LG M3701C-BHE – Common Parts & Diagrams

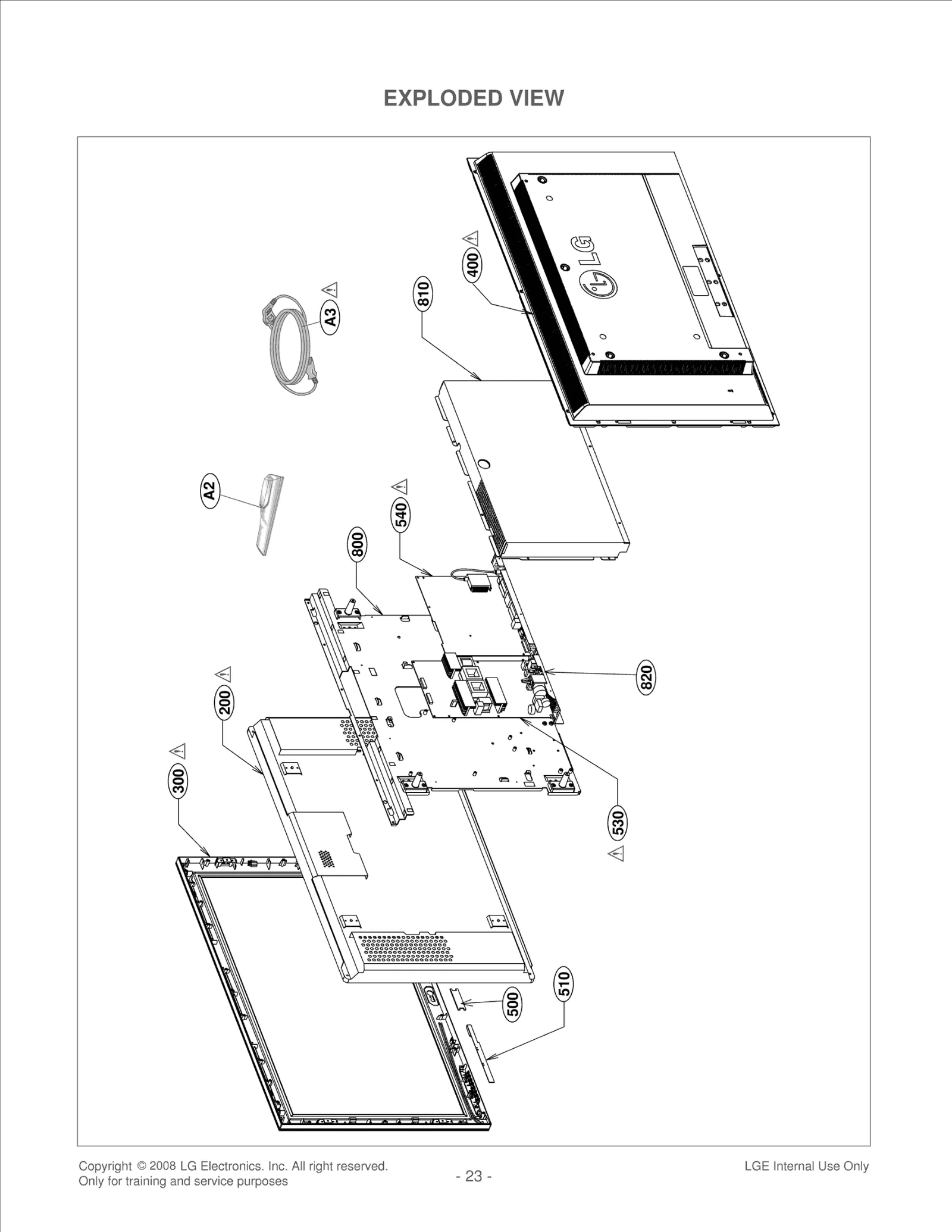

Diagram 0
Diagram 1
Common parts from model LG M3701C-BHE
200
LCD,Module-TFT LGE EAJ36195301 Contact Us For Availability
300
Cover Assembly LGE 3091TKL115Q Contact Us For Availability
400
Cover Assembly LGE 3809TKL084L Contact Us For Availability
500
PWB(PCB) ASSEMBLY,SU LGE 6871TST822D Contact Us For Availability
510
PWB(PCB) ASSEMBLY,SU LGE 6871TST481G Contact Us For Availability
530
SMPS,AC/DC LGE 6709900016D Contact Us For Availability
540
Main Total Assembly LGE 33139L4002N Contact Us For Availability
800
Plate Assembly LGE 4951TKS167H Contact Us For Availability
810
Plate LGE 4950TKG013C Contact Us For Availability
820
Plate LGE 4950TKK943C Contact Us For Availability
A2
Remote Controller As LGE AKB33871403 Contact Us For Availability
A3
Power Cord LGE 6410TUW003H Contact Us For Availability
A4
Title LGE SAC31520601 Contact Us For Availability
A5
CORD,A/V LGE 6852TAZ006J Contact Us For Availability
A6
CABLE,D-SUB LGE 6850TD9007D Contact Us For Availability
AC1
FILTER(CIRC),EMC LGE 6200J000151 Contact Us For Availability
AL824
Filter,Bead LGE EAM38769509 Contact Us For Availability
AR444
RESISTOR,METAL GLAZE LGE 0RJ0222C687 Contact Us For Availability
C1
Harness,Single LGE 6631900049D Contact Us For Availability
C2
CONNECTOR ASSY R-T 1015#18,L12 LGE 387-T13C Contact Us For Availability
C3
Harness,Single LGE 6631T20029C Contact Us For Availability
C4
CONNECTOR ASSEMBLY LGE 6631T12006P Contact Us For Availability
C5
CONNECTOR ASSEMBLY LGE 6631T11020Z Contact Us For Availability
C6
Harness,Single LGE 6631900131A Contact Us For Availability
C7
Harness,Single LGE 6631900012C Contact Us For Availability
C105
CAPACITOR,FIXED CERA LGE 0CK104CF56A Contact Us For Availability
C126
Capacitor,AL,Chip LGE 0CE107WK6DC Contact Us For Availability
C138
CAPACITOR,FIXED ELEC LGE 0CE107WH6DC Contact Us For Availability
C166
CAPACITOR,FIXED ELEC LGE 0CE477WF6DC Contact Us For Availability
C182
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107WF6DC Contact Us For Availability
C185
CAPACITOR,FIXED CERA LGE 0CK103CK51A Contact Us For Availability
C197
CAPACITOR,FIXED CERA LGE 0CK105CF94A Contact Us For Availability
C399
CAPACITOR,FIXED CERA LGE 0CC270CK41A Contact Us For Availability
C410
CAPACITOR,FIXED CERA LGE 0CC151CK41A Contact Us For Availability
C436
CAPACITOR,FIXED ELEC LGE 0CE227WF6DC Contact Us For Availability
C501
Capacitor,Ceramic,Chip LGE 0CH2103K516 Contact Us For Availability
C503
CAPACITOR,FIXED CERA LGE 0CK105DF64A Contact Us For Availability
C506
CAPACITOR,CHIP[AL. E LGE 0CH8106F691 Contact Us For Availability
C513
CAPACITOR,FIXED CERA LGE 0CK103CK56A Contact Us For Availability
C582
Capacitor,AL,Radial LGE 0CE477EF638 Contact Us For Availability
C586
Capacitor,Ceramic,Ch LGE 0CK563CK56A Contact Us For Availability
C592
Capacitor,Ceramic,Chip LGE 0CC821CK41A Contact Us For Availability
C594
Capacitor,AL,Chip LGE 0CE105SK6DC Contact Us For Availability
C638
CAPACITOR,FIXED CERA LGE 0CC331CK41A Contact Us For Availability
C810
CAPACITOR,FIXED CERA LGE 0CK102CK56A Contact Us For Availability
C821
Capacitor,Ceramic,Chip LGE 0CK682CK51A Contact Us For Availability
C833
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107SF6DC Contact Us For Availability
C840
Capacitor,Film,DIP LGE 0CF4741L438 Contact Us For Availability
C858
CAPACITOR,FIXED CERA LGE 0CK333CK56A Contact Us For Availability
C860
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C867
CAPACITOR,FIXED CERA LGE 0CK474CH94A Contact Us For Availability
C878
Capacitor,AL,Chip LGE 0CE335SK6DC Contact Us For Availability
C886
CAPACITOR,FIXED ELEC LGE 0CE226WF6DC Contact Us For Availability
C888
Capacitor,Ceramic,Chip LGE 0CC560CK41A Contact Us For Availability
C907
Capacitor,AL,Chip LGE 0CE106SH6DC Contact Us For Availability
C933
CAPACITOR,FIXED ELEC LGE 0CE108EJK18 Contact Us For Availability
C936
CAPACITOR,FIXED CERA LGE 0CK226FF67A Contact Us For Availability
D502
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
D520
DIODE,SWITCHING LGE 0DS226009AA Contact Us For Availability
D522
Diode,Rectifier LGE 0DD200009AF Contact Us For Availability
D527
DIODE,RECTIFIERS LGE 0DRSE00048A Contact Us For Availability
D531
DIODE,RECTIFIERS LGE 0DRSE00038A Contact Us For Availability
D534
Diode,TVS LGE EAH33945901 Contact Us For Availability
IC108
IC,Voltage Regulator LGE EAN32662801 Contact Us For Availability
IC114
IC,POWER MANAGEMENT LGE 0IPMGSG018D Contact Us For Availability
IC116
IC,POWER MANAGEMENT LGE 0IPMG00027A Contact Us For Availability
IC118
IC,LDO Voltage Regulator LGE 0IPRPML001A Contact Us For Availability
IC307
IC,MICRO CHIP TECHNO LGE 0IMP242560A Contact Us For Availability
IC309
IC Assembly LGE EAN36016105 Contact Us For Availability
IC310
IC,DDR SDRAM LGE EAN32205201 Contact Us For Availability
IC500
IC,OP Amplifier LGE 0IKE358000P Contact Us For Availability
IC501
IC,Temperature Sensor LGE 0IPRPNS030A Contact Us For Availability
IC506
IC,EEPROM LGE EAN35989901 Contact Us For Availability
IC508
IC,Data Controller LGE 0IPRPS5006C Contact Us For Availability
IC509
IC,Video Processors LGE 0ISA721700C Contact Us For Availability
IC512
IC,OP Amplifier LGE 0IPRPAD024A Contact Us For Availability
IC801
IC LGE 0IPH741400E Contact Us For Availability
IC802
IC,MICRO CONTROLLER LGE 0IMCRTI028C Contact Us For Availability
IC804
IC,MICRO CONTROLLER LGE 0IMCRMN027D Contact Us For Availability
IC805
IC,Sound/Audio Proce LGE 0IPRP00718A Contact Us For Availability
IC807
IC,POWER MANAGEMENT LGE 0IPMGRH001G Contact Us For Availability
J1
CONNECTOR (CIRC),WAF LGE 6602T20009J Contact Us For Availability
JK500
JACK,PHONE LGE 6612F00087B Contact Us For Availability
JK501
JACK,DIN LGE 6612B00015A Contact Us For Availability
JK502
JACK,PHONE LGE 6612F00059C Contact Us For Availability
L502
Filter,Bead LGE EAM30764101 Contact Us For Availability
L510
Filter,Bead LGE EAM38769501 Contact Us For Availability
L515
Filter,Bead LGE EAM42641604 Contact Us For Availability
L516
INDUCTOR,CHIP LGE 0LC1032101A Contact Us For Availability
L516
Inductor,Multilayer,Chip LGE EAP40283004 Contact Us For Availability
L526
Filter,Bead LGE EAM42557401 Contact Us For Availability
L810
Filter,Bead LGE EAM38769505 Contact Us For Availability
L811
Coil,Choke LGE 6140VB0022A Contact Us For Availability
L827
Filter,Bead LGE EAM38769507 Contact Us For Availability
LED1
LED LGE 0DLLT0089AA Contact Us For Availability
P101
Connector,Wafer LGE 6602T12005D Contact Us For Availability
P103
WAFER LGE 6602T25008M Contact Us For Availability
P105
WAFER LGE 6602T25008J Contact Us For Availability
P302
Connector,Wafer LGE 6630V90116A Contact Us For Availability
P500
Connector,Wafer LGE 6602T12005C Contact Us For Availability
P502
Connector,DSUB LGE 6630GY00709 Contact Us For Availability
P805
CONNECTOR (CIRC),WAF LGE 6602T20008J Contact Us For Availability
Q501
TRANSISTOR LGE 0TR150400BA Contact Us For Availability
Q504
TRANSISTOR LGE 0TR390409AE Contact Us For Availability
Q510
TRANSISTOR LGE 0TR830009BA Contact Us For Availability
Q803
TRANSISTOR LGE 0TR390609FA Contact Us For Availability
R8
RESISTOR,METAL GLAZE LGE 0RJ1501D677 Contact Us For Availability
R10
RESISTOR,METAL GLAZE LGE 0RJ2001D677 Contact Us For Availability
R112
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R302
Resistor,Chip LGE 0RJ2702D677 Contact Us For Availability
R315
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R325
RESISTOR,METAL GLAZE LGE 0RJ1002D477 Contact Us For Availability
R333
RESISTOR,METAL GLAZE LGE 0RJ0562D677 Contact Us For Availability
R503
RESISTOR,METAL GLAZE LGE 0RJ6801D477 Contact Us For Availability
R591
Resistor,Chip LGE 0RJ1503D677 Contact Us For Availability
R592
Resistor,Chip LGE 0RJ0752D477 Contact Us For Availability
R603
RESISTOR,METAL GLAZE LGE 0RJ6201D677 Contact Us For Availability
R657
RESISTOR,METAL GLAZE LGE 0RJ2200D677 Contact Us For Availability
R666
RESISTOR,METAL GLAZE LGE 0RJ4300D677 Contact Us For Availability
R668
RESISTOR,METAL GLAZE LGE 0RJ4703D677 Contact Us For Availability
R669
Resistor,Chip LGE 0RJ2000D677 Contact Us For Availability
R670
RESISTOR,METAL GLAZE LGE 0RJ0752D677 Contact Us For Availability
R677
Resistor,Chip LGE 0RJ6802D677 Contact Us For Availability
R693
RESISTOR,METAL GLAZE LGE 0RJ0472D677 Contact Us For Availability
R803
RESISTOR CHIP 4.7K 1/10W 5 D. LGE 0RH4701D622 Contact Us For Availability
R805
Resistor,Chip LGE 0RJ1501D477 Contact Us For Availability
R813
RESISTOR,METAL GLAZE LGE 0RJ0471D677 Contact Us For Availability
R818
Resistor,Chip LGE 0RJ4701D477 Contact Us For Availability
R820
RESISTOR,METAL GLAZE LGE 0RJ0331D677 Contact Us For Availability
R827
Resistor,Chip LGE 0RH5100D622 Contact Us For Availability
R875
RESISTOR,METAL GLAZE LGE 0RJ1001D477 Contact Us For Availability
R879
Resistor,Chip LGE 0RJ1000D477 Contact Us For Availability
R884
Resistor,Chip LGE 0RJ0101D677 Contact Us For Availability
R885
Resistor,Chip LGE 0RJ0221D677 Contact Us For Availability
R931
RESISTOR,METAL GLAZE LGE 0RJ1820D477 Contact Us For Availability
R955
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R970
RESISTOR,METAL GLAZE LGE 0RJ1502D677 Contact Us For Availability
R995
Resistor,Chip LGE 0RJ0271D677 Contact Us For Availability
R997
RESISTOR,METAL GLAZE LGE 0RJ0682D677 Contact Us For Availability
R1031
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
SW1
S/W Package LGE SAB31520502 Contact Us For Availability
SW5
Switch,Tact LGE 6600R00001B Contact Us For Availability
X800
Crystal LGE 6202VDT002H Contact Us For Availability
X801
Crystal LGE 6212AB2015J Contact Us For Availability
ZD800
DIODE,ZENERS LGE 0DZKE00048A Contact Us For Availability
× ![]()
