Model LG M2762D-PM – Common Parts & Diagrams

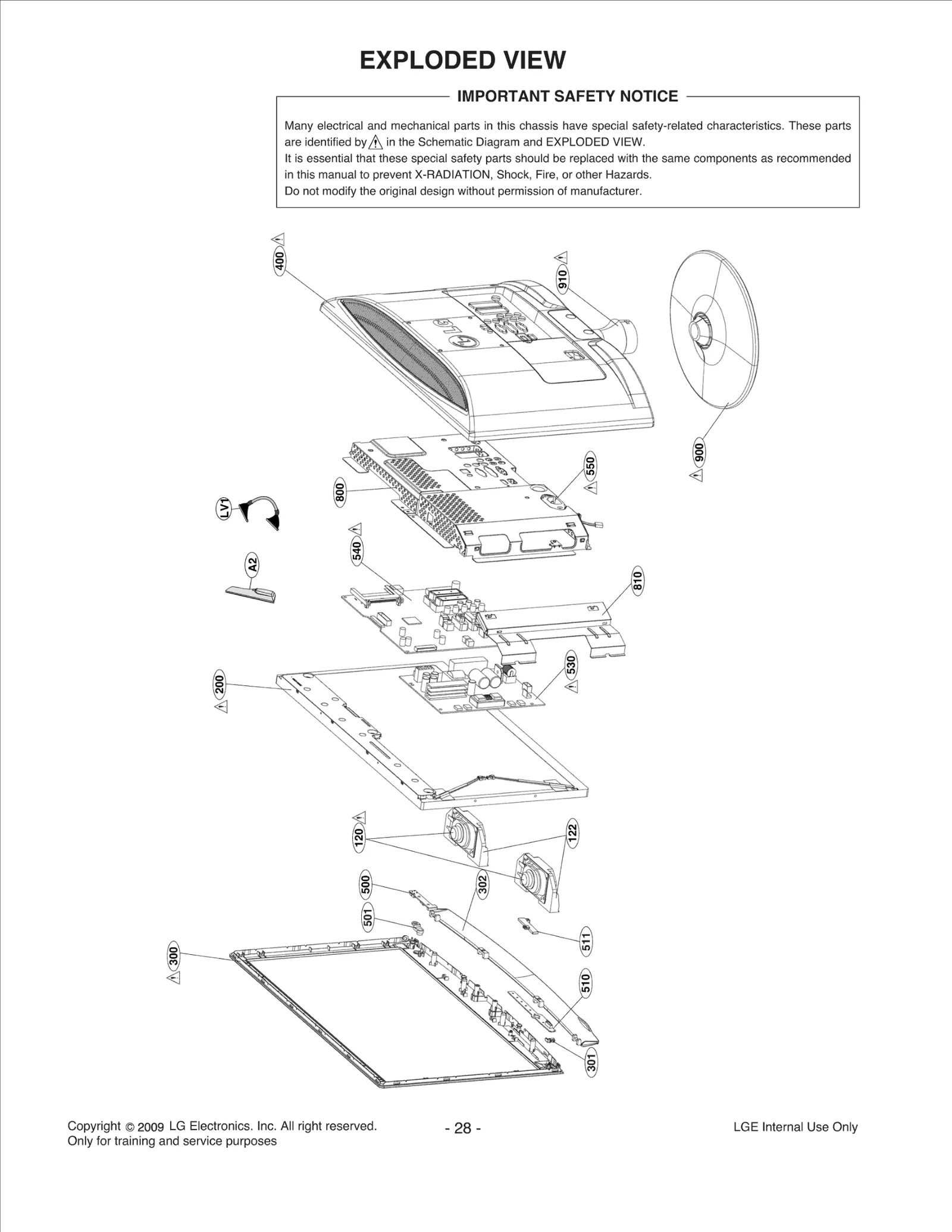

Diagram 0
Diagram 1
Common parts from model LG M2762D-PM
120
Speaker,Full Range LGE EAB30826701 Contact Us For Availability
122
Bracket LGE MAZ61907404 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ60808201 Contact Us For Availability
300
Cabinet Assembly LGE ABJ72919207 Contact Us For Availability
301
Lens LGE MFB61853801 Contact Us For Availability
302
Decor LGE MCR61982001 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ74121531 Contact Us For Availability
500
Package Assembly LGE AGF73944702 Contact Us For Availability
501
Lens LGE MFB61853902 Contact Us For Availability
510
Package Assembly LGE AGF73943701 Contact Us For Availability
511
Bracket LGE MAZ61914702 Contact Us For Availability
530
Power Supply Assembly LGE EAY60723804 Contact Us For Availability
530
Power Supply Assembly LGE EAY60724304 Contact Us For Availability
540
Chassis Assembly LGE EBT57840518 Contact Us For Availability
550
Socket,Power LGE 6620K00017H Contact Us For Availability
800
Frame Assembly LGE ADV72970625 Contact Us For Availability
810
Plate,Shield LGE MGJ61900702 Contact Us For Availability
A1
Title LGE SAC34029305 Contact Us For Availability
A2
Remote Controller LGE MKJ36998127 Contact Us For Availability
A8
Screw,Tapping LGE FAB30021301 Contact Us For Availability
AR201
Resistor,Chip LGE 0RJ0222C692 Contact Us For Availability
AR402
Resistor,Array LGE EBC32260601 Contact Us For Availability
C107
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C109
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C122
CAPACITOR,FIXED CERA LGE 0CK473CK56A Contact Us For Availability
C146
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C149
CAPACITOR,FIXED CERA LGE 0CK475EF56A Contact Us For Availability
C181
CAPACITOR,FIXED ELEC LGE 0CE106WFKDC Contact Us For Availability
C302
Capacitor,Ceramic,Chip LGE 0CK225DF56A Contact Us For Availability
C305
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C405
Capacitor,AL,Chip LGE EAE30840301 Contact Us For Availability
C409
Capacitor,Ceramic,Chip LGE 0CH5470K416 Contact Us For Availability
C410
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C419
CAPACITOR,FIXED CERA LGE 0CK103CK56A Contact Us For Availability
C421
CAPACITOR,FIXED CERA LGE 0CK271CK46A Contact Us For Availability
C433
CAPACITOR,FIXED CERA LGE 0CC270CK41A Contact Us For Availability
C444
CAPACITOR,FIXED CERA LGE 0CC820CK41A Contact Us For Availability
C508
CAPACITOR,FIXED ELEC LGE 0CE107WH6DC Contact Us For Availability
C519
CAPACITOR,FIXED ELEC LGE 0CE476WH6DC Contact Us For Availability
C551
Capacitor,Ceramic,Chip LGE 0CK224CFG6A Contact Us For Availability
C634
Capacitor,Ceramic,Chip LGE 0CH5220K416 Contact Us For Availability
C701
CAPACITOR,FIXED ELEC LGE 0CE227WF6DC Contact Us For Availability
C722
Capacitor,Ceramic,Chip LGE EAE42868301 Contact Us For Availability
C726
Capacitor,Ceramic,Chip LGE EAE33831901 Contact Us For Availability
C740
Capacitor,AL,Chip LGE EAE38362801 Contact Us For Availability
C798
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107WF6DC Contact Us For Availability
C799
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
D500
DIODE,SWITCHING LGE 0DS226009AA Contact Us For Availability
D504
Diode,Switching LGE 0DSGD00038A Contact Us For Availability
D618
Diode,TVS LGE EAH39491701 Contact Us For Availability
D814
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
D828
Diode,TVS LGE EAH33945901 Contact Us For Availability
IC101
IC,Video Processors LGE EAN37156404 Contact Us For Availability
IC200
IC,DDR SDRAM LGE EAN31729202 Contact Us For Availability
IC200
IC,DDR SDRAM LGE EAN60806001 Contact Us For Availability
IC400
IC,Data Controller LGE 0ICTMLG019C Contact Us For Availability
IC500
IC,Audio Amplifier LGE EAN41584001 Contact Us For Availability
IC501
IC,PERIPHERALS LGE 0IPRPTI034B Contact Us For Availability
IC604
IC,EEPROM LGE 0IMMRAL014D Contact Us For Availability
IC704
IC,DC,DC Converter LGE EAN31346002 Contact Us For Availability
IC706
IC,LDO Voltage Regul LGE 0IPMG78346A Contact Us For Availability
IC803
IC,Analog Switch LGE EAN41347201 Contact Us For Availability
JK600
Jack,Fiber Optic LGE EAG37842001 Contact Us For Availability
JK601
Jack,Complex LGE EAG35541101 Contact Us For Availability
JK607
Connector,DSUB LGE 6630TGA004K Contact Us For Availability
JK800
Connector,DSUB LGE 6630TGA005J Contact Us For Availability
JK802
Jack,DIN LGE 6612B00015D Contact Us For Availability
JK802
Jack,DIN LGE EAG39789402 Contact Us For Availability
L302
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
L401
Inductor,Multilayer,Chip LGE EAP40283004 Contact Us For Availability
L402
INDUCTOR,CHIP LGE 0LCML00020B Contact Us For Availability
L601
Filter,Bead LGE EAM38769501 Contact Us For Availability
L711
Inductor,Wire Wound,Chip LGE EAP38274505 Contact Us For Availability
L713
Inductor,Wire Wound,Chip LGE EAP32842802 Contact Us For Availability
LD400
LED,Chip LGE 0DL210009GC Contact Us For Availability
LV1
Harness,Single LGE 6631900109E Contact Us For Availability
P100
Connector,Wafer LGE EAG58732904 Contact Us For Availability
P300
Conector,Wafer LGE 6630V90219A Contact Us For Availability
P303
Connector,Wafer LGE 6630V90141C Contact Us For Availability
P500
WAFER LGE 6602T25009C Contact Us For Availability
P700
Conector,Wafer LGE 6602T20009K Contact Us For Availability
Q302
TRANSISTOR LGE 0TR150400BA Contact Us For Availability
Q401
TR,Bipolar LGE 0TR390609DC Contact Us For Availability
Q401
TRANSISTOR LGE 0TR390609FA Contact Us For Availability
Q501
TRANSISTOR,BIPOLARS LGE 0TRIY80001A Contact Us For Availability
Q804
TR,Bipolar LGE 0TRKE80046A Contact Us For Availability
R101
RESISTOR,METAL GLAZE LGE 0RJ2001D677 Contact Us For Availability
R112
Resistor,Chip LGE 0RJ2203C678 Contact Us For Availability
R113
RESISTOR,METAL GLAZE LGE 0RJ0472D677 Contact Us For Availability
R118
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
R121
RESISTOR,METAL GLAZE LGE 0RJ3900D677 Contact Us For Availability
R129
Resistor,Chip LGE EBC32306001 Contact Us For Availability
R146
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R202
RESISTOR,METAL GLAZE LGE 0RJ0562D677 Contact Us For Availability
R207
RESISTOR,METAL GLAZE LGE 0RJ3000D677 Contact Us For Availability
R212
RESISTOR,METAL GLAZE LGE 0RJ1001D477 Contact Us For Availability
R223
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R314
RESISTOR,METAL GLAZE LGE 0RJ1802D677 Contact Us For Availability
R400
Resistor,Chip LGE 0RJ2201D677 Contact Us For Availability
R402
RESISTOR,METAL GLAZE LGE 0RJ1202D677 Contact Us For Availability
R412
RESISTOR,METAL GLAZE LGE 0RJ2700D677 Contact Us For Availability
R423
RESISTOR,METAL GLAZE LGE 0RJ5101D677 Contact Us For Availability
R498
Resistor,Chip LGE 0RJ0101D677 Contact Us For Availability
R500
Resistor,Chip LGE 0RJ3301D477 Contact Us For Availability
R504
RESISTOR,METAL GLAZE LGE 0RJ0331D677 Contact Us For Availability
R510
Resistor,Chip LGE 0RJ0561D677 Contact Us For Availability
R522
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R610
RESISTOR,METAL GLAZE LGE 0RJ0752D677 Contact Us For Availability
R632
RESISTOR,METAL GLAZE LGE 0RJ1003D677 Contact Us For Availability
R650
RESISTOR,METAL GLAZE LGE 0RJ4703D677 Contact Us For Availability
R655
Resistor,Chip LGE 0RJ8201D677 Contact Us For Availability
R682
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R715
Resistor,Chip LGE 0RJ1242D477 Contact Us For Availability
R720
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R725
RESISTOR,METAL GLAZE LGE 0RJ1202D477 Contact Us For Availability
R756
Resistor,Chip LGE 0RJ4320D477 Contact Us For Availability
R809
Resistor,Chip LGE 0RJ0332C478 Contact Us For Availability
R837
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R1021
RESISTOR,METAL GLAZE LGE 0RJ2202D677 Contact Us For Availability
S1
Harness,Single LGE EAD56480817 Contact Us For Availability
S3
CORD,A/V LGE 6852TAZ006J Contact Us For Availability
S4
Speaker Assembly LGE EAB42188728 Contact Us For Availability
TU400
Tuner,Analog/Digital LGE EBL60152901 Contact Us For Availability
X400
RESONATOR,CRYSTAL LGE 6212AB2872A Contact Us For Availability
× ![]()
