Model LG M2380D-PU – Common Parts & Diagrams

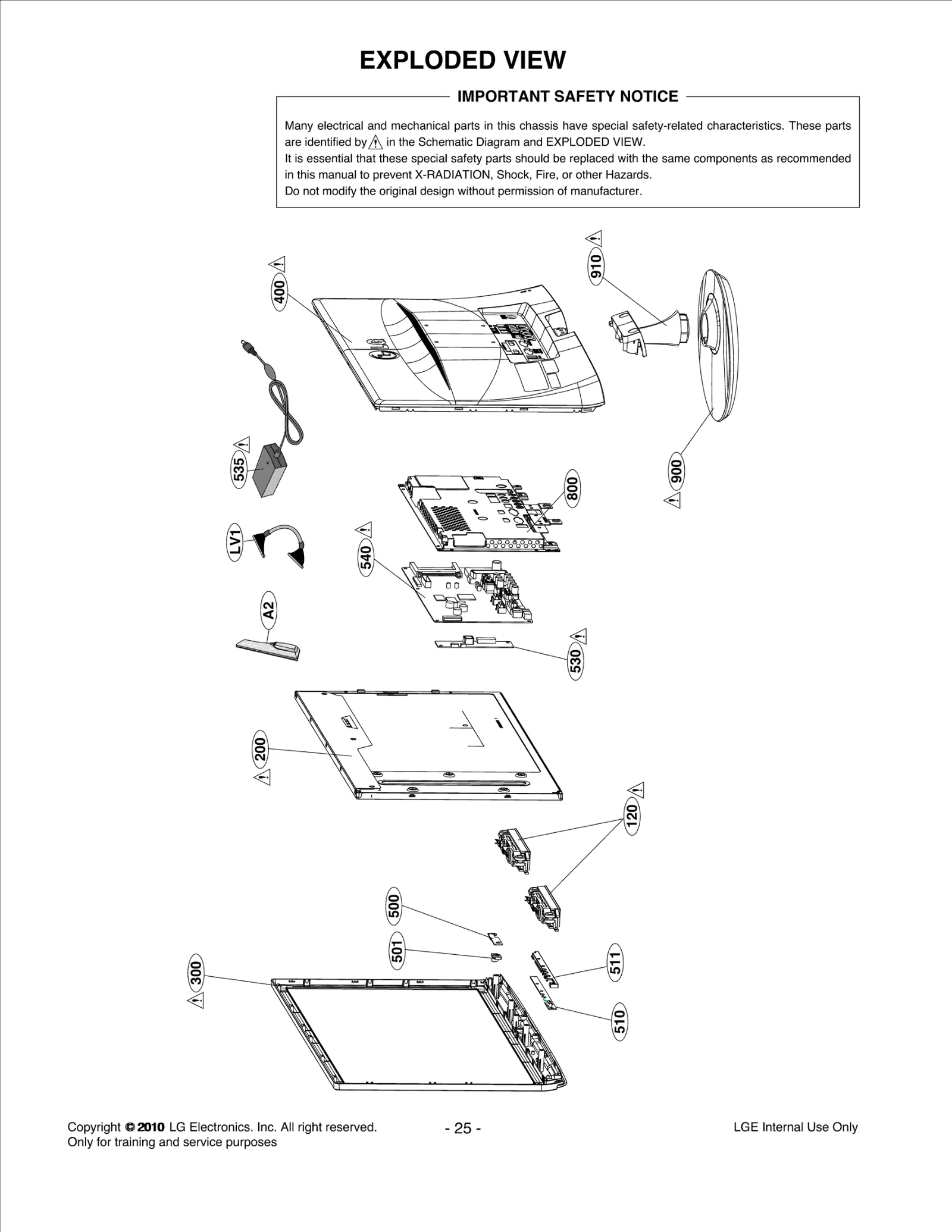

Diagram 0
Diagram 1
Common parts from model LG M2380D-PU
200
LCD,Module-TFT LGE EAJ61931201 Contact Us For Availability
300
Cabinet Assembly LGE ABJ73067321 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ76848537 Contact Us For Availability
501
Lens LGE MFB62033802 Contact Us For Availability
510
Package Assembly LGE AGF75679601 Contact Us For Availability
511
Bracket LGE MAZ62231402 Contact Us For Availability
530
Package Assembly LGE AGF75679408 Contact Us For Availability
535
Adapters LGE EAY61231401 Contact Us For Availability
535
Adapters LGE EAY61231403 Contact Us For Availability
540
Chassis Assembly LGE EBT61150111 Contact Us For Availability
800
Frame Assembly LGE ADV73225719 Contact Us For Availability
900
Base Assembly LGE AAN73208906 Contact Us For Availability
910
Base Assembly LGE AAN73229114 Contact Us For Availability
A2
Remote Controller Assembly LGE AKB72915225 Contact Us For Availability
A3
Power Cord,Detach LGE 6410VUH007B Contact Us For Availability
A5
Bag,Vinyl LGE 3880TVZ021B Contact Us For Availability
A21
Cover,Rear LGE MCK62976201 Contact Us For Availability
A540
BPR Total Assembly LGE EBU60939702 Contact Us For Availability
AR103
Resistor,Array LGE 0RR0222T621 Contact Us For Availability
AR313
Resistor,Array LGE EBC39283301 Contact Us For Availability
AR959
Resistor,Array LGE EBC32260601 Contact Us For Availability
ASDWS
Tape,Polyester LGE RAB33015603 Contact Us For Availability
C101
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C104
Capacitor,Ceramic,Ch LGE 0CK222DK56A Contact Us For Availability
C106
CAPACITOR,FIXED CERA LGE 0CK474DH56A Contact Us For Availability
C109
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C112
Capacitor,Ceramic,Chip LGE EAE61103401 Contact Us For Availability
C114
Capacitor,AL,Chip LGE EAE62301701 Contact Us For Availability
C121
Capacitor,Ceramic,Chip LGE EAE60663801 Contact Us For Availability
C222
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C249
Capacitor,Ceramic,Ch LGE 0CK225DD66A Contact Us For Availability
C406
Capacitor,Ceramic,Ch LGE 0CH5470K618 Contact Us For Availability
C410
Capacitor,Ceramic,Ch LGE 0CC221BKFAA Contact Us For Availability
C416
Capacitor,Ceramic,Chip LGE EAE32246001 Contact Us For Availability
C815
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
C830
Capacitor,Ceramic,Chip LGE 0CK821CK56A Contact Us For Availability
C832
CAPACITOR,FIXED ELEC LGE 0CE106WFKDC Contact Us For Availability
C849
Capacitor,Ceramic,Chip LGE EAE61081701 Contact Us For Availability
C869
Capacitor,AL,Chip LGE 0CZZTAT002B Contact Us For Availability
C883
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C890
Capacitor,Ceramic,Chip LGE EAE42868301 Contact Us For Availability
C909
Capacitor,Ceramic,Chip LGE 0CC560BK41A Contact Us For Availability
C910
CAPACITOR,FIXED CERA LGE 0CC121CK41A Contact Us For Availability
C911
Capacitor,Ceramic,Ch LGE 0CC390BK4AA Contact Us For Availability
C937
Capacitor,Ceramic,Chip LGE EAE58746801 Contact Us For Availability
C946
Capacitor,Ceramic,Ch LGE EAE30281301 Contact Us For Availability
C947
Capacitor,Ceramic,Ch LGE 0CC180BKFAA Contact Us For Availability
C979
CAPACITOR,FIXED CERA LGE 0CK103CK56A Contact Us For Availability
C983
CAPACITOR,FIXED CERA LGE 0CC270CK41A Contact Us For Availability
C988
CAPACITOR,FIXED CERA LGE 0CK104CF56A Contact Us For Availability
C989
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107WF6DC Contact Us For Availability
C1000
CAPACITOR,FIXED ELEC LGE 0CE476WH6DC Contact Us For Availability
C1013
CAPACITOR,FIXED CERA LGE 0CK102CK56A Contact Us For Availability
C1103
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C1110
Capacitor,Ceramic,Ch LGE 0CZZB00035A Contact Us For Availability
C1131
Capacitor,Ceramic,Chip LGE 0CC391CK41A Contact Us For Availability
C1133
Capacitor,Ceramic,Ch LGE 0CK474DK56A Contact Us For Availability
C1139
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C1142
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C1152
Capacitor,Ceramic,Chip LGE 0CK225DF56A Contact Us For Availability
C1166
Capacitor,Ceramic,Chip LGE 0CK475FHG6A Contact Us For Availability
C1202
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
CA1
Harness,Single LGE EAD52821211 Contact Us For Availability
CA4
Harness,Single LGE EAD61170602 Contact Us For Availability
CA11
Harness,Single LGE EAD58345801 Contact Us For Availability
CA12
Harness,Single LGE EAD61169601 Contact Us For Availability
CAB1
CORD,A/V LGE 6852TAZ006J Contact Us For Availability
CAB1
Cable,Assembly LGE 68509F0003A Contact Us For Availability
D100
Diode,Schottky LGE EAH61112701 Contact Us For Availability
D100
Diode,Schottky LGE EAH30471203 Contact Us For Availability
D103
Diode,TVS LGE EAH33945901 Contact Us For Availability
D426
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
D802
Diode,Schottky LGE 0DSKE00048A Contact Us For Availability
D900
Diode,TVS LGE EAH36618701 Contact Us For Availability
D902
Diode,Switching LGE 0DSGD00038A Contact Us For Availability
D1112
DIODE,SWITCHING LGE 0DS226009AA Contact Us For Availability
IC100
IC,LED Driver LGE EAN60866801 Contact Us For Availability
IC100
Display SOC,Digital TV LGE EAN60351702 Contact Us For Availability
IC101
IC,Serial Flash Memory LGE EAN55718402 Contact Us For Availability
IC101
IC,Serial Flash Memory LGE EAN60970401 Contact Us For Availability
IC101
IC,Serial Flash Memory LGE EAN61327101 Contact Us For Availability
IC101
IC,Capacitive Touch Sensor LGE EAN60738604 Contact Us For Availability
IC101
Receiver Module LGE EAV38492101 Contact Us For Availability
IC103
IC,NAND Flash Memory LGE EAN38563401 Contact Us For Availability
IC103
IC,NAND Flash Memory LGE EAN55688101 Contact Us For Availability
IC104
IC,EEPROM LGE EAN43349002 Contact Us For Availability
IC106
IC,EEPROM LGE 0IMMRCS012C Contact Us For Availability
IC300
IC,DDR2 SDRAM LGE EAN55706101 Contact Us For Availability
IC301
IC,DDR2 SDRAM LGE EAN55705501 Contact Us For Availability
IC301
IC,DDR2 SDRAM LGE EAN60762901 Contact Us For Availability
IC602
IC,EEPROM LGE EAN35989901 Contact Us For Availability
IC800
IC,Voltage Regulator LGE 0IKE780500C Contact Us For Availability
IC806
IC,DC,DC Converter LGE EAN50480501 Contact Us For Availability
IC809
IC,Voltage Regulator LGE EAN60994801 Contact Us For Availability
IC810
IC,LDO Voltage Regulator LGE EAN54428201 Contact Us For Availability
IC900
IC,Tuner LGE EAN59284501 Contact Us For Availability
IC903
IC,Receiver LGE EAN58270401 Contact Us For Availability
IC1100
IC,Audio Amplifier LGE EAN60969604 Contact Us For Availability
IC1101
IC,Audio Amplifier LGE EAN60969602 Contact Us For Availability
JK402
Jack,Fiber Optic LGE EAG37842001 Contact Us For Availability
JK603
Jack,DIN LGE EAG59023303 Contact Us For Availability
JK900
Connector,RF LGE EAG60685102 Contact Us For Availability
JK1100
Jack,Phone LGE EAG60841803 Contact Us For Availability
L100
Inductor,Wire Wound,Chip LGE EAP61007301 Contact Us For Availability
L804
Inductor,Wire Wound,Chip LGE EAP36703101 Contact Us For Availability
L811
Inductor,Wire Wound,Chip LGE EAP38274505 Contact Us For Availability
L812
Inductor,Wire Wound,Chip LGE EAP32842802 Contact Us For Availability
L903
Inductor,Wire Wound,Chip LGE EAP59193501 Contact Us For Availability
L905
Inductor,Wire Wound,Chip LGE EAP59177601 Contact Us For Availability
L907
Inductor,Multilayer,Chip LGE EAP59064201 Contact Us For Availability
L908
Inductor,Wire Wound,Chip LGE EAP60692801 Contact Us For Availability
L912
Filter,Bead LGE EAM58113401 Contact Us For Availability
LD101
LED,Chip LGE EAV51534002 Contact Us For Availability
LD900
LED,Chip LGE 0DL210009GC Contact Us For Availability
LV1
Cable,FFC LGE EAD61486402 Contact Us For Availability
LV2
Cable,FFC LGE EAD61217830 Contact Us For Availability
P100
Connector,Wafer LGE EAG58732906 Contact Us For Availability
P101
Connector,Wafer LGE 6630V90141B Contact Us For Availability
P104
Connector,Wafer LGE EAG62611101 Contact Us For Availability
P400
Connector,DSUB LGE 6630TGA004Q Contact Us For Availability
P401
Connector,DSUB LGE 6630G00001E Contact Us For Availability
P1100
Connector,Wafer LGE EAG61091601 Contact Us For Availability
P1101
Connector,Wafer LGE 6602T20009A Contact Us For Availability
Q605
TRANSISTOR,BIPOLARS LGE 0TRIY80001A Contact Us For Availability
Q803
FET LGE EBK60706901 Contact Us For Availability
Q805
FET LGE EBK38029201 Contact Us For Availability
R107
Resistor,Chip LGE 0RJ1000D477 Contact Us For Availability
R110
Resistor,Chip LGE 0RJ1003D477 Contact Us For Availability
R113
Resistor,Chip LGE 0RH1602D422 Contact Us For Availability
R115
RESISTOR CHIP, 10K 1/10W 1% D LGE 0RH1002D422 Contact Us For Availability
R117
Resistor,Chip LGE 0RJ2002D477 Contact Us For Availability
R118
Resistor,Chip LGE 0RH7501D422 Contact Us For Availability
R121
Resistor,Chip LGE 0RJ0100J488 Contact Us For Availability
R124
Resistor,Chip LGE 0RJ1201C678 Contact Us For Availability
R132
Resistor,Chip LGE 0RH5603D622 Contact Us For Availability
R188
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R205
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R225
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
R235
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R251
Resistor,Chip LGE 0RJ3900E472 Contact Us For Availability
R305
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R310
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R326
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R401
RESISTOR,METAL GLAZE LGE 0RJ0752D677 Contact Us For Availability
R412
Resistor,Chip LGE 0RJ0752C678 Contact Us For Availability
R415
Resistor,Chip LGE 0RJ0752C478 Contact Us For Availability
R434
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R437
RESISTOR,METAL GLAZE LGE 0RJ6201D677 Contact Us For Availability
R445
RESISTOR,METAL GLAZE LGE 0RJ1502D677 Contact Us For Availability
R603
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R630
Resistor,Chip LGE 0RJ2001C678 Contact Us For Availability
R632
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R661
Resistor,Chip LGE 0RJ0561C678 Contact Us For Availability
R668
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R806
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R813
Resistor,Chip LGE 0RH1102D422 Contact Us For Availability
R815
RESISTOR,METAL GLAZE LGE 0RJ1002D477 Contact Us For Availability
R820
Resistor,Chip LGE 0RJ1203C478 Contact Us For Availability
R821
RESISTOR,METAL GLAZE LGE 0RJ5902C477 Contact Us For Availability
R828
Resistor,Chip LGE 0RJ2402D677 Contact Us For Availability
R834
RESISTOR,METAL GLAZE LGE 0RJ2202D677 Contact Us For Availability
R837
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R845
Resistor,Chip LGE 0RJ2702D477 Contact Us For Availability
R847
RESISTOR,METAL GLAZE LGE 0RJ1502D477 Contact Us For Availability
R850
RESISTOR,METAL GLAZE LGE 0RJ2001D477 Contact Us For Availability
R851
RESISTOR,METAL GLAZE LGE 0RJ6801D477 Contact Us For Availability
R857
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R914
RESISTOR,METAL GLAZE LGE 0RJ0102D677 Contact Us For Availability
R920
Resistor,Chip LGE 0RJ3900C678 Contact Us For Availability
R952
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R967
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R971
RESISTOR,METAL GLAZE LGE 0RJ3900D677 Contact Us For Availability
R1003
RESISTOR,METAL GLAZE LGE 0RJ1802D677 Contact Us For Availability
R1110
RESISTOR,METAL GLAZE LGE 0RJ0471D677 Contact Us For Availability
R1115
RESISTOR,METAL GLAZE LGE 0RJ2701D677 Contact Us For Availability
R1118
RESISTOR CHIP 220K 1/10W 5 D. LGE 0RH2203D622 Contact Us For Availability
R1148
RESISTOR,METAL GLAZE LGE 0RJ0331D677 Contact Us For Availability
R1158
RESISTOR,METAL GLAZE LGE 0RJ1202D677 Contact Us For Availability
X900
Crystal LGE EAW58812609 Contact Us For Availability
X902
Crystal LGE 6212AB2015C Contact Us For Availability
× ![]()
Login and Registration Form
