Model LG M237WD-PM – Common Parts & Diagrams

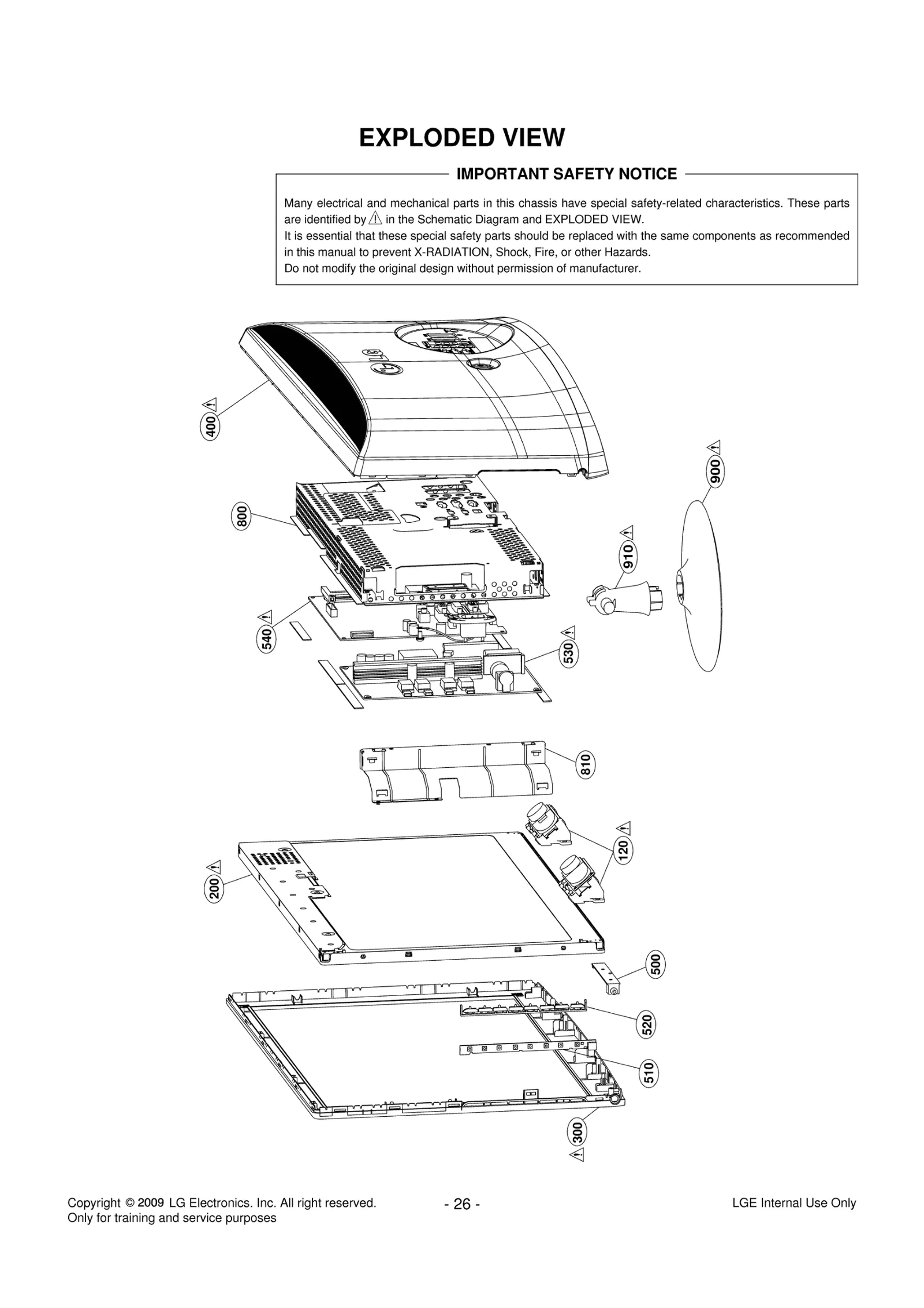

Diagram 0
Diagram 1
Common parts from model LG M237WD-PM
120
Speaker Assembly LGE EAB54372902 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ60682701 Contact Us For Availability
300
Cabinet Assembly LGE ABJ71579803 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ70021503 Contact Us For Availability
500
PCB Assembly,Sub LGE EBR54937302 Contact Us For Availability
510
PCB Assembly,Sidekey LGE EBR51429202 Contact Us For Availability
520
Knob LGE MEY51198201 Contact Us For Availability
530
Power Supply Assembly LGE EAY38520202 Contact Us For Availability
540
Main Total Assembly LGE EBU60312701 Contact Us For Availability
800
Frame Assembly LGE ADV67001603 Contact Us For Availability
810
Plate,Shield LGE MGJ53461901 Contact Us For Availability
900
Base Assembly LGE AAN55939301 Contact Us For Availability
910
Base Assembly LGE AAN59842501 Contact Us For Availability
A1
S/W Package LGE SAB33696702 Contact Us For Availability
A2
Remote Controller LGE MKJ36998117 Contact Us For Availability
A4
CORD,A/V LGE 6852TAZ006J Contact Us For Availability
A5
CABLE,D-SUB LGE 6850TD9007D Contact Us For Availability
AR207
Resistor,Chip LGE 0RJ0222C692 Contact Us For Availability
AR401
Resistor,Array LGE EBC32260601 Contact Us For Availability
C1
Harness,Single LGE EAD39295745 Contact Us For Availability
C3
Harness,Single LGE EAD35865801 Contact Us For Availability
C5
Harness,Single LGE 6631900109E Contact Us For Availability
C139
CAPACITOR,FIXED CERA LGE 0CK473CK56A Contact Us For Availability
C145
CAPACITOR,FIXED CERA LGE 0CC270CK41A Contact Us For Availability
C149
CAPACITOR,FIXED CERA LGE 0CK475EF56A Contact Us For Availability
C200
CAPACITOR,FIXED CERA LGE 0CK475CC94A Contact Us For Availability
C400
Capacitor,Ceramic,Chip LGE 0CK225DF56A Contact Us For Availability
C405
Capacitor,AL,Chip LGE EAE30840301 Contact Us For Availability
C409
Capacitor,Ceramic,Chip LGE 0CH5470K416 Contact Us For Availability
C421
CAPACITOR,FIXED CERA LGE 0CK271CK46A Contact Us For Availability
C431
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C440
Capacitor,Ceramic,Chip LGE 0CH5220K416 Contact Us For Availability
C504
CAPACITOR,FIXED CERA LGE 0CK333CK56A Contact Us For Availability
C507
Capacitor,Ceramic,Ch LGE 0CK334DK56A Contact Us For Availability
C508
CAPACITOR,FIXED CERA LGE 0CK475FH67A Contact Us For Availability
C549
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107WF6DC Contact Us For Availability
C552
Capacitor,Ceramic,Chip LGE 0CK224CFG6A Contact Us For Availability
C564
CAPACITOR,FIXED CERA LGE 0CK102CK56A Contact Us For Availability
C570
CAPACITOR,FIXED ELEC LGE 0CE106WFKDC Contact Us For Availability
C574
Capacitor,TA,Niobium LGE 0CH7475F621 Contact Us For Availability
C581
Capacitor,Ceramic,Chip LGE 0CK472CK56A Contact Us For Availability
C583
CAPACITOR,FIXED CERA LGE 0CK222CK56A Contact Us For Availability
C584
CAPACITOR,FIXED CERA LGE 0CK104CF56A Contact Us For Availability
C598
CAPACITOR,FIXED ELEC LGE 0CE476WH6DC Contact Us For Availability
C606
Capacitor,Ceramic,Chip LGE 0CC561CK41A Contact Us For Availability
C612
CAPACITOR,FIXED CERA LGE 0CC331CK41A Contact Us For Availability
C633
Capacitor,Ceramic,Chip LGE 0CH5680K416 Contact Us For Availability
C711
CAPACITOR,FIXED ELEC LGE 0CE475WJ6DC Contact Us For Availability
C714
CAPACITOR,FIXED ELEC LGE 0CE227WF6DC Contact Us For Availability
C717
CAPACITOR,FIXED ELEC LGE 0CE107WH6DC Contact Us For Availability
C725
CAPACITOR,FIXED CERA LGE 0CK105EJ56A Contact Us For Availability
C744
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C758
CAPACITOR,FIXED ELEC LGE 0CE476WC6DC Contact Us For Availability
C762
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C781
Capacitor,AL,Chip LGE EAE34990901 Contact Us For Availability
C795
CAPACITOR,FIXED CERA LGE 0CK474DH56A Contact Us For Availability
C797
Capacitor,Ceramic,Chip LGE EAE50191801 Contact Us For Availability
C799
CAPACITOR,FIXED ELEC LGE 0CE477WF6DC Contact Us For Availability
C818
CAPACITOR,FIXED CERA LGE 0CK103CK56A Contact Us For Availability
D401
Diode,Switching LGE 0DSGD00038A Contact Us For Availability
D606
Diode,TVS LGE EAH33945901 Contact Us For Availability
D812
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
IC101
IC,Video Processors LGE EAN37156404 Contact Us For Availability
IC104
IC,Voltage Detector LGE 0IKE704200C Contact Us For Availability
IC106
S/W,Firmware LGE SAA32955149 Contact Us For Availability
IC200
Receiver Module LGE EAV38492101 Contact Us For Availability
IC201
IC,DDR SDRAM LGE EAN31729202 Contact Us For Availability
IC400
IC,Data Controller LGE 0ICTMLG019C Contact Us For Availability
IC501
IC,Audio Amplifier LGE EAN60354701 Contact Us For Availability
IC502
IC,PERIPHERALS LGE 0IPRPTI034B Contact Us For Availability
IC701
IC,LDO Voltage Regul LGE 0IPMGS1010A Contact Us For Availability
IC704
IC,DC,DC Converter LGE EAN33143501 Contact Us For Availability
IC709
IC,LDO Voltage Regul LGE 0IPMG78346A Contact Us For Availability
IC802
IC,EEPROM LGE 0IMMRAL014D Contact Us For Availability
IC803
IC,Analog Switch LGE EAN41347201 Contact Us For Availability
JK200
Jack,Phone LGE 6612F00001B Contact Us For Availability
JK600
Jack,Fiber Optic LGE EAG37842001 Contact Us For Availability
JK601
Jack,Complex LGE EAG35541101 Contact Us For Availability
JK606
Jack,Phone LGE 6612F00099E Contact Us For Availability
JK607
Connector,DSUB LGE 6630TGA004K Contact Us For Availability
JK800
Connector,DSUB LGE 6630TGA005J Contact Us For Availability
JK801
Jack,DIN LGE 6612B00015C Contact Us For Availability
JK801
Jack,DIN LGE EAG39789401 Contact Us For Availability
L402
INDUCTOR,CHIP LGE 0LCML00020B Contact Us For Availability
L602
Filter,Bead LGE EAM38769501 Contact Us For Availability
L605
Filter,Bead LGE EAM32500506 Contact Us For Availability
L606
Filter,Bead LGE EAM30764101 Contact Us For Availability
L716
Inductor,Wire Wound,Chip LGE 0LCTA00003A Contact Us For Availability
L725
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
L730
Inductor,Wire Wound, LGE EAP32842806 Contact Us For Availability
LD200
LED,DIP LGE 0DLGP0080AA Contact Us For Availability
LD400
LED,Chip LGE 0DL210009GC Contact Us For Availability
P201
Connector,Wafer LGE 6630V100210 Contact Us For Availability
P202
Connector,Wafer LGE 6602T12004B Contact Us For Availability
P302
Conector,Wafer LGE 6630V90219A Contact Us For Availability
P500
WAFER LGE 6602T25009C Contact Us For Availability
P700
Conector,Wafer LGE 6602T20009K Contact Us For Availability
P1000
Connector,Wafer LGE 6602T12005B Contact Us For Availability
Q101
TRANSISTOR LGE 0TR390609FA Contact Us For Availability
Q500
TRANSISTOR LGE 0TR390409AE Contact Us For Availability
Q601
TRANSISTOR,BIPOLARS LGE 0TRIY80001A Contact Us For Availability
Q700
FET LGE EBK38029201 Contact Us For Availability
R114
RESISTOR,METAL GLAZE LGE 0RJ0472D677 Contact Us For Availability
R121
RESISTOR,METAL GLAZE LGE 0RJ3900D677 Contact Us For Availability
R129
Resistor,Chip LGE EBC32306001 Contact Us For Availability
R147
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R199
RESISTOR,METAL GLAZE LGE 0RJ0562D677 Contact Us For Availability
R201
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R207
RESISTOR,METAL GLAZE LGE 0RJ3000D677 Contact Us For Availability
R208
RESISTOR,METAL GLAZE LGE 0RJ1001D477 Contact Us For Availability
R307
Resistor,Chip LGE 0RJ3301D477 Contact Us For Availability
R320
Resistor,Chip LGE 0RJ1201D677 Contact Us For Availability
R336
RESISTOR,METAL GLAZE LGE 0RJ2200D677 Contact Us For Availability
R423
RESISTOR,METAL GLAZE LGE 0RJ5101D677 Contact Us For Availability
R549
RESISTOR,METAL GLAZE LGE 0RJ2000D477 Contact Us For Availability
R554
RESISTOR,METAL GLAZE LGE 0RJ2202D677 Contact Us For Availability
R555
RESISTOR,METAL GLAZE LGE 0RJ0331D677 Contact Us For Availability
R601
RESISTOR,METAL GLAZE LGE 0RJ0752D677 Contact Us For Availability
R622
RESISTOR,METAL GLAZE LGE 0RJ1202D677 Contact Us For Availability
R630
RESISTOR,METAL GLAZE LGE 0RJ1003D677 Contact Us For Availability
R650
RESISTOR,METAL GLAZE LGE 0RJ4703D677 Contact Us For Availability
R651
RESISTOR,METAL GLAZE LGE 0RJ5603D677 Contact Us For Availability
R703
RESISTOR,METAL GLAZE LGE 0RJ2001D677 Contact Us For Availability
R725
Resistor,Chip LGE 0RJ2002D477 Contact Us For Availability
R726
RESISTOR,METAL GLAZE LGE 0RJ1002D477 Contact Us For Availability
R756
Resistor,Chip LGE 0RJ4320D477 Contact Us For Availability
R772
Resistor,Chip LGE 0RJ0471G676 Contact Us For Availability
R782
Resistor,Chip LGE 0RJ5602D477 Contact Us For Availability
R786
Resistor,Chip LGE 0RJ1242D477 Contact Us For Availability
R800
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R820
Resistor,Chip LGE 0RJ0332C478 Contact Us For Availability
R840
Resistor,Chip LGE 0RJ0182D677 Contact Us For Availability
R841
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R858
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R1000
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R1002
Resistor,Chip LGE 0RJ6801D677 Contact Us For Availability
R1004
Resistor,Chip LGE 0RJ2201D677 Contact Us For Availability
SW1002
Switch,Tact LGE EBF55334201 Contact Us For Availability
SW1002
SWITCH,TACT LGE 6600R00004C Contact Us For Availability
TU400
Tuner,Analog/Digital LGE EBL37676801 Contact Us For Availability
X400
RESONATOR,CRYSTAL LGE 6212AB2872A Contact Us For Availability
× ![]()
